Page 341 of 539

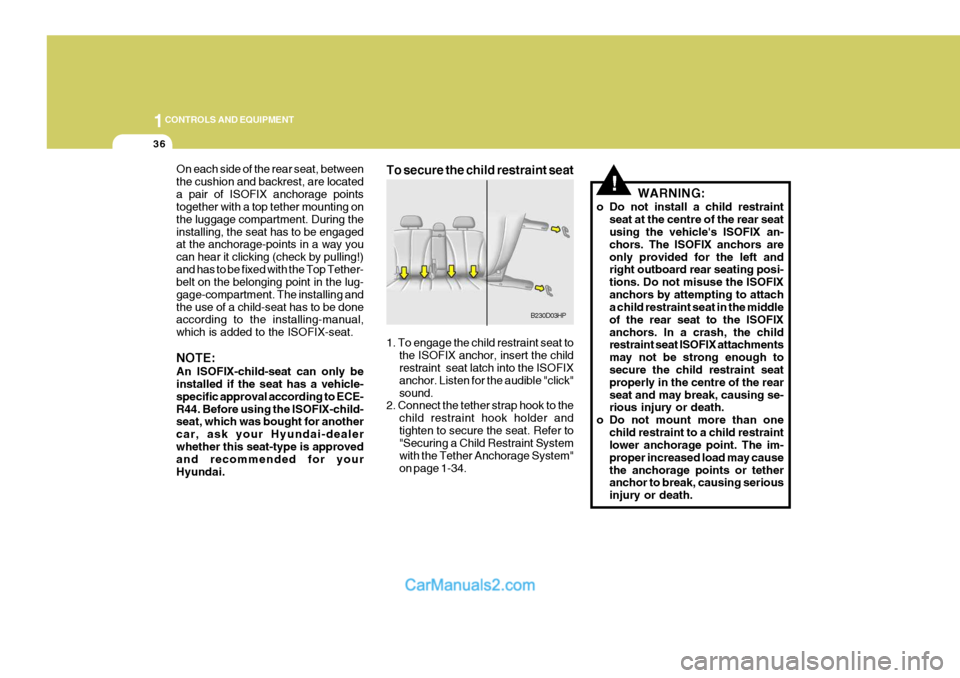

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
36
!
On each side of the rear seat, between the cushion and backrest, are locateda pair of ISOFIX anchorage points together with a top tether mounting on the luggage compartmen

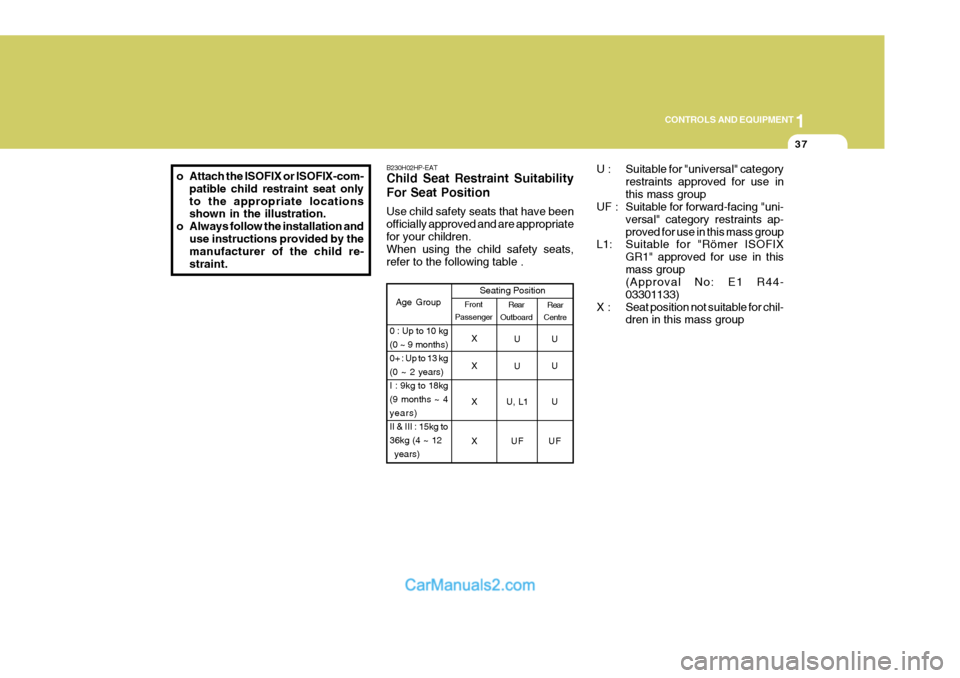

Page 342 of 539

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
37
o Attach the ISOFIX or ISOFIX-com-
patible child restraint seat only to the appropriate locations shown in the illustration.
o Always follow the installation and use instru

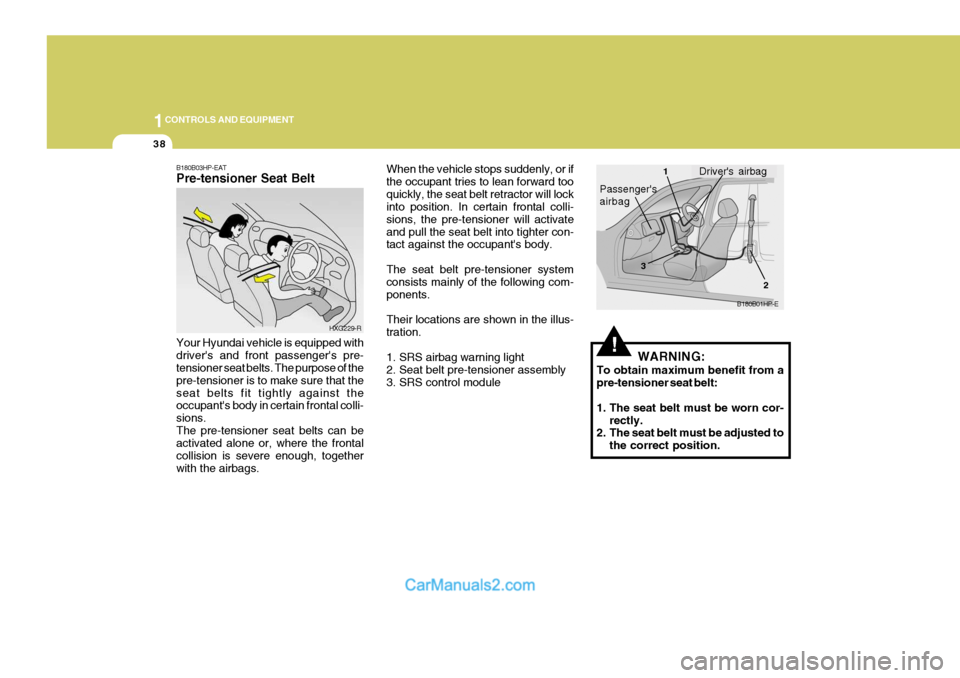

Page 343 of 539

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
38
!
B180B03HP-EAT Pre-tensioner Seat Belt Your Hyundai vehicle is equipped with drivers and front passengers pre- tensioner seat belts. The purpose of the pre-tensioner is t

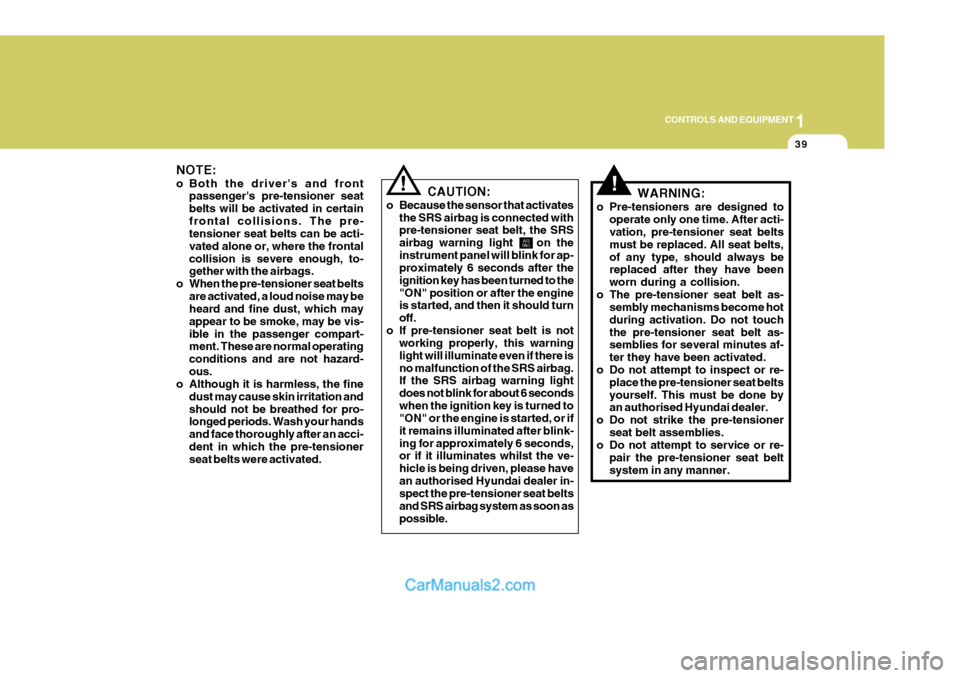

Page 344 of 539

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
39
NOTE:
o Both the drivers and front passengers pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated a

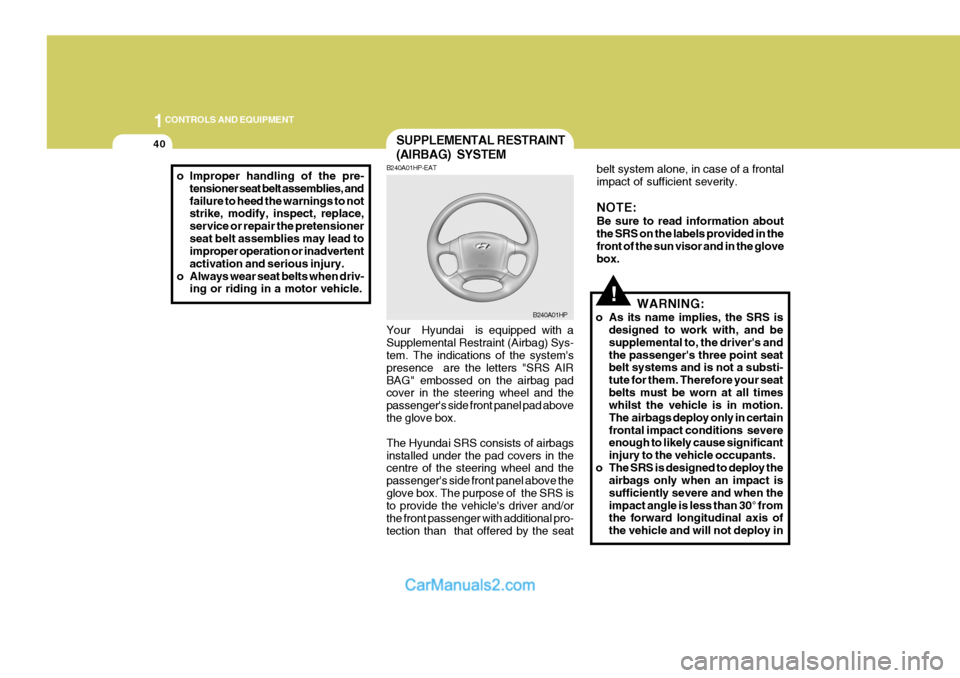

Page 345 of 539

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
40
o Improper handling of the pre-
tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, inspect, replace, service or repair the pretensioners

Page 346 of 539

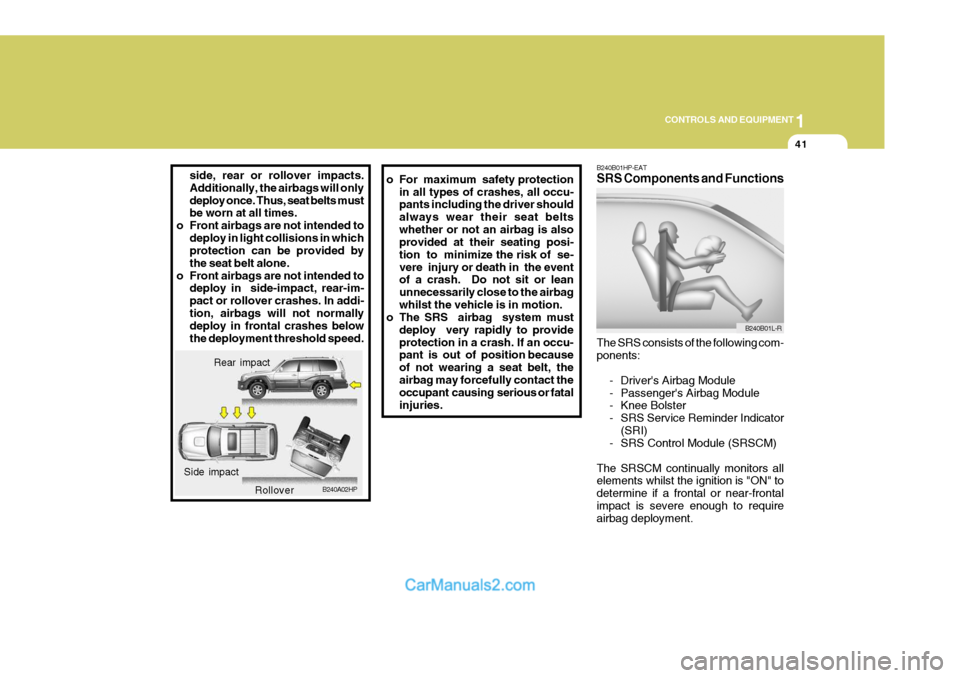

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
41
side, rear or rollover impacts. Additionally, the airbags will onlydeploy once. Thus, seat belts must be worn at all times.
o Front airbags are not intended to
deploy in li

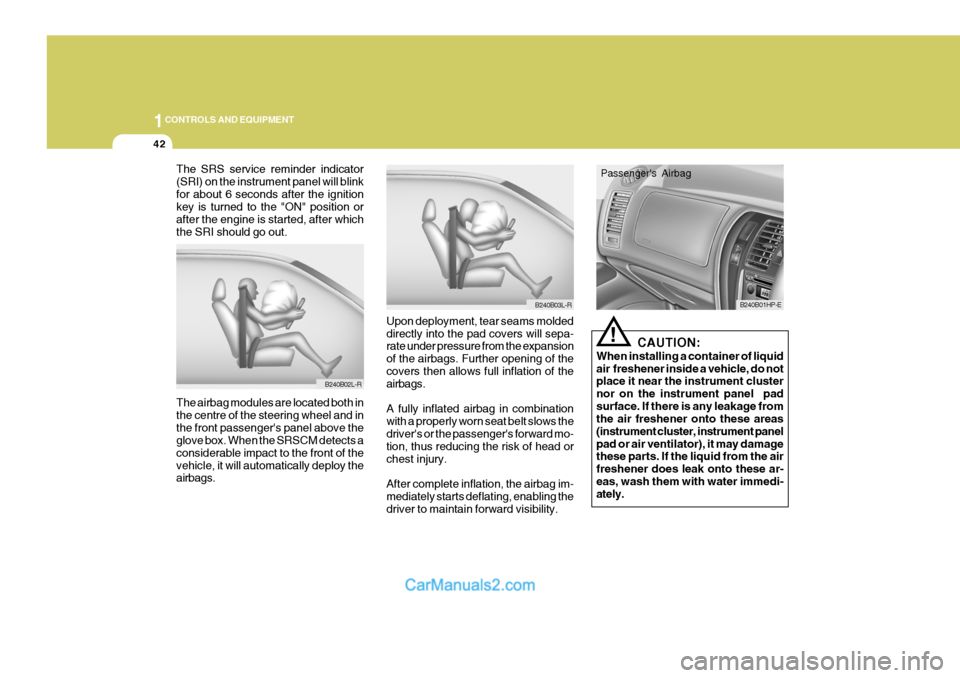

Page 347 of 539

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
42
The SRS service reminder indicator (SRI) on the instrument panel will blinkfor about 6 seconds after the ignition key is turned to the "ON" position or after the engine is s

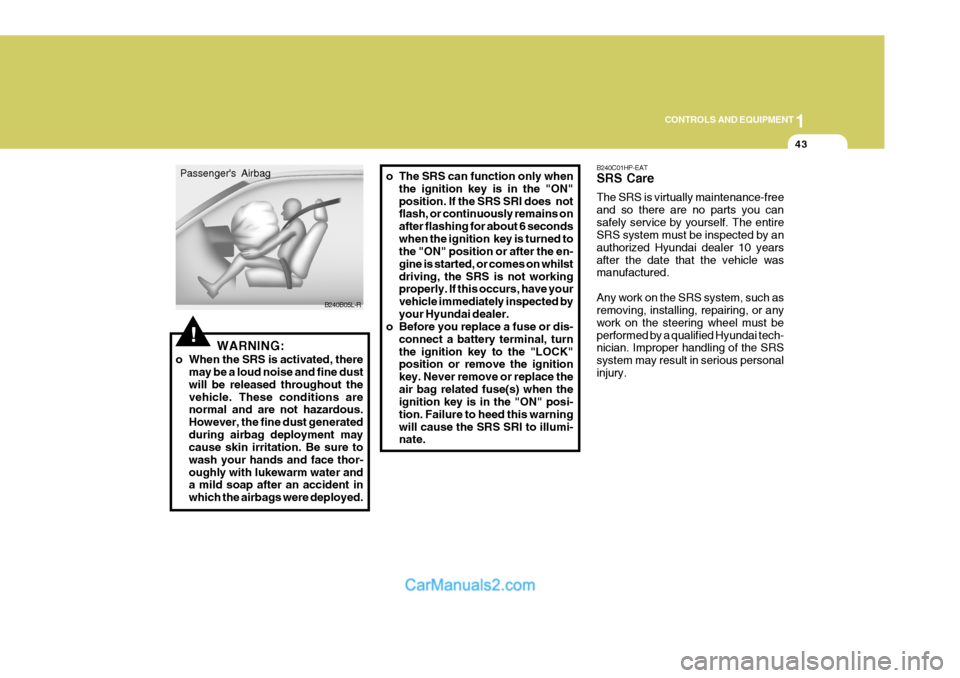

Page 348 of 539

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
43
!WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout thevehicle. These conditions are normal and are not hazardous. Ho

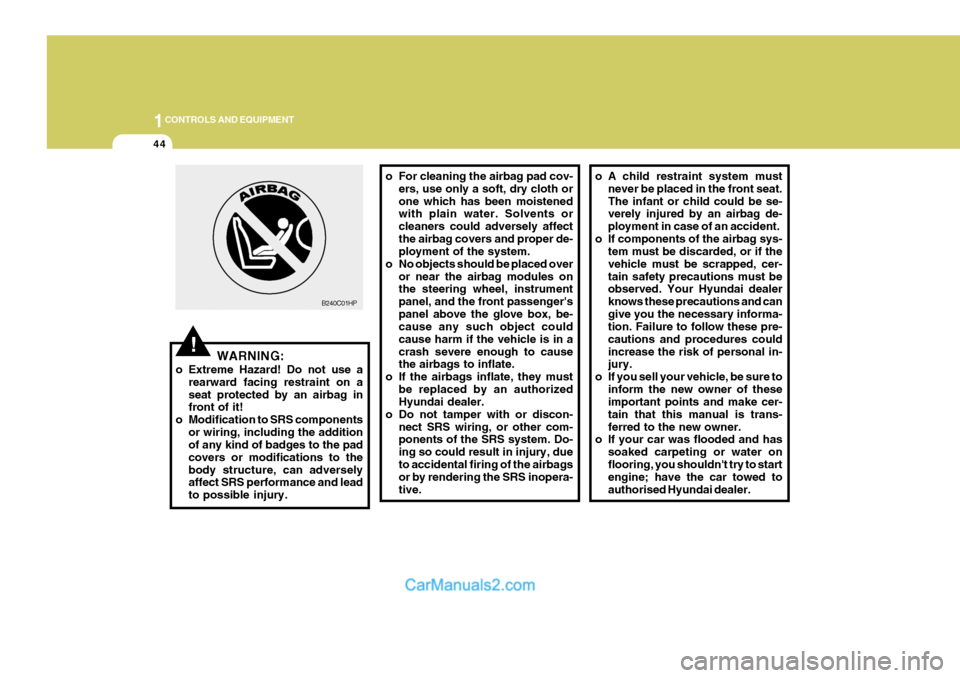

Page 349 of 539

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
44
!WARNING:
o Extreme Hazard! Do not use a rearward facing restraint on a seat protected by an airbag in front of it!
o Modification to SRS components
or wiring, including the

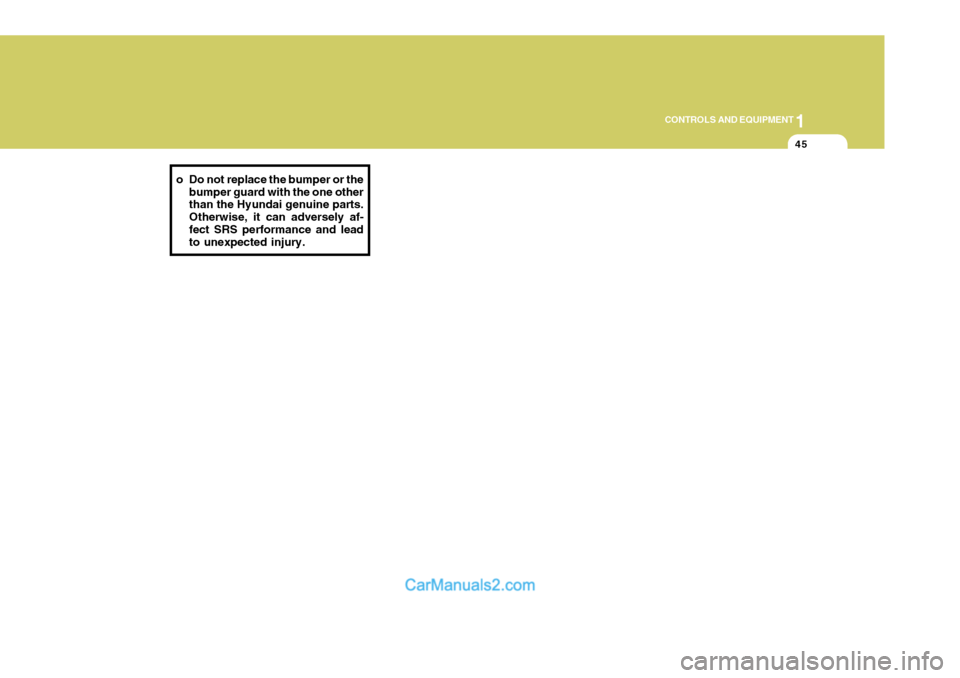

Page 350 of 539

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
45
o Do not replace the bumper or the
bumper guard with the one other than the Hyundai genuine parts. Otherwise, it can adversely af-fect SRS performance and lead to unexpecte
