ACS-12
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2004 November 2004 FX35/FX45
LASER BEAM AIMING ADJUSTMENTPFP:00026
OutlineAKS006YI
Adjust the laser beam aiming every time the ICC sensor is removed or installed.
CAUTION:
Place the vehicle on the level ground when the laser beam aiming adjustment is operated.
Follow the CONSULT-II when adjusting the Laser beam aiming (Laser beam aiming adjustment
cannot be operated without CONSULT-II).
PreparationAKS006YJ
Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure value.
See that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
Shift the gear into “P” position and release the parking brake.
Clean the sensor with a soft cloth.
Outline of Adjustment ProcedureAKS006YK
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSULT-II (Turn manually the screw for up-down position
adjustment. ICC sensor automatically adjust the right-left position.).
Setting the ICC Target BoardAKS006YL
Accurate ICC target board setting is required for the laser beam aiming adjustment.
CAUTION:
ICC system does not function normally if laser beam aiming is not accurate.
ADJUSTING HEIGHT OF THE TARGET
1. Attach a triangle scale as shown in the right figure.
SKIA6179E
SKIA5974E
Page 22 of 4449
LASER BEAM AIMING ADJUSTMENT
ACS-13
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2004 November 2004 FX35/FX45
2. Adjust the height of the target stand so that the point of the trian-
gle aims the center of the ICC sensor.
ADJUSTING THE RIGHT-LEFT POSITION OF THE TARGET
1. Attach a scale (at least 350 mm [14 in] or longer) or stick as
shown in the figure.
2. Suspend a thread with weight on the tip of the thread to 310 mm
(12.2 in) left side of the target board from the center of the tar-
get board on top.
SETTING THE TARGET
1. Suspend a thread with weight on tip to splice the center of the front and back bumpers. Then, mark the
center point on the ground as each weight points.
2. Link the front and back bumpers center points marked on the ground, and mark a point 5 m ahead of the
sensor, on the extended line of the previous link line of the bumper center points. Then, adjust the position
of the target board so that the weight come on the top of the marked point (5 m ahead of the sensor) and
face to the vehicle.
3. Adjust the position of the target board so that the extended line
that links the center of the rear window (the center of the rear
window defogger pattern) and the center of the front windshield
(the setting part of the room mirror) align with the weight sus-
pended from the board.
4. Remove the thread suspended to the left side of board and suspend a thread with weight on tip on the
center of the target board.Then mark the point of weight on the ground.
SKIA6180E
SKIA1211E
SKIA5975E
SKIA1213E
Page 23 of 4449
ACS-14
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2004 November 2004 FX35/FX45
5. Pivot the edge of the target board 20° to either side.
NOTE:
Approx. 50 mm (1.97 in) shift rates the 20° movement.
6. Do not place anything in the space shown in the figure (view from top).
NOTE:
In case the space shown in the illustration is not available, make space by covering the side of the target
board with a 400 mm (15.75 in)-size frosted black board or black cloth.
Aiming AdjustmentAKS006YM
CAUTION:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown
in the procedure. If the procedure does not complete, the ICC system is inoperable.
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER on the
data link connector.
PKIA2589E
SKIA5976E
SKIA1216E
PBIB1503E
Page 24 of 4449
LASER BEAM AIMING ADJUSTMENT
ACS-15
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2004 November 2004 FX35/FX45
3. Start the engine, wait for at least 10 sec., and touch “START
(NISSAN BASED VHCL)”.
4. Touch “ICC”.
If “ICC” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “WORK SUPPORT”.
6. Touch “LASER BEAM ADJUST”.
7. Touch “START”.
CAUTION:
If the adjustment screen does not appear on CONSULT-II 10
sec. after touching “LASER BEAM ADJUST” screen, the fol-
lowing causes may be considered:
Target is not set accurately.
There is not enough space beside the target.
Deformation of vehicle or the surrounding equipment
unit, bracket, or the surrounding equipment is causing
inappropriate installation of sensor and aiming may be
set out of the adjustable range.
SKIA3098E
SKIA6193E
PKIA8867E
SKIA6191E
SKIA1220E
Page 25 of 4449
ACS-16
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2004 November 2004 FX35/FX45
The area is not suitable for the adjustment work.
ICC sensor is not clean.
8. After the CONSULT-II displays “ADJUST THE VERTICAL OF
LASER” turn the up-down direction adjusting screw until “U/D
CORRECT” value is set in the range of ±4.
CAUTION:
Turn the screw slowly. The value change on display is
slower than actual movement of the ICC sensor. Wait for 2
seconds every time the screw is turned half a rotation.
NOTE:
Turning the screw to the right lowers the aiming and to the left
lifts the aiming.
9. When “U/D CORRECT” value indicates ±4, confirm that the margin of value remains within ±4 at least for
2 seconds with no equipment or hand touching the ICC sensor.
When “COMPLETED THE VERTICAL AIMING OF LASER
BEAM” appears on screen, touch “END”.
CAUTION:
Be sure that the margin of “U/D CORRECT” is within ±4 with
ICC sensor unit is untouched.
10. Confirm that “ADJUSTING AUTOMATIC HORIZONTAL LASER
BEAM AIMING” is on screen and wait for a while (maximum: 10
seconds).
SKIA1221E
SKIA6181E
SKIA1223E
SKIA1224E
Page 26 of 4449
LASER BEAM AIMING ADJUSTMENT
ACS-17
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2004 November 2004 FX35/FX45
11. Confirm that “NORMALLY COMPLETED” is displayed on CON-
SULT-II and close the aiming adjustment procedure by touching
“END”.
CAUTION:
Complete all the procedures once “LASER BEAM ADJUST”
mode is entered in CONSULT-II. When the procedure is dis-
continued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by running test. Refer to ACS-9, "ICC System Running Test" .
SKIA1225E
Page 27 of 4449
ACS-18
[ICC]

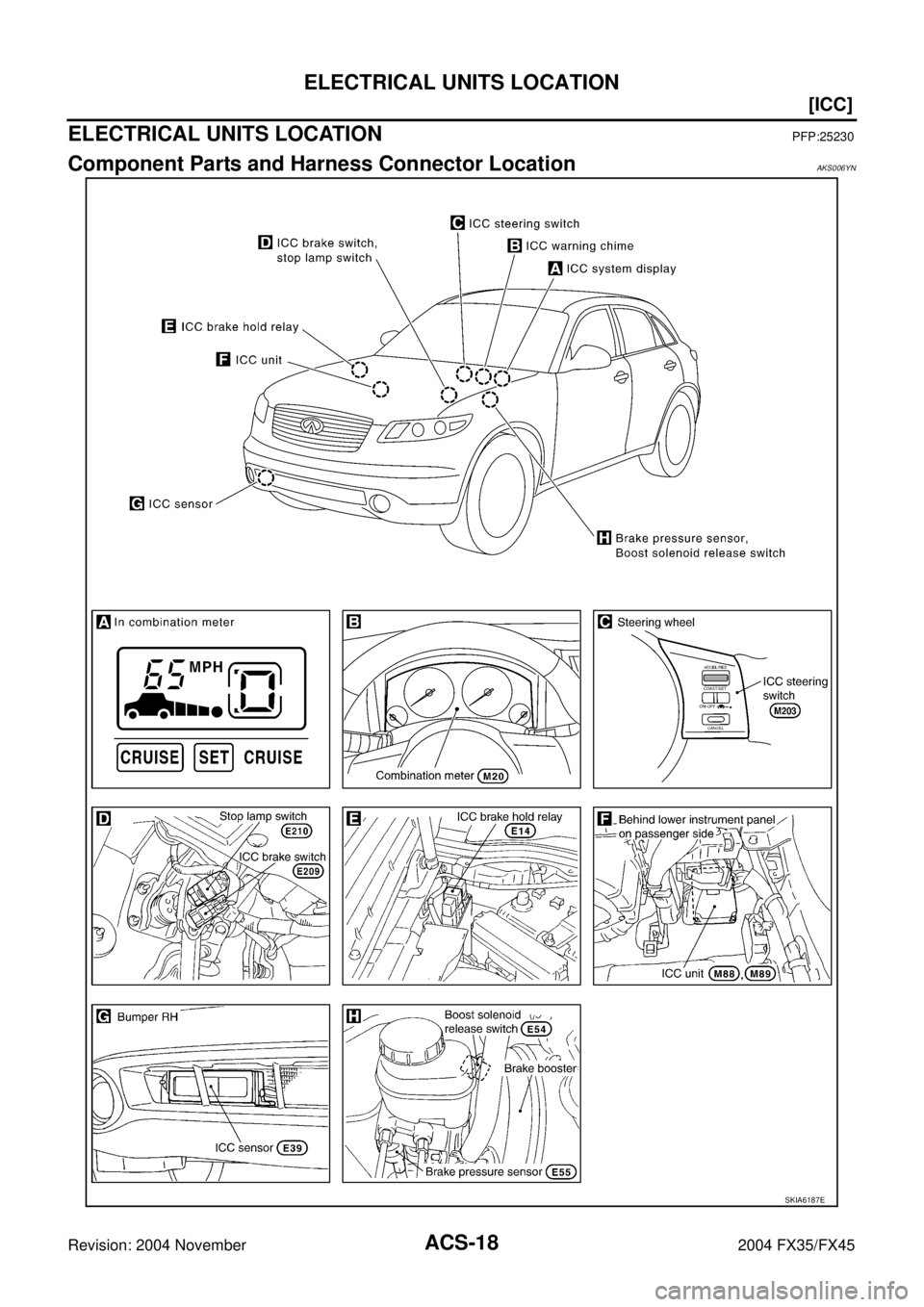

ELECTRICAL UNITS LOCATION
