LAN-100
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
11 8 , "Circuit Check Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit" .
PKIA7967E
SKIA6587E
Page 3402 of 4449
CAN SYSTEM (TYPE 3)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

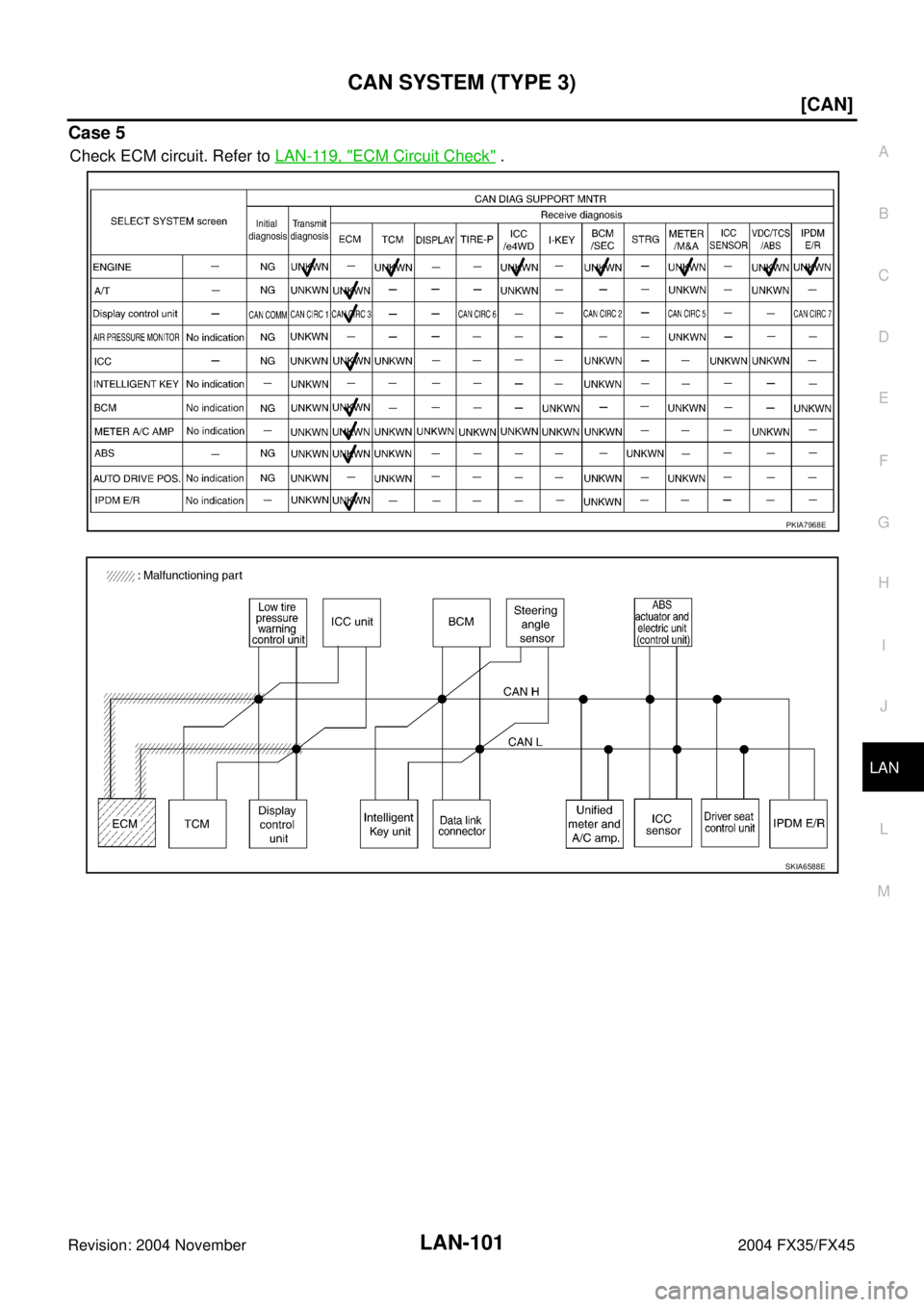

Case 5
Check ECM circuit. Refer to LAN-119, "ECM Circuit Check" .
PKIA7968E
SKIA6588E
Page 3403 of 4449
LAN-102
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45

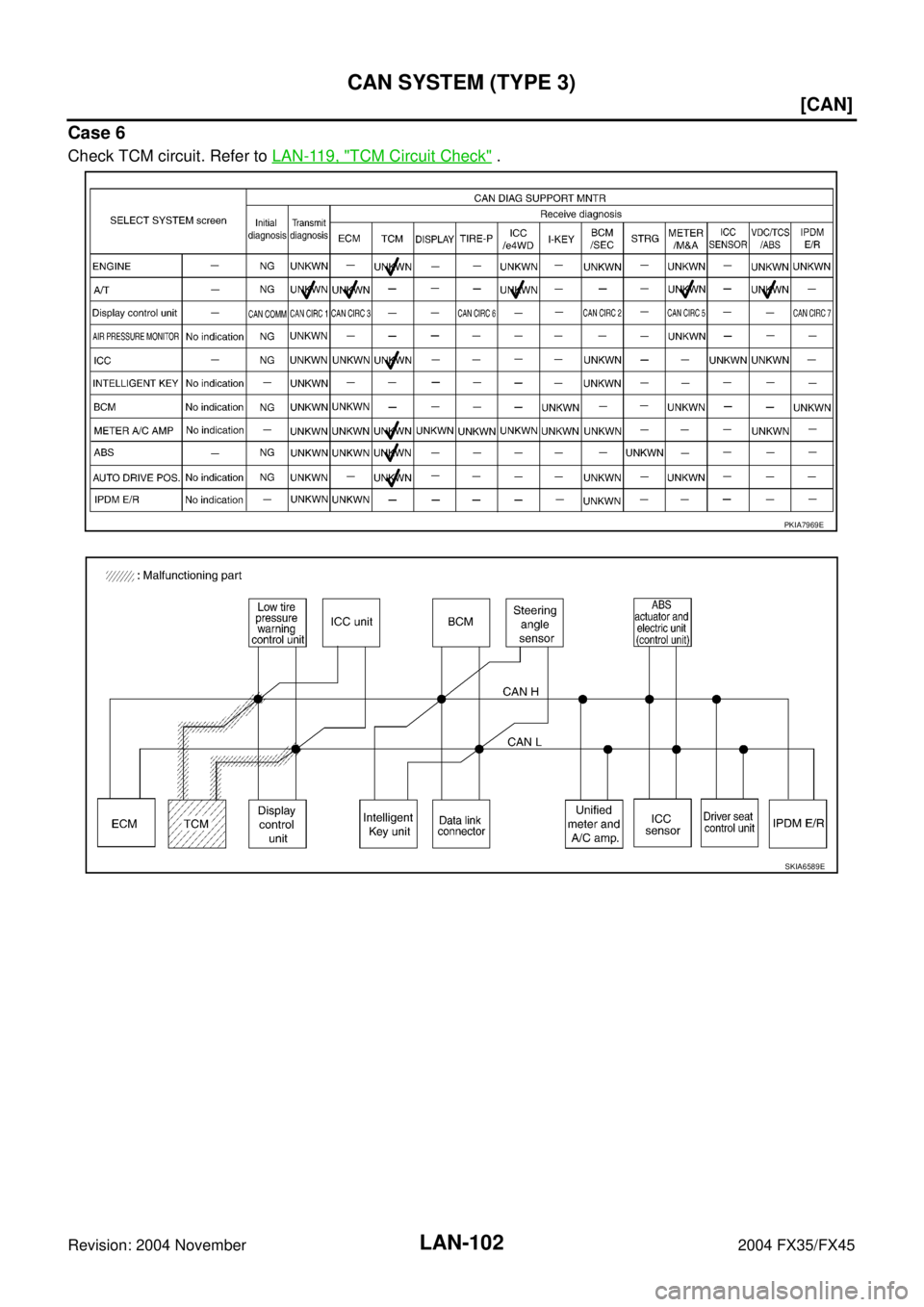

Case 6
Check TCM circuit. Refer to LAN-119, "TCM Circuit Check" .
PKIA7969E
SKIA6589E
Page 3404 of 4449
CAN SYSTEM (TYPE 3)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 7
Check display control unit circuit. Refer to LAN-120, "Display Control Unit Circuit Check" .
PKIA7970E
SKIA6590E
Page 3405 of 4449
LAN-104
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
Case 8
Check low tire pressure warning control unit circuit. Refer to LAN-120, "Low Tire Pressure Warning Control
Unit Circuit Check" .
PKIA7971E
SKIA6591E
Page 3406 of 4449
CAN SYSTEM (TYPE 3)
LAN-105
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

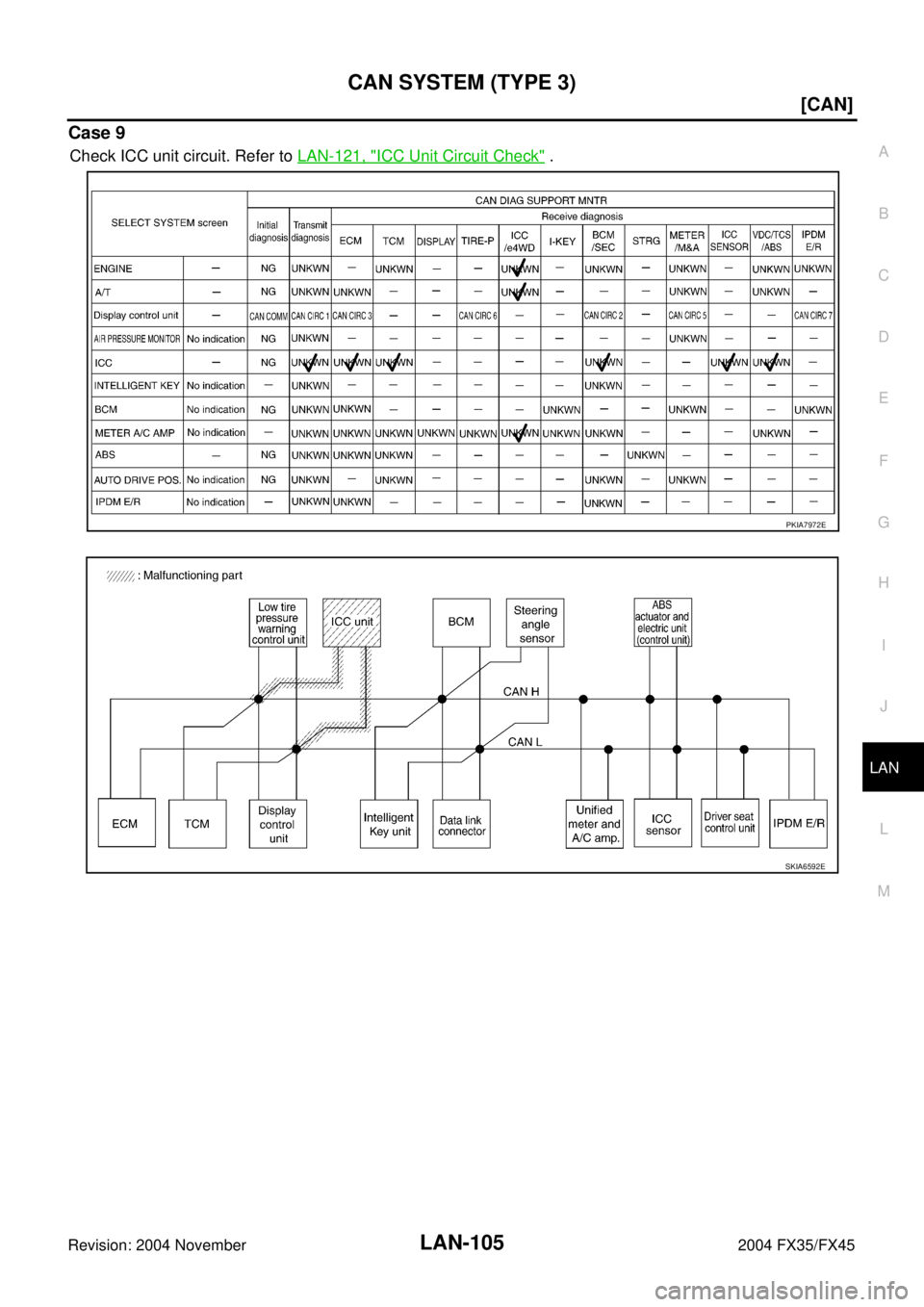

Case 9
Check ICC unit circuit. Refer to LAN-121, "ICC Unit Circuit Check" .
PKIA7972E
SKIA6592E
Page 3407 of 4449
LAN-106
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
Case 10
Check Intelligent Key unit circuit. Refer to LAN-121, "Intelligent Key Unit Circuit Check" .
PKIA7973E
SKIA6593E
Page 3408 of 4449
CAN SYSTEM (TYPE 3)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

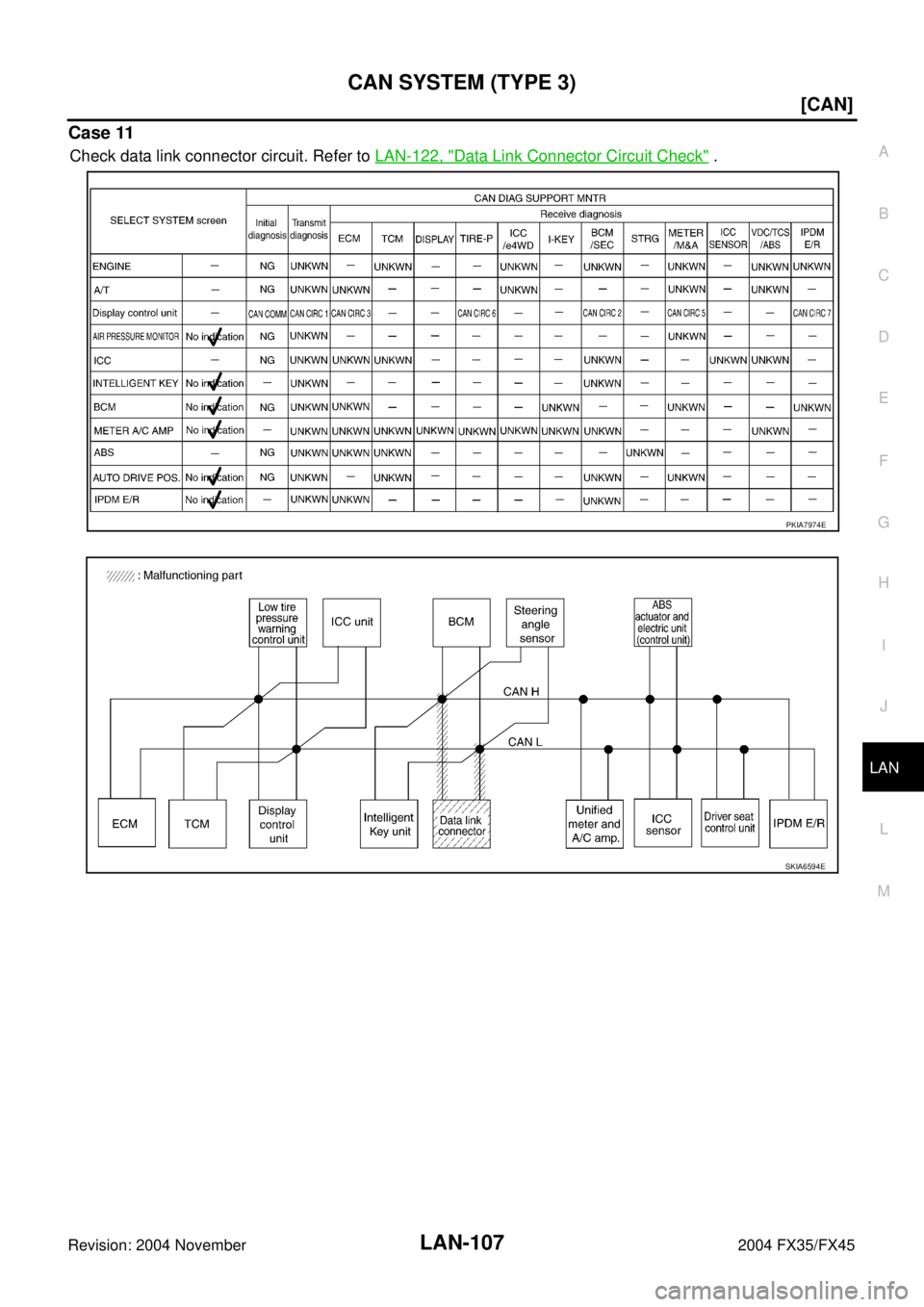

Case 11
Check data link connector circuit. Refer to LAN-122, "Data Link Connector Circuit Check" .
PKIA7974E
SKIA6594E
Page 3409 of 4449
LAN-108
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
Case 12
Check BCM circuit. Refer to LAN-122, "BCM Circuit Check" .
PKIA7975E
SKIA6595E
Page 3410 of 4449
CAN SYSTEM (TYPE 3)
LAN-109
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 13
Check steering angle sensor circuit. Refer to LAN-123, "Steering Angle Sensor Circuit Check" .
PKIA7976E
SKIA6596E
