BACK-UP LAMP
Revision: 2004 November 2004 FX35/FX45
Bulb ReplacementAKS007DR
Refer to LT- 1 4 7 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and InstallationAKS007DS
Refer to LT- 1 4 7 , "Removal and Installation" in “REAR COMBINATION LAMP”.

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-127
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Component Parts and Harness Connector LocationAKS007O7
System DescriptionAKS007DT
Control of the parking, license plate, and tail lamp operation is dependent upon the position of the lighting
switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body control
module) receives input signal requesting the parking, license plate, side marker and tail lamps to illuminate.
This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across
the CAN communication lines. The CPU (central processing unit) of the IPDM E/R (intelligent power distribu-
tion module engine room) controls the tail lamp relay coil. This relay, when energized, directs power to the
parking, license plate, side marker and tail lamps, which then illuminate.
The current that flows by Rear combination lamp unit is controlled, and a tail lamp (LED) is made to turn on.
Power is supplied at all times

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)]

to tail lamp relay [located in IPDM E/R (intelligent power distribution module engine room)] and

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].
Power is also supplied at all times

through 50A fusible link (letter M, located in the fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1.
With the ignition switch in the ON or START position, power is supplied
PKIA5272E

LT-128
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2004 November 2004 FX35/FX45

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38

through ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50 and E51

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R across the CAN communication lines. The CPU in the IPDM E/R controls the
tail lamp relay coil, which when energized, directs power

through IPDM E/R terminal 22

to front side marker lamp LH terminal 1

to clearance lamp LH terminal 2

to license plate lamp LH terminal 1

to rear combination lamp LH terminal 1

to rear combination lamp control unit terminal 2

to front side marker lamp RH terminal 1

to clearance lamp RH terminal 2

to license plate lamp RH terminal 1

to rear combination lamp RH terminal 1.
Ground is supplied at all times

to front side marker lamp LH terminal 2

through grounds E21, E50 and E51

to clearance lamp LH terminal 3

through grounds E21, E50 and E51

to license plate lamp LH terminal 2

through grounds B15 and B45

to rear combination lamp LH terminal 2

through grounds B15 and B45

to front side marker lamp RH terminal 2

through grounds E21, E50 and E51

to clearance lamp RH terminal 3

through grounds E21, E50 and E51

to license plate lamp RH terminal 2

through grounds B15 and B45

to rear combination lamp RH terminal 2

through grounds B203 and B210

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51.

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-129
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
With power and ground supplied, the parking, license plate, side marker and tail lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST (or 2ND) position, and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the parking, license, side marker and tail lamps remain illuminated for 5 minutes, then the
parking, license plate, side marker and tail lamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007DU
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080X
Refer to LAN-6, "CAN Communication Unit" .

LT-130
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2004 November 2004 FX35/FX45

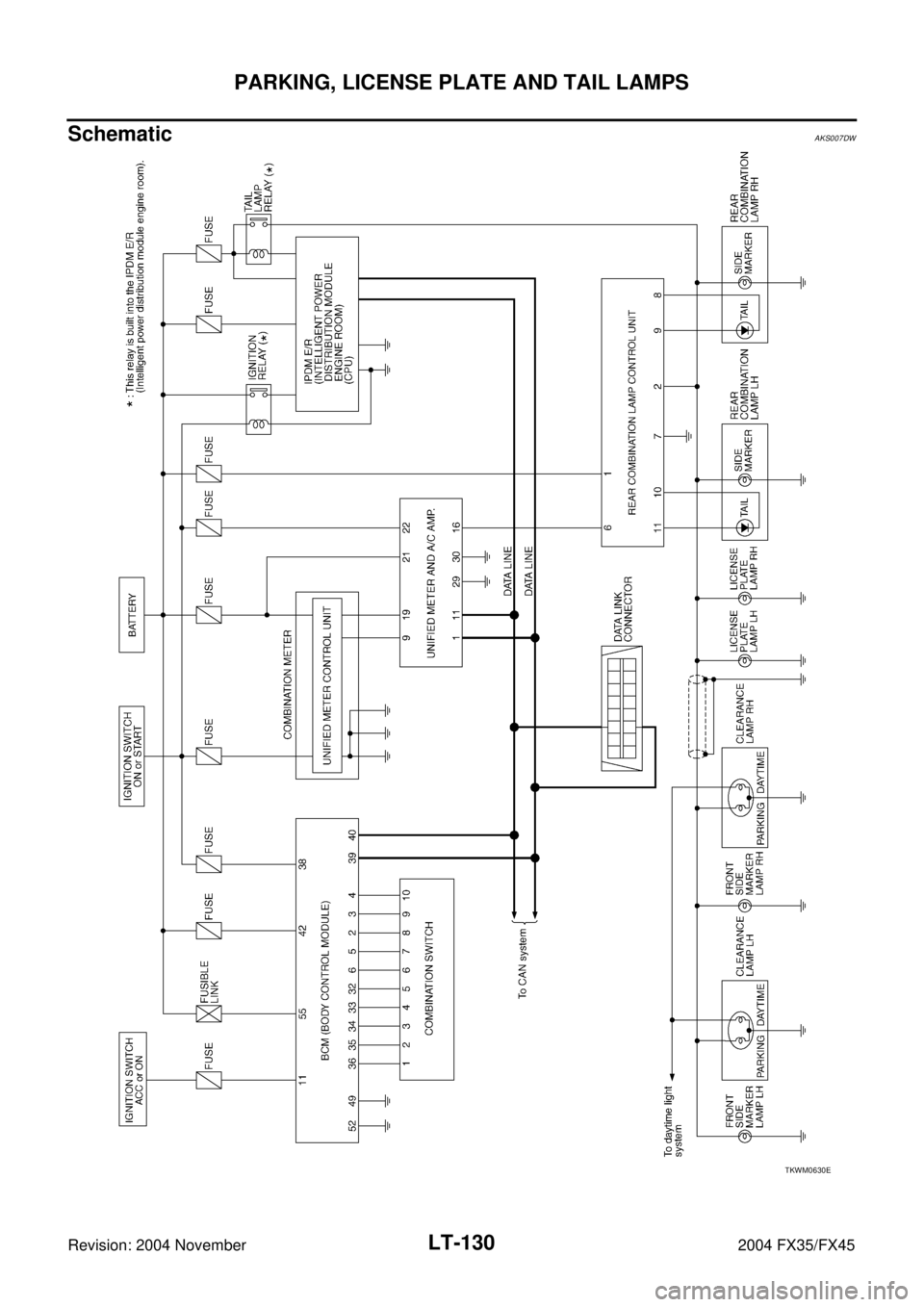

SchematicAKS007DW
TKWM0630E

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-131
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

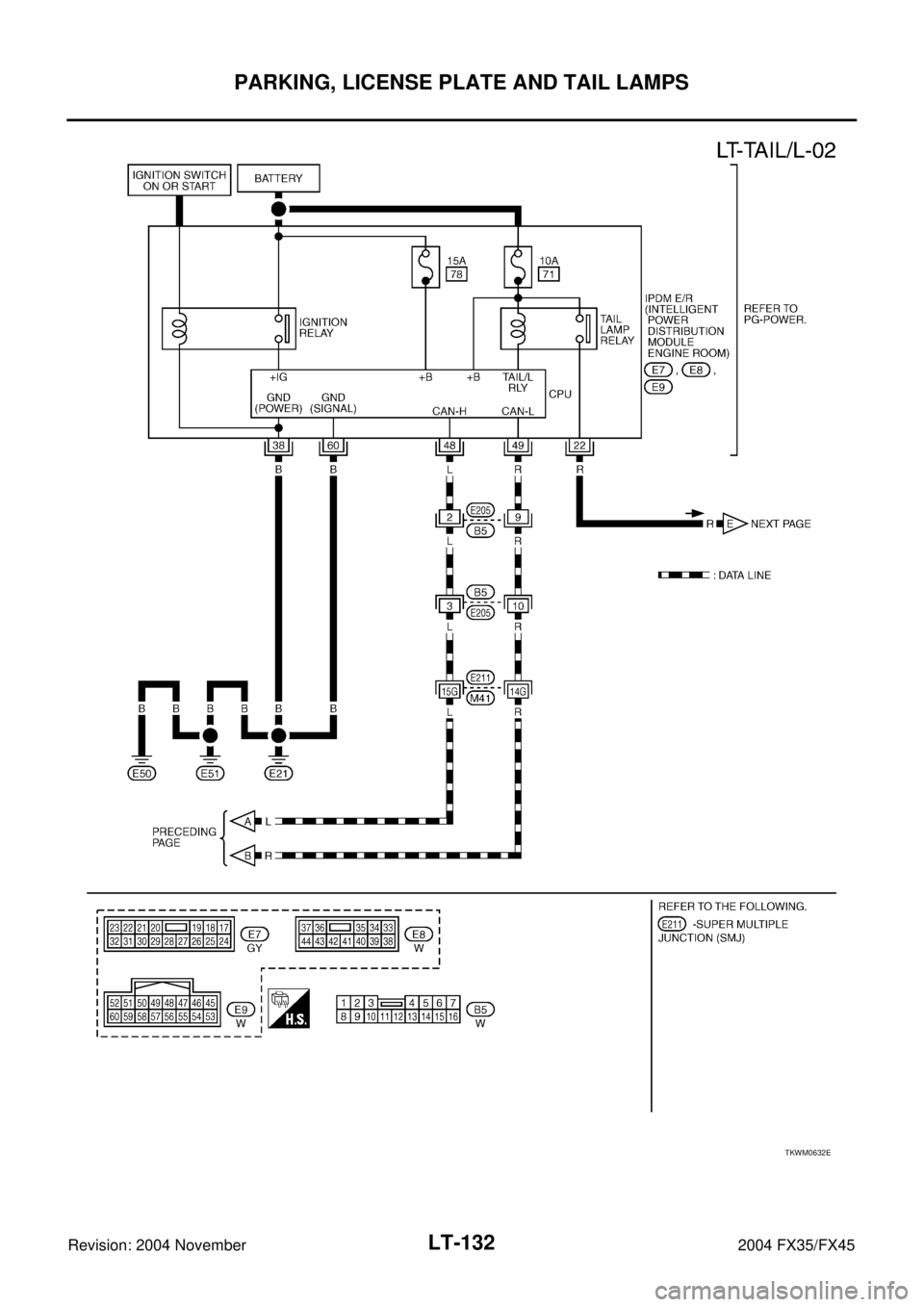

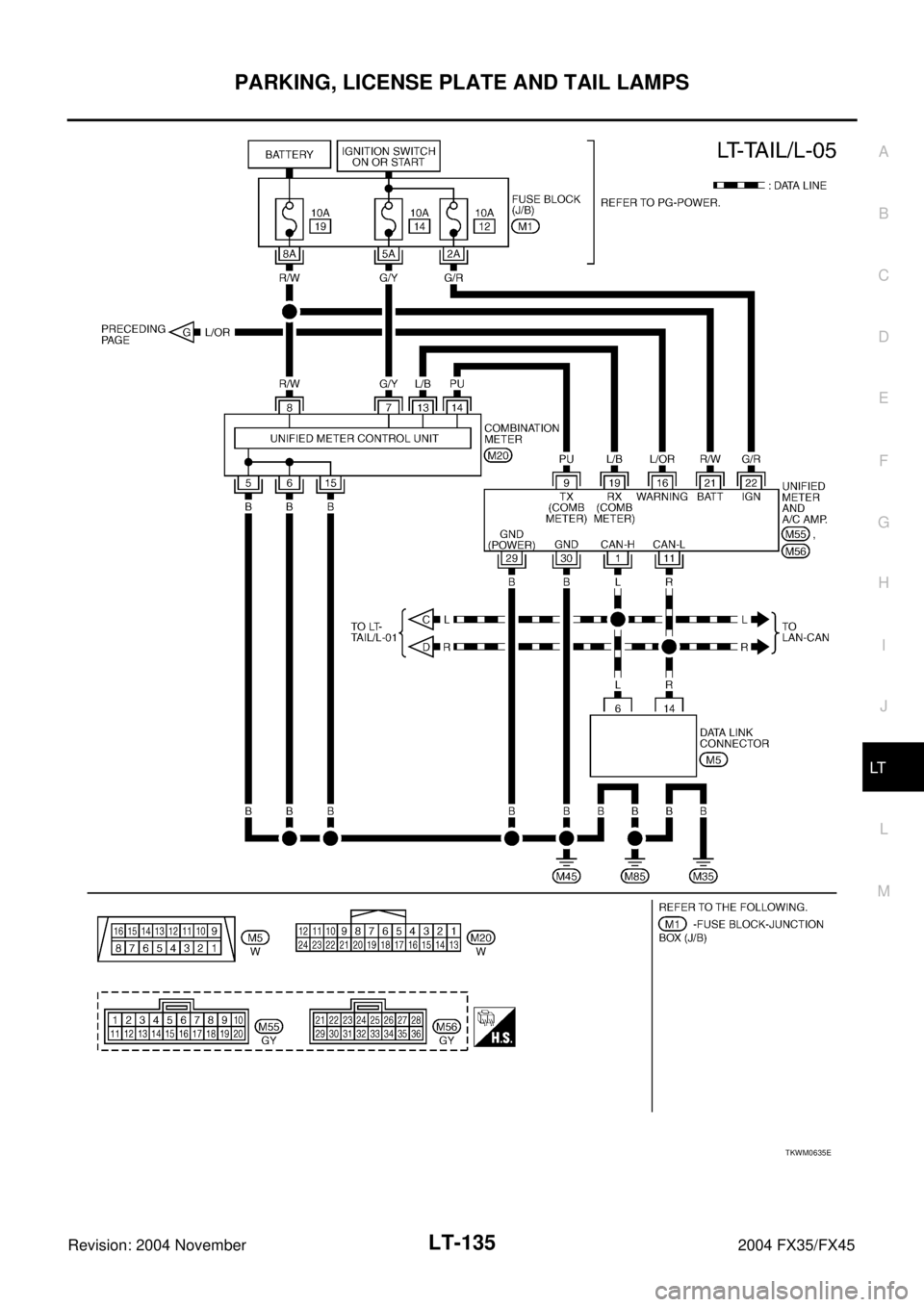

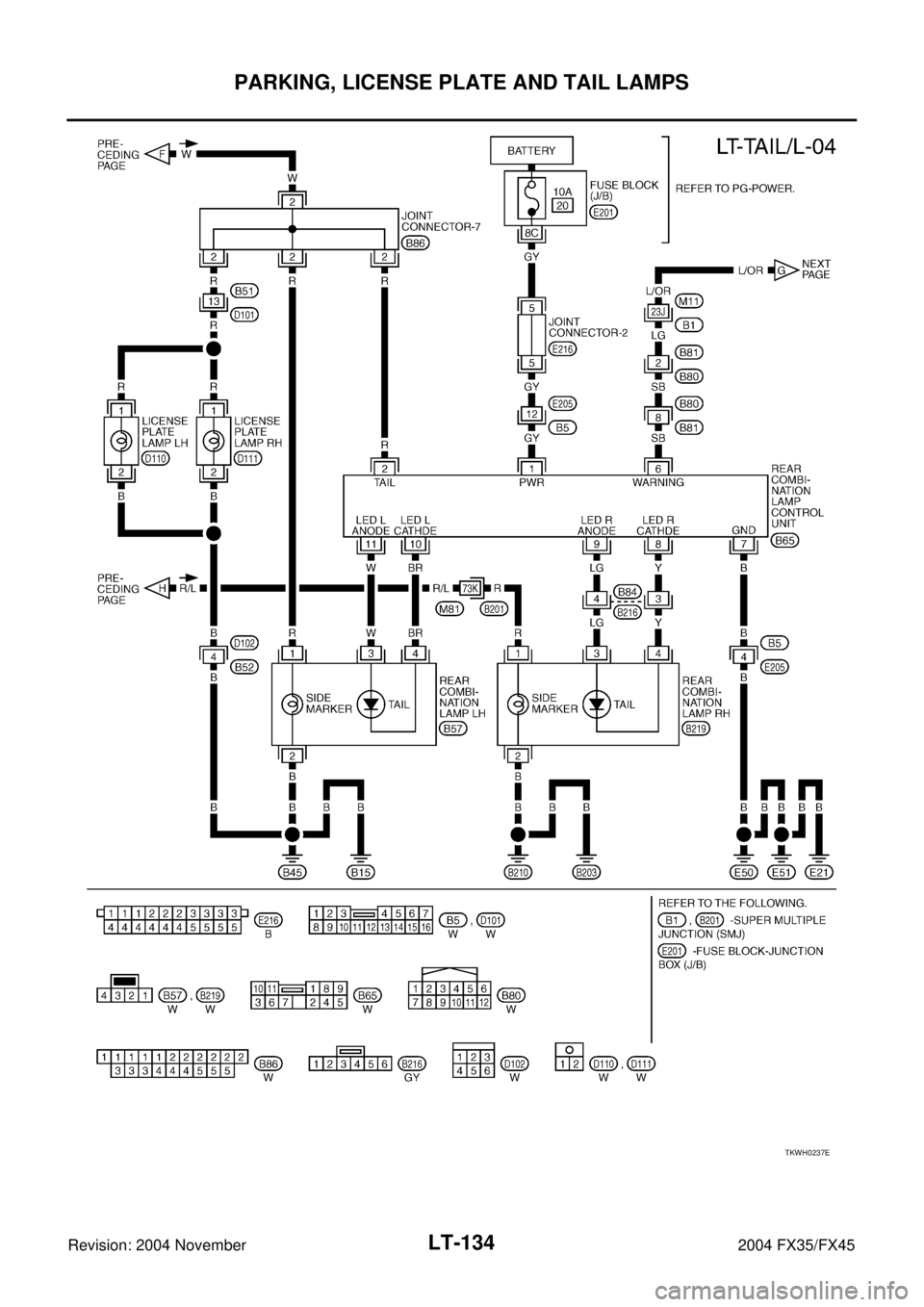

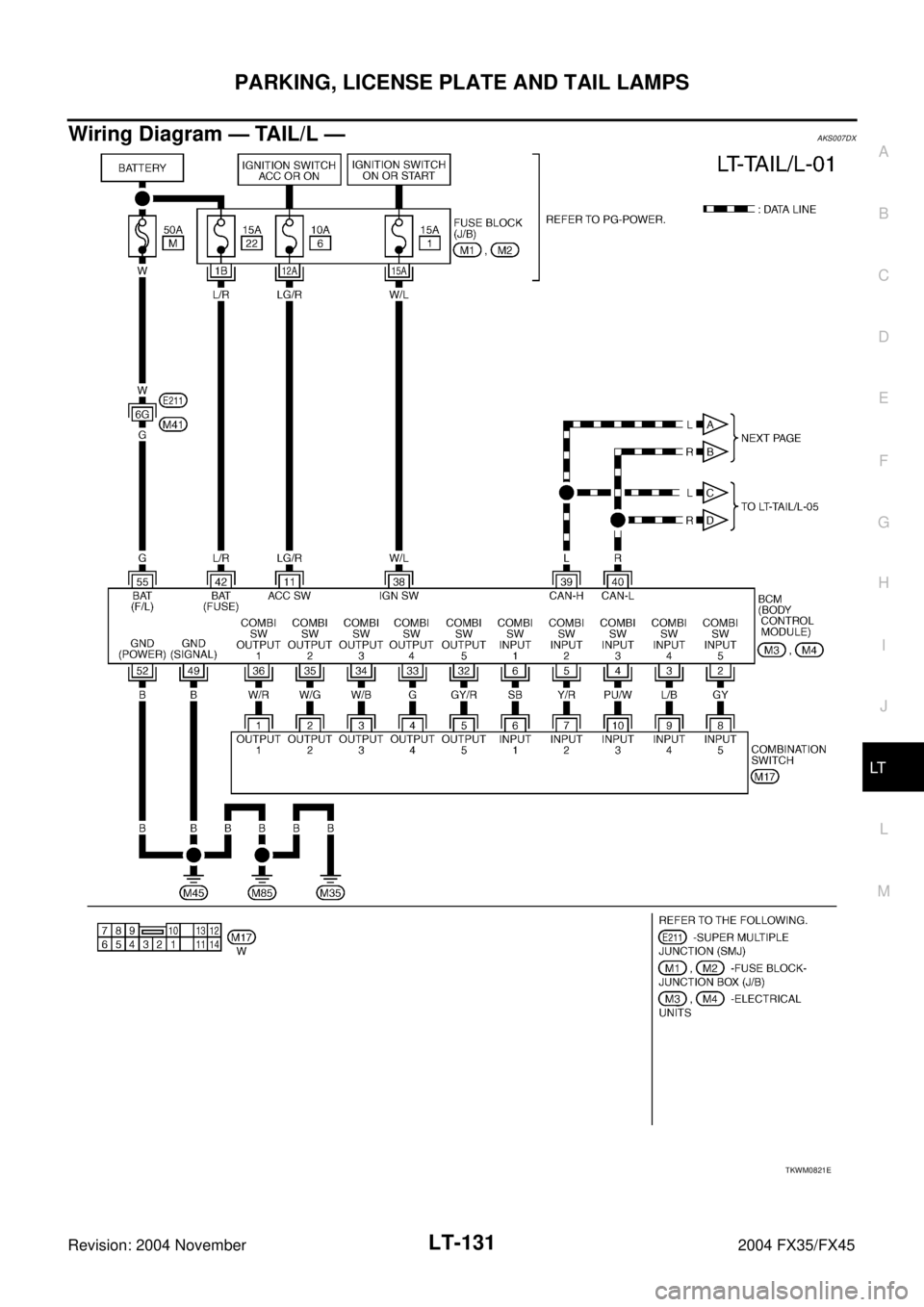

Wiring Diagram — TAIL/L —AKS007DX
