LT-186
ILLUMINATION
Revision: 2004 November 2004 FX35/FX45

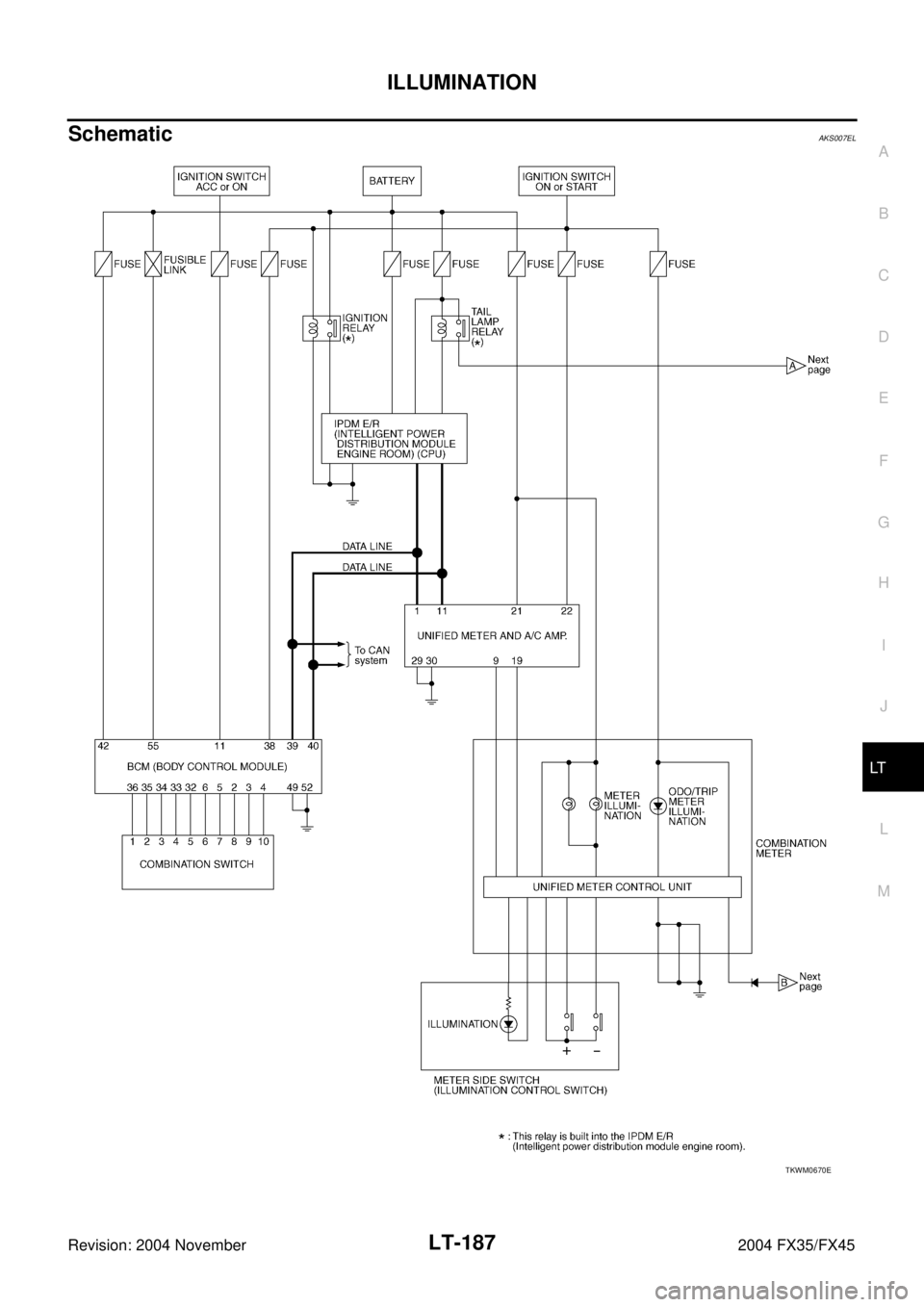

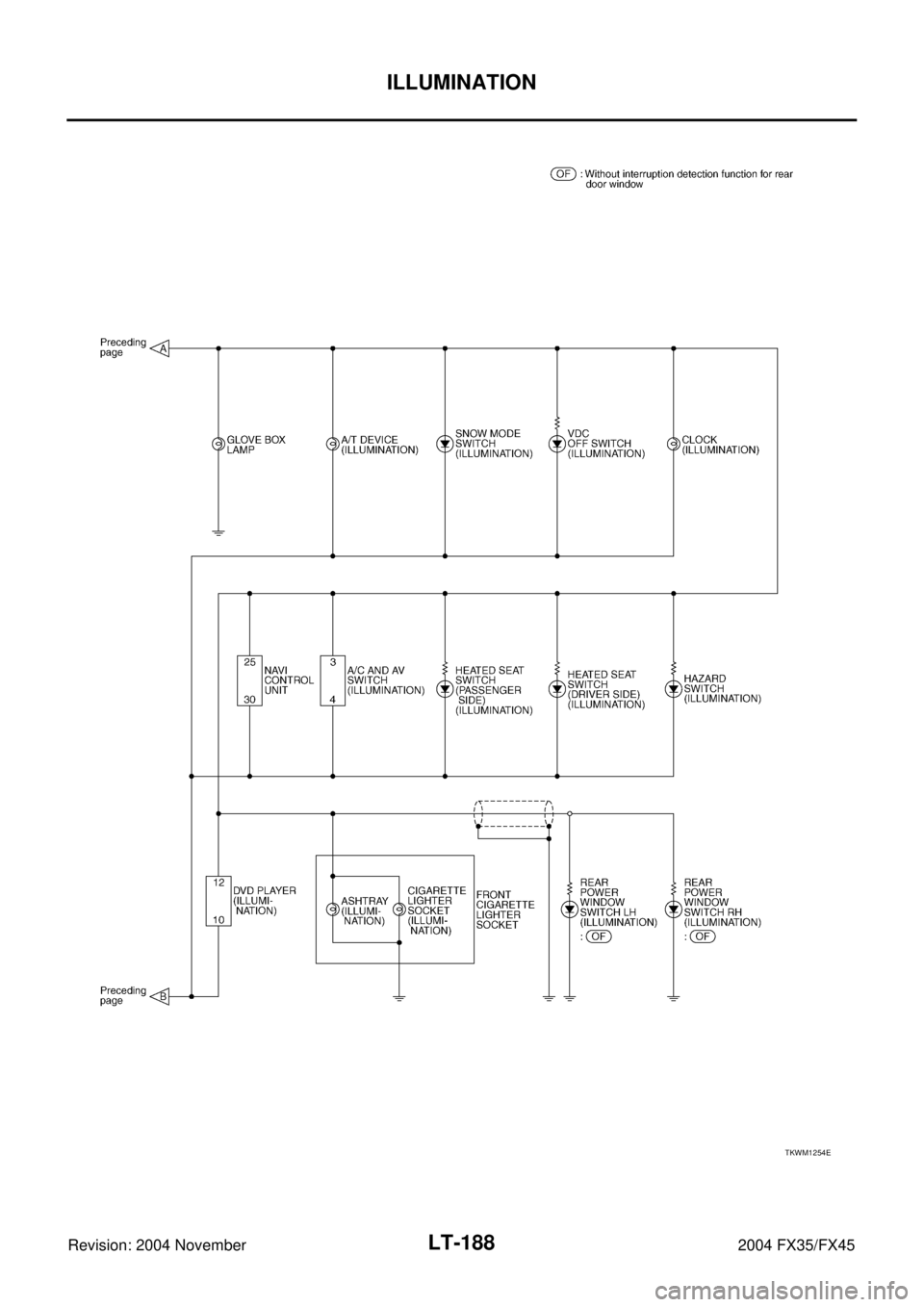

to VDC off switch (illumination) terminal 3
to clock (illumination) terminal 3
to hazard switch (illumination) terminal 3
to heated seat switch (driver side) (illumination) terminal 5
to heated seat switch (passenger side) (illumination) terminal 5
to A/C and AV switch (illumination) terminal 3
to NAVI control unit (illumination) terminal 25
to DVD player (illumination) terminal 12
to front cigarette lighter socket terminal 2
to rear power window switch LH (illumination) terminal 6 and
to rear power window switch RH (illumination) terminal 6.

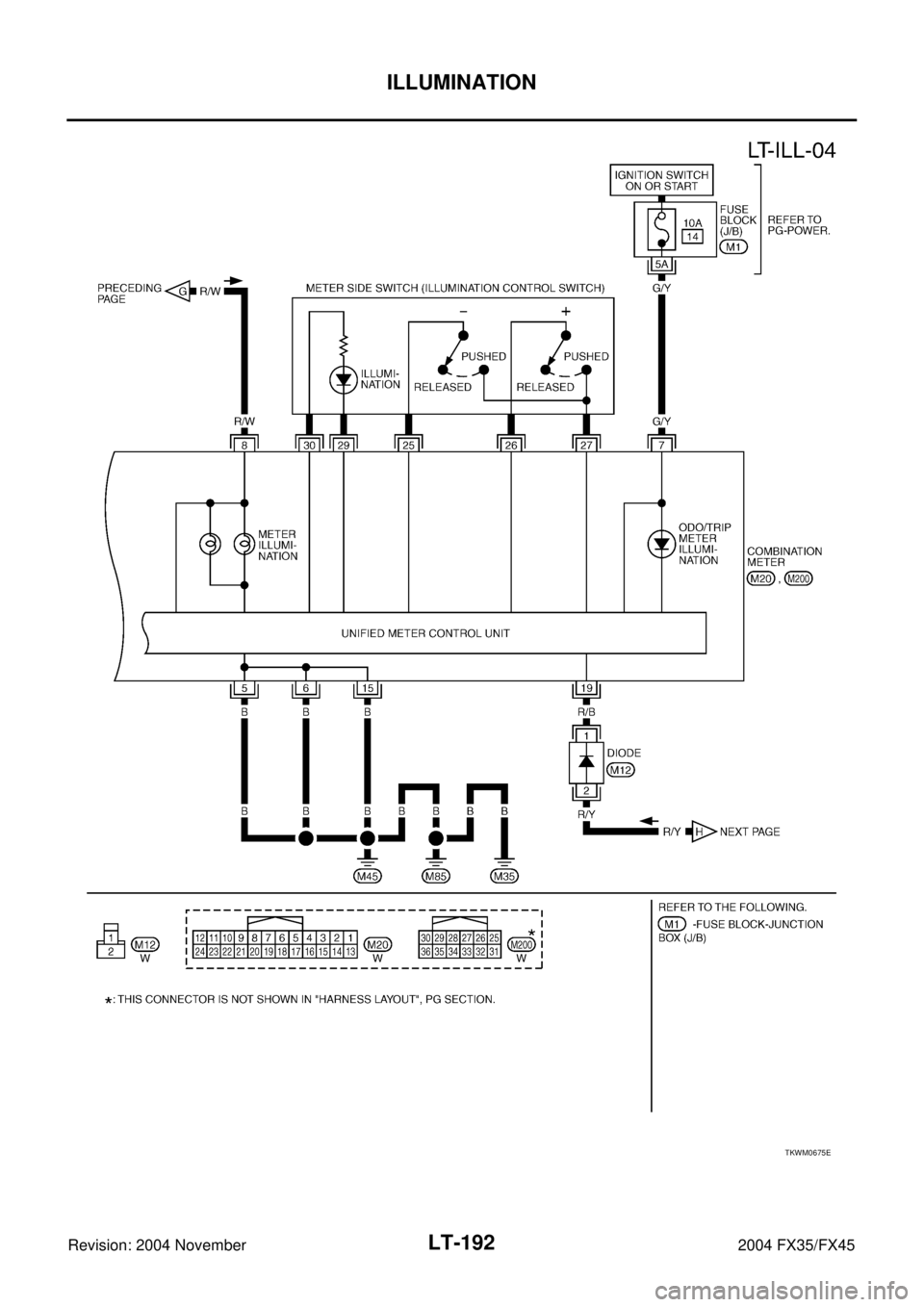

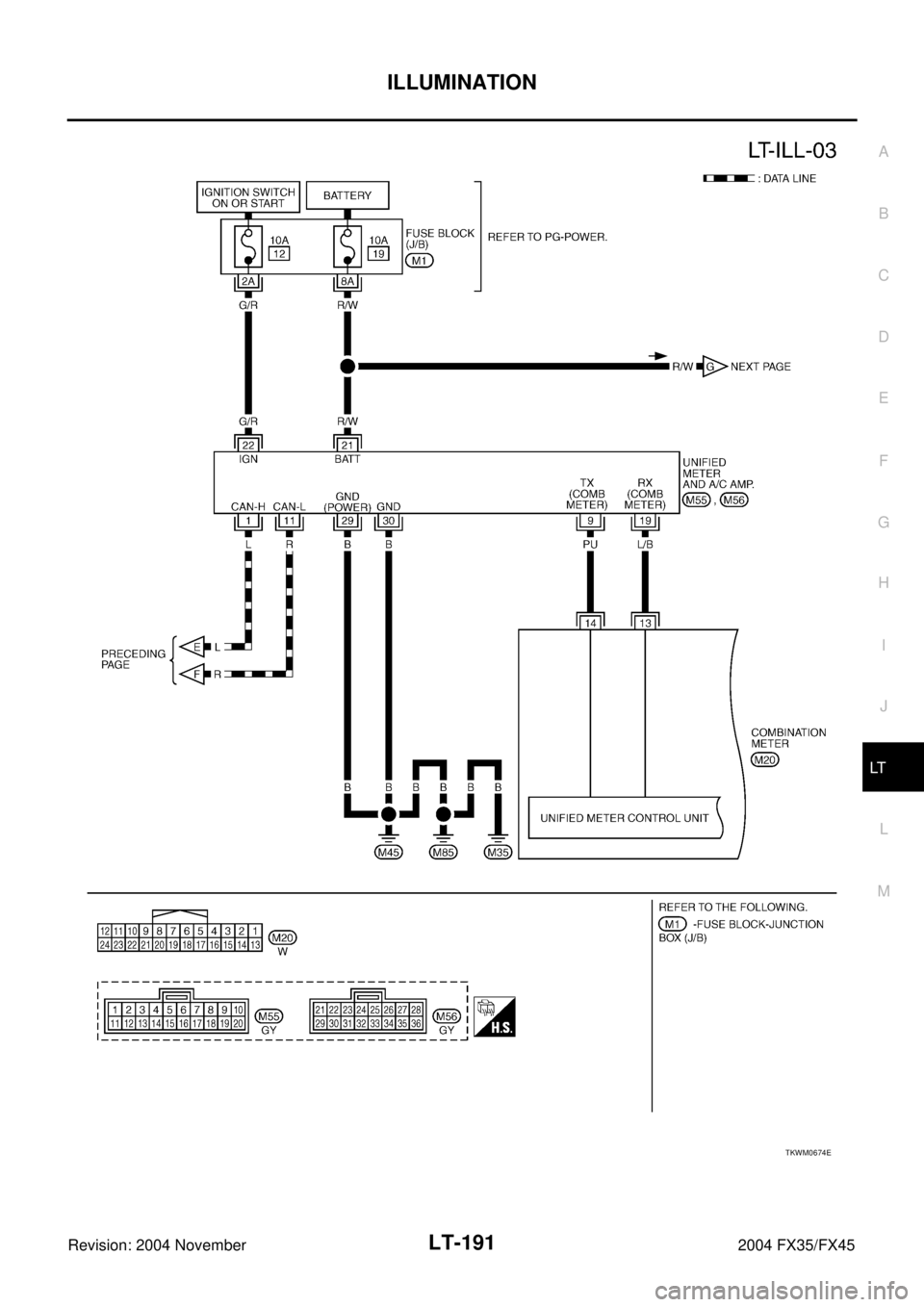

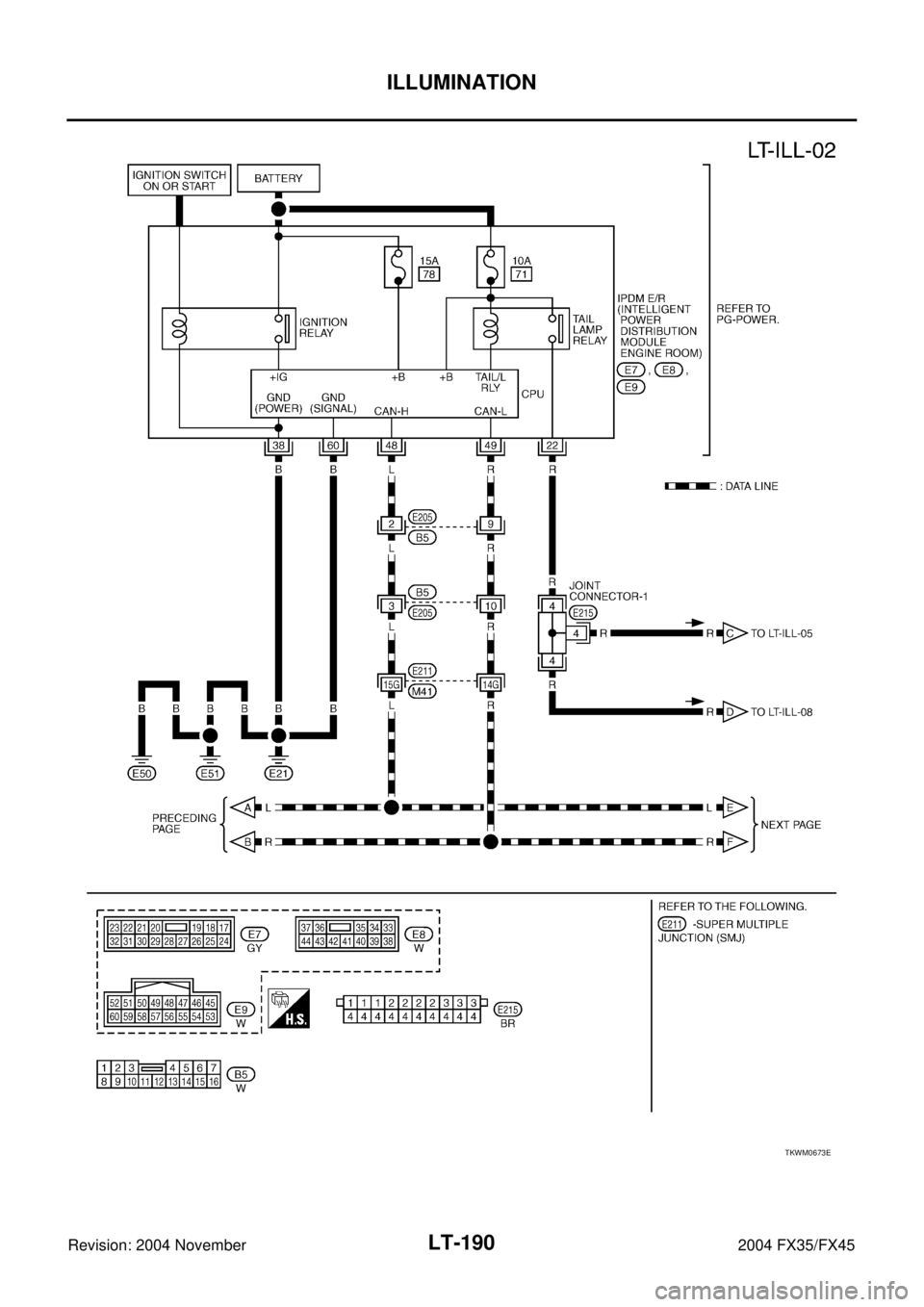

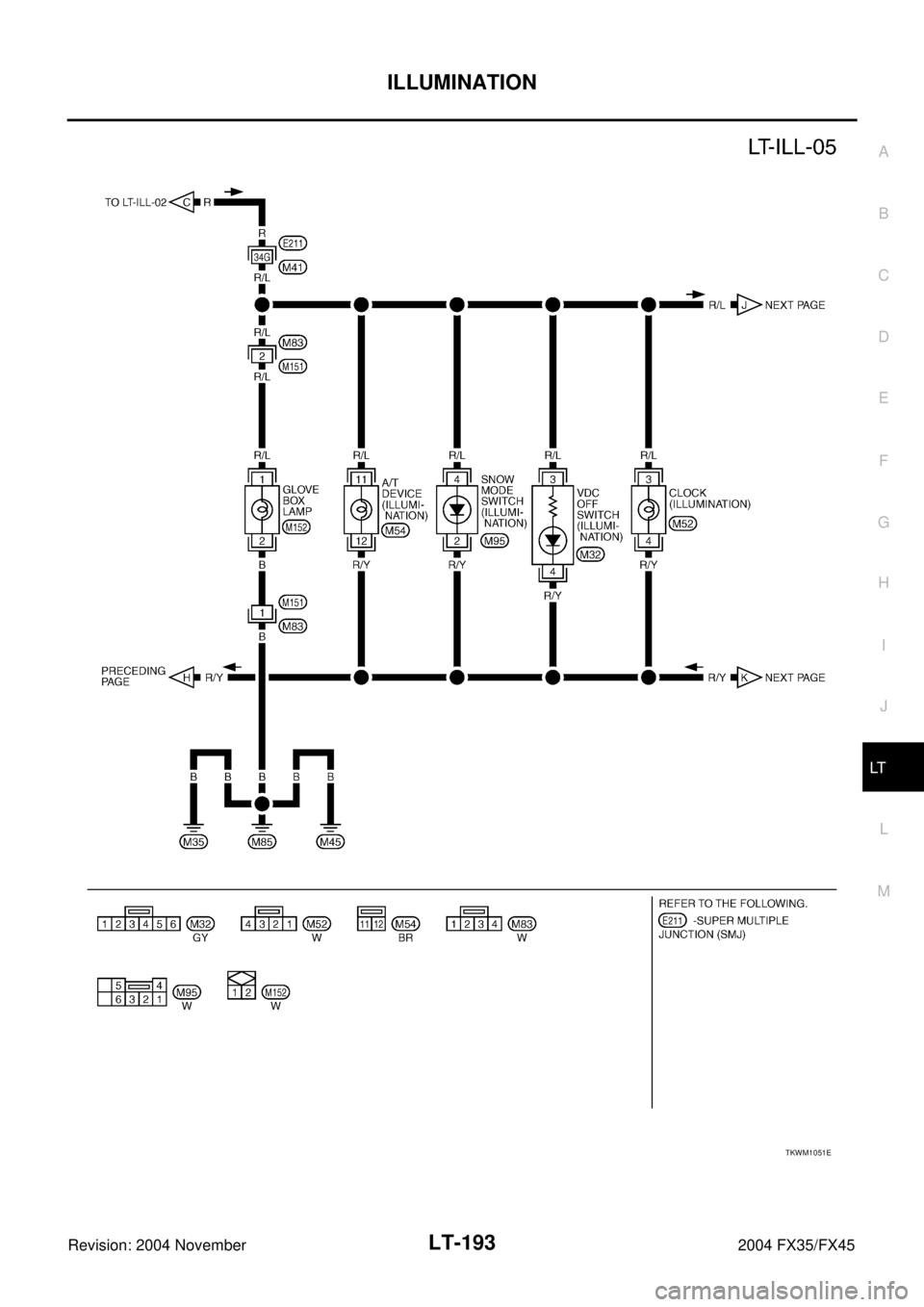

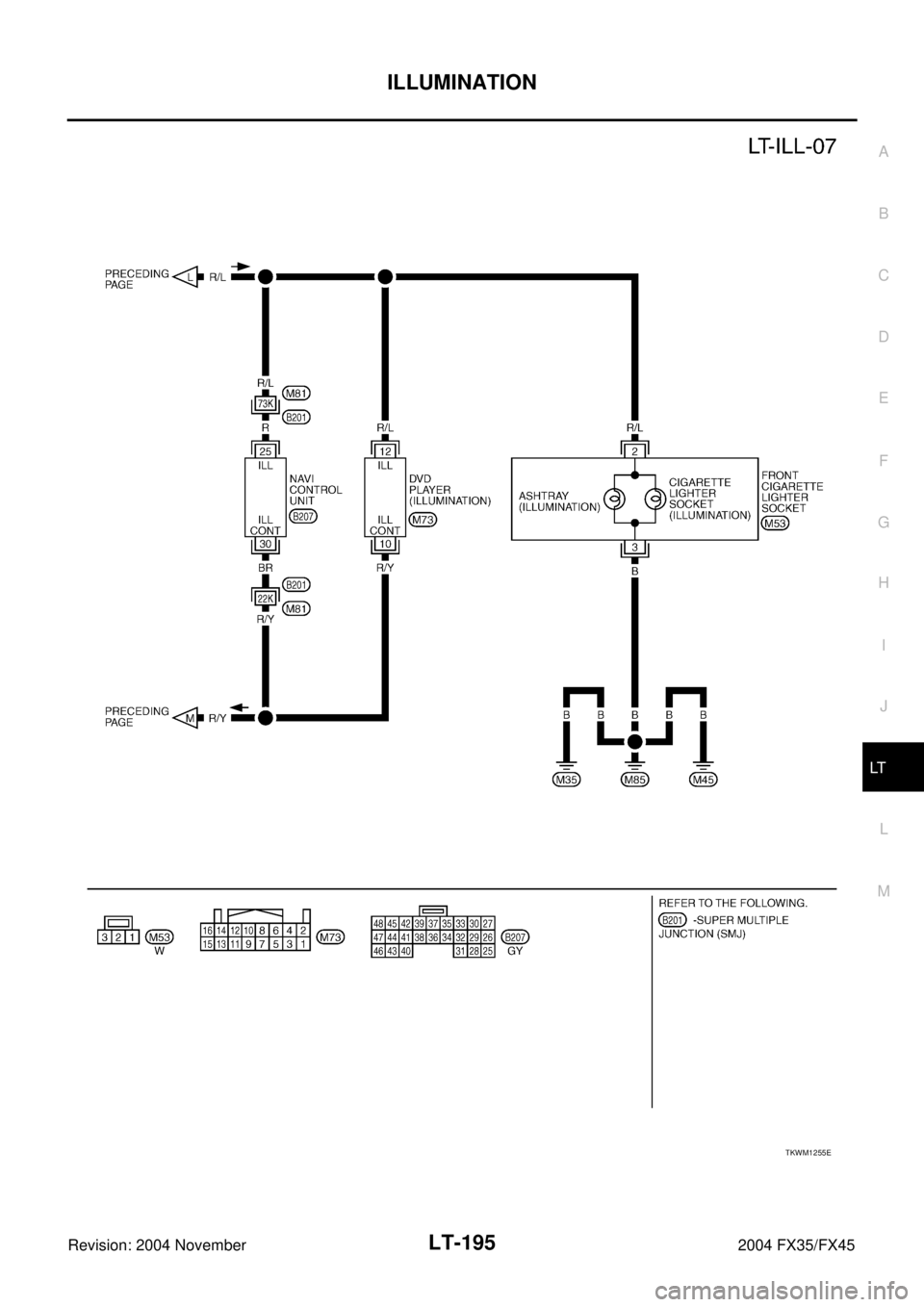

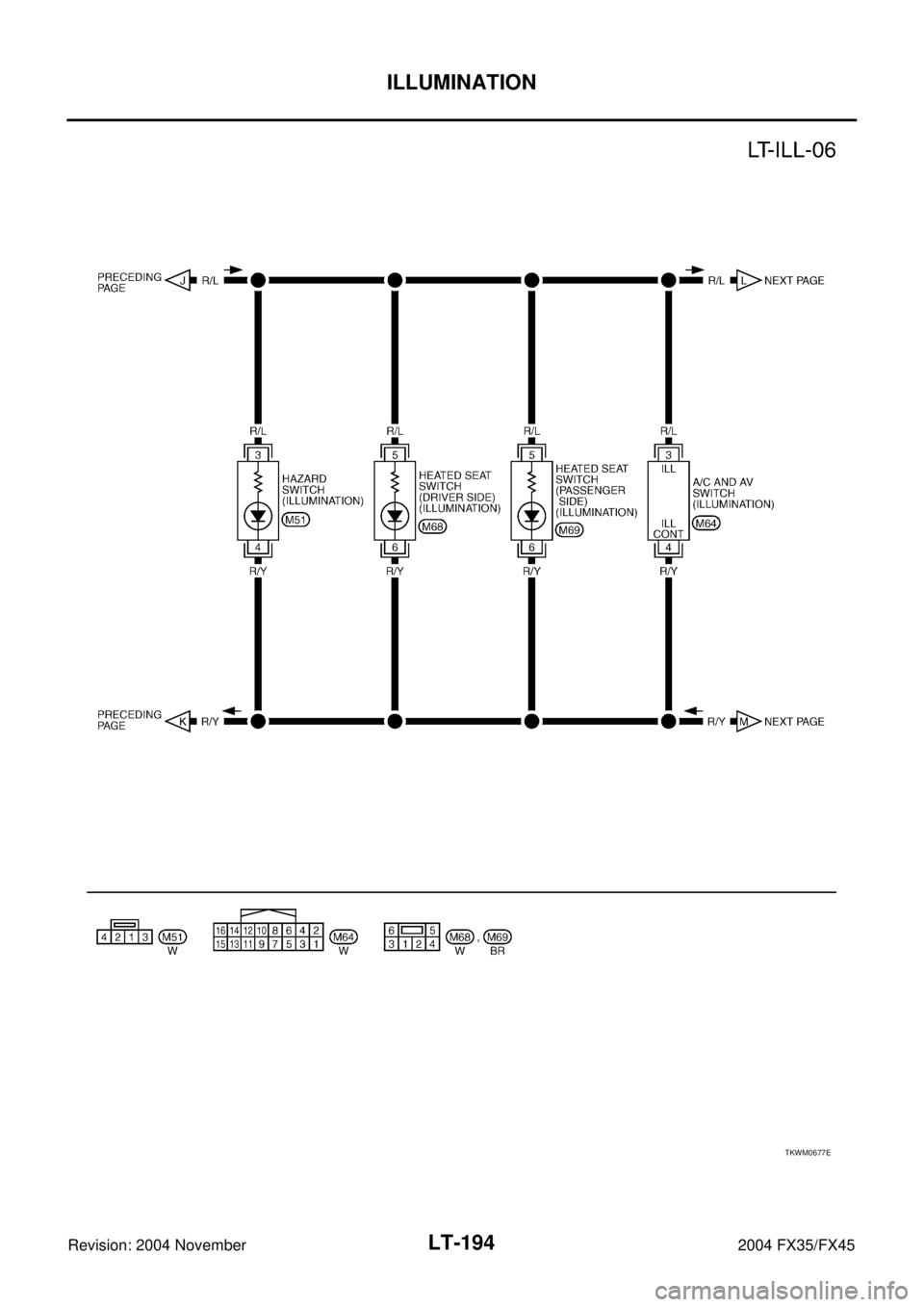

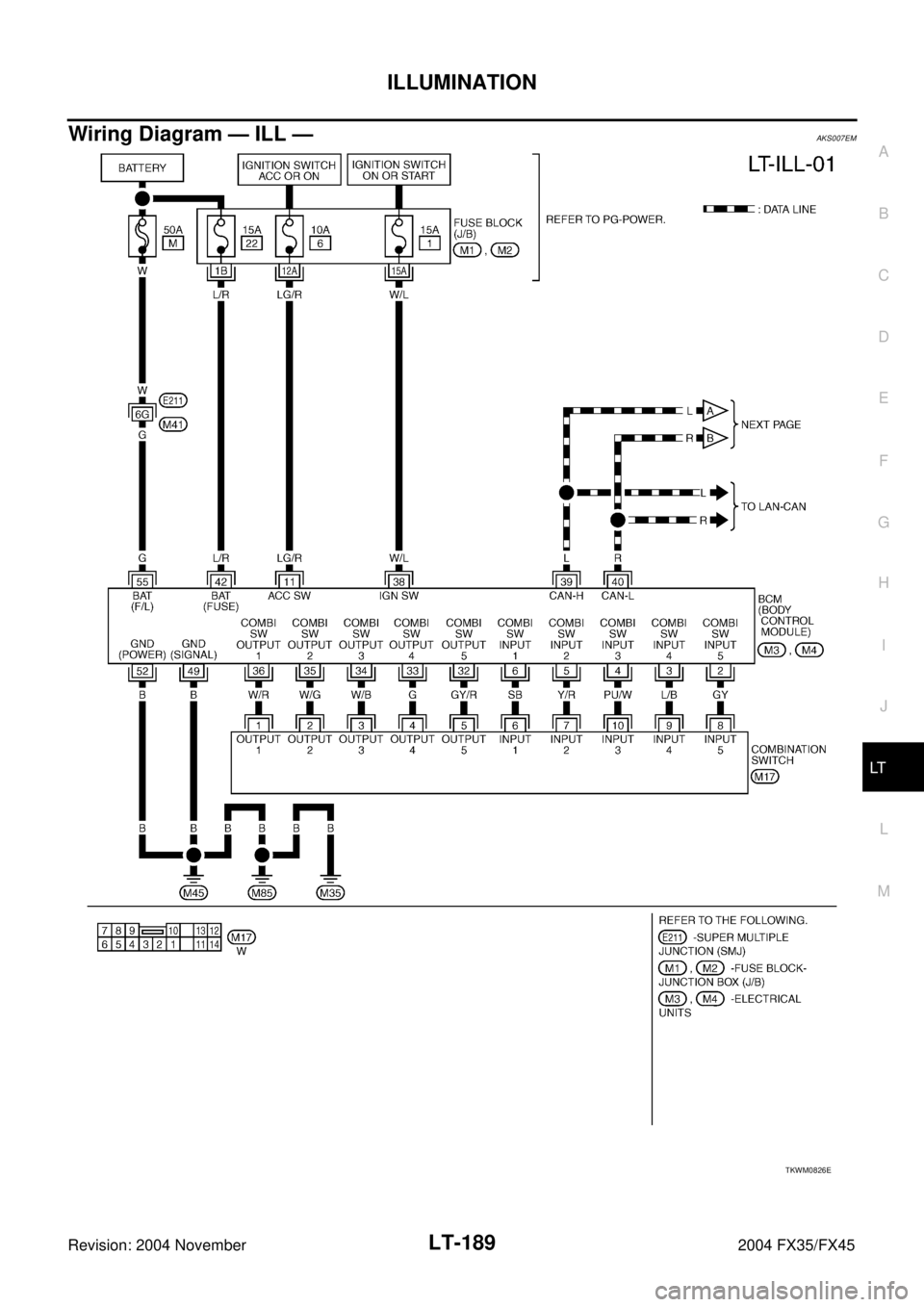

Illumination control
through combination meter terminal 19
to A/T device (illumination) terminal 12
to snow mode switch (illumination) terminal 2
to VDC off switch (illumination) terminal 4
to clock (illumination) terminal 4
to hazard switch (illumination) terminal 4
to heated seat switch (driver side) (illumination) terminal 6
to heated seat switch (passenger side) (illumination) terminal 6
to A/C and AV switch (illumination) terminal 4
to NAVI control unit (illumination) terminal 30
to DVD player (illumination) terminal 10.
Ground is supplied at all times
to glove box lamp terminal 2 and
to front cigarette lighter socket terminal 3
through grounds M35, M45 and M85
to rear power window switch LH (illumination) terminal 7 and
to rear power window switch RH (illumination) terminal 7
through grounds B15 and B45.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, and illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007EJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080Y
Refer to LAN-6, "CAN Communication Unit" .
