TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
2
P0031P0032 P0051 P0052 Heated oxygen sensor 1 heater

P0037 P0038 P0057 P0058 Heated oxygen sensor 2 heater

P0132 P0133 P0134 P0152 P0153 P0154 P1143 P1144 P1163 P1164 Heated oxygen sensor 1

P0138 P0139 P0158 P0159 P1146 P1147 P1166 P1167 Heated oxygen sensor 2

P0441 EVAP control system purge flow monitoring

P0444 P0445 P1444 EVAP canister purge volume control solenoid valve

P0447 P1446 EVAP canister vent control valve

P0451 P0452 P0453 EVAP control system pressure sensor

P0550 Power steering pressure sensor

P0710 P0720 P0740 P0744 P0745 P1716 P1720 P1730 P1752 P1754 P1757 P1759 P1762 P1764 P1767 P1769
P1772 P1774 A/T related sensors, solenoid valves and switches

P1065 ECM power supply

P 1111 P 11 3 6 I n ta k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e

P1122 Electric throttle control function

P1124 P1126 P1128 Electric throttle control actuator

P1140 P1145 Intake valve timing control position sensor

P1217 Engine over temperature (OVERHEAT)

P1805 Brake switch
3

P0011 P0021 Intake valve timing control

P0171 P0172 P0174 P0175 Fuel injection system function

P0300 - P0308 Misfire

P0420 P0430 Three way catalyst function

P0442 P0456 EVAP control system (SMALL LEAK, VERY SMALL LEAK)

P0455 EVAP control system (GROSS LEAK)

P0506 P0507 Idle speed control system

P1121 Electric throttle control actuator

P1148 P1168 Closed loop control

P1211 TCS control unit

P1212 TCS communication line

P1564 ICC steering switch/ASCD steering switch

P1568 ICC command value

P1572 ICC brake switch/ASCD brake switch

P1574 ICC vehicle speed sensor/ASCD vehicle speed sensor

P1780 Shift change signal

P1800 VIAS control solenoid valve
Priority Detected items (DTC)

TROUBLE DIAGNOSIS EC-799
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Fail-Safe ChartABS007I0
When the DTC listed below is detected, the ECM enters fail-safe mode and the MIL lights up.

When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when
there is malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands
the driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant tempera-
ture sensor circuit Engine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned
ON or START 40
°C (104 °F)
More than approx. 4 minutes after
ignition ON or START 80
°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P1121 Electric throttle control actuator (When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops,
the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or
more.
P1122 Electric throttle control function ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126 Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

EC-800
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Symptom Matrix ChartABS007I2
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2 EC-1358
Fuel pressure regulator system334444444 4 EC-789
Injector circuit 11232 22 2 EC-1351
Evaporative emission system 334444444 4EC-730
Air Positive crankcase ventilation sys-
tem 33 4444444 41
EC-742
Incorrect idle speed adjustment 1 1 1 1 1 EC-769
Electric throttle control actuator 112332222 2 2 EC-1148,
EC-1150
IgnitionIncorrect ignition timing adjustment33111 11 1 EC-769
Ignition circuit 11222 22 2EC-1339
Main power supply and ground circuit 22333 33 23 EC-855
Mass air flow sensor circuit
1
12 2
222 2 EC-893,
EC-902
,
Engine coolant temperature sensor circuit
3 33
EC-914
,
EC-927
Heated oxygen sensor 1 circuit EC-935
,
EC-944
,
EC-956
,
EC-1174
,
EC-1180
Throttle position sensor circuit
22 EC-920
,
EC-1015
,
EC-1225
,
EC-1227
,
EC-1229
,
EC-1316
Accelerator pedal position sensor circuit 3 2 1 EC-1302
,
EC-1309
,
EC-1323
Knock sensor circuit 2 3 EC-1031
Crankshaft position sensor (POS) circuit 2 2EC-1036
Camshaft position sensor (PHASE) circuit 3 2EC-1043
Vehicle speed signal circuit 2 3 3 3EC-1123
Power steering pressure sensor circuit 2 3 3EC-1129

TROUBLE DIAGNOSIS EC-801
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
ECM 22333333333 EC-1134,
EC-1137
Intake valve timing control solenoid valve cir-
cuit 32 13223 3
EC-1141
PNP switch circuit 3 3 3 3 3 EC-1283
Refrigerant pressure sensor circuit 2 3 3 4EC-1364
Electrical load signal circuit 3EC-1369
Air conditioner circuit223333333 3 2 AT C - 4 0
VIAS control solenoid valve circuit 1 EC-1292
ABS actuator and electric unit (control unit) 4EC-1211
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank 5
5 FL-10
Fuel piping 5 5 5 5 5 5
EM-192
Vapor lock —
Valve deposit 5 555 55 5 —
Poor fuel (Heavy weight gaso-
line, Low octane) —

EC-802
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Air Air duct
55555 5 EM-176
Air cleaner
EM-176
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator) 5555 EM-176
Electric throttle control actuator
EM-178
Air leakage from intake manifold/
Collector/Gasket EM-178
Cranking Battery
111111
1 1
SC-4
Generator circuit
SC-23
Starter circuit 3SC-10
Signal plate 6EM-245
PNP switch 4AT- 11 4
Engine Cylinder head
55555 55 5 EM-229
Cylinder head gasket 4 3
Cylinder block
66666 66 6 4
EM-245
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nism Timing chain
55555 55 5 EM-200
Camshaft
EM-212
Intake valve timing controlEM-200
Intake valve
3 EM-200
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/ Gasket 55555 55 5 EM-182
,
EX-3
Three way catalyst
Lubrica-
tion Oil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler 55555 55 5 EM-185
,
LU-31
, LU-
28 , LU-29
Oil level (Low)/Filthy oil LU-25
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

TROUBLE DIAGNOSIS EC-803
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
1 - 6: The numbers refer to the order of inspection. Cooling
Radiator/Hose/Radiator filler cap
55555 55 45 CO-41
,
CO-45
Thermostat 5 CO-53
Water pumpCO-51
Water galleryCO-35
Cooling fan
5 CO-49
Coolant level (Low)/Contami-
nated coolant CO-37
IVIS (INFINITI Vehicle Immobilizer System —
NATS) 11
EC-744 or
BL-213
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-804
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX

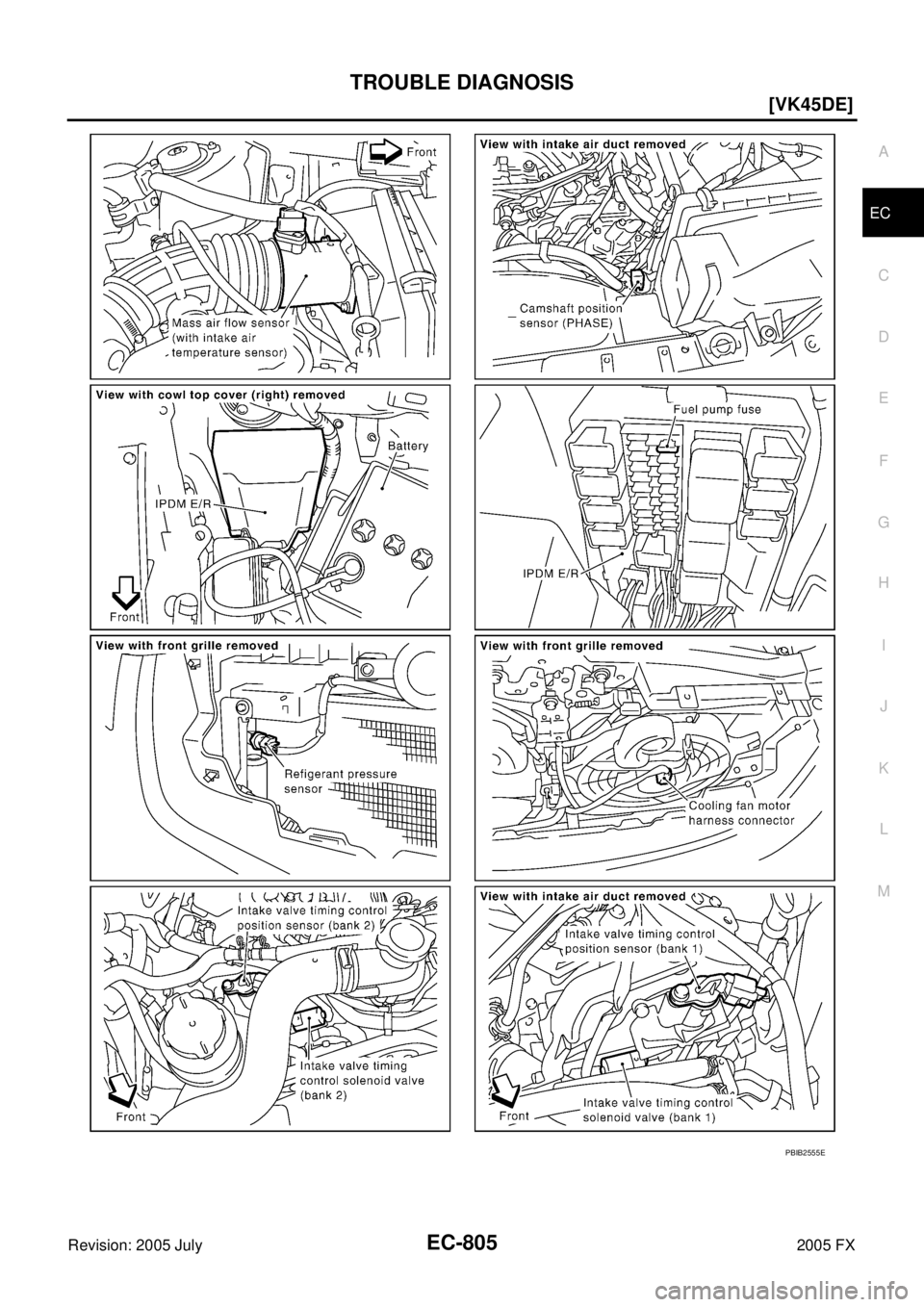

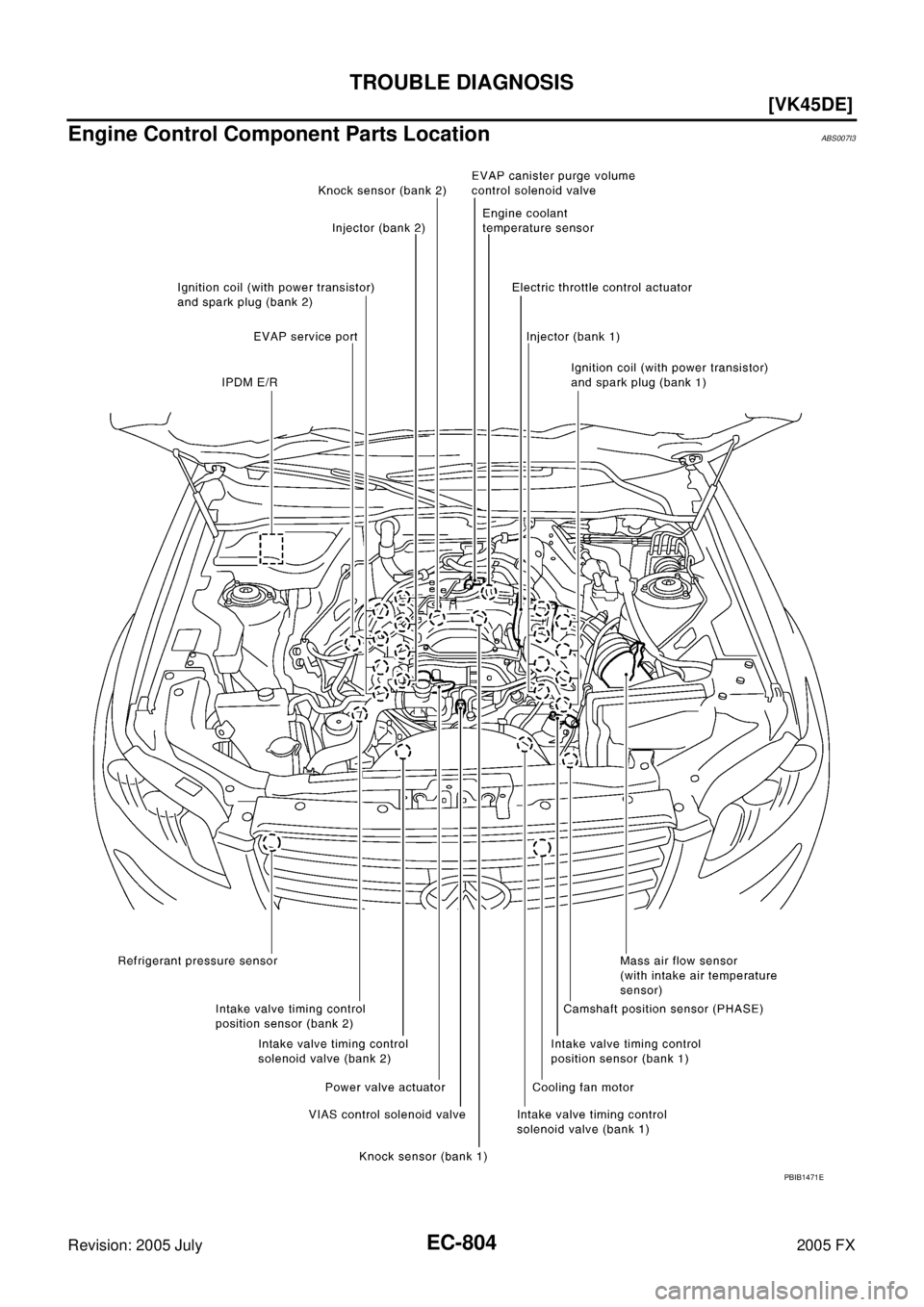

Engine Control Component Parts LocationABS007I3
