INFINITI FX35 2005 Service Manual

EC-838
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
CONSULT-II Reference Value in Data MonitorABS007I9
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification da ta in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indication. Almost the same speed as
the tachometer indication.
MAS A/F SE-B1 See EC-844, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-844, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2 See
EC-844, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70 °C (158 °F)
HO2S1 (B1)
HO2S1 (B2)

Engine: After warming up Maintaining engine speed at 2,000 rpm 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 (B1)
HO2S2 (B2)

Engine: After warming up

After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load Revving engine from idle up to 3,000 rpm
quickly. 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S1 MNTR (B1)
HO2S1 MNTR (B2)

Engine: After warming up Maintaining engine speed at 2,000 rpm LEAN
←→ RICH
Changes more than 5 times
during 10 seconds.
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)

Engine: After warming up

After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load Revving engine from idle up to 3,000 rpm
quickly. LEAN
←→ RICH
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as
speedometer indication
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1

Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*

Ignition switch: ON
(Engine stopped)

Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES

Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS

Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG

Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.) ON
P/N POSI SW

Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engine Steering wheel: Not being turned
(Forward direction) OFF
Steering wheel: Being turned ON

TROUBLE DIAGNOSIS EC-839
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch: ON
and/or
Lighting switch: 2ND position ON
Rear window defogger switch and light-
ing switch: OFF OFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engine Heater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 7
° - 17 ° BTDC
2,000 rpm 25 ° - 45 ° BTDC
CAL/LD VALUE

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
−5° - 5 °CA
2,000 rpm Approx. 0 ° - 20 °CA
INT/V SOL (B1)
INT/V SOL (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 0% - 2%
2,000 rpm Approx. 25% - 50%
VIAS S/V

Engine speed: Idle Selector lever: P or N
and/or
Engine speed: More than 5,000 rpm ON
Except above OFF
AIR COND RLY

Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates) ON
FUEL PUMP RLY

For 1 seconds after turning ignition switch: ON

Engine running or cranking ON

Except above OFF
MONITOR ITEM CONDITION SPECIFICATION

EC-840
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY

Ignition switch: ON ON
COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less OFF
Engine coolant temperature is between
95 °C (203 °F) and 104 °C (219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
HO2S1 HTR (B1)
HO2S1 HTR (B2)

Engine: After warming up

Engine speed: Below 3,000 rpm ON

Engine speed: Above 3,000 rpm OFF
HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed: Below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load ON

Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD

Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as
the tachometer indication
VEHICLE SPEED

Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as
the speedometer indication
TRVL AFTER MIL

Ignition switch: ON Vehicle has traveled after MIL has turned
ON. 0 - 65,535 km
(0 - 40,723 miles)
SNOW MODE SW

Ignition switch: ON Snow mode switch: ON ON
Snow mode switch: OFF OFF
O2SEN HTR DTY

Engine coolant temperature when engine started: More than 80 °C (176 °F)

Engine speed: Below 3,000 rpm Approx. 50%
AC PRESS SEN

Ignition switch: ON (Engine stopped) Approx. 0V

Engine: Idle

Air conditioner switch: OFF 1.0 - 4.0V
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as
the speedometer indication
SET VHCL SPD

Engine: Running ASCD: Operating The preset vehicle speed is
displayed
MAIN SW

Ignition switch: ON MAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ON CANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ON RESUME/ACCELERATE switch:
Pressed ON
RESUME/ACCELERATE switch:
Released OFF
SET SW

Ignition switch: ON SET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
(ICC/ASCD brake
switch)

Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
MONITOR ITEM CONDITION SPECIFICATION

TROUBLE DIAGNOSIS EC-841
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal. DIST SW

Ignition switch: ON
DISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
CRUISE LAMP

Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP

MAIN switch: ON

When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH) ASCD is operating ON
ASCD is not operating OFF
MONITOR ITEM CONDITION SPECIFICATION

EC-842
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Major Sensor Reference Graph in Data Monitor ModeABS007IA
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with selector lever in D position.
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.

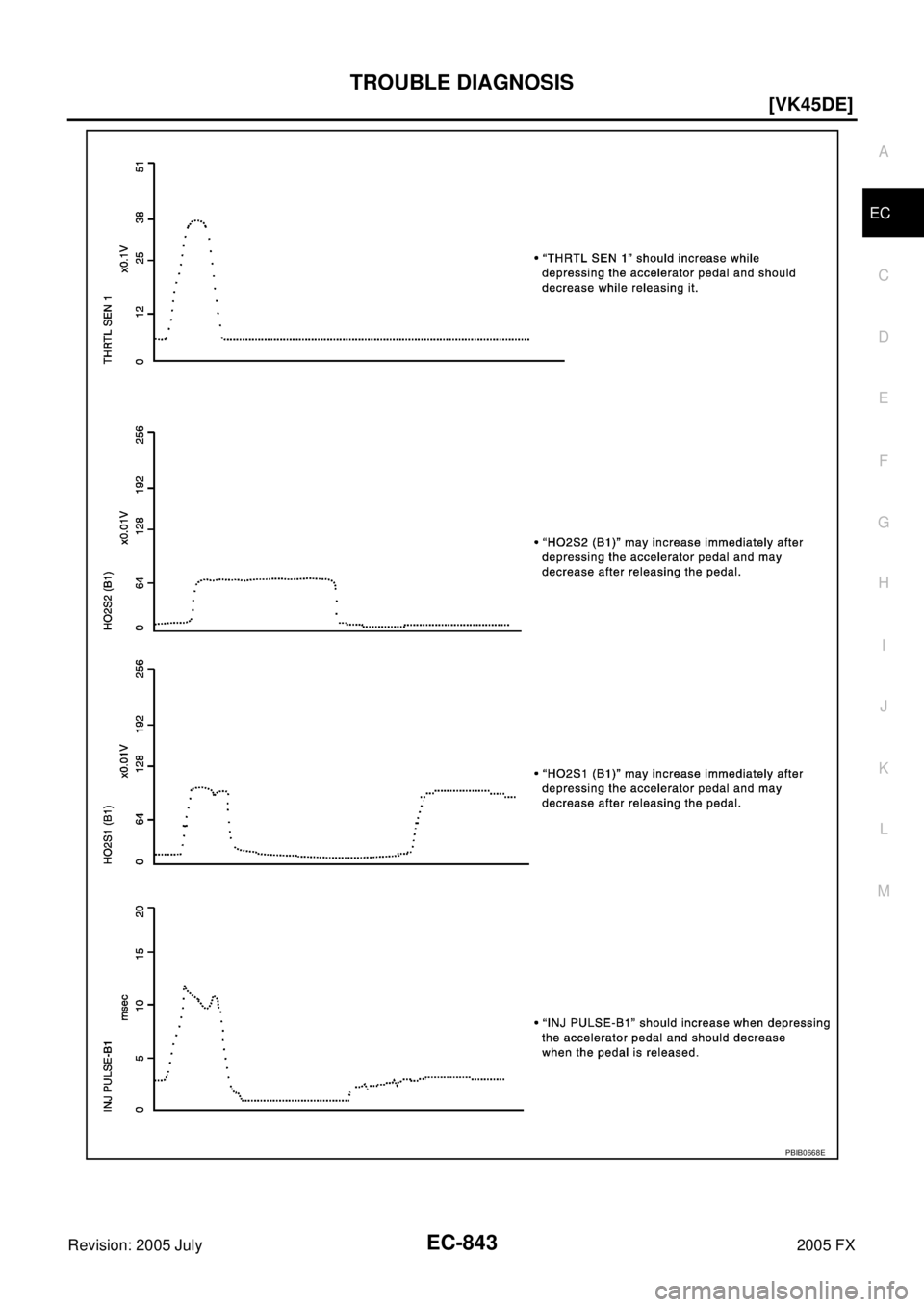

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.
Each value is for reference, the exact value may vary.
PBIB0198E
PBIB2445E

TROUBLE DIAGNOSIS EC-843
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
PBIB0668E

EC-844
[VK45DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2005 July 2005 FX
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionABS00E4K
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionABS00E4L

Vehicle driven distance: More than 5,000 km (3,017 miles)

Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30 °C (68 - 86 °F)

Engine coolant temperature: 75 - 95 °C (167 - 203 °F)

Transmission: Warmed-up*1

Electrical load: Not applied*2

Engine speed: Idle
*1: After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP 1” (A/T fluid
temperature sensor signal) indicates more than 60 °C (140 °F).
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureABS00E4M
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-769, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2” and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-845, "
Diagnostic Procedure" .
SEF601Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-845
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

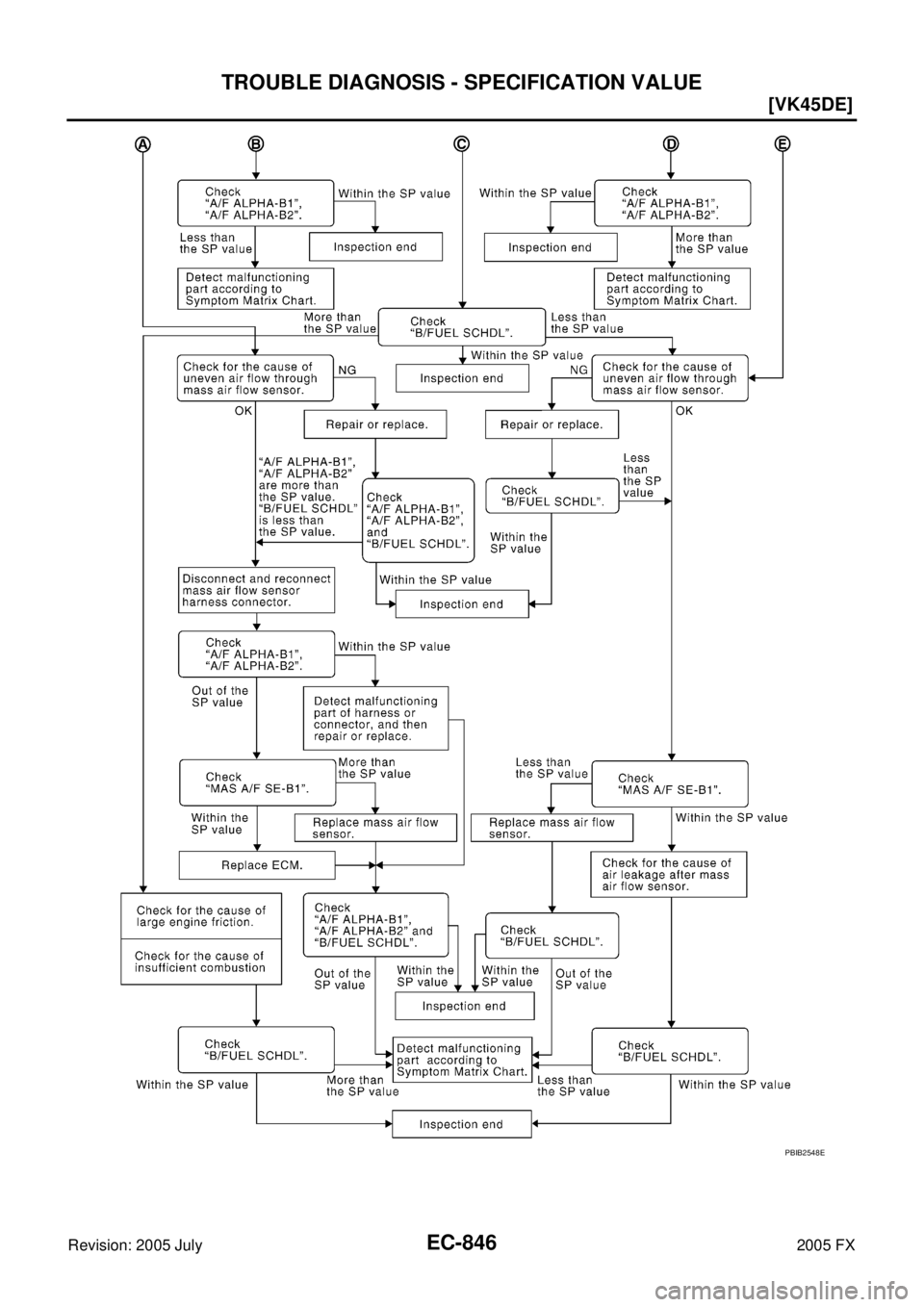

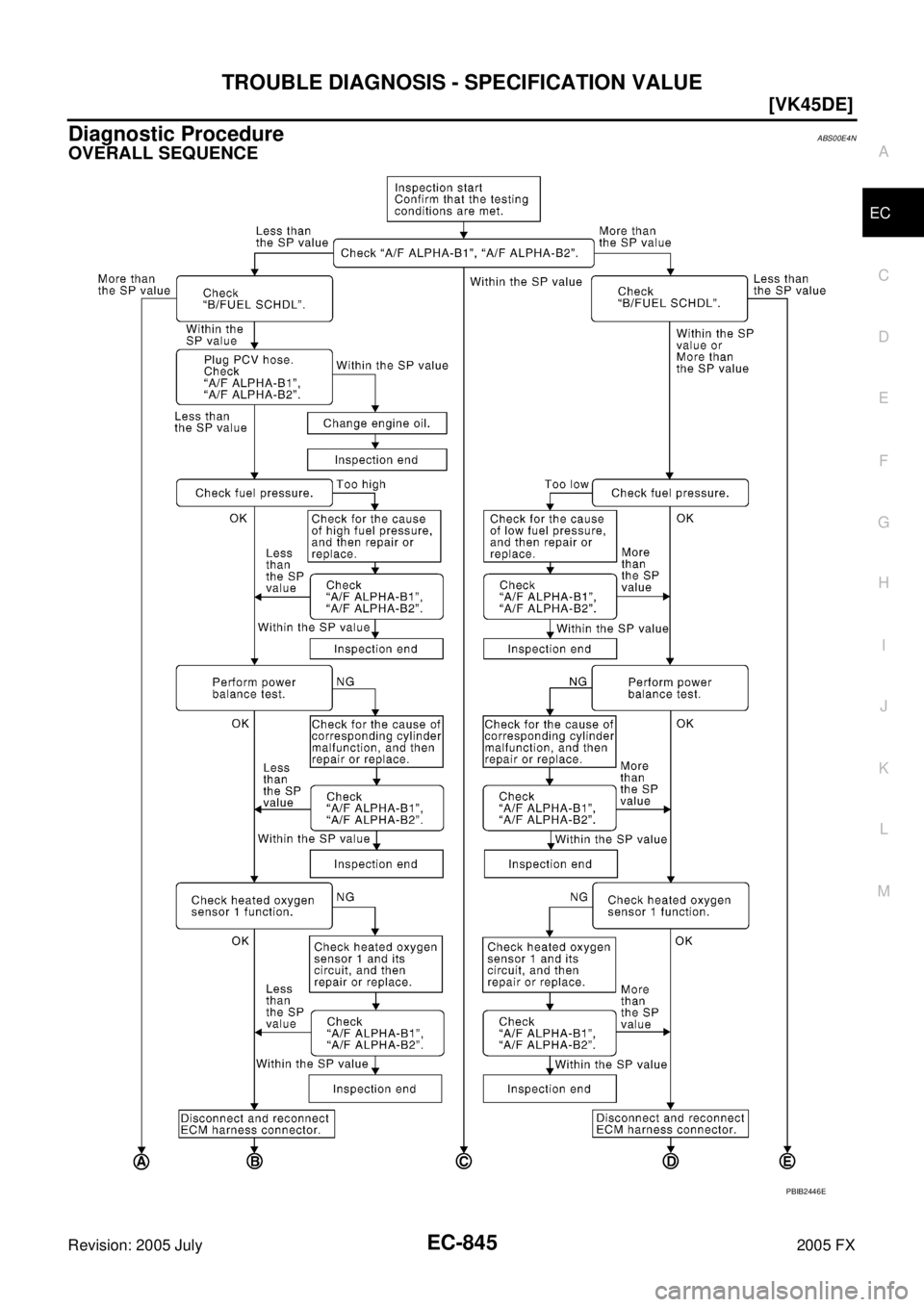

Diagnostic ProcedureABS00E4N
OVERALL SEQUENCE
PBIB2446E

EC-846
[VK45DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2005 July 2005 FX
PBIB2548E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-847
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DETAILED PROCEDURE
1. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Confirm that the testing conditions are met. Refer to EC-844, "
Testing Condition" .
3. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is within
the SP value.
NOTE:
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1
minute because they may fluctuate. It is NG if the indication is
out of the SP value even a little.
OK or NG
OK >> GO TO 17.
NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.
2. CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >> GO TO 4.
NG (More than the SP value)>>GO TO 19.
3. CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >> GO TO 6.
NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.
4. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is within the SP value.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
PBIB2369E
PBIB2332E
PBIB2332E
