Page 3511 of 4731

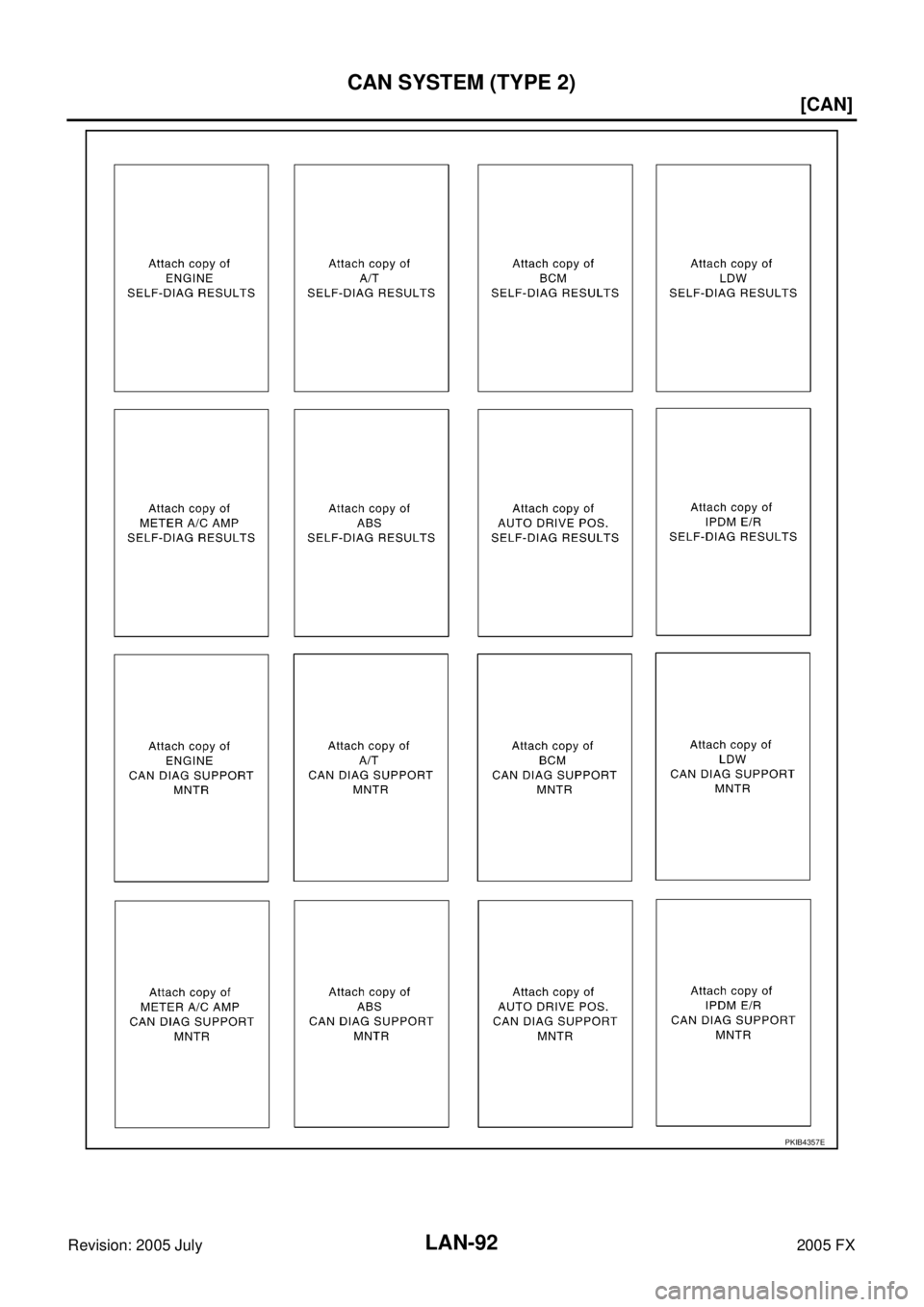

LAN-92
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
PKIB4357E
Page 3512 of 4731
CAN SYSTEM (TYPE 2) LAN-93
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

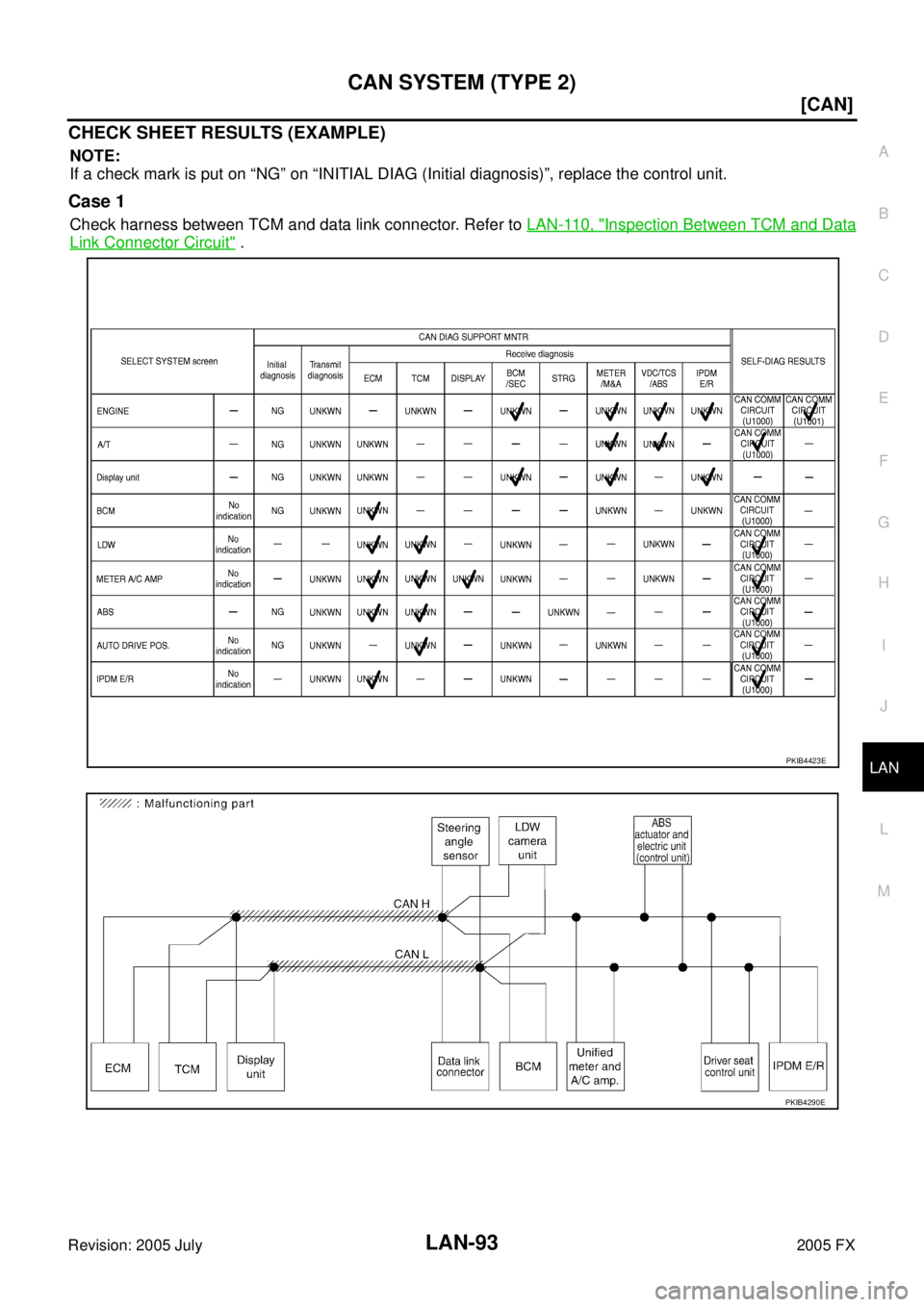

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-110, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB4423E
PKIB4290E
Page 3513 of 4731
LAN-94
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to L A N - 111 , "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIB4424E
PKIB4291E
Page 3514 of 4731
CAN SYSTEM (TYPE 2) LAN-95
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
L A N - 111 , "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
SKIB7295E
PKIB4292E
Page 3515 of 4731
LAN-96
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
11 2 , "Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit Circuit" .
PKIB4426E
PKIB4293E
Page 3516 of 4731
CAN SYSTEM (TYPE 2) LAN-97
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

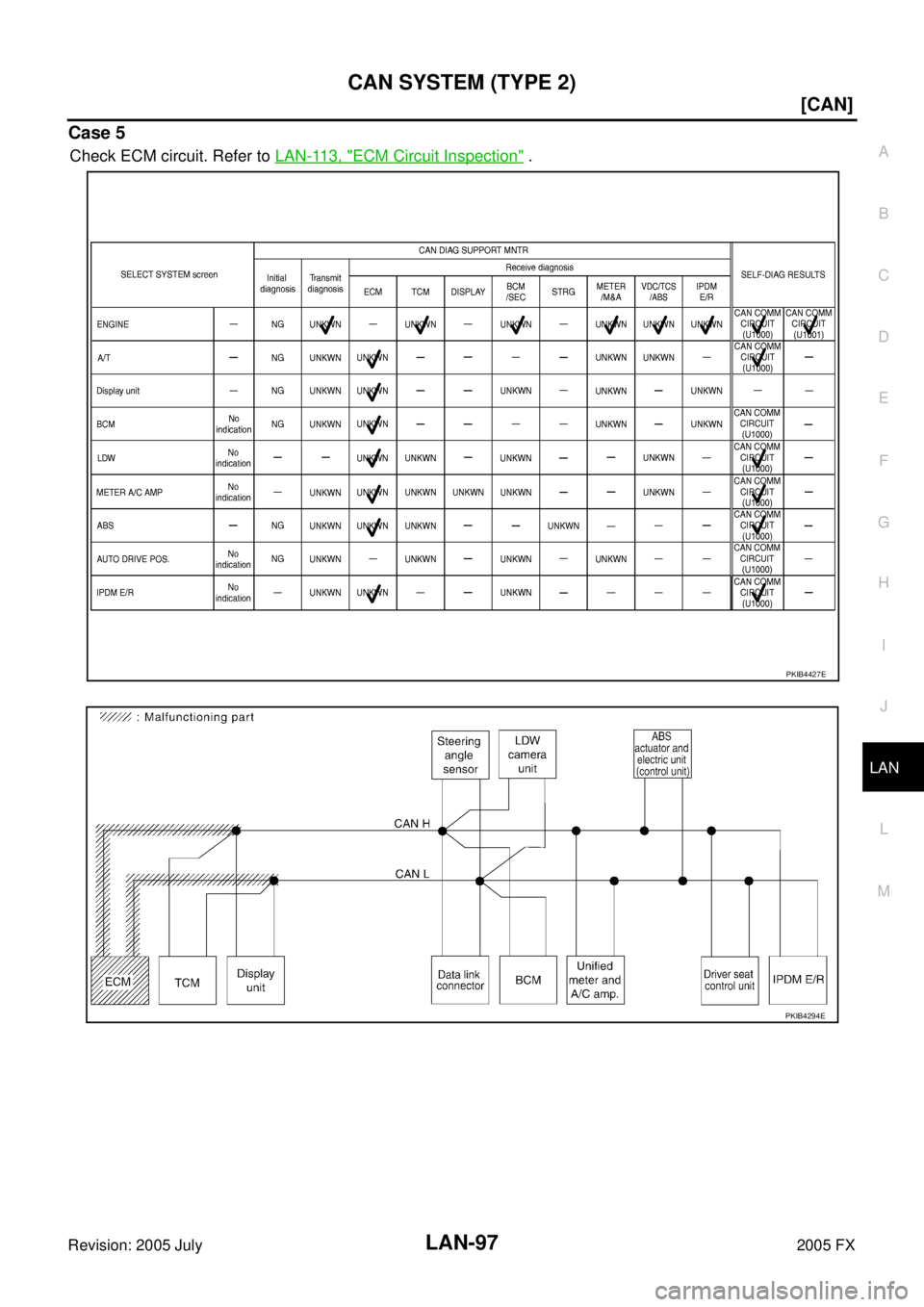

Case 5
Check ECM circuit. Refer to LAN-113, "ECM Circuit Inspection" .
PKIB4427E
PKIB4294E
Page 3517 of 4731
LAN-98
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX

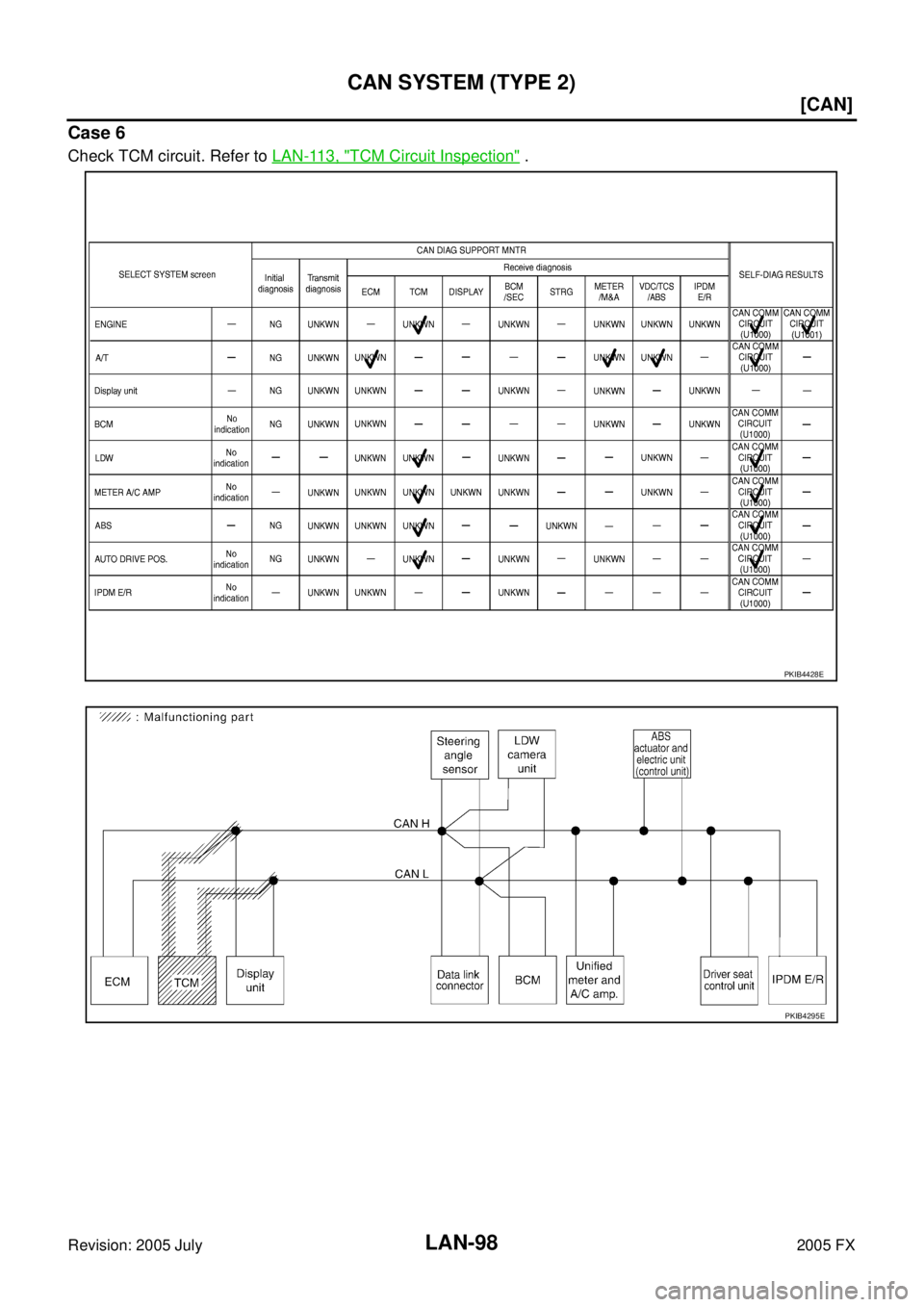

Case 6
Check TCM circuit. Refer to LAN-113, "TCM Circuit Inspection" .
PKIB4428E
PKIB4295E
Page 3518 of 4731
CAN SYSTEM (TYPE 2) LAN-99
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

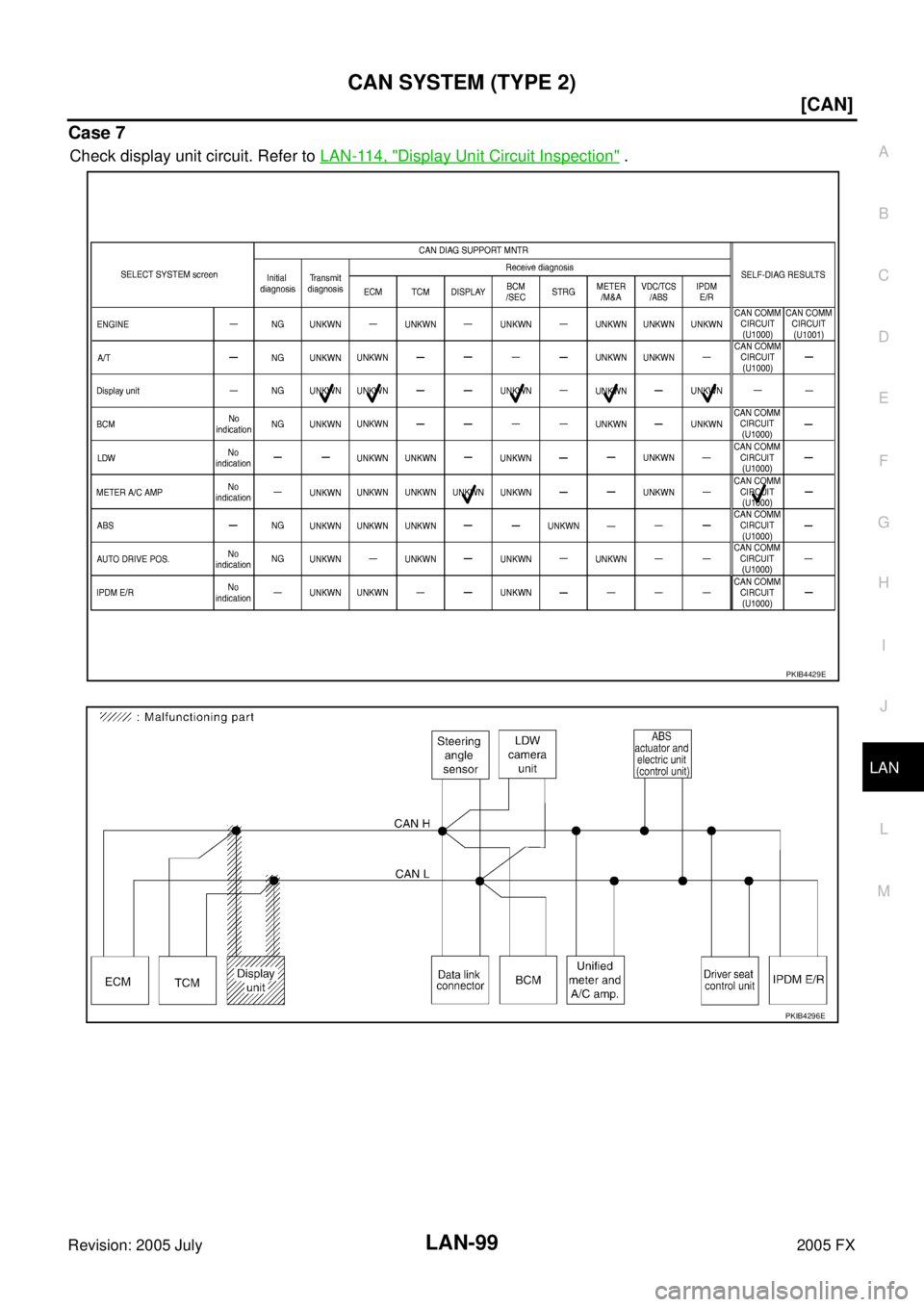

Case 7
Check display unit circuit. Refer to LAN-114, "Display Unit Circuit Inspection" .
PKIB4429E
PKIB4296E
Page 3519 of 4731
LAN-100
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX

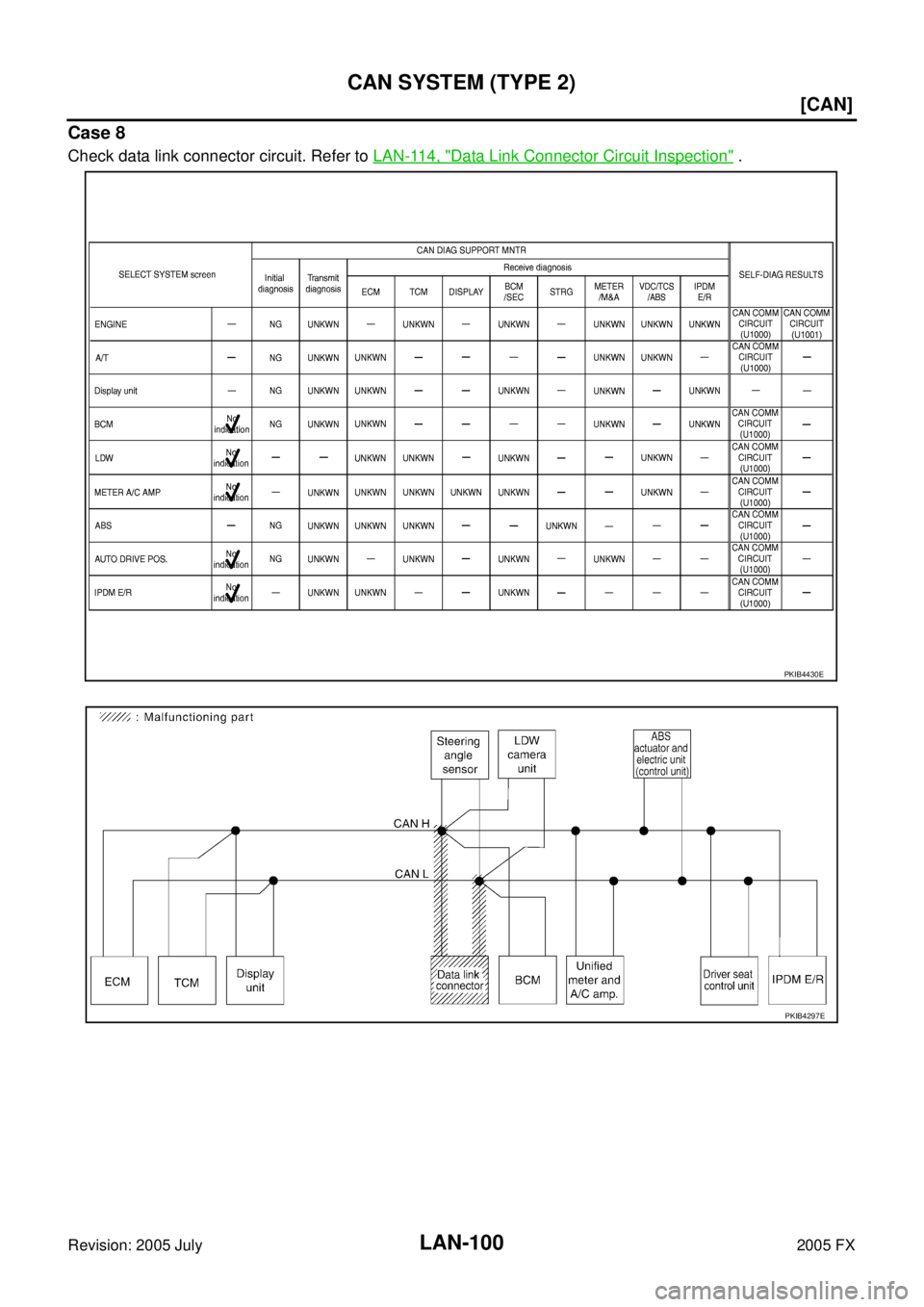

Case 8
Check data link connector circuit. Refer to LAN-114, "Data Link Connector Circuit Inspection" .
PKIB4430E
PKIB4297E
Page 3520 of 4731
CAN SYSTEM (TYPE 2) LAN-101
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

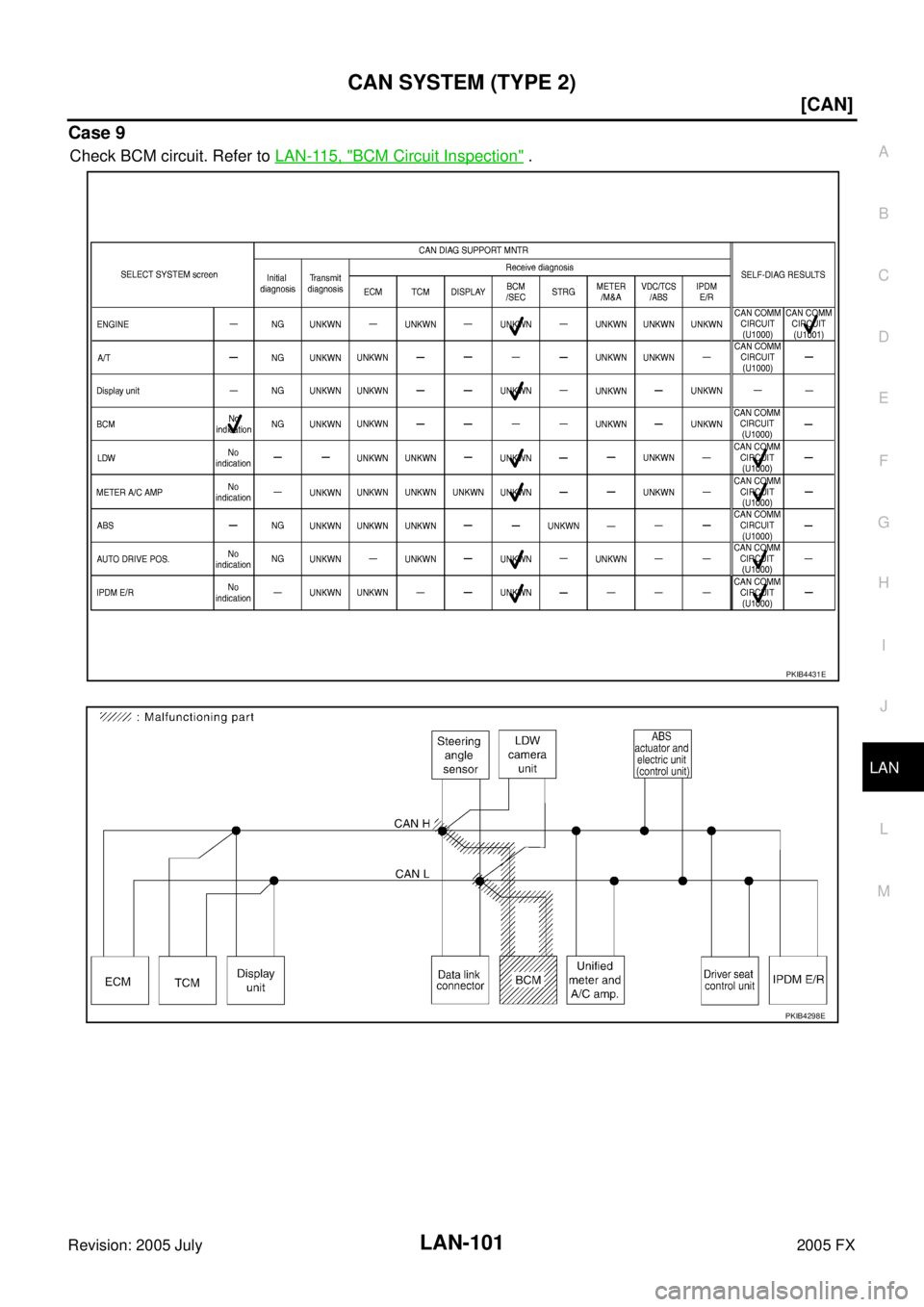

Case 9
Check BCM circuit. Refer to LAN-115, "BCM Circuit Inspection" .
PKIB4431E
PKIB4298E
