LAN-102
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 10
Check steering angle sensor circuit. Refer to LAN-115, "Steering Angle Sensor Circuit Inspection" .
PKIB4432E
PKIB4300E
Page 3522 of 4731
CAN SYSTEM (TYPE 2) LAN-103
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 11
Check LDW camera unit circuit. Refer to LAN-116, "LDW Camera Unit Circuit Inspection" .
PKIB4433E
PKIB4301E
Page 3523 of 4731
LAN-104
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 12
Check unified meter and A/C amp. circuit. Refer to LAN-117, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB4434E
PKIB4299E
Page 3524 of 4731
CAN SYSTEM (TYPE 2) LAN-105
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 13
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-117, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIB4435E
PKIB4302E
Page 3525 of 4731
LAN-106
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 14
Check driver seat control unit circuit. Refer to LAN-118, "Driver Seat Control Unit Circuit Inspection" .
PKIB4436E
PKIB4303E
Page 3526 of 4731
CAN SYSTEM (TYPE 2) LAN-107
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 15
Check IPDM E/R circuit. Refer to LAN-118, "IPDM E/R Circuit Inspection" .
PKIB4437E
PKIB4304E
Page 3527 of 4731
LAN-108
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 16
Check CAN communication circuit. Refer to LAN-119, "CAN Communication Circuit Inspection" .
PKIB4438E
Page 3528 of 4731
CAN SYSTEM (TYPE 2) LAN-109
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-125, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIB4439E
Page 3529 of 4731
LAN-110
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-125, "IPDM E/R Ignition Relay
Circuit Inspection" .

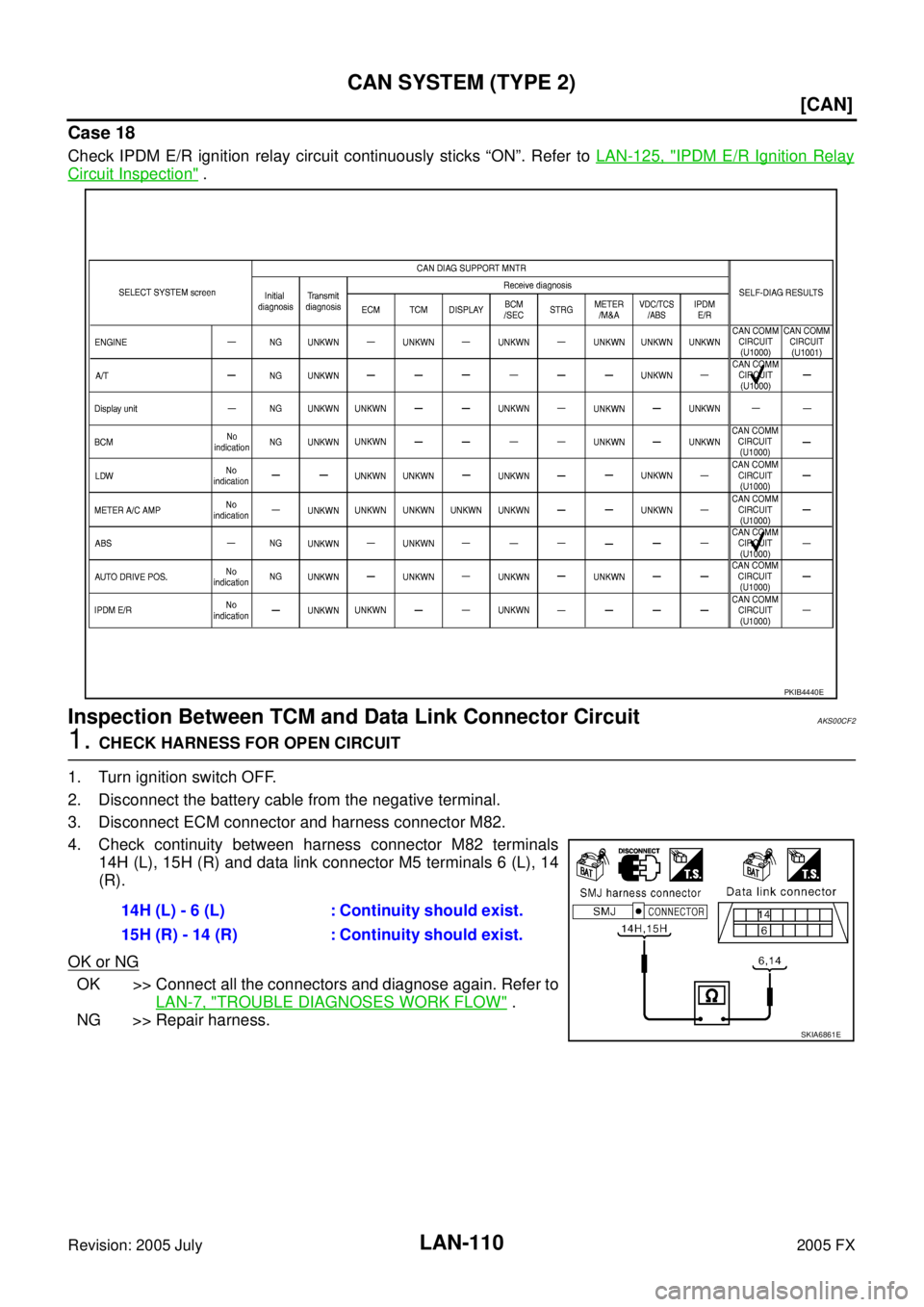

Inspection Between TCM and Data Link Connector CircuitAKS00CF2
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals 14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
PKIB4440E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
Page 3530 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-111
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
AKS00CF3
1. CHEC INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-111
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
AKS00CF3
1. CHEC](/img/42/57020/w960_57020-3529.png)
CAN SYSTEM (TYPE 2) LAN-111
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
AKS00CF3
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector M5 terminals 6 (L), 14 (R) and unified meter and A/C amp. harness connector
M55 terminals 1 (L), 11 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric
Unit (Control Unit) Circuit
AKS00CF4
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and harness side).
–Harness connector M41
–Harness connector E211
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector and harness connector M41.
2. Check continuity between unified meter and A/C amp. harness connector M55 terminals 1 (L), 11 (R) and harness connector
M41 terminals 15G (L), 14G (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness. 6 (L) - 1 (L) : Continuity should exist.
14 (R) - 11 (R) : Continuity should exist.
SKIA6862E
1 (L) - 15G (L) : Continuity should exist.
11 (R) - 14G (R) : Continuity should exist.
SKIA6863E
