INFINITI FX35 2005 Service Manual

LAN-122
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211

Harness between ABS actuator and electric unit (control unit) and harness connector E205
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect harness connector B8.
2. Check continuity between harness connector B5 terminals 3 (L) and 10 (R).
OK or NG
OK >> GO TO 11.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between harness connector B5 and harness
connector B8

Harness between harness connector B5 and harness
connector B5
11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E
11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E

CAN SYSTEM (TYPE 2) LAN-123
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
(R) and ground.
OK or NG
OK >> GO TO 12.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.

Harness between harness connector B5 and harness
connector B8

Harness between harness connector B5 and harness connector B5
12. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness con- nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> GO TO 13.
NG >> Repair harness between driver seat control unit and har- ness connector B151.
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between driver seat control unit harness connector
B152 terminals 14 (OR), 15 (SB) and ground.
OK or NG
OK >> GO TO 14.
NG >> Repair harness between driver seat control unit and har- ness connector B151.
14. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 15.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
3 (L) - Ground : Continuity should not exist.
10 (R) - Ground : Continuity should not exist.
SKIA6878E
14 (OR) - 15 (SB) : Continuity should not exist.
SKIA6882E
14 (OR) - Ground : Continuity should not exist.
15 (SB) - Ground : Continuity should not exist.
SKIA6883E
48 (L) - 49 (R) : Continuity should not exist.
SKIB1363E

LAN-124
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 16.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
16. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals 94 and 86.
3. Check resistance between IPDM E/R terminals 48 and 49.
OK or NG
OK >> GO TO 17.
NG >> Replace ECM and/or IPDM E/R.
17. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 18.
NG >> Refer to LAN-16, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIB1364E
94 - 86 : Approx. 108 - 132 Ω
48 - 49 : Approx. 108 - 132 Ω
LKIA0037E

CAN SYSTEM (TYPE 2) LAN-125
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–Display unit
–BCM
–Steering angle sensor
–LDW camera unit
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
IPDM E/R Ignition Relay Circuit InspectionAKS00CFJ
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .

LAN-126
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
CAN SYSTEM (TYPE 3)PFP:23710

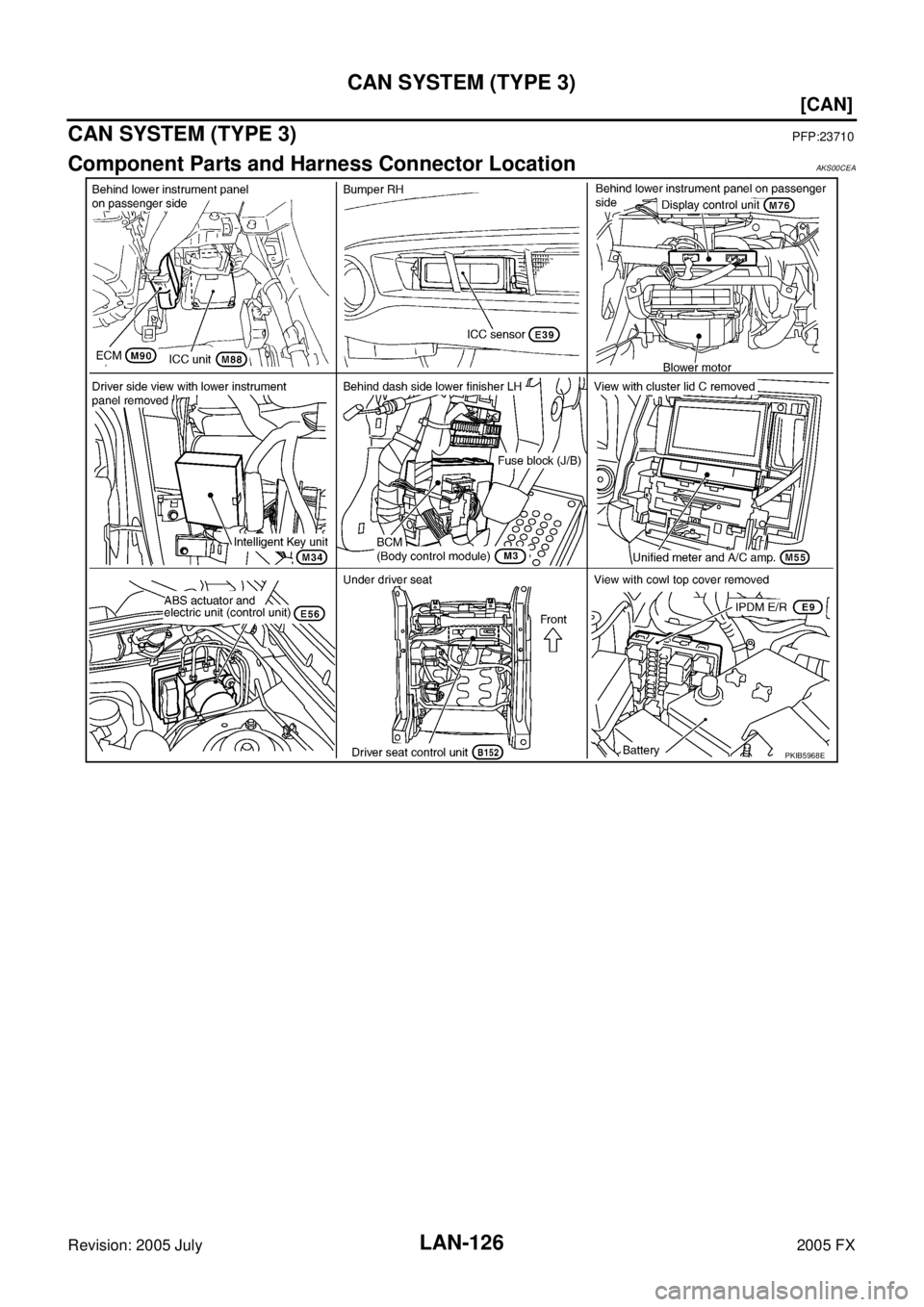

Component Parts and Harness Connector LocationAKS00CEA
PKIB5968E

CAN SYSTEM (TYPE 3) LAN-127
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
SchematicAKS00CEB
TKWM2355E

LAN-128
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX

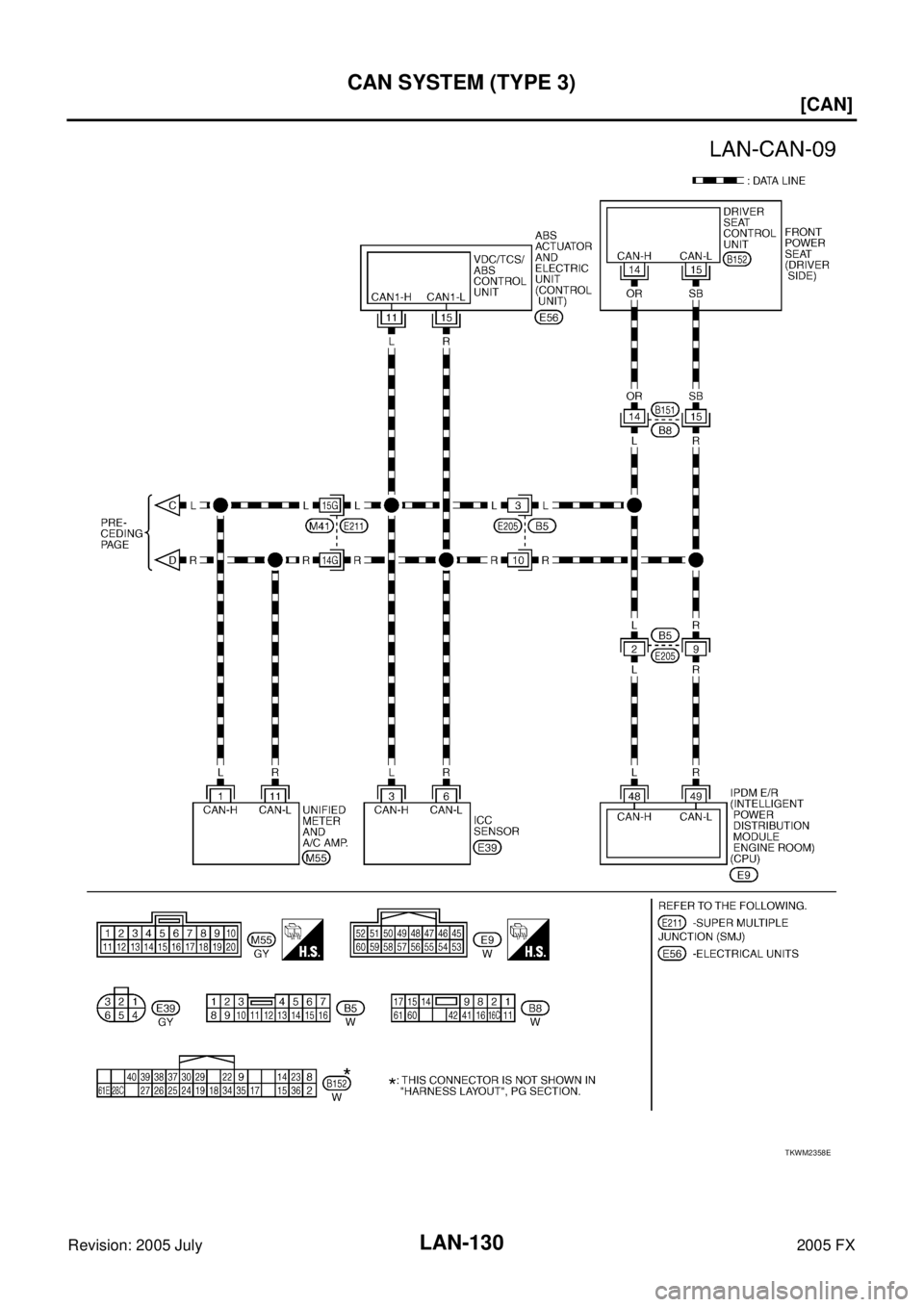

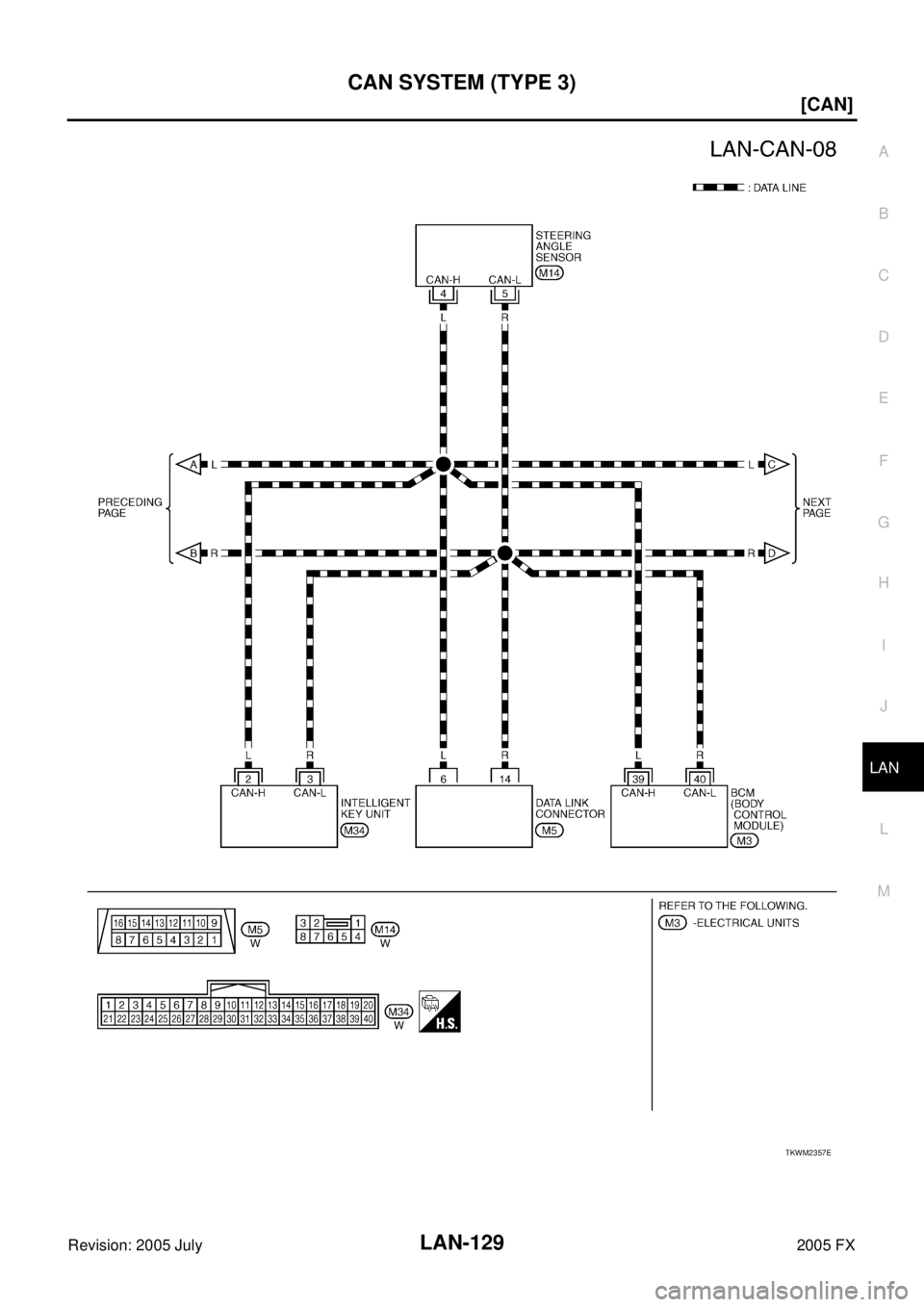

Wiring Diagram - CAN -AKS00CEC
TKWM2356E

CAN SYSTEM (TYPE 3) LAN-129
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
TKWM2357E

LAN-130
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
TKWM2358E

CAN SYSTEM (TYPE 3) LAN-131
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

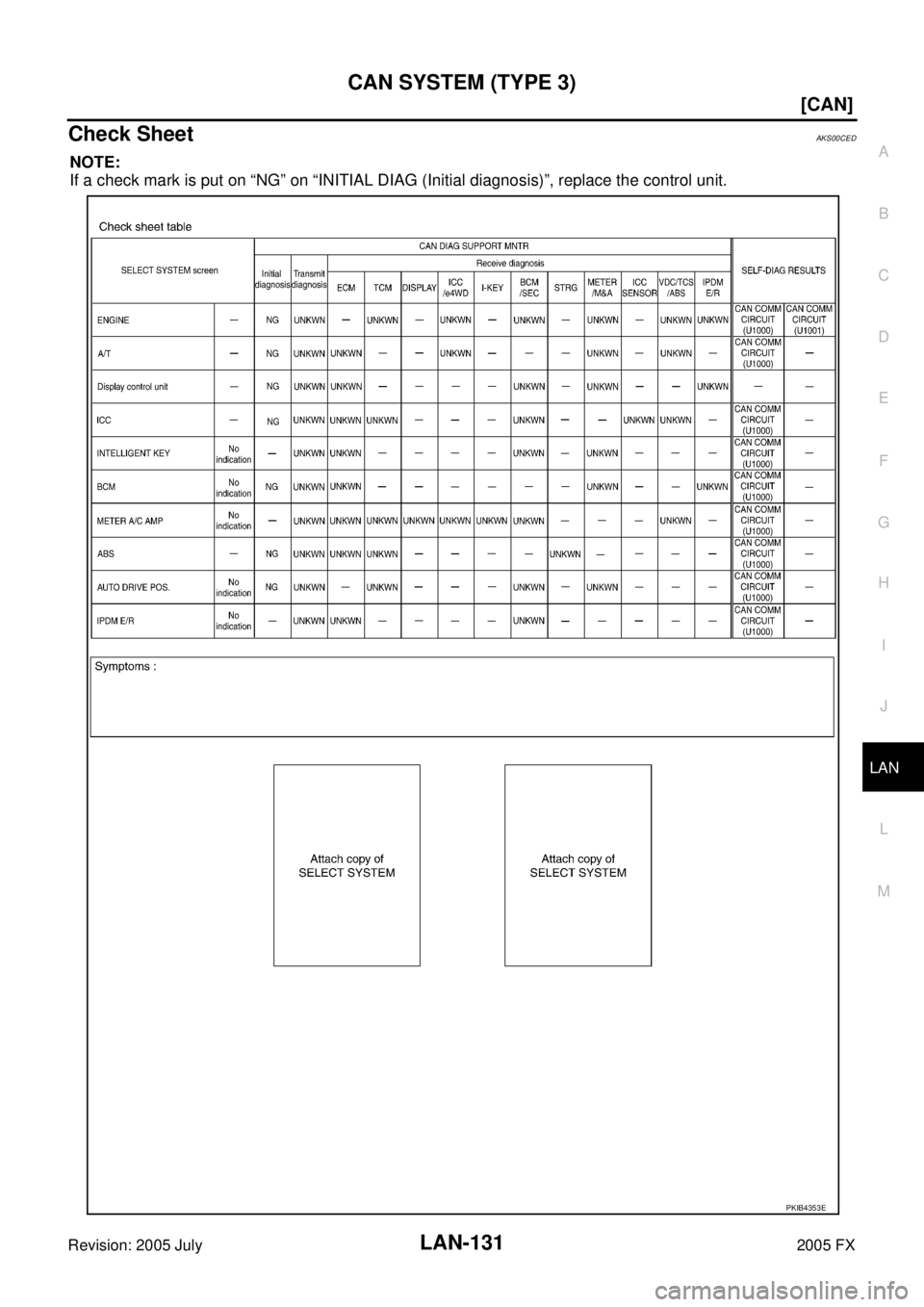

Check SheetAKS00CED
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB4353E
