DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE ” screen.
2. Touch “ALL SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
3. Touch the required monitoring item on “SELECTION FROM MENU”. In “ALL SIGNALS”, all items are monitored. In “MAIN SIGNALS”, predetermined items are monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording, touch “STOP”.
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, display may not
be correct.
ALL SIGNALS Monitors all items.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Selects items and monitors them.
Item name CONSULT-II
screen display Display
or unit Monitor item selection
Description
ALL
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Position lights request TAIL & CLR REQ ON/OFF ×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF ×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF ×× ×Signal status input from BCM
Front fog lights request FR FOG REQ ON/OFF ×× ×Signal status input from BCM

HEADLAMP - XENON TYPE - LT-23
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested, and check operation.
3. Touch “START”.
4. Touch “STOP” while testing to stop the operation.
Headlamp Does Not Change To High Beam (Both Sides)AKS007ML
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “HI BEAM SW” turns ON-OFF linked with operation of
lighting switch.
Without CONSULT-II
Refer to LT- 11 5 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT-
11 5 , "Combination Switch Inspection" .
2. HEADLAMP ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
4. Make sure headlamp high beam operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-24, "
Auto Active Test" .
2. Make sure headlamp high beam operation.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
Te s t i t e m CONSULT-II
screen display Description
Headlamp relay (HI, LO) output LAMPS Allows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON,
LO ON) at your option (Headlamp high beam repeats ON-OFF every 1 second).
Front fog lamp relay output Allows front fog lamp relay to operate by switching operation ON-OFF at your
option.
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON-OFF at your option.
When lighting switch is
HIGH BEAM position : HI BEAM SW ON
PKIA7585E
Headlamp high beam should operate
(Headlamp high beam repeats ON −OFF every 1 second).
Headlamp high beam should operate.
SKIA5774E

LT-24
HEADLAMP - XENON TYPE -
Revision: 2005 July 2005 FX
3. CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR” on “SELECT DIAG MODE” screen.
2. Make sure “HL LO REQ” and “HL HI REQ” turns ON when light- ing switch is in HIGH BEAM position.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .
4. CHECK HEADLAMP INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connector.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “LAMPS” on “SELECT TEST ITEM” screen.
5. Touch “HI” screen.
6. When headlamp high beam is operating, check voltage between front combination lamp RH and LH harness connector and
ground (Headlamp high beam repeats ON −OFF every 1 sec-
ond).
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connector.
3. Start auto active test. Refer to PG-24, "
Auto Active Test" .
4. When headlamp high beam is operating, check voltage between front combination lamp RH and LH har- ness connector and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5. When lighting switch is
HIGH BEAM position : HL LO REQ ON
: HL HI REQ ON
PKIA7638E
Terminal
Vo l ta g e
(+)
(-)
Connector Terminal (Wire color)
RH E24 5 (BR) Ground Battery voltage
LH E44 5 (SB)
Terminal Vo l ta g e
(+)
(-)
Connector Terminal (Wire color)
RH E24 5 (BR) Ground Battery voltage
LH E44 5 (SB)
PKIA5205E

HEADLAMP - XENON TYPE - LT-25
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
5. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 27 (BR) and front combination lamp RH harness connec-
tor E24 terminal 5 (BR).
4. Check continuity between IPDM E/R harness connector E7 ter- minal 28 (SB) and front combination lamp LH harness connector
E44 terminal 5 (SB).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
6. CHECK HEADLAMP GROUND
1. Check continuity between front combination lamp RH harness connector E24 terminal 7 (B) and ground.
2. Check continuity between front combination lamp LH harness connector E44 terminal 7 (B) and ground.
OK or NG
OK >> Replace front combination lamp.
NG >> Repair harness or connector.
Headlamp Does Not Change To High Beam (One Side)AKS007MM
1. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH or LH connector.
3. Turn ignition switch ON.
4. Lighting switch is turned HIGH BEAM position.
5. Check voltage between front combination lamp RH or LH har- ness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2. 27 (BR) – 5 (BR) : Continuity should exist.
28 (SB) – 5 (SB) : Continuity should exist.
PKIA5206E
7 (B) – Ground : Continuity should exist.
7 (B) – Ground : Continuity should exist.
PKIA5207E
Terminal Voltage
(+)
(-)
Connector Terminal (Wire color)
RH E24 5 (BR) Ground Battery voltage
LH E44 5 (SB)
PKIA5205E

LT-26
HEADLAMP - XENON TYPE -
Revision: 2005 July 2005 FX
2. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 27 (BR) and front combination lamp RH harness connec-
tor E24 terminal 5 (BR).
4. Check continuity between IPDM E/R harness connector E7 ter- minal 28 (SB) and front combination lamp LH harness connector
E44 terminal 5 (SB).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
3. CHECK HEADLAMP GROUND
1. Check continuity between front combination lamp RH harness connector E24 terminal 7 (B) and ground.
2. Check continuity between front combination lamp LH harness connector E44 terminal 7 (B) and ground.
OK or NG
OK >> Replace front combination lamp.
NG >> Repair harness or connector.
High Beam Indicator Lamp Does Not IlluminateAKS007MN
1. CHECK BULB
Check bulb of high beam indicator lamp.
OK or NG
OK >> Replace combination meter.
NG >> Replace indicator bulb.
Headlamp Low Beam Does Not Illuminate (Both Sides)AKS007MO
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “HEAD LAMP SW 1” and “HEAD LAMP SW 2” turns ON-
OFF linked with operation of lighting switch.
Without CONSULT-II
Refer to LT- 11 5 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT-
11 5 , "Combination Switch Inspection" .
27 (BR) – 5 (BR) : Continuity should exist.
28 (SB) – 5 (SB) : Continuity should exist.
PKIA5206E
7 (B) – Ground : Continuity should exist.
7 (B) – Ground : Continuity should exist.
PKIA5207E
When lighting switch is 2ND
position : HEAD LAMP SW 1 ON
: HEAD LAMP SW 2 ON
PKIA7586E

HEADLAMP - XENON TYPE - LT-27
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
2. HEADLAMP ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST” ITEM screen.
3. Touch “LO” screen.
4. Make sure headlamp low beam operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-24, "
Auto Active Test" .
2. Make sure headlamp low beam operation.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR” on “SELECT DIAG MODE” screen.
2. Make sure “HL LO REQ” turns ON when lighting switch is in 2ND position.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .

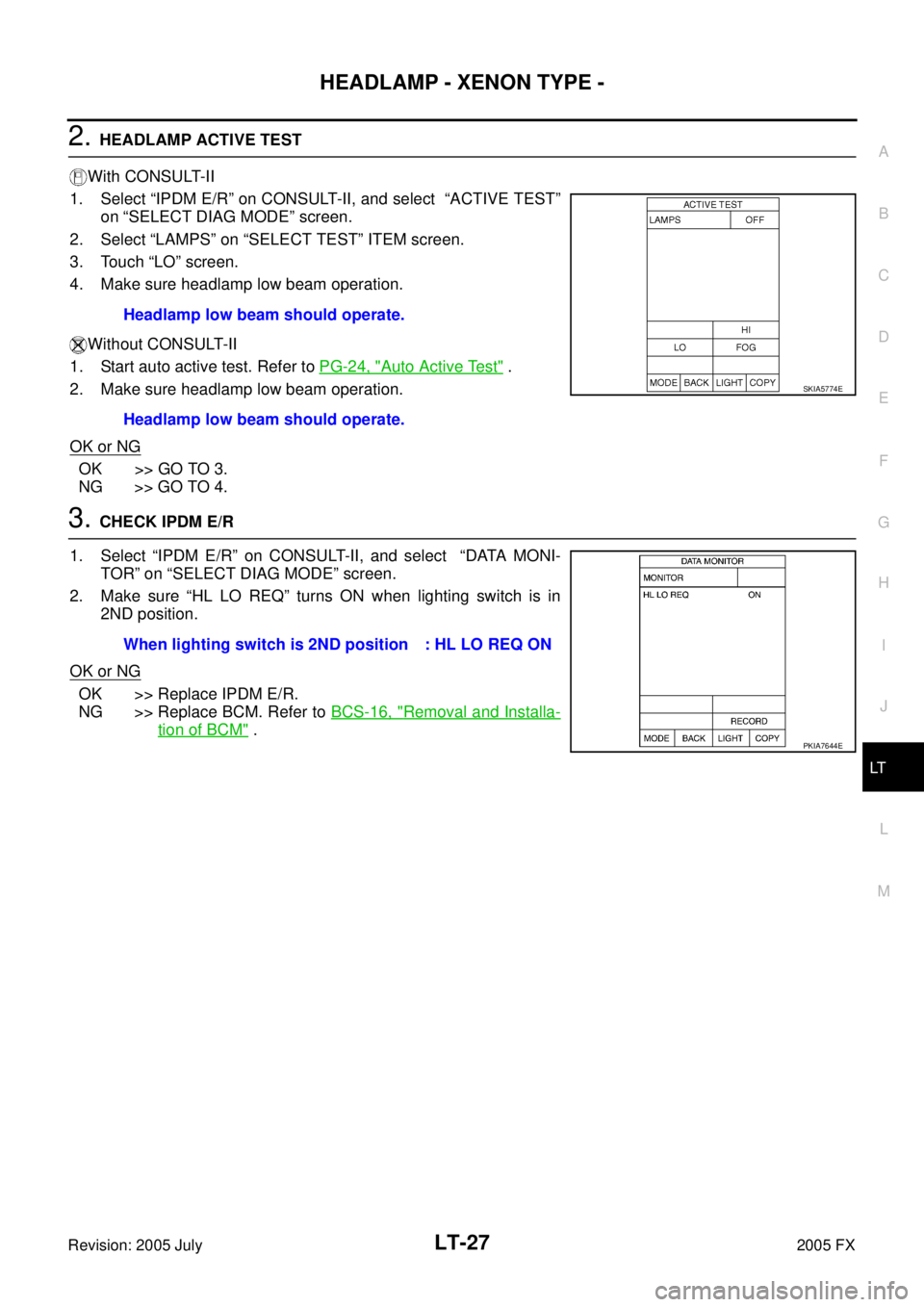

Headlamp low beam should operate.
Headlamp low beam should operate.
SKIA5774E
When lighting switch is 2ND position : HL LO REQ ON
PKIA7644E

LT-28
HEADLAMP - XENON TYPE -
Revision: 2005 July 2005 FX
4. CHECK HEADLAMP INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connector.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “LAMPS” on “SELECT TEST ITEM” screen.
5. Touch “LO” screen.
6. When headlamp low beam is operating, check voltage between front combination lamp RH and LH harness connector and
ground.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connector.
3. Start auto active test. Refer to PG-24, "
Auto Active Test" .
4. When headlamp low beam is operating, check voltage between front combination lamp RH and LH har- ness connector and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 20 (LG) and front combination lamp RH harness connec-
tor E24 terminal 6 (LG).
4. Check continuity between IPDM E/R harness connector E7 ter- minal 30 (GY) and front combination lamp LH harness connec-
tor E44 terminal 6 (GY).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Te r m i n a l
Vo l ta g e
(+)
(-)
Connector Terminal (Wire color)
RH E24 6 (LG) Ground Battery voltage
LH E44 6 (GY)
Te r m i n a l Vo l ta g e
(+)
(-)
Connector Terminal (Wire color)
RH E24 6 (LG) Ground Battery voltage
LH E44 6 (GY)PKIA5208E
20 (LG) – 6 (LG) : Continuity should exist.
30 (GY) – 6 (GY) : Continuity should exist.
PKIA5209E

HEADLAMP - XENON TYPE - LT-29
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
6. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp RH harness connector E24 terminal 7 (B) and ground.
3. Check continuity between front combination lamp LH harness connector E44 terminal 7 (B) and ground.
OK or NG
OK >> Check headlamp harness and connectors, ballasts (HID control unit), and xenon bulbs. Refer to LT- 3 4 , "
Xenon Headlamp Trouble Diagnosis" .
NG >> Repair harness or connector.
Headlamp Low Beam Does Not Illuminate (One Side)AKS007MP
1. CHECK BULB
Check ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 4 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Replace malfunctioning part.
2. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH or LH connector.
3. Turn ignition switch ON.
4. Lighting switch is turned 2ND position.
5. Check voltage between front combination lamp RH or LH har- ness connector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3. 7 (B) – Ground : Continuity should exist.
7 (B) – Ground : Continuity should exist.
PKIA5207E
Terminal Voltage
(+)
(-)
Connector Terminal (Wire color)
RH E24 6 (LG) Ground Battery voltage
LH E44 6 (GY)
PKIA5208E

LT-30
HEADLAMP - XENON TYPE -
Revision: 2005 July 2005 FX
3. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 20 (LG) and front combination lamp RH harness connec-
tor E24 terminal 6 (LG).
4. Check continuity between IPDM E/R harness connector E7 ter- minal 30 (GY) and front combination lamp LH harness connec-
tor E44 terminal 6 (GY).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
4. CHECK HEADLAMP GROUND
1. Check continuity between front combination lamp RH harness connector E24 terminal 7 (B) and ground.
2. Check continuity between front combination lamp LH harness connector E44 terminal 7 (B) and ground.
OK or NG
OK >> Check headlamp harness and connector.
NG >> Repair harness or connector.
Headlamp RH Low Beam and High Beam Does Not Illuminate AKS007MQ
1. CHECK BULB
Inspect ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 4 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Replace malfunctioning part.
2. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH connector.
3. Check continuity between front combination lamp RH harness connector E24 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector. 20 (LG) – 6 (LG) : Continuity should exist.
30 (GY) – 6 (GY) : Continuity should exist.
PKIA5209E
7 (B) – Ground : Continuity should exist.
7 (B) – Ground : Continuity should exist.
PKIA5207E
7 (B) – Ground : Continuity should exist.
PKIA5207E

HEADLAMP - XENON TYPE - LT-31
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
3. CHECK HEADLAMP CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E7 ter- minal 27 (BR) and front combination lamp RH harness connec-
tor E24 terminal 5 (BR).
3. Check continuity between IPDM E/R harness connector E7 ter- minal 20 (LG) and front combination lamp RH harness connec-
tor E24 terminal 6 (LG).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Headlamp LH Low Beam and High Beam Does Not Illuminate AKS007MR
1. CHECK BULB
Inspect ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 4 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Replace malfunctioning part.
2. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Disconnect front combination lamp LH connector.
3. Check continuity between front combination lamp LH harness connector E44 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector. 27 (BR) – 5 (BR) : Continuity should exist.
PKIA7587E
20 (LG) – 6 (LG) : Continuity should exist.
PKIA5211E
7 (B) – Ground : Continuity should exist.
PKIA5207E
