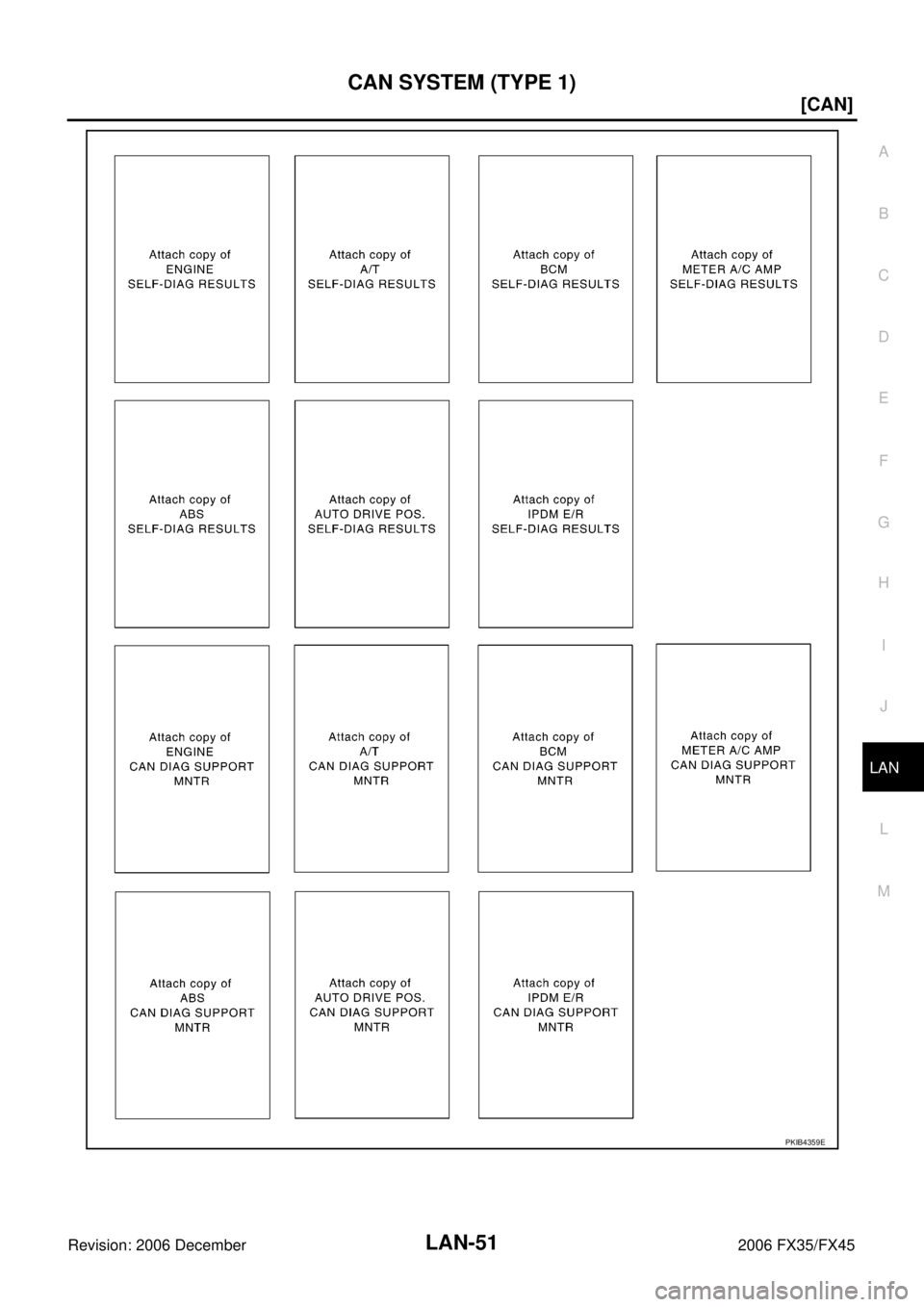

CAN SYSTEM (TYPE 1) LAN-51
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
PKIB4359E
Page 3412 of 4462
LAN-52
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45

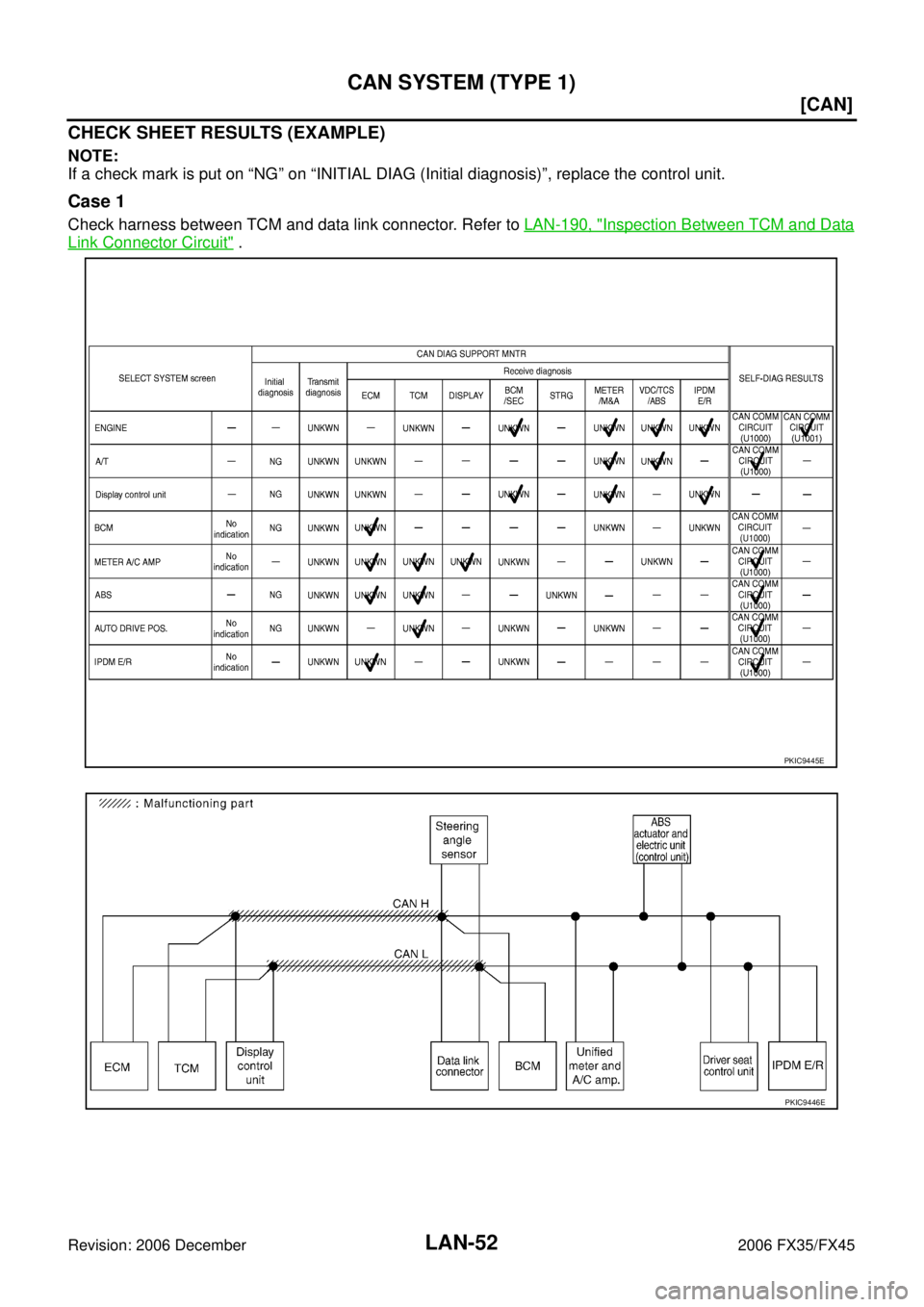

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-190, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIC9445E
PKIC9446E
Page 3413 of 4462
CAN SYSTEM (TYPE 1) LAN-53
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

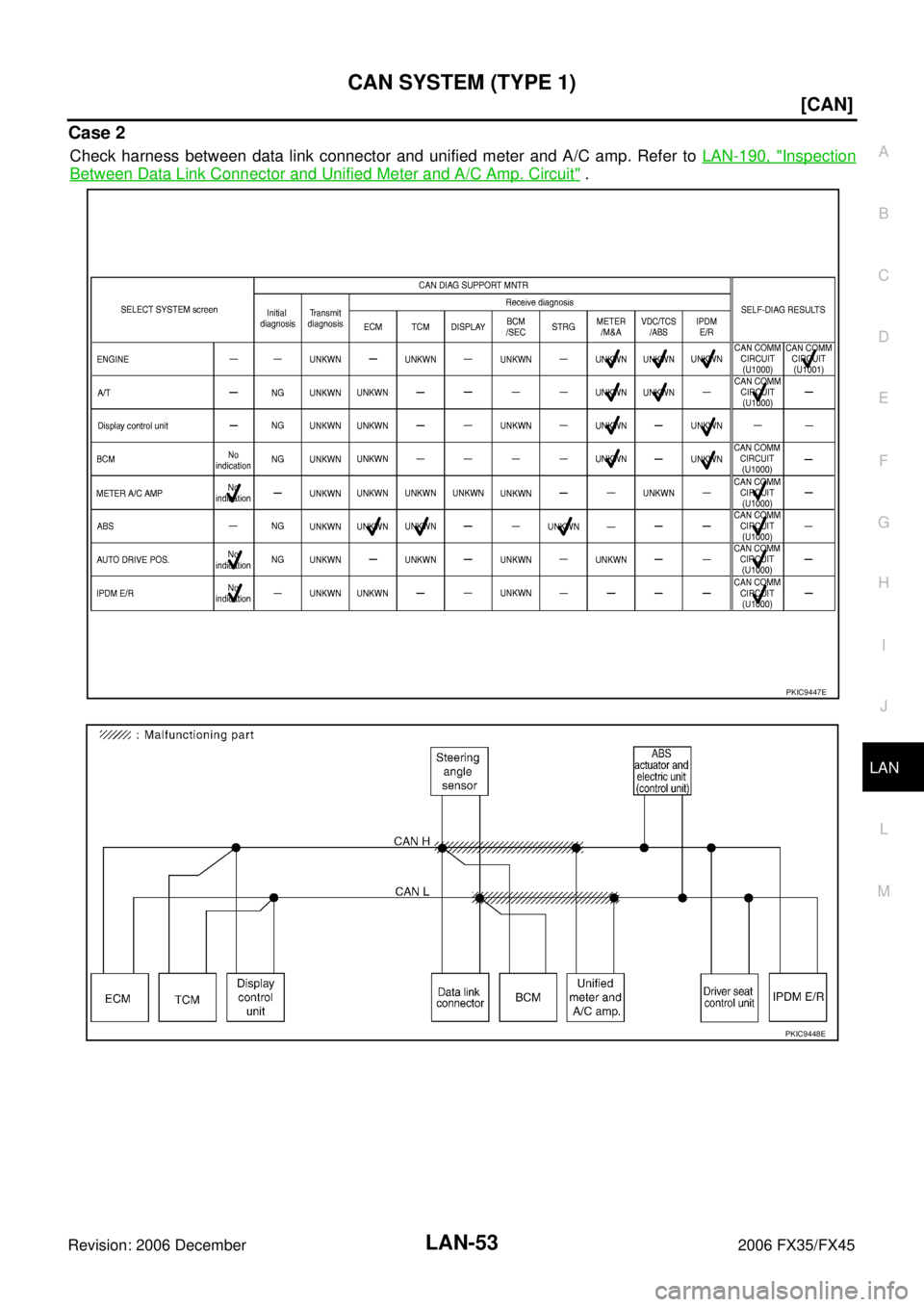

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-190, "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIC9447E
PKIC9448E
Page 3414 of 4462
LAN-54
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45

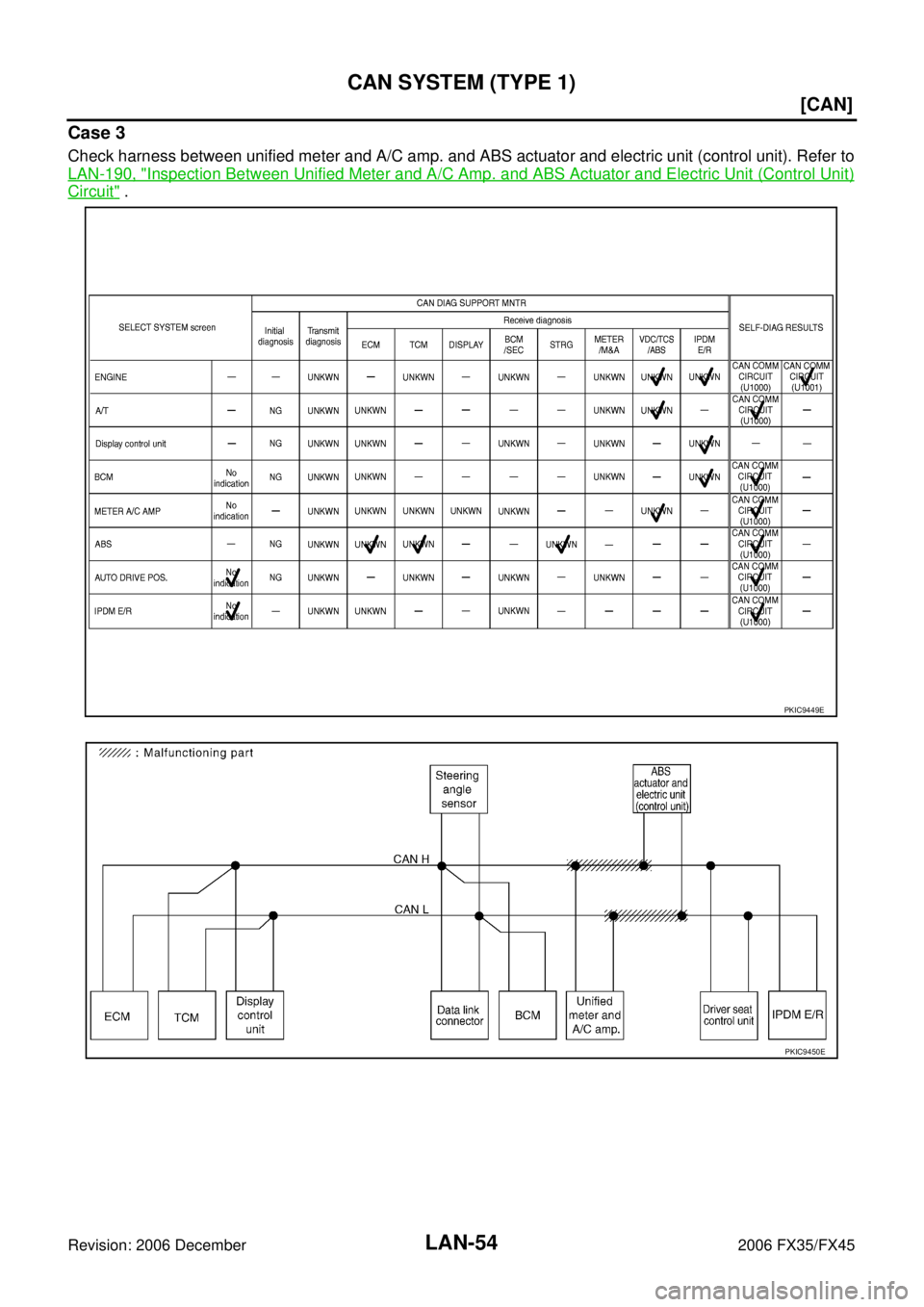

Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-190, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
PKIC9449E
PKIC9450E
Page 3415 of 4462
CAN SYSTEM (TYPE 1) LAN-55
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

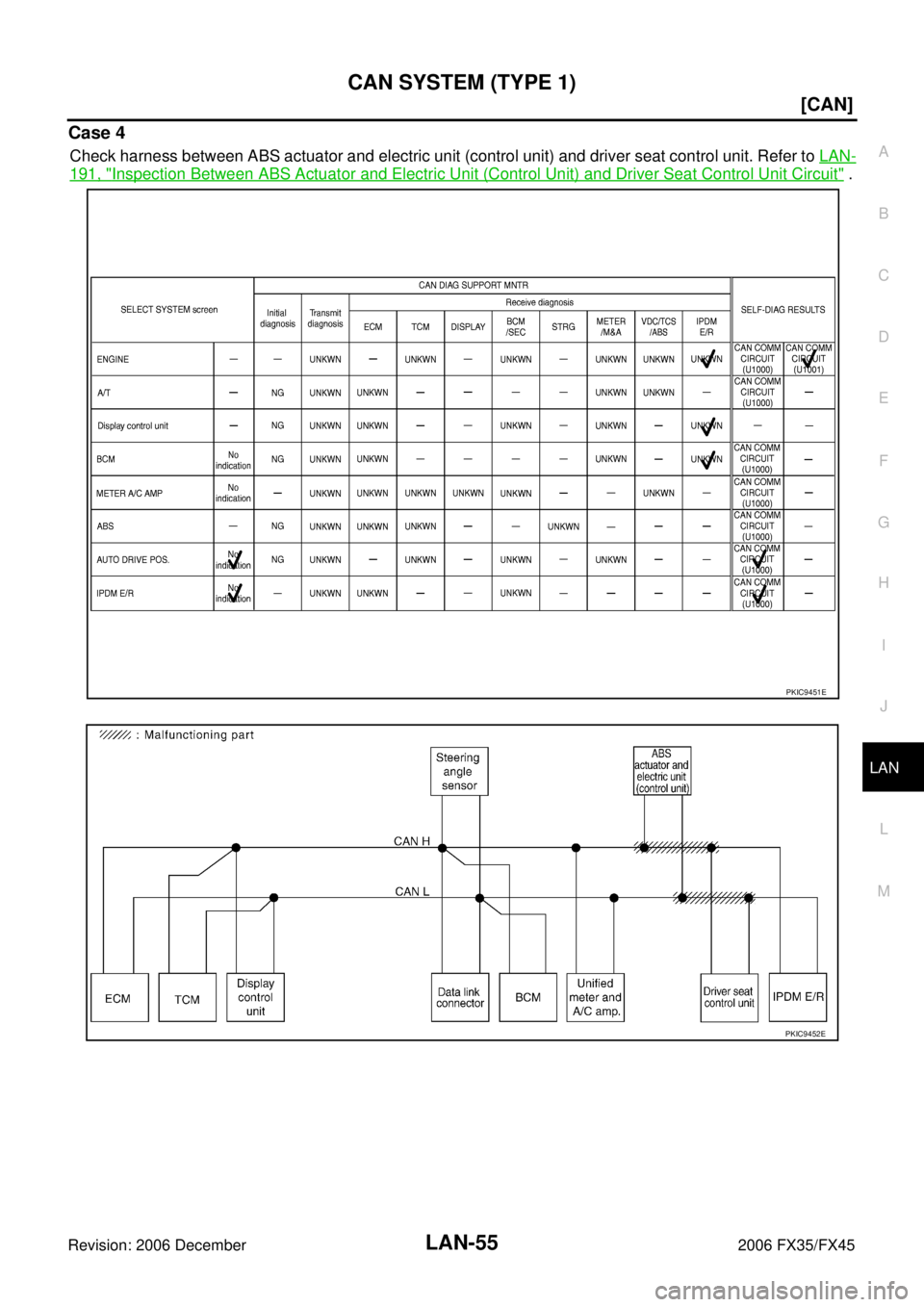

Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
191, "Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit Circuit" .
PKIC9451E
PKIC9452E
Page 3416 of 4462
LAN-56
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45

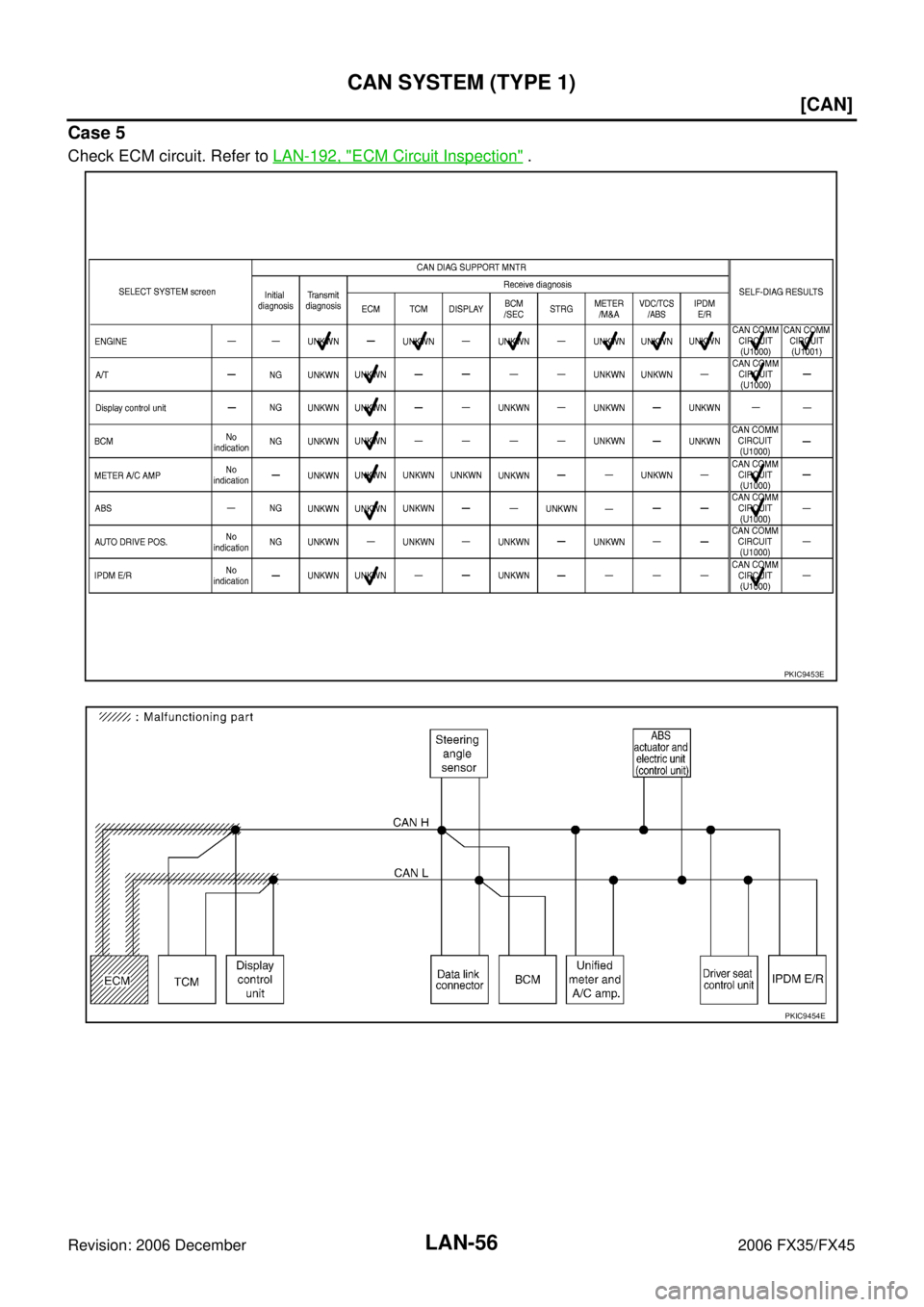

Case 5
Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" .
PKIC9453E
PKIC9454E
Page 3417 of 4462
CAN SYSTEM (TYPE 1) LAN-57
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

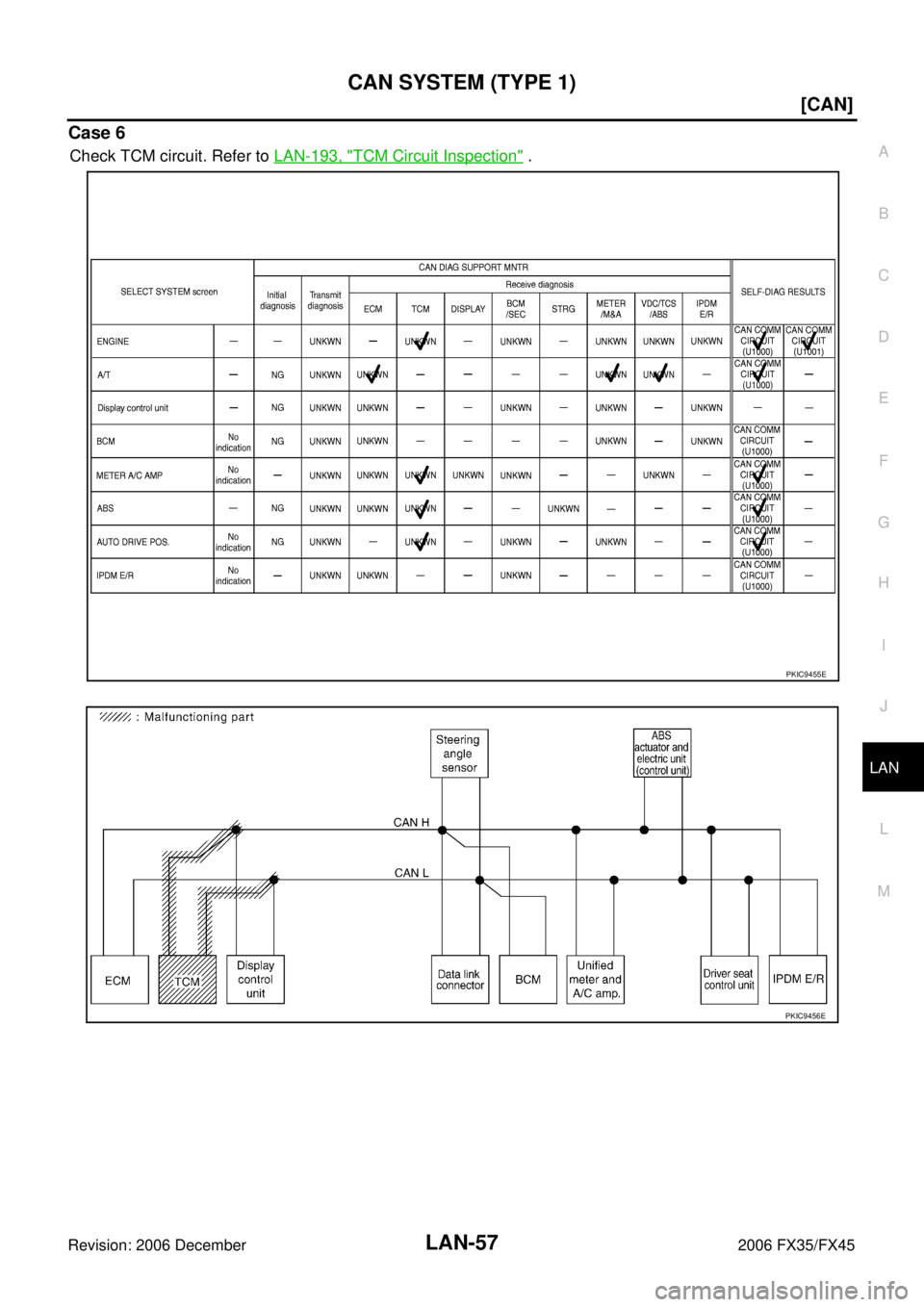

Case 6
Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" .
PKIC9455E
PKIC9456E
Page 3418 of 4462
LAN-58
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45

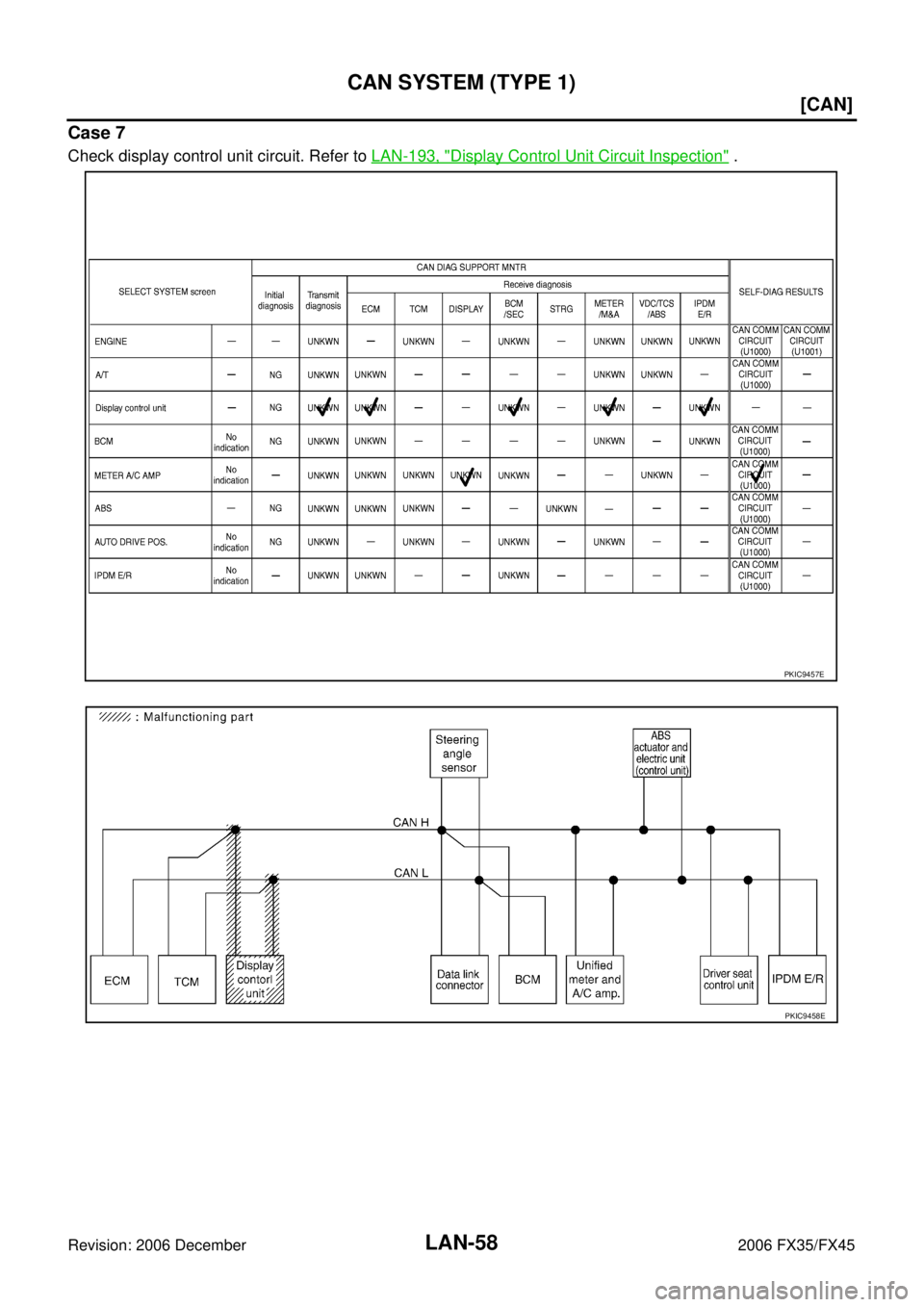

Case 7
Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" .
PKIC9457E
PKIC9458E
Page 3419 of 4462
CAN SYSTEM (TYPE 1) LAN-59
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

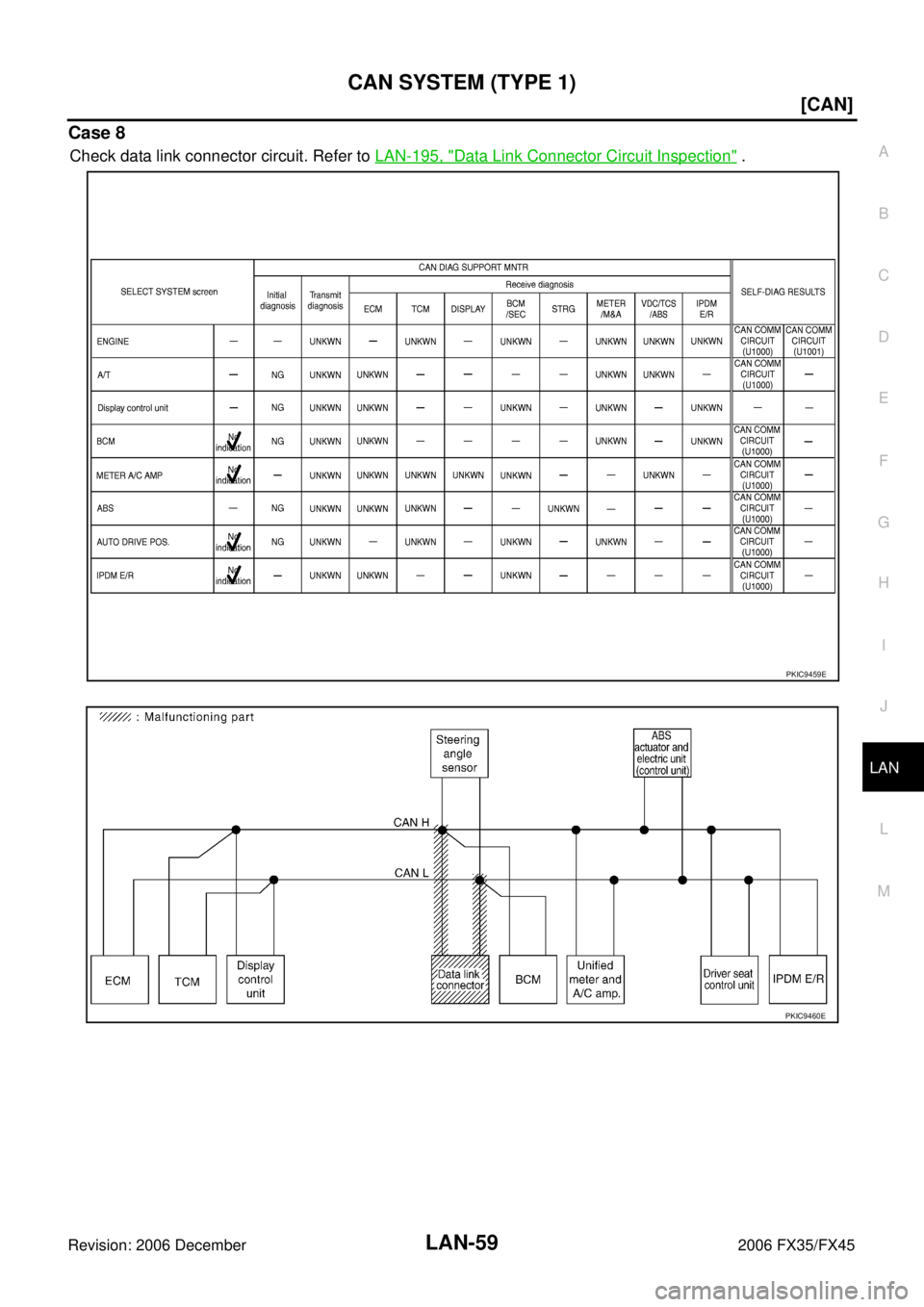

Case 8
Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circuit Inspection" .
PKIC9459E
PKIC9460E
Page 3420 of 4462
LAN-60
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45

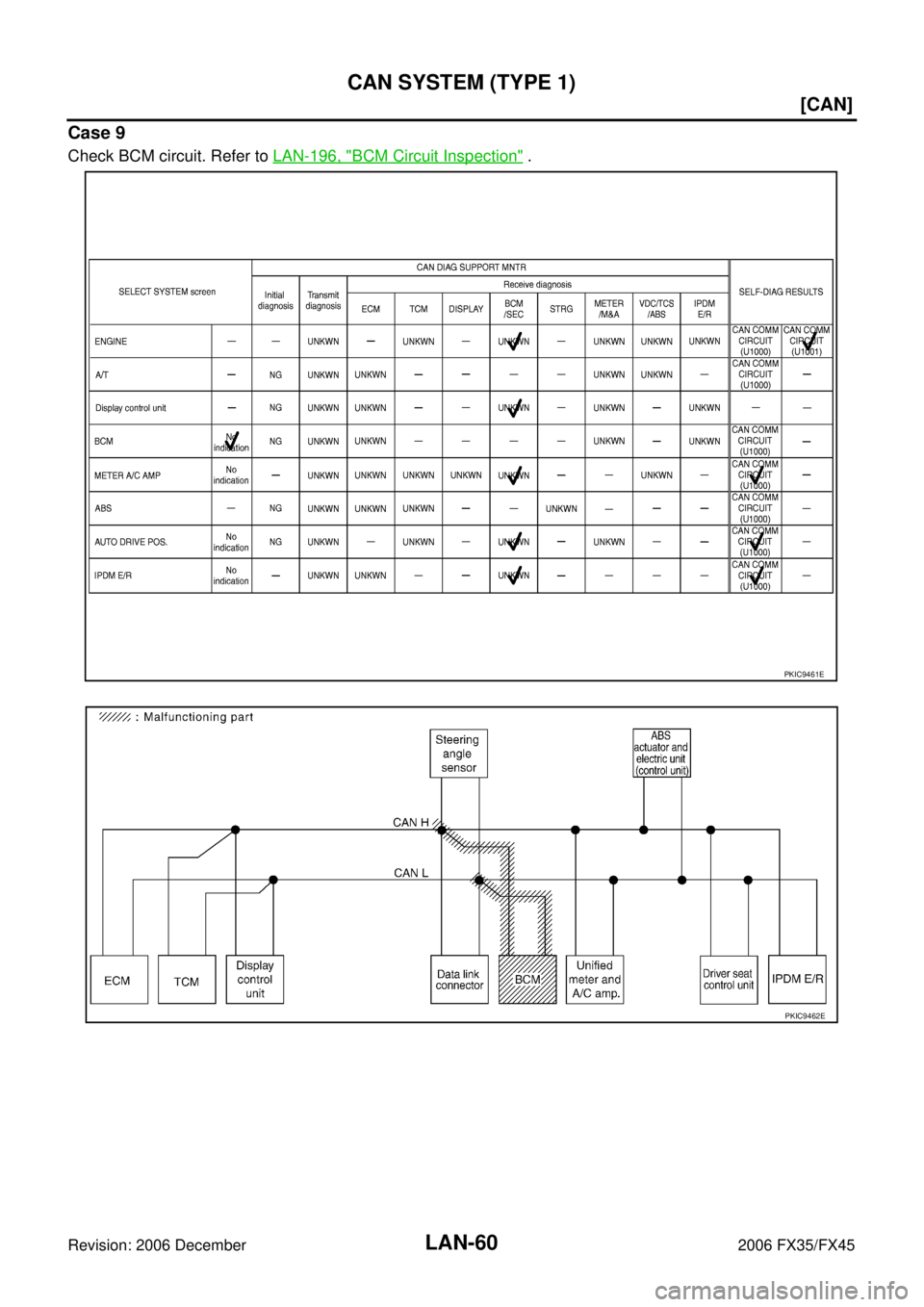

Case 9
Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" .
PKIC9461E
PKIC9462E
