INFINITI FX35 2006 Service Manual

CAN SYSTEM (TYPE 1) LAN-61
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 10
Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor Circuit Inspection" .
PKIC9463E
PKIC9464E

LAN-62
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45
Case 11

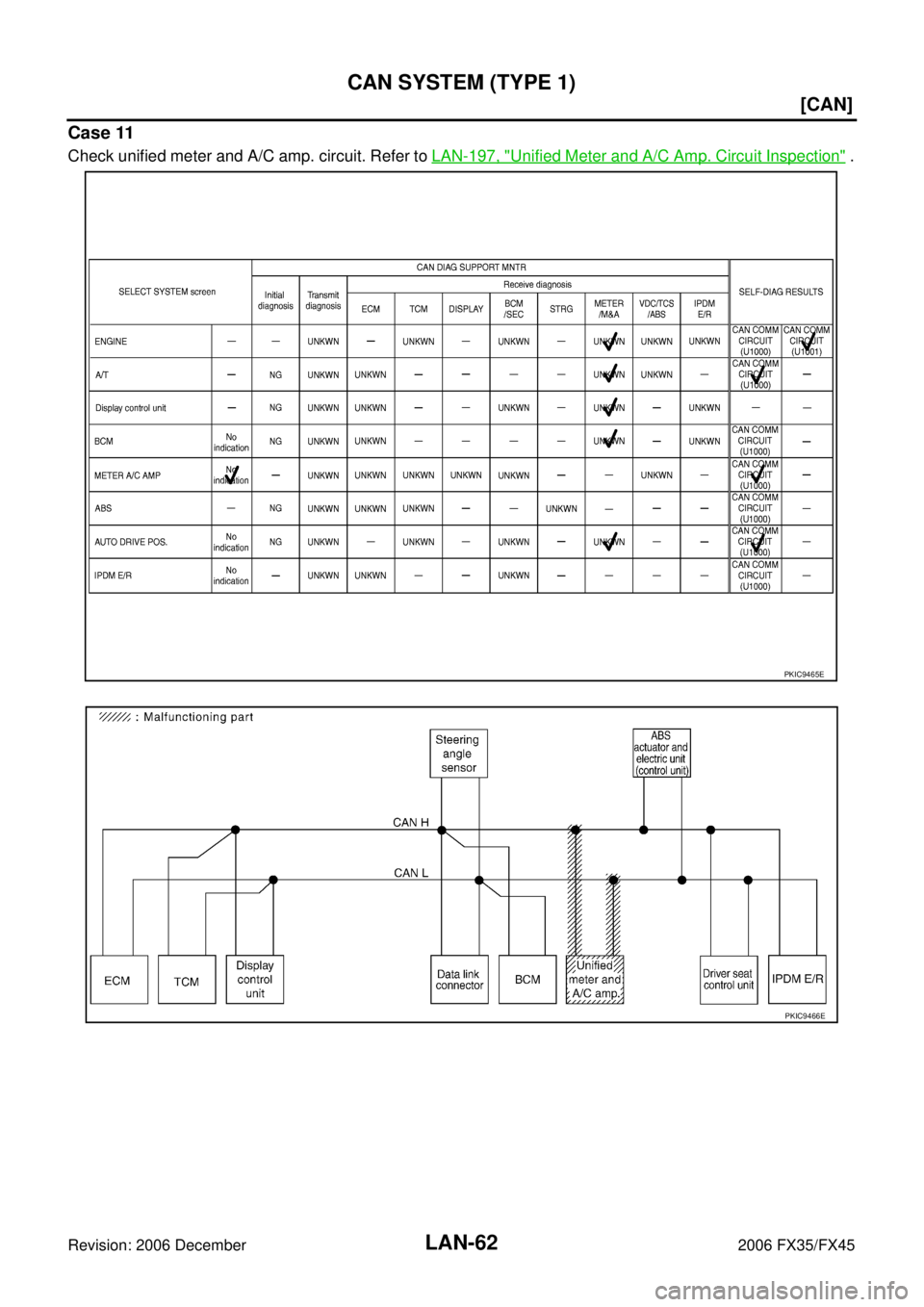

Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC9465E
PKIC9466E

CAN SYSTEM (TYPE 1) LAN-63
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 12

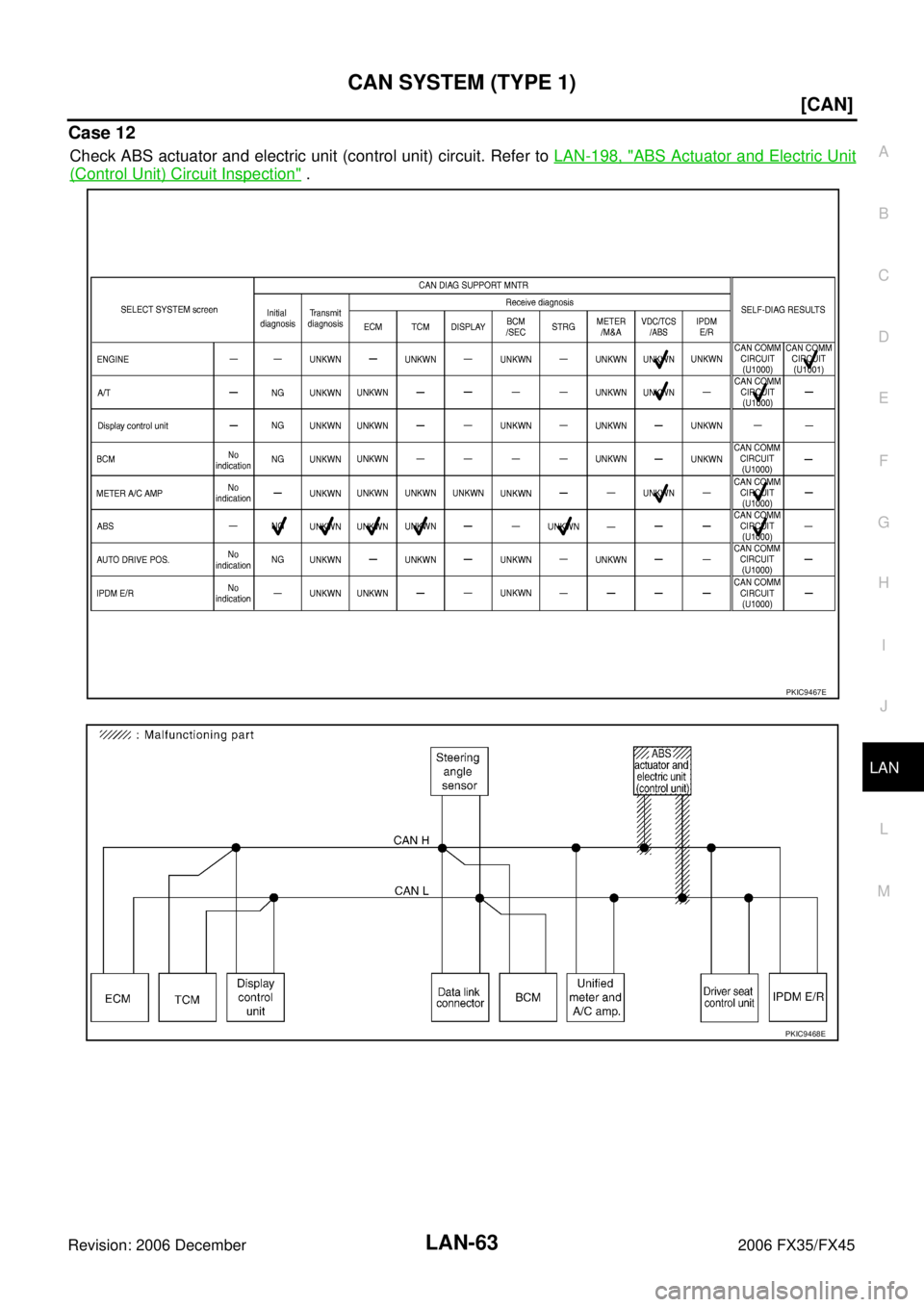

Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC9467E
PKIC9468E

LAN-64
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45
Case 13

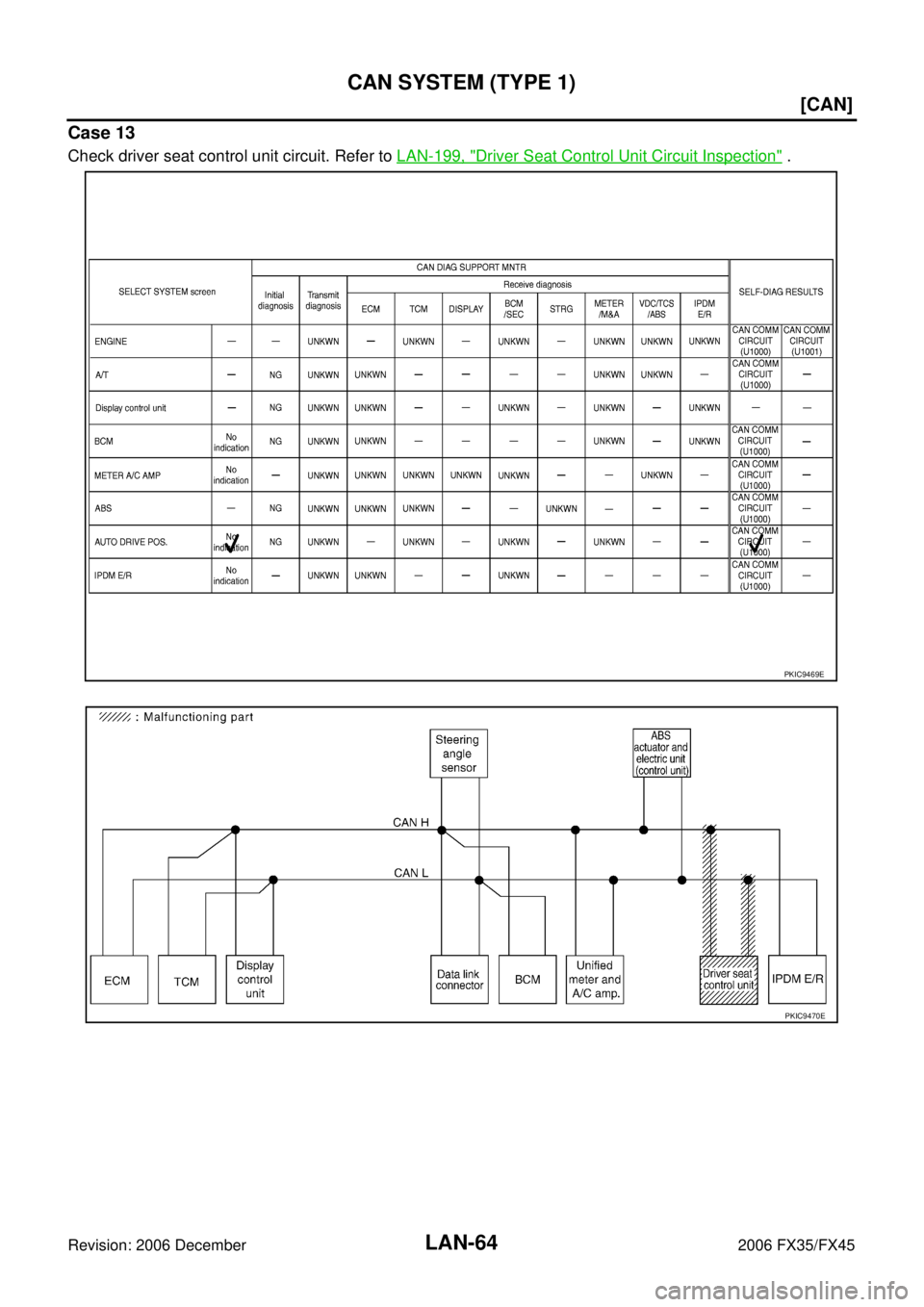

Check driver seat control unit circuit. Refer to LAN-199, "Driver Seat Control Unit Circuit Inspection" .
PKIC9469E
PKIC9470E

CAN SYSTEM (TYPE 1) LAN-65
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 14

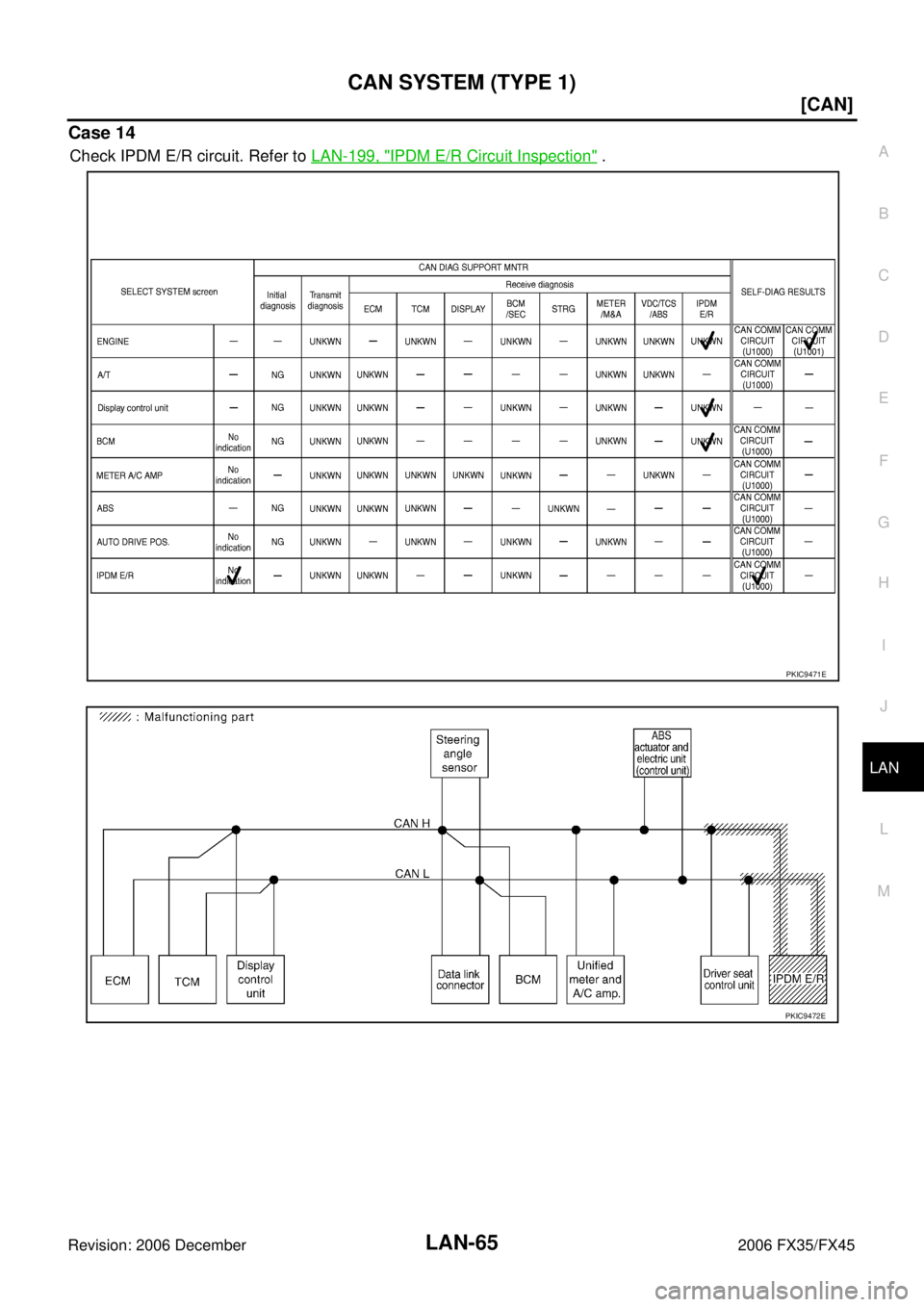

Check IPDM E/R circuit. Refer to LAN-199, "IPDM E/R Circuit Inspection" .
PKIC9471E
PKIC9472E

LAN-66
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45
Case 15

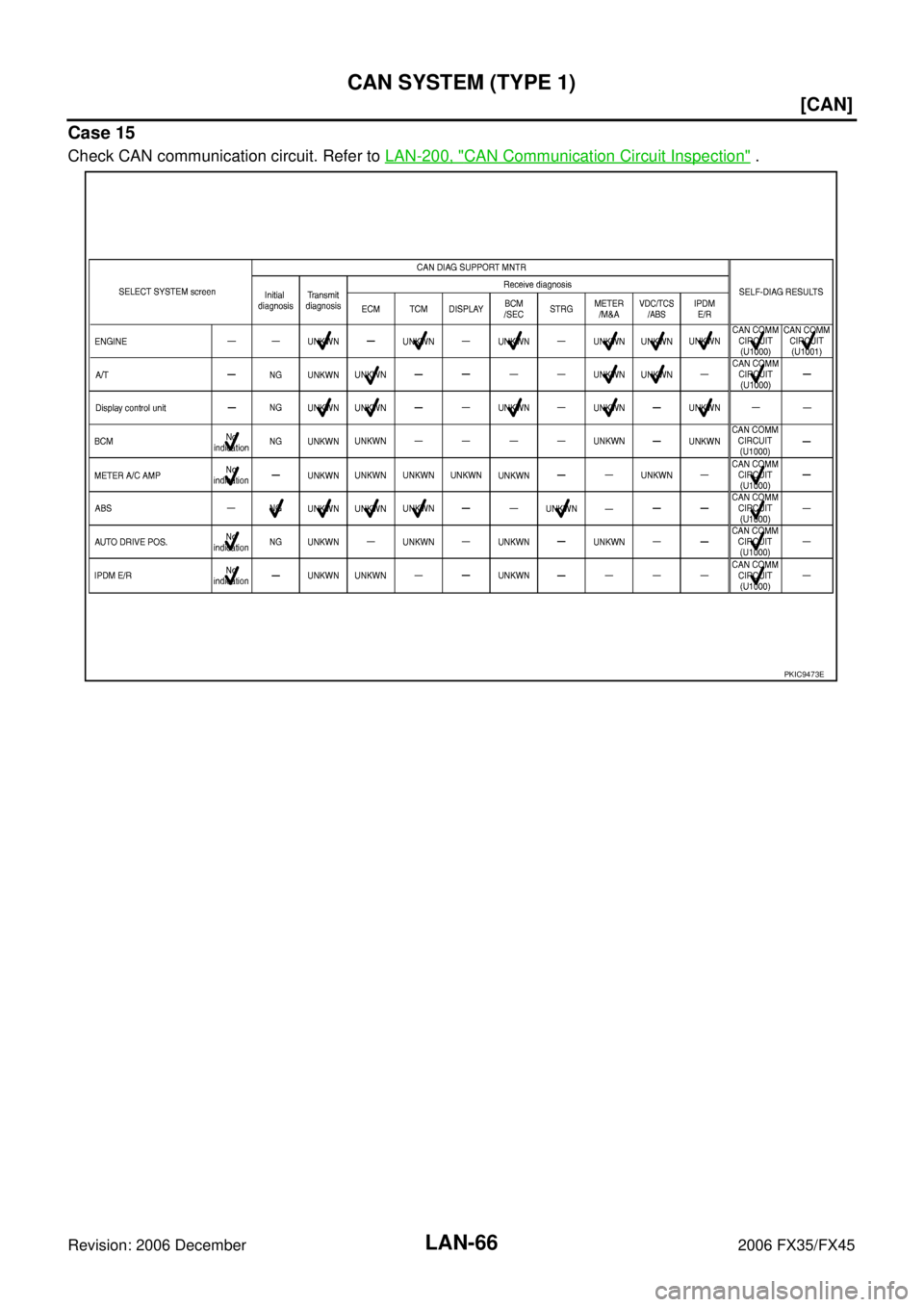

Check CAN communication circuit. Refer to LAN-200, "CAN Communication Circuit Inspection" .
PKIC9473E

CAN SYSTEM (TYPE 1) LAN-67
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 16
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9474E

LAN-68
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 December 2006 FX35/FX45
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9475E

CAN SYSTEM (TYPE 2) LAN-69
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
CAN SYSTEM (TYPE 2)PFP:23710
Component Parts and Harness Connector LocationNKS003MP
Refer to LAN-27, "Component Parts and Harness Connector Location"
SchematicNKS003MQ
Refer to LAN-28, "Schematic"
Wiring Diagram — CAN —NKS003MR
Refer to LAN-29, "Wiring Diagram — CAN —"

LAN-70
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 December 2006 FX35/FX45

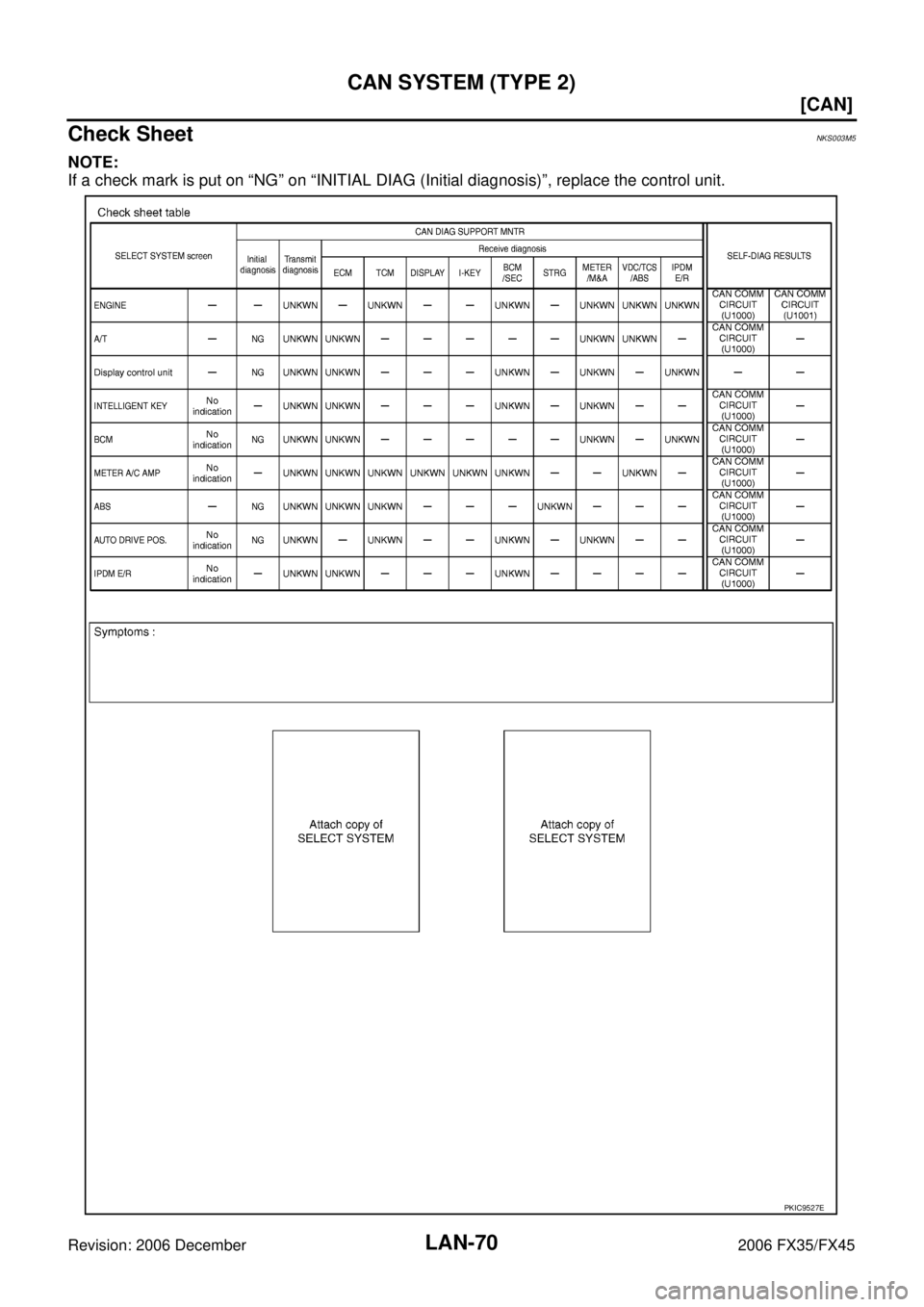

Check SheetNKS003M5
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC9527E
