CAN SYSTEM (TYPE 3) LAN-91
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
CAN SYSTEM (TYPE 3)PFP:23710
Component Parts and Harness Connector LocationNKS003MS
Refer to LAN-27, "Component Parts and Harness Connector Location"
SchematicNKS003MT
Refer to LAN-28, "Schematic"
Wiring Diagram — CAN —NKS003MU
Refer to LAN-29, "Wiring Diagram — CAN —"
Page 3452 of 4462
LAN-92
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45
Check SheetNKS003M9
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

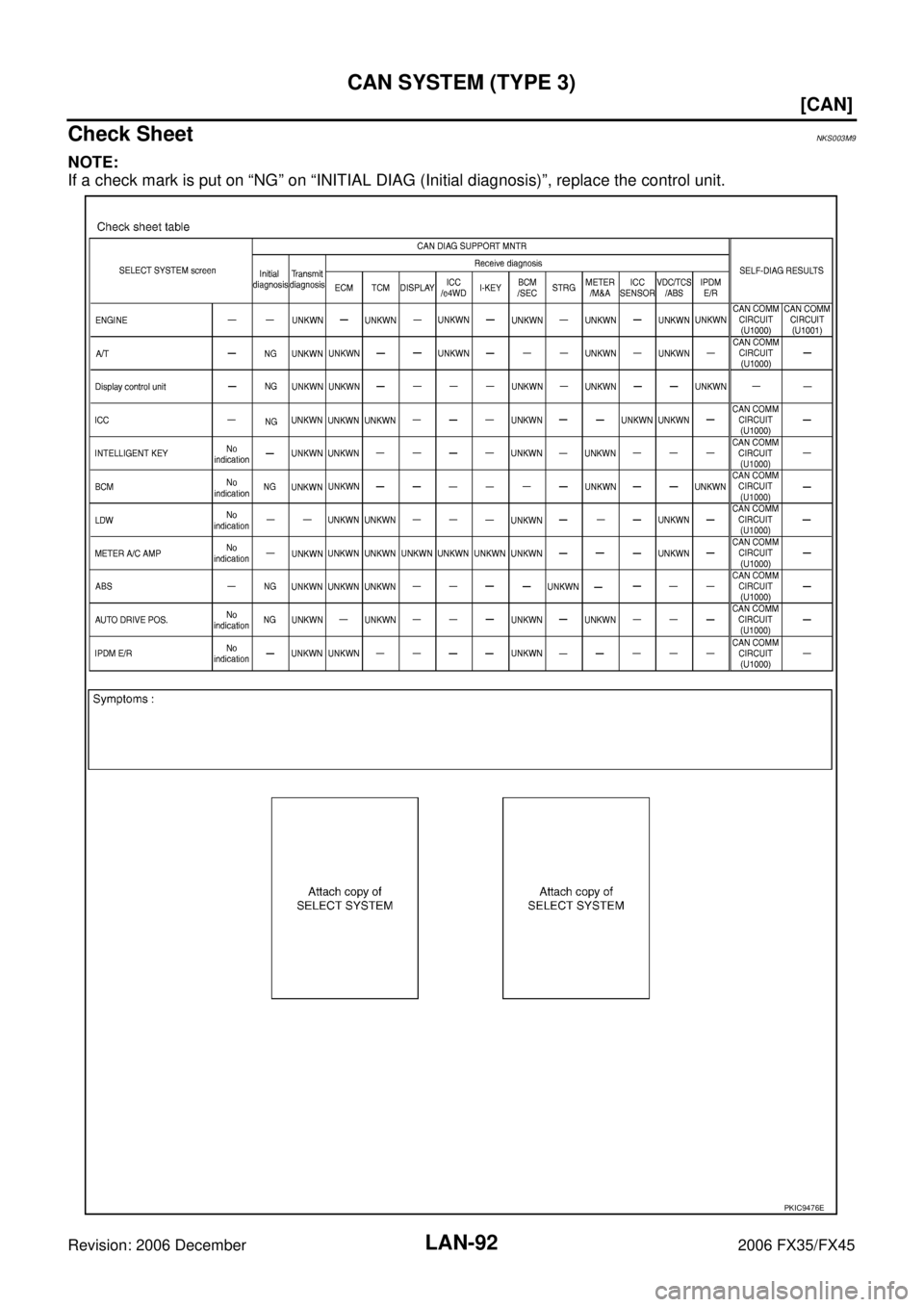

PKIC9476E
Page 3453 of 4462
CAN SYSTEM (TYPE 3) LAN-93
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

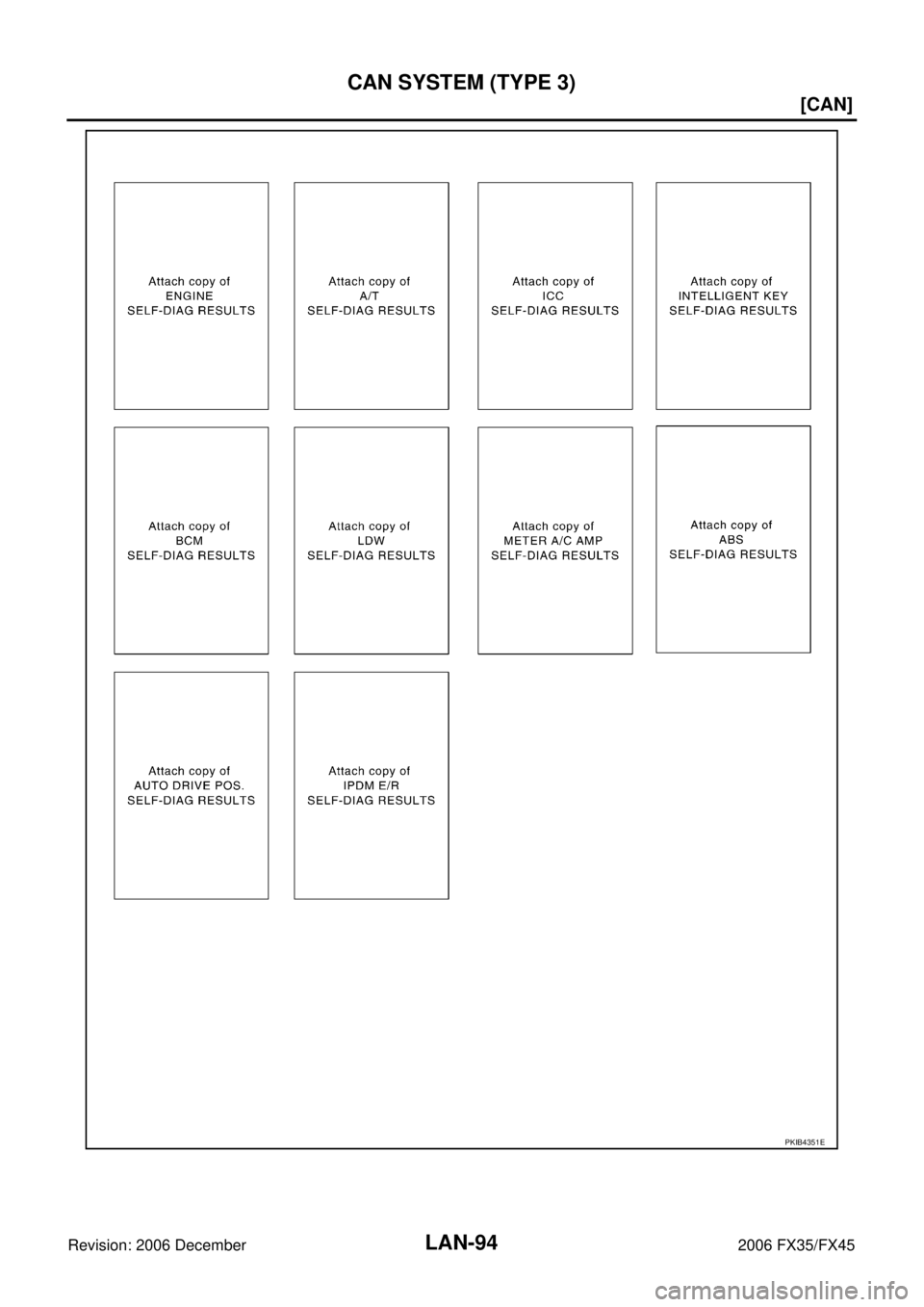

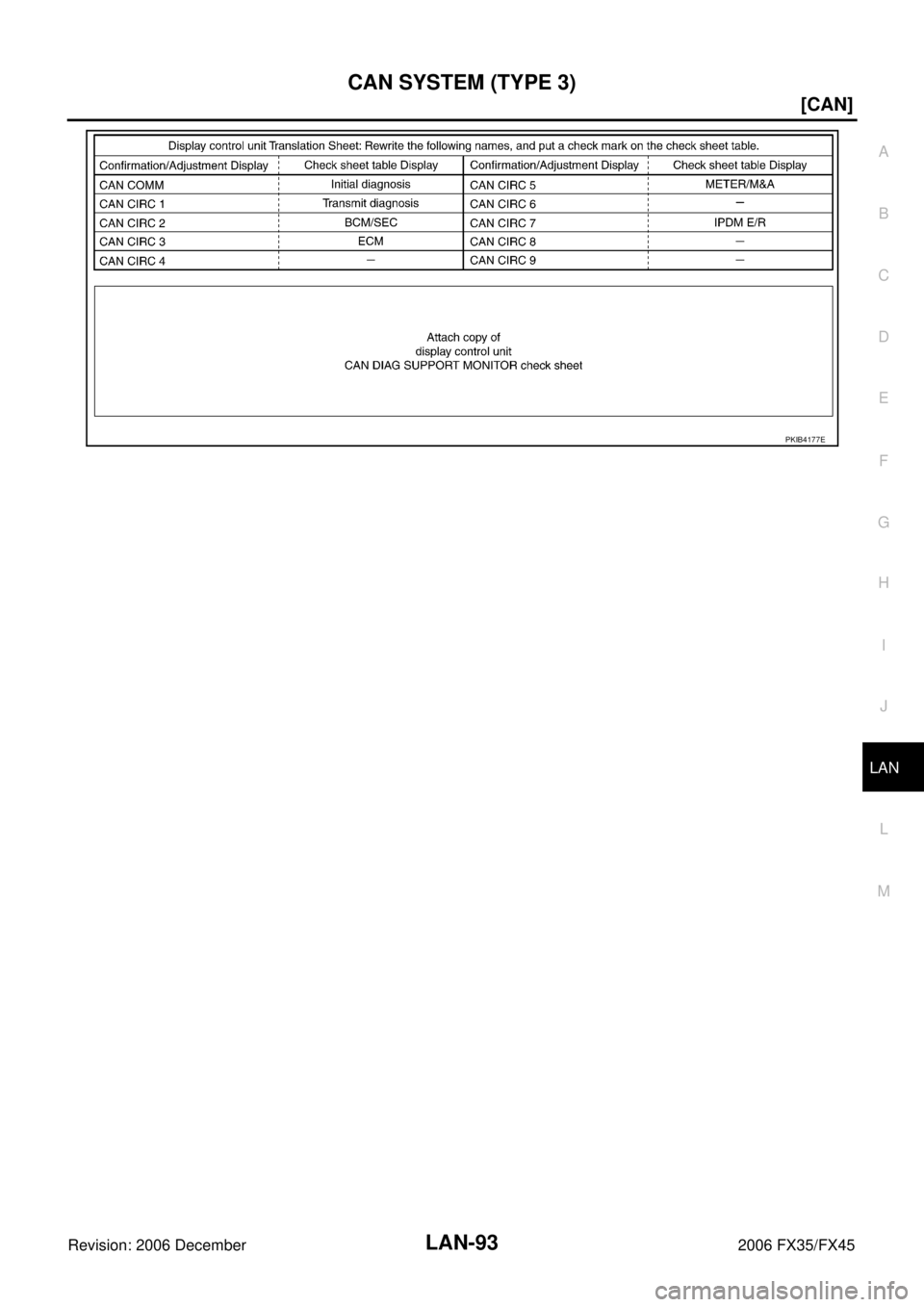

PKIB4177E
Page 3454 of 4462
LAN-94
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45

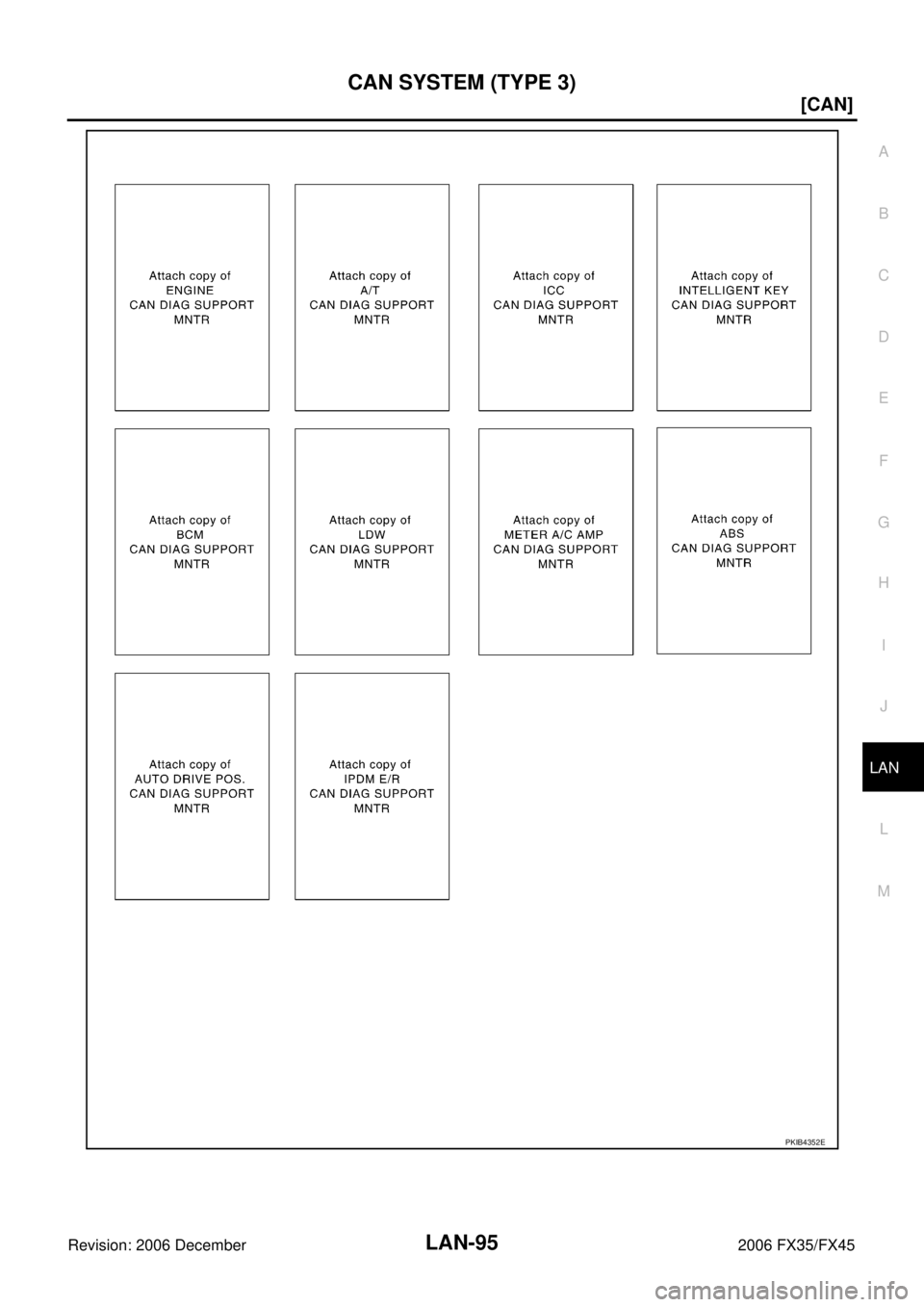

PKIB4351E
Page 3455 of 4462
CAN SYSTEM (TYPE 3) LAN-95
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
PKIB4352E
Page 3456 of 4462
LAN-96
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

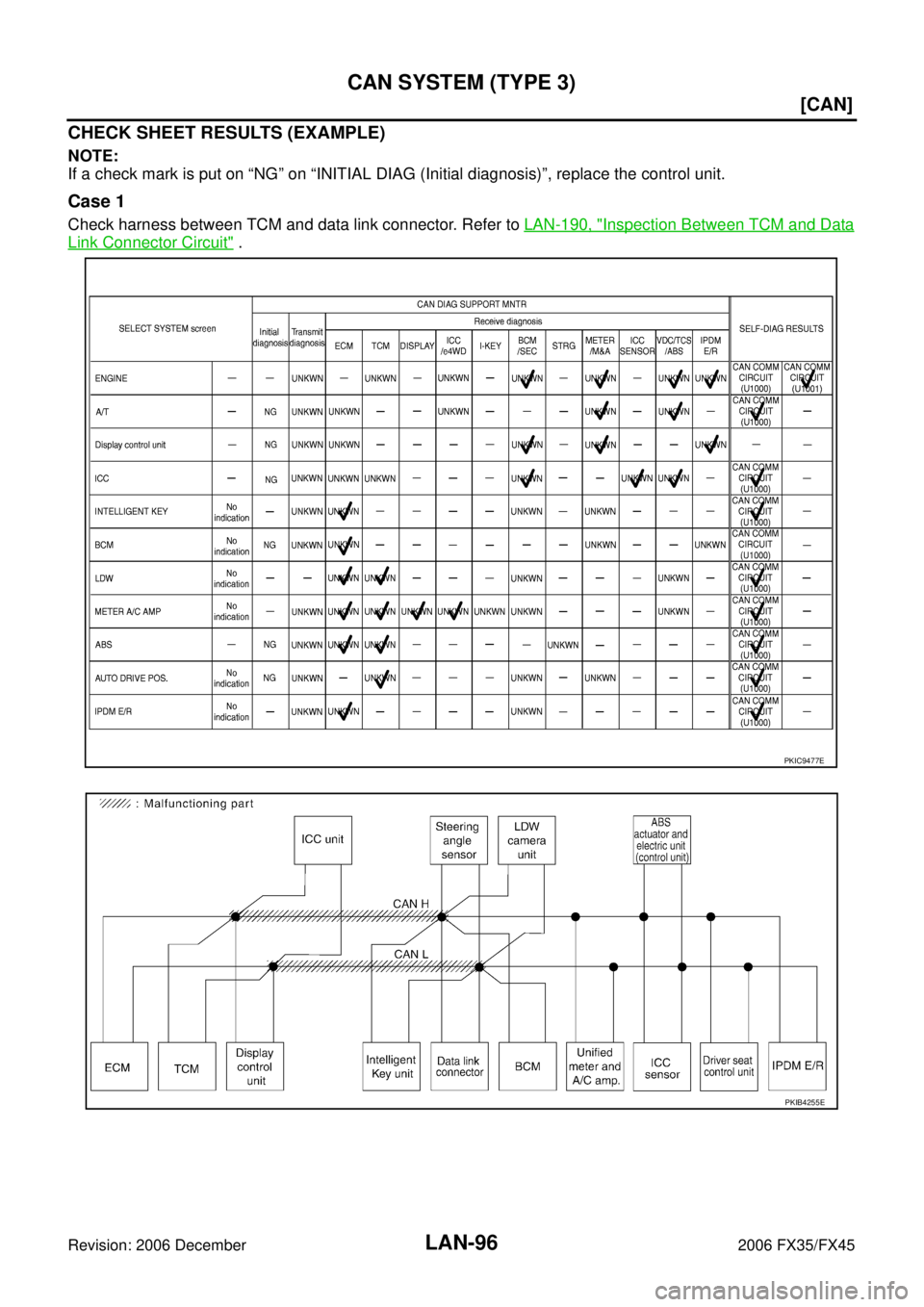

Check harness between TCM and data link connector. Refer to LAN-190, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIC9477E
PKIB4255E
Page 3457 of 4462
CAN SYSTEM (TYPE 3) LAN-97
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 2

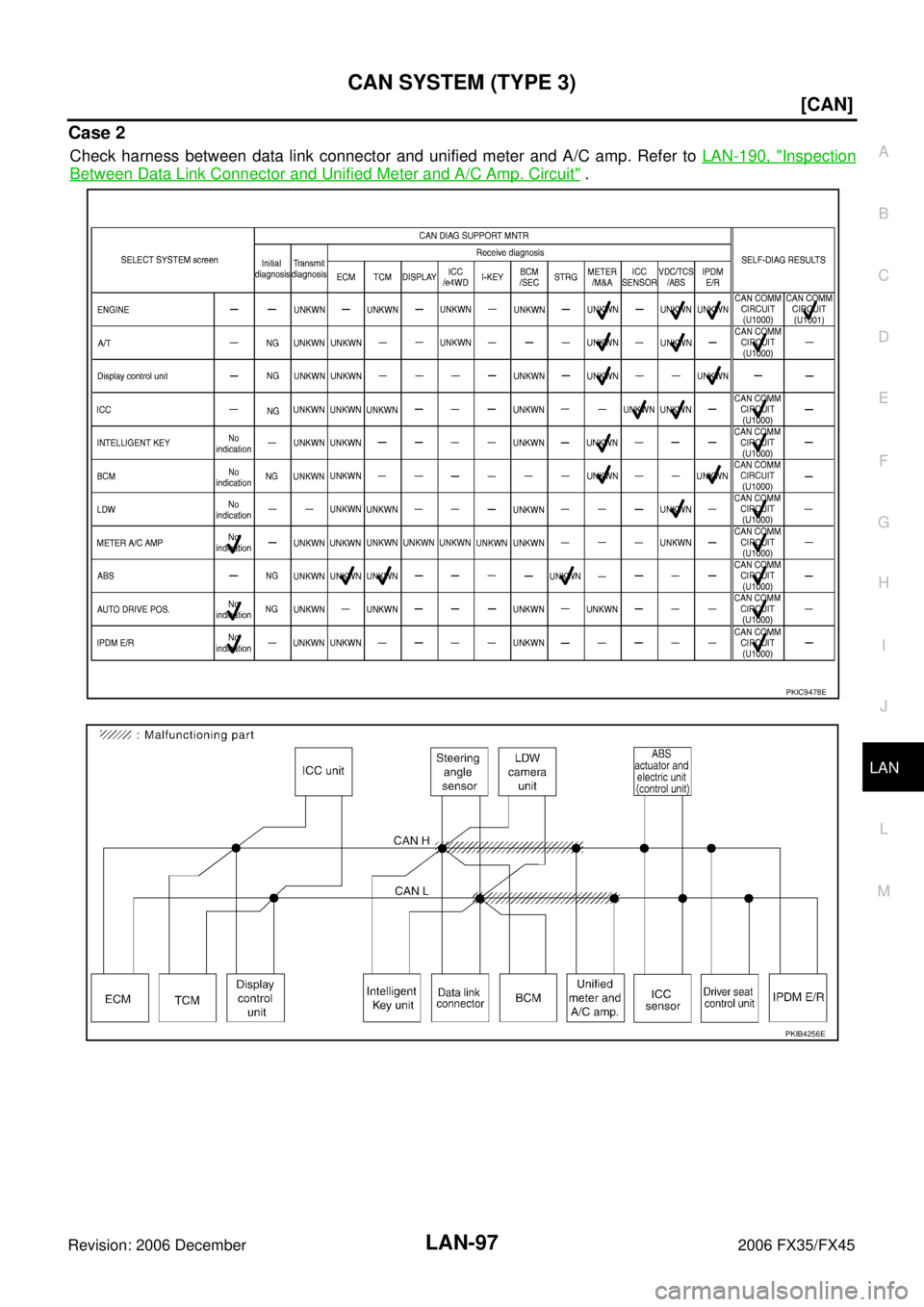

Check harness between data link connector and unified meter and A/C amp. Refer to LAN-190, "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIC9478E
PKIB4256E
Page 3458 of 4462
LAN-98
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45
Case 3

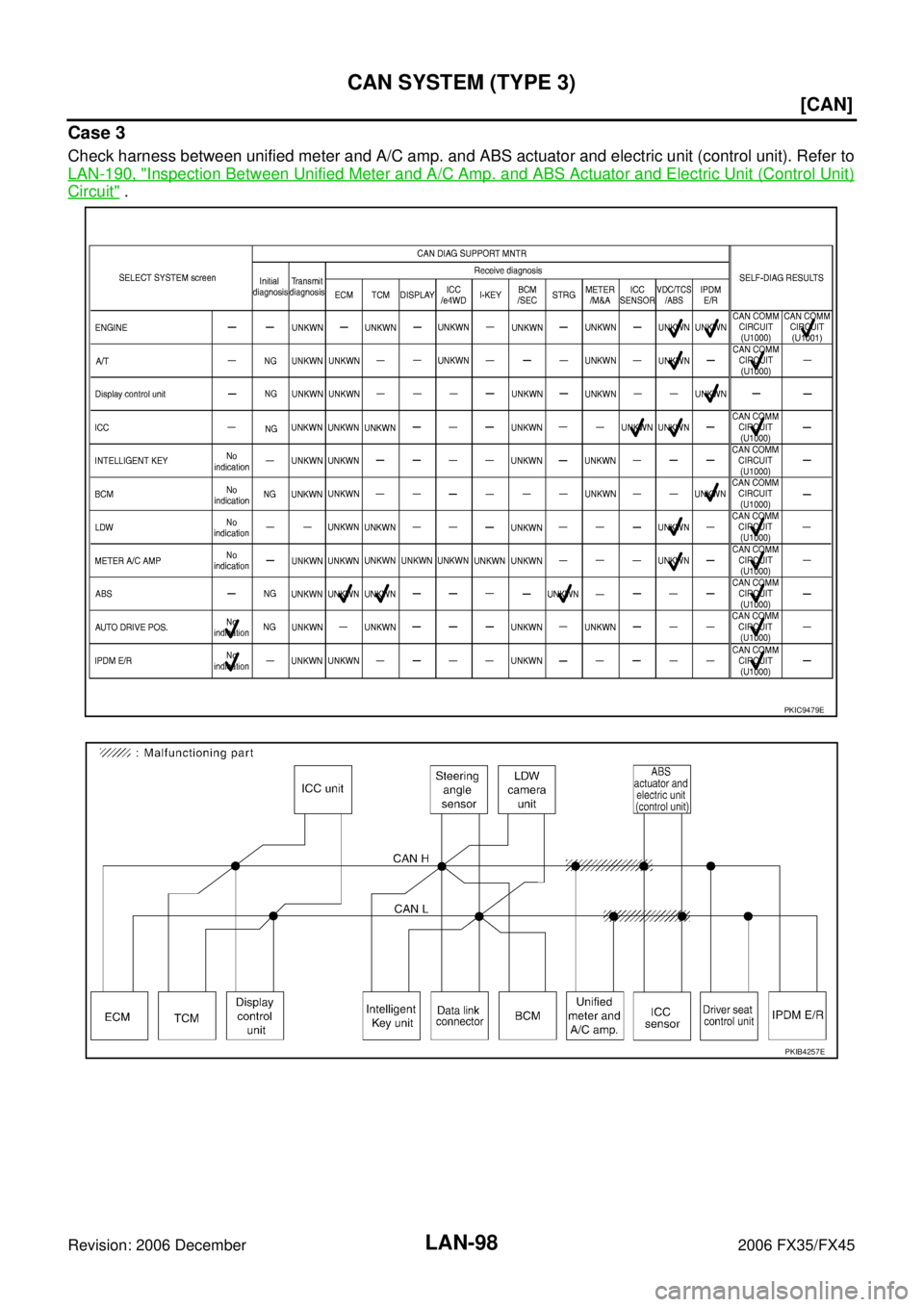

Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-190, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
PKIC9479E
PKIB4257E
Page 3459 of 4462
CAN SYSTEM (TYPE 3) LAN-99
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 4

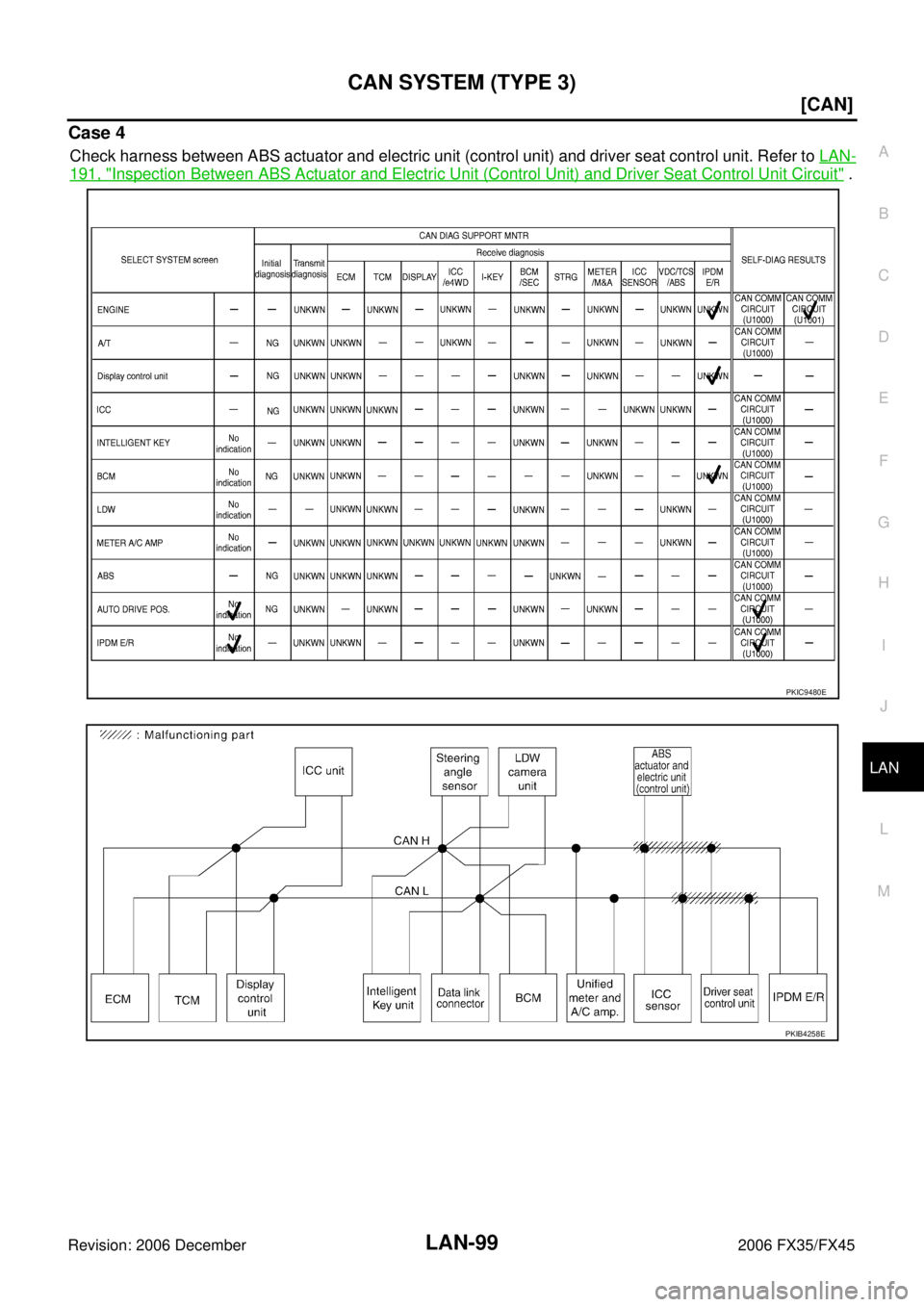

Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
191, "Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit Circuit" .
PKIC9480E
PKIB4258E
Page 3460 of 4462
LAN-100
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45
Case 5

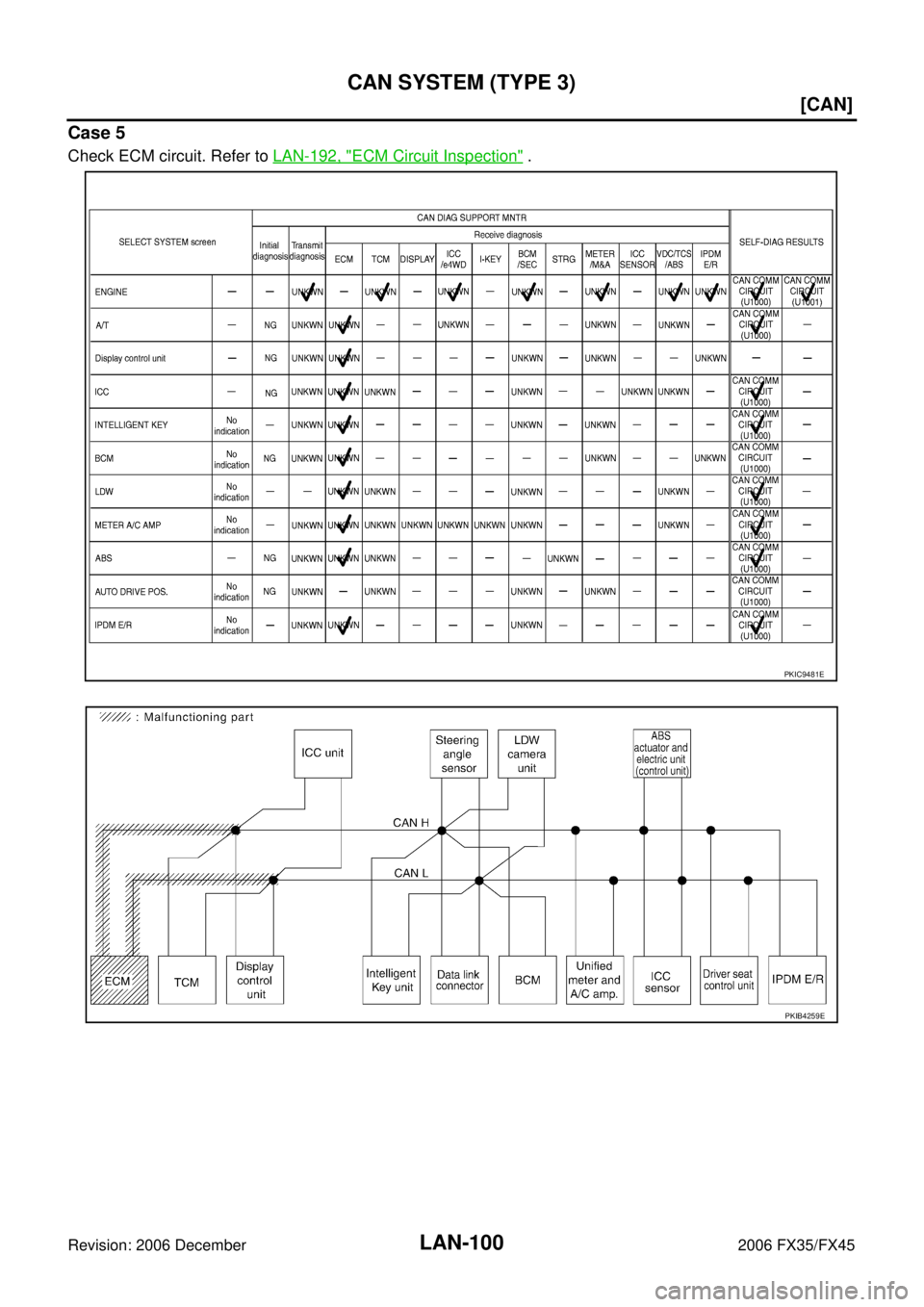

Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" .
PKIC9481E
PKIB4259E
