Page 3441 of 4462
CAN SYSTEM (TYPE 2) LAN-81
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

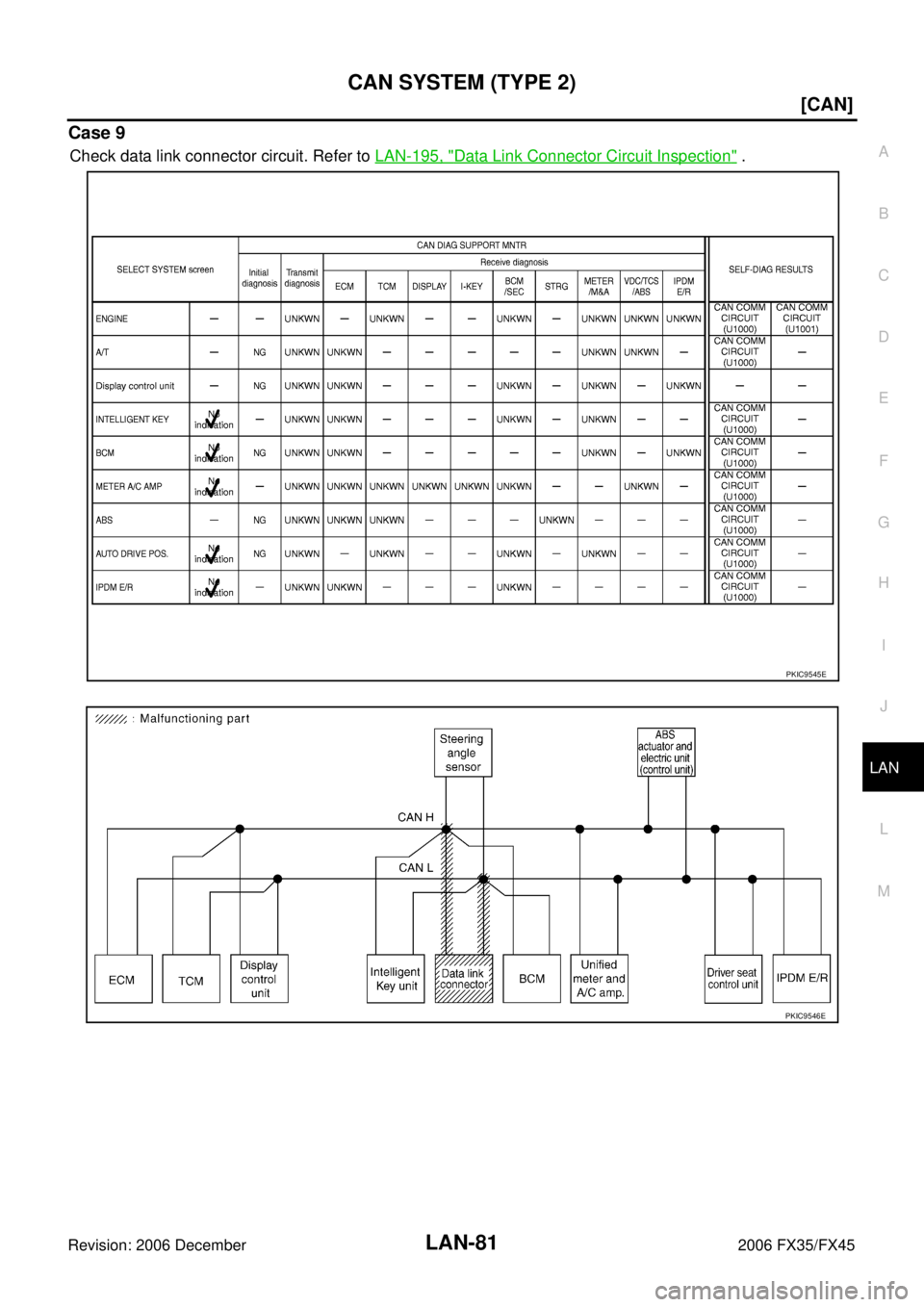

Case 9
Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circuit Inspection" .
PKIC9545E
PKIC9546E
Page 3442 of 4462
LAN-82
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 December 2006 FX35/FX45
Case 10
Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" .
PKIC9547E
PKIC9548E
Page 3443 of 4462
CAN SYSTEM (TYPE 2) LAN-83
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 11
Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor Circuit Inspection" .
PKIC9549E
PKIC9550E
Page 3444 of 4462
LAN-84
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 December 2006 FX35/FX45

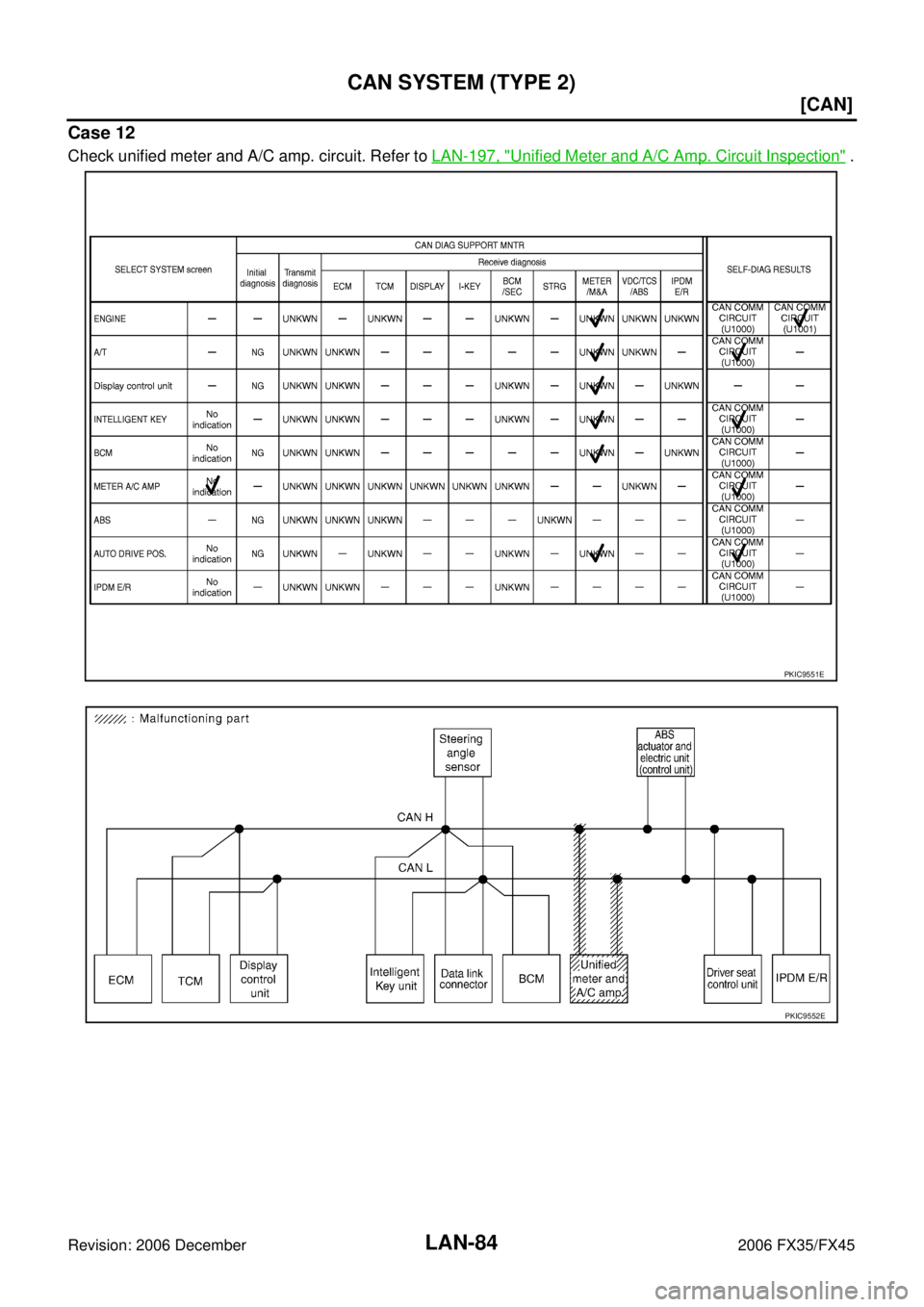

Case 12
Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC9551E
PKIC9552E
Page 3445 of 4462
CAN SYSTEM (TYPE 2) LAN-85
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

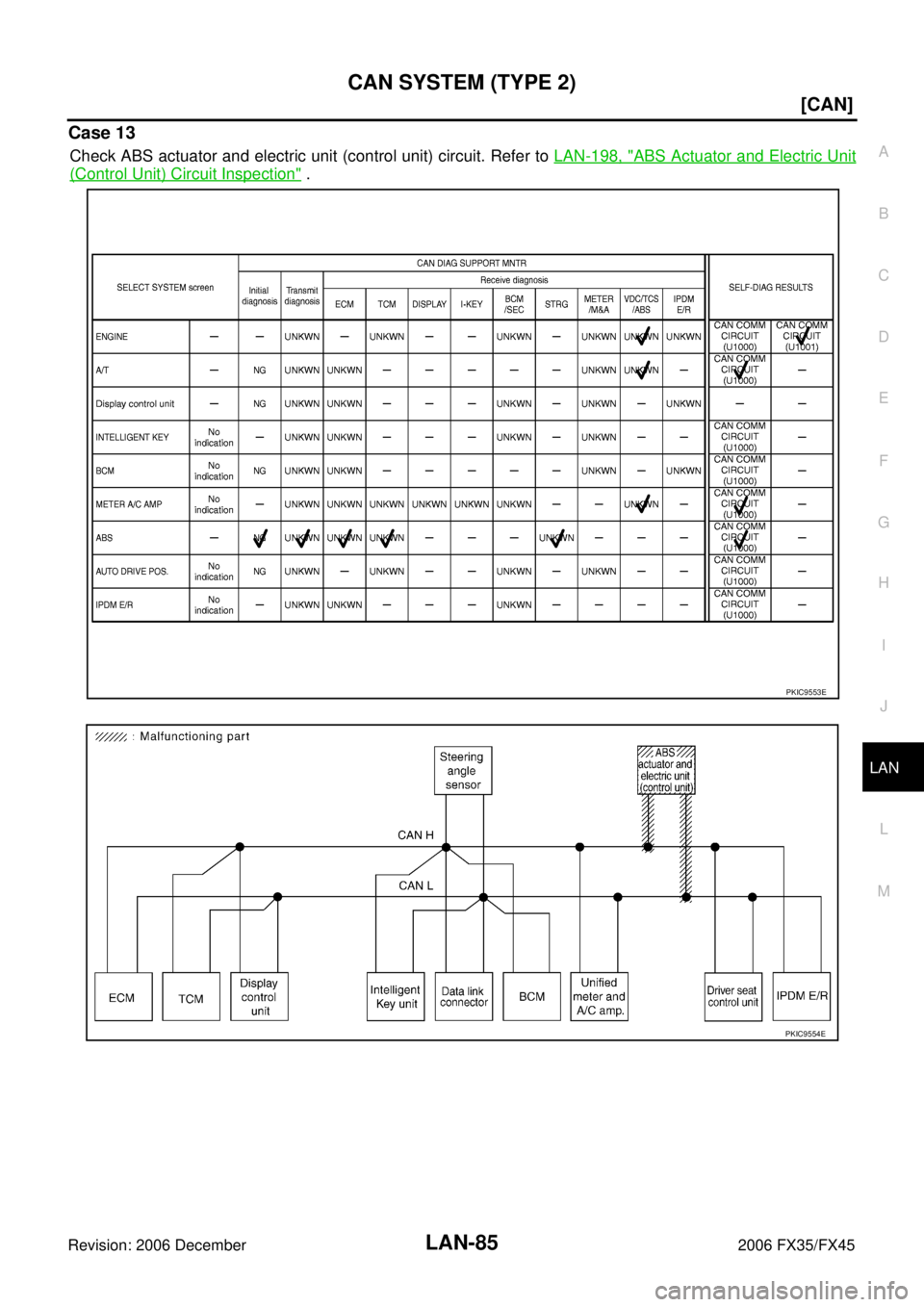

Case 13
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC9553E
PKIC9554E
Page 3446 of 4462
LAN-86
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 December 2006 FX35/FX45

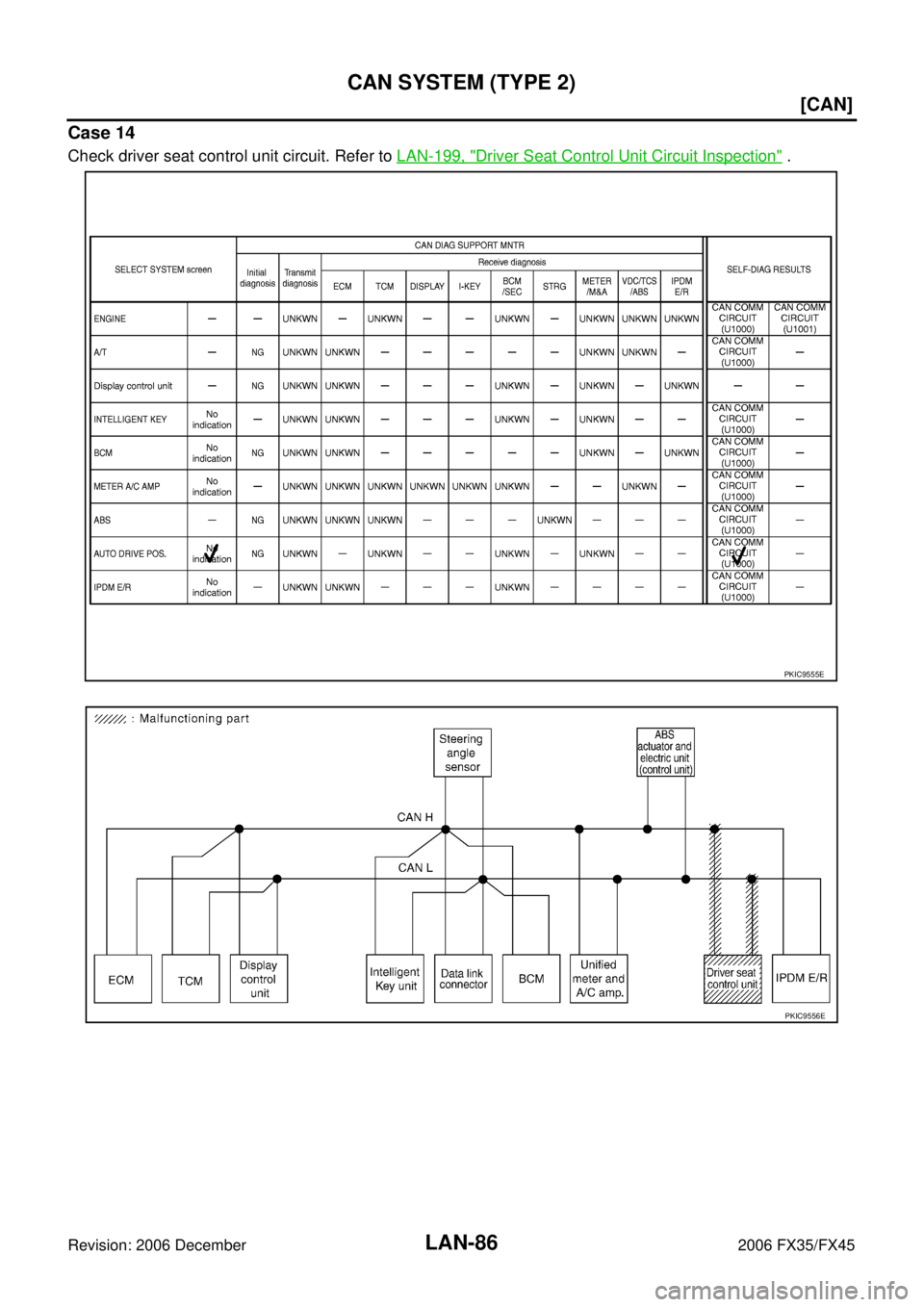

Case 14
Check driver seat control unit circuit. Refer to LAN-199, "Driver Seat Control Unit Circuit Inspection" .
PKIC9555E
PKIC9556E
Page 3447 of 4462
CAN SYSTEM (TYPE 2) LAN-87
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

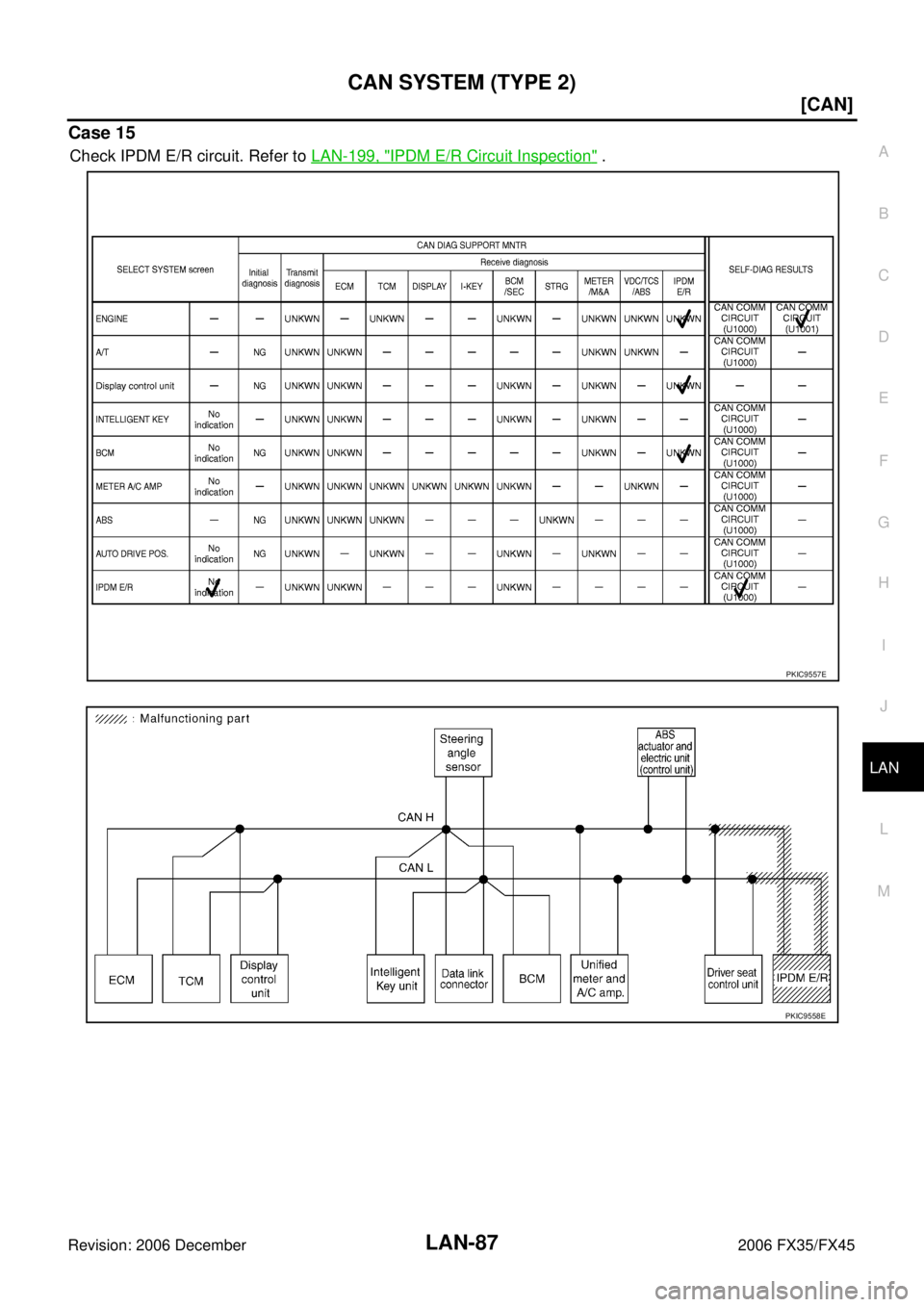

Case 15
Check IPDM E/R circuit. Refer to LAN-199, "IPDM E/R Circuit Inspection" .
PKIC9557E
PKIC9558E
Page 3448 of 4462
LAN-88
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 December 2006 FX35/FX45

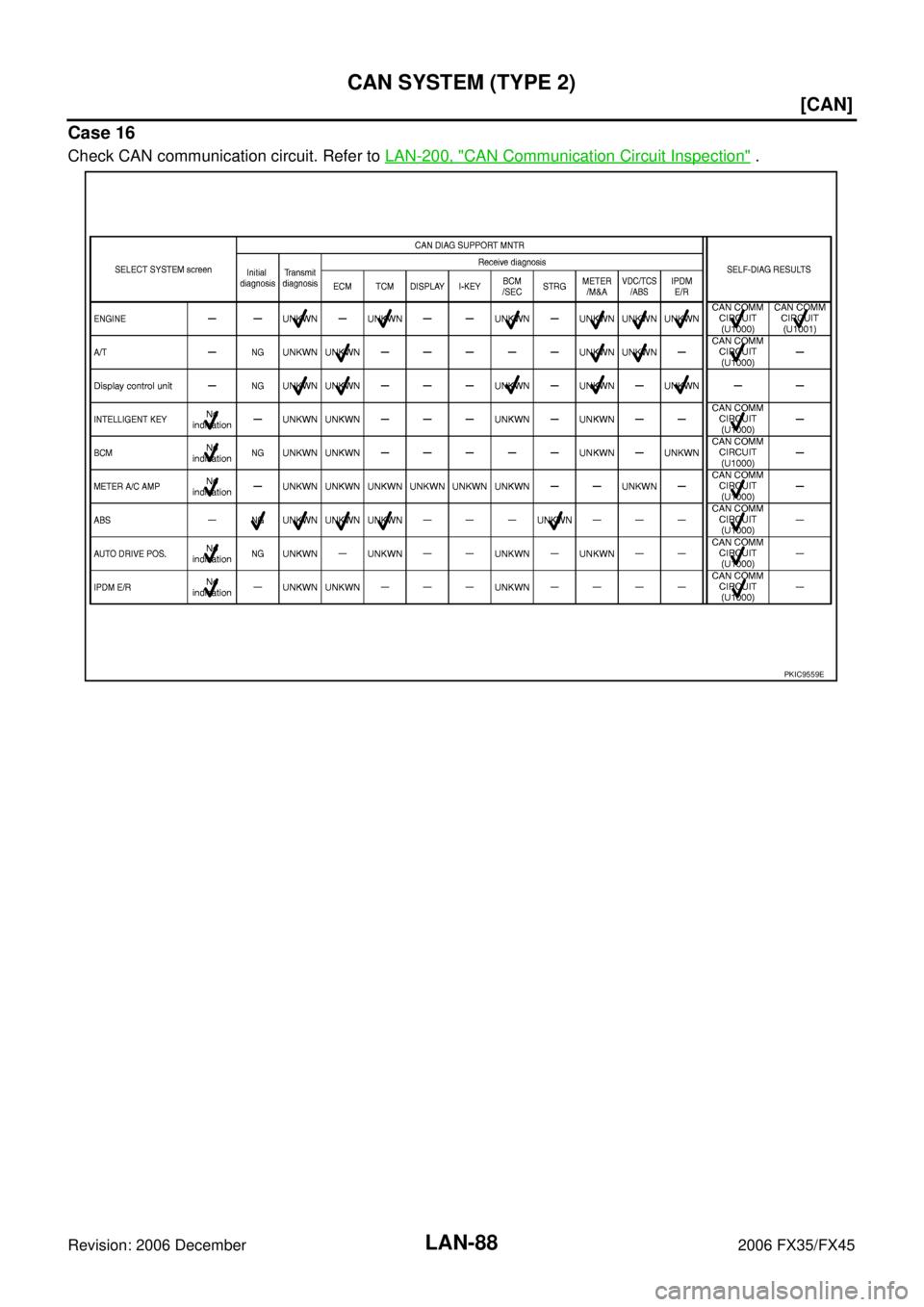

Case 16
Check CAN communication circuit. Refer to LAN-200, "CAN Communication Circuit Inspection" .
PKIC9559E
Page 3449 of 4462
CAN SYSTEM (TYPE 2) LAN-89
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9560E
Page 3450 of 4462
LAN-90
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 December 2006 FX35/FX45
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9561E
