CAN SYSTEM (TYPE 3) LAN-101
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

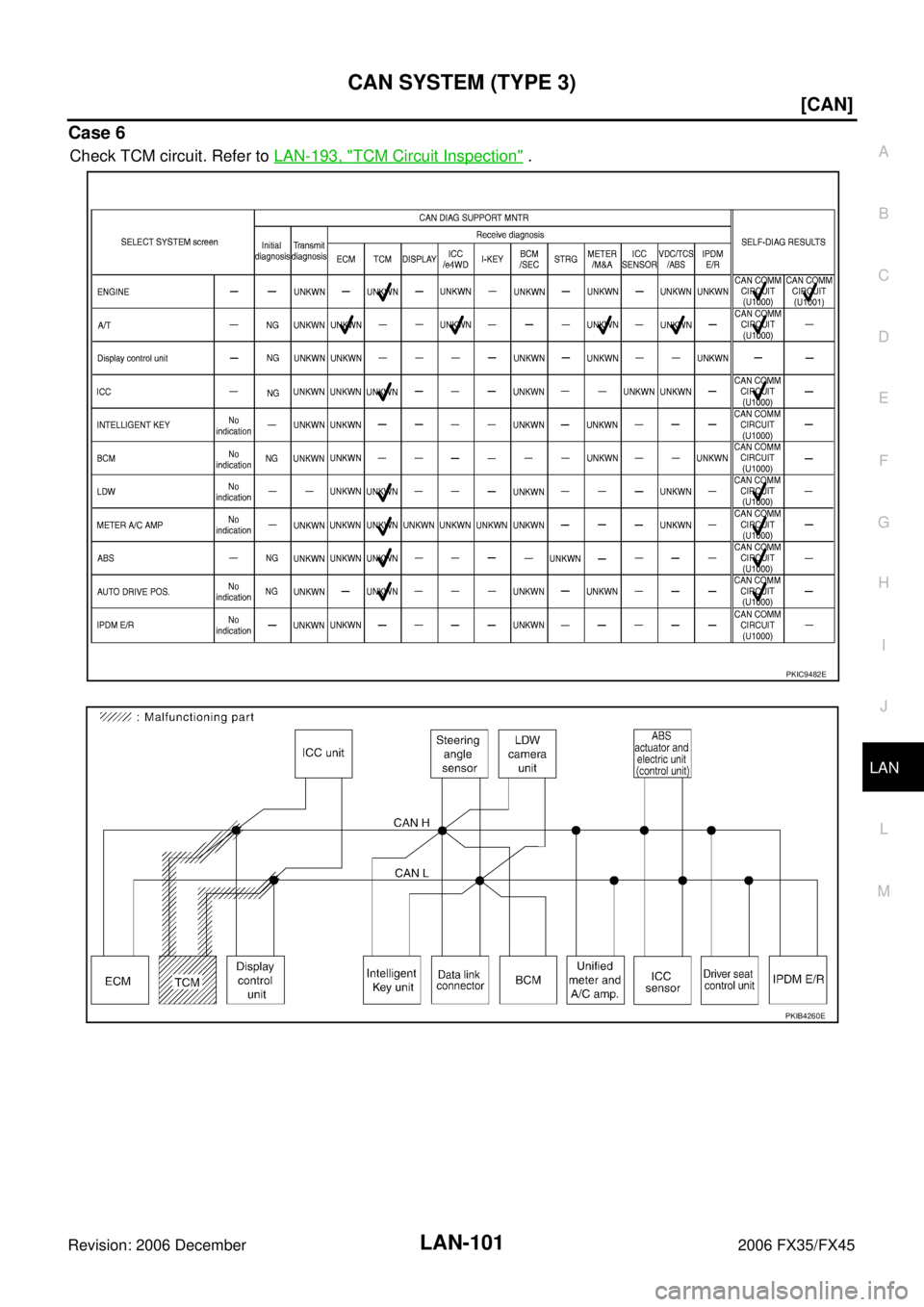

Case 6
Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" .
PKIC9482E
PKIB4260E
Page 3462 of 4462
LAN-102
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45

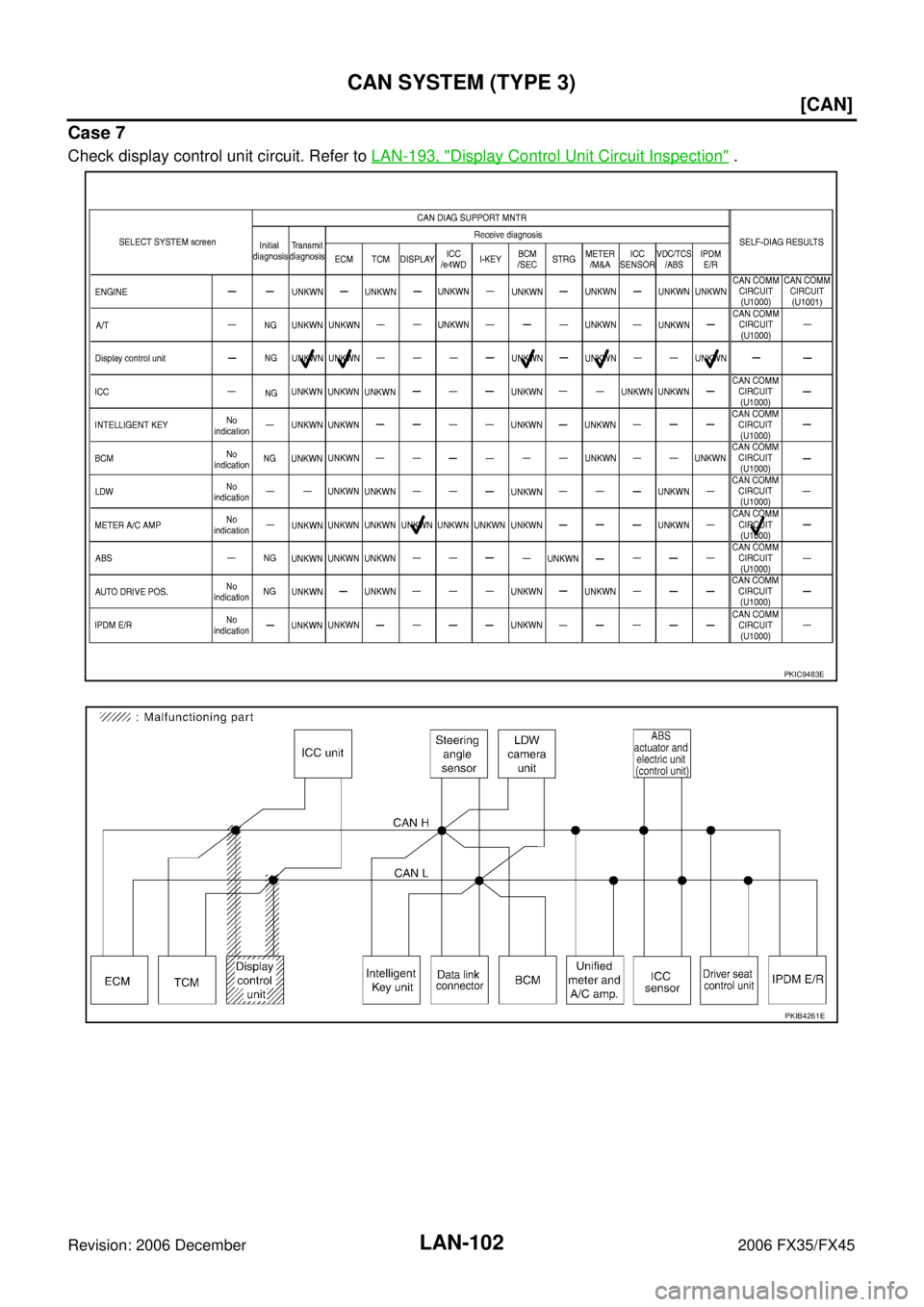

Case 7
Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" .
PKIC9483E
PKIB4261E
Page 3463 of 4462
CAN SYSTEM (TYPE 3) LAN-103
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

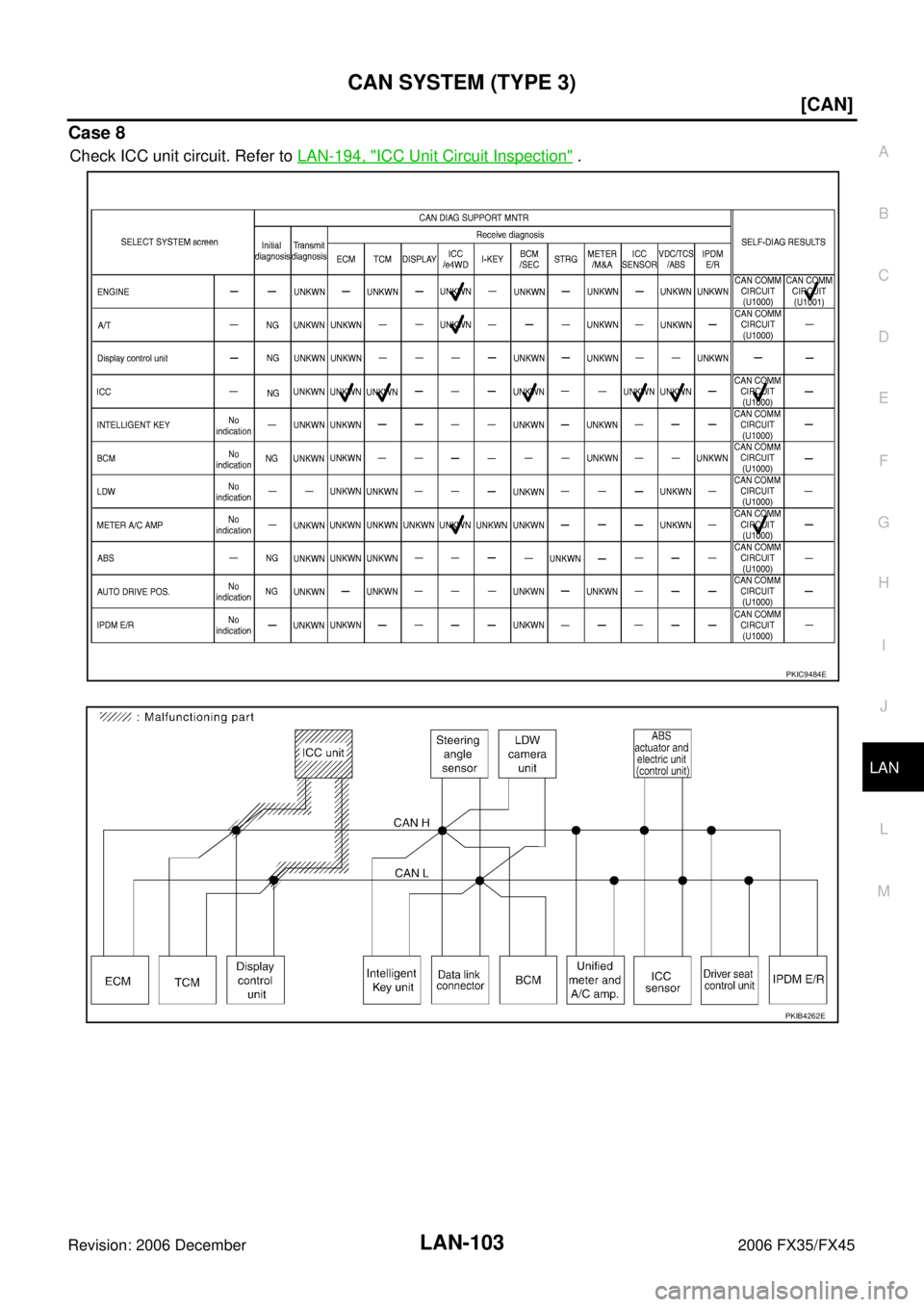

Case 8
Check ICC unit circuit. Refer to LAN-194, "ICC Unit Circuit Inspection" .
PKIC9484E
PKIB4262E
Page 3464 of 4462
LAN-104
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45

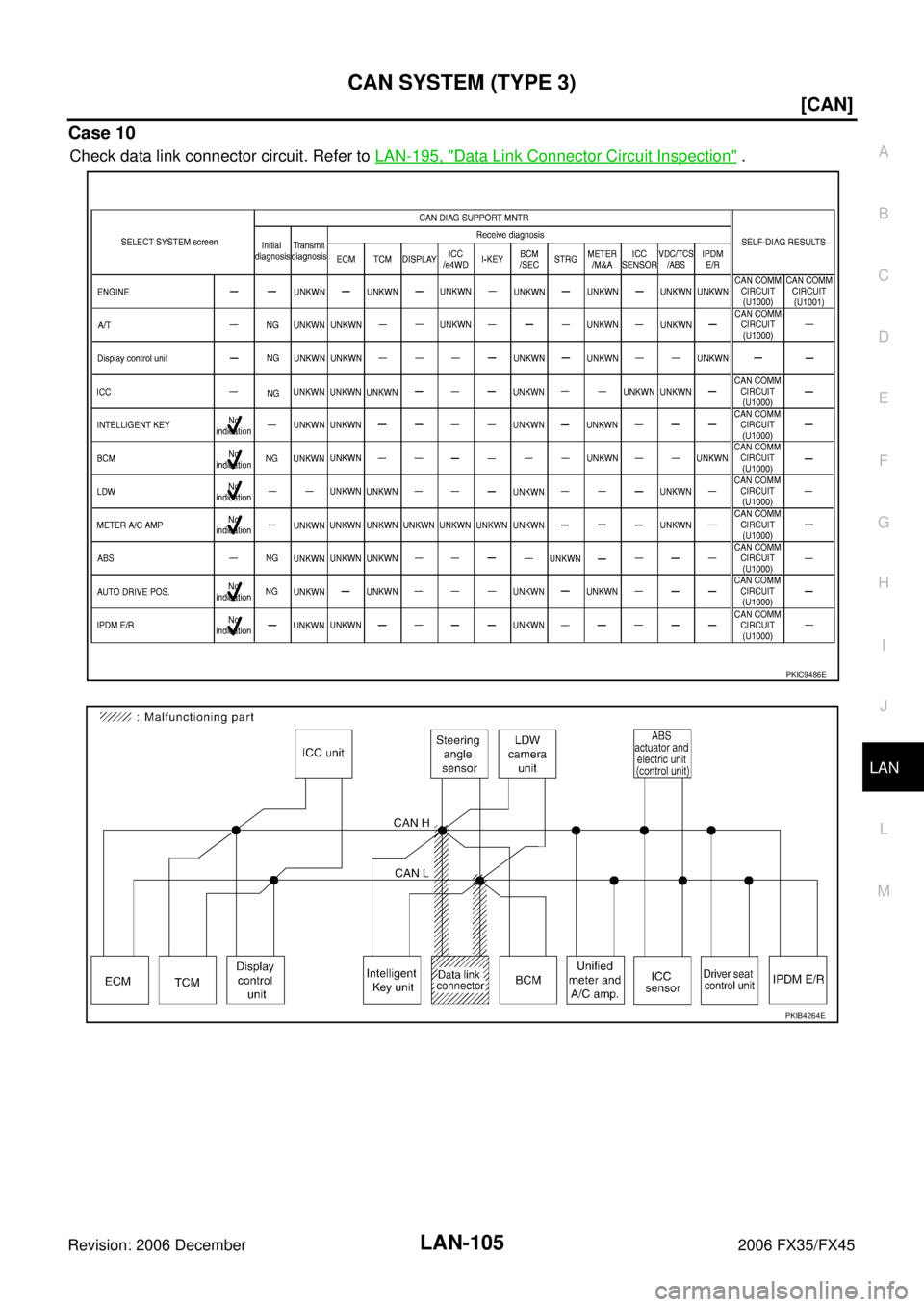

Case 9
Check Intelligent Key unit circuit. Refer to LAN-195, "Intelligent Key Unit Circuit Inspection" .
PKIC9485E
PKIB4263E
Page 3465 of 4462
CAN SYSTEM (TYPE 3) LAN-105
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

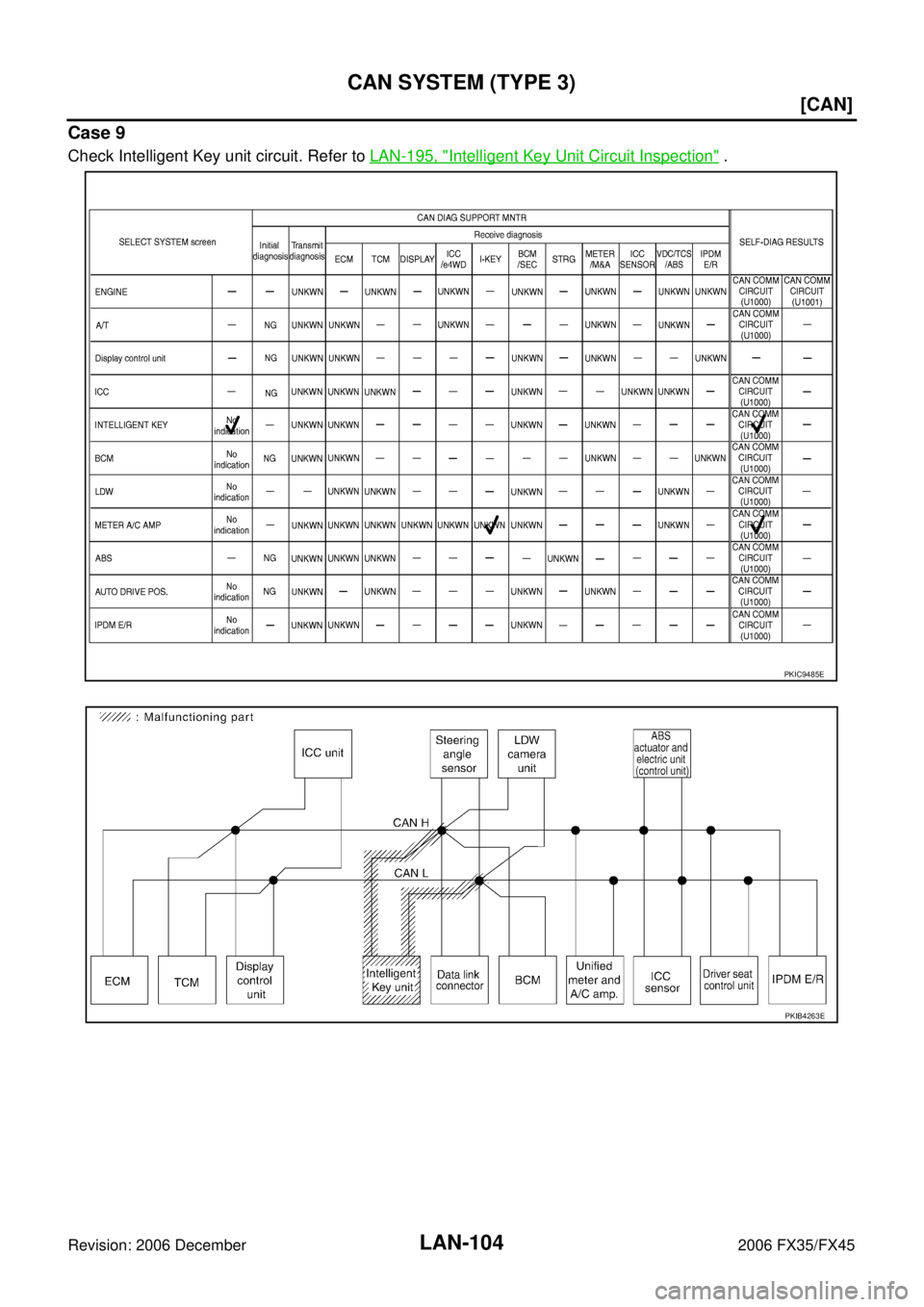

Case 10
Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circuit Inspection" .
PKIC9486E
PKIB4264E
Page 3466 of 4462
LAN-106
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45

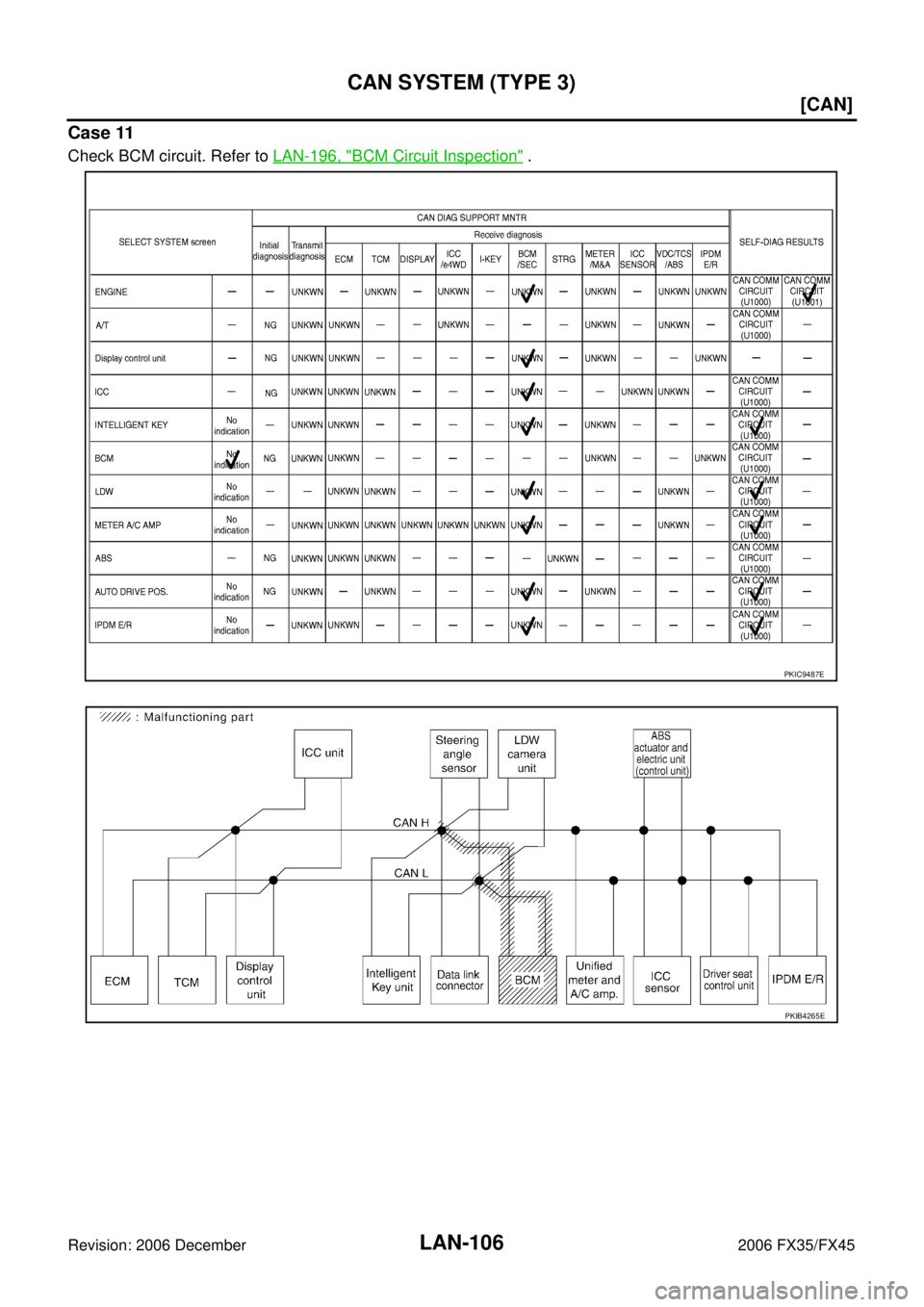

Case 11
Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" .
PKIC9487E
PKIB4265E
Page 3467 of 4462
CAN SYSTEM (TYPE 3) LAN-107
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 12
Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor Circuit Inspection" .
PKIC9488E
PKIB4266E
Page 3468 of 4462
LAN-108
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45

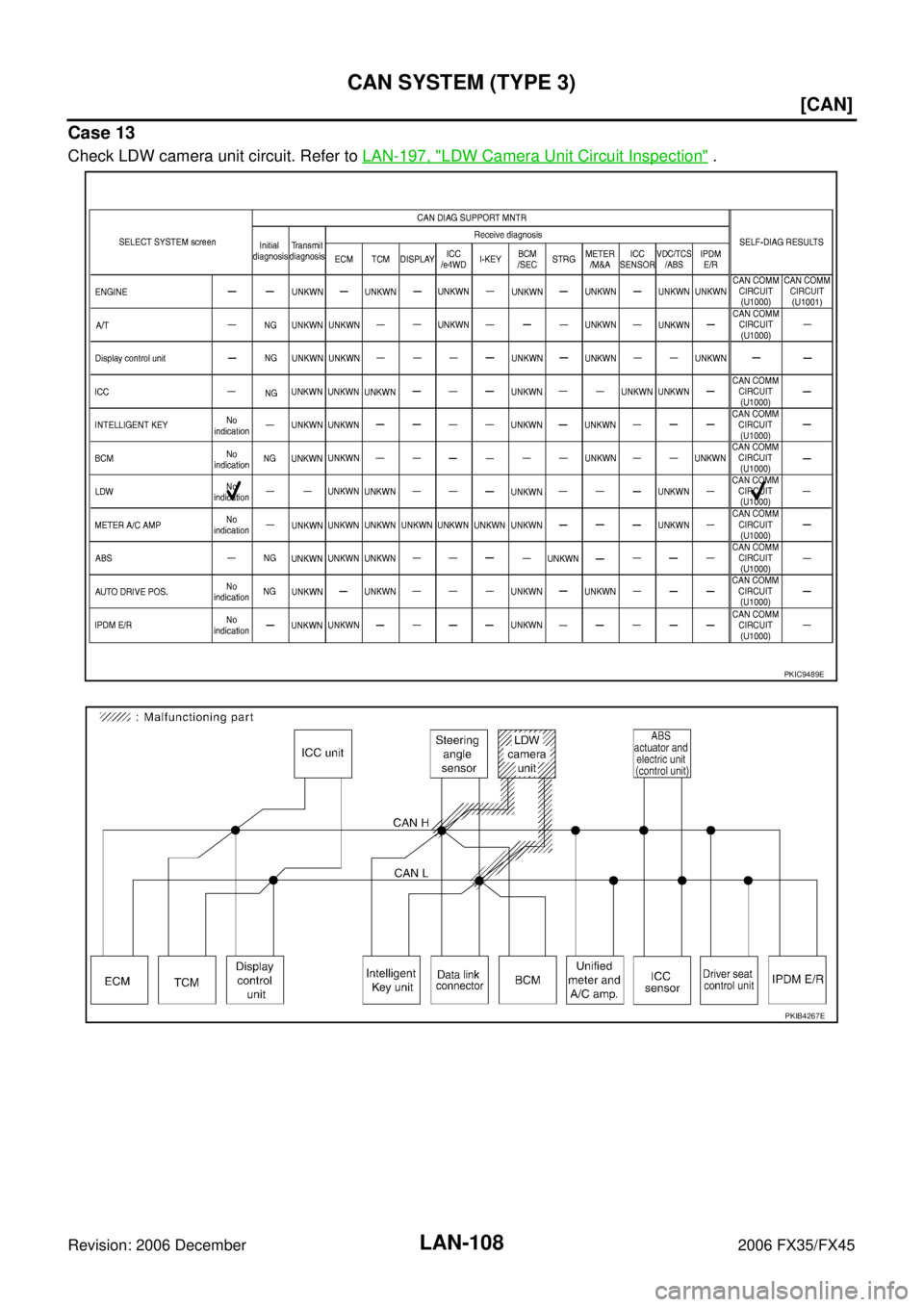

Case 13
Check LDW camera unit circuit. Refer to LAN-197, "LDW Camera Unit Circuit Inspection" .
PKIC9489E
PKIB4267E
Page 3469 of 4462
CAN SYSTEM (TYPE 3) LAN-109
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

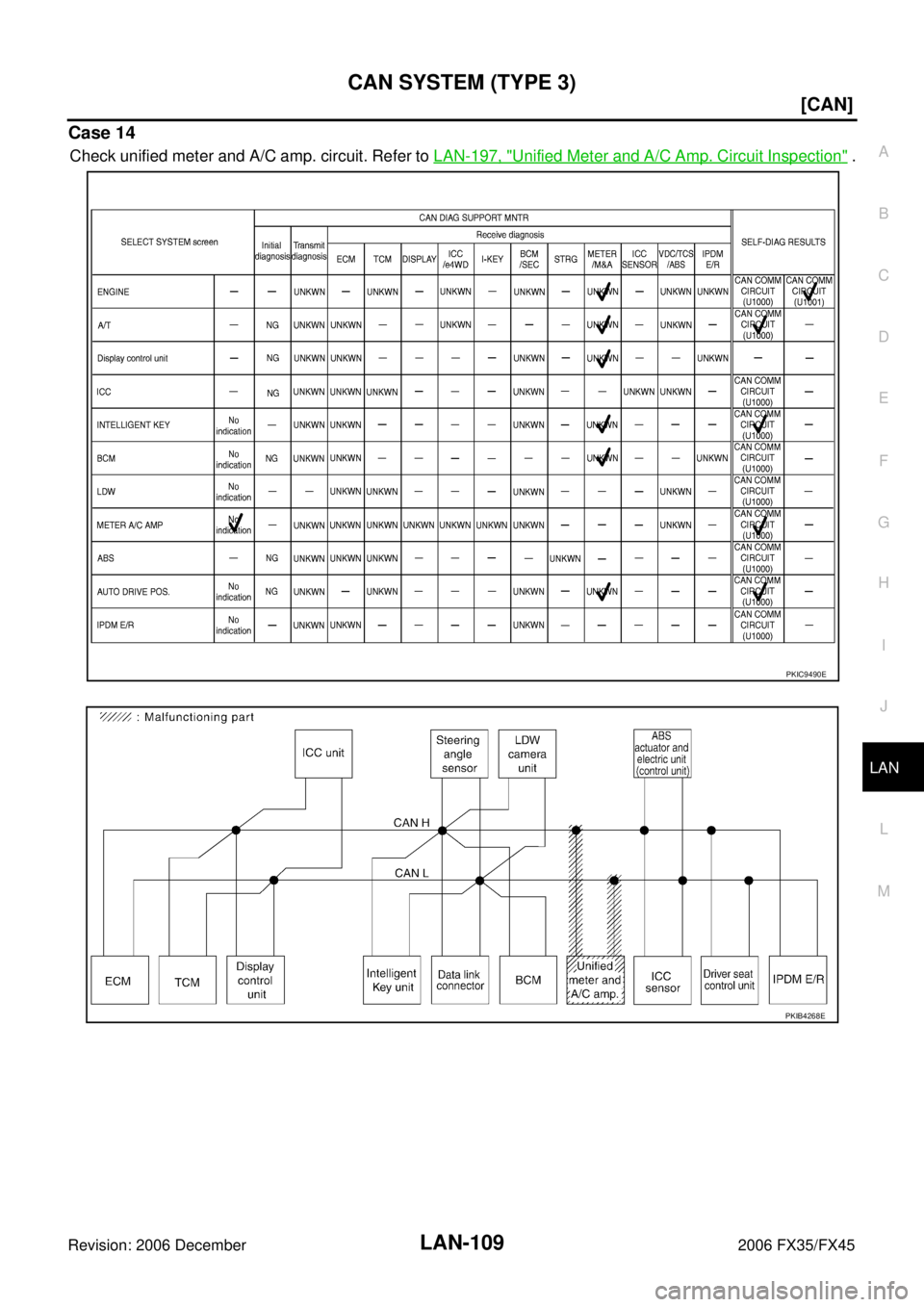

Case 14
Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC9490E
PKIB4268E
Page 3470 of 4462
LAN-110
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 December 2006 FX35/FX45
Case 15
Check ICC sensor circuit. Refer to LAN-198, "ICC Sensor Circuit Inspection" .
PKIC9491E
PKIB4269E
