BCM - Operation Table of Combination Switches
BCM reads operation status of combination switch using combinations shown in table below.
Sample Operation: (When Wiper Switch Turned to LOW Position)

When wiper switch is turned to LOW position, front wiper LOW contact in combination switch turns ON. At
this time if OUTPUT 1 transistor is activated, BCM detects that voltage changes in INPUT 3.

When BCM detects that voltage changes in INPUT 3 while OUTPUT 1 transistor is ON, it judges that front
wiper switch is in LOW position. Then BCM sends front wiper request signal (LO) to IPDM E/R using CAN
communication.

If BCM detects that voltage changes in INPUT 3 when OUTPUT 1 transistor is activated again, it recog-
nizes that wiper switch is still in LOW position.
SKIA4959E
PKIC9703E

WW-10
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
NOTE:
Each OUTPUT terminal transistor is activated at 10 ms intervals. Therefore after switch is turned ON, electri-
cal loads are activated with time delay. But this time delay is so short that it cannot be detected by human
senses.
Operation Mode
Combination switch reading function has operation modes shown below.
1. Normal status
–When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.
2. Sleep status
–When BCM is in sleep status, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low power
mode. Mean while OUTPUT 2, 3, and 4 send out ON signal every 60 ms, and accept input from lighting
switch system.
CAN Communication System DescriptionNKS00328
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-board multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS00329
Refer to LAN-32, "CAN Communication Unit" .
PKIC4919E

FRONT WIPER AND WASHER SYSTEM WW-11
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45

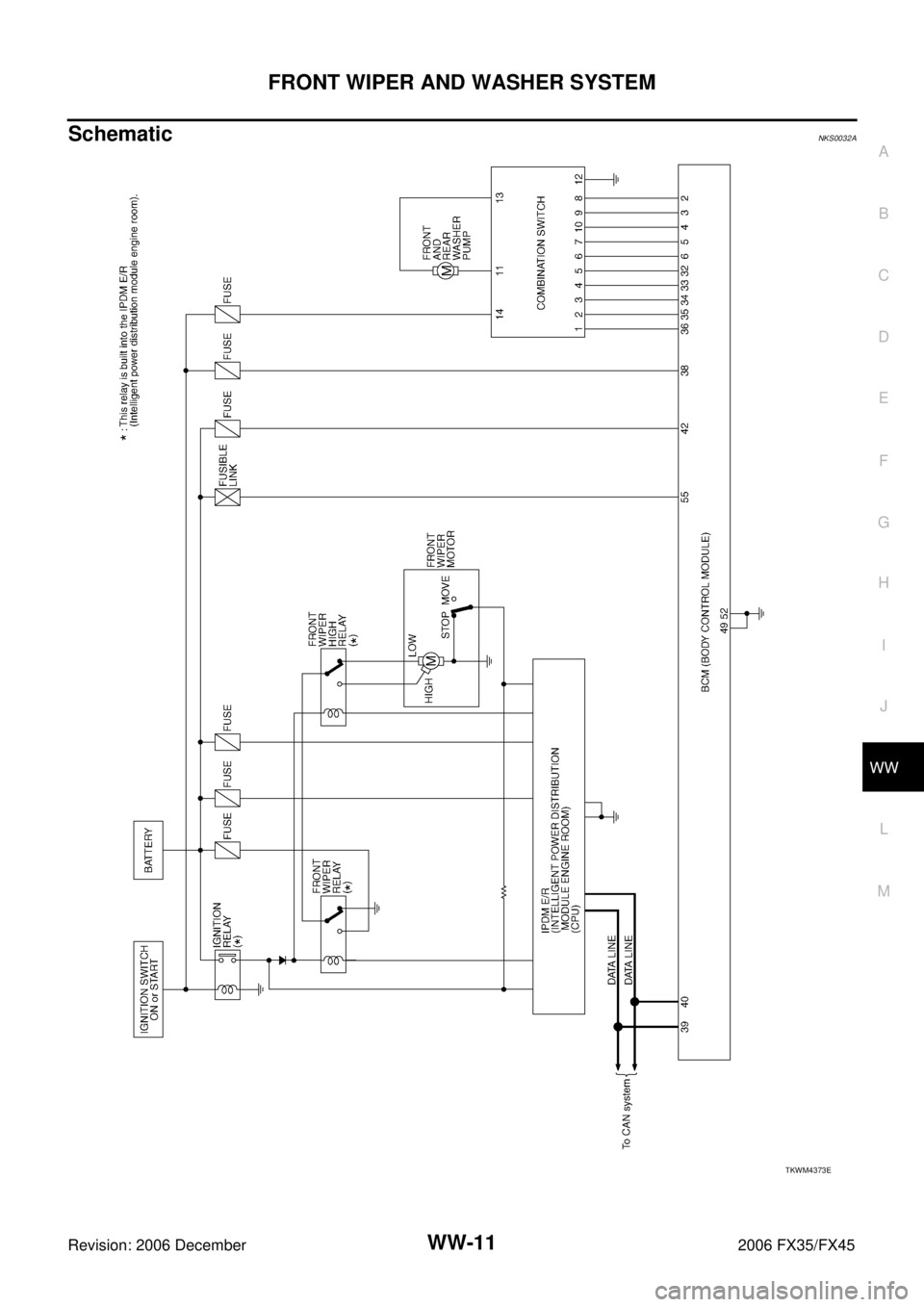

SchematicNKS0032A
TKWM4373E

WW-12
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45

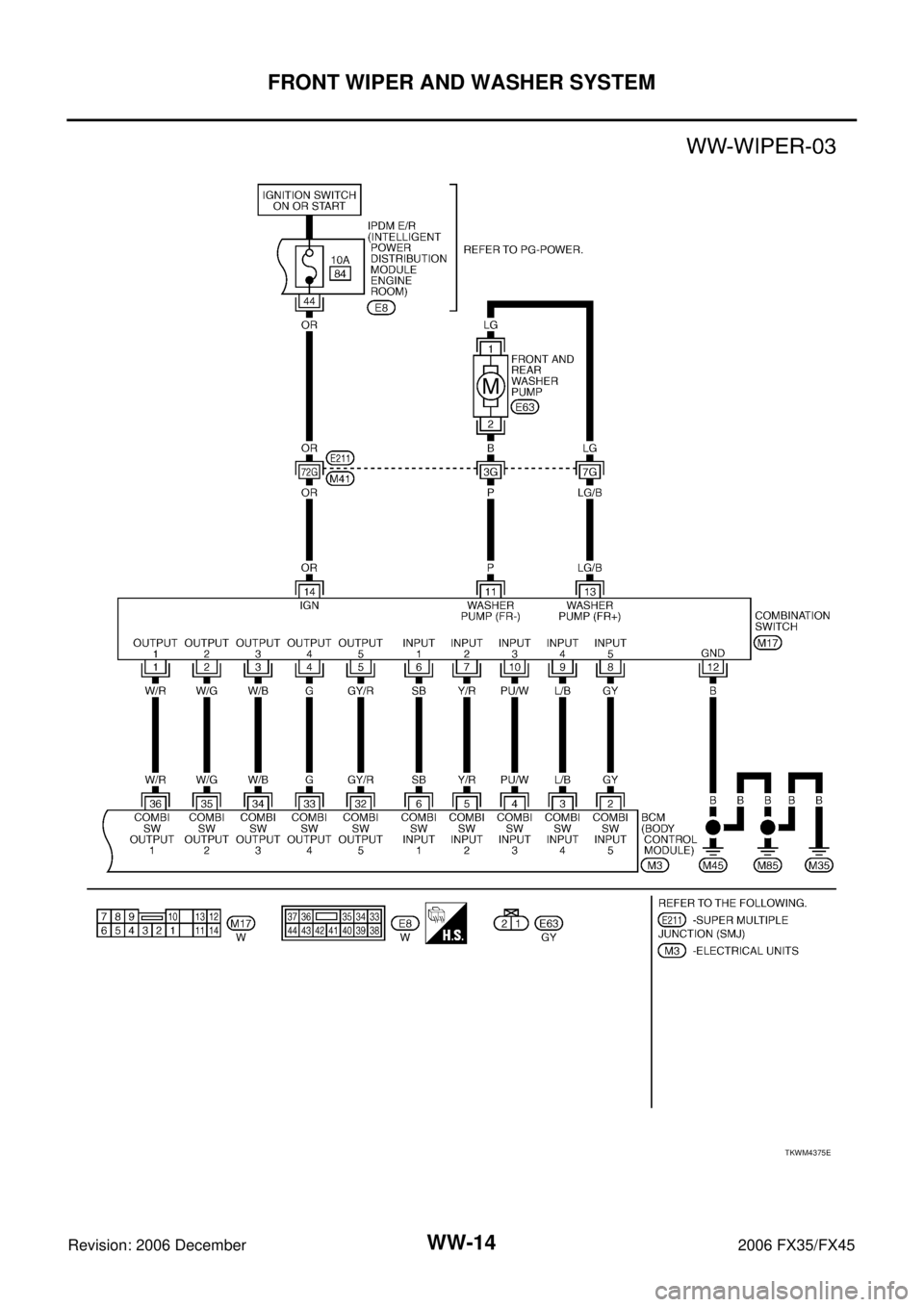

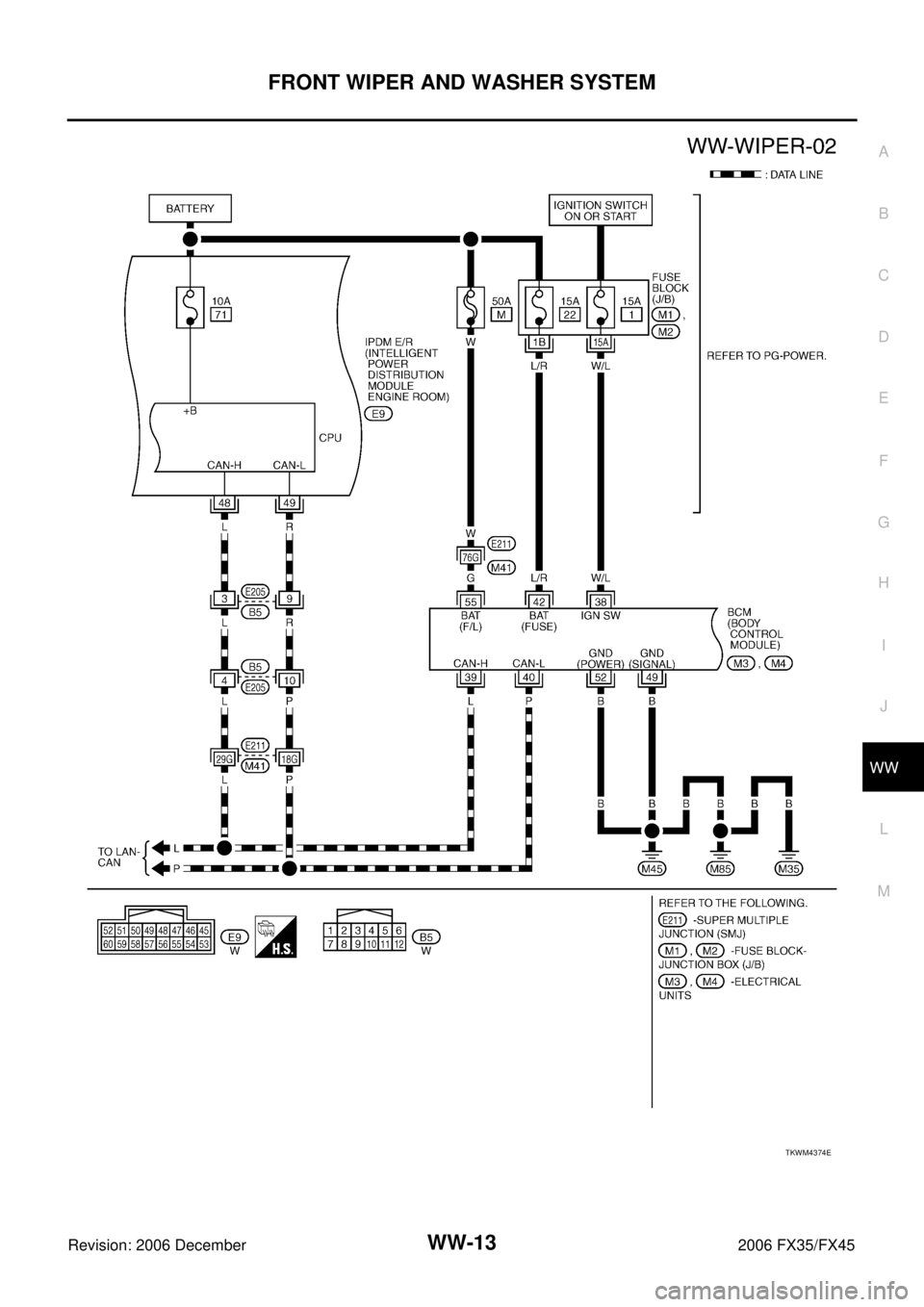

Wiring Diagram — WIPER —NKS0032B
TKWM0663E

FRONT WIPER AND WASHER SYSTEM WW-13
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
TKWM4374E

WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
TKWM4375E

FRONT WIPER AND WASHER SYSTEM WW-15
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Values for BCMNKS0032C
CAUTION:

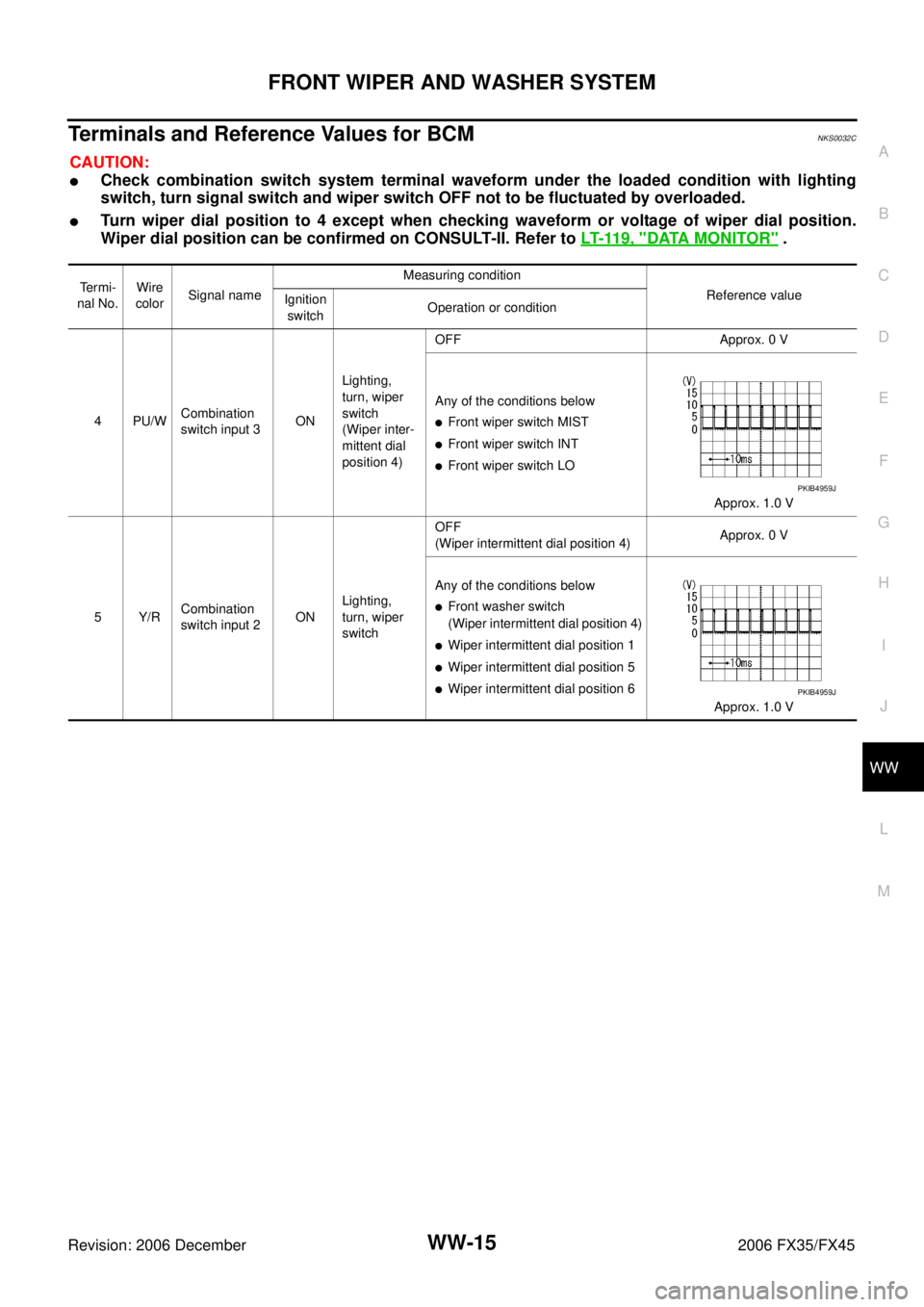

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to LT- 11 9 , "
DATA MONITOR" .
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
4PU/W Combination
switch input 3 ON Lighting,
turn, wiper
switch
(Wiper inter-
mittent dial
position 4) OFF Approx. 0 V
Any of the conditions below

Front wiper switch MIST

Front wiper switch INT

Front wiper switch LO Approx. 1.0 V
5Y/R Combination
switch input 2 ON Lighting,
turn, wiper
switch OFF
(Wiper intermittent dial position 4) Approx. 0 V
Any of the conditions below

Front washer switch
(Wiper intermittent dial position 4)

Wiper intermittent dial position 1

Wiper intermittent dial position 5

Wiper intermittent dial position 6
Approx. 1.0 V
PKIB4959J
PKIB4959J

WW-16
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
6SB Combination
switch input 1 ON Lighting,
turn, wiper
switch OFF
(Wiper intermittent dial position 4) Approx. 0 V
Any of the conditions below

Front wiper switch HI
(Wiper intermittent dial position 4)

Wiper intermittent dial position 3
Approx. 1.0 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2 Approx. 1.7 V
Any of the conditions below

Wiper intermittent dial position 6

Wiper intermittent dial position 7 Approx. 0.8 V
32 GY/R Combination
switch output 5 ON Lighting,
turn, wiper
switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 6

Wiper intermittent dial position 7 Approx. 1.0 V
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
PKIB4959J
PKIB4952J
PKIB4955J
PKIB4960J
PKIB4956J

FRONT WIPER AND WASHER SYSTEM WW-17
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45

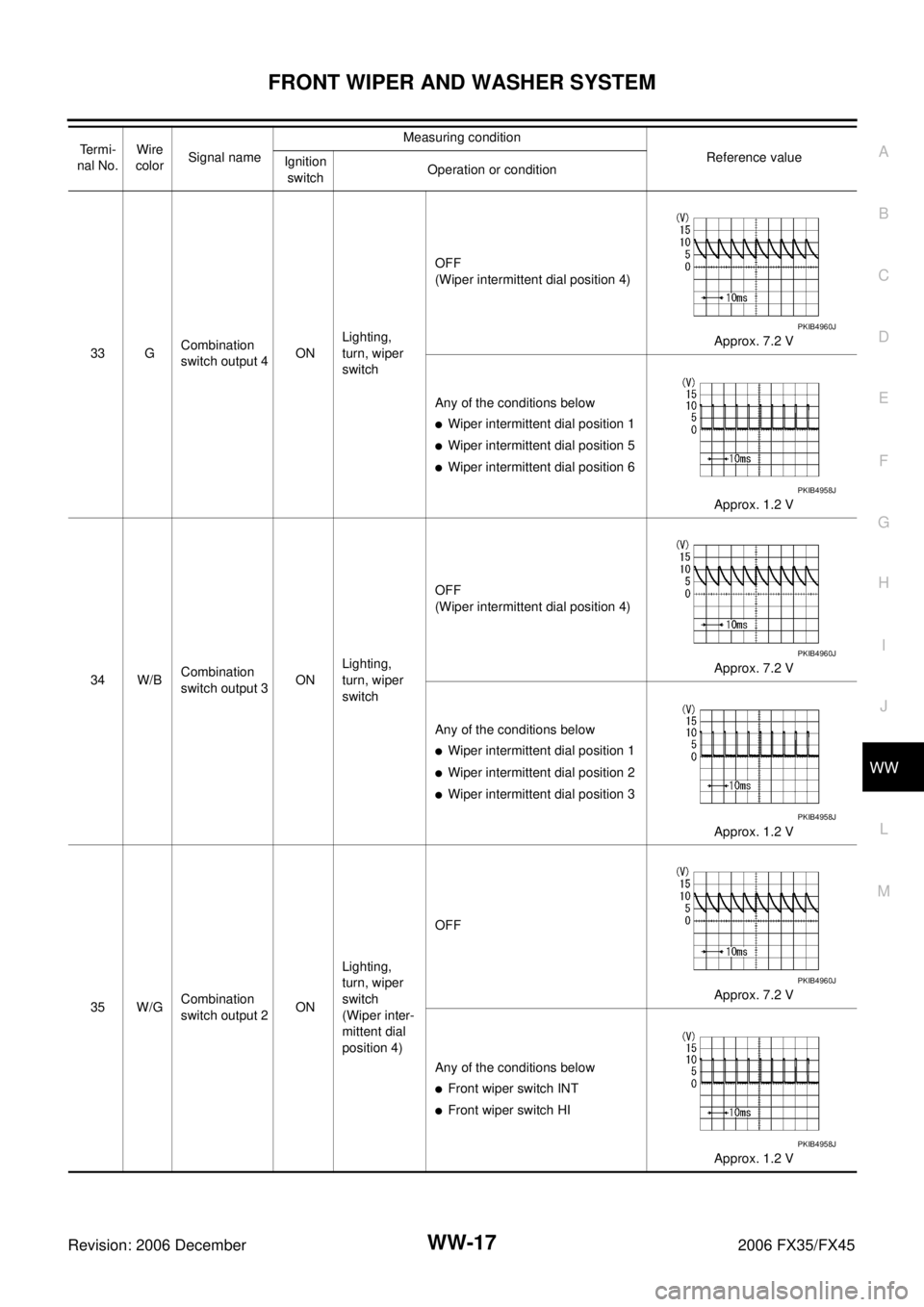

33 G Combination
switch output 4 ON Lighting,
turn, wiper
switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 5

Wiper intermittent dial position 6 Approx. 1.2 V
34 W/B Combination
switch output 3 ON Lighting,
turn, wiper
switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 3 Approx. 1.2 V
35 W/G Combination
switch output 2 ON Lighting,
turn, wiper
switch
(Wiper inter-
mittent dial
position 4) OFF
Approx. 7.2 V
Any of the conditions below

Front wiper switch INT

Front wiper switch HI Approx. 1.2 V
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

WW-18
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Values for IPDM E/RNKS0032D
36 W/R Combination
switch output 1 ON Lighting,
turn, wiper
switch
(Wiper inter-
mittent dial
position 4) OFF
Approx. 7.2 V
Any of the conditions below

Front wiper switch MIST

Front wiper switch LO

Front washer switch Approx. 1.2 V
38 W/L Ignition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 L/R Battery power
supply OFF — Battery voltage
49 B Ground ON — Approx. 0 V
52 B Ground ON — Approx. 0 V
55 G Battery power
supply OFF — Battery voltage
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
PKIB4960J
PKIB4958J
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
21 P Low speed signal ON Wiper switch OFF Approx. 0 V
LOW Battery voltage
31 PU High speed signal ON Wiper switch OFF Approx. 0 V
HI Battery voltage
32 L Wiper auto - stop signal ON Wiper operating Battery voltage
Wiper stopped Approx. 0 V
38 B Ground ON — Approx. 0 V
44 OR Washer motor power supply ON — Battery voltage
48 L CAN − H—— —
49 R CAN − L—— —
60 B Ground ON — Approx. 0 V
