INFINITI FX35 2007 Service Manual

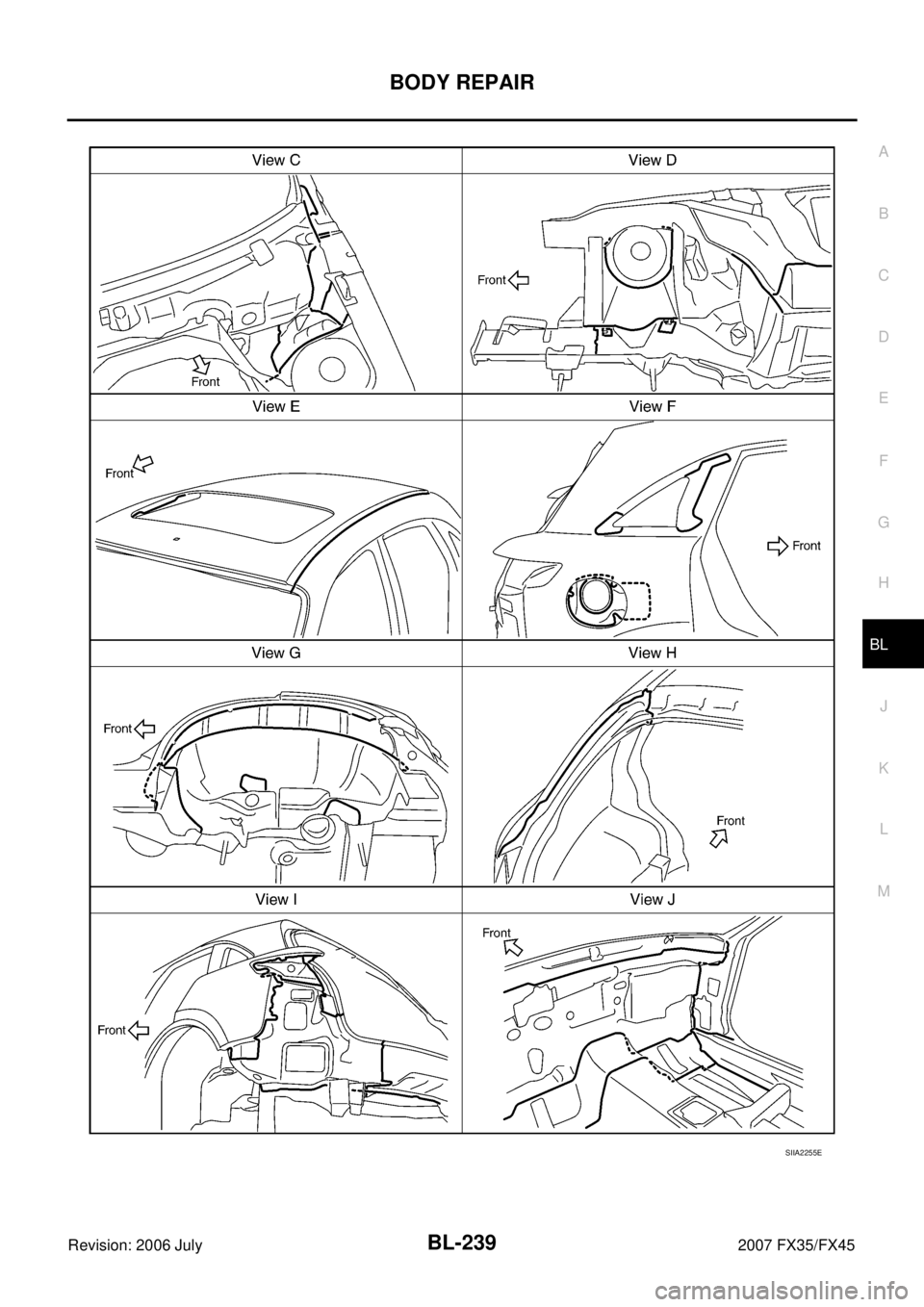

BODY REPAIR BL-239
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
SIIA2255E

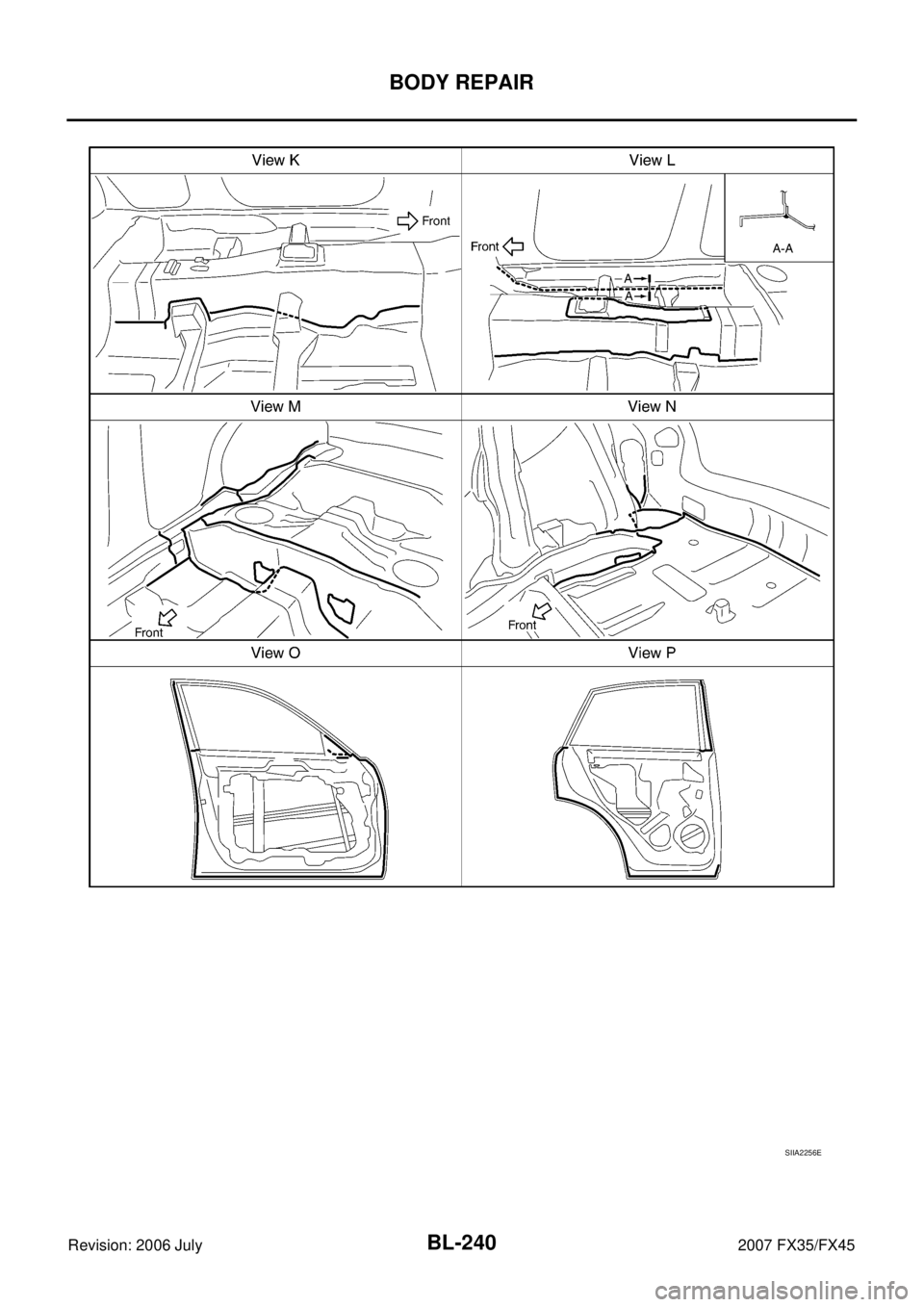

BL-240
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45
SIIA2256E

BODY REPAIR BL-241
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

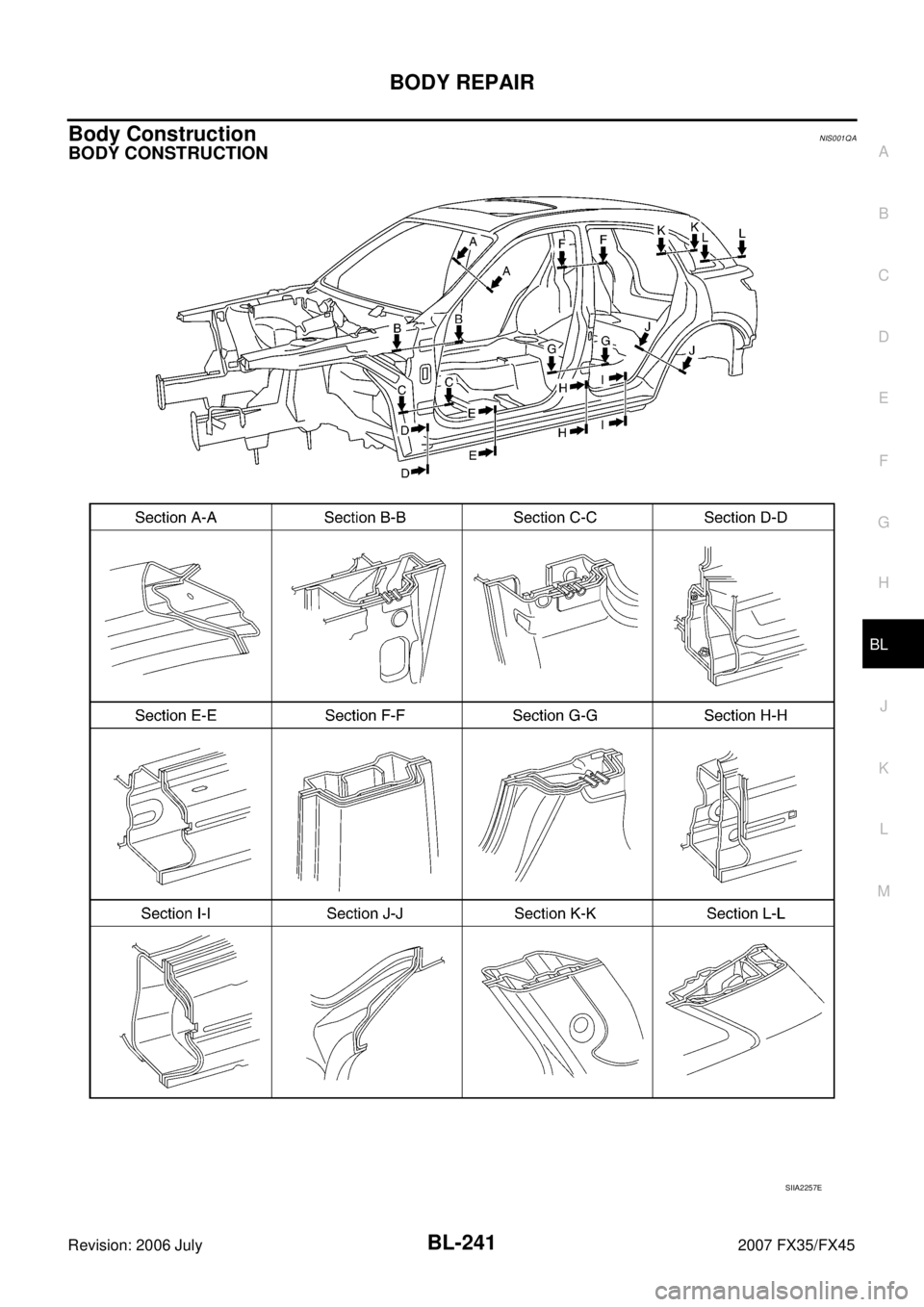

Body ConstructionNIS001QA
BODY CONSTRUCTION
SIIA2257E

BL-242
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45
Body AlignmentNIS001QB

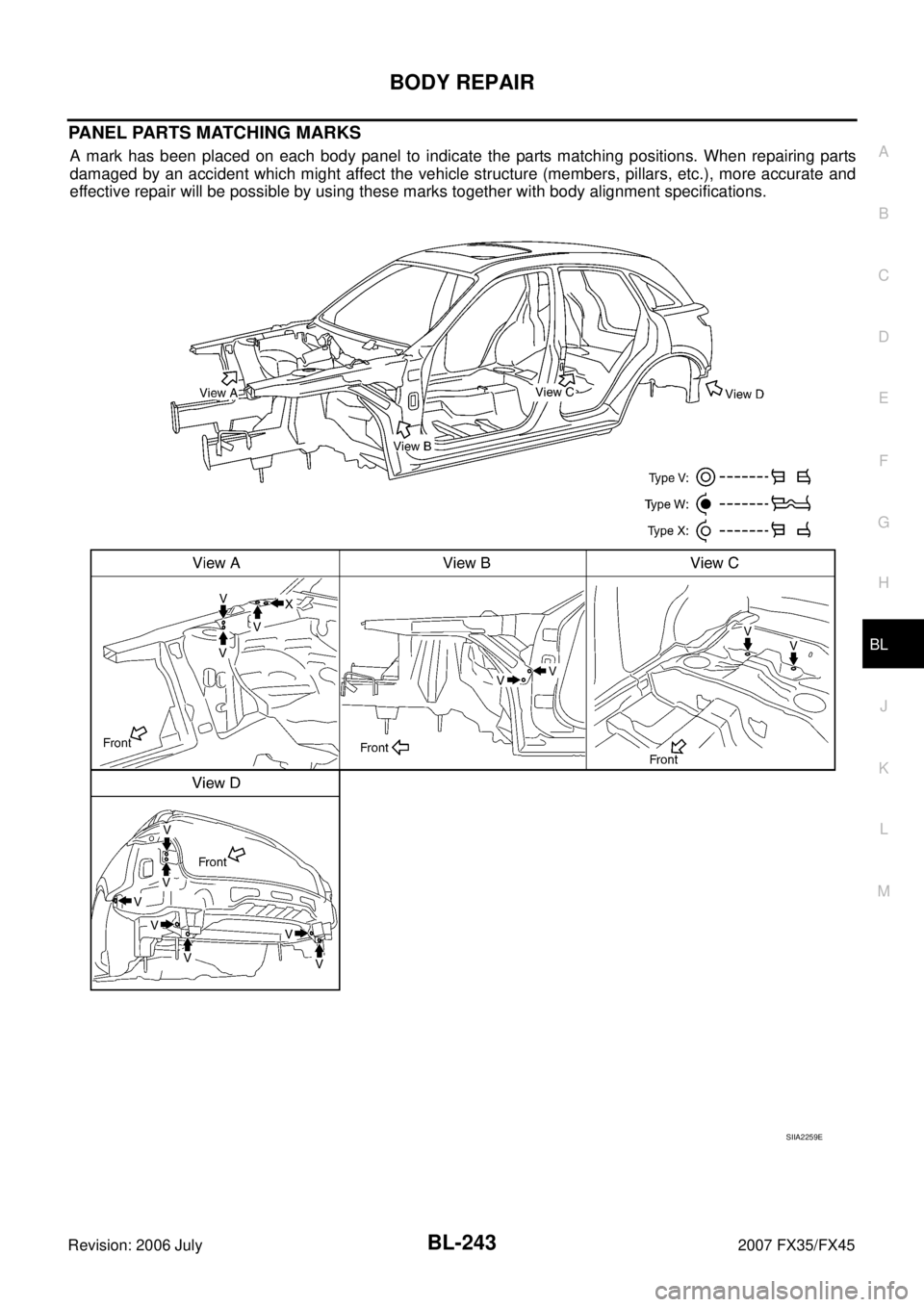

BODY CENTER MARKS
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
SIIA2258E

BODY REPAIR BL-243
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
PANEL PARTS MATCHING MARKS
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
SIIA2259E

BL-244
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45
DESCRIPTION

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

The coordinates of the measurement points are the distances measured from the standard line of ″X ″, ″Y ″
and ″Z ″.
PIIA0104E

BODY REPAIR BL-245
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
ENGINE COMPARTMENT
Measurement
SIIA2260E

BL-246
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45

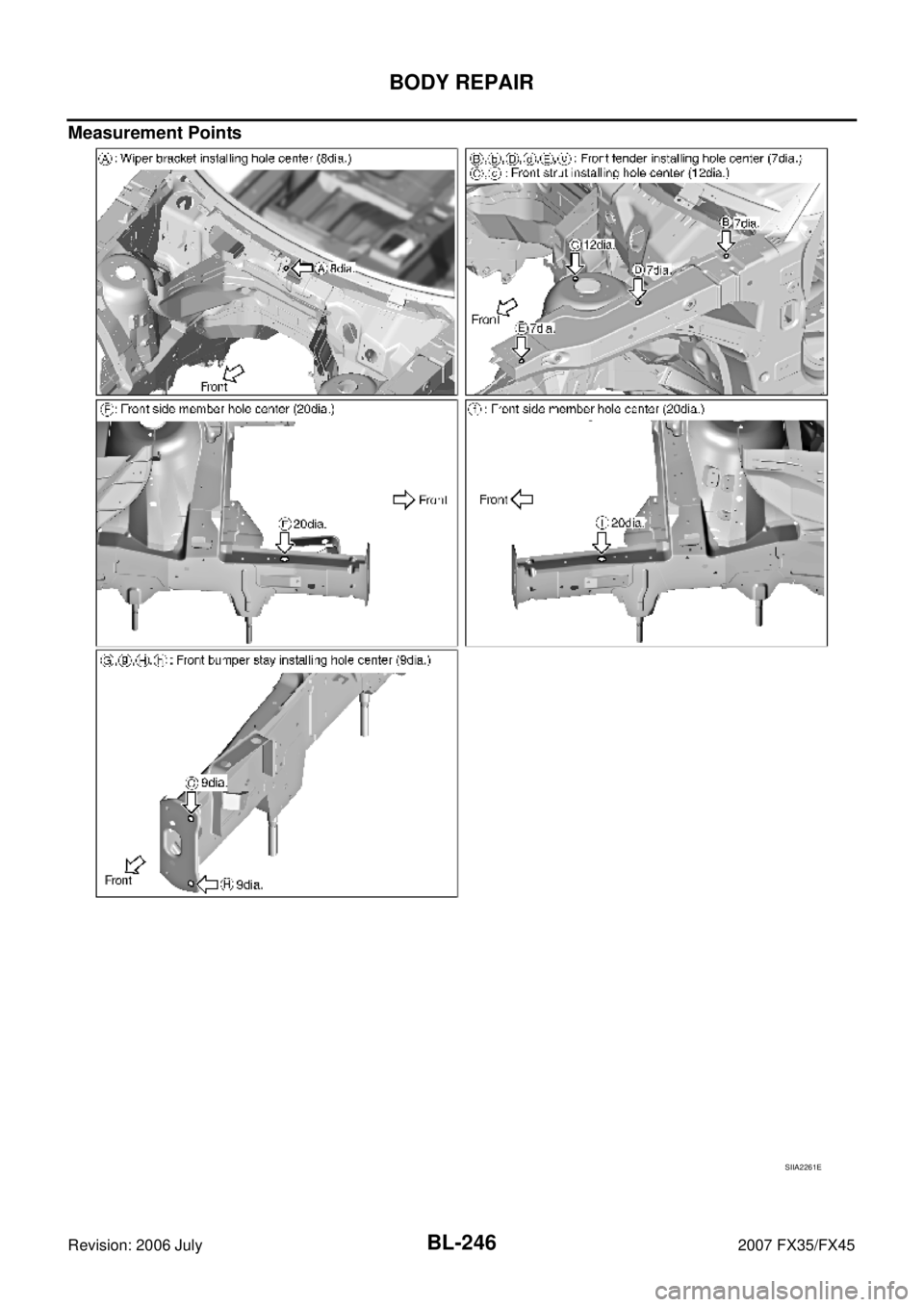

Measurement Points
SIIA2261E

BODY REPAIR BL-247
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

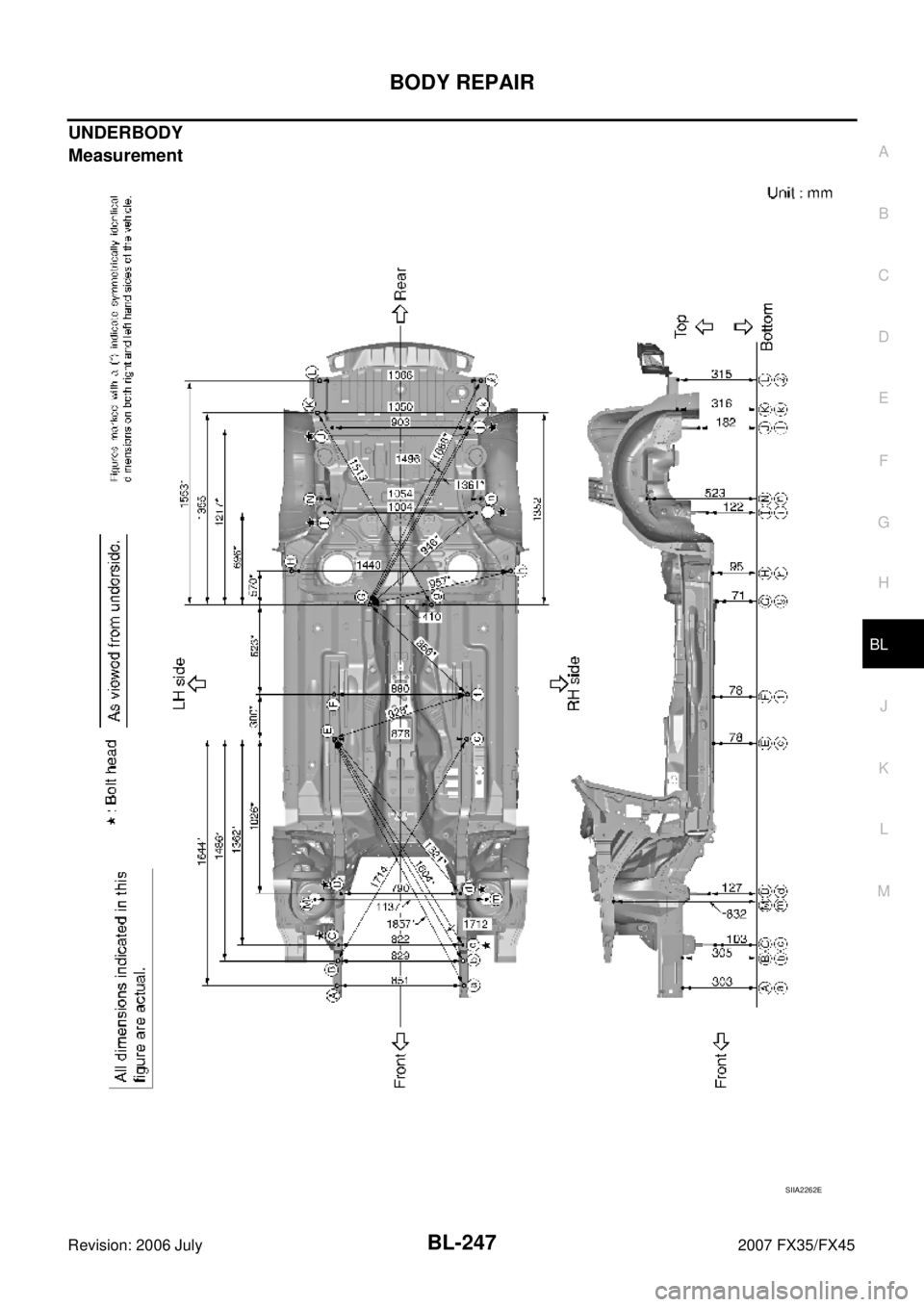

UNDERBODY
Measurement
SIIA2262E

BL-248
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45
Measurement Points
SIIA2263E
