Replacement OperationsNIS001QE
DESCRIPTION
This section is prepared for technicians who have attained a high level of skill and experience in repairing col-
lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.
Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the orig-
inal functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains
additional information, including cautions and warning, that are not including in this manual. Technicians
should refer to both manuals to ensure proper repairs.
Please note that these information are prepared for worldwide usage, and as such, certain procedures might
not apply in some regions or countries.

BL-260
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45

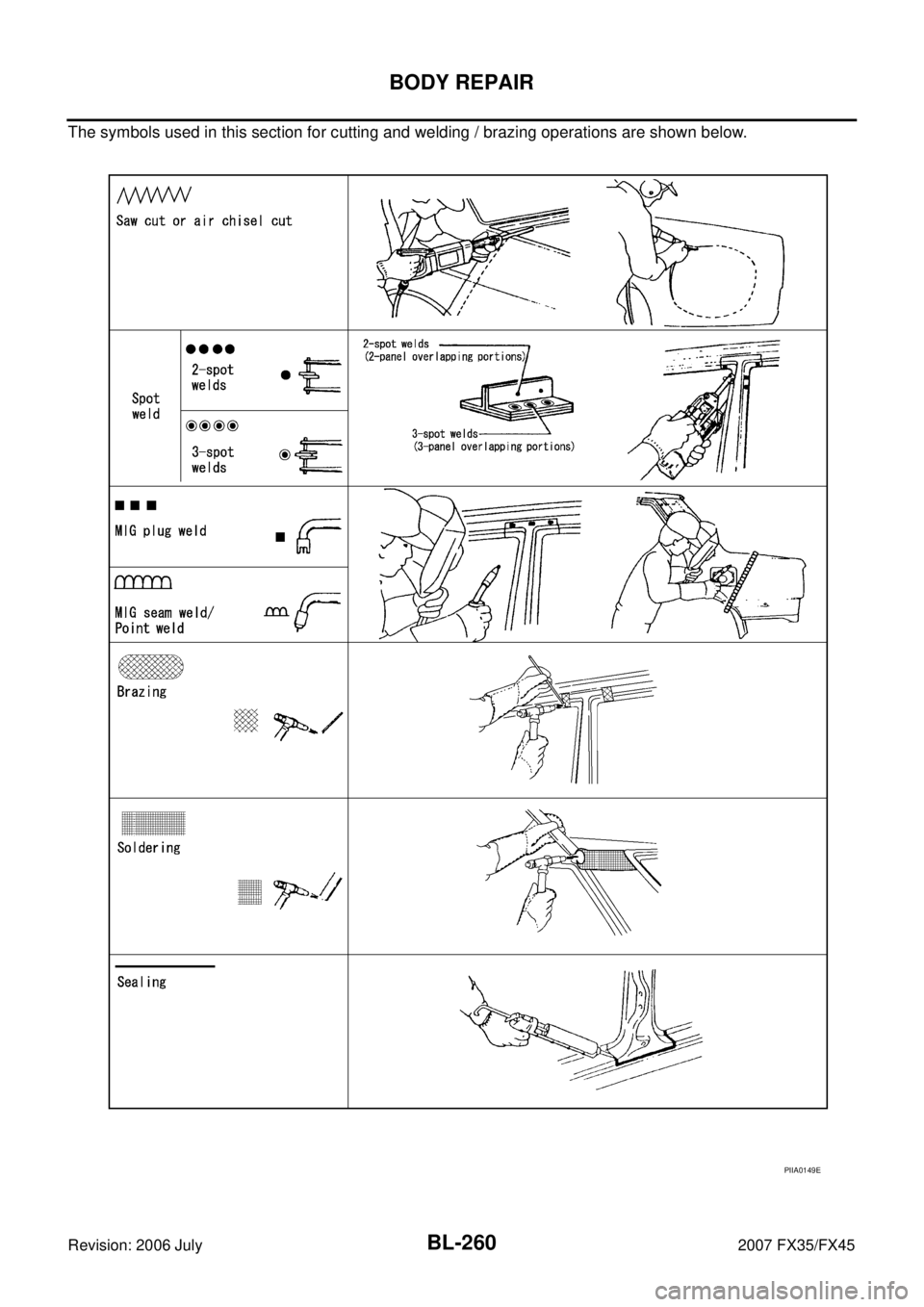

The symbols used in this section for cutting and welding / brazing operations are shown below.
PIIA0149E

BODY REPAIR BL-261
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

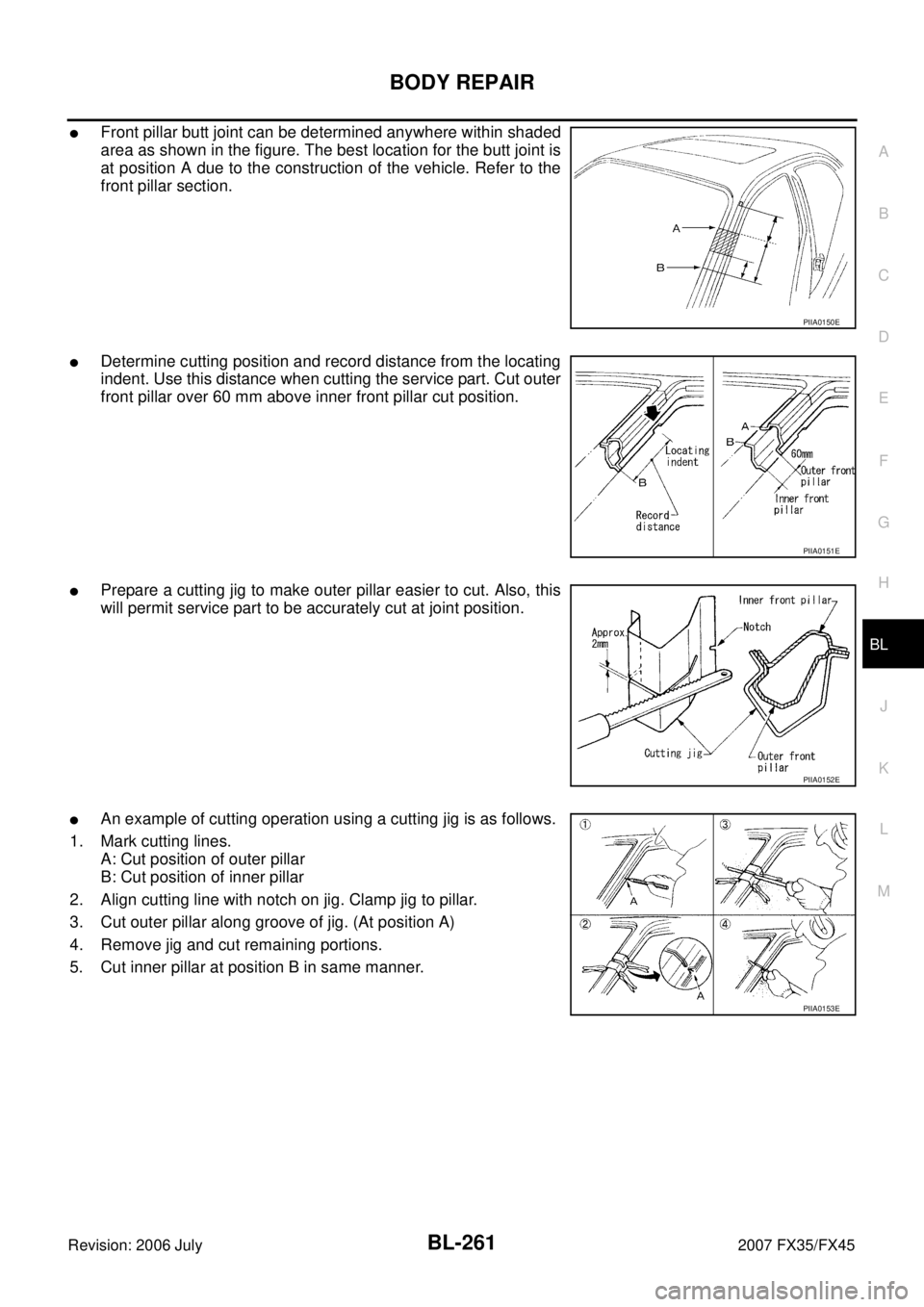

Front pillar butt joint can be determined anywhere within shaded
area as shown in the figure. The best location for the butt joint is
at position A due to the construction of the vehicle. Refer to the
front pillar section.

Determine cutting position and record distance from the locating
indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm above inner front pillar cut position.

Prepare a cutting jig to make outer pillar easier to cut. Also, this
will permit service part to be accurately cut at joint position.

An example of cutting operation using a cutting jig is as follows.
1. Mark cutting lines. A: Cut position of outer pillar
B: Cut position of inner pillar
2. Align cutting line with notch on jig. Clamp jig to pillar.
3. Cut outer pillar along groove of jig. (At position A)
4. Remove jig and cut remaining portions.
5. Cut inner pillar at position B in same manner.
PIIA0150E
PIIA0151E
PIIA0152E
PIIA0153E

BL-262
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45

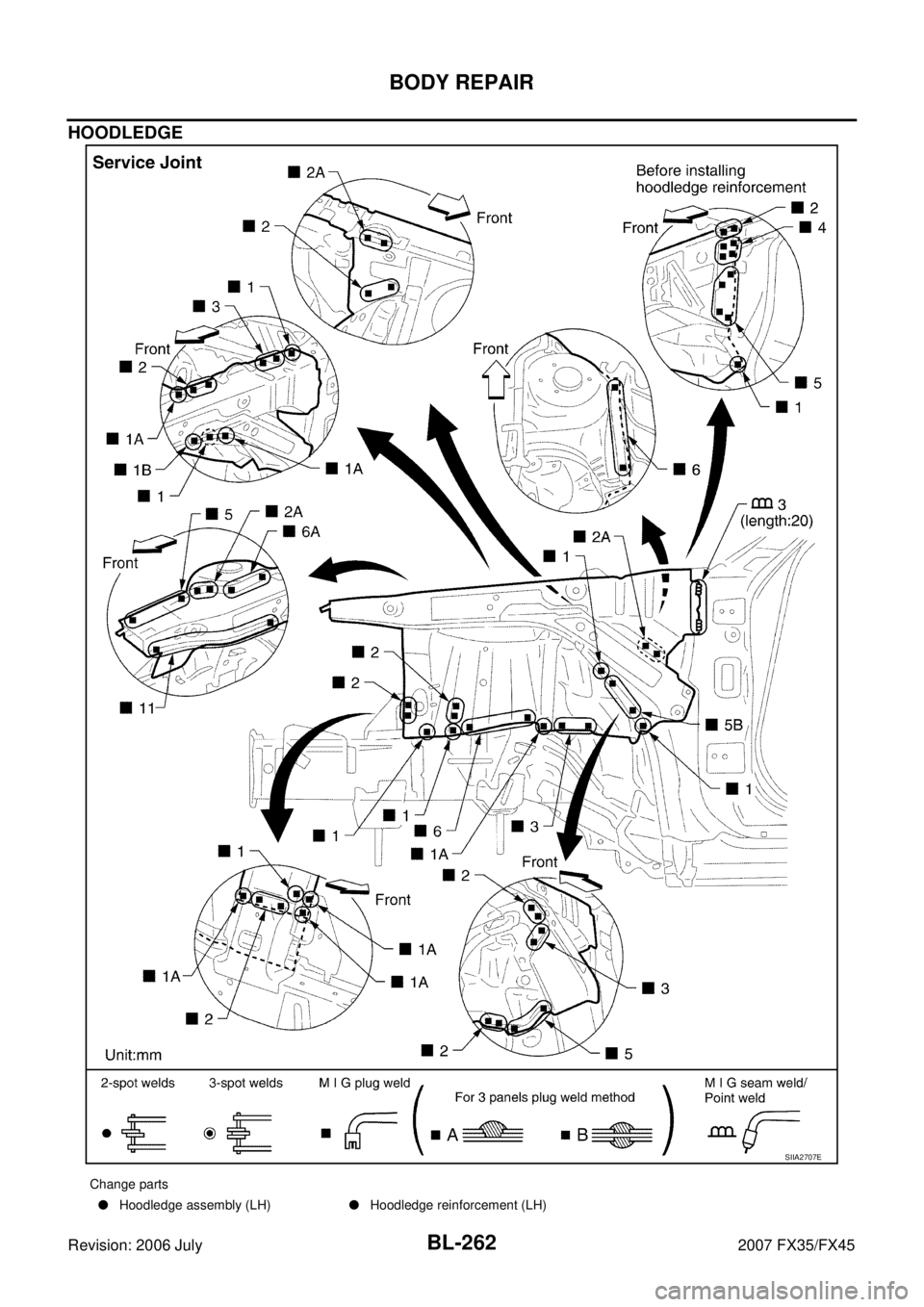

HOODLEDGE
SIIA2707E
Change parts

Hoodledge assembly (LH)
Hoodledge reinforcement (LH)

BODY REPAIR BL-263
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

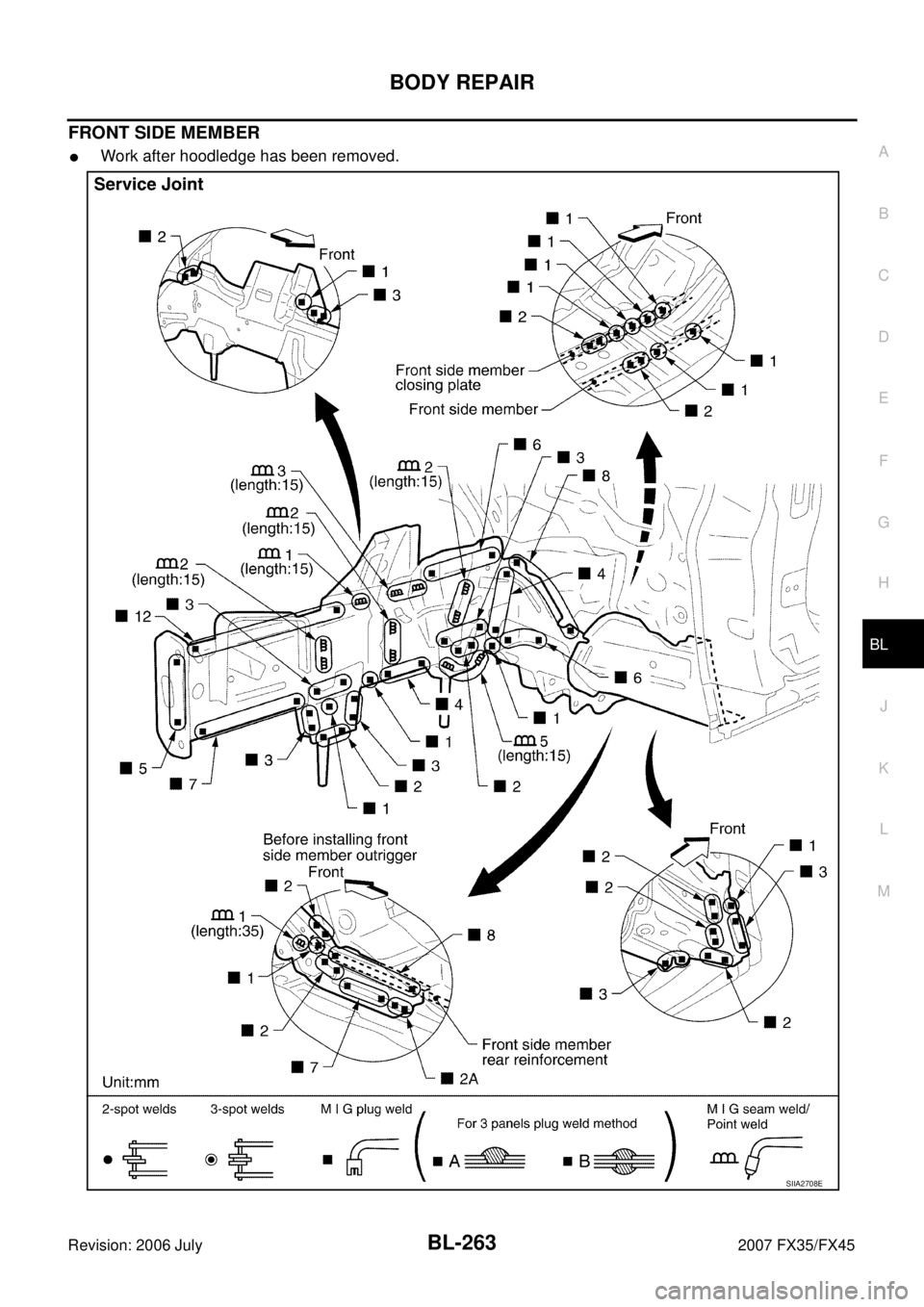

FRONT SIDE MEMBER

Work after hoodledge has been removed.
SIIA2708E

BL-264
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45

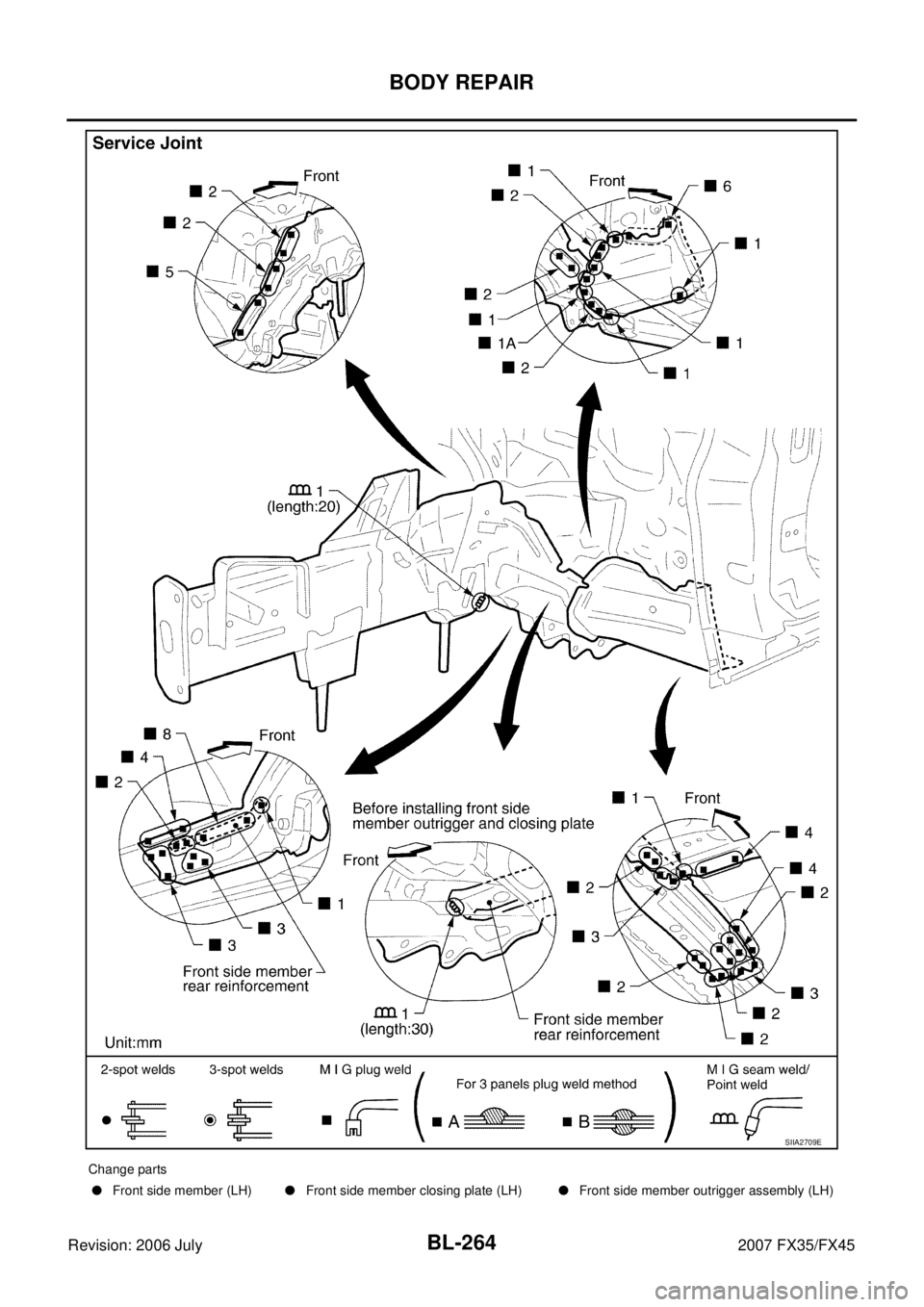

SIIA2709E
Change parts

Front side member (LH)
Front side member closing plate (LH)
Front side member outrigger assembly (LH)

BODY REPAIR BL-265
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

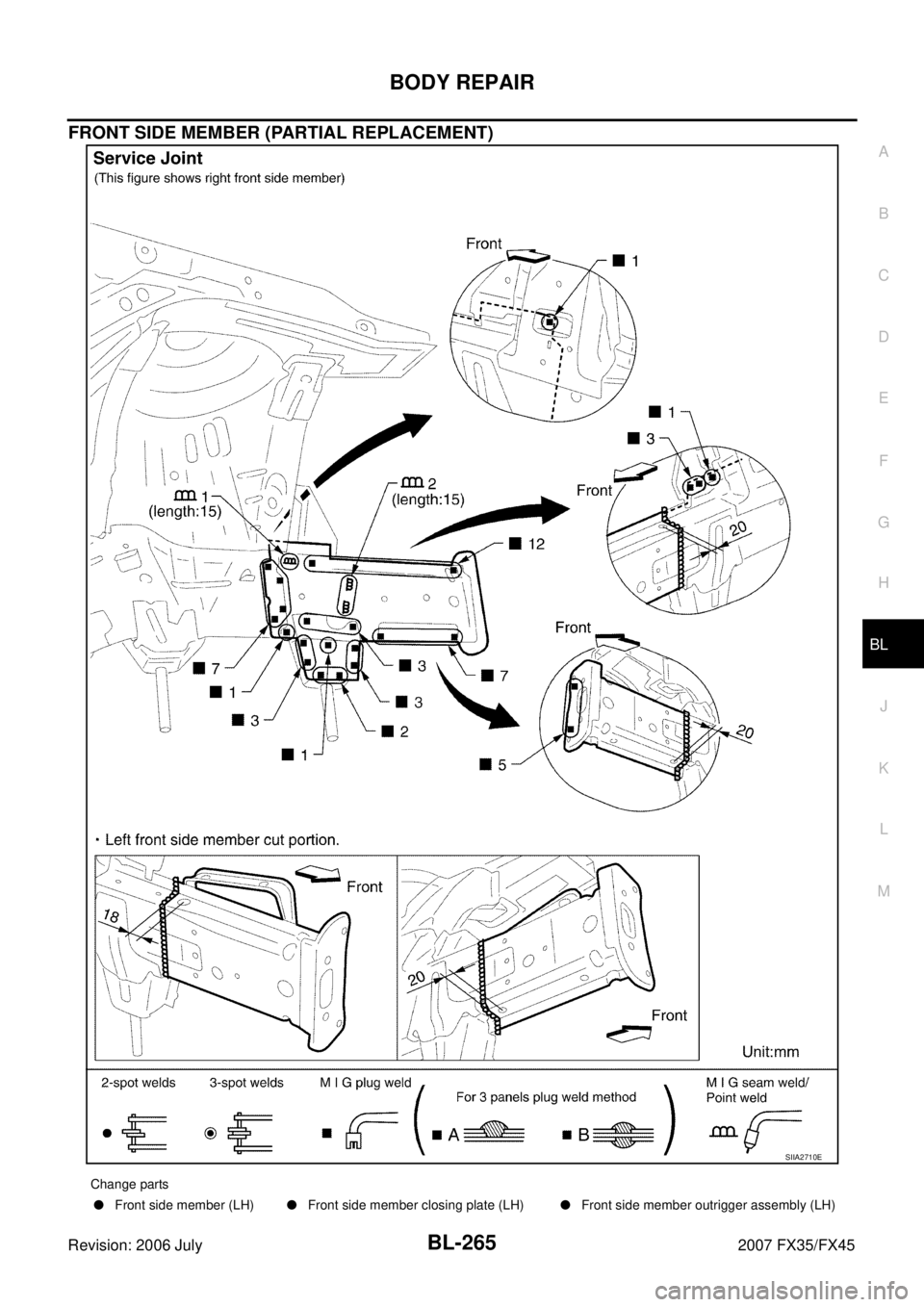

FRONT SIDE MEMBER (PARTIAL REPLACEMENT)
SIIA2710E
Change parts

Front side member (LH)
Front side member closing plate (LH)
Front side member outrigger assembly (LH)

BL-266
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45

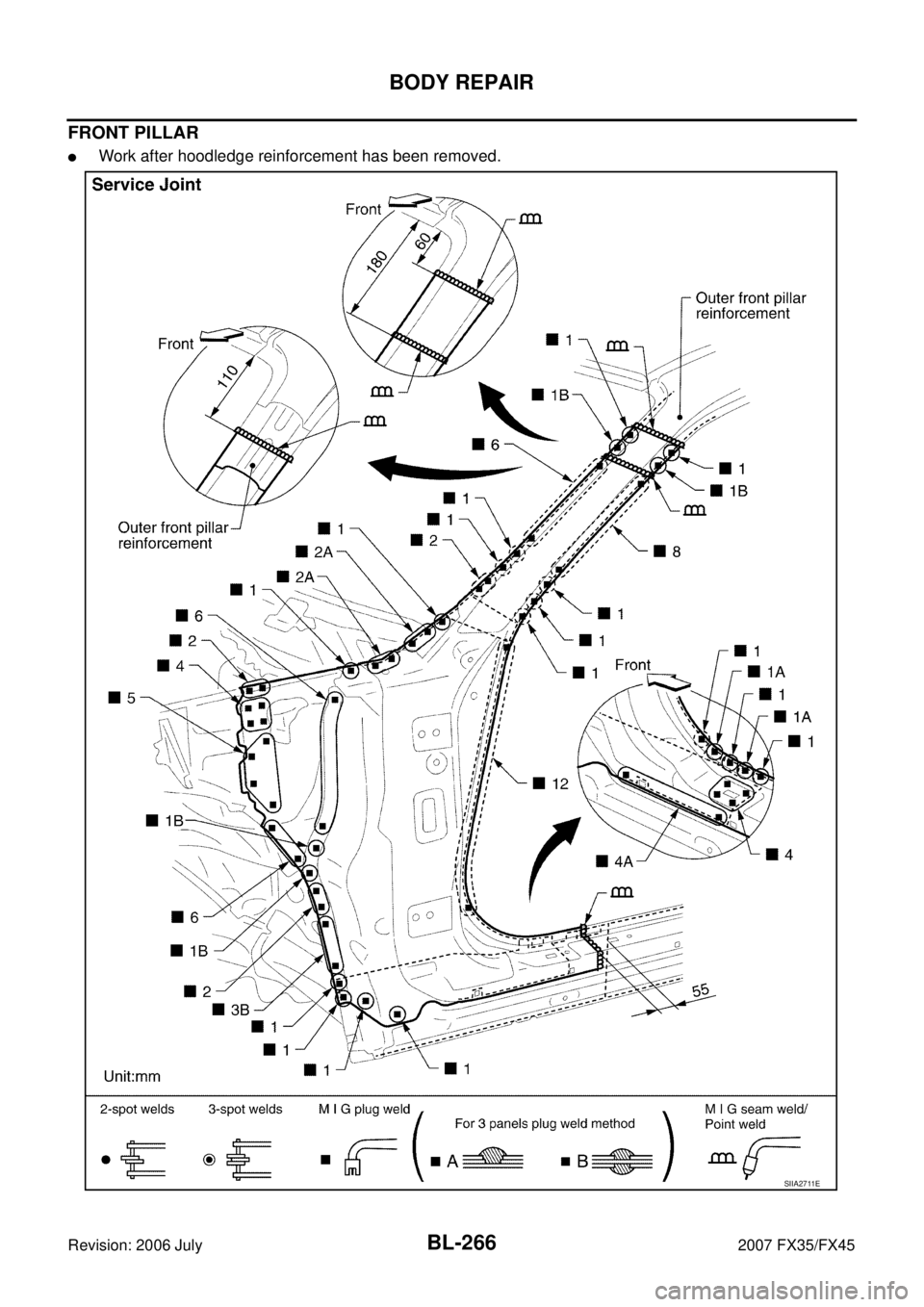

FRONT PILLAR

Work after hoodledge reinforcement has been removed.
SIIA2711E

BODY REPAIR BL-267
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

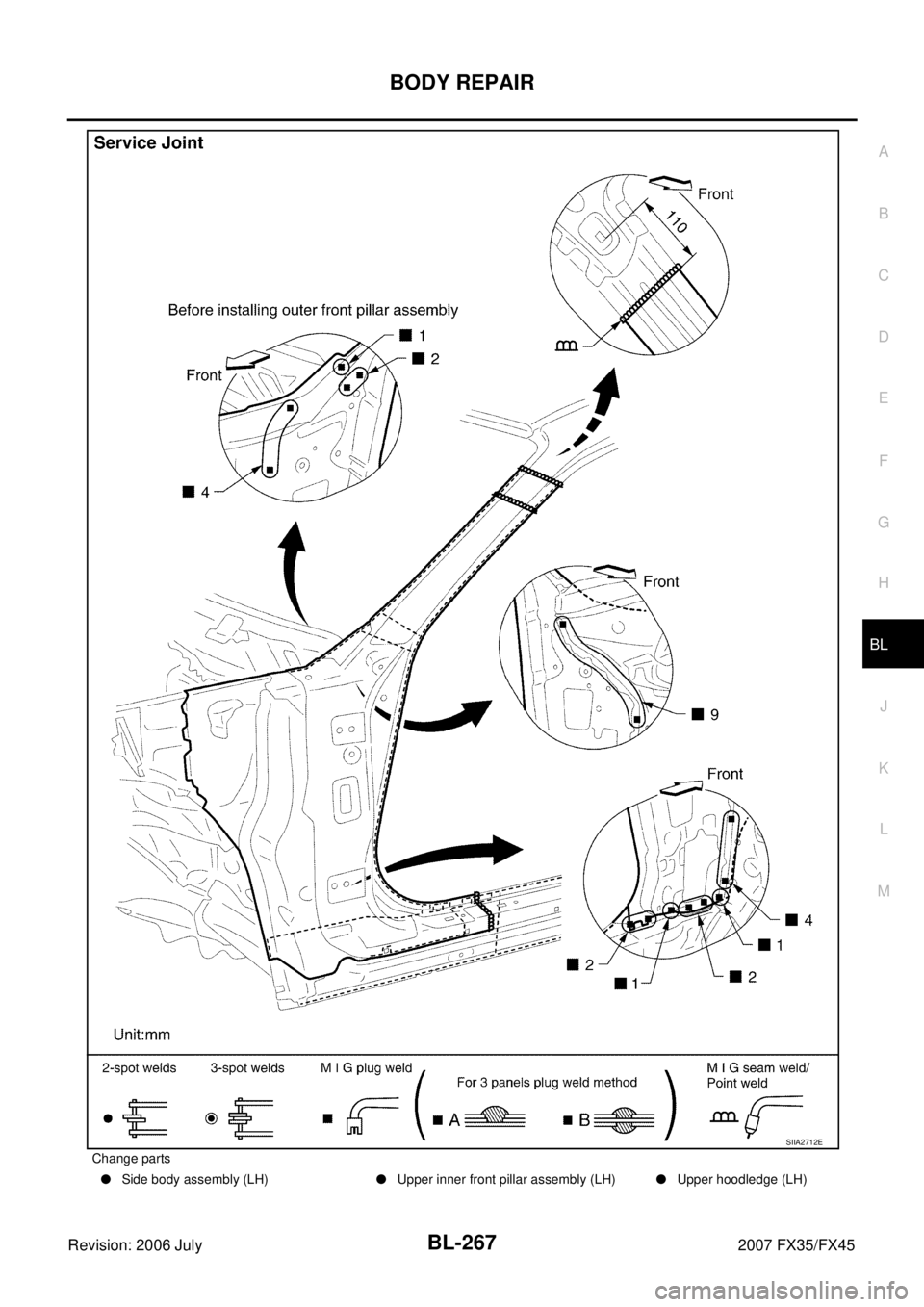

Change parts

Side body assembly (LH)
Upper inner front pillar assembly (LH)
Upper hoodledge (LH)
SIIA2712E

BL-268
BODY REPAIR
Revision: 2006 July 2007 FX35/FX45

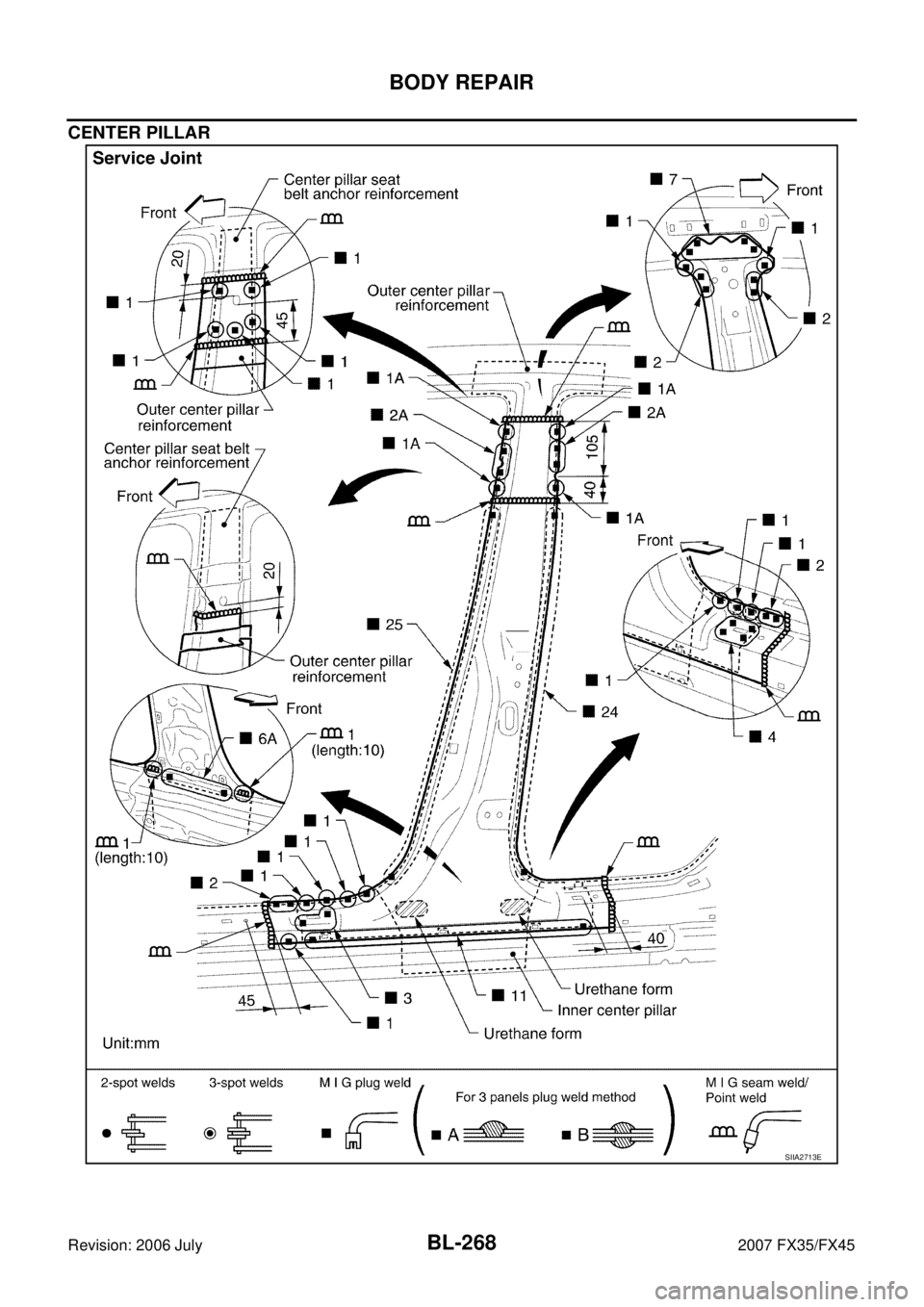

CENTER PILLAR
SIIA2713E
