DTC P0615 START SIGNAL CIRCUITPFP:25230
DescriptionNCS001BZ
TCM prohibits cranking other than at “P” or “N” position.
CONSULT-II Reference ValueNCS001C0
On Board Diagnosis LogicNCS001C1

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II or 14th judgement flicker
without CONSULT-II is detected when starter relay is switched ON other than at “P” or “N” position. (Or
when switched OFF at “P” or “N” position).
Possible CauseNCS001C2

Harness or connectors
(Starter relay and TCM circuit is open or shorted.)

Starter relay circuit
DTC Confirmation ProcedureNCS001C3
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.
3. Start engine.
4. Drive vehicle for at least 2 consecutive seconds.
5. If DTC is detected, go to AT- 1 0 9 , "
Diagnostic Procedure" .
Item name Condition Display value
STARTER RELAY Selector lever in “N” and “P” positions. ON
Selector lever in other positions. OFF
BCIA0031E

AT-108
DTC P0615 START SIGNAL CIRCUIT
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — AT — STSIGNCS001C4
TCWM0247E

DTC P0615 START SIGNAL CIRCUIT AT-109
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
TCM terminals and data are reference value. Measured between each terminal and ground.
Diagnostic ProcedureNCS001C5
1. CHECK STARTER RELAY
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between the IPDM E/R connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK HARNESS BETWEEN A/T ASSEMBLY HARNESS CONNECTOR AND IPDM E/R CONNEC-
TOR
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector and IPDM E/R connector.
3. Check continuity between A/T assembly harness connector and IPDM E/R connector.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Terminal Wire
color Item Condition Data (Approx.)
9GYStarter relay Selector lever in “N” and “P” positions. Battery voltage
Selector lever in other positions. 0 V
Item name Condition Display value
STARTER RELAY Selector lever in “N” and “P” positions. ON
Selector lever in other positions. OFF
Name Connector Terminal Shift position Voltage (Approx.)
Sta rter
relay E9 53 - Ground “N” and “P” Battery voltage
“R” and “D” 0 V
PCIA0056E
SCIA2103E
Item Connector Terminal Continuity
A/T assembly harness con-
nector F44 9
Ye s
IPDM E/R connector E9 53
SCIA5439E

AT-110
DTC P0615 START SIGNAL CIRCUIT
Revision: 2006 July 2007 FX35/FX45
3. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect A/T assembly harness connector and TCM connector.
3. Check continuity between A/T assembly harness connector ter- minal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
4. DETECT MALFUNCTIONING ITEM
Check the following.

Starter relay, Refer to SC-11, "STARTING SYSTEM" .

IPDM E/R, Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)" .
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 1 0 7 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item Connector Terminal Continuity
A/T assembly harness con-
nector F44 9
Ye s
TCM connector F502 8
SCIA5440E

DTC P0700 TCM AT-111
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
DTC P0700 TCMPFP:31036
DescriptionNCS001C6
The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The
TCM controls the A/T.
On Board Diagnosis LogicNCS001C7

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0700 TCM” with CONSULT-II is detected when TCM is malfunctioning.
Possible CauseNCS001C8
TCM.
DTC Confirmation ProcedureNCS001C9
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Run engine for at least 2 consecutive seconds at idle speed.
6. If DTC is detected, go to AT- 111 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureNCS001CA
1. CHECK DTC
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode for “A/T” with CONSULT-II.
3. Touch “ERASE”.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform AT- 111 , "
DTC Confirmation Procedure" .
Is the
“P0700 TCM” displayed again?
YES >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NO >> INSPECTION END
BCIA0031E

AT-112
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: 2006 July 2007 FX35/FX45
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionNCS001CB

The PNP switch includes a transmission range switch.

The transmission range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-II Reference ValueNCS001CC
On Board Diagnosis LogicNCS001CD

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II or 9th judgement flicker without CON-
SULT-II is detected under the following conditions.
–When TCM does not receive the correct voltage signal from the PNP switches 1, 2, 3 and 4 based on the
gear position.
–When no other position but “P” position is detected from “N” position.
Possible CauseNCS001CE

Harness or connectors
(PNP switches 1, 2, 3 and 4 and TCM circuit is open or shorted.)

PNP switches 1, 2, 3 and 4
DTC Confirmation ProcedureNCS001CF
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
ACCELE POSI: More than 1.0/8
6. If DTC is detected, go to AT- 11 4 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value
SLCT LVR POSI Selector lever in “N” and “P” positions. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
BCIA0031E

DTC P0705 PARK/NEUTRAL POSITION SWITCH AT-113
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45

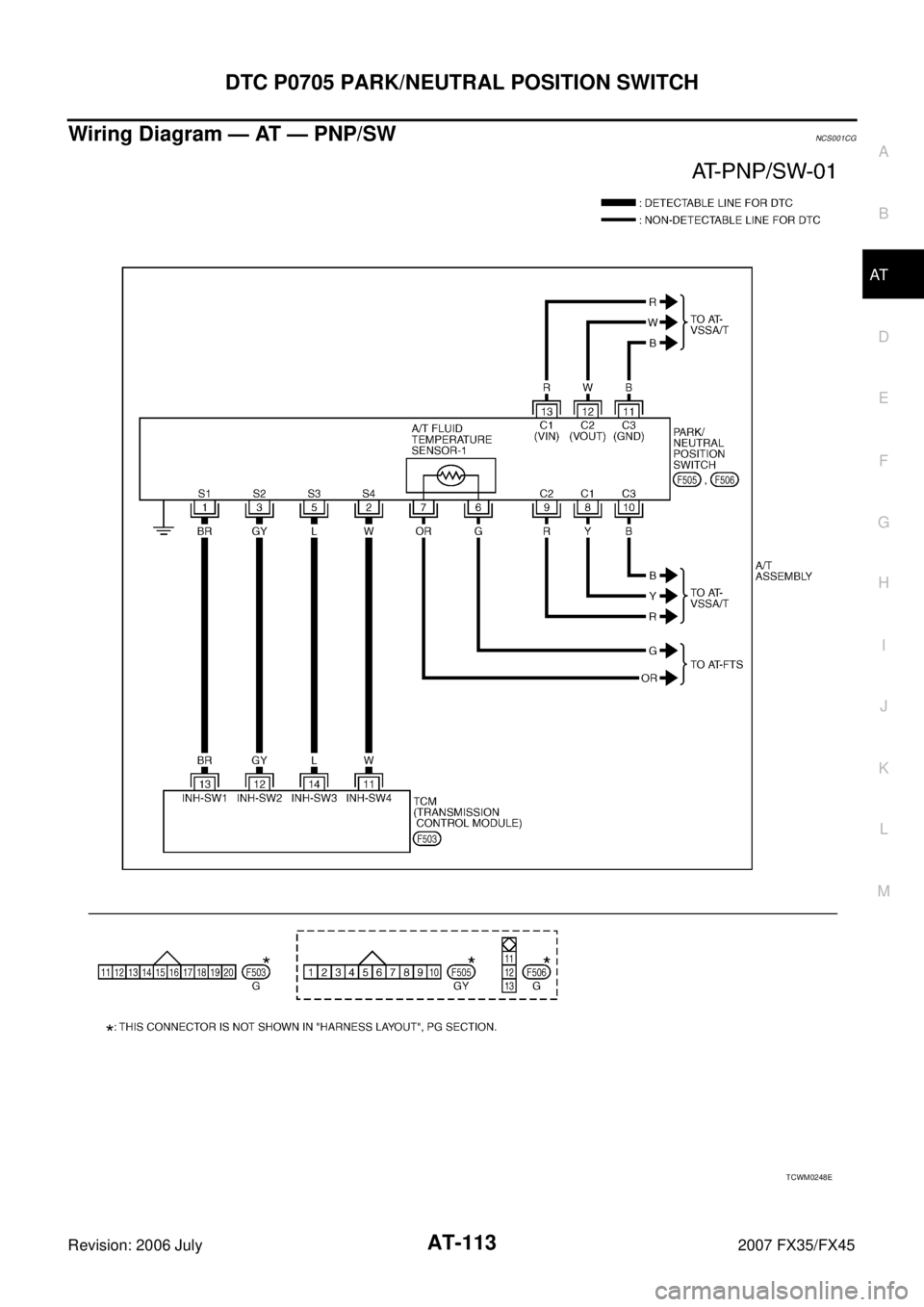

Wiring Diagram — AT — PNP/SWNCS001CG
TCWM0248E

AT-114
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNCS001CH
1. CHECK PNP SW CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Check if correct selector lever position (N/P, R or D) is displayed as selector lever is moved into each position.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item name Condition Display value
SLCT LVR POSI Selector lever in “N” and “P” positions. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
PCIA0034E

DTC P0705 PARK/NEUTRAL POSITION SWITCH AT-115
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
4. CHECK SUB-HARNESS
1. Remove control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect park/neutral position switch connector and TCM connector.
3. Check continuity between park/neutral position switch connector terminals and TCM connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
5. CHECK DTC
Perform AT- 11 2 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item Connector Terminal Continuity
Park/neutral position switch
connector F505 1
Ye s
TCM connector F503 13
Park/neutral position switch
connector F505 2
Ye s
TCM connector F503 11
Park/neutral position switch
connector F505 3
Ye s
TCM connector F503 12
Park/neutral position switch
connector F505 5
Ye s
TCM connector F503 14
SCIA5457E

AT-116
DTC P0717 TURBINE REVOLUTION SENSOR
Revision: 2006 July 2007 FX35/FX45
DTC P0717 TURBINE REVOLUTION SENSORPFP:31935
DescriptionNCS001RN
The turbine revolution sensor detects input shaft rpm (revolutions per minute). It is located on the input side of
the automatic transmission. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.
CONSULT-II Reference ValueNCS001E2
On Board Diagnosis LogicNCS001E3

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0717 TURBINE REV S/CIRC” with CONSULT-II or 11th judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–When TCM detects an irregularity only at position of 4th gear for turbine revolution sensor 2.
Possible CauseNCS001E4

Harness or connectors
(Sensor circuit is open or shorted.)

Turbine revolution sensor 1 and/or 2
DTC Confirmation ProcedureNCS001E5
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “VHCL/S SE-A/T”,
“ENGINE SPEED”, “ACCELE POSI”, “SLCT LVR POSI” and
“GEAR”.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 40 km/h (25 MPH) or more
ENGINE SPEED: 1,500 rpm or more
ACCELE POSI: More than 0.5/8
SLCT LVR POSI: “D” position
GEAR (Turbine revolution sensor 1): “4” or “5” position
GEAR (Turbine revolution sensor 2): All positions
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
5. If DTC is detected, go to AT- 11 7 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value
TURBINE REV During driving (lock-up ON) Approximately matches the engine speed.
BCIA0031E
