INFINITI FX35 2007 Service Manual

TIMING CHAIN EM-69
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
29. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after removing timing chain (pri-
mary).
30. Remove timing chain (primary) and crankshaft sprocket. CAUTION:
After removing timing chain (primary), do not turn crankshaft and camshaft separately, or valves
will strike the piston heads.
31. Remove timing chain (secondary) and camshaft sprockets as follows:
a. Attach suitable stopper pin to the right and left timing chain ten- sioners (secondary).
NOTE:

Use approximately 0.5 mm (0.020 in) dia. hard metal pin as a
stopper pin.

For removal of timing chain tensioner (secondary), refer to
EM-83, "
CAMSHAFT" . [Removing camshaft bracket (No. 1)
is required.]
b. Remove camshaft sprocket (INT and EXH) mounting bolts.

Secure the hexagonal portion of camshaft using a wrench to
loosen mounting bolts.
CAUTION:
Do not loosen the mounting bolts with securing anything
other than the camshaft hexagonal portion or with ten-
sioning the timing chain.
c. Remove timing chain (secondary) together with camshaft sprockets.

Turn camshaft slightly to secure slackness of timing chain on timing chain tensioner (secondary) side.
PBIC2266E
PBIC2047E
KBIA1698J

EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45

Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remove timing chain (secondary) together with camshaft
sprockets with timing chain loose from guide groove.
CAUTION:
Be careful of plunger coming-off when removing timing
chain (secondary). This is because plunger of timing
chain tensioner (secondary) moves during operation,
leading to coming-off of fixed stopper pin.
NOTE:
Camshaft sprocket (INT) is two-for-one structure of primary
and secondary sprockets.

When handling camshaft sprocket (INT), be careful of the fol-
lowing caution:
CAUTION:

Handle carefully to avoid any shock to camshaft
sprocket.

Do not disassemble. (Do not loosen bolts “A” as
shown in the figure).
32. Remove rear timing chain case as follows:
a. Loosen and remove mounting bolts in reverse order as shown in the figure.
b. Cut liquid gasket using the seal cutter [SST: KV10111100 (J37228)] and remove rear timing chain case.
CAUTION:

Do not remove plate metal cover of oil passage.

After removal, handle rear timing chain case carefully so
it does not tilt, cant, or warp under a load.
PBIC1978E
PBIC2980E
SEM735G
KBIA1307E

TIMING CHAIN EM-71
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

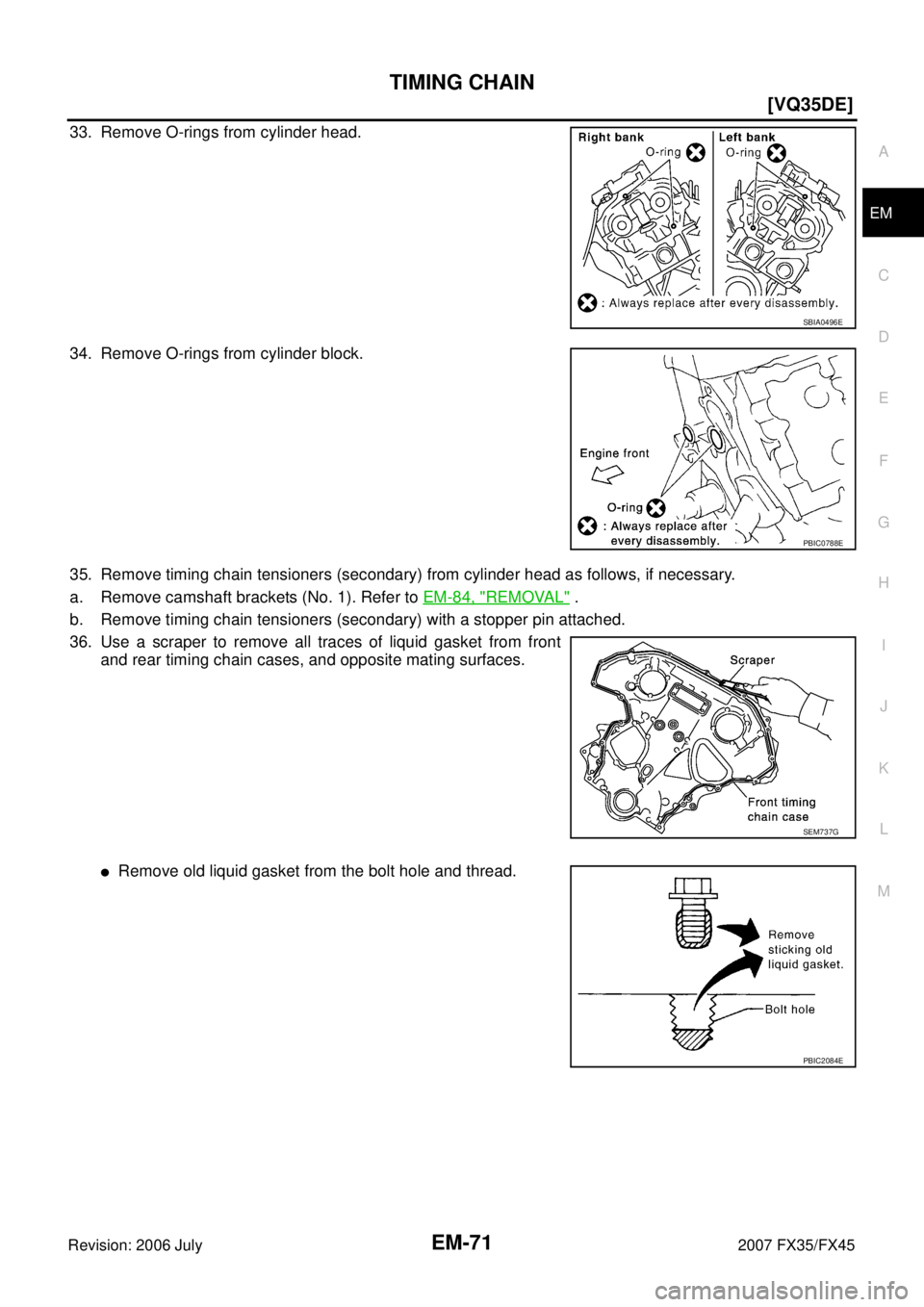

33. Remove O-rings from cylinder head.
34. Remove O-rings from cylinder block.
35. Remove timing chain tensioners (secondary) from cylinder head as follows, if necessary.
a. Remove camshaft brackets (No. 1). Refer to EM-84, "
REMOVAL" .
b. Remove timing chain tensioners (secondary) with a stopper pin attached.
36. Use a scraper to remove all traces of liquid gasket from front and rear timing chain cases, and opposite mating surfaces.

Remove old liquid gasket from the bolt hole and thread.
SBIA0496E
PBIC0788E
SEM737G
PBIC2084E

EM-72
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45

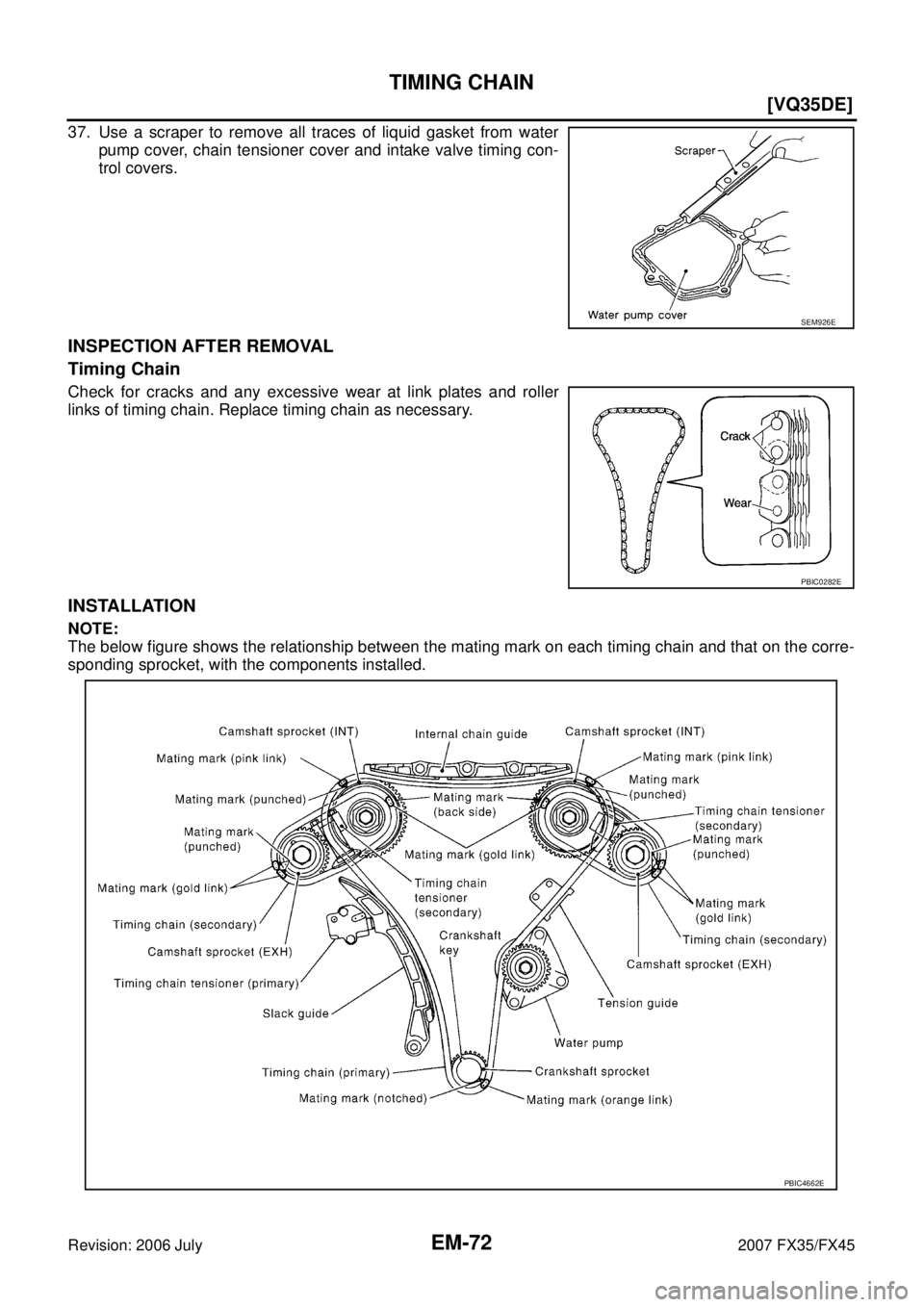

37. Use a scraper to remove all traces of liquid gasket from water
pump cover, chain tensioner cover and intake valve timing con-
trol covers.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.
INSTALLATION
NOTE:
The below figure shows the relationship between the mating mark on each timing chain and that on the corre-
sponding sprocket, with the components installed.
SEM926E
PBIC0282E
PBIC4662E

TIMING CHAIN EM-73
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
1. Install timing chain tensioners (secondary) to cylinder head as follows if removed. Refer to EM-88,
"INSTALLATION" .
a. Install timing chain tensioners (secondary) with a stopper pin attached and new O-rings.
b. Install camshaft brackets (No. 1). Refer to EM-88, "
INSTALLATION" .
2. Install rear timing chain case as follows:
a. Install new O-rings onto cylinder block.
b. Install new O-rings to cylinder head.
c. Apply liquid gasket with the tube presser [SST: WS39930000 ( — )] to rear timing chain case back side as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
CAUTION:

For “A” in the figure, completely wipe out liquid gasket extended on a portion touching at
engine coolant.
PBIC0788E
SBIA0496E

EM-74
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45

Apply liquid gasket on installation position of water pump and cylinder head very completely.
d. Align rear timing chain case and water pump assembly with dowel pins (right and left) on cylinder block and install rear timing chain case.

Make sure O-rings stay in place during installation to cylinder block and cylinder head.
e. Tighten mounting bolts in numerical order as shown in the fig- ure.

There are two type mounting bolts. Refer to the following for
locating bolts.
f. After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.

If liquid gasket protrudes, wipe it off immediately. Bolt length: Bolt position
20 mm (0.79 in) : 1, 2, 3, 6, 7, 8, 9, 10
16 mm (0.63 in) : Except the above
: 12.7 N·m (1.3 kg-m, 9 ft-lb)
PBIC2680E
SEM735G

TIMING CHAIN EM-75
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
g. After installing rear timing chain case, check the surface height
difference between the following parts on the oil pan (upper)
mounting surface.

If not within the standard, repeat the installation procedure.
3. Install water pump with new O-rings. Refer to CO-22, "
WATER PUMP" .
4. Make sure that dowel pin hole, dowel pin and crankshaft key are located as shown in the figure. (No. 1 cylinder at compression
TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
CAUTION:
Hole on small dia. side must be used for intake side dowel pin hole. Do not misidentify (ignore big
dia. side).
5. Install timing chains (secondary) and camshaft sprockets as follows:
CAUTION:
Mating marks between timing chain and sprockets slip easily. Confirm all mating mark positions
repeatedly during the installation process.
a. Push plunger of timing chain tensioner (secondary) and keep it pressed in with a stopper pin. Standard
Rear timing chain case to cylinder block: –0.24 to 0.14 mm (–0.009 to 0.006 in)
SEM943G
Camshaft dowel pin hole (intake side): At cylinder head upper face side in each bank.
Camshaft dowel pin (exhaust side) : At cylinder head upper face side in each bank.
Crankshaft key : At cylinder head side of right bank.
KBIA1073E
SEM430G

EM-76
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
b. Install timing chains (secondary) and camshaft sprockets.

Align the mating marks on timing chain (secondary) (gold link)
with the ones on intake and exhaust camshaft sprockets
(punched), and install them.
NOTE:

Mating marks for intake camshaft sprocket are on the back
side of camshaft sprocket (secondary).

There are two types of mating marks, circle and oval types.
They should be used for the right and left banks, respec-
tively.

Align dowel pin and pin hole on camshafts with the groove
and dowel pin on sprockets, and install them.

On the intake side, align pin hole on the small diameter side of
the camshaft front end with dowel pin on the back side of
camshaft sprocket, and install them.

On the exhaust side, align dowel pin on camshaft front end
with pin groove on camshaft sprocket, and install them.

In case that positions of each mating mark and each dowel
pin are not fit on mating parts, make fine adjustment to the
position holding the hexagonal portion on camshaft with wrench or equivalent.

Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is
enough to prevent the dislocation of dowel pins.

It may be difficult to visually check the dislocation of mating
marks during and after installation. To make the matching
easier, make a mating mark on the top of sprocket teeth and
its extended line in advance with paint.
c. After confirming the mating marks are aligned, tighten camshaft sprocket mounting bolts.

Secure camshaft using a wrench at the hexagonal portion to
tighten mounting bolts. Right bank : Use circle type.
Left bank : Use oval type.
PBIC2981E
PBIC0891E
KBIA1698J

TIMING CHAIN EM-77
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
d. Pull stopper pins out from timing chain tensioners (secondary).
6. Install tension guide.
7. Install timing chain (primary) as follows:
a. Install crankshaft sprocket.

Make sure the mating marks on crankshaft sprocket face the
front of the engine.
b. Install timing chain (primary).

Install timing chain (primary) so the mating mark (punched) on
camshaft sprocket is aligned with the pink link on timing
chain, while the mating mark (notched) on crankshaft
sprocket is aligned with the orange one on timing chain, as
shown in the figure.

When it is difficult to align mating marks of timing chain (pri-
mary) with each sprocket, gradually turn camshaft using
wrench on the hexagonal portion to align it with the mating
marks.

During alignment, be careful to prevent dislocation of mating
mark alignments of timing chains (secondary).
PBIC2110E
SEM929E
PBIC3494E

EM-78
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
8. Install internal chain guide, slack guide and timing chain ten-
sioner (primary).
CAUTION:
Do not overtighten slack guide mounting bolts. It is normal
for a gap to exist under the bolt seats when mounting bolts
are tightened to the specification.
9. Install the timing chain tensioner (primary) with the following procedure:
a. Pull plunger stopper tab up (or turn lever downward) so as to remove plunger stopper tab from the rachet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
b. Push plunger into the inside of tensioner body.
c. Hold plunger in the fully compressed position by engaging plunger stopper tab with the tip of ratchet.
d. To secure lever, insert stopper pin through hole of lever into ten- sioner body hole.

The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.
PBIC2109E
PBIC2633E
PBIC3568E
