key INFINITI FX35 2007 Owner's Manual

BL-3
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
INSTALLATION ................................................
. 151
Removal and Installation of Door Weatherstrip ... . 151
REMOVAL ........................................................ . 151
INSTALLATION ................................................ . 151
FRONT DOOR LOCK ............................................ . 152
Removal and Installation ..................................... . 152
REMOVAL ........................................................ . 152
INSTALLATION ................................................ . 154
REAR DOOR LOCK .............................................. . 155
Removal and Installation ..................................... . 155
REMOVAL ........................................................ . 155
INSTALLATION ................................................ . 157
BACK DOOR ......................................................... . 158
Fitting Adjustment ............................................... . 158
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT ............................................................... . 158
Back Door Assembly ........................................... . 158
REMOVAL ........................................................ . 158
INSTALLATION ................................................ . 159
INSPECTION ................................................... . 159
Removal and Installation of Back Door Striker .... . 159
REMOVAL ........................................................ . 159
INSTALLATION ................................................ . 159
Removal and Installation of Back Door Stay ....... . 160
REMOVAL ........................................................ . 160
INSTALLATION ................................................ . 160
Removal and Installation of Dave Tail Male &
Female ................................................................ . 160
REMOVAL ........................................................ . 160
INSTALLATION ................................................ . 161
Removal and Installation of Back Door Weatherstrip . 161
REMOVAL ........................................................ . 161
INSTALLATION ................................................ . 161
BACK DOOR LOCK ASSEMBLY ......................... . 162
Removal and Installation of Back Door Lock & Clo-
sure Assembly ..................................................... . 162
REMOVAL ........................................................ . 162
INSTALLATION ................................................ . 162
INSPECTION ................................................... . 162
Removal and Installation of Back Door Opener
Switch .................................................................. . 162
REMOVAL ........................................................ . 162
INSTALLATION ................................................ . 163
Disassembly and Assembly ................................ . 163
BACK DOOR LOCK & CLOSURE ASSEMBLY . 163
BACK DOOR AUTO CLOSURE SYSTEM ............ . 164
Component Parts and Harness Connector Location . 164
System Description ............................................. . 164
CLOSE OPERATION ....................................... . 164
NON-OPERATION CONDITION ...................... . 164
OPEN OPERATION ......................................... . 165
Wiring Diagram — B/CLOS — ............................ . 166
Terminals and Reference Value for Back Door Clo-
sure Control Unit ................................................. . 168
Work Flow ........................................................... . 169
Preliminary Check ............................................... . 169
Trouble Diagnosis Chart by Symptom ................. . 169
Check Back Door Closure Control Unit Power Sup-
ply and Ground Circuit ........................................ . 170 Check Half-Latch Switch .....................................
.170
Check Close Switch ............................................. .172
Check Open Switch ............................................. .173
Check Back Door Opener Switch (With Intelligent
Key) ..................................................................... .174
Check Back Door Opener Switch (Without Intelli-
gent Key) ............................................................. .176
Check Unlock Sensor (Without Intelligent Key) ... .178
Check Closure Motor ........................................... .179
Removal and Installation of Back Door Closer Con-
trol Unit ................................................................ .179
VEHICLE SECURITY (THEFT WARNING) SYSTEM .180
Component Parts and Harness Connector Location .180
System Description .............................................. .182
DESCRIPTION ................................................. .182
POWER SUPPLY ............................................. .183
INITIAL CONDITION TO ACTIVATE THE SYS-
TEM .................................................................. .183
VEHICLE SECURITY SYSTEM ALARM OPER-
ATION ............................................................... .184
VEHICLE SECURITY SYSTEM DEACTIVATION .184
PANIC ALARM OPERATION ........................... .184
CAN Communication System Description ........... .184
CAN Communication Unit .................................... .184
Schematic ............................................................ .185
Wiring Diagram — VEHSEC — ........................... .186
Terminals and Reference Value for BCM ............ .191
Terminals and Reference Value for IPDM E/R .... .192
CONSULT-II Function (BCM) .............................. .192
CONSULT-II START PROCEDURE ................. .192
CONSULT-II APPLICATION ITEM ................... .192
Trouble Diagnosis ................................................ .194
WORK FLOW ................................................... .194
Preliminary Check ............................................... .195
Trouble Diagnosis Symptom Chart ...................... .196
Diagnostic Procedure 1 ....................................... .197
1 – 1 DOOR SWITCH CHECK ......................... .197
1 – 2 HOOD SWITCH CHECK ......................... .199
1 – 3 BACK DOOR SWITCH CHECK .............. .201
Diagnostic Procedure 2 ....................................... .203
SECURITY INDICATOR LAMP CHECK .......... .203
Diagnostic Procedure 3 ....................................... .204
FRONT DOOR KEY CYLINDER SWITCH
CHECK ............................................................. .204
Diagnostic Procedure 4 ....................................... .204
VEHICLE SECURITY HORN ALARM CHECK . 204
Diagnostic Procedure 5 ....................................... .204
VEHICLE SECURITY HEADLAMP ALARM
CHECK ............................................................. .204
Diagnostic Procedure 6 ....................................... .204
DOOR LOCK AND UNLOCK SWITCH CHECK .204
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-
NATS) ..................................................................... .205
Component Parts and Harness Connector Location .205
System Description .............................................. .206
DESCRIPTION ................................................. .206
SECURITY INDICATOR ................................... .206
System Composition ............................................ .207
ECM Re-Communicating Function ...................... .207

BL-4Revision: 2006 July 2007 FX35/FX45
Wiring Diagram – NATS – ....................................
.208
MODELS WITH INTELLIGENT KEY SYSTEM . 208
MODELS WITHOUT INTELLIGENT KEY SYS-
TEM .................................................................. .210
Terminals and Reference Value for Steering Lock
Unit/with Intelligent Key System .......................... .211
Terminals and Reference Value for Intelligent Key
Unit/with Intelligent Key System .......................... .211
Terminals and Reference Value for BCM ............. .212
CONSULT-II ......................................................... .213
CONSULT-II INSPECTION PROCEDURE ....... .213
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ................................................................. .214
HOW TO READ SELF-DIAGNOSTIC RESULTS .214
NATS SELF-DIAGNOSTIC RESULT ITEM
CHART ............................................................. .215
Diagnosis Procedure ........................................... .216
WORK FLOW ................................................... .216
Trouble Diagnosis Symptom Chart ...................... .217
Security Indicator Inspection ............................... .217
Diagnostic Procedure 1 ....................................... .218
Diagnostic Procedure 2 ....................................... .219
Diagnostic Procedure 3 ....................................... .220
Diagnostic Procedure 4 ....................................... .221
Diagnostic Procedure 5 ....................................... .222
Diagnostic Procedure 6 ....................................... .224
Removal and Installation NATS Antenna Amp. ... .225
REMOVAL ........................................................ .225
INSTALLATION ................................................. .225
INTEGRATED HOMELINK TRANSMITTER .......... .226
Wiring Diagram —TRNSCV— ............................. .226
Trouble Diagnoses ............................................... .227
DIAGNOSTIC PROCEDURE ........................... .227
BODY REPAIR ....................................................... .229
Body Exterior Paint Color .................................... .229
Body Component Parts ........................................ .230
UNDERBODY COMPONENT PARTS .............. .230
BODY COMPONENT PARTS .......................... .232 Corrosion Protection ............................................
.234
DESCRIPTION ................................................. .234
ANTI-CORROSIVE WAX .................................. .235
UNDERCOATING ............................................. .236
STONE GUARD COAT ..................................... .237
Body Sealing ........................................................ .238
DESCRIPTION ................................................. .238
Body Construction ................................................ .241
BODY CONSTRUCTION .................................. .241
Body Alignment .................................................... .242
BODY CENTER MARKS .................................. .242
PANEL PARTS MATCHING MARKS ................ .243
DESCRIPTION ................................................. .244
ENGINE COMPARTMENT ............................... .245
UNDERBODY ................................................... .247
PASSENGER COMPARTMENT ....................... .249
REAR BODY ..................................................... .251
Handling Precautions For Plastics ....................... .253
HANDLING PRECAUTIONS FOR PLASTICS . .253
LOCATION OF PLASTIC PARTS ..................... .254
Precautions In Repairing High Strength Steel ...... .256
HIGH STRENGTH STEEL (HSS) USED IN NIS-
SAN VEHICLES ................................................ .256
Replacement Operations ..................................... .259
DESCRIPTION ................................................. .259
HOODLEDGE ................................................... .262
FRONT SIDE MEMBER ................................... .263
FRONT SIDE MEMBER (PARTIAL REPLACE-
MENT) ............................................................... .265
FRONT PILLAR ................................................ .266
CENTER PILLAR .............................................. .268
OUTER SILL ..................................................... .270
REAR FENDER ................................................ .272
REAR PANEL ................................................... .274
REAR END CROSSMEMBER .......................... .276
REAR FLOOR REAR ........................................ .278
REAR SIDE MEMBER EXTENSION ................ .281

PRECAUTIONS BL-5
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NIS001LF
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectNIS001LG
NOTE:

This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″ LOCK ″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for WorkNIS001LH

After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check
their operation.

Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

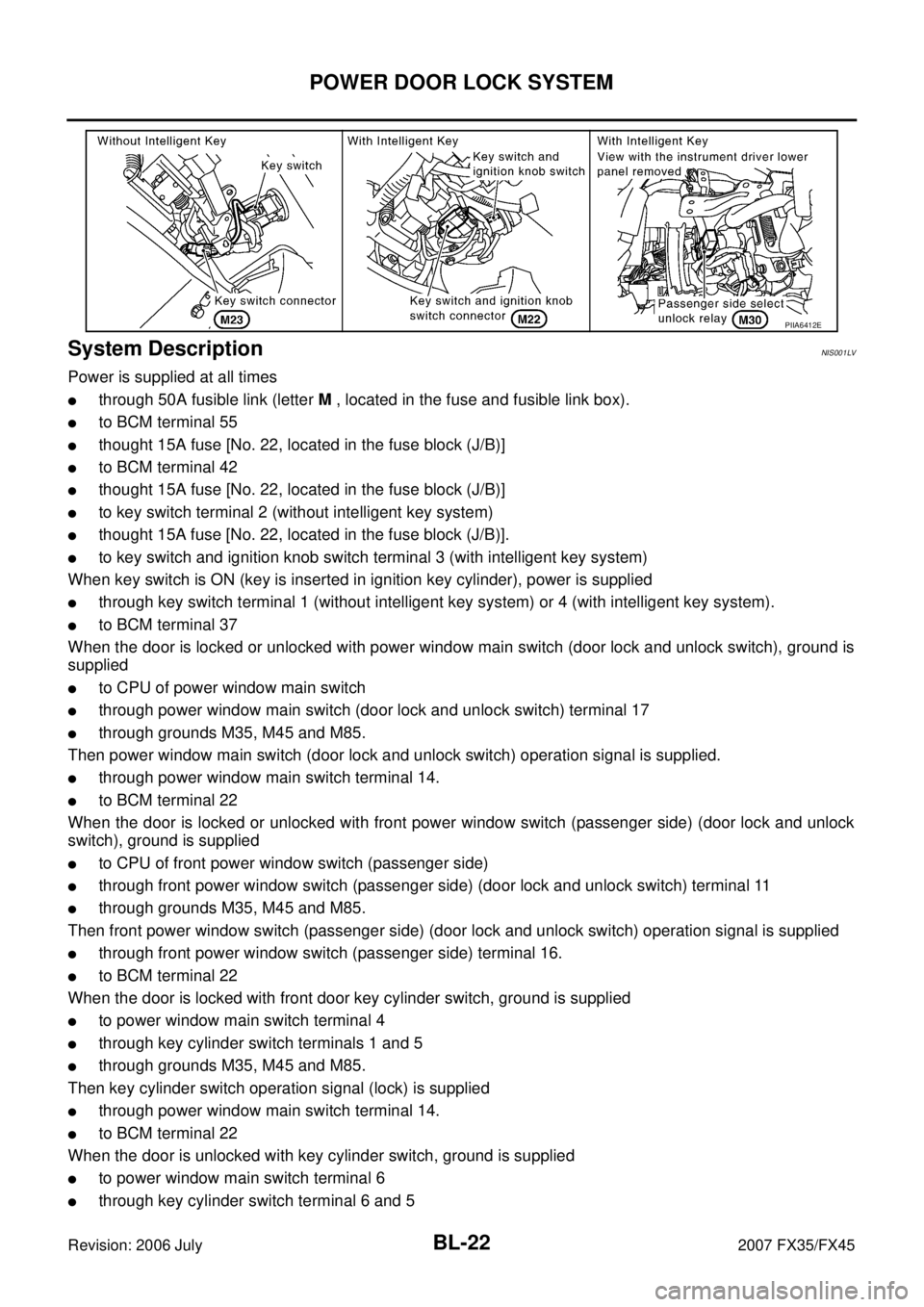

BL-22
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
System DescriptionNIS001LV
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link box).

to BCM terminal 55

thought 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 42

thought 15A fuse [No. 22, located in the fuse block (J/B)]

to key switch terminal 2 (without intelligent key system)

thought 15A fuse [No. 22, located in the fuse block (J/B)].

to key switch and ignition knob switch terminal 3 (with intelligent key system)
When key switch is ON (key is inserted in ignition key cylinder), power is supplied

through key switch terminal 1 (without intelligent key system) or 4 (with intelligent key system).

to BCM terminal 37
When the door is locked or unlocked with power window main switch (door lock and unlock switch), ground is
supplied

to CPU of power window main switch

through power window main switch (door lock and unlock switch) terminal 17

through grounds M35, M45 and M85.
Then power window main switch (door lock and unlock switch) operation signal is supplied.

through power window main switch terminal 14.

to BCM terminal 22
When the door is locked or unlocked with front power window switch (passenger side) (door lock and unlock
switch), ground is supplied

to CPU of front power window switch (passenger side)

through front power window switch (passenger side) (door lock and unlock switch) terminal 11

through grounds M35, M45 and M85.
Then front power window switch (passenger side) (door lock and unlock switch) operation signal is supplied

through front power window switch (passenger side) terminal 16.

to BCM terminal 22
When the door is locked with front door key cylinder switch, ground is supplied

to power window main switch terminal 4

through key cylinder switch terminals 1 and 5

through grounds M35, M45 and M85.
Then key cylinder switch operation signal (lock) is supplied

through power window main switch terminal 14.

to BCM terminal 22
When the door is unlocked with key cylinder switch, ground is supplied

to power window main switch terminal 6

through key cylinder switch terminal 6 and 5
PIIA6412E

POWER DOOR LOCK SYSTEM BL-23
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

through grounds M35, M45 and M85.
Then key cylinder switch operation signal (unlock) is supplied

through power window main switch terminal 14.

to BCM terminal 22
BCM is connected to power window main switch and front power window switch (passenger side) as serial
link.
When the front door switch (driver side) is ON (door is OPEN), ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1

through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch (passenger side) terminal 1

through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 63

through front door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM terminal 13

through front door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (door is OPEN), ground is supplied

to BCM terminal 58

through back door closure motor (door switch) terminal 7 and 8

through grounds B15 and B45.
OUTLINE
Functions Available by Operating the Door Lock and Unlock Switches on Driver's Door and
Passenger's Door

Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors and
fuel lid lock actuator are locked.

Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
and fuel lid lock actuator are unlocked.
Functions Available by Operating the Key Cylinder Switch on Driver's

Interlocked with the locking operation of door key cylinder, door lock actuators of all doors and fuel lid lock
actuator are locked.
Select Unlock Operation

When door key cylinder is unlocked, door lock actuator driver side and fuel lid lock actuator are unlocked.

When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door
lock actuators on all doors are unlocked.
Select unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK
SUPPORT”. Refer to BL-37, "
Work Support" .
Select unlock operation mode can be changed also on the display.
Key Reminder Door System
When door lock and unlock switch is operated to lock doors with ignition key put in key cylinder and any door
open, all door lock actuators are locked and then unlocked.
Key reminder door mode can be changed using “WORK SUPPORT” mode in “ANTI-LOCK OUT SET”.
Refer to BL-37, "
Work Support" .

POWER DOOR LOCK SYSTEM BL-25
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

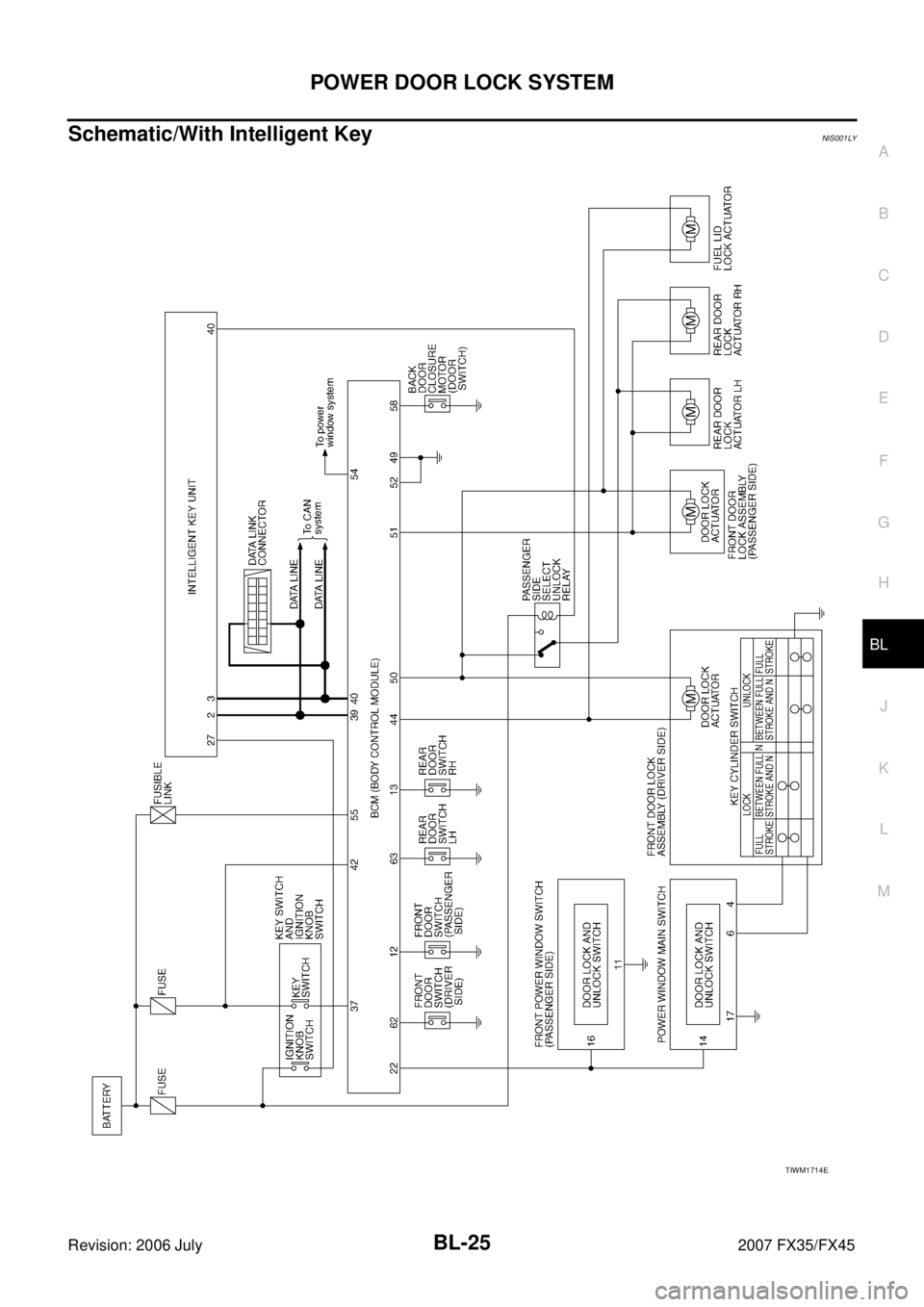

Schematic/With Intelligent KeyNIS001LY
TIWM1714E

BL-26
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45

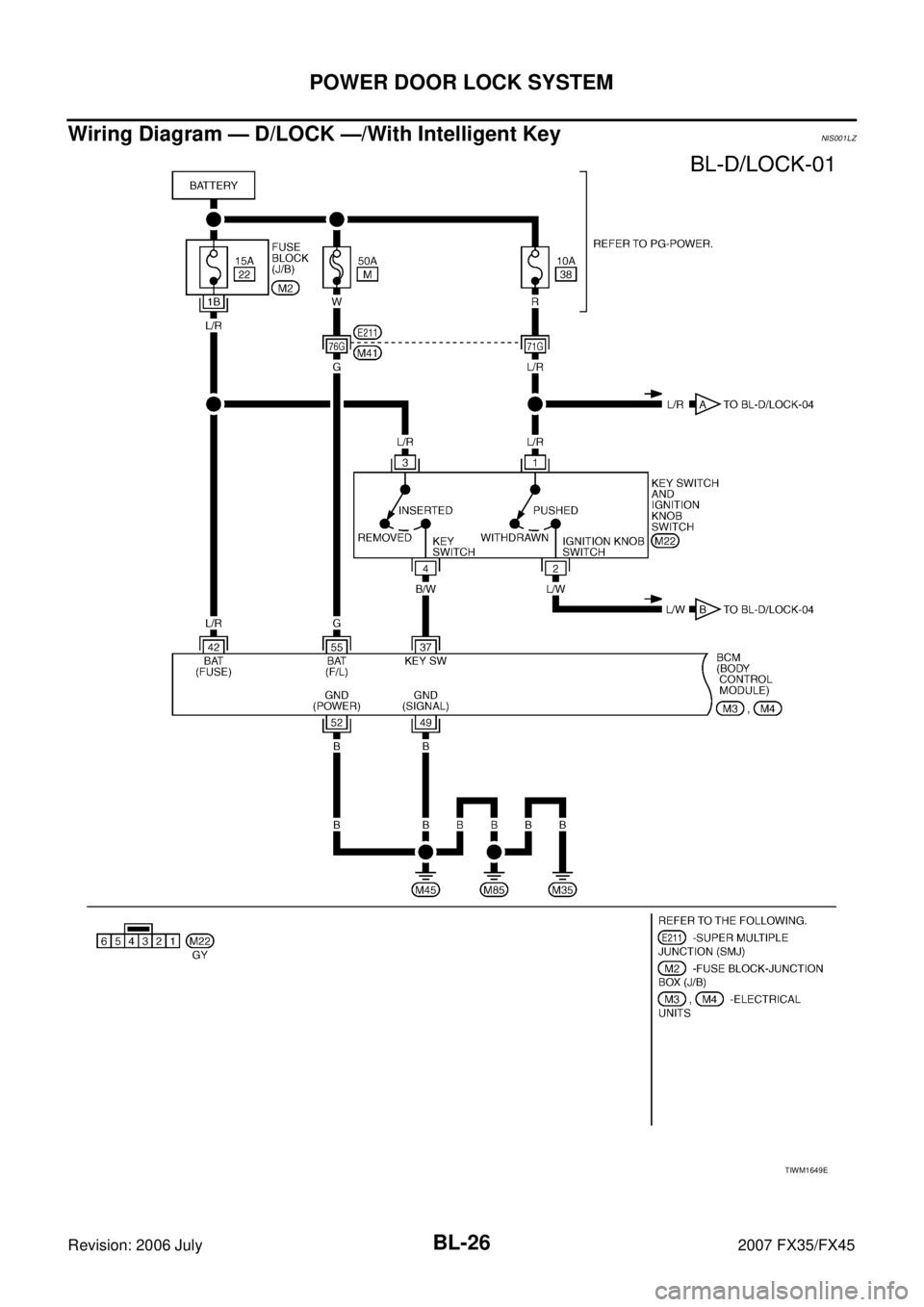

Wiring Diagram — D/LOCK —/With Intelligent KeyNIS001LZ
TIWM1649E

POWER DOOR LOCK SYSTEM BL-31
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

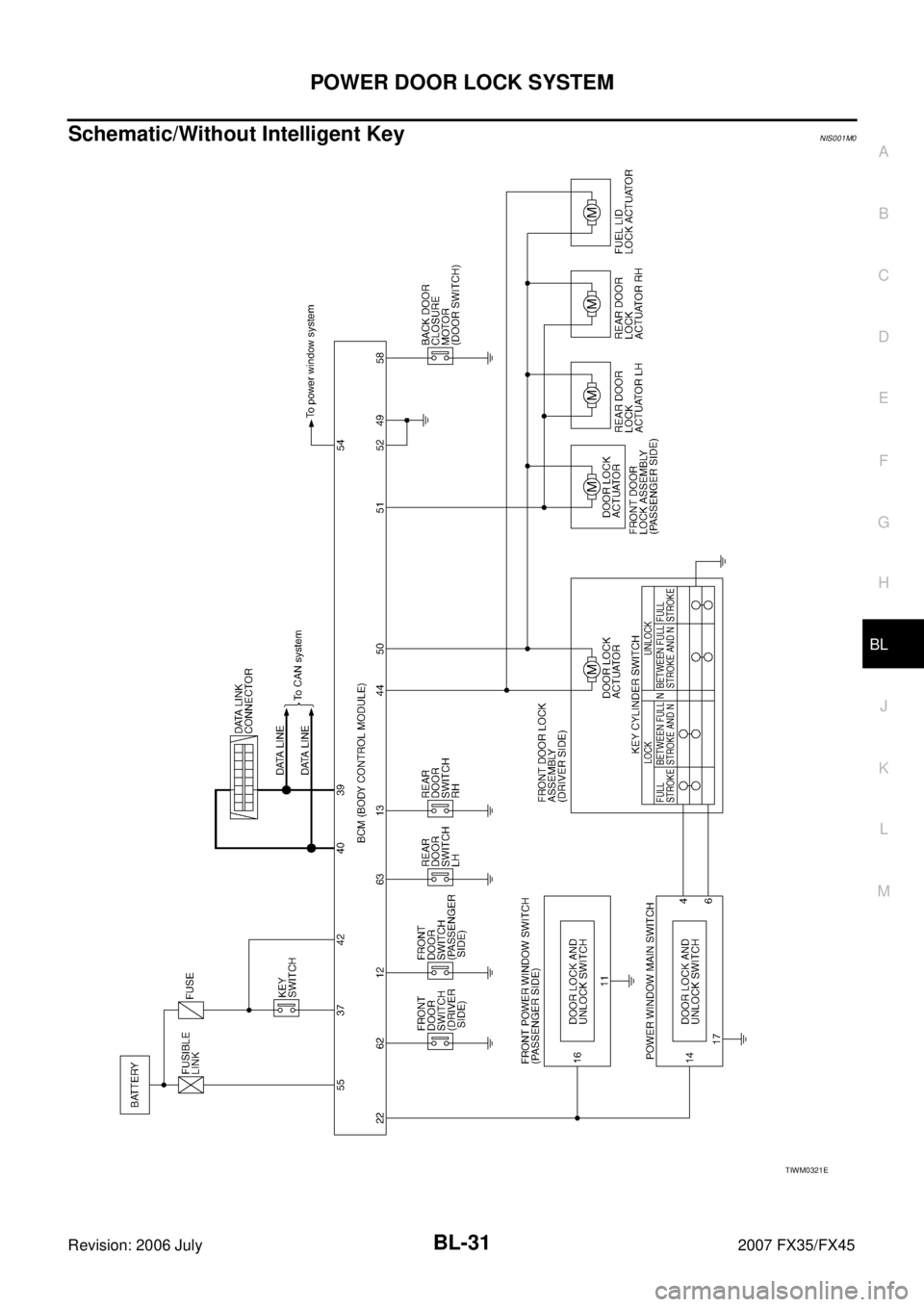

Schematic/Without Intelligent KeyNIS001M0
TIWM0321E

BL-32
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45

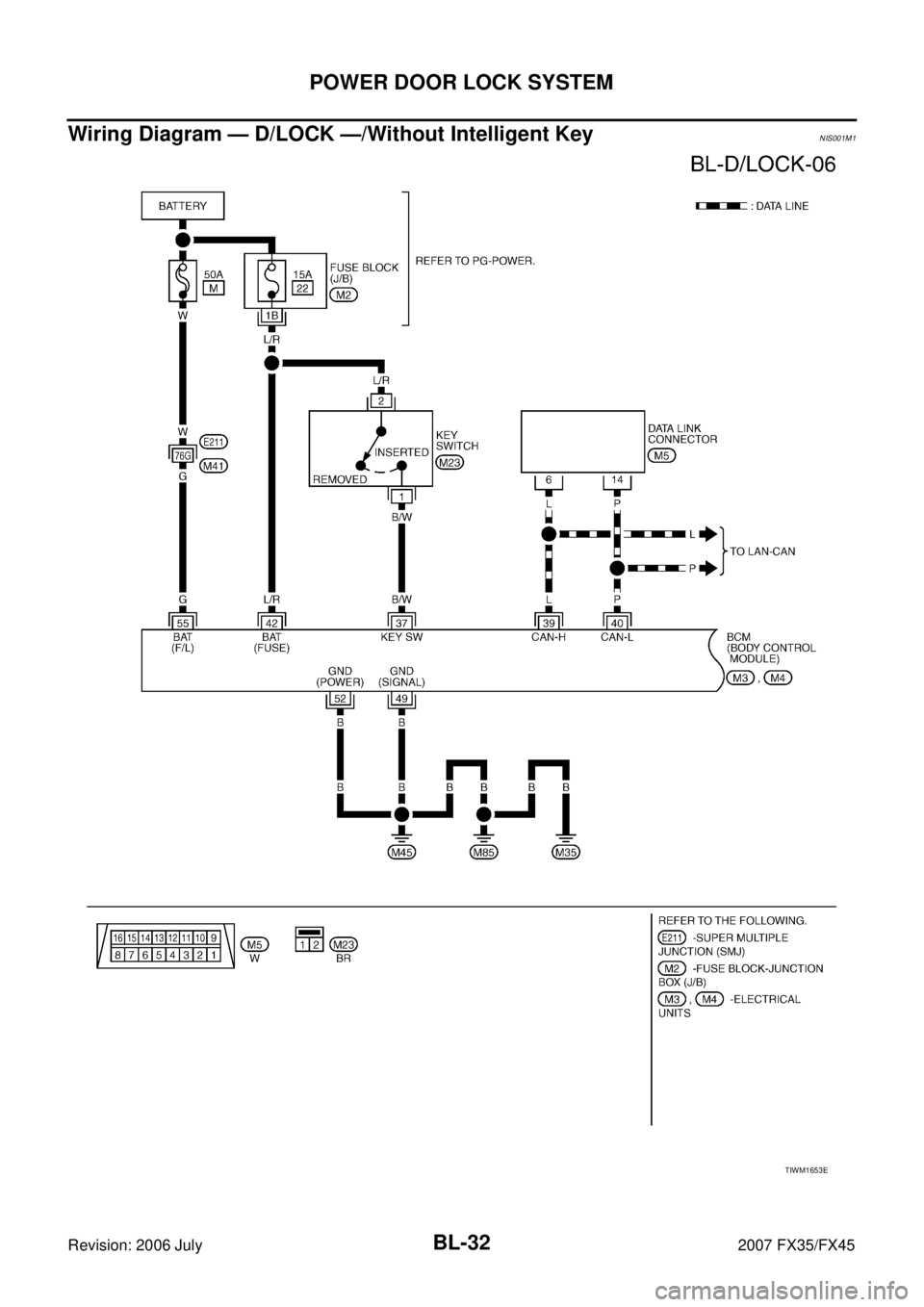

Wiring Diagram — D/LOCK —/Without Intelligent KeyNIS001M1
TIWM1653E

BL-36
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for BCMNIS001M2
Terminals and Reference Value for Intelligent Key Unit (With Intelligent Key Sys-
tem)
NIS001M3
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
12 P/B Front door switch (Pas-
senger side) Input ON (door open)
→ OFF (door closed) 0 → Battery voltage
13 P/L Rear door switch RH Input ON (door open) → OFF (door closed) 0 → Battery voltage
22 OR Power window serial link Input/
Output Ignition switch ON
37 B/W Key switch Input ON (Key inserted)
→ OFF (Key
removed from IGN key cylinder) Battery voltage
→ 0
39 L CAN H Input/
Output ——
40 P CAN L Input/
Output ——
42 L/R Battery power supply
(fuse) Input — Battery voltage
44 Y Driver door lock actuator
(unlock) Output Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage → 0
49 B Ground — — 0
50 PU Door lock actuator (lock) Output Door lock / unlock switch
(Free → Lock) 0
→ Battery voltage → 0
51 W/B Passenger and rear doors
lock actuator (unlock) Output
Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage → 0
52 B Ground — — 0
55 G Power source (Fusible
link) Input — Battery voltage
58 L Back door switch Input ON (Door open) → OFF (Door closed) 0 → 9
62 W Front door switch (Driver
side) Input ON (Door open)
→ OFF (Door closed) 0 → Battery voltage
63 P Rear door switch LH Input ON (Door open) → OFF (Door closed) 0 → Battery voltage
PIIA2344J
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
2 L CAN H Input/
Output ——
3 P CAN L Input/
Output ——
27 L/W Push switch Input Push switch (OFF → ON) 0 → Battery voltage
40 BR/W AS unlock output signal Output Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
