REMOTE KEYLESS ENTRY SYSTEM BL-57
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Panic Alarm Operation
When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn and
headlamp intermittently with input of PANIC ALARM signal from key fob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob.
Panic alarm operation mode can be changed using “PANIC ALARM SET” mode in “WORK SUPPORT”.
Refer to BL-65, "
Work Support" .
For detailed description, refer to BL-180, "
VEHICLE SECURITY (THEFT WARNING) SYSTEM" .
Keyless Power Window Down (Open) Operation
When key fob unlock switch is turned ON with ignition switch OFF, and key fob unlock switch is detected to be
on continuously for 3 seconds, the driver's door and passenger's door power windows are simultaneously
opened.
Power window is operated to open and the operation continues as long as the key fob unlock switch is
pressed.
Keyless power window down operation mode can be changed using “PW DOWN SET” mode in “WORK SUP-
PORT”. Refer to BL-65, "
Work Support"
Room Lamp and Ignition Key Ring Illumination Operation
When the following conditions come:

condition of interior lamp switch is DOOR position;

door switch OFF (when all the doors are closed);
Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key
fob. For detailed description, refer to LT- 1 5 2 , "
INTERIOR ROOM LAMP" .
CAN Communication System DescriptionNIS001MJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS001MK
Refer to LAN-49, "CAN System Specification Chart" .

BL-58
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
SchematicNIS001ML
TIWM0976E

REMOTE KEYLESS ENTRY SYSTEM BL-59
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

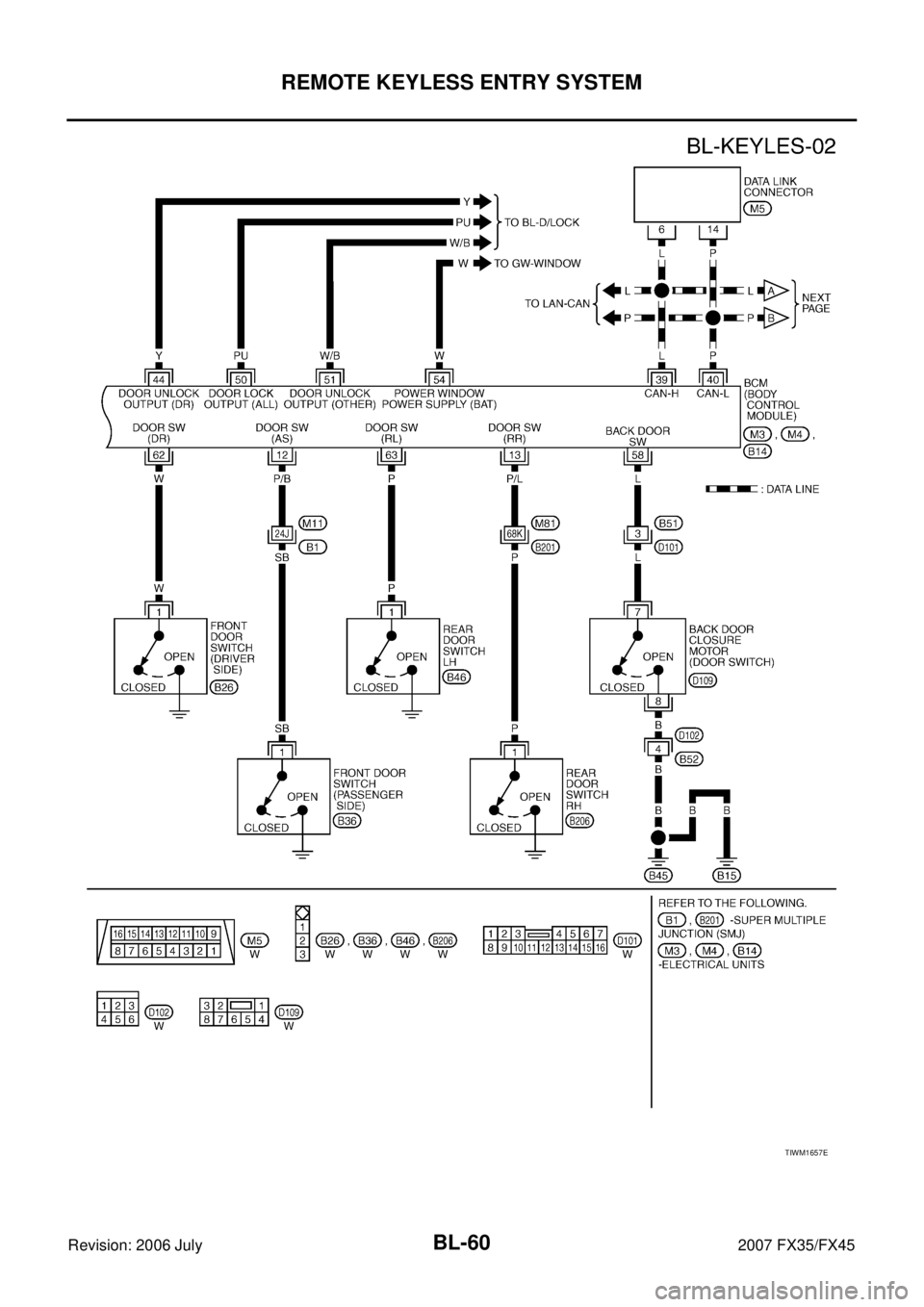

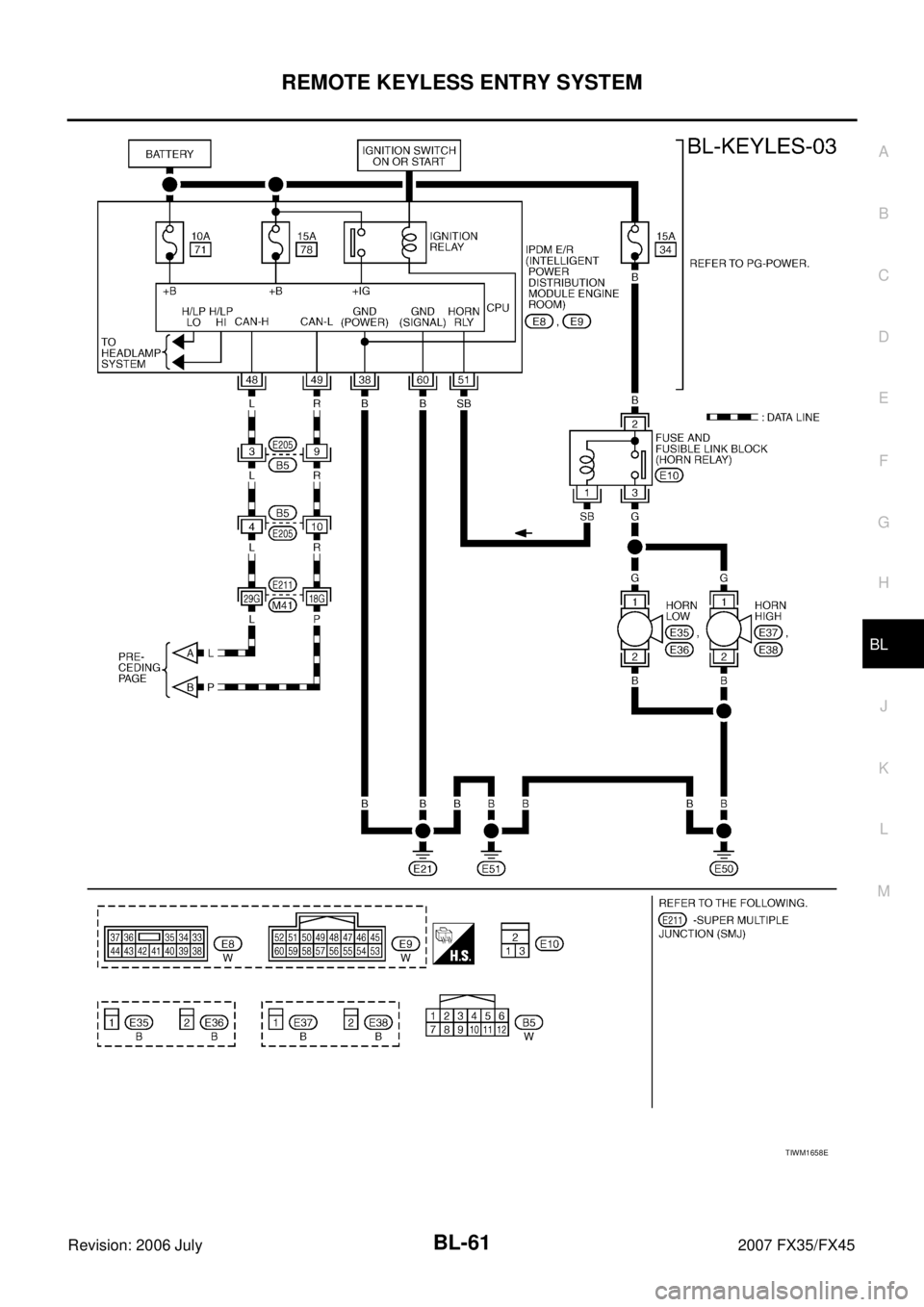

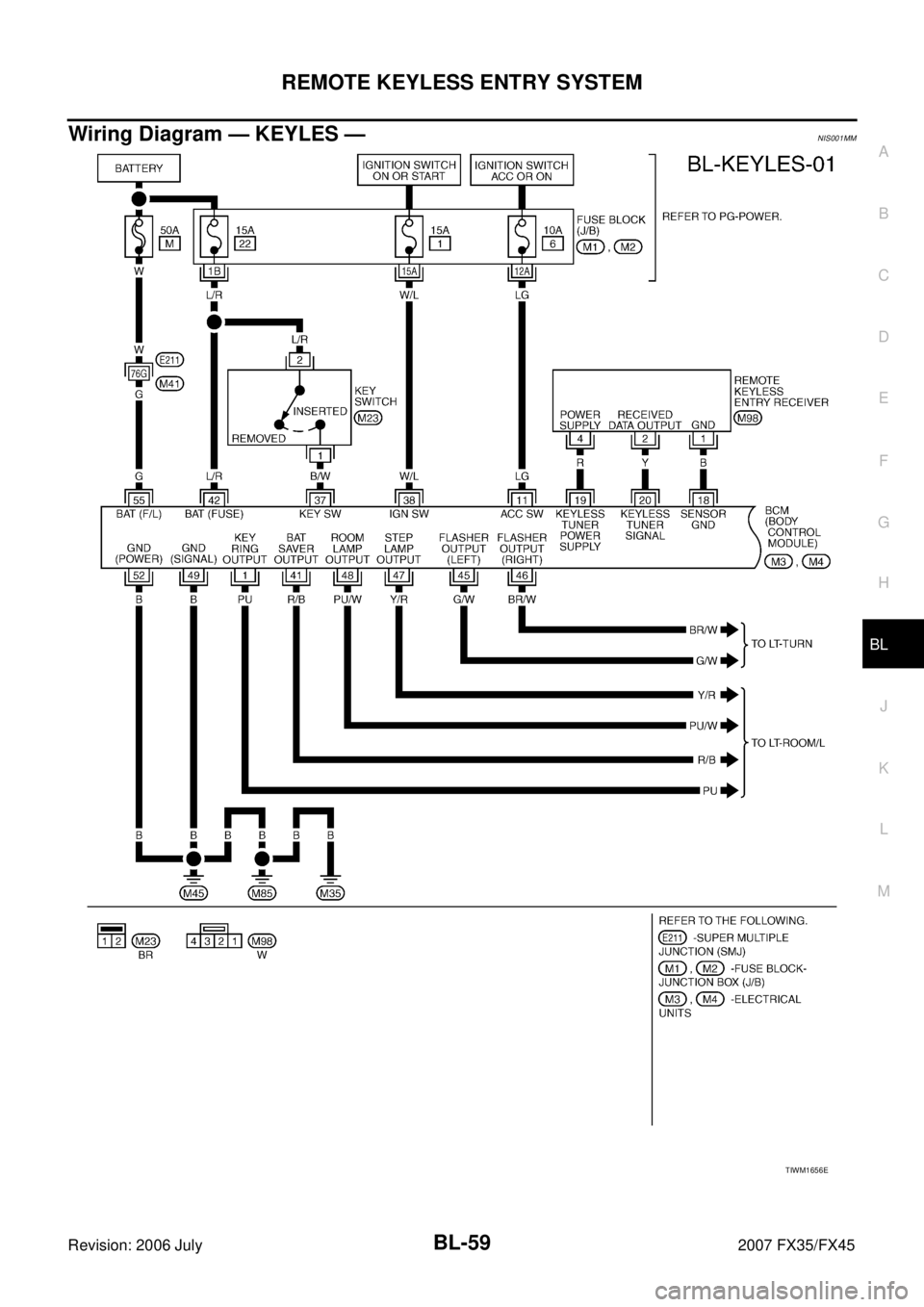

Wiring Diagram — KEYLES —NIS001MM
TIWM1656E

BL-60
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
TIWM1657E

REMOTE KEYLESS ENTRY SYSTEM BL-61
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
TIWM1658E

BL-62
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for BCMNIS001MN
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
1PU Key ring illumination output
signal Output Key ring illumination is lighting. Battery voltage
Key ring illumination is being
turned off. 0
11 LG Ignition switch Input Ignition switch is in ACC or ON
position Battery voltage
12 P/B Front door switch (Passen-
ger side) Input
ON (door open)
→ OFF (door
closed) 0
→ Battery voltage
13 P/L Rear door switch RH Input ON (door open)
→ OFF (door
closed) 0
→ Battery voltage
18 B Remote keyless entry
receiver (Ground) —— 0
19 R Remote keyless entry
receiver (Power supply) Output Key is inserted in IGN key cylinder 0
All door closed
20 Y Remote keyless entry
receiver (Signal) Input Key is inserted in IGN key cylinder 0
Waiting
(All door closed)
When signal is received
(All door closed)
37 B/W Key switch Input ON (Key is inserted in IGN key cyl-
inder) → OFF (Key is removed
from IGN key cylinder) Battery voltage
→ 0
38 W/L Ignition switch Input Ignition switch is in ON or START
position Battery voltage
39 L CAN H Input/
Output ——
40 P CAN L Input/
Output ——
41 R/B Battery saver output signal Output 30 minutes after ignition switch is
turned to OFF 0
Ignition switch is in ON position Battery voltage
42 L/R Battery power supply
(fuse) Input — Battery voltage
44 Y Driver door lock actuator
(Unlock) Output
Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
OCC3881D
OCC3879D
OCC3880D

REMOTE KEYLESS ENTRY SYSTEM BL-63
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
*1 : In the state that hazard reminder operates.
*2 : In the state that room lamp switch is in “DOOR” position.
Terminals and Reference Value for IPDM E/RNIS001MO
* : In the state that horn reminder operates. 45 G/W Left turn signal lamp Output
When door lock or unlock is oper-
ated using key fob.*
1
(ON → OFF) Battery voltage
→ 0
46 BR/W Right turn signal lamp Output When door lock or unlock is oper-
ated using key fob.*
1
(ON → OFF) Battery voltage
→ 0
47 Y/R Step lamp output signal Output Step lamp is lighting. 0
Step lamp is being turned off. Battery voltage
48 PU/W Room lamp output signal Output Room lamp is lighting.*
20
Room lamp is being turned off.*
2Battery voltage
49 B Ground — — 0
50 PU Door lock actuator (Lock) Output Door lock / unlock switch
(Free → Lock) 0
→ Battery voltage
51 W/B Passenger and rear doors
lock actuator (Unlock) Output Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
52 B Ground — — 0
54 W Battery power supply
(power window) Input — Battery voltage
55 G Battery power supply (Fus-
ible link) Input — Battery voltage
58 L Back door switch Input OFF (Door close)
→ ON (Door
open) 9
→ 0
62 W Front door switch (Driver
side) InputOFF (Door close)
→ ON (Door
open) Battery voltage
→ 0
63 P Rear door switch LH Input OFF (Door close)
→ ON (Door
open) Battery voltage
→ 0
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
Te r m i -nal Wire
Color Item Signal
Input/
Output Condition
Voltage (V)
Approx.
38 B Ground — — 0
48 L CAN H Input/
Output ——
49 R CAN L Input/
Output ——
51 SB Horn relay Output When door lock is operated using
key fob* (OFF → ON) Battery voltage
→ 0
60 B Ground — — 0

BL-64
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Function (BCM)NIS001MP
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
*: Refer to LAN-49, "CAN System Specification Chart" .
CONSULT-II INSPECTION PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEMS
Data Monitor
Active Test
BCM diagnosis position Inspection items and diagnosis mode Description
BCM C/U* Self-diagnosis results Carries out the self-diagnosis.
DATA MONITOR Displays the input data to BCM on real-time basis.
CAN DIAG SUPPORT MNTR Displays CAN communication system diagnosis, disabled
transmission status, and communication status of each unit
communicated with BCM.
MULTI REMOTE
ENT DATA MONITOR
Displays the input remote keyless entry system data to BCM
on real–time basis.
ACTIVE TEST Gives a drive to a load to check the operation.
WORK SUPPORT Changes the setting for each function.
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLWSS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
KEYLESS PANIC Indicates [ON/OFF] condition of panic signal from key fob.
KEYLESS TRUNK This is displayed even when it is not equipped.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch driver side.
DOOR SW-AS Indicates [ON/OFF] condition of door switch passenger side.
DOOR SW-RR Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
TRUNK OPN MNTR This is displayed even when it is not equipped.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock and unlock switch.
RKE LCK-UNLOCK Indicates [ON/OFF] condition of simultaneous signal of lock and unlock from key fob.
RKE KEEP UNLK Indicates [ON/OFF] condition of unlock continuousness signal from key fob.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from door key cylinder switch.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.
Test Item Description
FLASHER This test is able to check right hazard reminder operation. The right hazard lamp turns on when “ON” on CONSULT-II screen is touched.
POWER WINDOW DOWN This test is able to check power window open operation.
The front power windows activate for 10 seconds after “ON” on CONSULT-II screen is touched.
HORN This test is able to check panic alarm and horn reminder operations. The horn activate for 0.5 seconds after “ON” on CONSULT-II screen is touched.

REMOTE KEYLESS ENTRY SYSTEM BL-65
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Work Support
*: Perform this mode always in the state of C mode. Refer to BL-56, "Hazard and Horn Reminder" .
HORN CHIRP SET*
*: Perform this mode always in the state of C mode. Refer to BL-56, "Hazard and Horn Reminder" .
This mode can be changed also on the display.
HAZARD LAMP BACK SET*
*: Perform this mode always in the state of C mode. Refer to BL-56, "Hazard and Horn Reminder" .
This mode can be changed also on the display. DOOR LOCK This test is able to check door lock actuator operation.

The all door lock actuator are locked when “ALL LOCK” on CONSULT-II screen is touched.

The all door lock actuator are unlocked when “ALL UNLOCK” on CONSULT-II screen is touched.

The door lock actuator (driver side) is unlocked when “DR UNLOCK” on CONSULT-II screen is
touched.

The all door lock actuator (except driver side) are unlocked when “OTHER UNLOCK” on CON-
SULT-II screen is touched.
TRUNK/BACK DOOR This is displayed even when it is not equipped. Test Item Description
Test Item Description
HORN CHIRP SET* Horn reminder mode can be changed in this mode. The horn reminder mode will be
changed when “CHANGE SETT” on CONSULT-II screen is touched.
HAZARD LAMP SET* Hazard reminder mode can be changed in this mode. The hazard reminder mode will be
changed when “CHANGE SETT” on CONSULT-II screen is touched.
MULTI ANSWER BACK SET Hazard and horn reminder mode can be changed in this mode. The hazard and horn
reminder mode will be changed when “CHANGE SETT” on CONSULT-II screen is touched.
AUTO LOCK SET Auto locking function mode can be changed in this mode. The function mode will be
changed when “CHANGE SETT” on CONSULT-II screen is touched.
PANIC ALRM SET Panic alarm operation mode can be changed in this mode. The operation mode will be
changed when “CHANGE SETT” on CONSULT-II screen is touched.
PW DOWN SET Keyless power window down (open) operation mode can be changed in this mode. The
operation mode will be changed when“CHANGE SETT” on CONSULT-II screen is touched.
Horn chirp function ON OFF
MODE1 MODE2 MODE3 MODE4
Hazard lamp operation mode Nothing Unlock only Lock only Lock and Unlock

BL-66
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
MULTI ANSWER BACK SET
AUTO LOCK SET
PANIC ALARM SET
PW DOWN SET
Work FlowNIS001MQ
1. Check the symptom and customer's requests.
2. Understand outline of system. Refer to BL-55, "
System Description" .
3. Confirm that power door lock system operates normally. Refer to BL-21, "
POWER DOOR LOCK SYSTEM" .
4. Repair or replace any malfunctioning parts. Refer to BL-67, "
Trouble Diagnosis Chart by Symptom" .
5. INSPECTION END
MODE 1
(C mode) MODE 2
(S mode)
Key fob operation Lock Unlock Lock Unlock
Hazard warning lamp flash Twice Once Twice —
Horn sound Once — — —
MODE 1 MODE 2 MODE 3
Auto locking function 1 minutes Nothing 5 minutes
MODE 1 MODE 2 MODE 3
Key fob operation 0.5 seconds Nothing 1.5 seconds
MODE 1 MODE 2 MODE 3
Key fob operation 3 seconds Nothing 5 seconds
