POWER DOOR LOCK SYSTEM BL-37
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Work FlowNIS001M4
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to BL-22, "
System Description" .
3. According to the trouble diagnosis chart by symptom, repair or replace the cause of the malfunction. Refer to BL-38, "
Trouble Diagnosis Chart by Symptom" .
4. Does power door lock system operate normally? YES: GO TO 5.
NO: GO TO 3.
5. INSPECTION END
CONSULT-II Function (BCM)NIS001M5
CONSULT-II can display each diagnostic item using the diagnostic test modes shown.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEMS
Work Support
Data Monitor
*: With Intelligent Key system BCM diagnosis
test item Check item diagnosis test mode Content
Door lock DATA MONITOR Displays the input data of BCM real time.
ACTIVE TEST Gives a drive signal to a load to check the operation.
Work item Description
DOOR LOCK-UNLOCK SET Select unlock mode can be changed in this mode. Selects ON-OFF of select unlock mode.
ANTI-LOCK OUT SET Key reminder door mode can be changed in this mode. Selects ON-OFF of key reminder door
mode.
Monitor item Content
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock and unlock switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch driver side.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch passenger side.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from key cylinder.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from key cylinder.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
I-KEY LOCK* Indicates [ON/OFF] condition of lock signal from door request switch.
I-KEY UNLOCK* Indicates [ON/OFF] condition of unlock signal from door request switch.

BL-38
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
Active Test
Trouble Diagnosis Chart by SymptomNIS001M6
Always check the “Work Flow” before troubleshooting. Refer to BL-37, "Work Flow" .
*1 : Lock operation
*2 : Unlock operation
*3 : Driver side
*4 : Except driver side Test item in “DOOR LOCK” Content
ALL LOCK This test is able to check all door lock actuators lock operation.
These actuators lock when “ALL LOCK” on CONSULT-II screen is touched.
ALL UNLOCK This test is able to check all door lock actuators unlock operation.
These actuators unlock when “ALL UNLOCK” on CONSULT-II screen is touched.
DR UNLOCK This test is able to check door lock actuator (driver side) unlock operation.
This actuator unlock when “DR UNLOCK” on CONSULT-II screen is touched.
OTHER UNLOCK This test is able to check all door lock actuators (except driver side) unlock operation.
These actuators unlock when “OTHER UNLOCK” on CONSULT-II screen is touched.
Symptom Diagnoses service procedure Reference
page
Key reminder door system does not operate properly. 1.Check key reminder door mode.*
*: Key reminder door mode can be changed.
First check key reminder door mode. BL-37
2. Check BCM power supply and ground cir-
cuit BL-39
3. Check key switch.
BL-44
4. Check door switch. BL-40
5. Replace BCM.BCS-14
Power door lock does not operate with door lock and unlock switch. 2. Check BCM power supply and ground cir-
cuit BL-392. Check door lock and unlock switch.
BL-39
3. Replace BCM.BCS-14
Power door lock does not operate with door key cylinder operation.
(Power door lock operate properly with door lock and unlock switch.) 1. Check front door key cylinder switch.
BL-51*1
BL-52*2
2. Replace power window main switch. –
Specific door lock actuator does not operate. 1. Check door lock actuator.
BL-48
*3
BL-49*4
2. Replace BCM.
BCS-14
Rear door lock actuator (LH and RH) does not operate.*
*: Only model with intelligent key system. 1. Check select unlock relay circuit.
BL-53
Select unlock does not operate.
(All other power door lock system is “OK”.) 1. Check select unlock mode.*
*: Select unlock mode can be changed.
First check select unlock mode. BL-37
2. Replace BCM.
BCS-14
Fuel lid lock actuator does not operate.
(All door lock actuators operates properly.) 1.Check fuel lid lock actuator.
BL-50

BL-44
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45

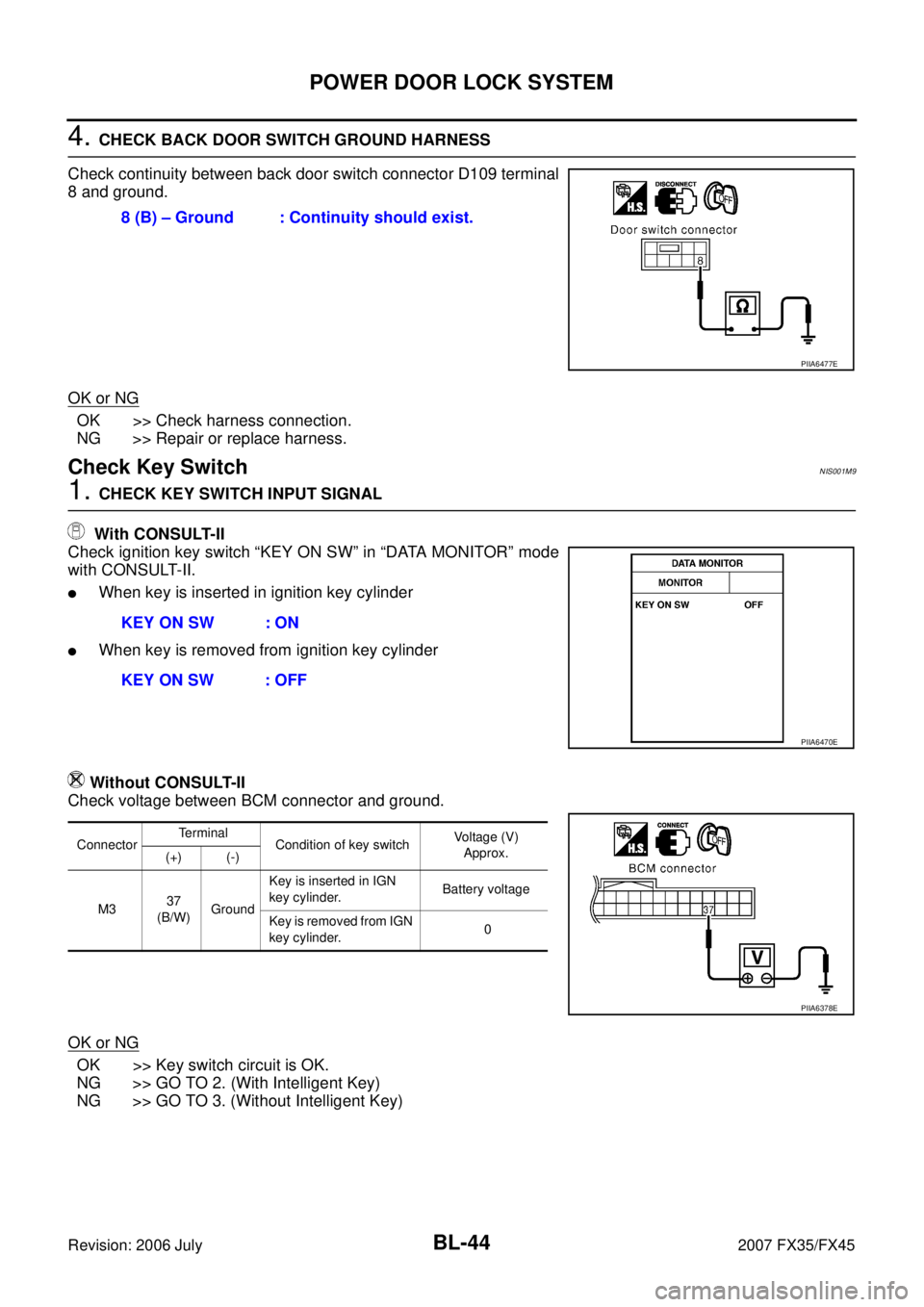

4. CHECK BACK DOOR SWITCH GROUND HARNESS
Check continuity between back door switch connector D109 terminal
8 and ground.
OK or NG
OK >> Check harness connection.
NG >> Repair or replace harness.
Check Key SwitchNIS001M9
1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II
Check ignition key switch “KEY ON SW” in “DATA MONITOR” mode
with CONSULT-II.

When key is inserted in ignition key cylinder

When key is removed from ignition key cylinder
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Key switch circuit is OK.
NG >> GO TO 2. (With Intelligent Key)
NG >> GO TO 3. (Without Intelligent Key) 8 (B) – Ground : Continuity should exist.
PIIA6477E
KEY ON SW : ON
KEY ON SW : OFF
PIIA6470E
Connector Terminal
Condition of key switch Voltage (V)
Approx.
(+) (-)
M3 37
(B/W) Ground Key is inserted in IGN
key cylinder. Battery voltage
Key is removed from IGN
key cylinder. 0
PIIA6378E

POWER DOOR LOCK SYSTEM BL-45
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

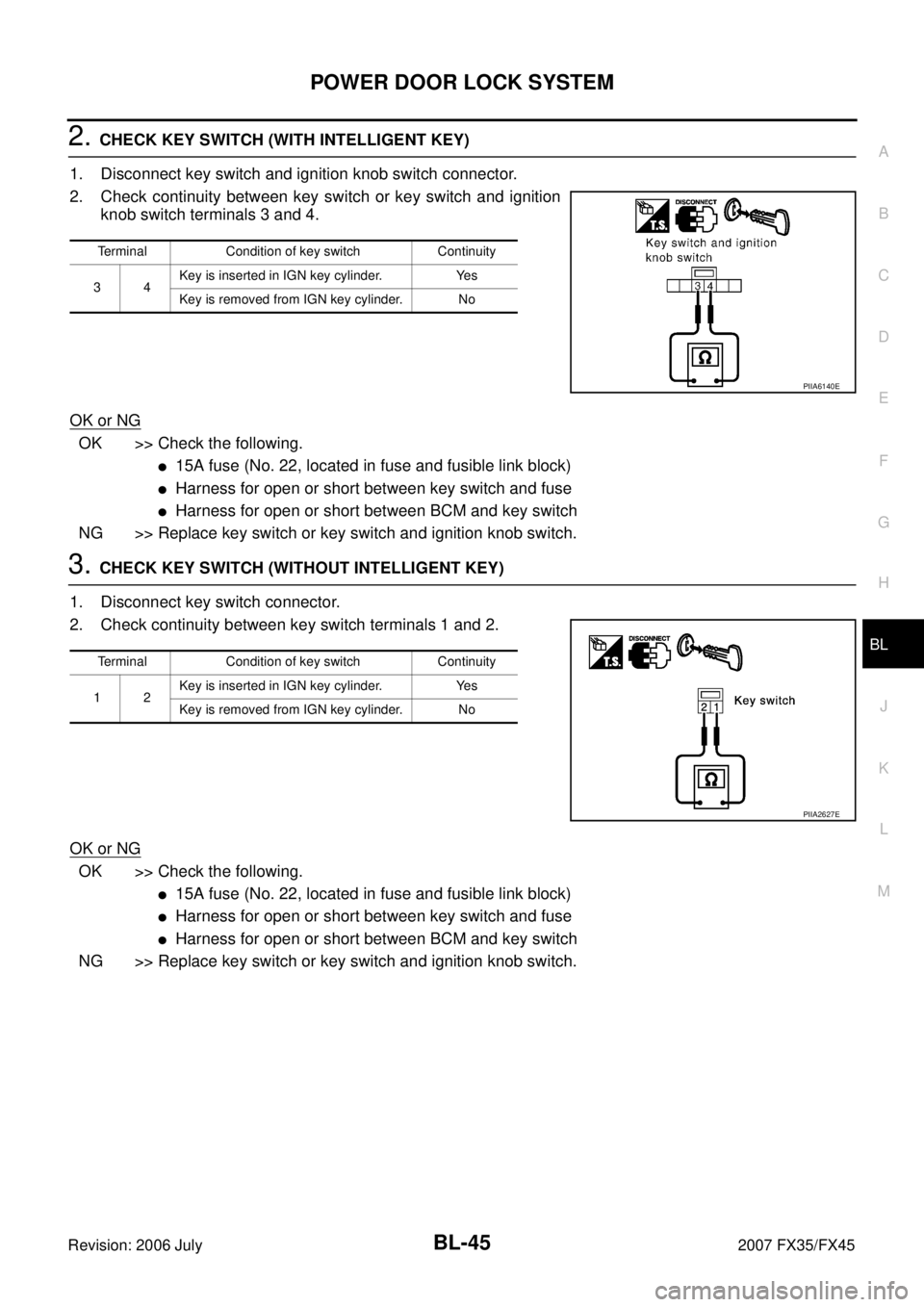

2. CHECK KEY SWITCH (WITH INTELLIGENT KEY)
1. Disconnect key switch and ignition knob switch connector.
2. Check continuity between key switch or key switch and ignition knob switch terminals 3 and 4.
OK or NG
OK >> Check the following.

15A fuse (No. 22, located in fuse and fusible link block)

Harness for open or short between key switch and fuse

Harness for open or short between BCM and key switch
NG >> Replace key switch or key switch and ignition knob switch.
3. CHECK KEY SWITCH (WITHOUT INTELLIGENT KEY)
1. Disconnect key switch connector.
2. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> Check the following.

15A fuse (No. 22, located in fuse and fusible link block)

Harness for open or short between key switch and fuse

Harness for open or short between BCM and key switch
NG >> Replace key switch or key switch and ignition knob switch.
Terminal Condition of key switch Continuity
34 Key is inserted in IGN key cylinder. Yes
Key is removed from IGN key cylinder. No
PIIA6140E
Terminal Condition of key switch Continuity
12 Key is inserted in IGN key cylinder. Yes
Key is removed from IGN key cylinder. No
PIIA2627E

BL-46
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45

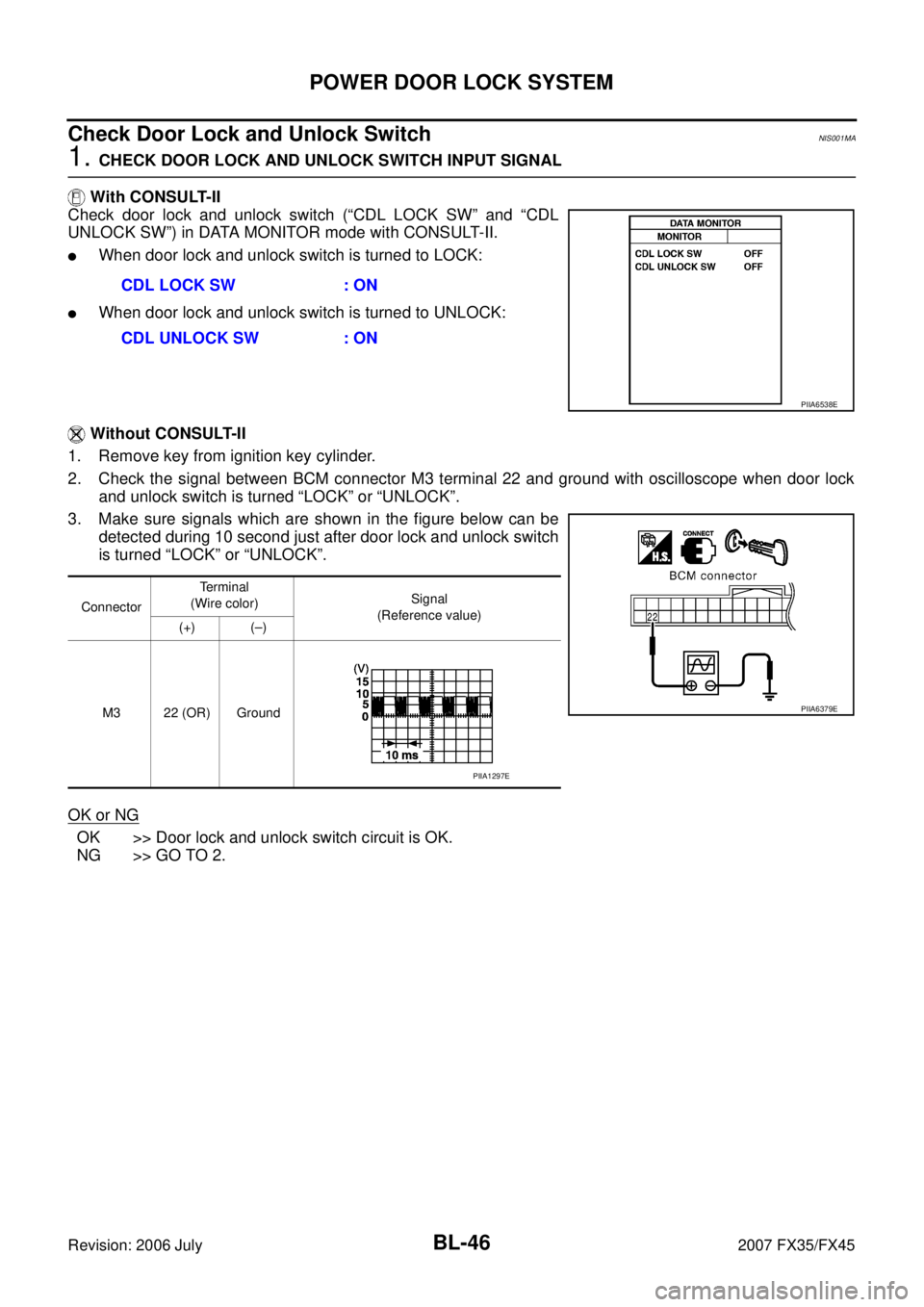

Check Door Lock and Unlock SwitchNIS001MA
1. CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL
With CONSULT-II
Check door lock and unlock switch (“CDL LOCK SW” and “CDL
UNLOCK SW”) in DATA MONITOR mode with CONSULT-II.

When door lock and unlock switch is turned to LOCK:

When door lock and unlock switch is turned to UNLOCK:
Without CONSULT-II
1. Remove key from ignition key cylinder.
2. Check the signal between BCM connector M3 terminal 22 and ground with oscilloscope when door lock and unlock switch is turned “LOCK” or “UNLOCK”.
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door lock and unlock switch
is turned “LOCK” or “UNLOCK”.
OK or NG
OK >> Door lock and unlock switch circuit is OK.
NG >> GO TO 2. CDL LOCK SW : ON
CDL UNLOCK SW : ON
PIIA6538E
Connector Terminal
(Wire color) Signal
(Reference value)
(+) (–)
M3 22 (OR) Ground
PIIA6379E
PIIA1297E

POWER DOOR LOCK SYSTEM BL-51
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Check Front Door Key Cylinder Switch (Lock) NIS001ME
1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK SIGNAL)
With CONSULT-II
Check front door key cylinder switch LH (“KEY CYL LK SW”) in
“DATA MONITOR” mode with CONSULT-II.

When key cylinder switch is turned to “LOCK”.
Without CONSULT-II
Check voltage between power window main switch (door lock and
unlock switch) connector and ground.
OK or NG
OK >> Front door key cylinder switch circuit driver side (lock) is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR KEY CYLINDER SWITCH
1. Disconnect front door key cylinder switch driver side connector.
2. Check continuity between front door key cylinder switch driver side terminals 1 and 5.
OK or NG
OK >> Check the following.

Front door key cylinder switch driver side ground circuit.

Harness for open or short between power window main switch (door lock and unlock switch)
and front door key cylinder switch driver side.
NG >> Replace front door key cylinder switch driver side. KEY CYL LK-SW : ON
PIIA6541E
Connector
Terminal (Wire color)
Front door key cylinder
switch position Voltage (V)
(Approx.)
(+) (-)
D6 4 (P) Ground Neutral / Unlock 5
Lock 0
PIIA6203E
Terminal Front door key cylinder switch position Continuity
15 Neutral / Unlock No
Lock Yes
PIIA6543E

BL-52
POWER DOOR LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45

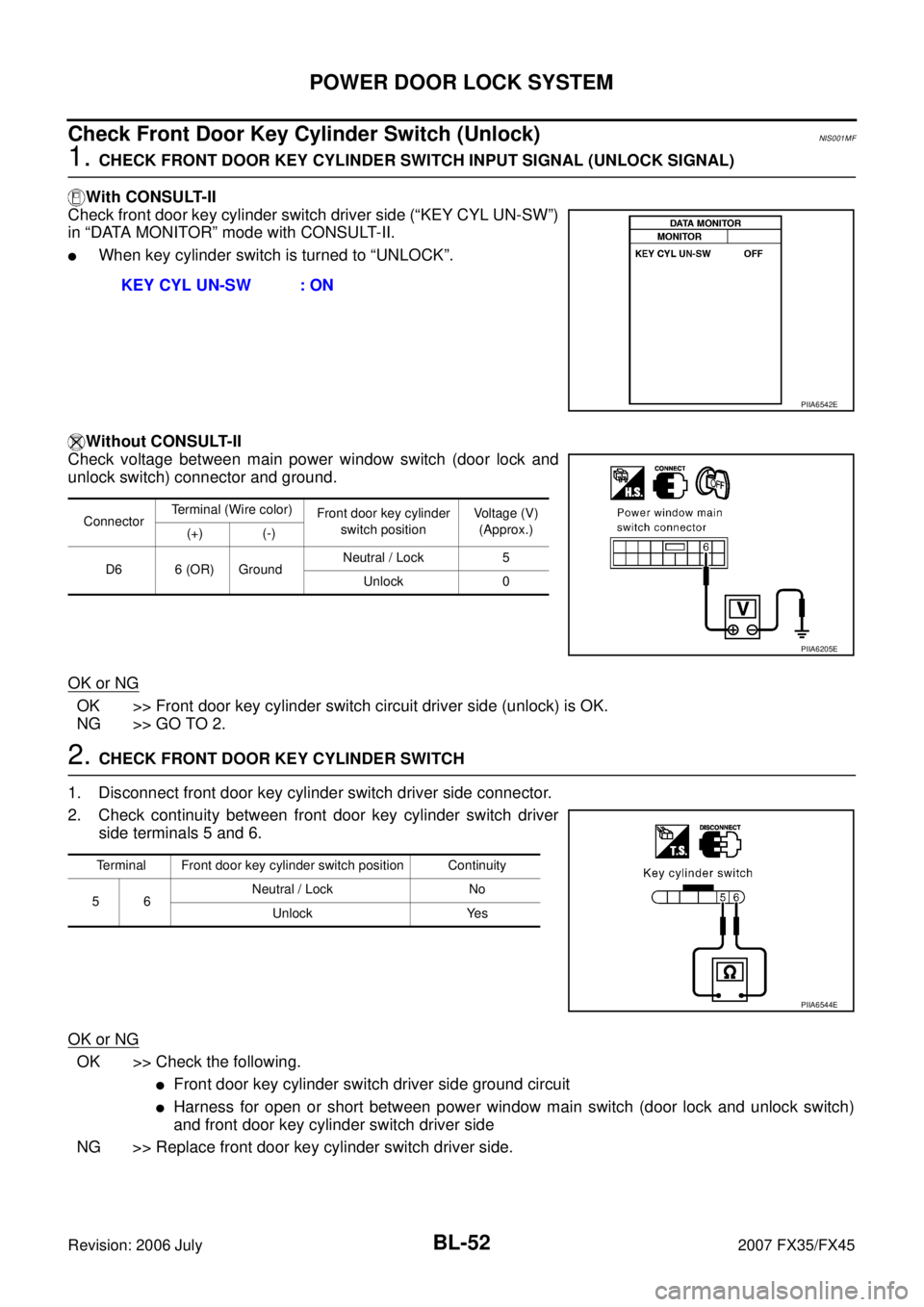

Check Front Door Key Cylinder Switch (Unlock) NIS001MF
1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (UNLOCK SIGNAL)
With CONSULT-II
Check front door key cylinder switch driver side (“KEY CYL UN-SW”)
in “DATA MONITOR” mode with CONSULT-II.

When key cylinder switch is turned to “UNLOCK”.
Without CONSULT-II
Check voltage between main power window switch (door lock and
unlock switch) connector and ground.
OK or NG
OK >> Front door key cylinder switch circuit driver side (unlock) is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR KEY CYLINDER SWITCH
1. Disconnect front door key cylinder switch driver side connector.
2. Check continuity between front door key cylinder switch driver side terminals 5 and 6.
OK or NG
OK >> Check the following.

Front door key cylinder switch driver side ground circuit

Harness for open or short between power window main switch (door lock and unlock switch)
and front door key cylinder switch driver side
NG >> Replace front door key cylinder switch driver side. KEY CYL UN-SW : ON
PIIA6542E
Connector
Terminal (Wire color)
Front door key cylinder
switch position Voltage (V)
(Approx.)
(+) (-)
D6 6 (OR) Ground Neutral / Lock 5
Unlock 0
PIIA6205E
Terminal Front door key cylinder switch position Continuity
56 Neutral / Lock No
Unlock Yes
PIIA6544E

BL-54
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationNIS001MH
PIIB4074E

REMOTE KEYLESS ENTRY SYSTEM BL-55
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
System DescriptionNIS001MI
INPUTS
Power is supplied at all times

to BCM terminal 55

through 50A fusible link (letter M , located in the fuse and fusible link box).

to BCM terminal 42

through 15A fuse [No. 22, located in the fuse block (J/B)].

to Horn relay terminal 2

through 15A fuse (No. 34, located in the fuse and fusible link box).
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

to BCM terminal 37

through key switch terminal 1 and 2

through 15A fuse [No. 22, located in the fuse block (J/B)].
When the ignition switch is ACC or ON, power is supplied

to BCM terminal 11

through 10A fuse [No. 6, located in the fuse block (J/B)].
When the ignition switch is ON or START, power is supplied

to BCM terminal 38

through 15A fuse [No. 1, located in the fuse block (J/B)].
When the front door switch (driver side) is ON (door is OPEN), ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1

through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch (passenger side) terminal 1

through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 63

through rear door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM meter terminal 13

through rear door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (door is open), ground is supplied

to BCM terminal 58

through back door closure motor (door switch) terminals 7 and 8

through body grounds B15 and B45
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).

to BCM terminal 20

from remote keyless entry system controls operation of the
The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

auto door lock

panic alarm

keyless power window down (open)

BL-56
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45

room lamp and key ring illumination
OPERATED PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from key fob. BCM locks all doors with input of LOCK signal from key fob.
When an UNLOCK signal is sent from key fob once, driver's door will be unlocked.
Then, if an UNLOCK signal is sent from key fob again within 5 seconds, all other door will be unlocked.
Power door lock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT” of “POWER DOOR LOCK SYSTEM”.
Refer to BL-65, "
Work Support" .
Power door lock operation mode can be changed also on the display.
Hazard and Horn Reminder
When the doors are locked or unlocked by key fob, power is supplied to hazard warning lamp and lamp flash
as follows

LOCK operation: C mode (flash twice) or S mode (flash twice)

UNLOCK operation: C mode (flash once) or S mode (do not flash)
BCM outputs to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
Operating function of hazard and horn reminder
Hazard and horn reminder do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-II
Hazard and horn reminder can be changed using “MULTI ANSWER BACK SET” mode in “WORK SUPPORT”.
Refer to BL-65, "
Work Support" .
Without CONSULT-II
When LOCK and UNLOCK signals are sent from the key fob for more than 2 seconds at the same time, the
hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the key fob:

when door switch is turned ON for open.

when the key switch is turned ON.

when the lock signal is sent from the key fob.
Auto door lock mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.
Refer to BL-65, "
Work Support" .
Auto door lock mode can be changed also on the display.
C mode S mode
Remote controller
operation Lock Unlock Lock Unlock
Hazard warning lamp
flash Twice Once Twice —
Horn sound Once — — —
SEL153WA
