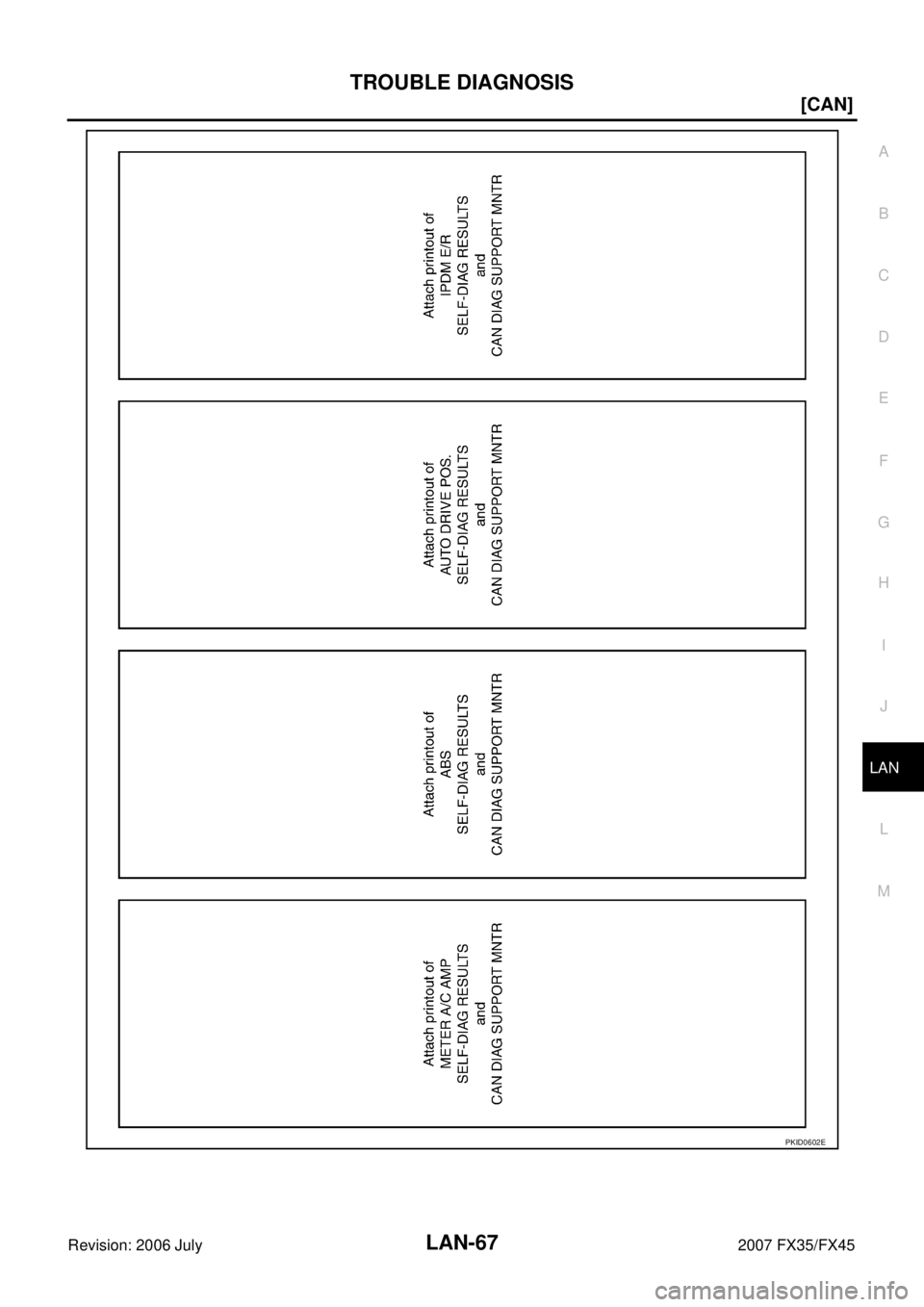

ON-BOARD DIAGNOSIS COPY SHEET
NOTE:
CAN diagnostic support monitor of the display control unit is indicated on the vehicle display. Refer to AV- 8 1 ,
"CAN DIAG SUPPORT MONITOR" .
SKIB8871E

TROUBLE DIAGNOSIS LAN-69
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
CAN System (Type 1)NKS004NU

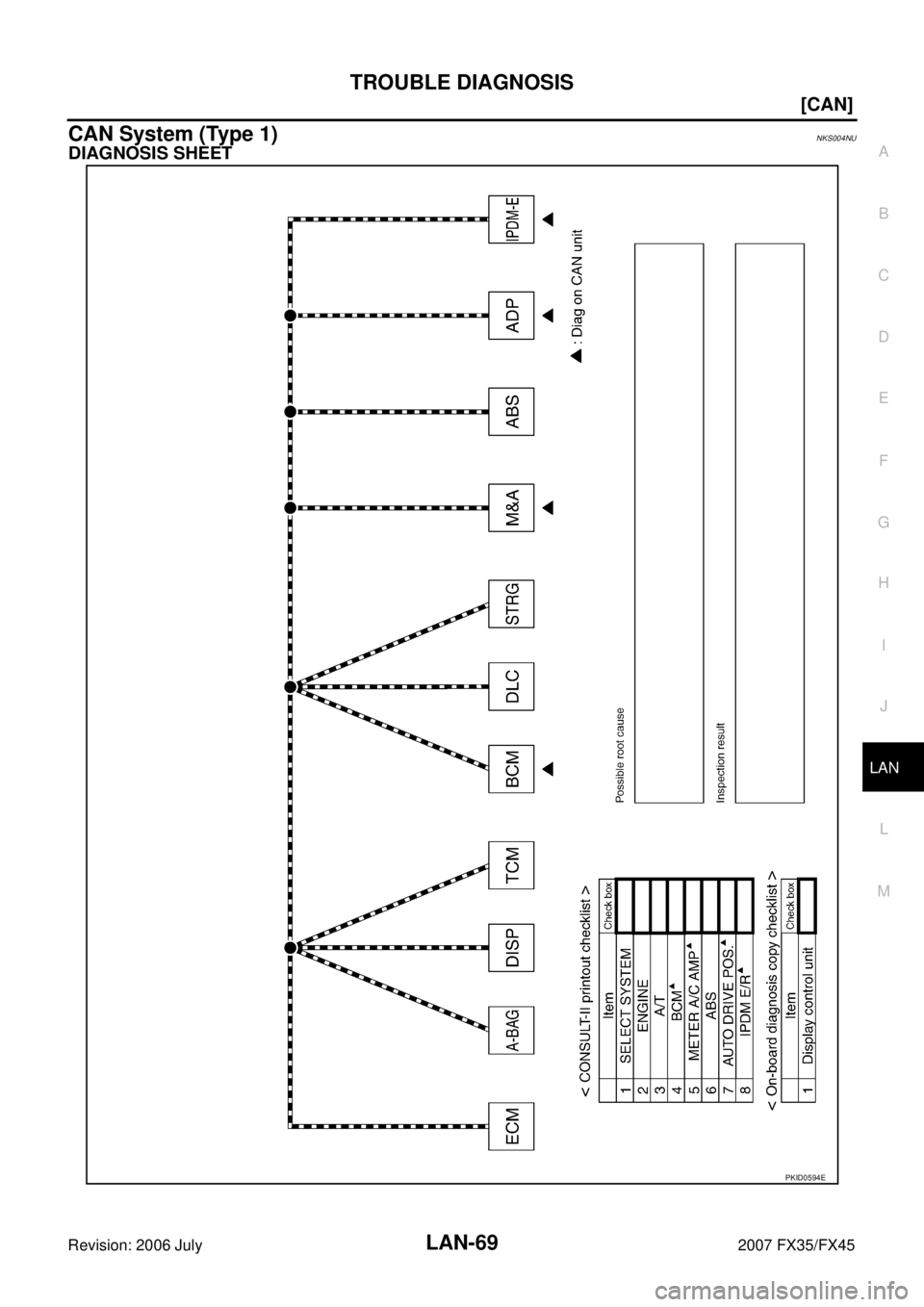

DIAGNOSIS SHEET
PKID0594E

LAN-70
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

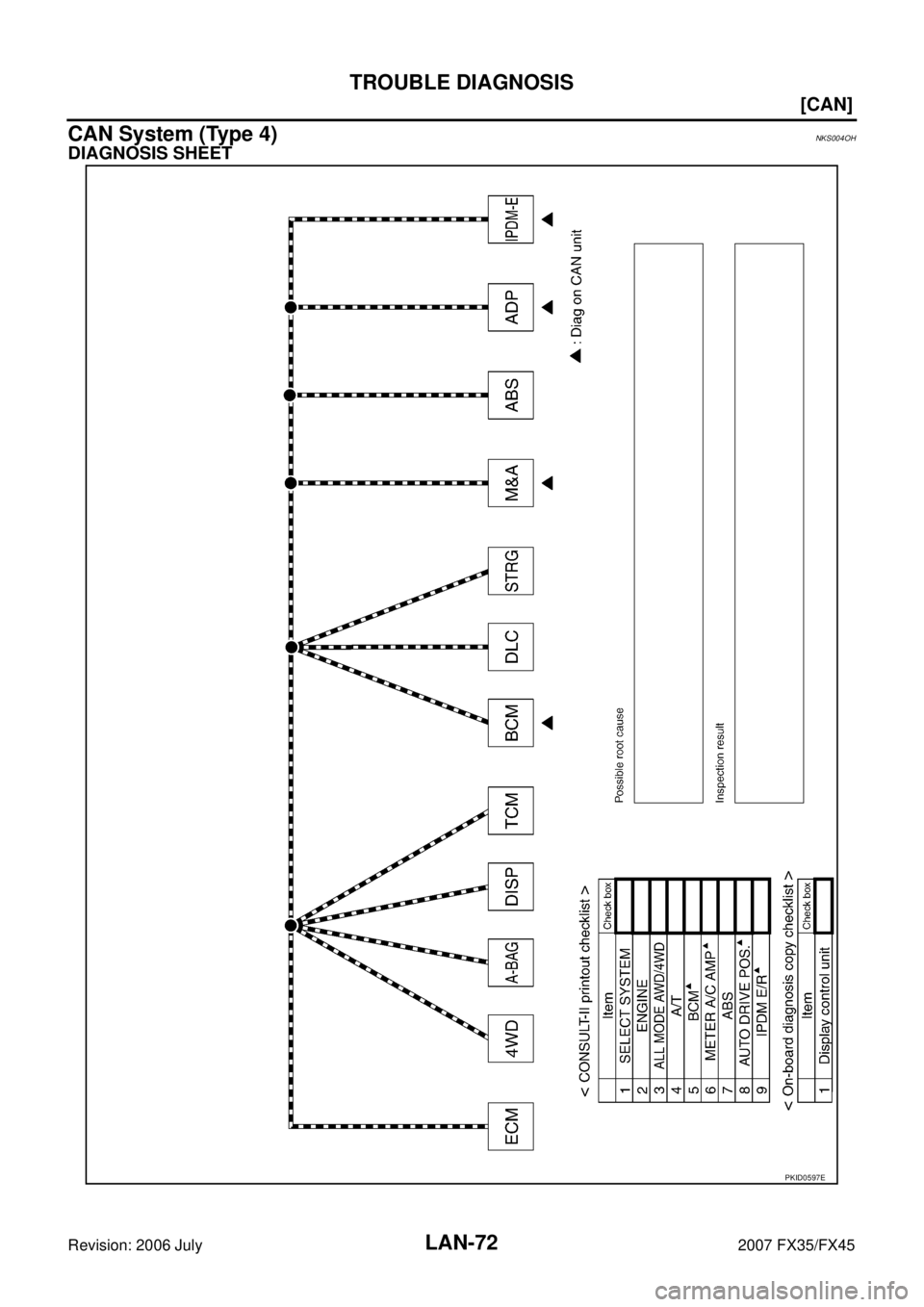

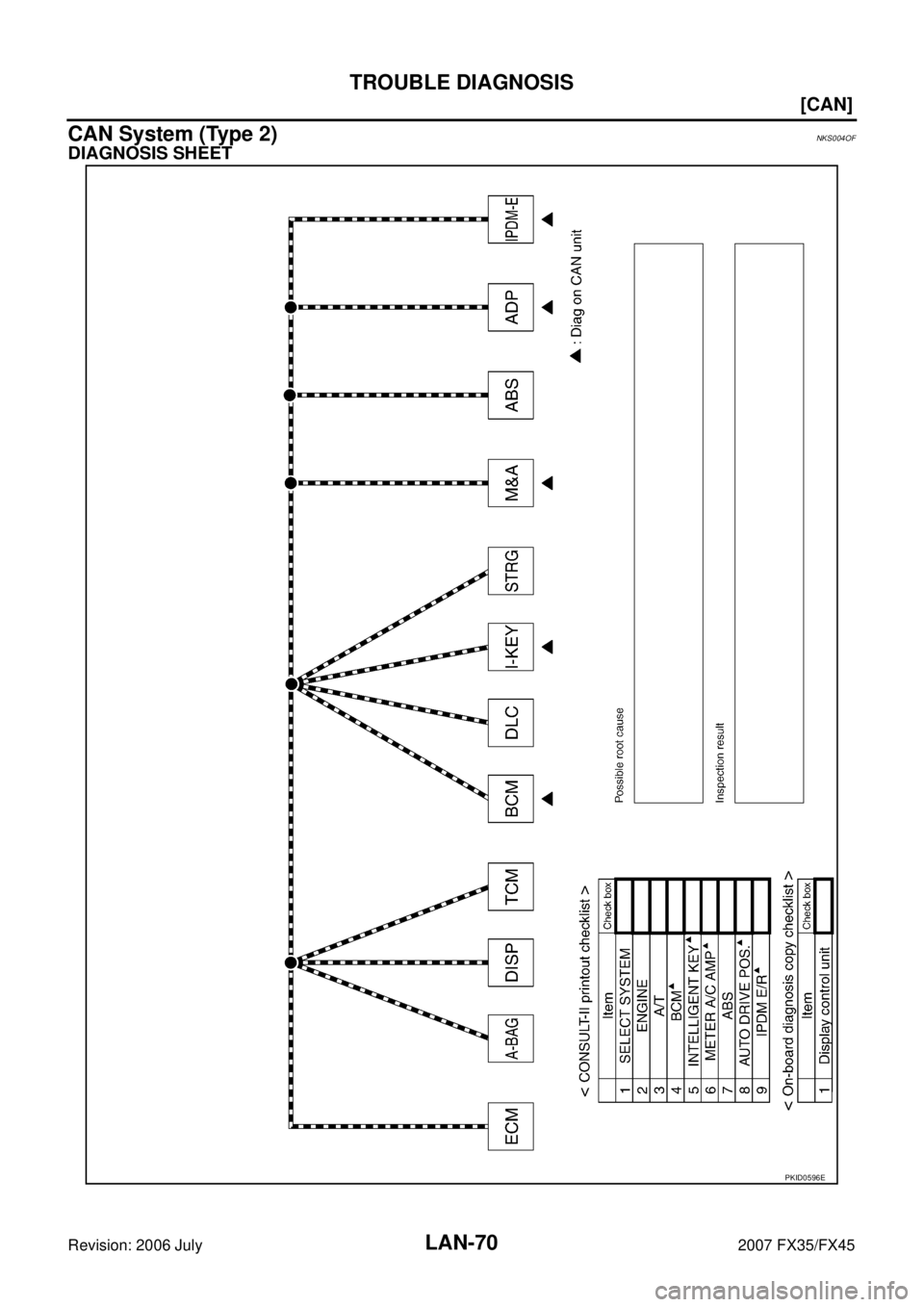

CAN System (Type 2)NKS004OF
DIAGNOSIS SHEET
PKID0596E

TROUBLE DIAGNOSIS LAN-71
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45

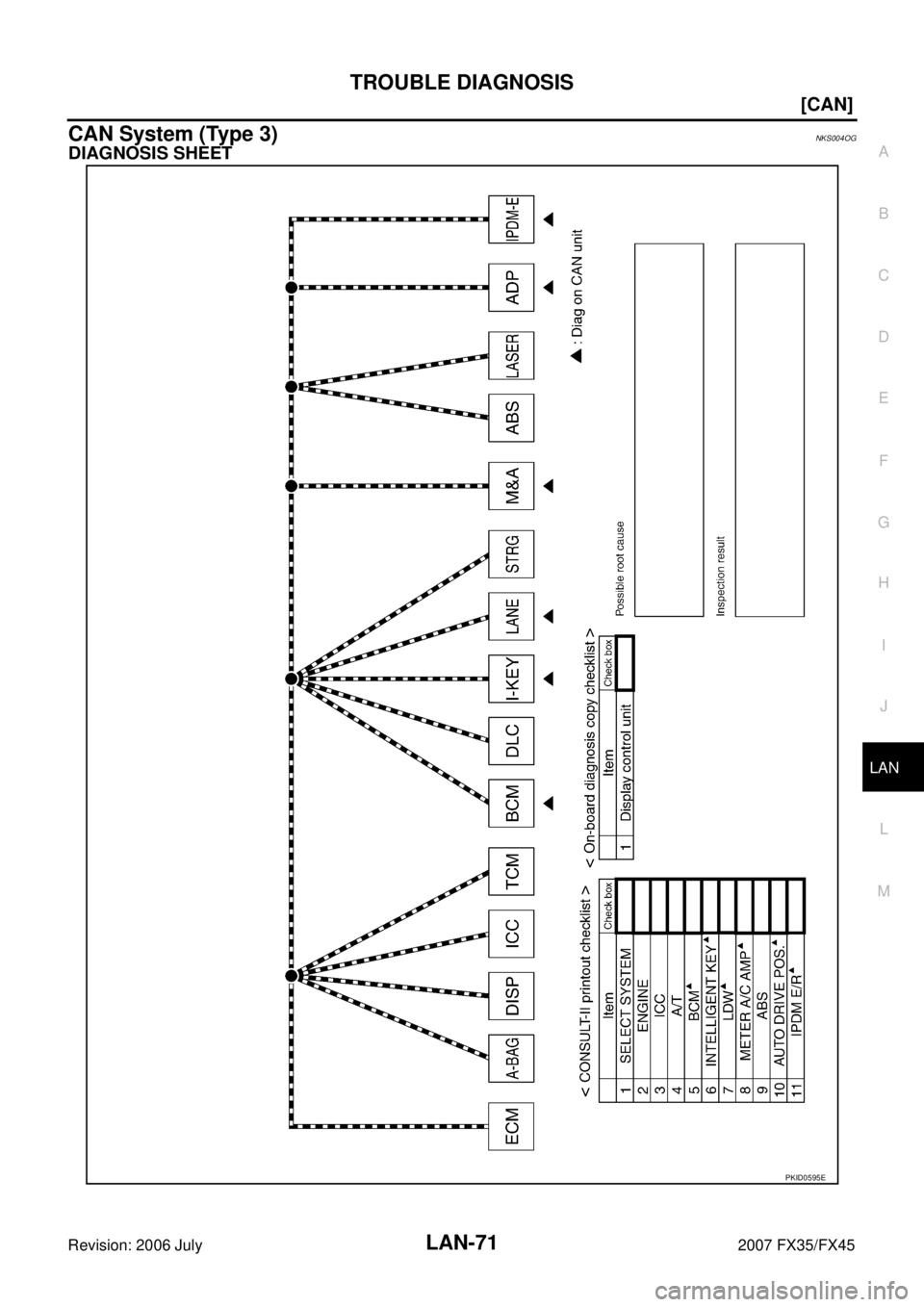

CAN System (Type 3)NKS004OG
DIAGNOSIS SHEET
PKID0595E

LAN-72
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

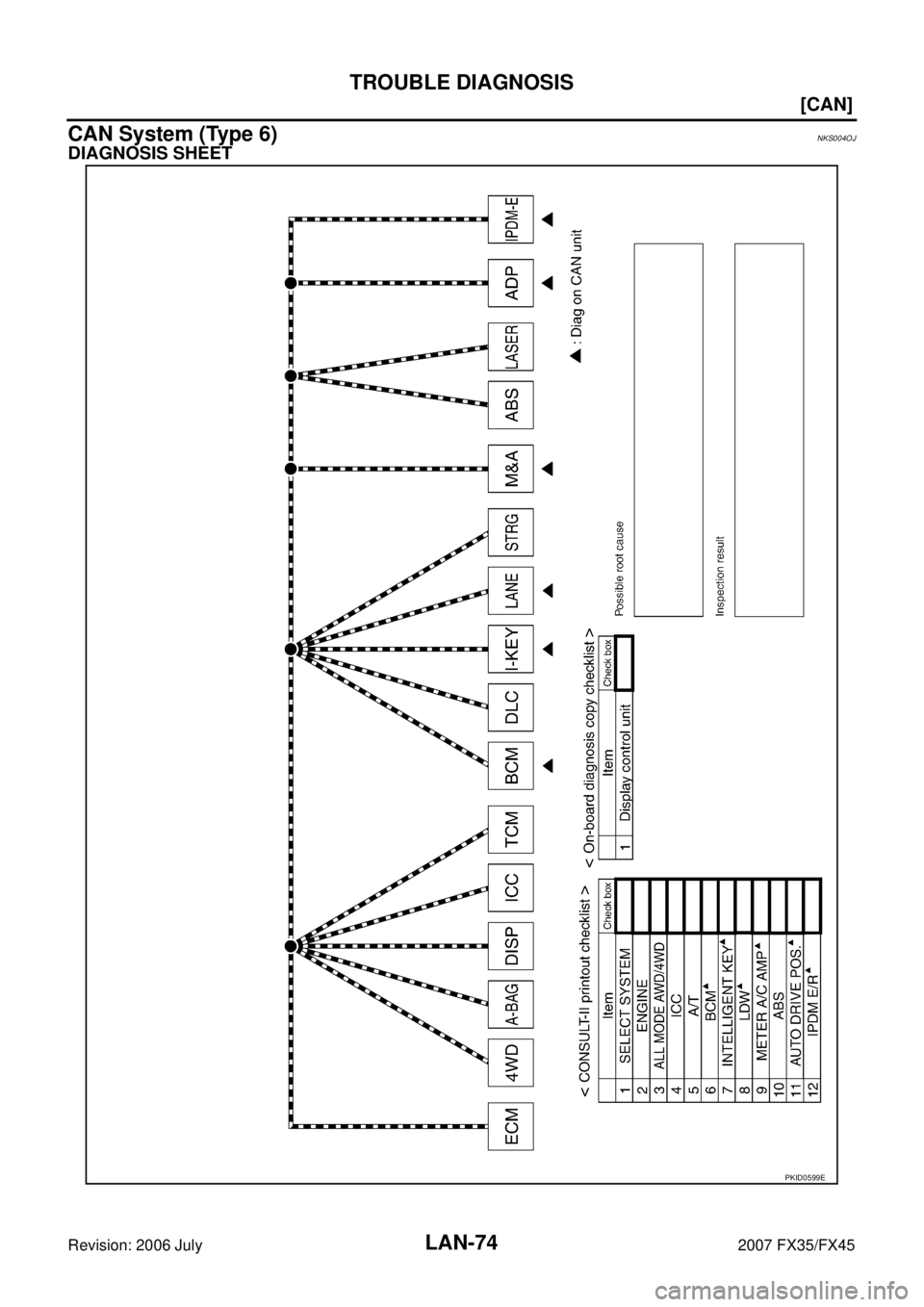

CAN System (Type 4)NKS004OH
DIAGNOSIS SHEET
PKID0597E

TROUBLE DIAGNOSIS LAN-73
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45

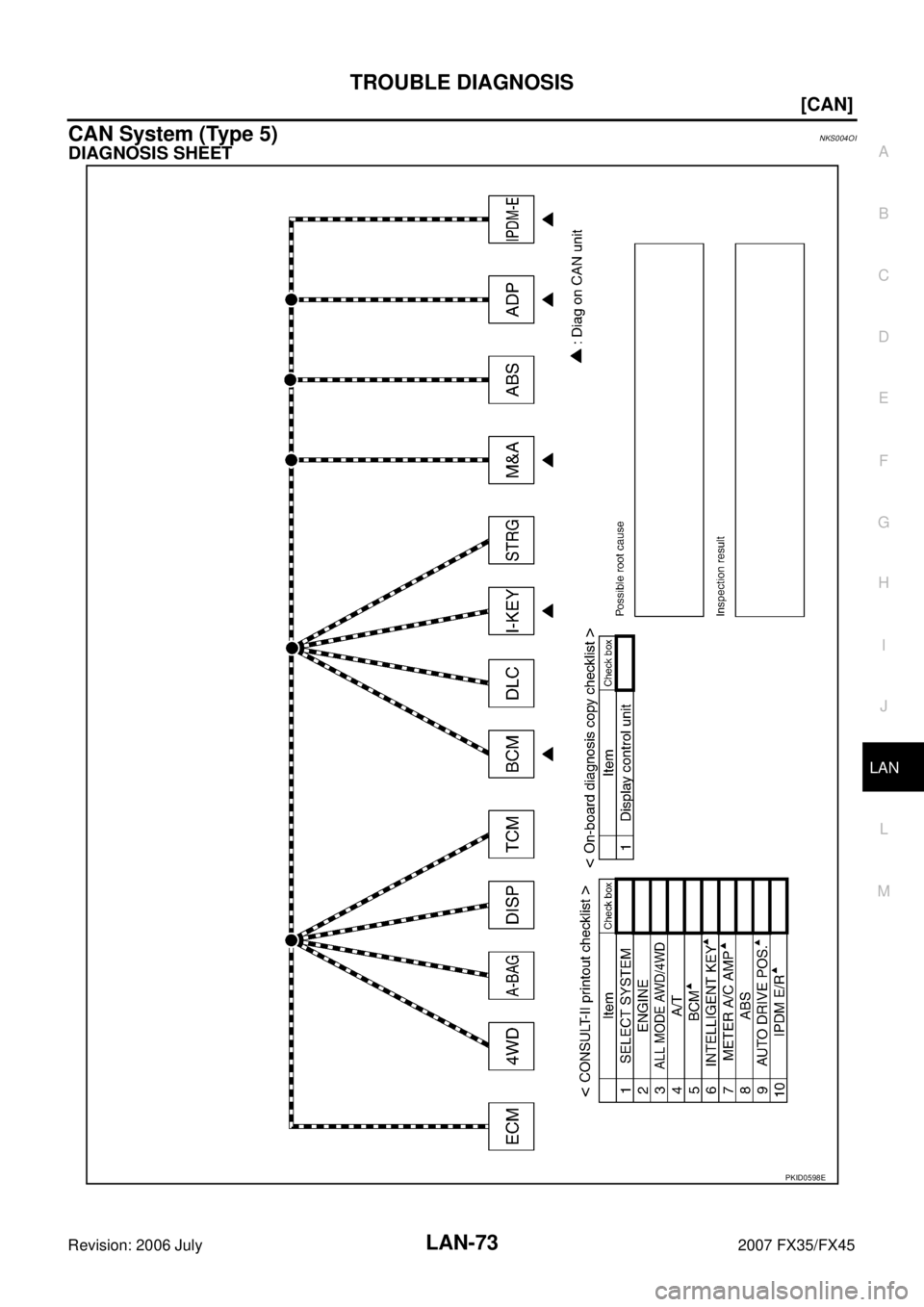

CAN System (Type 5)NKS004OI
DIAGNOSIS SHEET
PKID0598E

LAN-74
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
CAN System (Type 6)NKS004OJ
DIAGNOSIS SHEET
PKID0599E

TROUBLE DIAGNOSIS LAN-75
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
Component Parts LocationNKS004NV
Harness LayoutNKS004NW
Refer to PG-43, "Harness Layout" .
1. AWD control unit M92 2. ICC unit M88 3. ECM M90
4. IPDM E/R E9 5. ICC sensor E39 6. Display control unit M76
7. Unified meter and A/C amp. M55 8. Steering angle sensor M14 9. Intelligent Key unit M34
10. ABS actuator and electric unit (con- trol unit) E56 11. BCM M3 12. Data link connector M5
13. LDW camera unit R9 14. Driver seat control unit B152 15. A/T assembly F44
16. Air bag diagnosis sensor unit M72
PKID0616E

LAN-76
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Malfunction Area ChartNKS004NX
MAIN LINE
BRANCH LINE
SHORT CIRCUIT
Malfunction Area Reference
Main line between TCM and data link connector LAN-77, "
Main Line Between TCM and Data Link Connector"
Main line between data link connector and unified meter and A/
C amp. LAN-77, "Main Line Between Data Link Connector and Unified
Meter and A/C Amp."
Main line between unified meter and A/C amp. and ABS actua-
tor and electric unit (control unit) LAN-78, "Main Line Between Unified Meter and A/C Amp. and
ABS Actuator and Electric Unit (Control Unit)"
Main line between ABS actuator and electric unit (control unit)
and driver seat control unit LAN-79, "Main Line Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit"
Malfunction Area Reference
ECM branch line circuit LAN-80, "
ECM Branch Line Circuit"
AWD control unit branch line circuit LAN-80, "AWD Control Unit Branch Line Circuit"
Display control unit branch line circuit LAN-81, "Display Control Unit Branch Line Circuit"
ICC unit branch line circuitLAN-82, "ICC Unit Branch Line Circuit"
TCM branch line circuit LAN-82, "TCM Branch Line Circuit"
BCM branch line circuit LAN-83, "BCM Branch Line Circuit"
Data link connector branch line circuit LAN-84, "Data Link Connector Branch Line Circuit"
Intelligent Key unit branch line circuitLAN-84, "Intelligent Key Unit Branch Line Circuit"
LDW camera unit branch line circuitLAN-85, "LDW Camera Unit Branch Line Circuit"
Steering angle sensor branch line circuit LAN-86, "Steering Angle Sensor Branch Line Circuit"
Unified meter and A/C amp. branch line circuit LAN-86, "Unified Meter and A/C Amp. Branch Line Circuit"
ABS actuator and electric unit (control unit) branch line circuit LAN-87, "ABS Actuator and Electric Unit (Control Unit) Branch
Line Circuit"
ICC sensor branch line circuit
LAN-88, "ICC Sensor Branch Line Circuit"
Driver seat control unit branch line circuitLAN-89, "Driver Seat Control Unit Branch Line Circuit"
IPDM E/R branch line circuit LAN-89, "IPDM E/R Branch Line Circuit"
Malfunction Area Reference
CAN communication circuit LAN-90, "
CAN Communication Circuit"
