INFINITI FX35 2007 Service Manual

COMBINATION SWITCH LT-115
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
33 G Combination
switch output 4 ON Lighting, turn,
wiper switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Lighting switch AUTO
(Wiper intermittent dial position 4)

Lighting switch 1ST
(The same result with lighting
switch 2ND)
(Wiper intermittent dial position 4)

Rear wiper switch INT
(Wiper intermittent dial position 4)

Wiper intermittent dial position 1

Wiper intermittent dial position 5

Wiper intermittent dial position 6 Approx. 1.2 V
34 W/B Combination
switch output 3 ON
Lighting, turn,
wiper switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND
(Wiper intermittent dial position 4)

Lighting switch HIGH BEAM
(Operates only HIGH BEAM
switch)
(Wiper intermittent dial position 4)

Rear washer switch
(Wiper intermittent dial position 4)

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 3 Approx. 1.2 V
Te r -
minal No. Wire
color Signal name Measuring condition
Reference value
Igni-
tion
switch Operation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

LT-116
COMBINATION SWITCH
Revision: 2006 July 2007 FX35/FX45
35 W/G Combination
switch output 2 ON Lighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4) OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND

Lighting switch PASSING
(Operates only PASSING switch)

Front wiper switch INT

Front wiper switch HI
Approx. 1.2 V
36 W/R Combination
switch output 1 ON Lighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4) OFF
Approx. 7.2 V
Any of the conditions below

Turn signal switch to right

Turn signal switch to left

Front wiper switch MIST

Front wiper switch LO

Front washer switch Approx. 1.2 V
38 W/L Ignition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 L/R Battery power
supply OFF — Battery voltage
49 B Ground ON — Approx. 0 V
52 B Ground ON — Approx. 0 V
55 G Battery power
supply OFF — Battery voltage
Te r -
minal No. Wire
color Signal name Measuring condition
Reference value
Igni-
tion
switch Operation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

COMBINATION SWITCH LT-117
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Functions (BCM)NKS002XZ
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “COMB SW” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is selected, all the signals will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
NOTE:
This item is displayed, but cannot be monitored BCM diagnosis part Diagnosis mode Description
COMB SW DATA MONITOR Displays BCM input data in real time.
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitors them.
Monitor item Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF” Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF” Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 1 judged from lighting
switch signal.
HEAD LAMP SW 2 “ON/OFF” Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST “ON/OFF” Displays status (lighting switch 1ST or 2ND position: ON/Others: OFF) of lighting switch judged
from lighting switch signal.
PASSING SW “ON/OFF” Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
AUTO LIGHT SW “ON/OFF” Displays “Auto light switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR FOG SW “ON/OFF” Displays “Front fog lamp switch (ON)/Other (OFF)” status, determined from lighting switch signal.
RR FOG SW
NOTE“OFF” —
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME “1 – 7” Displays intermittent operation knob setting (1 – 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “rear Wiper (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “ON/OFF” Displays “rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.

LT-118
COMBINATION SWITCH
Revision: 2006 July 2007 FX35/FX45
Combination Switch InspectionNKS002Y0
1. SYSTEM CHECK
Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which malfunctioning switch belongs, and GO TO 2.
2. SYSTEM CHECK
With CONSULT-II
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect CONSULT-II, and select “COMB SW” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in malfunction- ing system operate normally.
Example: When the auto light switch is malfunctioning, confirm
that “FRONT WIPER LOW” and “FRONT WIPER INT” in system
3, to which the auto light switch belongs, turn ON-OFF normally.
Without CONSULT-II
Operating combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When the auto light switch is malfunctioning, confirm that FRONT WIPER LOW and FRONT WIPER
INT in system 3, to which the auto light switch belongs, operate normally.
Check results
Other switches in malfunctioning system operate normally.>> Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>> GO TO 3.
System 1System 2System 3System 4System 5
— FR WASHER FR WIPER LO TURN LH TURN RH
FR WIPER HI — FR WIPER INT PASSING HEAD LAMP1
INT VOLUME 1 RR WASHER — HEAD LAMP2 HI BEAM RR WIPER INT INT VOLUME 3 AUTO LIGHT — LIGHT SW 1ST
INT VOLUME 2 RR WIPER ON — FR FOG —
PKIA7602E

COMBINATION SWITCH LT-119
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect BCM connector and combination switch connector.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com- bination switch harness connector.
4. Check for continuity between BCM harness connector in suspect malfunctioning system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Suspect
system BCM Combination switch
Continuity
Connector Terminal Connector Terminal
1
M3 Input 1 6
M17 6
Ye s
Output 1 36 1
2 Input 2 5 7
Output 2 35 2
3 Input 3 4 10
Output 3 34 3
4 Input 4 3 9
Output 4 33 4
5 Input 5 2 8
Output 5 32 5
Suspect system BCM
connector Terminal Continuity
1
M3 Input 1 6
Ground No
Output 1 36
2 Input 2 5
Output 2 35
3 Input 3 4
Output 3 34
4 Input 4 3
Output 4 33
5 Input 5 2
Output 5 32
PKIA7235E
PKIA7506E

LT-120
COMBINATION SWITCH
Revision: 2006 July 2007 FX35/FX45
4. CHECK BCM OUTPUT TERMINAL
1. Turn lighting switch and wiper switch OFF position.
2. Set wiper dial position 4.
3. Connect BCM connector and combination switch connector.
4. Turn ignition switch ON.
5. Check BCM output terminal voltage waveform of suspect mal- functioning system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-14, "
Removal and Installation of BCM" .
5. CHECK COMBINATION SWITCH
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationNKS002Y1
Refer to LT- 1 0 9 , "LIGHTING AND TURN SIGNAL SWITCH" and WW-37, "Removal and Installation of Front
Wiper and Washer Switch" .
Suspect
system (+)
( − ) Reference value
Combination
switch
connector Terminal
1
M17 1
Ground
22
33
44
55
PKIC1020E
PKIB4960J
Procedure
12 3 4 5 6 7
Replace lighting switch Confirm
check
results OK INSPECTION END Confirm
check
results OK INSPECTION END Confirm
check
results OK INSPECTION END
NG Replace wiper switch NG Replace switch base NG Confirm symptom again

STOP LAMP LT-121
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
STOP LAMPPFP:26550

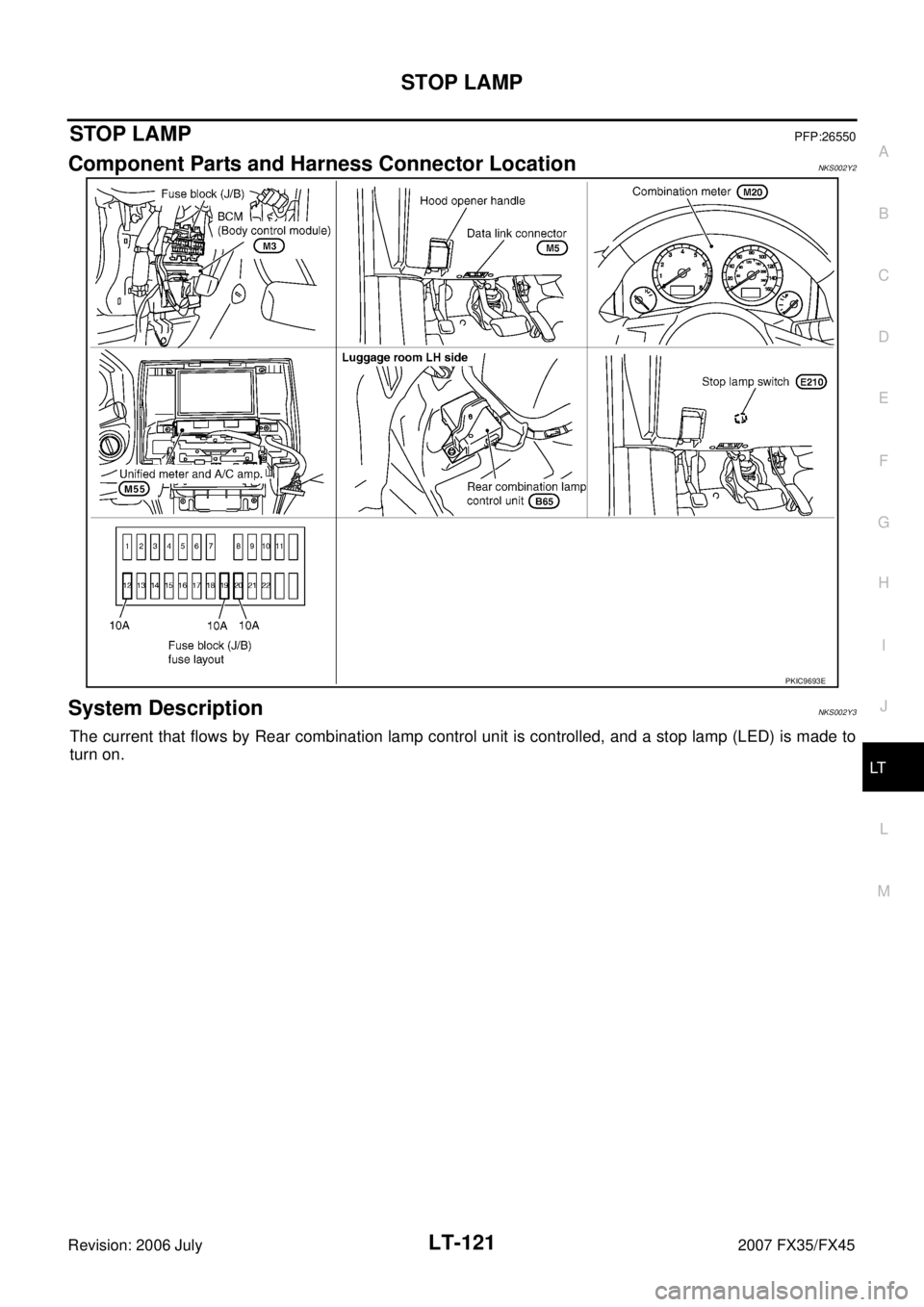

Component Parts and Harness Connector LocationNKS002Y2
System DescriptionNKS002Y3
The current that flows by Rear combination lamp control unit is controlled, and a stop lamp (LED) is made to
turn on.
PKIC9693E

LT-122
STOP LAMP
Revision: 2006 July 2007 FX35/FX45

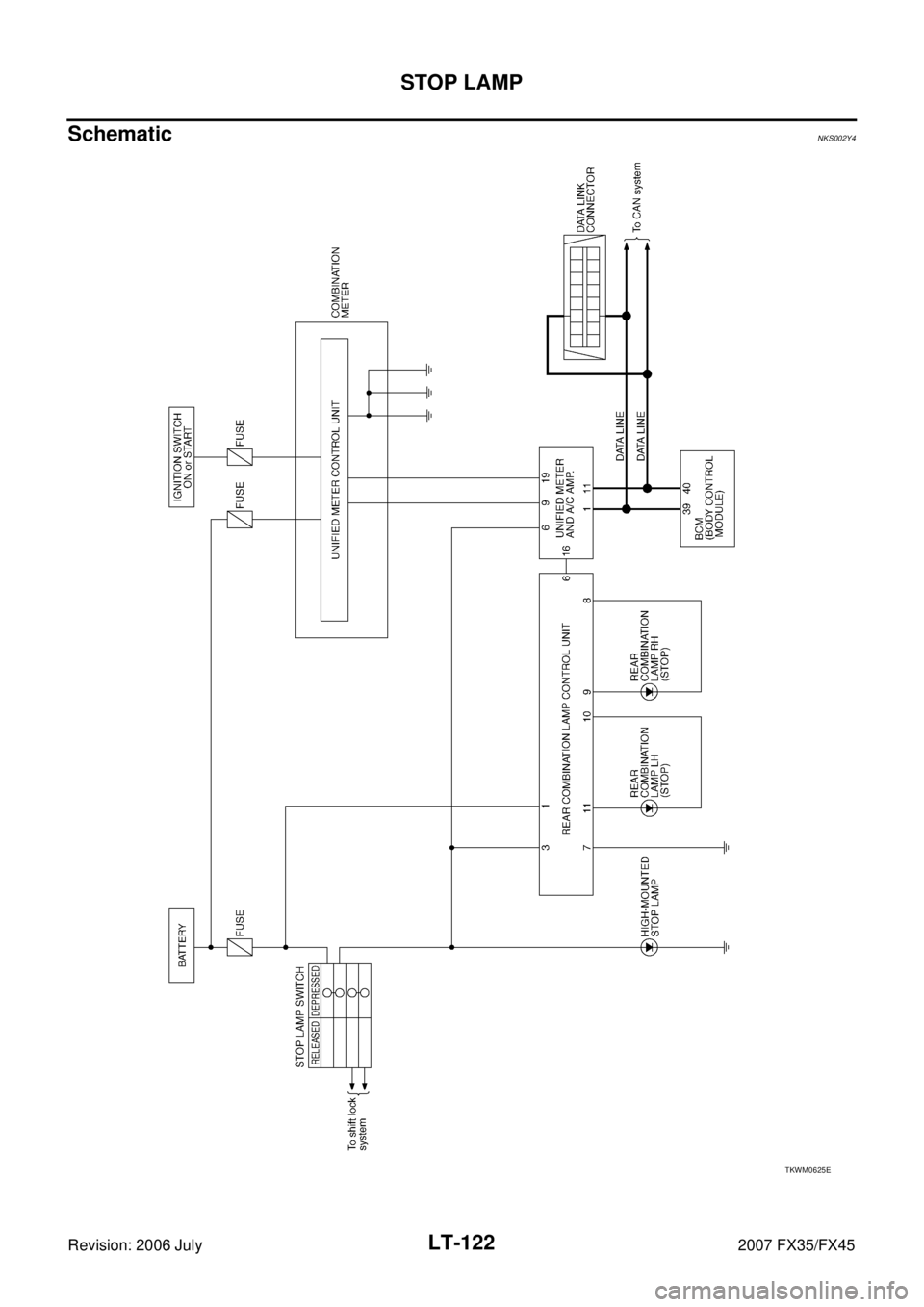

SchematicNKS002Y4
TKWM0625E

STOP LAMP LT-123
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

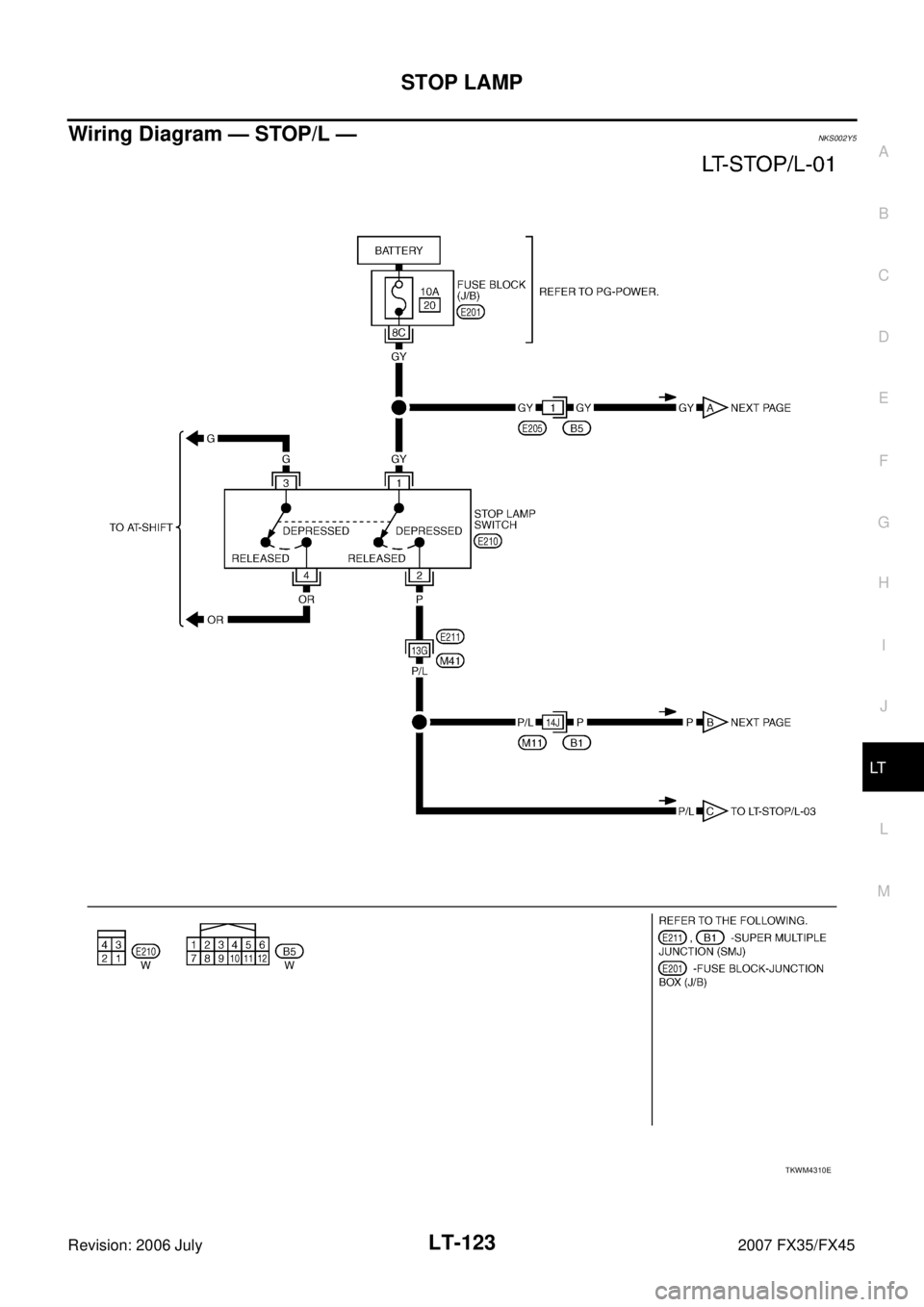

Wiring Diagram — STOP/L —NKS002Y5
TKWM4310E

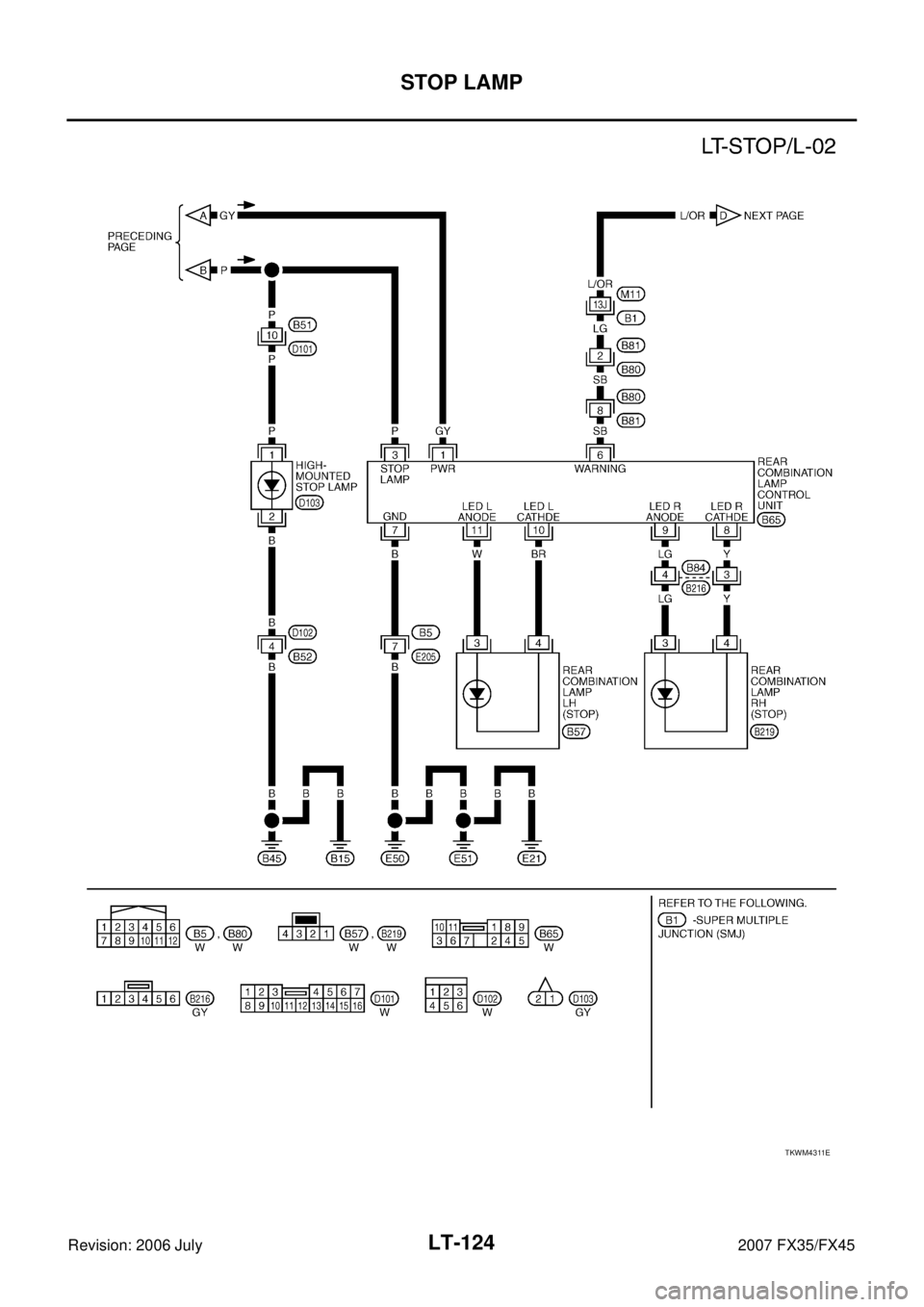

LT-124
STOP LAMP
Revision: 2006 July 2007 FX35/FX45
TKWM4311E
