3. CHECK POWER SUPPLY CIRCUIT (IGN)
1. Turn ignition switch ON.
2. Make sure voltage between BCM harness connector M3 and ground.
OK or NG
OK >> GO TO 4.
NG >> Check BCM power supply circuit for open or short.
4. CHECK GROUND CIRCUIT

Check continuity between BCM harness connector M4 and
ground.
OK or NG
OK >> Replace BCM. Refer to BCS-14, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace BCM ground circuit.
Low Tire Pressure Warning Lamp Blinks When Ignition Switch Is Turned OnNES000H7
NOTE:
If warning lamp blink below, the system is normal.
Blink Mode A

This mode shows transmitter status is OFF-mode.
Perform transmitter wake up operation. Refer to WT-22, "
Trans-
mitter Wake Up Operation" .
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect BCM harness connector M3.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
Terminal Voltage
(+) (–)
38 Ground 12V
SEIA0436E
Terminal Continuity
(+) (–)
49, 52 Ground Yes
SEIA0610E
SEIA0347E

WT-38
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 July 2007 FX35/FX45
2. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT

Check continuity between BCM harness connector M3 and
ground.
OK or NG
OK >> Replace BCM. Refer to BCS-14, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace harness connector.
Run-Flat Tire Warning Lamp Stays On When Ignition Switch is Turned OnNES000L0
DIAGNOSTIC PROCEDURE
1. CHECK ALL TIRE PRESSURES

Check all tire pressures. Refer to WT-41, "Tire" .
OK or NG
OK >> Check combination meter. Refer to DI-5, "COMBINATION METERS" .
NG >> Adjust tire pressure to specified value or change the tires.
Turn Signal Lamp Blinks When Ignition Switch Is Turned OnNES000H8
DIAGNOSTIC PROCEDURE
1. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT

Check continuity between BCM harness connector M3 and
ground.
OK or NG
OK >> Check turn signal lamp operation. Refer to LT- 9 0 , "Sys-
tem Description" .
NG >> Repair or replace harness connector.
ID Registration Can Not Be CompletedNES000H9
DIAGNOSTIC PROCEDURE
1. ID REGISTRATION (ALL)

Perform ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> INSPECTION END
NO >> GO TO WT-33, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
Terminal
Continuity
(+) (–)
15 Ground No
SEIA0438E
Terminal Continuity
(+) (–)
15 Ground No
SEIA0438E

REMOVAL AND INSTALLATION WT-39
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
REMOVAL AND INSTALLATIONPFP:00000
TransmitterNES000HA
REMOVAL

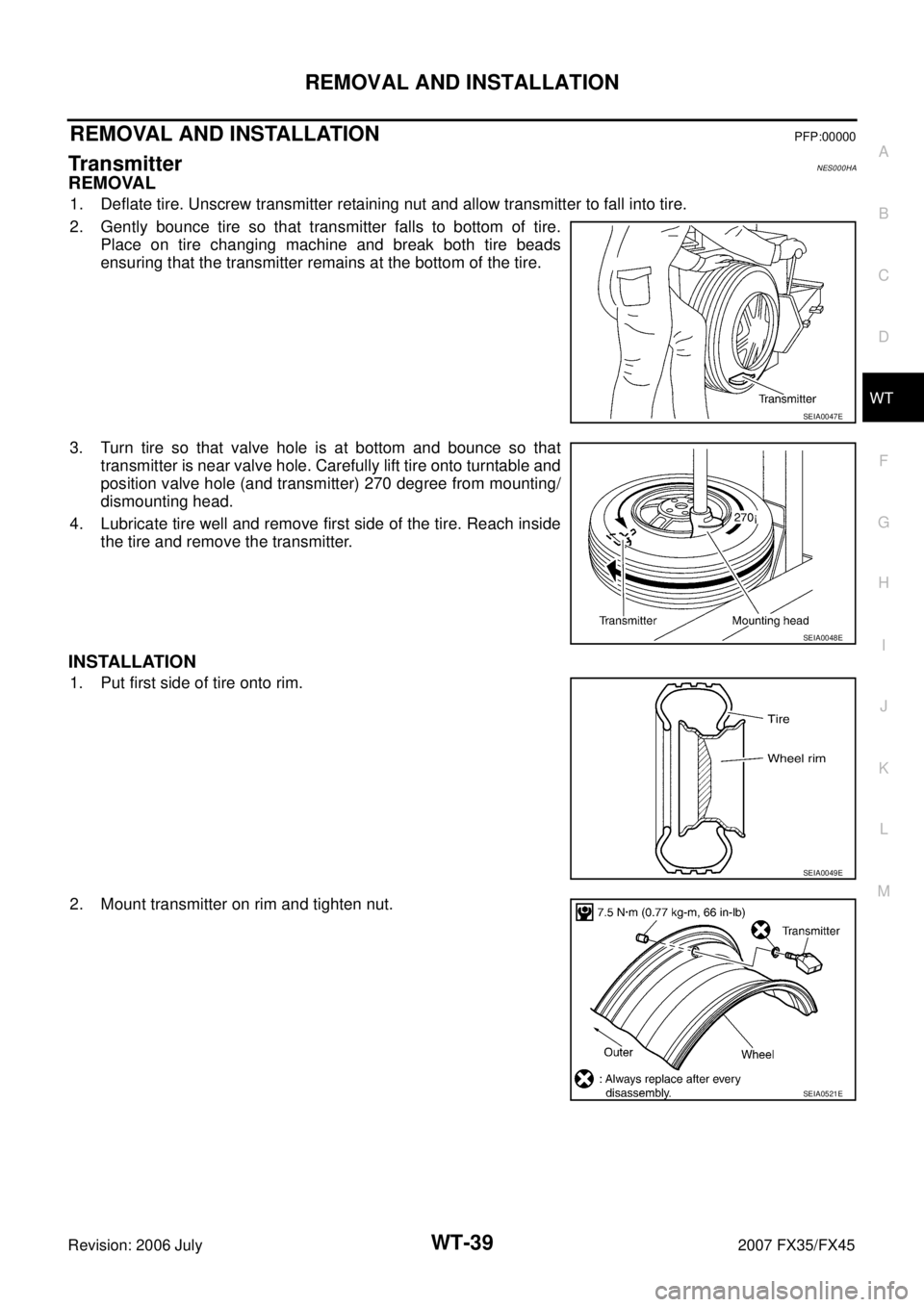

1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
2. Gently bounce tire so that transmitter falls to bottom of tire. Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.
3. Turn tire so that valve hole is at bottom and bounce so that transmitter is near valve hole. Carefully lift tire onto turntable and
position valve hole (and transmitter) 270 degree from mounting/
dismounting head.
4. Lubricate tire well and remove first side of the tire. Reach inside the tire and remove the transmitter.
INSTALLATION
1. Put first side of tire onto rim.
2. Mount transmitter on rim and tighten nut.
SEIA0047E
SEIA0048E
SEIA0049E
SEIA0521E

WT-40
REMOVAL AND INSTALLATION
Revision: 2006 July 2007 FX35/FX45
3. Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degree from mounting head when second side of tire is
fitted.
NOTE:
Do not touch transmitter at mounting head.
4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
5. Inflate tire and fit to appropriate wheel position.
SEIA0048E

SERVICE DATA AND SPECIFICATIONS (SDS) WT-41
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Road WheelNES000HB
TireNES000HC
Unit: kPa (kg/cm2 , psi)
Kind of wheel Aluminum Steel (for emergency use)
Maximum radial runout limit Lateral deflection Less than 0.3 mm (0.012 in) Less than 1.5 mm (0.059 in)
Vertical deflection Less than 0.3 mm (0.012 in) Less than 1.5 mm (0.059 in)
Maximum allowable unbalance Dynamic (At rim flange) Less than 5.0 g (0.2 oz) (one side) —
Static (At rim flange) Less than 20 g (0.7 oz) —
Tire size Air pressure
Front Rear
P265/60R18 109V 220 (2.2, 32) 220 (2.2, 32)
P265/50R20 106V 220 (2.2, 32) 220 (2.2, 32)
T175/90D18 110M 420 (4.2, 60) 420 (4.2, 60)

WT-42
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
