to front wiper relay, located in IPDM E/R

to front wiper high relay, located in IPDM E/R and

to CPU located in IPDM E/R,

through 10 A fuse (No. 84, located in IPDM E/R)

through IPDM E/R terminal 44

to combination switch terminal 14.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85,

to IPDM E/R terminals 38 and 60

through grounds E21, E50 and E51,

to combination switch terminal 12

through grounds M35, M45 and M85.
LOW SPEED WIPER OPERATION
When wiper switch is in LOW position, BCM detects low speed wiper ON signal by BCM wiper switch reading
function.
BCM sends front wiper request signal (LO) through CAN communication

from BCM terminals 39 and 40

to IPDM E/R terminals 48 and 49.
When IPDM E/R receives front wiper request signal (LO), it turns ON front wiper relay located in IPDM E/R,
power is supplied

through front wiper relay

through front wiper high relay

through IPDM E/R terminal 21

to front wiper motor terminal 1.
Ground is supplied

to front wiper motor terminal 2

through grounds E21, E50 and E51.
With power and ground supplied, the front wiper motor operates at low speed.
HIGH SPEED WIPER OPERATION
When wiper switch is in HI position, BCM detects high speed wiper ON signal by BCM wiper switch reading
function.
BCM sends front wiper request signal (HI) through CAN communication

from BCM terminals 39 and 40

to IPDM E/R terminals 48 and 49.
When IPDM E/R receives front wiper request signal (HI), it turns ON front wiper relay (located in IPDM E/R),
power is supplied

through front wiper relay

through front wiper high relay

through IPDM E/R terminal 31

to front wiper motor terminal 4.
Ground is supplied

to front wiper motor terminal 2

through grounds E21, E50 and E51.
With power and ground supplied, the front wiper motor operates at high speed.
INTERMITTENT OPERATION
Front wiper intermittent operation delay interval is determined from a combination of 3 switches (intermittent
operation dial position 1, 2, and 3) and vehicle speed signal.
Speed dependent wiper controlled mode can be changed by the function setting of CONSULT-ll or display.
During each intermittent operation delay interval, BCM sends front wiper request signal to IPDM E/R.

WW-6
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
Wiper Dial Position Setting
Example: For wiper intermittent dial position 1
Using combination switch reading function, BCM detects ON/OFF status of INT VOLUME 1, 2, and 3.
When combination switch status is as listed below, BCM determines that it is wiper intermittent dial position 1.

INT VOLUME 1: ON (Continuity exists between combination switch output 3 and input 1.)

INT VOLUME 2: ON (Continuity exists between combination switch output 5 and input 1.)

INT VOLUME 3: ON (Continuity exists between combination switch output 4 and input 2.)
BCM determines front wiper intermittent operation delay interval from wiper intermittent dial position 1 and
vehicle speed, and sends wiper request signal (INT) to IPDM E/R.
AUTO STOP OPERATION
With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided

from IPDM E/R terminal 21

to front wiper motor terminal 1, in order to continue wiper motor operation at low speed.
When wiper arms reach base of windshield, front wiper motor terminals 5 and 2 are connected,
and Ground is supplied

to IPDM E/R terminal 32

through front wiper motor terminals 5 and 2

through grounds E21, E50 and E51.
Then the IPDM E/R sends auto stop operation signal to BCM through CAN communication.
When the BCM receives auto-stop operation signal, BCM sends wiper stop signal to IPDM E/R through CAN
communication.
IPDM E/R stops wiper motor. Wiper motor will then stop wiper arms at the STOP position.
WASHER OPERATION
When wiper switch is in front wiper washer position with ignition switch on, BCM detects front wiper switch is
on the washer position by BCM wiper switch reading function (Refer to WW-8, "
COMBINATION SWITCH
READING FUNCTION" ), combination switch (wiper switch) ground is supplied

to combination switch terminal 13

through front and rear washer pump terminal 1

to front and rear washer pump terminal 2

through combination switch terminal 11

to combination switch terminal 12

through grounds M35, M45 and M85.
With ground supplied, front and rear washer pump is operated.
When BCM detects that front and rear washer pump has operated for 0.4 seconds or linger, BCM operates
front wiper motor for low speed.
When BCM detects washer switch is OFF, low speed operation cycles approximately 2 times and stops.
MIST OPERATION
When wiper switch is turned to MIST position, wiper low speed operation cycles once and then stops.
For additional information about wiper operation under this condition, Refer to WW-5, "
LOW SPEED WIPER
OPERATION" .
Wiper intermittent dial position Intermittent operation
interval Combination switch
INT VOLUME 1 INT VOLUME 2 INT VOLUME 3
1 Short
↑
↓
Long ON ON ON
2ONONOFF
3ONOFFOFF
4 OFF OFF OFF
5OFFOFFON
6 OFF ON ON
7 OFF ON OFF

FRONT WIPER AND WASHER SYSTEM WW-7
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
If switch is held in MIST position, low speed operation continues.
FAIL-SAFE FUNCTION
If an abnormality occurs in CAN communications, IPDM E/R holds the condition just before fail-safe status is
initiated until ignition switch is turned OFF. (If wipers were operating in LO just before the initiation of fail-safe
status, they continue to operate in LO until ignition switch is turned OFF.)

WW-8
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
COMBINATION SWITCH READING FUNCTION
Description

BCM reads combination switch (wiper) status, and controls related systems such as head lamps and wip-
ers, according to the results.

BCM reads information of a maximum of 20 switches by combining five output terminals (OUTPUT 1-5)
and five input terminals (INPUT 1-5).
Operation Description

BCM activates transistors of output terminals (OUTPUT 1-5) periodically and, and allows current to flow in
turn.

If any (1 or more) switches are turned ON, circuit of output terminals (OUTPUT 1-5) and input terminals
(INPUT 1-5) becomes active.

At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When volt-
age of input terminals (INPUT 1-5) corresponding to that switch changes, interface in BCM detects volt-
age change, and BCM determines that switch is ON.
BCM - Operation Table of Combination Switches
BCM reads operation status of combination switch using combinations shown in table below.
PKID0853E
SKIA4959E

FRONT WIPER AND WASHER SYSTEM WW-9
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
Sample Operation: (When Wiper Switch Turned to LOW Position)

When wiper switch is turned to LOW position, front wiper LOW contact in combination switch turns ON. At
this time if OUTPUT 1 transistor is activated, BCM detects that voltage changes in INPUT 3.

When BCM detects that voltage changes in INPUT 3 while OUTPUT 1 transistor is ON, it judges that front
wiper switch is in LOW position. Then BCM sends front wiper request signal (LO) to IPDM E/R using CAN
communication.

If BCM detects that voltage changes in INPUT 3 when OUTPUT 1 transistor is activated again, it recog-
nizes that wiper switch is still in LOW position.
NOTE:
Each OUTPUT terminal transistor is activated at 10 ms intervals. Therefore after switch is turned ON, electri-
cal loads are activated with time delay. But this time delay is so short that it cannot be detected by human
senses.
PKID0855E

WW-10
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
Operation Mode
Combination switch reading function has operation modes shown below.
1. Normal status
–When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.
2. Sleep status
–When BCM is in sleep status, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low power
mode. Mean while OUTPUT 2, 3, and 4 send out ON signal every 60 ms, and accept input from lighting
switch system.
CAN Communication System DescriptionNKS00328
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-board multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS00329
Refer to LAN-49, "CAN System Specification Chart" .
PKIC4919E

FRONT WIPER AND WASHER SYSTEM WW-11
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

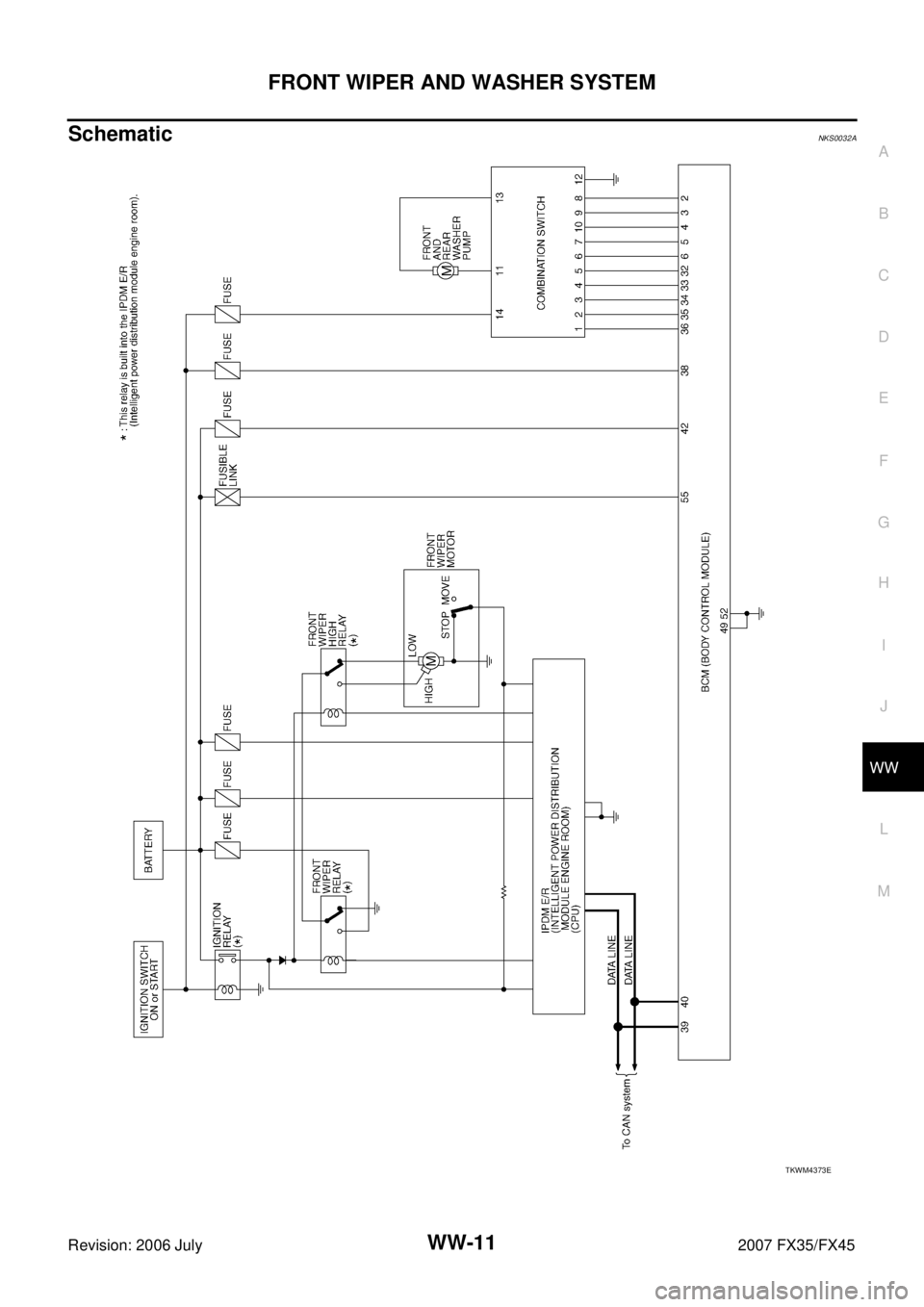

SchematicNKS0032A
TKWM4373E

WW-12
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45

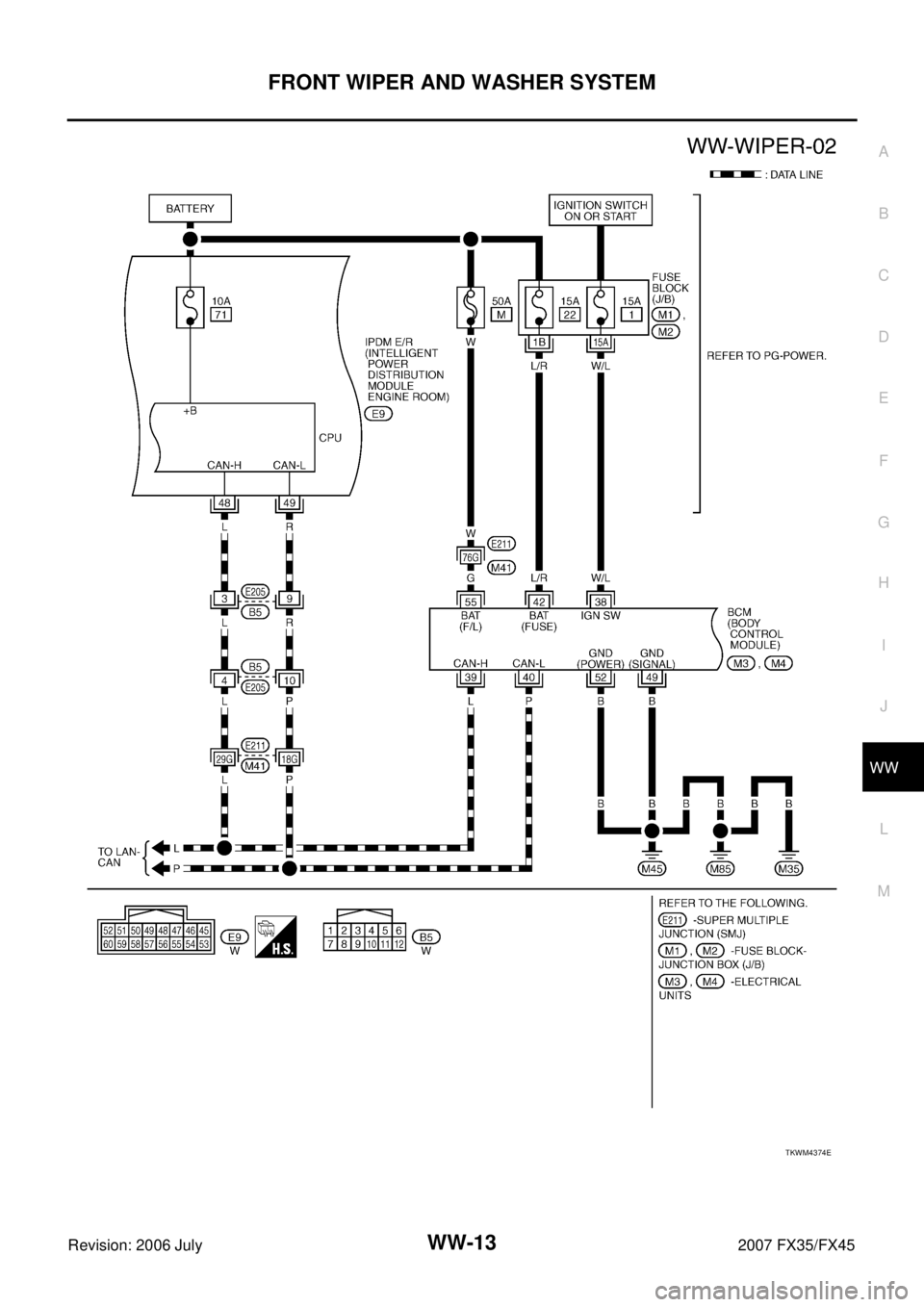

Wiring Diagram — WIPER —NKS0032B
TKWM0663E

FRONT WIPER AND WASHER SYSTEM WW-13
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

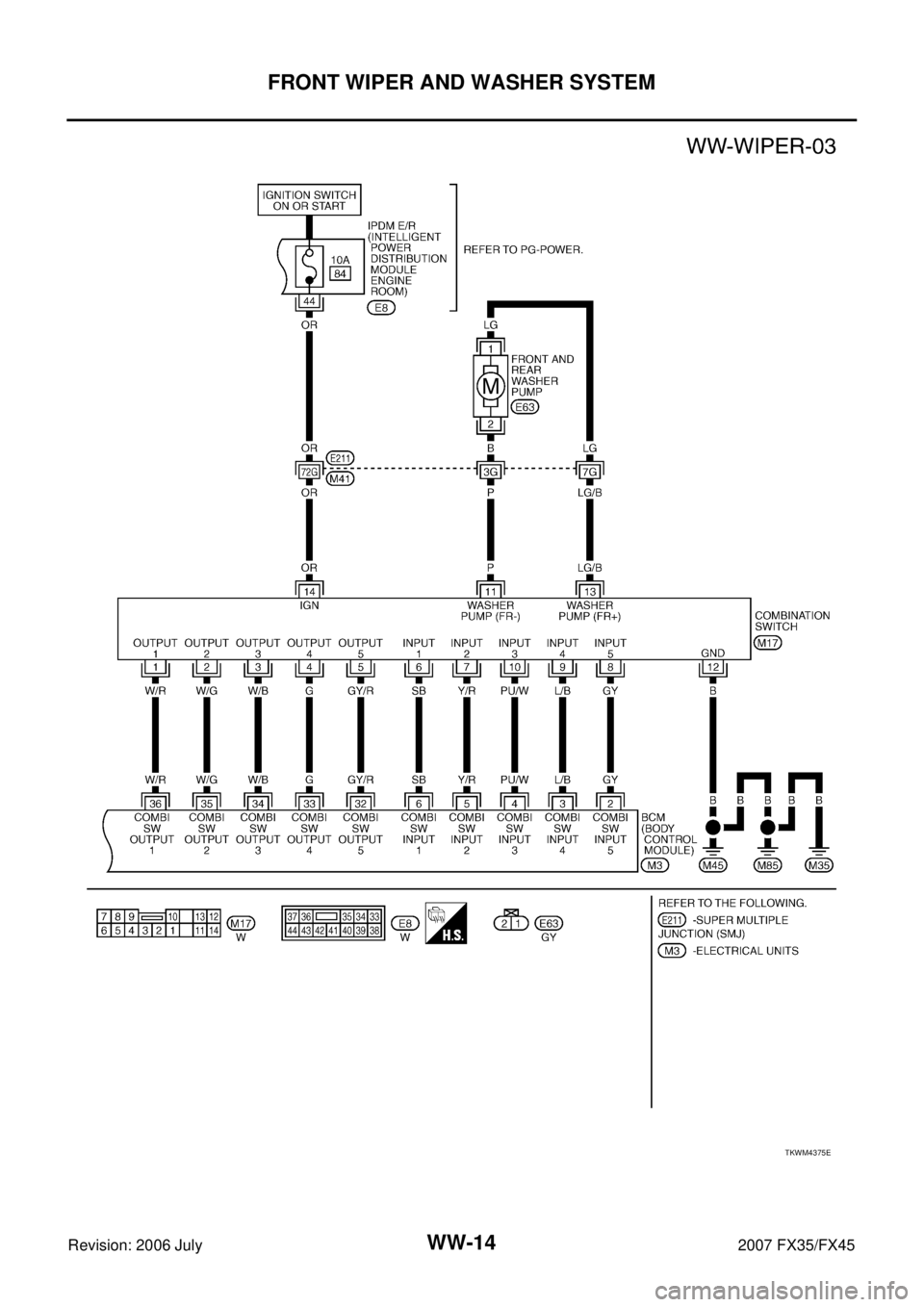

TKWM4374E

WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
TKWM4375E
