INFINITI FX35 2007 Service Manual

TROUBLE DIAGNOSES WT-27
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “DATA MONITOR”.
3. Select from “SELECT MONITOR ITEM”, screen of data monitor mode is displayed. NOTE:
When malfunction is detected, CONSULT-II performs REAL-TIME DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.
Display item List
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-II.
ACTIVE TEST MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”, Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST”.
3. Select from “SELECT TEST ITEM ”, screen of active test mode is displayed.
Test Item

Flasher

Horn

Warning lamp

ID regist warning

Flat tire warning
MONITOR CONDITION SPECIFICATION
VEHICLE SPEED Drive vehicle. Vehicle speed (km/h or MPH)
AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL

Drive vehicle for a few minutes.
Tire pressure (kPa or Psi)
or

Ignition switch ON and activation tool
is transmitting activation signals.
ID REGST FL 1
ID REGST FR 1
ID REGST RR 1
ID REGST RL 1 Ignition switch ON Registration ID: DONE
No registration ID: YET
WARNING LAMP Low tire pressure warning lamp on: ON
Low tire pressure warning lamp off: OFF
BUZZER Buzzer in combination meter on: ON
Buzzer in combination meter off: OFF
SEIA0585E

WT-28
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
Flasher
Touch “LH” and “RH” on the display, and then check to make sure
that each turn signal lamp turns on.
Horn
Touch “LH” and “RH” on the display, and then check to make sure
that the horn sounds.
Warning Lamp
Touch “LH” and “RH” on the display, and then check to make sure
that the warning lamp turns on.
ID Regist Warning
Touch “LH” and “RH” on the display, and then check to make sure
that the buzzer sounds or the warning lamp turns on.
SEIA0586E
SEIA0587E
SEIA0588E
SEIA0589E

TROUBLE DIAGNOSES WT-29
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
Flat Tire Warning
Touch “LH” and “RH” on the display, and then check to make sure
that the buzzer sounds or the warning lamp turns on.
SEIA0590E

WT-30
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
How to Perform Trouble Diagnosis for Quick and Accurate RepairNES000GY
INTRODUCTION

Before troubleshooting, verify customer complaints.

If a vehicle malfunction is difficult to reproduce, harnesses, harness connectors or terminals may be mal-
functioning. Hold and shake these parts to make sure they are securely connected.

When using a circuit tester to measure voltage or resistance of each circuit, be careful not to damage or
deform connector terminals.

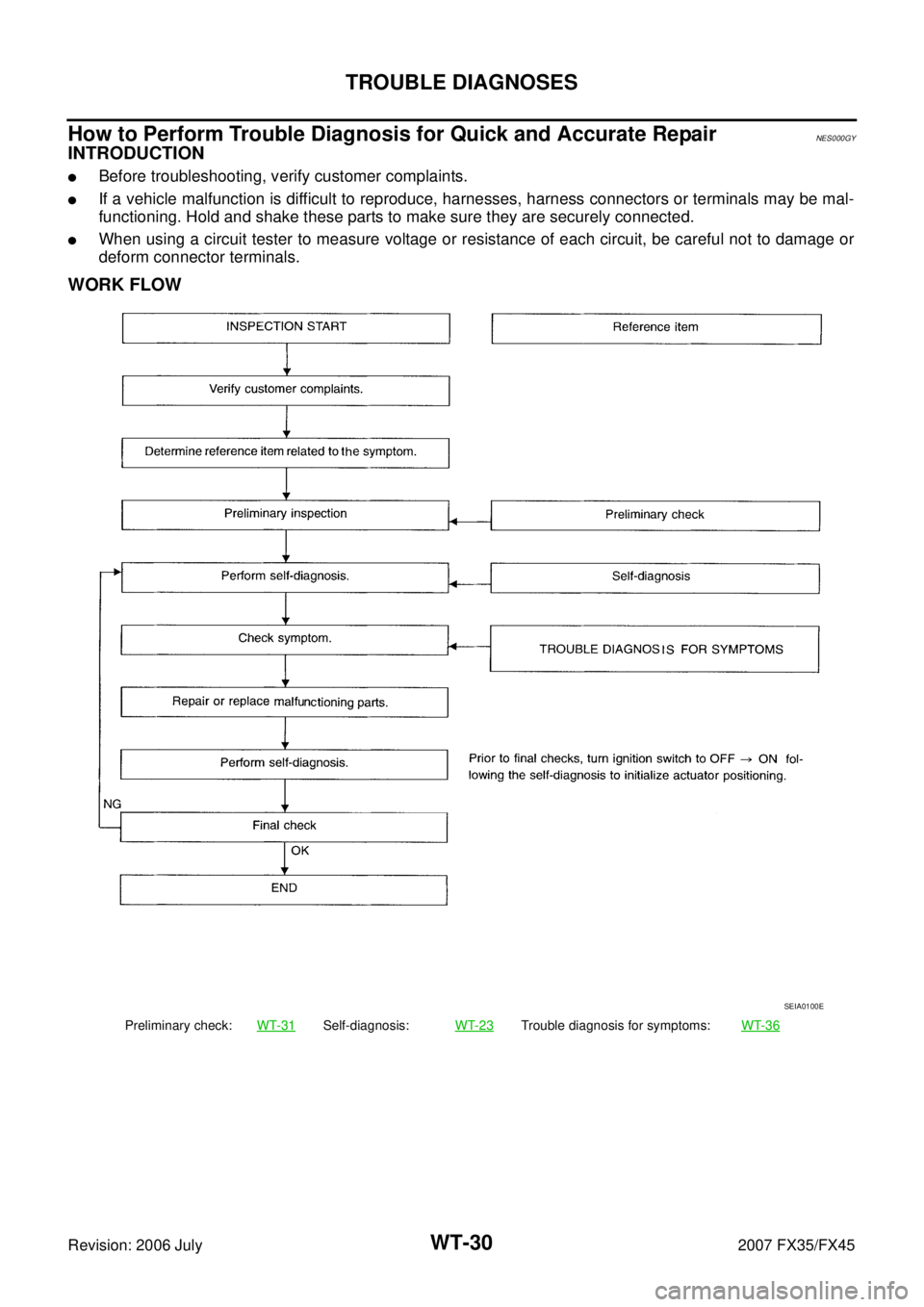

WORK FLOW
Preliminary check: WT-31Self-diagnosis:WT-23Trouble diagnosis for symptoms: WT-36
SEIA0100E

TROUBLE DIAGNOSES WT-31
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
Preliminary CheckNES000GZ
BASIC INSPECTION
1. CHECK ALL TIRE PRESSURES

Check all tire pressures. Refer to WT-41, "Tire" .
OK or NG
OK >> GO TO 2.
NG >> Adjust tire pressure to specified value.
2. CHECK LOW TIRE PRESSURE WARNING LAMP ACTIVATION
1. Check low tire pressure warning lamp activation.
2. Does low tire pressure warning lamp activate for 1 second when ignition switch is turned “ON”?
Does warning lamp activate?
YES >> GO TO 3.
NO >> Check fuse and combination meter.
3. CHECK CONNECTOR
1. Disconnect BCM harness connectors M3 and M4.
2. Check terminals for damage or loose connection.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TRANSMITTER TOOL

Check activation tool battery.
OK or NG
OK >> Perform self-diagnosis.
NG >> Replace activation tool battery.

WT-32
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
Malfunction Code/Symptom ChartNES000H0
Code/Symptom Malfunction part Reference
page
06
07
08
09 Front-left tire pressure drops to 86 kPa (0.88 kg/cm
2 , 12.5 psi) or less.
Front-right tire pressure drops to 86 kPa (0.88 kg/cm2 , 12.5 psi) or less.
Rear-right tire pressure drops to 86 kPa (0.88 kg/cm2 , 12.5 psi) or less.
Rear-left tire pressure drops to 86 kPa (0.88 kg/cm2 , 12.5 psi) or less. —
15
16
17
18 Front-left tire pressure drops to 173 kPa (1.8 kg/cm
2 , 25 psi) or less.
Front-right tire pressure drops to 173 kPa (1.8 kg/cm2 , 25 psi) or less.
Rear-right tire pressure drops to 173 kPa (1.8 kg/cm2 , 25 psi) or less.
Rear-left tire pressure drops to 173 kPa (1.8 kg/cm2 , 25 psi) or less. —
21
22
23
24 Transmitter no data (front - left)
Transmitter no data (front - right)
Transmitter no data (rear - right)
Transmitter no data (rear - left) WT-33
31
32
33
34 Transmitter checksum error (front - left)
Transmitter checksum error (front - right)
Transmitter checksum error (rear - right)
Transmitter checksum error (rear - left) WT-33
35
36
37
38 Transmitter pressure data error (front - left)
Transmitter pressure data error (front - right)
Transmitter pressure data error (rear - right)
Transmitter pressure data error (rear - left) WT-34
41
42
43
44 Transmitter function code error (front - left)
Transmitter function code error (front - right)
Transmitter function code error (rear - right)
Transmitter function code error (rear - left) WT-33
45
46
47
48 Transmitter battery voltage low (front - left)
Transmitter battery voltage low (front - right)
Transmitter battery voltage low (rear - right)
Transmitter battery voltage low (rear - left) WT-33
52 Vehicle speed signal
WT-35
Low tire pressure warning lamp does not
come on when ignition switch is turned
on. Fuse or combination meter
BCM connector or circuit
BCM WT-36
Low tire pressure warning lamp stays on
when ignition switch is turned on. Combination meter
BCM connector or circuit
BCM WT-36
Low tire pressure warning lamp blinks
when ignition switch is turned on. BCM connector or circuit
BCM
Transmitter's mode off
ID registration not yet WT-37
Run-flat tire warning lamp stays on when
ignition switch is turned on. Combination meter
Tire pressure DI-5
Turn signal lamp blinks when ignition
switch is turned on. BCM connector or circuit
BCM WT-38
ID registration can not be operated. Transmitter
Remote keyless entry receiver connector or circuit
Remote keyless entry receiver
BCM connector or circuit
BCM WT-38

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS WT-33
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Transmitter or Control Unit (BCM)NES000H1
MALFUNCTION CODE NO. 21, 22, 23 OR 24
1. CHECK CONTROL UNIT

Drive for several minutes. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM”.
Are all tire pressures displayed 0 kPa?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR
1. Disconnect remote keyless entry receiver harness connector M98.
2. Check terminals for damage or loose connection.
3. Reconnect harness connector.
OK or NG
OK >> Replace BCM refer to BCS-14, "Removal and Installation of BCM" , then GO TO 3.
NG >> Repair or replace remote keyless entry receiver harness connector.
3. ID REGISTRATION

Perform ID registration of all transmitters.
Is there any tire that ID can not be registered to?
YES >> Replace transmitter of the tire, then GO TO 5.
NO >> GO TO 4.
4. VEHICLE DRIVING

Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO 5.
5. ID REGISTRATION AND VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO the inspection applicable to DTC.
Transmitter - 1NES000H2
MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes.
>> GO TO 2.

WT-34
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
2. REPLACE TRANSMITTER
1. Check low tire pressure warning condition again, replace malfunctioning transmitter.
2. Perform ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> GO TO 3.
NO >> GO TO the inspection 1. Refer to WT-33, "
Transmitter or Control Unit (BCM)" .
3. VEHICLE DRIVING

Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” displayed tire pressure as normal without any warning lamp?
YES >> INSPECTION END.
NO >> Replace malfunctioning transmitter, and perform “Step 3” again.
Transmitter - 2NES000H3
MALFUNCTION CODE NO. 35, 36, 37 OR 38
1. CHECK ALL TIRE PRESSURES

Check all tire pressures. Refer to WT-41, "Tire" .
Are there any tires whose pressure is
“64 psi” or more?
YES >> Adjust tire pressure to specified value.
NO >> GO TO 2.
2. VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
become 17 km/h (11 MPH).
>> Replace transmitter with new one if “DATA MONITOR ITEM” displayed 64 psi or more. Then GO TO 3.
3. ID REGISTRATION AND VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO the inspection applicable to DTC.

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS WT-35
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
Vehicle Speed SignalNES000H4
MALFUNCTION CODE NO. 52
1. CHECK SELF-DIAGNOSIS RESULTS
1. Perform “CONSULT-II Start Procedure”, Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
3. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-49, "CAN System Specification Chart" .
NO >> No malfunction. Check combination meter refer to DI-5, "
System Description" .

WT-36
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is
Tu r n e d O n
NES000H5
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
3. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-49, "CAN System Specification Chart" .
NO >> No malfunction. GO TO 2.
2. CHECK COMBINATION METER

Check combination meter function.
OK or NG
OK >> GO TO 3.
NG >> Check combination meter. Refer to DI-5, "
System Description" .
3. CHECK LOW TIRE PRESSURE WARNING LAMP

Disconnect BCM harness connectors M3 and M4.
Does the warning lamp activate?
YES >> Replace BCM. Refer to BCS-14, "Removal and Installation of BCM" .
NO >> Check combination meter and repair or replace.
Low Tire Pressure Warning Lamp Stays On When Ignition Switch Is Turned OnNES000H6
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect BCM harness connectors M3 and M4.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2. CHECK POWER SUPPLY CIRCUIT (BATTERY)
Make sure voltage between BCM harness connector M4 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
Te r m i n a l Voltage
(+) (–)
42, 55 Ground 12V
SEIA0435E
