VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1191
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3.CHECK VACUUM EXISTENCE
Without CONSULT-III
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve (1) harness connector.
- Vacuum tank (2)
3. Start engine and let it idle.
4. Apply 12V of direct current bet ween VIAS control solenoid valve
terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
4.CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-684, "
Vacuum Hose Drawing".
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
5.CHECK VACUUM TANK
Refer to EC-1193, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6.CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
PBIB3236E
Condition Vacuum
12V direct current supply Should exist
No supply Should not exist
PBIB0845E
SEF109L
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1192
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
2. Disconnect VIAS control sol
enoid valve (1) harness connector.
- Vacuum tank (2)
3. Turn ignition switch ON.
4. Check voltage between VIAS control solenoid valve terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E211, M41
 Harness connectors M82, F102
 IPDM E/R connector E7
 10A fuse
 Harness continuity between IPDM E/R and VIAS control solenoid valve
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK VIAS CONTROL SOLENOID VALVE OUTP UT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and VIAS control solenoid valve terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-1193, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoid valve.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
PBIB3236E
Voltage: Battery voltage
PBIB0173E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1193
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component InspectionINFOID:0000000001327086
VIAS CONTROL SOLENOID VALVE
With CONSULT-III
1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VIAS SOL VALVE”
in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second.
Without CONSULT-III
Check air passage continuity and operation delay time under the fol-
lowing conditions.
Operation takes less than 1 second.
VACUUM TANK
1. Disconnect vacuum hose connected to vacuum tank.
2. Connect a vacuum pump to the port A of vacuum tank.
3. Apply vacuum and make sure that vacuum exists at the port B.
Removal and InstallationINFOID:0000000001327087
VIAS CONTROL SOLENOID VALVE
Refer to EM-175.
Condition
VIAS SOL VALVE Air passage continuity
between A and B Air passage continuity
between A and C
ON Yes No
OFF No Yes
JMBIA0180ZZ
Condition Air passage continuity
between A and B Air passage continuity
between A and C
12V direct current supply
between terminals 1 and 2 Ye s N o
No supply No Yes
MEC488B
PBIB0846E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1194
< SERVICE INFORMATION >[VK45DE]
MIL AND DATA LINK CONNECTOR
MIL AND DATA LINK CONNECTOR
Wiring DiagramINFOID:0000000001327088
TBWM1367E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

MIL AND DATA LINK CONNECTOREC-1195
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

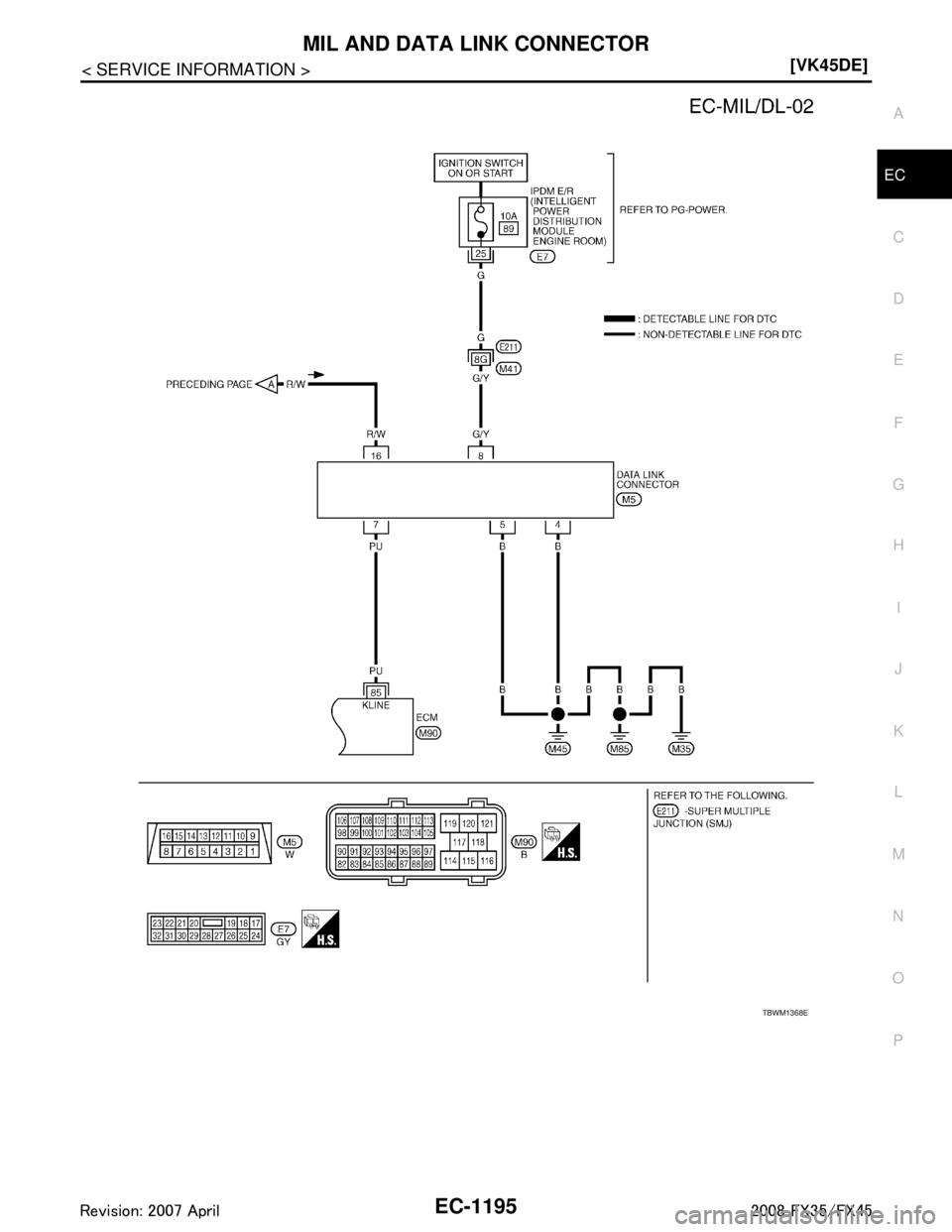

TBWM1368E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1196
< SERVICE INFORMATION >[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Fuel PressureINFOID:0000000001327089
Idle Speed and Ignition TimingINFOID:0000000001327090
*: Under the following conditions:
 Air conditioner switch: OFF
 Electric load: OFF (Lights, heater fan & rear window defogger)
 Steering wheel: Kept in straight-ahead position
Calculated Load ValueINFOID:0000000001327091
Mass Air Flow SensorINFOID:0000000001327092
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorINFOID:0000000001327093
Engine Coolant Te
mperature SensorINFOID:0000000001327094
Fuel Tank Temperature SensorINFOID:0000000001327095
Fuel pressure at idling kPa (kg/cm2, psi) Approximately 350 (3.57, 51)
Target idle speed No load* (in P or N position) 650
±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 12 ° ± 5 ° BTDC
Condition Calculated load value% (Using CONSULT-III or GST)
At idle 14.0 - 33.0
At 2,500 rpm 12.0 - 25.0
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle 1.0 - 1.3V*
Mass air flow (Using CONSULT-III or GST) 2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C ( °F) Resistance k Ω
25 (77) 1.800 - 2.200
Temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Temperature °C ( °F) Resistance k Ω
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-1197
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Crankshaft Position Sensor (POS)INFOID:0000000001327096
Refer to
EC-910, "Component Inspection".
Camshaft Position Sensor (PHASE)INFOID:0000000001327097
Refer to EC-915, "Component Inspection".
A/F Sensor 1 HeaterINFOID:0000000001327098
Heated Oxygen sensor 2 HeaterINFOID:0000000001327099
Throttle Control MotorINFOID:0000000001327100
Fuel InjectorINFOID:0000000001327101
Fuel PumpINFOID:0000000001327102
Resistance [at 25 °C (77 °F)] 2.3 - 4.3 Ω
Resistance [at 25°C (77 °F)] 5.0 - 7.0 Ω
Resistance [at 25°C (77 °F)] Approximately 1 - 15 Ω
Resistance [at 10 - 60°C (50 - 140 °F)] 13.5 - 17.5 Ω
Resistance [at 25°C (77 °F)] 0.2 - 5.0 Ω
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
