EM-60
< SERVICE INFORMATION >[VQ35DE]
FRONT TIMING CHAIN CASE
 Align notch of front timing chain case with protrusion of oil pan
gasket.
 Apply liquid gasket with the tube presser (commercial service tool) to top surface of oil pan (upper) as shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
c. Install new O-rings on rear timing chain case.
d. Assemble front timing chain case as follows:
i. Fit lower end of front timing chain case tightly onto top face of oil pan (upper). From the fitting point, make entire front timing chain
case contact rear timing chain case completely.
CAUTION:
Be careful that oil pan gasket is in place.
ii. Since front timing chain case is offset for difference of bolt holes, tighten bolts temporarily with holding front timing chain case
from front and top as shown in the figure.
For bolt length and positions, refer to the step e.
iii. Same as the step ii, insert dowel pin with holding front timing chain case from front and top completely.
PBIC1114E
PBIC1099E
PBIC2548E
PBIC1100E
PBIC1115E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-74
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
 Apply liquid gasket on installa
tion position of water pump and cylinder head very completely.
d. Align rear timing chain case and water pump assembly with dowel pins (right and left) on cylinder block and install rear timing chain case.
 Make sure O-rings stay in place during installation to cylinder block and cylinder head.
e. Tighten mounting bolts in numerical order as shown in the fig- ure.
 There are two types mounting bolts. Refer to the following forlocating bolts.
f. After all bolts are tightened, retighten them to the s pecified torque in numerical order shown in the figure.
 If liquid gasket protrudes, wipe it off immediately.
g. After installing rear timing chain case, check the surface height difference between the following parts on the oil pan (upper)
mounting surface.
 If not within the standard, repeat the installation procedure.Bolt length: Bolt position
20 mm (0.79 in) : 1, 2, 3, 6, 7, 8, 9, 10
16 mm (0.63 in) : Except the above
: 12.7 N·m (1.3 kg-m, 9 ft-lb)
Standard Rear timing chain case to cylinder block:
–0.24 to 0.14 mm (–0.009 to 0.006 in)
PBIC2680E
SEM735G
SEM943G
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CYLINDER BLOCKEM-141
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
 Check with a connecting rod aligner.
 If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER
 Install connecting rod bearing cap without installing connecting rod
bearing, and tightening connecting rod bolts to the specified
torque. Refer to EM-123, "
Disassembly and Assembly" for the
tightening procedure.
 Measure the inner diameter of connecting rod big end with an inside micrometer.
 If out of the standard, replace connecting rod assembly.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bush ing Inner Diameter
Measure the inner diameter of connecting rod bushing with an inside
micrometer.
Piston Pin Outer Diameter
Bend:
Limit : 0.15 mm (0.006 in) per 100 mm (3.94 in) length
To r s i o n : Limit : 0.30 mm (0.012 in) per 100 mm (3.94 in) length
PBIC2077E
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC1641E
Standard : 22.000 - 22.012 mm (0.8661 - 0.8666 in)
PBIC0120E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

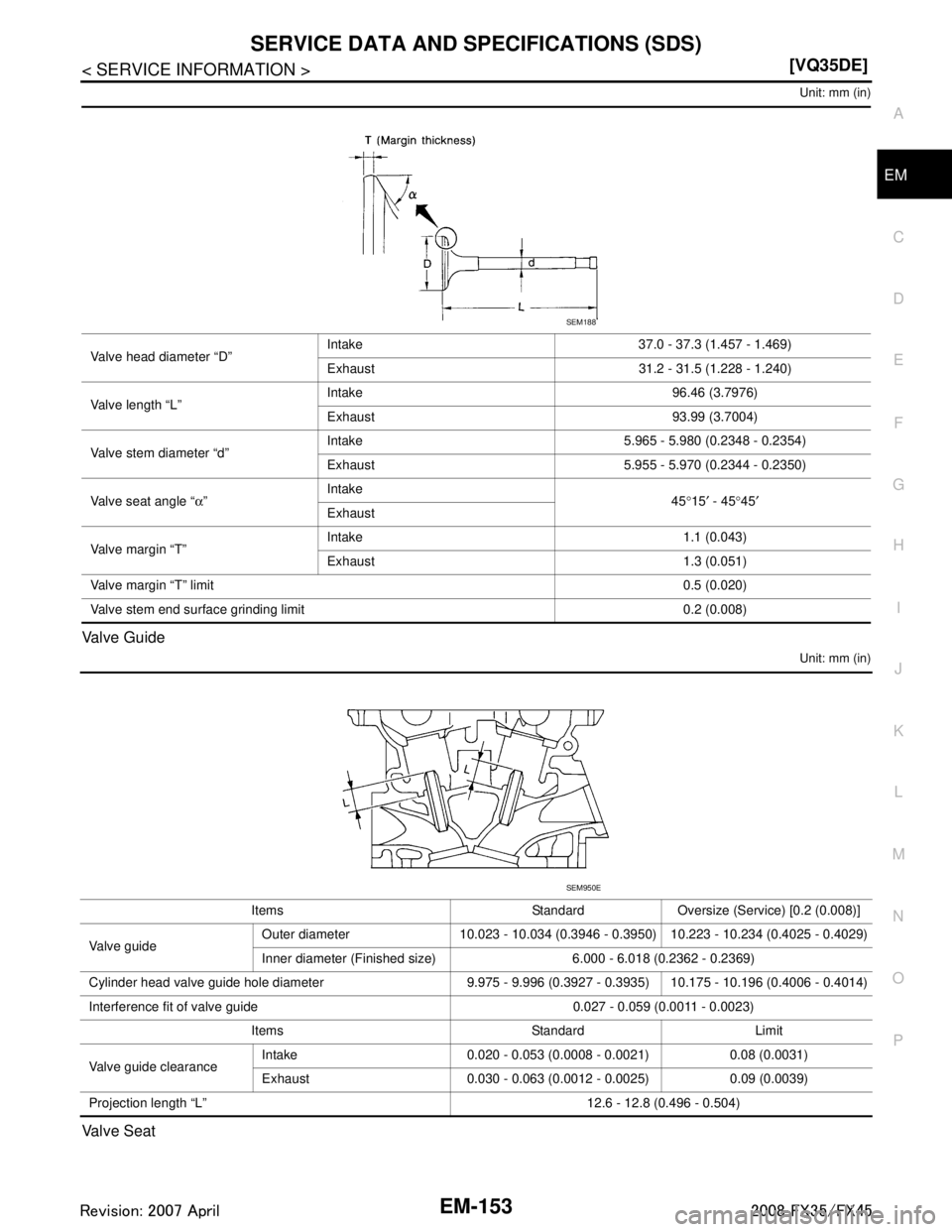

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-153
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Unit: mm (in)
Valve Guide
Unit: mm (in)
Valve Seat
Valve head diameter “D”
Intake 37.0 - 37.3 (1.457 - 1.469)
Exhaust 31.2 - 31.5 (1.228 - 1.240)
Valve length “L” Intake 96.46 (3.7976)
Exhaust 93.99 (3.7004)
Valve stem diameter “d” Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.955 - 5.970 (0.2344 - 0.2350)
Valve seat angle “ α” Intake
45°15 ′ - 45 °45 ′
Exhaust
Valve margin “T” Intake 1.1 (0.043)
Exhaust 1.3 (0.051)
Valve margin “T” limit 0.5 (0.020)
Valve stem end surface grinding limit 0.2 (0.008)
SEM188
Items Standard Oversize (Service) [0.2 (0.008)]
Va l v e g u i d e Outer diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023) Items Standard Limit
Valve guide clearance Intake 0.020 - 0.053 (0.0008 - 0.0021) 0.08 (0.0031)
Exhaust 0.030 - 0.063 (0.0012 - 0.0025) 0.09 (0.0039)
Projection length “L” 12.6 - 12.8 (0.496 - 0.504)
SEM950E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-258
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
 Measure the side clearance of piston ring and piston ring groove
with feeler gauge.
 If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston also.
PISTON RING END GAP
 Make sure that the cylinder bore i nner diameter is within the speci-
fication. Refer to "Cylinder Bore Inner Diameter".
 Lubricate with new engine oil to piston and piston ring, and then insert piston ring until middle of cylinder with piston, and measure
the piston ring end gap with feeler gauge.
 If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings.
CONNECTING ROD BEND AND TORSION
 Check with connecting rod aligner.
 If it exceeds the limit, replace connecting rod assembly. Standard:
Top ring : 0.045 - 0.080 mm (0.0018 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.065 - 0.135 mm (0.0026 - 0.0053 in)
Limit:
Top ring : 0.11 mm (0.0043 in)
2nd ring : 0.1 mm (0.004 in)
SEM024AA
Standard:
Top ring : 0.22 - 0.32 mm (0.0087 - 0.0126 in)
2nd ring : 0.22 - 0.32 mm (0.0087 - 0.0126 in)
Oil ring : 0.20 - 0.50 mm (0.0079 - 0.0197 in)
Limit:
Top ring : 0.56 mm (0.0220 in)
2nd ring : 0.56 mm (0.0220 in)
Oil ring : 0.96 mm (0.0378 in)
PBIC0118E
Bend:Limit : 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
To r s i o n : Limit : 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
PBIC2077E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-269
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CYLINDER HEAD
Unit: mm (in)
Valve Dimensions
Unit: mm (in)
827U 8.27 (0.3256)
828U 8.28 (0.3260)
829U 8.29 (0.3264)
830U 8.30 (0.3268)
831U 8.31 (0.3272)
832U 8.32 (0.3276)
833U 8.33 (0.3280)
834U 8.34 (0.3283)
835U 8.35 (0.3287)
836U 8.36 (0.3291)
837U 8.37 (0.3295)
838U 8.38 (0.3299)
839U 8.39 (0.3303)
840U 8.40 (0.3307)
Identification (stamped
) mark Thickness mm (in)
Items Standard Limit
Surface distortion Less than 0.03 (0.0012) 0.1 (0.004)
PBIC0183E
Items Standard
Valve head diameter “D” Intake 36.0 - 36.3 (1.417 - 1.429) Exhaust 31.2 - 31.5 (1.228 - 1.240)
Valve length “L” Intake 96.57 (3.8020)
Exhaust 94.50 (3.7205)
Valve stem diameter “d” Intake 5.972 - 5.980 (0.2351 - 0.2354)
Exhaust 5.962 - 5.970 (0.2347 - 0.2350)
Valve seat angle “ α” Intake
45°15 ′ - 45 °45 ′
Exhaust
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

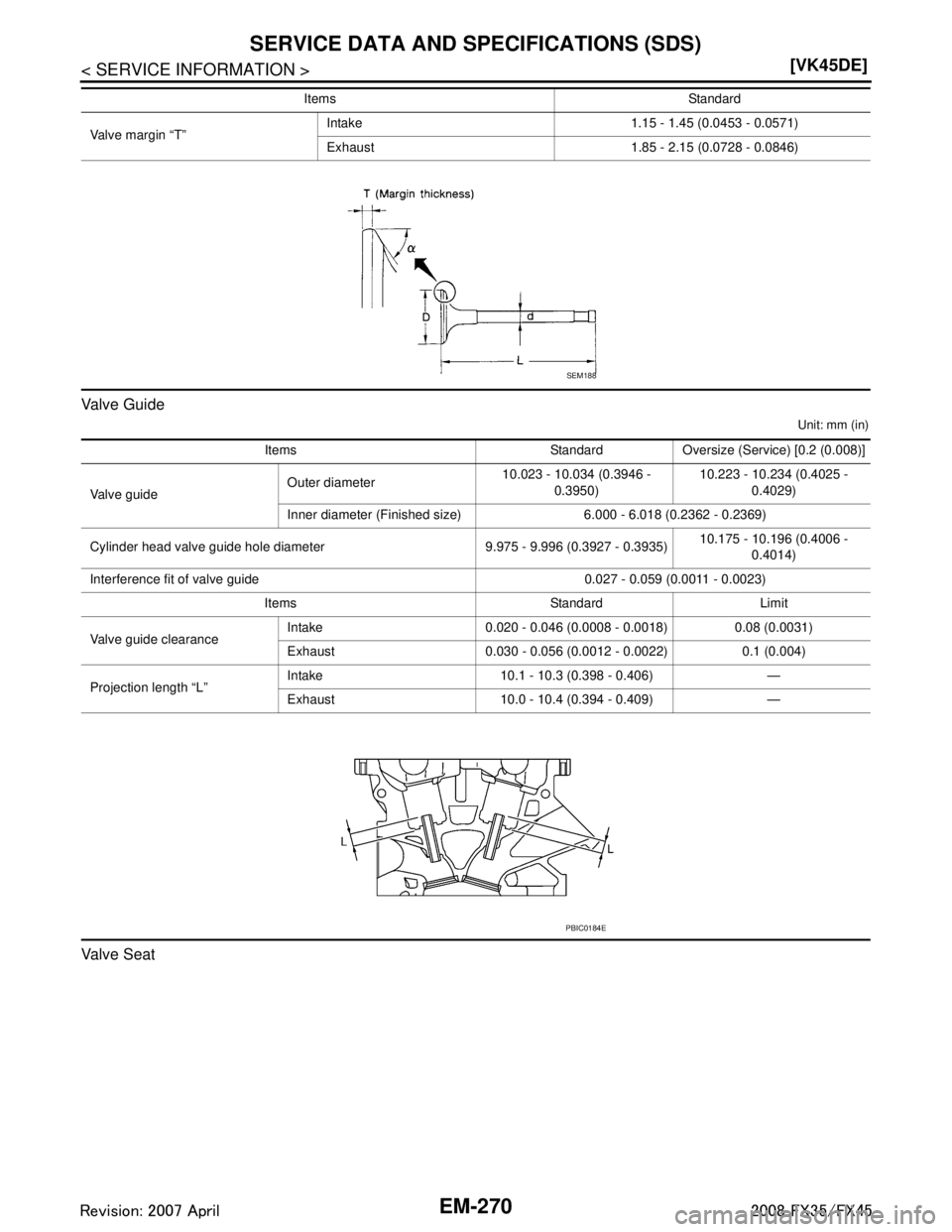

EM-270
< SERVICE INFORMATION >[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Valve Guide
Unit: mm (in)
Va l v e S e a t
Valve margin “T”Intake 1.15 - 1.45 (0.0453 - 0.0571)
Exhaust 1.85 - 2.15 (0.0728 - 0.0846)
Items Standard
SEM188
Items Standard Oversize (Service) [0.2 (0.008)]
Va l v e g u i d e Outer diameter
10.023 - 10.034 (0.3946 -
0.3950) 10.223 - 10.234 (0.4025 -
0.4029)
Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 -
0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023) Items Standard Limit
Valve guide clearance Intake 0.020 - 0.046 (0.0008 - 0.0018) 0.08 (0.0031)
Exhaust 0.030 - 0.056 (0.0012 - 0.0022) 0.1 (0.004)
Projection length “L” Intake 10.1 - 10.3 (0.398 - 0.406) —
Exhaust 10.0 - 10.4 (0.394 - 0.409) —
PBIC0184E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

FRONT DRIVE SHAFTFAX-13
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
FRONT DRIVE SHAFT
On-Vehicle InspectionINFOID:0000000001327515
 Check drive shaft mounting point and joint for looseness and other damage.
 Check boot for cracks and other damage. CAUTION:
Replace entire drive shaft assembly when noi se or vibration occur from drive shaft.
DRIVE SHAFT BOOT REPLACEMENT
1. Remove tires from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
4. Remove wheel sensor harness fr om strut assembly. Refer to BRC-52
.
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock plate. Then remove brake hose from strut assembly. Refer to BR-10
.
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Remove drive shaft from wheel hub and bearing assembly.
8. Using a puller (suitable tool), remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaf t, do not apply an excessive
angle to drive shaft joint. Al so be careful not to excessively
extend slide joint.
9. Remove boot bands, and then remove boot from joint sub-assembly.
10. Screw a drive shaft puller (suitable tool) into joint sub-assembly screw part to a length of 30 mm (1.18 in) or more. Support drive
shaft with one hand and pull out joint sub-assembly with a slid-
ing hammer (suitable tool) from shaft.
CAUTION:
• Align a sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.
 If joint sub-assembly cannot be pulled out, try after
removing drive shaft from vehicle.
11. Remove the circular clip from shaft.
12. Remove boot from shaft.
13. Clean the old grease on joint sub-assembly with paper towels.
SDIA0972J
SDIA0881J
SDIA2489E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

FAX-14
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
14. Apply the specified amount of grease (NISSAN genuine grease
or equivalent) inside joint sub-assembly serration hole until
grease begins to ooze from ball groove and serration hole. After
applying grease, use a shop cloth to wipe off old grease that has
oozed out.
15. Wrap serration on shaft with tape to protect the boot from dam- age. Install new boot and boot bands to shaft.
16. Remove the tape wrapped around the serration on shaft.
17. Position circular clip on groove at the shaft edge. Align both counter axles of the shaft edge and joint sub-assembly. Then,
assemble shaft with circular clip onto joint sub-assembly.
NOTE:
Drive joint inserter (suitable tool) is recommended when install-
ing circular clip.
18. Install joint sub-assembly to shaft using plastic hammer. CAUTION:
Confirm that joint sub-assembly is correctly engaged while
rotating drive shaft.
19. Apply the balance of the spec ified amount of grease (NISSAN
genuine grease or equivalent) into the boot inside from large
diameter side of boot.
20. Install the boot securely into grooves (indicated by *marks) shown in the figure.
CAUTION:
If grease adheres to the boot mounting surface (with *mark)
on the shaft and joint sub- assembly, boot may come off.
Remove all grease from the surface.
21. To prevent from the deformation of the boot, adjust the boot installation length to the specified value shown below (L) by
inserting the flat-bladed screwdriv er into inside of the boot from
the large diameter side of the boot and discharging the inside
air.
SDIA2775E
SFA800
SDIA2490E
Grease amount : 77 – 97 g (2.71 – 3.42 oz)
SDIA2372E
SDIA1760E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

FRONT DRIVE SHAFTFAX-15
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
CAUTION:
 If the boot mounting length is outside the standard, it may cause breakage in the boot.
 Be careful not to touch the inside of the bo ot with a tip of a flat-bladed screwdriver.
22. Secure the large and small ends of the boot with new boot bands using the boot band crimping tool [SST: KV40107300
( – )] as shown in the figure.
NOTE:
Secure boot band so that dimension “M” meets the specification
as shown.
23. Secure joint sub-assembly and shaft, and then make sure that they are in the correct position when rotating boot. Install them
with new boot band when boot installation positions become
incorrect.
24. Insert drive shaft to wheel hub and bearing assembly, and then temporarily tighten hub lock nut.
25. Install nuts and bolts to steering knuckle and strut.
26. Install break hose bracket to strut assembly. BR-10, "
Removal and Installation of Front Brake Tube and
Brake Hose".
27. Install wheel sensor to strut assembly. Refer to BRC-52
.
28. Tighten the hub lock nut to the specified torque.
29. Install cotter pin.
30. Install tires to vehicle.
Removal and Installation (Left Side)INFOID:0000000001327516
COMPONENTS
REMOVAL
1. Remove tires from vehicle with power tool. Boot installation length (L) : 136 mm (5.35 in)
RAC1133D
Dimension “M” : 2.0 – 3.0 mm (0.079 – 0.118 in)
DSF0047D
1. Cotter pin 2. Washer 3. Drive shaft
Refer to
GI-8, "
Component", for the symbols in the figure.
PDIA1218E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
