ASSEMBLY

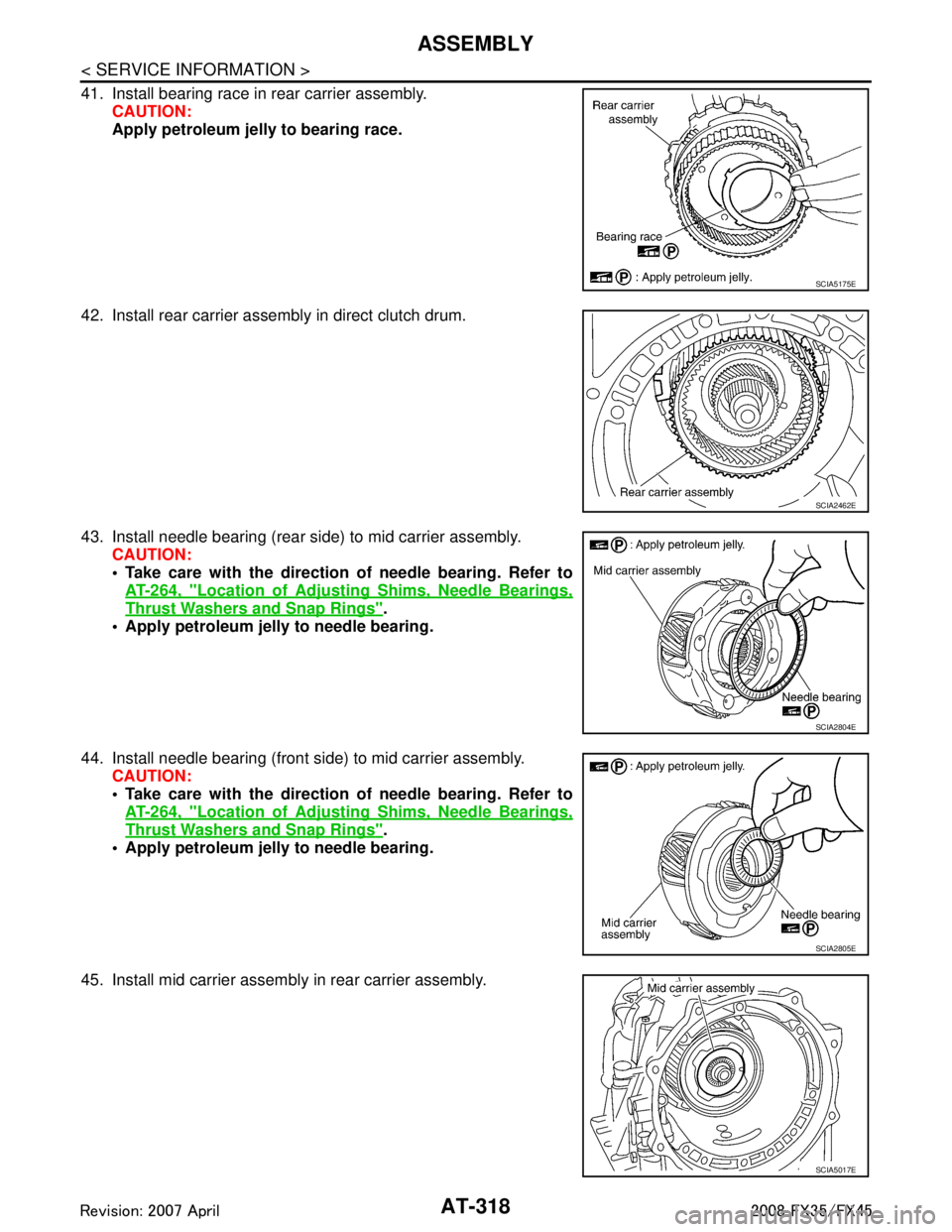

41. Install bearing race in rear carrier assembly.CAUTION:
Apply petroleum jelly to bearing race.
42. Install rear carrier assembly in direct clutch drum.
43. Install needle bearing (rear side) to mid carrier assembly. CAUTION:
 Take care with the direction of needle bearing. Refer toAT-264, "
Location of Adjusting Sh ims, Needle Bearings,
Thrust Washers and Snap Rings".
 Apply petroleum jelly to needle bearing.
44. Install needle bearing (front side) to mid carrier assembly. CAUTION:
 Take care with the direction of needle bearing. Refer toAT-264, "
Location of Adjusting Sh ims, Needle Bearings,
Thrust Washers and Snap Rings".
 Apply petroleum jelly to needle bearing.
45. Install mid carrier assembly in rear carrier assembly.
SCIA5175E
SCIA2462E
SCIA2804E
SCIA2805E
SCIA5017E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASSEMBLYAT-319
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
46. Install front carrier assembly, input clutch assembly and rear internal gear as a unit.
47. Install seal rings in input clutch assembly. CAUTION:
 Do not reuse seal rings.
 Apply petroleum jelly to seal rings.
48. Install band servo anchor end pin and lock nut in transmission case.
CAUTION:
Do not reuse band servo anchor end pin.
49. Install brake band in transmission case. CAUTION:
Assemble it so that identificatio n to avoid incorrect installa-
tion faces servo side.
50. Install front sun gear to front carrier assembly. CAUTION:
Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.
SCIA5015E
SCIA2470E
SCIA6512E
SCIA5498E
SCIA5014E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-320
< SERVICE INFORMATION >
ASSEMBLY
51. Install needle bearing to front sun gear.CAUTION:
 Take care with the direction of needle bearing. Refer toAT-264, "
Location of Adjusting Sh ims, Needle Bearings,
Thrust Washers and Snap Rings".
 Apply petroleum jelly to needle bearing.
52. Adjust brake band tilting using clips so that brake band contacts front sun gear drum evenly.
53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to the specified torque.
c. Back of band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to the spec- ified torque. Refer to AT-249, "
Component".
AdjustmentINFOID:0000000001327411
TOTAL END PLAY
 Measure clearance between front sun gear and bearing race for oil
pump cover.
 Select proper thickness of bearing race so that end play is within specifications.
SCIA2808E
SCIA5033E
: 5.0 N·m (0.51 kg-m, 44 in-lb)
SCIA5498E
SCIA2810E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASSEMBLYAT-321
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
1. Measure dimensions “K” and “L” and then calculate dimension “J”.
a. Measure dimension “K”.
b. Measure dimension “L”.
c. Calculate dimension “J”.
2. Measure dimensions “M
1” and “M2” and then calculate dimen-
sion “M”.
a. Place bearing race and needle bearing on oil pump assembly.
SCIA7073E
SCIA7074E
“J” : Distance between oil pump fitting surface of transmission case and n eedle bearing mating
surface of front sun gear.
J = K – L
SCIA5352E
SCIA3125E
SCIA3124E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-322
< SERVICE INFORMATION >
ASSEMBLY
b. Measure dimension “M1”.
c. Measure dimension “M
2”.
d. Calculate dimension “M”.
3. Adjust total end play “T
1”.
 Select proper thickness of bearing race so that total end play is within specifications. Refer to “Parts Information” for bearing
race selection.
SCIA3126E
SCIA3127E
“M” : Distance between transmission case fitting
surface of oil pump and needle bearing on oil
pump.
M = M
1 – M2
SCIA3125E
T1 = J – M
Total end play “T
1”
: 0.25 - 0.55 mm (0.0098 - 0.0217 in)
SCIA2810E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASSEMBLYAT-323
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
Assembly (2)INFOID:0000000001327412
1. Install O-ring to oil pump assembly. CAUTION:
 Do not reuse O-ring.
 Apply ATF to O-ring.
2. Install bearing race to oil pump assembly. CAUTION:
Apply petroleum jelly to bearing race.
3. Install oil pump assembly in transmission case. CAUTION:
Apply ATF to oil pump bearing.
4. Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to GI-44, "
Recommended Chemical Product
and Sealant".) to oil pump assembly as shown in the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
From the oil pump mounting bolts and oil pump mounting
bolt mounting surfaces.
SCIA5172E
SCIA6529E
SCIA2811E
SCIA5321E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-324
< SERVICE INFORMATION >
ASSEMBLY
5. Tighten oil pump mounting bolts to specified torque. Refer to AT-
249, "Component".
CAUTION:
Apply ATF to oil pump bushing.
6. Install O-ring to input clutch assembly. CAUTION:
 Do not reuse O-ring.
 Apply ATF to O-ring.
7. Install converter housing to transmission case, and then tighten converter housing mounting bolts (1) to the specified torque.
Refer to AT-249, "
Component".
 : Bolt (8)
CAUTION:
Do not reuse self-sealing bolt (2).
8. Make sure that brake band does not close turbine revolution sensor hole.
9. Install control valve with TCM.
a. Connect TCM connector and park/neutral position switch con- nector.
SCIA2300E
SCIA5011E
SCIA7985E
SCIA5034E
SCIA5449E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASSEMBLYAT-325
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
b. Install A/T assembly harness connector from control valve with TCM.
c. Connect TCM connectors.
d. Install O-ring to A/T assembly harness connector. CAUTION:
 Do not reuse O-ring.
 Apply ATF to O-ring.
e. Install A/T fluid temperature sensor 2 to bracket.
f. Install A/T fluid temperature sens or 2 (with bracket) in control
valve with TCM, and then tighten A/T fluid temperature sensor 2
mounting bolts to the specified torque. Refer to AT-249, "
Com-
ponent".
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve.
SCIA5450E
SCIA5447E
SCIA5155E
SCIA5264E
SCIA5301E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-326
< SERVICE INFORMATION >
ASSEMBLY
g. Install control valve with TCM in transmission case.CAUTION:
 Make sure that turbine revolu tion sensor securely installs
turbine revolution sensor hole.
 Hang down revolution senso r harness toward outside so
as not to disturb installation of control valve with TCM.
 Adjust A/T assembly harness co nnector of control valve
with TCM to terminal hole of transmission case.
 Assemble it so that manual valve cutout is engaged with manual plate projection.
h. Install bolts A, B and C to control valve with TCM.  : Front
i. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 → 2 → 3), and then tighten other
bolts to the specified torque. Refer to AT-249, "
Component".
 : Front
SCIA5034E
SCIA5035E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA8077E
SCIA8078E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASSEMBLYAT-327
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
10. Connect A/T fluid temperature sensor 2 connector (1).
11. Securely fasten terminal cord assembly and A/T fluid tempera- ture sensor 2 harness with terminal clips ( ).
12. Connect revolution sensor connector.
13. Securely fasten revolution sensor 2 harness with terminal clip.
14. Pull down A/T assembly harness connector. CAUTION:
Be careful not to damage connector.
15. Install snap ring to A/T assembly harness connector.
SCIA8069E
SCIA7524E
SCIA7526E
SCIA5299E
SCIA5300E
