REPAIR FOR COMPONENT PARTS
a. Using a flat-bladed screwdriver, remove snap ring from rear sungear.
b. Remove 1st one-way clutch from rear sun gear.
5. Remove seal rings from mid sun gear.
INSPECTION
High and Low Reverse Clutch Hub Snap Ring, Rear Sun Gear Snap Ring
 Check for deformation, fatigue or damage. CAUTION:
If necessary, replace the snap ring.
1st One-way Clutch
 Check frictional surface for wear or damage.CAUTION:
If necessary, replace the 1st one-way clutch.
Mid Sun Gear
 Check for deformation, fatigue or damage.CAUTION:
If necessary, replace the mid sun gear.
Rear Sun Gear
 Check for deformation, fatigue or damage.CAUTION:
If necessary, replace the rear sun gear.
High and Low Reverse Clutch Hub
 Check for deformation, fatigue or damage.CAUTION:
If necessary, replace the high and low reverse clutch hub.
SCIA2859E
SCIA4633E
SCIA2861E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-299
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
ASSEMBLY
1. Install seal rings to mid sun gear. CAUTION:
 Do not reuse seal rings.
 Apply petroleum jelly to seal rings.
2. Install 1st one-way clutch to rear sun gear. CAUTION:
Apply petroleum jelly to 1st one-way clutch.
3. Using a flat-bladed screwdriver, install snap ring to rear sun gear.
4. Install rear sun gear assembly to mid sun gear assembly.
SCIA2861E
SCIA4633E
SCIA2859E
SCIA2858E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-300
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
5. Install needle bearing to high and low reverse clutch hub.CAUTION:
 Take care with the direction of needle bearing. Refer toAT-264, "
Location of Adjusting Sh ims, Needle Bearings,
Thrust Washers and Snap Rings".
 Apply petroleum jelly to needle bearing.
6. Install high and low reverse clutch hub to mid sun gear assem- bly.
7. Using pair of snap ring pliers, install snap ring to mid sun gear assembly.
CAUTION:
Do not expand snap ring excessively.
8. Check operation of 1st one-way clutch.
a. Hold mid sun gear and turn rear sun gear.
b. Check 1st one-way clutch for correct locking and unlocking directions.
CAUTION:
If not as shown in the figure , check installation direction of
1st one-way clutch.
9. Install needle bearing and bearing races to high and low reverse clutch hub. CAUTION:
 Take care with the direction of needle bearing . Refer to AT-264, "
Location of Adjusting Shims,
Needle Bearings, Thrust Washers and Snap Rings".

Apply petroleum jelly to need le bearing and bearing races.
SCIA2857E
SCIA2856E
SCIA2855E
SCIA3132E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-301
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
 VQ35DE models
 VK45DE models
High and Low Reverse ClutchINFOID:0000000001327408
COMPONENTS
VQ35DE models
SCIA2854E
SCIA5238E
SCIA5223E
1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Bearing race
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-302
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
VK45DE models
DISASSEMBLY
1. Remove bearing race from high and low reverse clutch drum.
2. Using a flat-bladed screwdriver, remove snap ring from high andlow reverse clutch drum.
3. Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.
INSPECTION
Check the following, and re place high and low reverse clutch assembly if necessary.
High and Low Reverse Clutch Snap Ring
 Check for deformation, fatigue or damage.
High and Low Reverse Clutch Drive Plates
 Check facing for burns, cracks or damage.
High and Low Reverse Clutch Retaining Plates and Driven Plates
 Check facing for burns, cracks or damage.
ASSEMBLY
1. Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.
SCIA5224E
1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Bearing race
SCIA5215E
SCIA2868E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-303
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

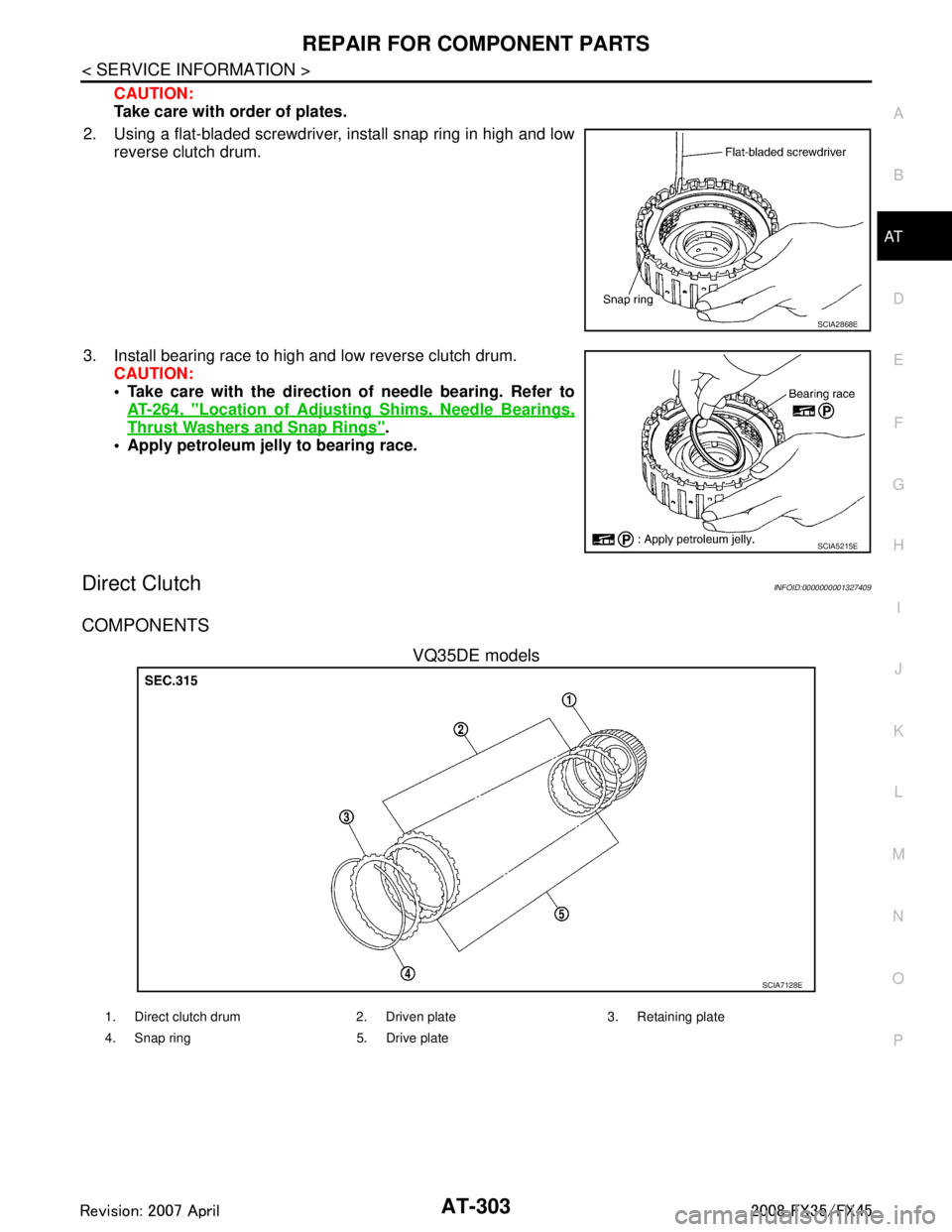

CAUTION:
Take care with order of plates.
2. Using a flat-bladed screwdriver, install snap ring in high and low reverse clutch drum.
3. Install bearing race to high and low reverse clutch drum. CAUTION:
 Take care with the direction of needle bearing. Refer toAT-264, "
Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings".
 Apply petroleum jelly to bearing race.
Direct ClutchINFOID:0000000001327409
COMPONENTS
VQ35DE models
SCIA2868E
SCIA5215E
SCIA7128E
1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-304
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
VK45DE models
DISASSEMBLY
1. Using a flat-bladed screwdriver, remove snap ring from directclutch drum.
2. Remove drive plates, driven plates, retaining plate and dish plate* from direct clutch drum.
*: VK45DE models
INSPECTION
Check the following, and replace direct clutch assembly if necessary.
Direct Clutch Snap Ring
 Check for deformation, fatigue or damage.
Direct Clutch Drive Plates
 Check facing for burns, cracks or damage.
Direct Clutch Retaining Plates, Driven Plates and Dish Plate*
 Check facing for burns, cracks or damage.
*: VK45DE models
ASSEMBLY
1. Install drive plates, driven plates, retaining plate and dish plate* in direct clutch drum. *: VK45DE models
CAUTION:
Take care with order of plates.

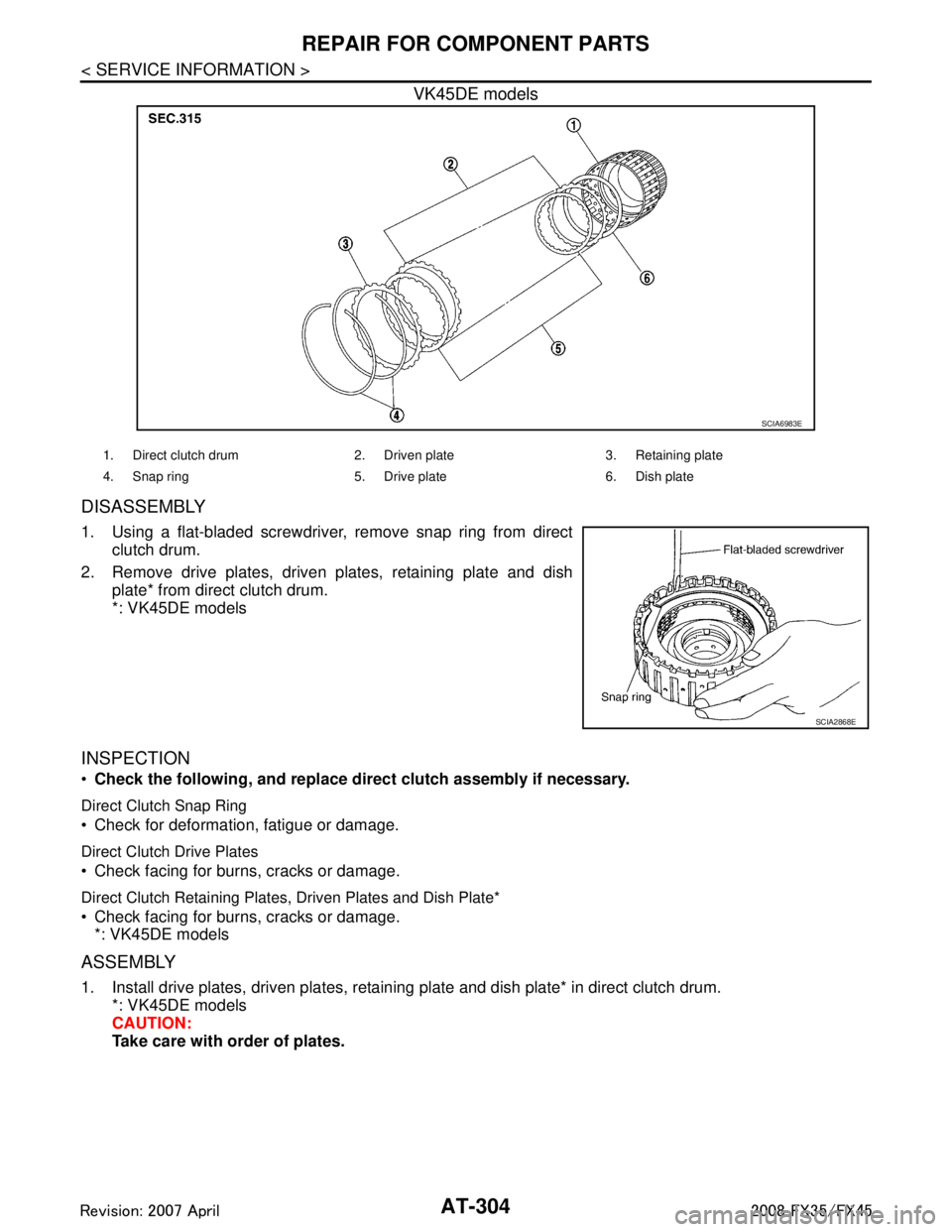

SCIA6983E
1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Dish plate
SCIA2868E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-305
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

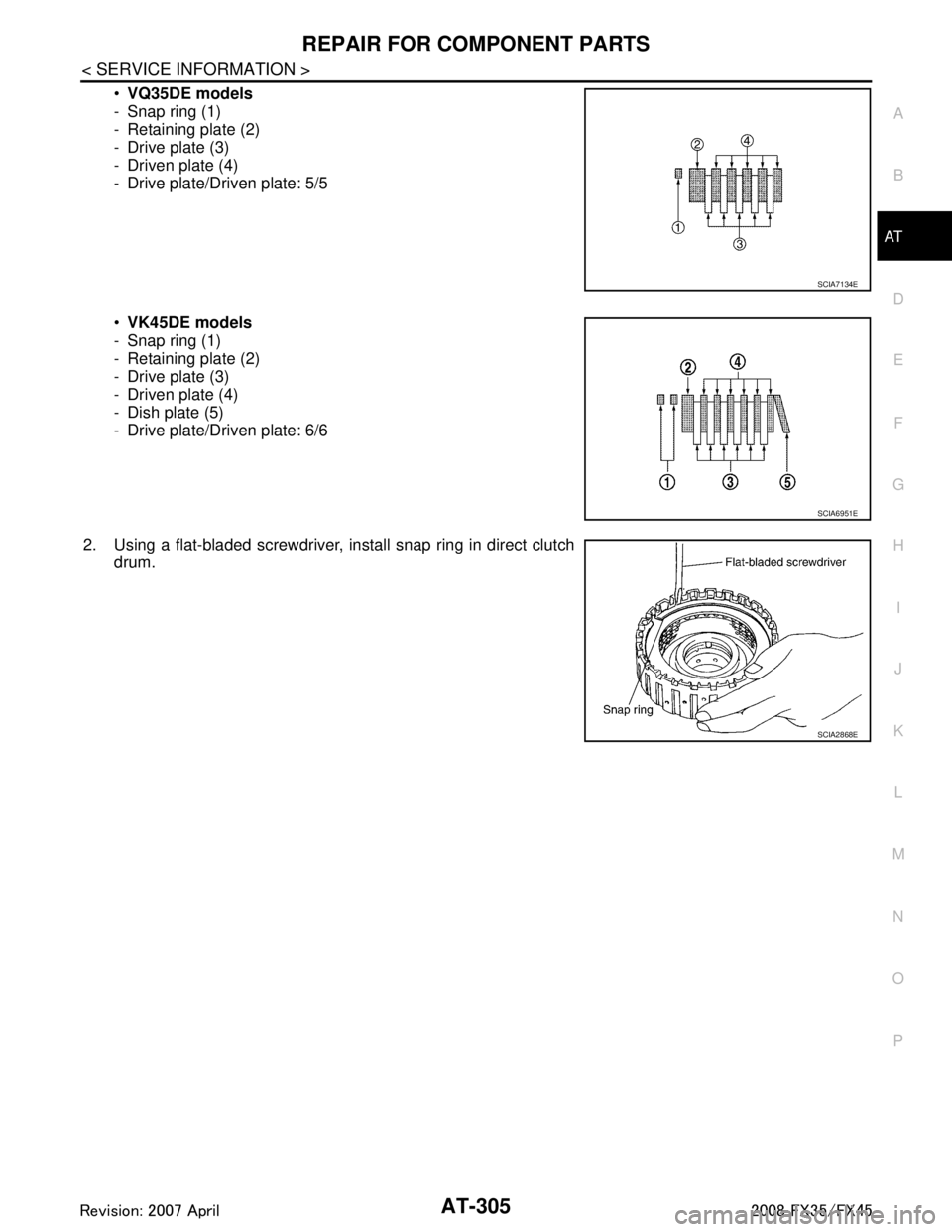

 VQ35DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Drive plate/Driven plate: 5/5
 VK45DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Dish plate (5)
- Drive plate/Driven plate: 6/6
2. Using a flat-bladed screwdriver, install snap ring in direct clutch drum.
SCIA7134E
SCIA6951E
SCIA2868E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-306
< SERVICE INFORMATION >
ASSEMBLY
ASSEMBLY
Assembly (1)INFOID:0000000001327410
1. As shown in the figure, use a drift [commercial service tool: 22mm (0.87 in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.
CAUTION:
 Do not reuse manual shaft oil seals.
 Apply ATF to manual shaft oil seals.
2. Install detent spring and spacer in transmission case, and then tighten detent spring and spacer mounting bolt to the specified
torque. Refer to AT-249, "
Component".
3. Install manual shaft to transmission case.
4. Install parking rod to manual plate.
SCIA5259E
SCIA5248E
SCIA5716E
SCIA5220E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASSEMBLYAT-307
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

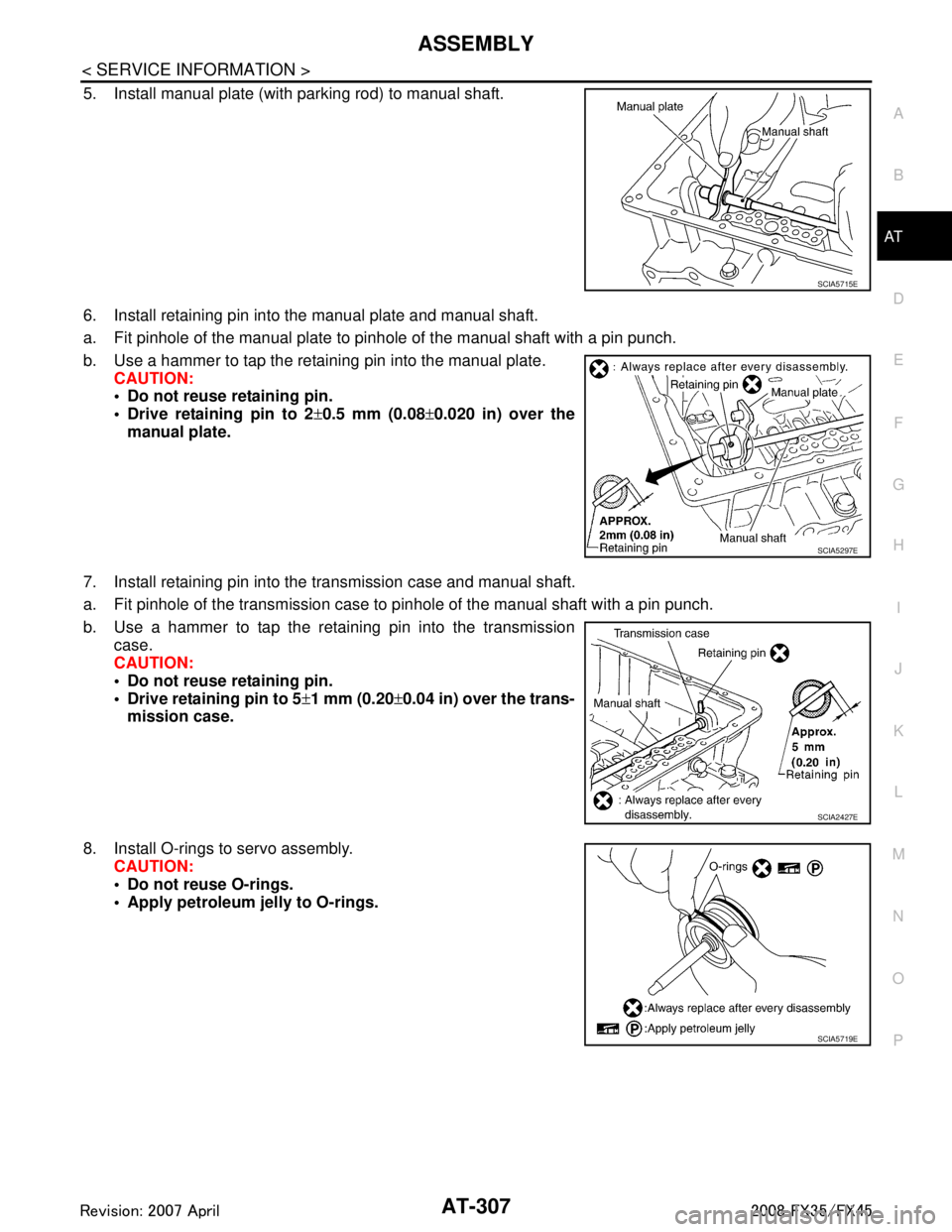

5. Install manual plate (with parking rod) to manual shaft.
