HOOD
BL-17
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
Removal and Installation of Hood AssemblyNIS001WK
REMOVAL
1. Support the hood lock assembly with a proper material to pre-
vent it from falling.
WAR NING :
Body injury may occur if no supporting rod is holding the
hood open when removing the hood stay.
2. Remove stud balls on the hood stays at the hood side.
3. Remove the hinge mounting nuts on the hood to remove the
hood assembly.
CAUTION:
Operate with two workers, because of its heavy weight.
1. Hood stay 2. Hood hinge 3. Hood assembly
4. Hood insulator 5. Hood front sealing rubber
PIIB5795E
PIIB5797E
PIIB5796E

BL-18
HOOD
Revision: 2006 January2006 M35/M45
INSTALLETION
Install in the reverse order of removal.
CAUTION:
Before installing hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle
body.
After installing, perform hood fitting adjustment. Refer to BL-15, "Fitting Adjustment" .
Removal and Installation of Hood Lock ControlNIS001WL
REMOVAL
1. Remove the front grill. Refer to EI-16, "FRONT GRILLE" .
2. Remove the fender protector. Refer to EI-20, "
FENDER PROTECTOR" .
3. Disconnect hood lock switch harness connector.
4. Remove the hood lock assembly mounting bolts.
1. Hood lock cable 2. Hood lock assembly 3. Hood ledge reinforcement
4. Clip
PIIB5798E
PIIB3876J
PIIB5799E

HOOD
BL-19
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
5. Disconnect the hood lock cable from the hood lock, and clip it from the hood ledge.
6. Remove the mounting screws with power tool, and remove the hood opener.
7. Remove the grommet on the dash board, and pull the hood lock cable toward the passenger compart-
ment.
CAUTION:
While pulling, be careful not to damage (peeling) the outside of the hood lock cable.
INSTALLATION
1. Pull the hood lock cable through the panel hole to the engine compartment.
CAUTION:
Be careful not to bend the cable too much, keeping the
radius 100 mm (3.94 in) or more.
2. Check that the cable is not offset from the positioning grommet,
and push the grommet into the panel hole securely.
3. Apply the sealant to the grommet (at * mark) properly.
4. Install while pulling hood lock cable.
5. Install the hood lock cable securely to the lock.
6. Install hood lock assembly.
CAUTION:
After installing, hood fitting adjustment. Refer to BL-15,
"Fitting Adjustment" .
After installing, the check the hood lock control inspec-
tion Refer to BL-20, "
Hood Lock Control Inspection" .
PIIB5800E
PIIB5801E
PIIB5802E

BL-20
HOOD
Revision: 2006 January2006 M35/M45
Hood Lock Control InspectionNIS001WM
CAUTION:
If the hood lock cable is bent or deformed, replace it.
1. Check that the secondary latch is properly engaged with the secondary striker (B: 6.8 mm (0.268 in)
shown in the figure) with hood's own weight.
2. While operating the hood opener, carefully check that the front end of the hood is raised by approx. 20
mm (0.79 in). Also check that the hood opener returns to the original position.
3. Check that the hood opener operating is 294 N (30 kg) or below.
4. Install as static closing face of hood is 392 – 441 Nꞏm (35– 44 kg-m).
5. Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points shown in the figure.
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
PIIB5794E
PIIB5803E

RADIATOR CORE SUPPORT
BL-21
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
RADIATOR CORE SUPPORTPFP:62500
Removal and InstallationNIS001WN
REMOVAL
1. Remove front bumper, bumper reinforcement. Refer toEI-14, "Removal and Installation" .
2. Remove headlamp (LH/RH). Refer to LT- 4 1 , "
Removal and Installation" .
3. Remove air duct. Refer to EM-17, "
Removal and Installation" (VQ35DE models),EM-177, "Removal and
Installation" (VK45DE models).
4. Remove hood lock assembly, then remove hood lock cable. Refer to BL-18, "
Removal and Installation of
Hood Lock Control" .
5. Remove washer tank. Refer to WW-47, "
Removal and Installation of Washer Tank" .
6. Remove ambient sensor. Refer to ATC-126, "
Removal and Installation" .
7. Remove crash zone sensor. Refer to SRS-45, "
Removal and Installation" .
1. Headlamp (RH) 2. Radiator core support side (RH) 3. Washer tank
4. Air guide (RH) 5. Horn (High) 6. Air guide (LH)
7. Radiator core support side (LH) 8. Horn (Low) 9. Headlamp (LH)
10. Radiator core support center 11. Upper radiator bracket (LH) 12. Upper radiator bracket (RH)
13. Power steering tube assembly
PIIB5804E

BL-22
RADIATOR CORE SUPPORT
Revision: 2006 January2006 M35/M45
8. Remove air guide (LH/RH).
9. Remove power steering tube assembly. Refer to PS-43, "
Removal and Installation" .
10. Remove horn (High/Low). Refer to WW-54, "
Removal and Installation" .
11. Remove mounting harness clip on radiator core support assembly, the harness is separate.
12. Remove ICC sensor integrated unit. Refer to ACS-69, "
ICC Sensor Integrated Unit" .
13. Remove upper radiator bracket (LH/RH) with power tool.
14. Remove radiator core support side with power tool.
15. Remove radiator core support side (LH/RH) with power tool.
16. Remove radiator core support center.
CAUTION:
Put a wooden block under the radiator assembly to prevent
the radiator assembly from falling.
INSTALLATION
Install in the reverse order of removal.
PIIB3891J
PIIB3892J
PIIB3890J

BL-24
POWER DOOR LOCK SYSTEM
Revision: 2006 January2006 M35/M45
POWER DOOR LOCK SYSTEMPFP:24814
Component Parts and Harness Connector LocationNIS001WP
1. Fuse block (J / B) fuse layout 2. Fuse and fusible link box 3. BCM M1, M2, M3 (View with instru-
ment lower panel RH removed)
4. Front door lock actuator (Driver side)
D145. Rear door lock actuator LH D59 6. Power window main switch (door
lock and unlock switch) D10, D11
7. Fuel lid lock actuator B125
PIIB5859E

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
System DescriptionNIS001WQ
Power is supplied at all times
through 50A fusible link (letter F , located in the fuse and fusible link box).
to BCM terminal 55,
through 10A fuse [No. 21, located in the fuse block (J/B)]
to BCM terminal 42.
When ignition switch is in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 11.
When ignition switch is in ON or START position, power is supplied
through 15A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38.
Ground is supplied
to BCM terminal 52
through body grounds M16 and M70.
When the door is locked or unlocked with power window main switch (door lock and unlock switch), ground is
supplied
to CPU of power window main switch
through power window main switch (door lock and unlock switch) terminal 17
through grounds M16 and M70.
Then power window main switch (door lock and unlock switch) operation signal is sent.
to BCM terminal 22
from power window main switch (door lock and unlock switch) terminal 14
When the door is locked or unlocked with power window sub-switch (front passenger side) (door lock and
unlock switch), ground is supplied
to CPU of power window sub-switch
through power window sub-switch (front passenger side) (door lock and unlock switch) terminal 11
through grounds M16 and M70.
Then power window sub-switch (front passenger side) (door lock and unlock switch) operation signal is sent
to BCM terminal 22
from power window sub-switch (front passenger side) (door lock and unlock switch) terminal 16.
When the door is locked with front door key cylinder switch (driver side), ground is supplied
to CPU of power window main switch
through power window main switch (door lock and unlock switch) terminal 4
through front door key cylinder switch (driver side) terminals 6 and 4
through grounds M16 and M70.
Then front door key cylinder switch (driver side) operation signal (lock) is sent
to BCM terminal 22
from power window main switch (door lock and unlock switch) terminal 14
When the door is unlocked with front door key cylinder switch (driver side), ground is supplied
to CPU of power window main switch
through power window main switch (door lock and unlock switch) terminal 6
through front door key cylinder switch (driver side) terminals 5 and 4
through grounds M16 and M70.
Then front door key cylinder switch (driver side) operation signal (unlock) is sent
to BCM terminal 22
from power window main switch (door lock and unlock switch) terminal 14
BCM is connected to power window main switch and power window sub-switch as serial link.

BL-26
POWER DOOR LOCK SYSTEM
Revision: 2006 January2006 M35/M45
DOOR LOCK ACTUATOR OPERATION
When door is locked with door lock and unlock switch, all door lock actuator is locked. Ground is supplied
to BCM terminal 50
through each door lock actuator terminals 2 and 1
through BCM terminals 44 (driver side), 70 (passenger side) and 51 (rear door).
When door is unlocked with door lock and unlock switch, all door lock actuator is unlocked. Ground is supplied
to BCM terminals 44 (driver side), 70 (passenger side) and 51 (rear door)
through each door lock actuator terminals 1 and 2
through BCM terminal 50.
FUEL LID OPERATION
When door is locked with door lock and unlock switch, fuel lid lock actuator is locked. Ground is supplied
to BCM terminal 50
through fuel lid lock actuator terminals 2 and 1
through BCM terminal 51.
When door is unlocked with door lock and unlock switch, fuel lid lock actuator is unlocked. Ground is supplied
to BCM terminal 51
through fuel lid lock actuator terminals 1 and 2
through BCM terminal 50.
In this condition, fuel lid can be opened if it is pushed.
OUTLINE
Functions Available by Operating the Door Lock and Unlock Switches on Driver's Door and
Passenger's Door
Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors and
fuel lid lock actuator are locked.
Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
and fuel lid lock actuator are unlocked.
Functions Available by Operating the Key Cylinder Switch on Driver's Door
Interlocked with the locking operation of door key cylinder, door lock actuators of all doors and fuel lid lock
actuator are locked.
Selective Unlock Operation
When door key cylinder is unlocked, door lock actuator driver side and fuel lid lock actuator are unlocked.
When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door
lock actuators on all doors are unlocked.
Select unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT”. Refer to BL-83, "
WORK SUPPORT" .
Key Reminder Door System
Refer to BL-50, "Key Reminder Function" .
CAN Communication System DescriptionNIS001WR
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS001WS
Refer to LAN-34, "CAN Communication Unit" .

POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45

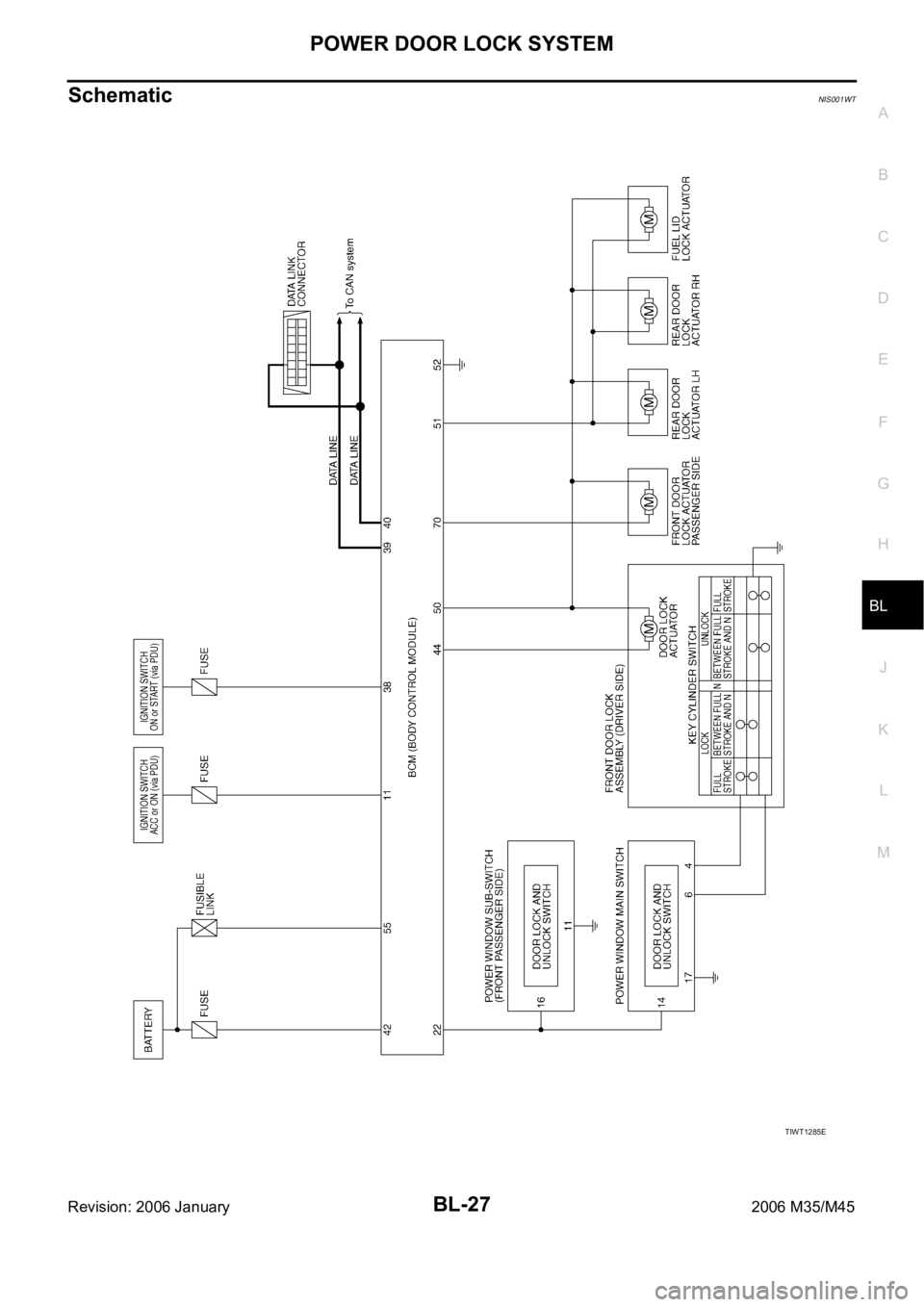

SchematicNIS001WT
TIWT1285E
