DISASSEMBLY
AT-301
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
14. Loosen lock nut and remove band servo anchor end pin from
transmission case.
15. Remove brake band from transmission case.
To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.
Check brake band facing for damage, cracks, wear or
burns.
16. Remove mid carrier assembly and rear carrier assembly as a
unit.
17. Remove mid carrier assembly from rear carrier assembly.
SCIA6512E
SCIA2580E
SAT655
SCIA5017E
SCIA5697E

AT-322
REPAIR FOR COMPONENT PARTS
Revision: 2006 January2006 M35/M45
INSPECTION
3rd One-way Clutch
Check frictional surface for wear or damage.
CAUTION:
If necessary, replace the 3rd one-way clutch.
Front Sun Gear Snap Ring
Check for deformation, fatigue or damage.
CAUTION:
If necessary, replace the snap ring.
Front Sun Gear
Check for deformation, fatigue or damage.
CAUTION:
If necessary, replace the front sun gear.
ASSEMBLY
1. Install 3rd one-way clutch in front sun gear.
CAUTION:
Apply ATF to 3rd one-way clutch.
2. Using a flat-bladed screwdriver, install snap ring in front sun
gear.
3. Check operation of 3rd one-way clutch.
a. Hold oil pump assembly and turn front sun gear.
b. Check 3rd one-way clutch for correct locking and unlocking
directions.
CAUTION:
If not as shown in figure, check installation direction of 3rd
one-way clutch.
SCIA3111E
SCIA3110E
SCIA3131E

AT-334
REPAIR FOR COMPONENT PARTS
Revision: 2006 January2006 M35/M45
8. Check operation of 1st one-way clutch.
a. Hold mid sun gear and turn rear sun gear.
b. Check 1st one-way clutch for correct locking and unlocking
directions.
CAUTION:
If not as shown in the figure, check installation direction of
1st one-way clutch.
9. Install needle bearing and bearing races to high and low reverse clutch hub.
CAUTION:
Apply petroleum jelly to needle bearing and bearing races.
VQ35DE models
VK45DE models
SCIA3132E
SCIA2854E
SCIA5238E

ASSEMBLY
AT-355
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45

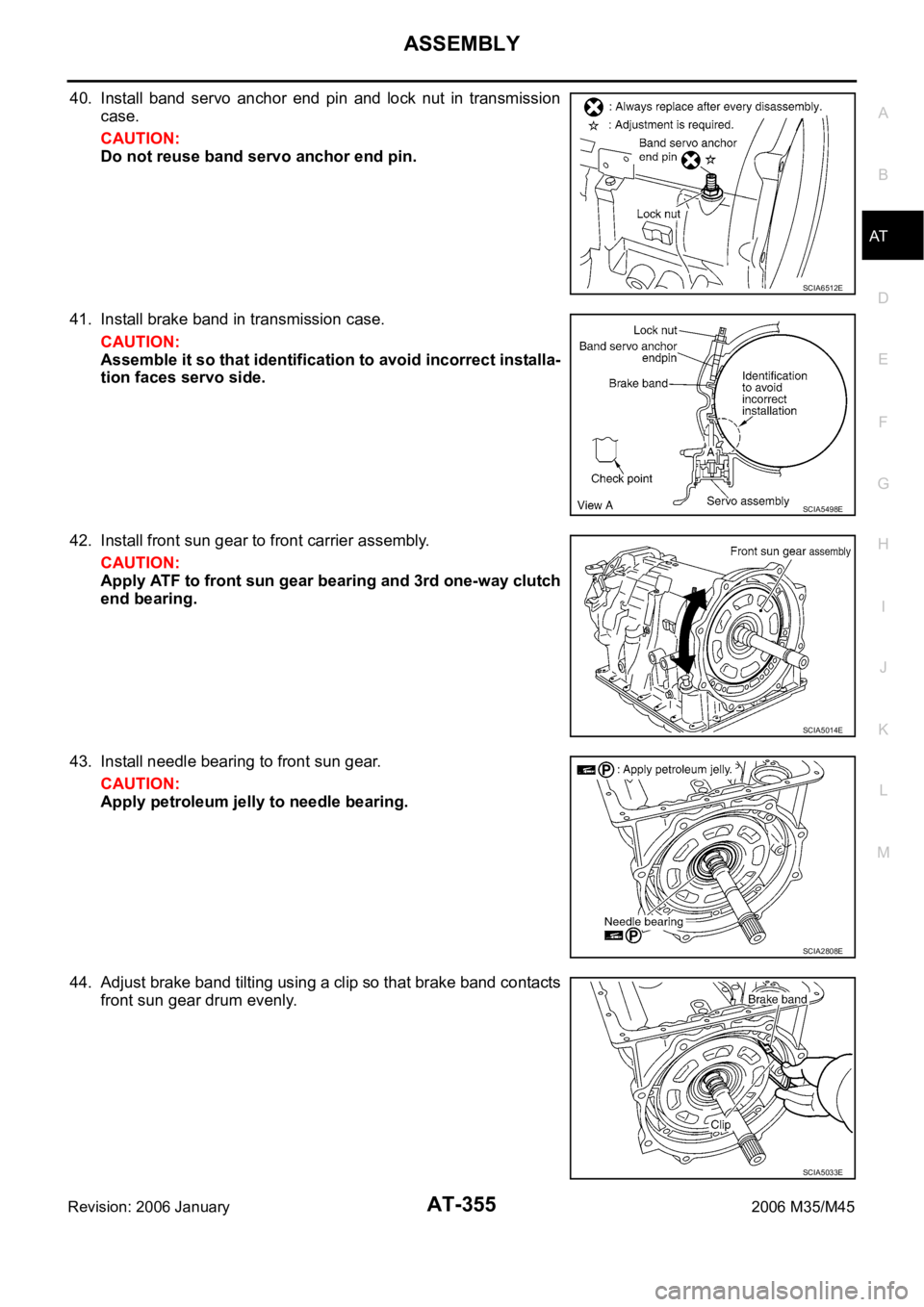

40. Install band servo anchor end pin and lock nut in transmission
case.
CAUTION:
Do not reuse band servo anchor end pin.
41. Install brake band in transmission case.
CAUTION:
Assemble it so that identification to avoid incorrect installa-
tion faces servo side.
42. Install front sun gear to front carrier assembly.
CAUTION:
Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.
43. Install needle bearing to front sun gear.
CAUTION:
Apply petroleum jelly to needle bearing.
44. Adjust brake band tilting using a clip so that brake band contacts
front sun gear drum evenly.
SCIA6512E
SCIA5498E
SCIA5014E
SCIA2808E
SCIA5033E

AT-356
ASSEMBLY
Revision: 2006 January2006 M35/M45
45. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.
c. Back of band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to the spec-
ified torque. Refer to AT- 2 7 8 , "
Components" .
AdjustmentNCS001RB
TOTAL END PLAY
Measure clearance between front sun gear and bearing race for
oil pump cover.
Select proper thickness of bearing race so that end play is within
specifications.
1. Measure dimensions “K” and “L” and then calculate dimension
“J”.
a. Measure dimension “K”.: 5.0 Nꞏm (0.51 kg-m, 44 in-lb)
SCIA5498E
SCIA2810E
SCIA7073E
SCIA7074E

AT-366
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 January2006 M35/M45
Vehicle Speed at Which Lock-Up Occurs/ReleasesNCS001RF
2WD MODELS
At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
At half throttle, the accelerator opening is 4/8 of the full opening.
At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
At half throttle, the accelerator opening is 4/8 of the full opening.
AW D M OD E LS
At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
At half throttle, the accelerator opening is 4/8 of the full opening.
Stall SpeedNCS001RG
Line PressureNCS001RH
A/T Fluid Temperature SensorNCS001RI
Engine model VQ35DE
Throttle positionVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 53 - 61 (33 - 38) 50 - 58 (31 - 36)
Half throttle 196 - 204 (122 - 127) 138 - 146 (86 - 91)
Engine model VK45DE
Throttle positionVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 67 - 75 (42 - 47) 50 - 58 (31 - 36)
Half throttle 181 - 189 (112 - 117) 160 - 168 (99 - 104)
Engine model VQ35DE
Throttle positionVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 51 - 59 (32 - 37) 48 - 56 (30 - 35)
Half throttle 188 - 196 (117 - 122) 132 - 140 (82 - 87)
Engine model Stall speed
VQ35DE 2,650 - 2,950 rpm
VK45DE 2,260 - 2,560 rpm
Engine speedLine pressure [kPa (kg/cm
2 , psi)]
“R” position “D”, “M” positions
At idle speed 425 - 465 (4.3 - 4.7, 62 - 67) 379 - 428 (3.9 - 4.4, 55 - 62)
At stall speed 1,605 - 1,950 (16.4 - 19.9, 233 - 283) 1,310 - 1,500 (13.4 - 15.3, 190 - 218)
Name Condition CONSULT-II “DATA MONITOR” (Approx.) Resistance (Approx.)
ATF TEMP SE 10
C (32F) 3.3 V 15 k
20C (68F) 2.7 V 6.5 k
80C (176F) 0.9 V 0.9 k
ATF TEMP SE 20
C (32F) 3.3 V 10 k
20C (68F) 2.5 V 4 k
80C (176F) 0.7 V 0.5 k

PRECAUTIONS
ATC-5
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NJS000FN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NING :
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectNJS000FO
NOTE:
This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the
LOCK position.
Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the
ACC position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the
LOCK position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.

ATC-14
PRECAUTIONS
Revision: 2006 January2006 M35/M45
SERVICE HOSES
Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite to the manifold gauge.
SERVICE COUPLERS
Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.
REFRIGERANT WEIGHT SCALE
Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2
-16
ACME.
CHARGING CYLINDER
Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder’s top valve
when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an
electrical scale or of quality recycle/recharge equipment.
RHA272D
Shut-off valve rotation A/C service valve
Clockwise Open
Counterclockwise Close
RHA273D
RHA274D

ATC-68
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
1. CHECK POWER SUPPLY CIRCUIT FOR UNIFIED METER AND A/C AMP.
1. Disconnect unified meter and A/C amp. connector.
2. Check voltage between unified meter and A/C amp. harness
connector M65 terminals 41, 53 and 55 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check 10A fuses [Nos. 6, 12 and 19, located in the fuse block (J/B)]. Refer to P G - 111 , "
FUSE
BLOCK - JUNCTION BOX (J/B)" .
If fuses are OK, check harness for open circuit. Repair or replace if necessary.
If fuses are NG, check harness for short circuit and replace fuse.
2. CHECK GROUND CIRCUIT FOR UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Check continuity between unified meter and A/C amp. harness
connector M65 terminal 55, 71 and ground.
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness or connector.
Terminals Ignition switch position
(+)
(-) OFF ACC ON Unified
meter and
A/C amp.
connectorTerminal
No.
M65 41
GroundApprox. 0 VBattery
voltageBattery
voltage
M65 53 Approx. 0 V Approx. 0 VBattery
voltage
M65 54Battery
voltageBattery
voltageBattery
voltage
RJIA4050E
55, 71 – Ground : Continuity should exist.
RJIA4051E

TROUBLE DIAGNOSIS
ATC-69
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
Rear Control Switch CircuitNJS000GM
DIAGNOSIS PROCEDURE FOR REAR CONTROL SWITCH
SYMPTOM: Rear control switch does not operate.
1. CHECK A/C SYSTEM
Check multifunction switch, confirm A/C system operation.
OK or NG
OK >> GO TO 2.
NG >> Go to trouble diagnosis procedure for A/C system. Refer to AT C - 6 6 , "
Power Supply and Ground
Circuit for Auto Amp." .
2. CHECK REAR CONTROL SWITCH
Check rear control switch, except for A/C switch (audio) operation.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK POWER SUPPLY FOR REAR CONTROL SWITCH
1. Turn ignition switch OFF.
2. Disconnect rear control switch connector.
3. Turn ignition switch ACC.
4. Check voltage between rear control switch harness connector
B554 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Check 10A fuse [No. 6 located in the fuse block (J/B)].
Refer to P G - 111 , "
FUSE BLOCK - JUNCTION BOX (J/
B)" .
If fuse is OK, check harness for open circuit. Repair or replace if necessary.
If fuse is NG, check harness for short circuit and replace fuse.
4. CHECK GROUND CIRCUIT FOR REAR CONTROL SWITCH
1. Turn ignition switch OFF.
2. Check continuity between rear control switch harness connector
B554 terminal 4 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK REAR CONTROL SWITCH, AV CONTROL UNIT OR NAVI CONTROL UNIT
Check circuit between rear control switch and AV control unit or NAVI control unit AV- 1 0 8 , "
TROUBLE DIAG-
NOSIS" (Without mobile entertainment system) or AV- 2 5 3 , "TROUBLE DIAGNOSIS" (With mobile entertain-
ment system).
OK or NG
OK >> Replace rear control switch.
NG >> Replace part or repair for result trouble diagnosis.1 – Ground : Battery voltage
RJIA3996E
4 – Ground : Continuity should exist.
RJIA3997E
