brake sensor INFINITI M35 2006 Factory Owner's Manual

AT-34
A/T CONTROL SYSTEM
Revision: 2006 January2006 M35/M45

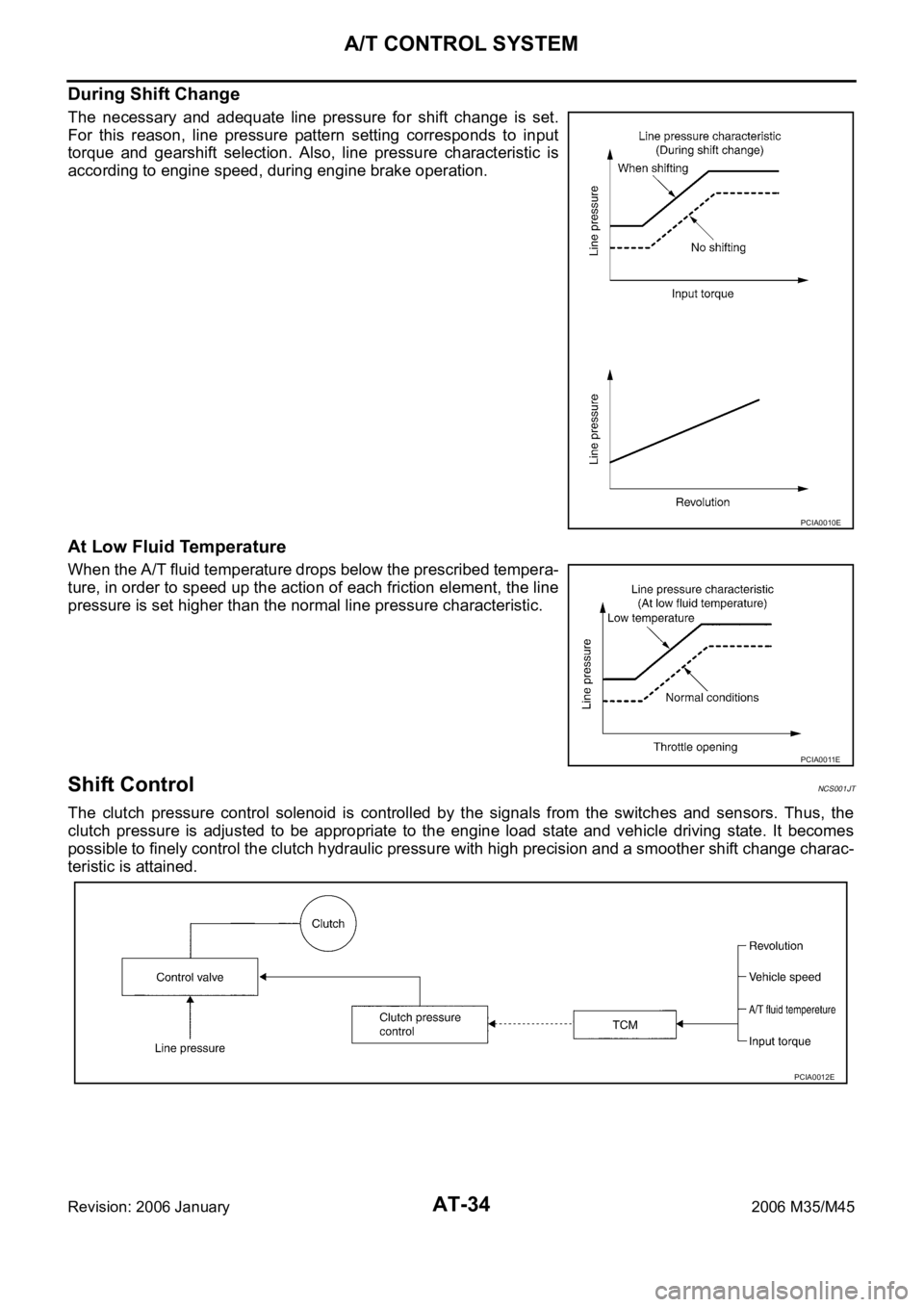

During Shift Change
The necessary and adequate line pressure for shift change is set.
For this reason, line pressure pattern setting corresponds to input
torque and gearshift selection. Also, line pressure characteristic is
according to engine speed, during engine brake operation.
At Low Fluid Temperature
When the A/T fluid temperature drops below the prescribed tempera-
ture, in order to speed up the action of each friction element, the line
pressure is set higher than the normal line pressure characteristic.
Shift ControlNCS001JT
The clutch pressure control solenoid is controlled by the signals from the switches and sensors. Thus, the
clutch pressure is adjusted to be appropriate to the engine load state and vehicle driving state. It becomes
possible to finely control the clutch hydraulic pressure with high precision and a smoother shift change charac-
teristic is attained.
PCIA0010E
PCIA0011E
PCIA0012E

AT-36
A/T CONTROL SYSTEM
Revision: 2006 January2006 M35/M45

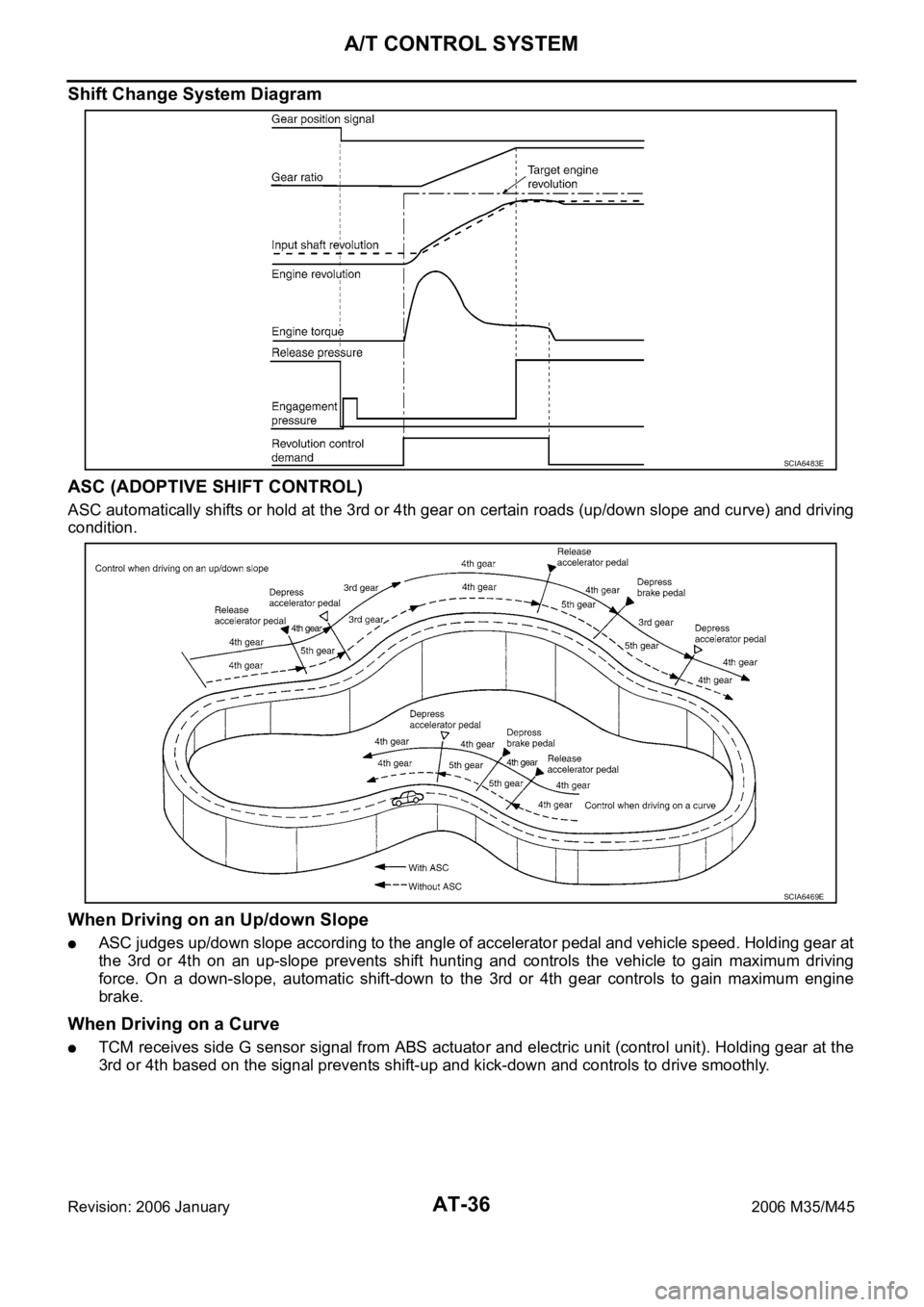

Shift Change System Diagram
ASC (ADOPTIVE SHIFT CONTROL)
ASC automatically shifts or hold at the 3rd or 4th gear on certain roads (up/down slope and curve) and driving
condition.
When Driving on an Up/down Slope
ASC judges up/down slope according to the angle of accelerator pedal and vehicle speed. Holding gear at
the 3rd or 4th on an up-slope prevents shift hunting and controls the vehicle to gain maximum driving
force. On a down-slope, automatic shift-down to the 3rd or 4th gear controls to gain maximum engine
brake.
When Driving on a Curve
TCM receives side G sensor signal from ABS actuator and electric unit (control unit). Holding gear at the
3rd or 4th based on the signal prevents shift-up and kick-down and controls to drive smoothly.
SCIA6483E
SCIA6469E

AT-44
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartNCS001K2
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC “U1000” is displayed with other DTC, first perform the trouble diagnosis for “DTC U1000 CAN
COMMUNICATION LINE”. Refer to AT- 1 0 5
.
Fail-safeNCS001K3
The TCM has an electrical fail-safe mode. This mode makes it possible to operate even if there is an error in a
main electronic control input/output signal circuit.
In fail-safe mode, even if the selector lever is “D” or “M” mode, the A/T is fixed in 2nd, 4th and 5th (depending
on the breakdown position), so the customer should feel “slipping” or “poor acceleration”.
Even when the electronic circuits are normal, under special conditions (for example, when slamming on the
brake with the wheels spinning drastically and stopping the tire rotation), the A/T can go into fail-safe mode. If
this happens, switch OFF the ignition switch for 10 seconds, then switch it ON again to return to the normal
shift pattern. Therefore, the customer's vehicle has returned to normal, so handle according to the “WORK
FLOW” (Refer to AT- 4 7
).
FAIL-SAFE FUNCTION
If any malfunction occurs in a sensor or solenoid, this function controls the A/T to mark driving possible.
Vehicle Speed Sensor
Signals are input from two systems - from vehicle speed sensor A/T (revolution sensor) installed on the A/
T and from combination meter so normal driving is possible even if there is a malfunction in one of the
systems. And if vehicle speed sensor A/T (revolution sensor) has unusual cases, 5th gear and manual
mode are prohibited.
Accelerator Pedal Position Sensor
If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM accord-
ing to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow
systems, the engine speed is fixed by ECM to a pre-determined engine speed to make driving possible.
Throttle Position Sensor
If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM accord-
ing to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow
systems, the accelerator opening angle is controlled by the idle signal sent from the ECM which is based
on input indicating either idle condition or off-idle condition (pre-determined accelerator opening) in order
to make driving possible.
PNP Switch
In the unlikely event that a malfunction signal enters the TCM, the position indicator is switched OFF, the
starter relay is switched OFF (starter starting is disabled), the back-up lamp relay switched OFF (back-up
lamp is OFF) and the position is fixed to the “D” position to make driving possible.
Starter Relay
The starter relay is switched OFF. (Starter starting is disabled.)
Priority Detected items (DTC)
1 U1000 CAN communication line
2 Except above

TROUBLE DIAGNOSIS
AT-45
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
A/T Interlock
If there is an A/T interlock judgment malfunction, the A/T is fixed in 2nd gear to make driving possible.
NOTE:
When the vehicle is driven fixed in 2nd gear, a turbine revolution sensor malfunction is displayed,
but this is not a turbine revolution sensor malfunction.
When the coupling pattern below is detected, the fail-safe action corresponding to the pattern is per-
formed.
A/T INTERLOCK COUPLING PATTERN TABLE
: NG X: OK
A/T 1st Engine Braking
When there is an A/T first gear engine brake judgment malfunction, the low coast brake solenoid is
switched OFF to avoid the engine brake operation.
Line Pressure Solenoid
The solenoid is switched OFF and the line pressure is set to the maximum hydraulic pressure to make
driving possible.
Torque Converter Clutch Solenoid
The solenoid is switched OFF to release the lock-up.
Low Coast Brake Solenoid
When a malfunction (electrical or functional) occurs, in order to make driving possible. If the solenoid is
ON, the A/T is held in 2nd gear. If the solenoid is OFF, the A/T is held in 4th gear. (Engine brake is not
applied in 1st and 2nd gear.)
Input Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th
gear to make driving possible.
Direct Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th
gear to make driving possible.
Front Brake Solenoid
If a malfunction (electrical or functional) occurs with the solenoid ON, in order to make driving possible.
The A/T is held in 5th gear. If the solenoid is OFF, the A/T is 4th gear.
High and Low Reverse Clutch Solenoid
If a (electrical or functional) malfunction occurs with the solenoid either ON or OFF, the A/T is held in 4th
gear to make driving possible.
Turbine Revolution Sensor 1 or 2
The control is the same as if there were no turbine revolution sensors, 5th gear and manual mode are pro-
hibited.
Gear positionATF pressure switch output
Fail-safe
functionClutch pressure output pattern after fail-safe func-
tion
SW3
(I/C)SW6
(HLR/
C)SW5
(D/C)SW1
(FR/B)SW2
(LC/B)I/C HLR/C D/C FR/B LC/B L/U
A/T inter-
lock cou-
pling pattern3rd – X X –
Held in
2nd gearOFF OFF ON OFF OFF OFF
4th – X X –
Held in
2nd gearOFF OFF ON OFF OFF OFF
5th X X – X
Held in
2nd gearOFF OFF ON OFF OFF OFF

TROUBLE DIAGNOSIS
AT-49
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
4
Perform all road tests and enter checks in required inspection items.AT- 5 7
4-1.Check before engine is started AT- 5 7
AT- 1 9 0 , "A/T CHECK Indicator Lamp Does Not Come On"
Perform self-diagnostics. Enter checks for detected items. AT- 9 2 ,AT-103
AT-105, "DTC U1000 CAN COMMUNICATION LINE"
AT-108, "DTC P0615 START SIGNAL CIRCUIT"
AT-112, "DTC P0700 TCM"
AT-113, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
AT-117, "DTC P0717 TURBINE REVOLUTION SENSOR"
AT-119, "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
AT-124, "DTC P0725 ENGINE SPEED SIGNAL"
AT-126, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
AT-128, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
AT-130, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
AT-132, "DTC P1705 THROTTLE POSITION SENSOR"
AT-135, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
AT-140, "DTC P1721 VEHICLE SPEED SENSOR MTR"
AT-142, "DTC P1730 A/T INTERLOCK"
AT-145, "DTC P1731 A/T 1ST ENGINE BRAKING"
AT-147, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
AT-149, "DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION"
AT-151, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
AT-153, "DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION"
AT-155, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
AT-157, "DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION"
AT-159, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
AT-161, "DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION"
AT-163, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
AT-165, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
AT-167, "DTC P1815 MANUAL MODE SWITCH"
AT-172, "DTC P1841 ATF PRESSURE SWITCH 1"
AT-174, "DTC P1843 ATF PRESSURE SWITCH 3"
AT-176, "DTC P1845 ATF PRESSURE SWITCH 5"
AT-178, "DTC P1846 ATF PRESSURE SWITCH 6"
4-2.Check at IdleAT- 5 7
AT- 1 9 0 , "Engine Cannot Be Started in “P” or “N” Position"
AT- 1 9 1 , "In “P” Position, Vehicle Moves When Pushed"
AT- 1 9 2 , "In “N” Position, Vehicle Moves"
AT- 1 9 3 , "Large Shock (“N” to “D” Position)"
AT- 1 9 5 , "Vehicle Does Not Creep Backward in “R” Position"
AT- 1 9 7 , "Vehicle Does Not Creep Forward in “D” Position"
4-3.Cruise TestAT- 5 9
Part 1
AT- 1 9 9 , "Vehicle Cannot Be Started from D1"
AT- 2 0 1 , "A/T Does Not Shift: D1 D2"
AT- 2 0 3 , "A/T Does Not Shift: D2 D3"
AT- 2 0 5 , "A/T Does Not Shift: D3 D4"
AT- 2 0 7 , "A/T Does Not Shift: D4 D5"
AT- 2 0 9 , "A/T Does Not Lock-Up"
AT- 2 1 0 , "A/T Does Not Hold Lock-Up Condition"
AT- 2 1 2 , "Lock-Up Is Not Released"
AT- 2 1 2 , "Engine Speed Does Not Return to Idle"

AT-50
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
44-3Part 2AT- 6 1
AT-199, "Vehicle Cannot Be Started from D1"
AT-201, "A/T Does Not Shift: D1 D2"
AT-203, "A/T Does Not Shift: D2 D3"
AT-205, "A/T Does Not Shift: D3 D4"
Part 3AT- 6 2
AT-213, "Cannot Be Changed to Manual Mode"
AT-214, "A/T Does Not Shift: 5th Gear 4th Gear"
AT-215, "A/T Does Not Shift: 4th Gear 3rd Gear"
AT-217, "A/T Does Not Shift: 3rd Gear 2nd Gear"
AT-218, "A/T Does Not Shift: 2nd Gear 1st Gear"
AT-220, "Vehicle Does Not Decelerate by Engine Brake"
Perform self-diagnostics. Enter checks for detected items. AT- 9 2 , AT-103
AT-105, "DTC U1000 CAN COMMUNICATION LINE"
AT-108, "DTC P0615 START SIGNAL CIRCUIT"
AT- 11 2 , "DTC P0700 TCM"
AT- 11 3 , "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
AT- 11 7 , "DTC P0717 TURBINE REVOLUTION SENSOR"
AT- 11 9 , "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
AT-124, "DTC P0725 ENGINE SPEED SIGNAL"
AT-126, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
AT-128, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
AT-130, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
AT-132, "DTC P1705 THROTTLE POSITION SENSOR"
AT-135, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
AT-140, "DTC P1721 VEHICLE SPEED SENSOR MTR"
AT-142, "DTC P1730 A/T INTERLOCK"
AT-145, "DTC P1731 A/T 1ST ENGINE BRAKING"
AT-147, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
AT-149, "DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION"
AT-151, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
AT-153, "DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION"
AT-155, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
AT-157, "DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION"
AT-159, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
AT-161, "DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION"
AT-163, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
AT-165, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
AT-167, "DTC P1815 MANUAL MODE SWITCH"
AT-172, "DTC P1841 ATF PRESSURE SWITCH 1"
AT-174, "DTC P1843 ATF PRESSURE SWITCH 3"
AT-176, "DTC P1845 ATF PRESSURE SWITCH 5"
AT-178, "DTC P1846 ATF PRESSURE SWITCH 6"
5 Inspect each system for items found to be NG in the self-diagnostics and repair or replace the malfunctioning parts.
6
Perform all road tests and enter the checks again for the required items.AT- 5 7
7
For any remaining NG items, perform the “Diagnostics Procedure” and repair or replace the malfunctioning
parts. See the chart for diagnostics by symptoms. (This chart also contains other symptoms and inspection pro-
cedures.)AT- 6 4
8 Erase the results of the self-diagnostics from the TCM.AT- 9 6, AT-
104

AT-64
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
AW D M OD E LS
At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
At half throttle, the accelerator opening is 4/8 of the full opening.
Symptom ChartNCS001KF
The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
Overhaul and inspection inside the A/T only if A/T fluid condition is NG. Refer to AT- 5 3 , "A/T Fluid Condi-
tion Check" .
Engine model VQ35DE
Throttle positionVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
Closed throttle 51 - 59 (32 - 37) 48 - 56 (30 - 35)
Half throttle 188 - 196 (117 - 122) 132 - 140 (82 - 87)
No. Item Symptom Condition Diagnostic ItemReference
page
1Shift
ShockLarge shock. (“N”

“D” position)
Refer to AT-193,
"Large Shock (“N” to
“D” Position)" .ON vehicle1. Engine idle speedEC-82
( fo r
VQ35DE
engine),
EC-793

(for
VK45DE
engine)
2. Engine speed signalAT- 1 2 4
3. Accelerator pedal position sensorAT- 1 3 2
4. Control linkage adjustmentAT- 2 2 7
5. A/T fluid temperature sensorAT- 1 3 5
6. ATF pressure switch 1 and front brake solenoid valveAT- 1 7 2,
AT- 1 5 1
7. CAN communication lineAT- 1 0 5
8. A/T fluid level and stateAT- 5 3
9. Line pressure testAT- 5 5
10. Control valve with TCMAT- 2 3 6
OFF vehicle11. Forward brake (Parts behind drum support is impossible
to perform inspection by disassembly. Refer to AT-17, "Cross-Sectional View (VQ35DE Models for 2WD)" , AT-18,
"Cross-Sectional View (VK45DE Models for 2WD)" o r AT-19,
"Cross-Sectional View (AWD Models)" .)AT- 2 9 8

AT-66
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
5
Shift
ShockShock is too large
when changing D4
D
5 or M4 M5 .ON vehicle1. Accelerator pedal position sensorAT- 1 3 2
2. Control linkage adjustmentAT- 2 2 7
3. ATF pressure switch 1 and front brake solenoid valveAT- 1 7 2,
AT- 1 5 1

4. CAN communication lineAT- 1 0 5
5. Engine speed signalAT- 1 2 4
6. Turbine revolution sensorAT- 11 7
7. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT- 1 4 0
8. A/T fluid level and stateAT- 5 3
9. Control valve with TCMAT- 2 3 6
OFF vehicle10. Front brake (brake band)AT- 2 9 811. Input clutchAT- 3 2 3
6Shock is too large for
downshift when accel-
erator pedal is
pressed.ON vehicle1. Accelerator pedal position sensorAT- 1 3 2
2. Control linkage adjustmentAT- 2 2 7
3. CAN communication lineAT- 1 0 5
4. Engine speed signalAT- 1 2 4
5. Turbine revolution sensorAT- 11 7
6. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT- 1 4 0
7. A/T fluid level and stateAT- 5 3
8. Control valve with TCMAT- 2 3 6
OFF vehicle9. Front brake (brake band)AT- 2 9 810. Input clutch AT- 3 2 3
11. High and low reverse clutchAT- 3 3 5
12. Direct clutchAT- 3 3 7
7Shock is too large for
upshift when acceler-
ator pedal is released.ON vehicle1. Accelerator pedal position sensorAT- 1 3 2
2. Control linkage adjustmentAT- 2 2 7
3. Engine speed signalAT- 1 2 4
4. CAN communication lineAT- 1 0 5
5. Turbine revolution sensorAT- 11 7
6. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT- 1 4 0
7. A/T fluid level and stateAT- 5 3
8. Control valve with TCMAT- 2 3 6
OFF vehicle9. Front brake (brake band)AT- 2 9 810. Input clutch AT- 3 2 3
11. High and low reverse clutch AT- 3 3 5
12. Direct clutch AT- 3 3 7
No. Item Symptom Condition Diagnostic ItemReference
page

TROUBLE DIAGNOSIS
AT-67
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
8
Shift
ShockShock is too large for
lock-up.ON vehicle1. Accelerator pedal position sensorAT-132
2. Control linkage adjustmentAT-227
3. Engine speed signalAT-124
4. CAN communication lineAT-105
5. Turbine revolution sensorAT- 11 7
6. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT-140
7. Torque converter clutch solenoid valveAT-126
8. A/T fluid level and stateAT- 5 3
9. Control valve with TCMAT-236
OFF vehicle 10. Torque converterAT-298
9Shock is too large
during engine brake.ON vehicle1. Accelerator pedal position sensorAT-132
2. Control linkage adjustmentAT-227
3. CAN communication lineAT-105
4. A/T fluid level and stateAT- 5 3
5. Control valve with TCMAT-236
OFF vehicle6. Front brake (brake band)AT-2987. Input clutch AT-323
8. High and low reverse clutchAT-335
9. Direct clutch AT-337
10
No Up
ShiftGear does not change
from D
1 D2 o r f ro m
M
1 M2 .
Refer to AT-201, "
A/T
Does Not Shift: D1
D2" .ON vehicle1. A/T fluid level and stateAT- 5 3
2. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT-140
3. ATF pressure switch 5 and direct clutch solenoid valveAT-176,
AT-155
4. Line pressure testAT- 5 5
5. CAN communication lineAT-105
6. Control valve with TCMAT-236
OFF vehicle 7. Direct clutchAT-337
11Gear does not change
from D
2 D3 o r f ro m
M
2 M3 .
Refer to AT-203, "
A/T
Does Not Shift: D2
D3" .ON vehicle1. A/T fluid level and stateAT- 5 3
2. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT-140
3. ATF pressure switch 6, high and low reverse clutch sole-
noid valveAT-178,
AT-159
4. Line pressure testAT- 5 5
5. CAN communication lineAT-105
6. Control valve with TCMAT-236
OFF vehicle 7. High and low reverse clutchAT-335
No. Item Symptom Condition Diagnostic ItemReference
page

AT-68
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
12
No Up
ShiftGear does not change
from D
3 D4 o r f r o m
M
3 M4 .
Refer to AT-205, "
A/T
Does Not Shift: D3
D4" .ON vehicle1. A/T fluid level and stateAT- 5 3
2. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT- 1 4 0
3. ATF pressure switch 3 and input clutch solenoid valveAT- 1 7 4,
AT- 1 4 7
4. ATF pressure switch 1 and front brake solenoid valveAT- 1 7 2,
AT- 1 5 1
5. Line pressure testAT- 5 5
6. CAN communication lineAT- 1 0 5
7. Control valve with TCMAT- 2 3 6
OFF vehicle 8. Input clutchAT- 3 2 3
13Gear does not change
from D
4 D5 o r f r o m
M
4 M5 .
Refer to AT-207, "
A/T
Does Not Shift: D4
D5" .ON vehicle1. A/T fluid level and stateAT- 5 3
2. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT- 1 4 0
3. ATF pressure switch 1 and front brake solenoid valveAT- 1 7 2,
AT- 1 5 1
4. ATF pressure switch 5 and direct clutch solenoid valveAT- 1 7 6,
AT- 1 5 5
5. Turbine revolution sensorAT- 11 7
6. Line pressure testAT- 5 5
7. CAN communication lineAT- 1 0 5
8. Control valve with TCMAT- 2 3 6
OFF vehicle9. Front brake (brake band)AT- 2 9 810. Input clutchAT- 3 2 3
14No Down
ShiftIn “D” or “M” position,
does not downshift to
4th gear.ON vehicle1. A/T fluid level and stateAT- 5 3
2. Vehicle speed sensorꞏA/T and vehicle speed sensorꞏMTRAT- 11 9,
AT- 1 4 0

3. ATF pressure switch 1 and front brake solenoid valveAT- 1 7 2
,
AT- 1 5 1
4. ATF pressure switch 5 and direct clutch solenoid valveAT- 1 7 6,
AT- 1 5 5
5. CAN communication lineAT- 1 0 5
6. Line pressure testAT- 5 5
7. Control valve with TCMAT- 2 3 6
OFF vehicle8. Front brake (brake band)AT- 2 9 89. Input clutchAT- 3 2 3
No. Item Symptom Condition Diagnostic ItemReference
page
