DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
DIAGNOSIS SYSTEMPFP:00000
Multifunction Switch Self-Diagnosis FunctionNKS004AV
It can check each switch ON/OFF (continuity) operation of multifunction switch.
SELF-DIAGNOSIS MODE
Turn the ignition switch from OFF position to ACC position.
Within 10 seconds, press and hold BACK switch and switch
for 3 seconds or more. Then, when these switches are released,
the buzzer sounds, all indicators of multifunction switch turned
on, and self-diagnosis mode is started.
When each switch is pressed, the switch continuity can be
checked by sounding the buzzer.
CAUTION:
The hazard switch cannot be checked.
FINISHING SELF-DIAGNOSIS MODE
When the ignition switch is turned ON, self-diagnosis mode is canceled.
Multi AV System Diagnosis FunctionsNKS004AW
There are 2 diagnosis functions (On board diagnosis and Diagnosis using CONSULT-II). It is necessary to
use them properly according to the condition. If the on board diagnosis starts, perform diagnosis with on
board diagnosis. If the on board diagnosis does not start (because the display is not displayed, the multi-
function switch operation is not activated, etc.), perform diagnosis using CONSULT-II.
At on board diagnosis, the AV (NAVI) control unit diagnosis function starts when multifunction switch oper-
ation and the AV (NAVI) control unit performs the diagnosis for each unit of system. Then, it displays the
results on the display.
At diagnosis using CONSULT-II, the AV (NAVI) control unit diagnosis function starts when the CAN com-
munication and the AV (NAVI) control unit performs the diagnosis for each unit of system.
On Board DiagnosisNKS004AX
DESCRIPTION
It has Self-Diagnosis mode for conducting trouble diagnosis automatically and a Confirmation/Adjustment
mode for operating manually.
Self-diagnosis mode diagnoses AV (NAVI) control unit and communication of each unit composing sys-
tem, and displays self-diagnosis results. NAVI control unit diagnoses communication with GPS antenna
simultaneously.
Confirmation/Adjustment mode is used to monitor the vehicle signals requiring operation and judgement
by a technician (malfunctions that cannot be automatically judged by the system), the confirmation/
change/adjustment of setting value, the error history of system, and the communication condition of sys-
tem.
SKIB3979E

DIAGNOSIS SYSTEM
AV-231
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
On Board Diagnosis Item
*: With navigation system
STARTING PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pushing the “SETTING” button, turn the volume control
dial clockwise or counterclockwise for 40 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)
Shifting from current screen to previous screen is performed
by pushing “BACK” button.
Mode Description
Self Diagnosis
AV (NAVI) control unit diagnosis and connection diagnosis between
AV (NAVI) control unit and each unit
The DVD-ROM drive diagnosis of NAVI control unit and the connec-
tion diagnosis between NAVI control unit and GPS antenna can be
performed
(DVD-ROM drive will not be diagnosed when no map DVD-ROM is in
it.)
Confirmation/
AdjustmentDisplay DiagnosisThe tint can be confirmed by the color spectrum bar display. The shad-
ing of color can be confirmed by the gradation bar display.
Vehicle SignalsDiagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition switch, and reverse.
Speaker Test The connection of a speaker can be confirmed by test tone.
Climate Control Start auto air conditioner system self-diagnosis.
Navigation
*
Steering Angle
AdjustmentWhen there is a difference between the actual turning angle and the
vehicle mark turning angle, it can be adjusted.
Speed CalibrationWhen there is a difference between the current location mark and the
actual location, it can be adjusted.
Error HistoryThe system malfunction and the frequency when occurred in the past
are displayed. When the malfunctioning item is selected, the time and
place that the selected malfunction last occurred are displayed.
Synchronizer FES clock –
Vehicle CAN Diagnosis The transmitting/receiving of CAN communication can be monitored.
AV COMM DiagnosisThe communication condition of each unit of Multi AV system can be
monitored.
Handsfree PhoneThe received volume adjustment of hands-free phone, microphone
speaker check, and erase memory can be performed.
Rear DisplayTilt angle adjustment range and automatic retraction ON/OFF when
ignition switch is turned OFF can be selected
Camera Cont.The signal connected to camera control unit can be checked and the
guiding line position that overlaps rear view camera image can be
adjusted.
Bluetooth The passkey and the name of device can be checked and changed
Delete Unit Connection Log Erase the connection history of unit and error history
SKIB3655E

DIAGNOSIS SYSTEM
AV-233
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
DIAGNOSIS RESULTS
Check the applicable display in the following table, and then repair the malfunctioning parts.
Control Unit Is Red, Gray, or Yellow
Connection Line Between Units Is Yellow (Only 1 Line)
Switch color Description Possible malfunction/Action to take
Red AV (NAVI) control unit malfunction is detectedReplace AV (NAVI) control unit
Refer to AV-290, "
AV (NAVI) Control Unit"
Ye l l o w
(With NAVI)Malfunction is detected on DVD-ROM drive pickup
lens in NAVI control unit
There is dirt and damage on the map disc
Map disc
NAVI control unit
Gray
(With NAVI)DVD-ROM not inserted is detected Insert map disc
Applicable parts Description Probable malfunction location
Control unit to Camera Cont.Camera-connection recognition signal malfunc-
tion is detected
Camera control unit power supply and ground
circuit
Camera-connection recognition signal circuit
AV (NAVI) Control unit
Camera control unit
Control unit to GPS Antenna GPS antenna connection malfunction is detected
GPS antenna feeder
GPS antenna
NAVI control unit
Control unit to DVD deck
DVD player power supply and ground circuit
malfunction is detected
Malfunction is detected on communication sig-
nal between DVD player and AV (NAVI) control
unit
DVD player power supply and ground circuit
DVD player
AV (NAVI) control unit
Control unit to Amplifier
BOSE amp power supply and ground circuit
malfunction is detected
Malfunction is detected on communication sig-
nal between BOSE amp and AV (NAVI) control
unit
BOSE amp power supply and ground circuit
BOSE amp
AV (NAVI) control unit
Control unit to Video Distrib-
utor
Video distributor power supply and ground cir-
cuit malfunction is detected
Malfunction is detected on communication sig-
nal between video distributor and AV (NAVI)
control unit
Video distributor power supply and ground cir-
cuit
Video distributor
AV (NAVI) control unit
Control unit to Front Display
Front display unit power supply and ground cir-
cuit malfunction is detected (The diagnosis
screen can be checked at rear display)
Malfunction is detected on communication cir-
cuit between front display unit and AV (NAVI)
control unit
Malfunction is detected on communication sig-
nal between front display unit and AV (NAVI)
control unit
Front display unit power supply and ground cir-
cuit
Front display unit
AV (NAVI) control unit
Control unit to Rear Switches
Rear control switch power supply and ground
circuit malfunction is detected
Malfunction is detected on communication sig-
nal between rear control switch and AV (NAVI)
control unit
Rear control switch power supply and ground
circuit
Rear control switch
AV (NAVI) control unit

AV-236
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
VEHICLE SIGNALS
A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.
SPEAKER TEST
When selecting “Speaker Test”, speaker diagnosis screen is dis-
played. When pressing “START”, test tone emits from the speaker.
At that time, when pressing “Start”, test tone emits from next
speaker. Then, when pressing the “End”, test tone stops.
NOTE:
The frequency of test tone emitted from each speaker is as follows.
CLIMATE CONTROL
For details, refer to ATC-55, "Self-diagnosis Function" .
SKIB3663E
Diagnosis item Display Vehicle status Remarks
Vehicle speedON Vehicle speed > 0 km/h (0 MPH)
Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal. OFF Vehicle speed = 0 km/h (0 MPH)
- Ignition switch in ACC position
Parking brakeON Parking brake is applied.
OFF Parking brake is released.
LightsON Light switch ON
–
OFF Light switch OFF
IgnitionON Ignition switch ON
-
OFF Ignition switch in ACC position
ReverseON Selector lever in R position
Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal. OFF Selector lever in any position other than R
- Ignition switch in ACC position
Tw e e t e r : 3 k H z
Front door speaker : 300 Hz
Rear door speaker : 1 kHz
Rear surround speaker : 1 kHz
Center speaker : 1 kHz
Woofer : 100 Hz
Seat speaker : 1 kHz
SKIB3664E

DIAGNOSIS SYSTEM
AV-237
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
NAVIGATION
Steering Angle Adjustment
The steering angle output value detected with the gyroscope can be
adjusted.
Speed Calibration
Usually the automatic distance correction function adjusts the mal-
function in distance caused by the tires wearing down or the tire
pressure change. If prompt adjustment is necessary when the tire
chains are installed etc., perform this procedure.
ERROR HISTORY
The diagnostic results of “Self-diagnosis” determine if any malfunction occurred between selecting “Self-diag-
nosis” and displaying “Self-diagnostic Results”.
If an error occurred before the ignition switch was turned ON and does not occur again until “Self-diagnosis” is
completed, the trouble diagnosis result will be judged normal. Therefore, errors in the past which cannot be
found by “Self-diagnosis”, must be found by checking the “Error record”.
The error history shows the error occurrence frequency in past. The frequency of occurrence is displayed by 2
types: the count down type and the count up type. Select either type according to the error item.
In “Error History” of models with NAVI, time and place that the selected error last occurred are displayed. Be
careful about the following.
If there is a malfunction with the GPS antenna circuit board in the NAVI control unit, the correct date of
occurrence may not be able to be displayed.
Place of the error occurrence is represented by the position of the current location mark at the time an
error occurred. If current location mark has deviated from the correct position, then the place of the error
occurrence cannot be located correctly.

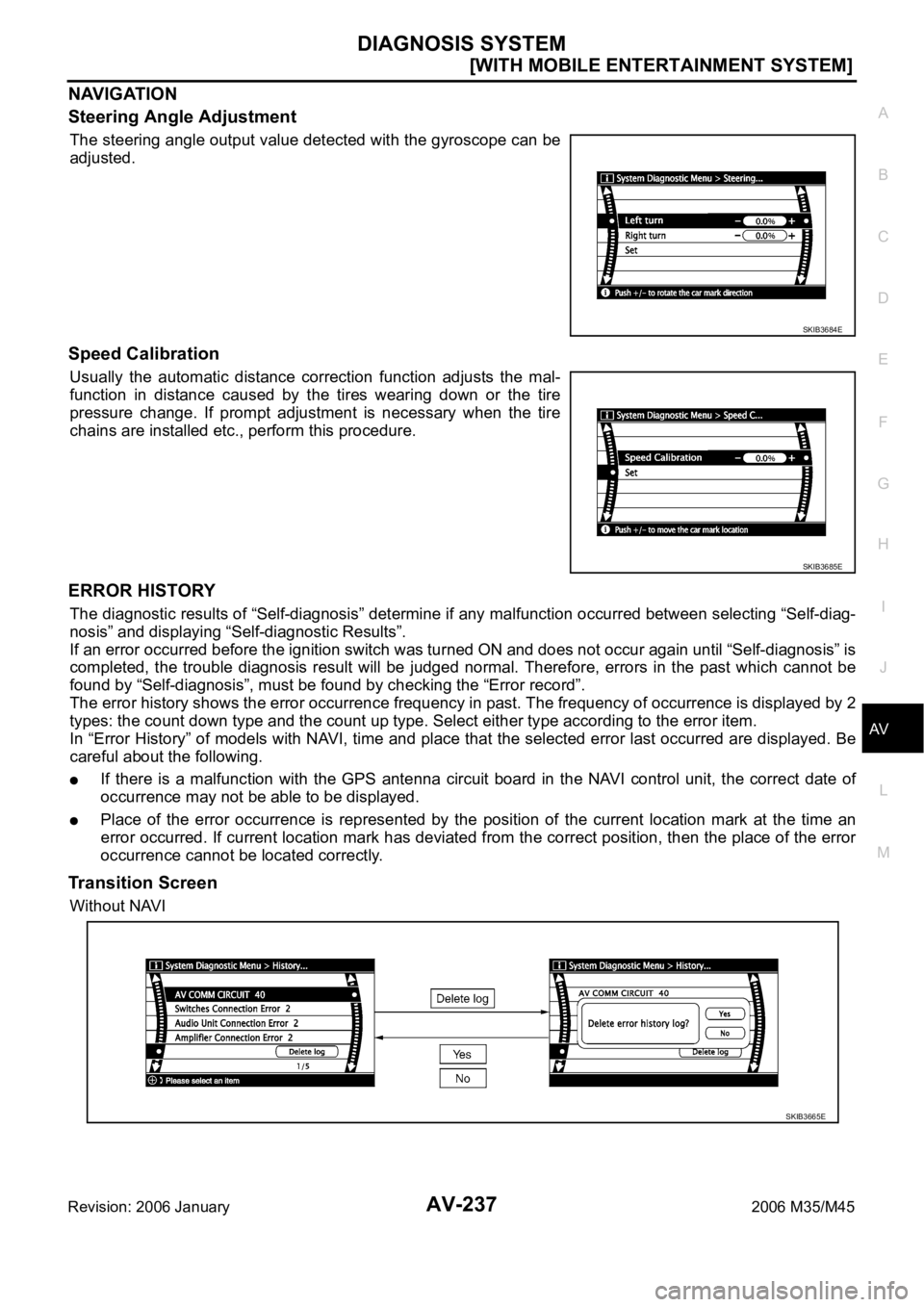

Transition Screen
Without NAVI
SKIB3684E
SKIB3685E
SKIB3665E

AV-242
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
ITM: AV (NAVI) control unit
NOTE:
??? indicates “UNKWN”.
HANDSFREE PHONE
Handsfree Volume Adjustment
The received volume adjustment of hands-free phone can be
adjusted to Low, Medium, and High settings.
Voice Microphone Test
When this function is turned ON, the voice that is input to microphone is output to front speaker via TEL voice
signal line. The microphone and TEL voice signal line can be checked.
Delete Handsfree Memory
Erase the memory related to the hands-free phone.
REAR DISPLAY
Tilt angle (90 to 135 degrees, 105 to 135 degrees) of rear seat
display can be set.
The automatic retraction of rear seat display can be set.
C Rx (RrSeatSW-ITM) OK /??? 0 - 40
C Rx (Audio-ITM) OK /??? 0 - 40
C Rx (Amp-ITM) OK /??? 0 - 40
C Rx (RearCamera-ITM) OK /??? 0 - 40
C Rx (DVD-ITM) OK /??? 0 - 40
C Rx (Video DIST-ITM) OK /??? 0 - 40
C Rx (Remote Cont-ITM) OK /??? 0 - 40
C Rx (Amp-Audio) OK /??? 0 - 40
C Rx (DVD-Audio) OK /??? 0 - 40ItemsStatus
(Current)Counter
(Past)
SKIB3668E
SKIB3693E

DIAGNOSIS SYSTEM
AV-243
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
CAMERA CONT.
There are 2 functions: “Connection Confirmation”, “Adjust offset of rear view camera”.
Connection Confirmation
The input signals of steering angle sensor signal, reverse signal,
and vehicle speed signal can be checked.
Adjust Offset of Rear View Camera
If the adjustment of rear view monitor guiding line display position is
necessary when rear view camera is removed, use this mode to
adjust it.
SKIB3688E
Diagnosis item Display Vehicle status
Steering Angle SensorONIt turns ON when the steering is turning with the ignition switch ON (Once it turns
ON, it does not change during Connection Confirmation mode)
OFFTurn ignition switch ACC
It turns OFF when the steering is not turning with the ignition switch ON
— Rear view monitor connection confirmation signal malfunction
Reverse SensorON Selector lever in R position with ignition switch ON
OFFTurn ignition switch ACC
Selector lever in any position other than R with ignition switch ON
— Rear view monitor connection confirmation signal malfunction
Vehicle Speed SensorON When vehicle speed is 0 km/h or more with ignition switch ON
OFFTurn ignition switch ACC
When vehicle speed is 0 km/h with ignition switch ON
— Camera-connection recognition signal malfunction
SKIB3689E

AV-246
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
CONSULT-II Functions (Multi AV)NKS004B1
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, and turn ignition switch ON.
3. Touch “START (NISSAN BASED VHCL)”.
4. Touch “MULTI AV”
If “MULTI AV” is not indicated, check the following item.
AV (NAVI) control unit power supply and ground circuit.
CONSULT-II data link connector (DLC) circuit
Refer to LAN-7, "
Precautions When Using CONSULT-II" .
Diagnosis mode Description
SELF DIAG RESULTS
Performs the connection diagnosis of communication circuit between AV (NAVI) control unit
and system and displays the current and past malfunctions collectively.
The DVD-ROM drive diagnosis of NAVI control unit and the connection diagnosis between
NAVI control unit and GPS antenna can be performed (DVD-ROM drive will not be diagnosed
when no map DVD-ROM is in it)
DATA MONITOR The diagnosis of vehicle signal that input to the AV (NAVI) control unit can be performed
CAN DIAG SUPPORT MNTRThe transmitting/receiving of CAN communication can be monitored. Refer to LAN-20, "
CAN
Diagnostic Support Monitor" .
AV COMM MONITOR The transmitting/receiving of a system can be monitored
ECU PART NUMBER The part number of AV (NAVI) control unit can be checked
SKIB3794E
BCIA0029E
BCIA0030E

AV-250
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
DATA MONITOR
When “DATA MONITOR” is selected, “ALL SIGNALS” and “SELEC-
TION FROM MENU” are displayed.
ALL SIGNALS
When “ALL SIGNALS” is selected and “START” is touched, the
following vehicle signal condition that is input to AV (NAVI) con-
trol unit is displayed.
For each signal, a comparison of actual operating status and the
status recognized by the system can be checked.
DVD-ROM COMM [U1208]
Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit
There is dirt and damage on the map
disc
Map disc
NAVI control unit
Refer to AV-290, "
AV (NAVI) Control
Unit"
DVD-ROM READ [U1209]
DVD-ROM DISC [U120A]
DVD-ROM MECHA DETECT [U120C]
DVD-ROM DRIVE MECHA [U120D]
DVD-ROM FOCUS [U120E]
DVD-ROM TOC [U120F]
DVD-ROM SEEK [U1210]
DVD-ROM ERR CORRECTION [U1211]
DVD-ROM DATA FORWARD [U1212]
DVD-ROM DATA [U1213]
DVD-ROM TIMEOUT [U1214]
DVD-ROM LOAD [U1215]
CAN CONT [U1216]
AV (NAVI) control unit malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-290, "
AV (NAVI) Control Unit"BLUETOOTH CONN [U1217]Error item Description Possible cause/Action to take
SKIB3675E
SKIB3676E

TROUBLE DIAGNOSIS
AV-253
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSISPFP:00004
Multifunction Switch Cannot Be OperatedNKS004B2
1. PERFORM CONSULT-II SELF-DIAGNOSIS
Perform CONSULT-II self-diagnosis and check the malfunction. Refer to AV-103, "
SELF-DIAG RESULTS" .
Is there a malfunction?
YES >> Refer to AV- 1 0 3 , "Display Item of SELF-DIAG RESULTS" .
NO >> Replace multifunction switch
RGB Image Is Not DisplayedNKS004B3
RGB IMAGE IS NOT DISPLAYED ON FRONT AND REAR DISPLAYS
1. DIAGNOSIS USING CONSULT-II
Start CONSULT-II, and make sure that “MULTI AV” is displayed on SELECT SYSTEM screen. Refer to AV-
102, "OPERATION PROCEDURE" .
OK or NG
OK >> Refer to AV- 1 0 3 , "SELF-DIAG RESULTS" .
NG >> Check AV (NAVI) control unit power supply and ground circuit.
ONLY FRONT DISPLAY
1. CHECK HARNESS BETWEEN AV (NAVI) CONTROL UNIT AND VIDEO DISTRIBUTOR
1. Disconnect AV (NAVI) control unit connector and video distributor connector.
2. Check continuity between video distributor harness connector
M207 terminal 48 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK RGB AREA SIGNAL FOR AV (NAVI) CONTROL UNIT
1. Connect AV (NAVI) control unit connector.
2. Turn ignition switch ON.
3. Check voltage between AV (NAVI) control unit harness connec-
tor M210 terminal 50 and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace AV (NAVI) control unit.48 – Ground : Continuity should not exist.
SKIB4593E
50 – Ground : Approx. 5 V
SKIB6893E
