INFINITI M35 2006 Factory Service Manual

EM-198
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 January2006 M35/M45
NOTE:
Use mirrors for checking at points out of clear sight.
2. Start engine. With engine speed increased, check again for fuel leakage at connection points.
CAUTION:
Do not touch engine immediately after stopped, as engine becomes extremely hot.

ROCKER COVER
EM-199
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
ROCKER COVERPFP:13264
ComponentsNBS004P5
Removal and InstallationNBS004P6
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-173, "ENGINE ROOM COVER" .
2. Remove engine cover with power tool. Refer to EM-179, "
INTAKE MANIFOLD" .
3. Refer to the following for incidental works related to left bank.
a. Remove air duct (inlet), air cleaner case and air duct and resonator assembly. Refer to EM-177, "
AIR
CLEANER AND AIR DUCT" .
b. Move harness on upper rocker cover and its peripheral aside.
c. Remove harness bracket from camshaft bracket (No. 6). Refer to EM-215, "
CAMSHAFT" .
d. Remove ignition coil. Refer to EM-190, "
IGNITION COIL" .
e. Remove PCV hose from PCV valve.
4. Refer to the following for incidental works related to right bank.
a. Move harness on upper rocker cover and its peripheral aside.
b. Remove ignition coil. Refer to EM-190, "
IGNITION COIL" .
c. Remove PCV hose from PCV valve.
5. Remove PCV valves and O-rings from rocker covers (right and left bank), if necessary.
6. Remove oil filler cap and oil catcher from rocker cover (right bank), if necessary.
7. Remove rocker cover (right bank) as follows:
a. Remove battery cover. Refer to EM-173, "
ENGINE ROOM COVER" .
1. Rocker cover (left bank) 2. PCV valve 3. O-ring
4. Rocker cover gasket (left bank) 5. Rocker cover (right bank) 6. PCV valve
7. O-ring 8. Oil filler cap 9. Oil catcher
10. Rocker cover gasket (right bank)
PBIC2353E

EM-200
[VK45DE]
ROCKER COVER
Revision: 2006 January2006 M35/M45
b. Remove battery and battery tray. Refer to SC-4, "BATTERY" .
c. Remove grommet (2) from cowl top panel hole (RH).
d. Loosen mounting bolts in reverse order as that shown in the fig-
ure.
CAUTION:
Do not hold oil filler neck (right bank) so as not to damage
it.
NOTE:
Loosen No. 10 bolt of right bank from cowl top panel hole using
tool.
8. Remove rocker cover (left bank) as follows:
a. Remove brake master cylinder cover. Refer to EM-173, "
ENGINE ROOM COVER" .
b. Remove two grommets (1) from cowl top panel hole (LH).
c. Loosen mounting bolts in reverse order as that shown in the fig-
ure.
NOTE:
Loosen No. 10 and 12 bolts of the left bank from cowl top panel
hole using tool.
Refer to the following procedure for removal of mounting bolts No. 10 and 12. (For ICC models)
CAUTION:
Do not bend or damage brake piping by tools.
1 : Relay box
: Engine front
PBIC3368E
PBIC0027E
2 : Brake master cylinder
: Engine front
PBIC3452E
PBIC0027E

ROCKER COVER
EM-201
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
–No. 10 bolt. See the figure and remove them using a 300 mm
expansion bar.
–No. 12 bolt. See the figure and remove them using a 300 mm
expansion bar.
NOTE:
Slide the brake piping frontward to obtain working space.
9. Remove rocker cover gaskets from rocker covers.
10. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1 and 6).
CAUTION:
Do not scratch or damage the mating surface when cleaning off oil liquid gasket.
INSTALLATION
1. Apply liquid gasket with tube presser [SST: WS39930000 ( —
)] to joint among rocker cover, cylinder head and camshaft
bracket (No. 1 and 6) as follows:
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
NOTE:
The figure shows an example of left bank side [zoomed in
shows camshaft bracket (No. 1)]. Apply only to camshaft bracket
(No. 1) for right bank side.
a. Refer to the figure “a” to apply liquid gasket to joint part of cam-
shaft bracket (both No. 1 and 6) and cylinder head.
b. Refer to the figure “b” to apply liquid gasket to the figure “a”
squarely.
2. Install new rocker cover gaskets to rocker covers.
3. Install rocker cover.
Check if rocker cover gasket is not dropped from installation groove of rocker cover.
A : Cowl top panel hole
: Engine front
PBIC3367E
A : Cowl top panel hole
: Engine front
PBIC3366E
PBIC2444E

EM-202
[VK45DE]
ROCKER COVER
Revision: 2006 January2006 M35/M45
4. Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.
CAUTION:
Do not hold oil filler neck (right bank) so as not to dam-
age it.
Do not bend or damage brake piping by tools. (ICC mod-
els)
NOTE:
Tighten No. 10 bolt of the right bank and No. 10 and 12 bolts of
the left bank from cowl top panel hole with using tool.
5. Install oil filler cap and oil catcher to rocker cover (right bank), if removed.
6. Install new O-rings and PCV valves to rocker covers (right and left bank), if removed.
7. Install in the reverse order of removal. 1st step : 2.0 Nꞏm (0.2 kg-m, 18 in-lb)
2nd step : 8.3 Nꞏm (0.85 kg-m, 73 in-lb)
PBIC0027E

TIMING CHAIN
EM-203
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

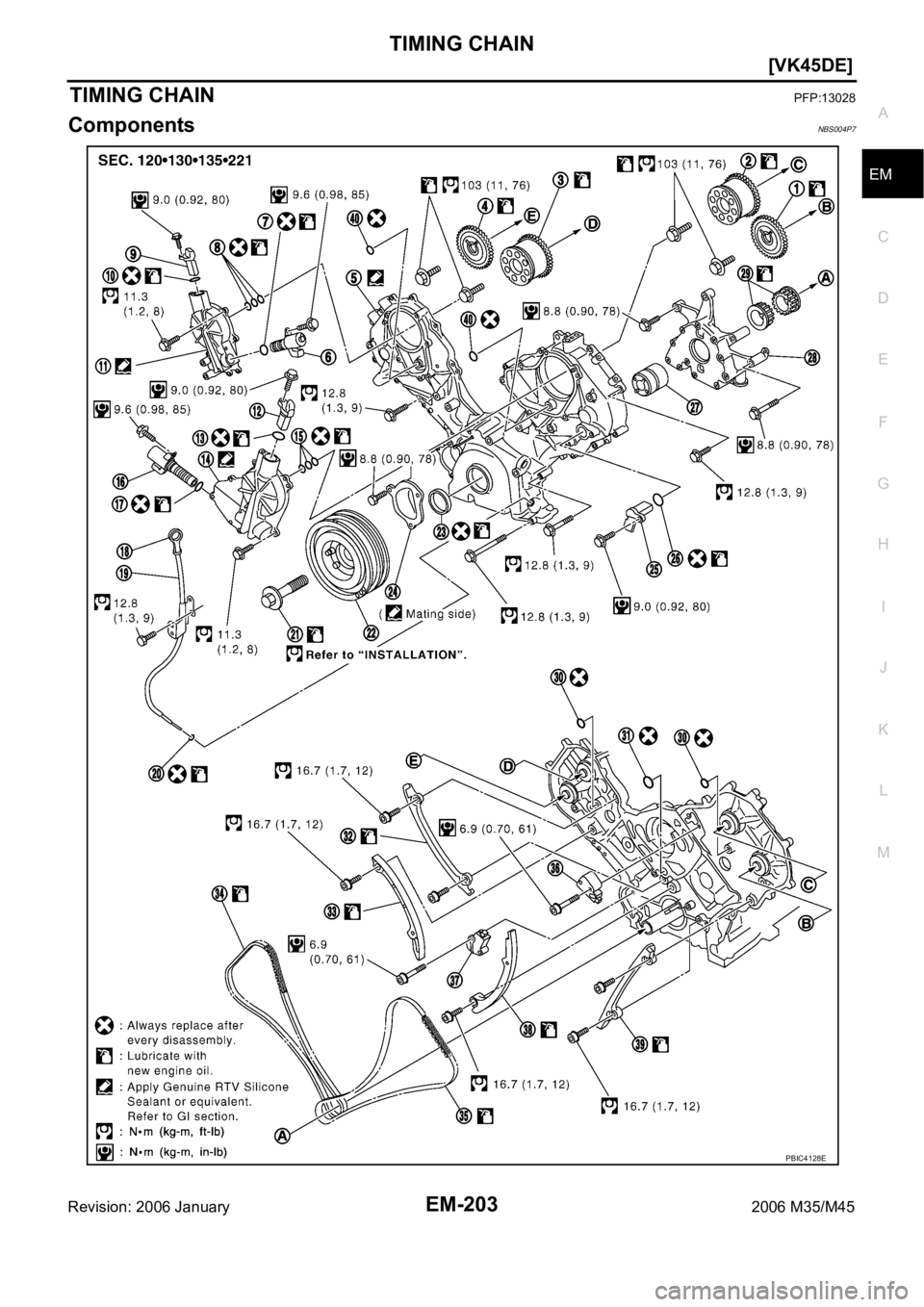

TIMING CHAINPFP:13028
ComponentsNBS004P7
PBIC4128E

EM-204
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004P8
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-244, "ENGINE ASSEMBLY" .
2. Remove the following components and related parts:
Drive belt auto tensioner and idler pulley; Refer to EM-176, "Drive Belt Auto Tensioner and Idler Pulley"
.
Thermostat housing and hoses; Refer to CO-55, "THERMOSTAT AND WATER CONTROL VALVE" .
Ignition coil; Refer to EM-190, "IGNITION COIL" .
Rocker cover; Refer to EM-199, "ROCKER COVER" .
3. If necessary, remove intake valve timing control position sensor
(right and left bank) and camshaft position sensor (PHASE) from
intake valve timing control cover and front cover.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
4. If necessary, remove intake valve timing control solenoid valve from intake valve timing control cover.
CAUTION:
Handle components and parts carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
1. Camshaft sprocket (EXH) 2. Camshaft sprocket (INT) 3. Camshaft sprocket (INT)
4. Camshaft sprocket (EXH) 5. Front cover 6.Intake valve timing control solenoid
valve (right bank)
7. O-ring 8. Seal ring 9.Intake valve timing control position
sensor (right bank)
10. O-ring 11.Intake valve timing control cover
(right bank)12.Intake valve timing control position
sensor (left bank)
13. O-ring 14.Intake valve timing control cover (left
bank)15. Seal ring
16.Intake valve timing control solenoid
valve (left bank)17. O-ring 18. Oil level gauge
19. Oil level gauge guide 20. O-ring 21. Crankshaft pulley bolt
22. Crankshaft pulley 23. Front oil seal 24. Chain tensioner cover
25. Camshaft position sensor (PHASE) 26. O-ring 27. Oil pump drive spacer
28. Oil pump assembly 29. Crankshaft sprocket 30. O-ring
31. O-ring 32.Timing chain tension guide
(right bank)33.Timing chain slack guide
(right bank)
34. Timing chain (right bank) 35. Timing chain (left bank) 36. Chain tensioner (left bank)
37. Chain tensioner (right bank) 38.Timing chain slack guide
(left bank)39.Timing chain tension guide
(left bank)
40. O-ring
PBIC0050E

TIMING CHAIN
EM-205
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
5. Remove intake valve timing control cover as follows:
a. Loosen and remove mounting bolts in the reverse order as
shown in the figure.
b . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s ket
for removal.
CAUTION:
Exercise care not to damage mating surfaces.
Pull out cover keeping levelness without an angle, as
inner part of cover is engaged with the center of camshaft
sprocket (INT).
6. Remove O-rings from front cover.
7. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align the TDC identifica-
tion notch (without paint mark) with timing indicator on front
cover.
b. Make sure that both intake and exhaust cam noses of No. 1 cyl-
inder (engine front side of left bank) are located as shown in the
figure.
If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
8. Remove crankshaft pulley as follows:
PBIC0051E
SBIA0374E
PBIC2341E
KBIA0400J

EM-206
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
a. Remove rear plate cover, and set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley
with both hands to remove it.
CAUTION:
Do not remove crankshaft pulley bolt. Keep loosened
crankshaft pulley bolt in place to protect removed crank-
shaft pulley from dropping.
Do not remove balance weight (inner hexagon bolt) at the
front of crankshaft pulley.
9. Remove oil pan and oil strainer. Refer to EM-187, "
OIL PAN AND OIL STRAINER" .
10. Remove front cover as follows:
a. Loosen mounting bolts in reverse order as shown in the figure.
b . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s ket
for removal.
CAUTION:
Exercise care not to damage mating surfaces.
After removal, handle front cover carefully so it does not
tilt, cant, or warp under a load.
11. Remove front oil seal from front cover using suitable tool.
Use screwdriver for removal.
CAUTION:
Be careful not to damage front cover.
12. Remove O-rings from cylinder heads (right and left bank) and
cylinder block.
13. Remove chain tensioner cover from front cover.
Use seal cutter [SST: KV10111100 (J37228)] to cut liquid gasket for remove.
14. Remove oil pump drive spacer.
Set bolts in the two bolt holes [M6 pitch 1.0 mm (0.04 in)] on
front surface. Using suitable puller, pull oil pump drive spacer
off from crankshaft.
NOTE:
The dimension between the centers of the two bolt holes is 33
mm (1.30 in).
In the figure, a commercial steering puller is used.
15. Remove oil pump. Refer to LU-30, "
OIL PUMP" .
16. Remove chain tensioner (left bank) as follows:
PBIC1656E
KBIA0354J
SBIA0373E
PBIC2342E

TIMING CHAIN
EM-207
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
NOTE:
To remove timing chain and related parts, start with those on left bank. The procedure for removing parts
on right bank is omitted because it is the same as that for left bank.
a. Press tab in the direction of arrow (or turn lever in the direction
of arrow) to unlock the locking with the groove that stops ten-
sioner plunger from returning.
Lightly press tensioner plunger to release the tension of
spring for this operation.
b. Push in tensioner plunger to align the hole on lever and that on
pump main body.
Pushing in tensioner too far does not allow the holes to align.
Therefore, push in plunger to the degree at which the start of
stopper groove and tab engages.
c. Insert stopper pin [hard wire with approx. 0.5 mm (0.020 in)
diameter or similar tool] to fix plunger. With plunger fixed, remove chain tensioner.
17. Remove chain tension guide and timing chain slack guide.
18. Remove timing chain and crankshaft sprocket.
CAUTION:
After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
the piston head.
19. With hexagonal part of camshaft locked with wrench, loosen
mounting bolts securing camshaft sprocket to remove camshaft
sprocket.
CAUTION:
Do not loosen mounting bolts with securing anything other
than the camshaft hexagonal portion or with tensioning the
timing chain.
20. Perform same procedure as for left bank, remove timing chain and related parts on right side.
21. Use scraper to remove all traces of old liquid gasket from front cover and opposite mating surfaces.
Remove oil liquid gasket from bolt hole and thread.
22. Use scraper to remove all trace of liquid gasket from chain tensioner cover and intake valve timing control
covers.
PBIC2343E
PBIC0030E
PBIC2084E
