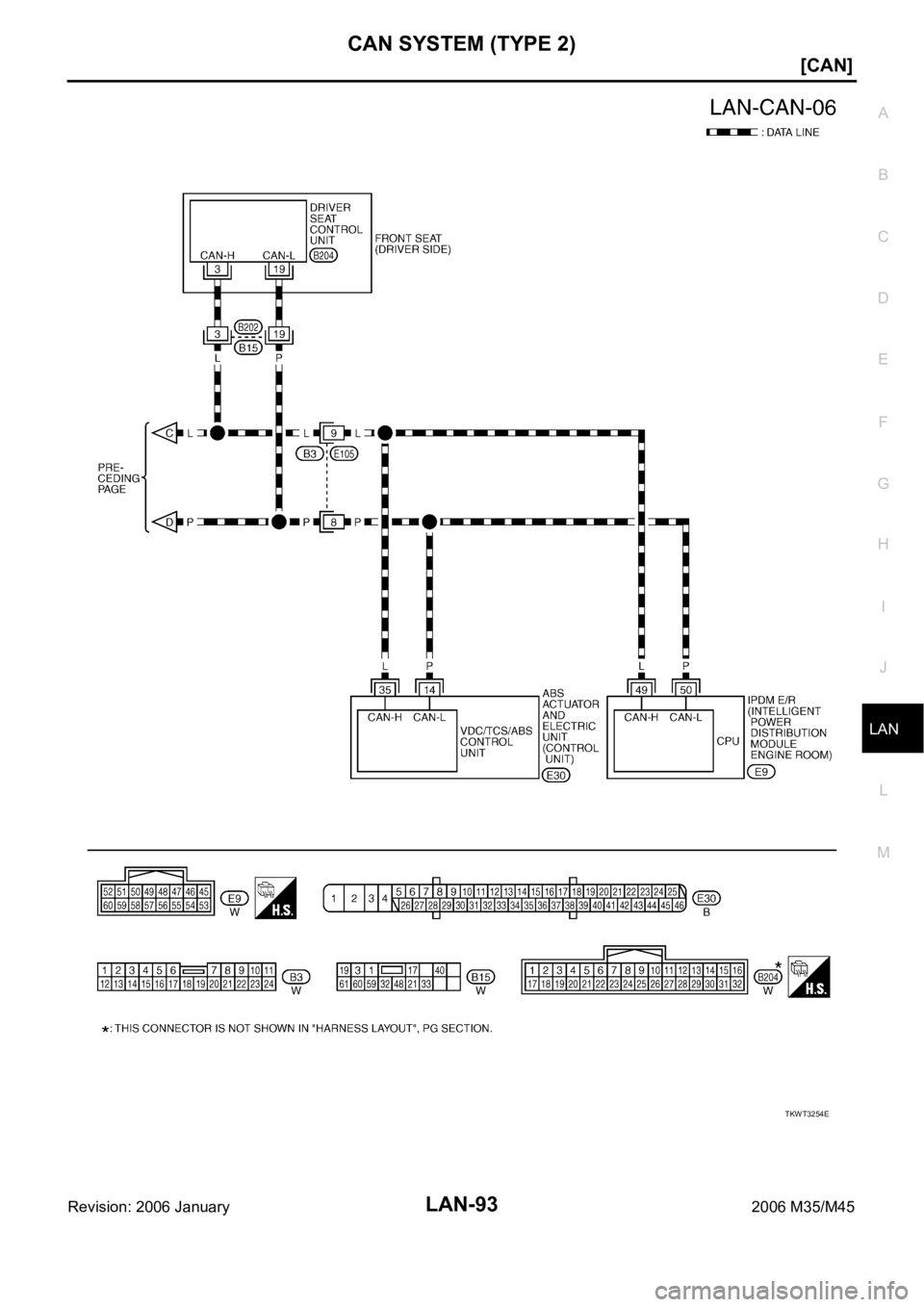

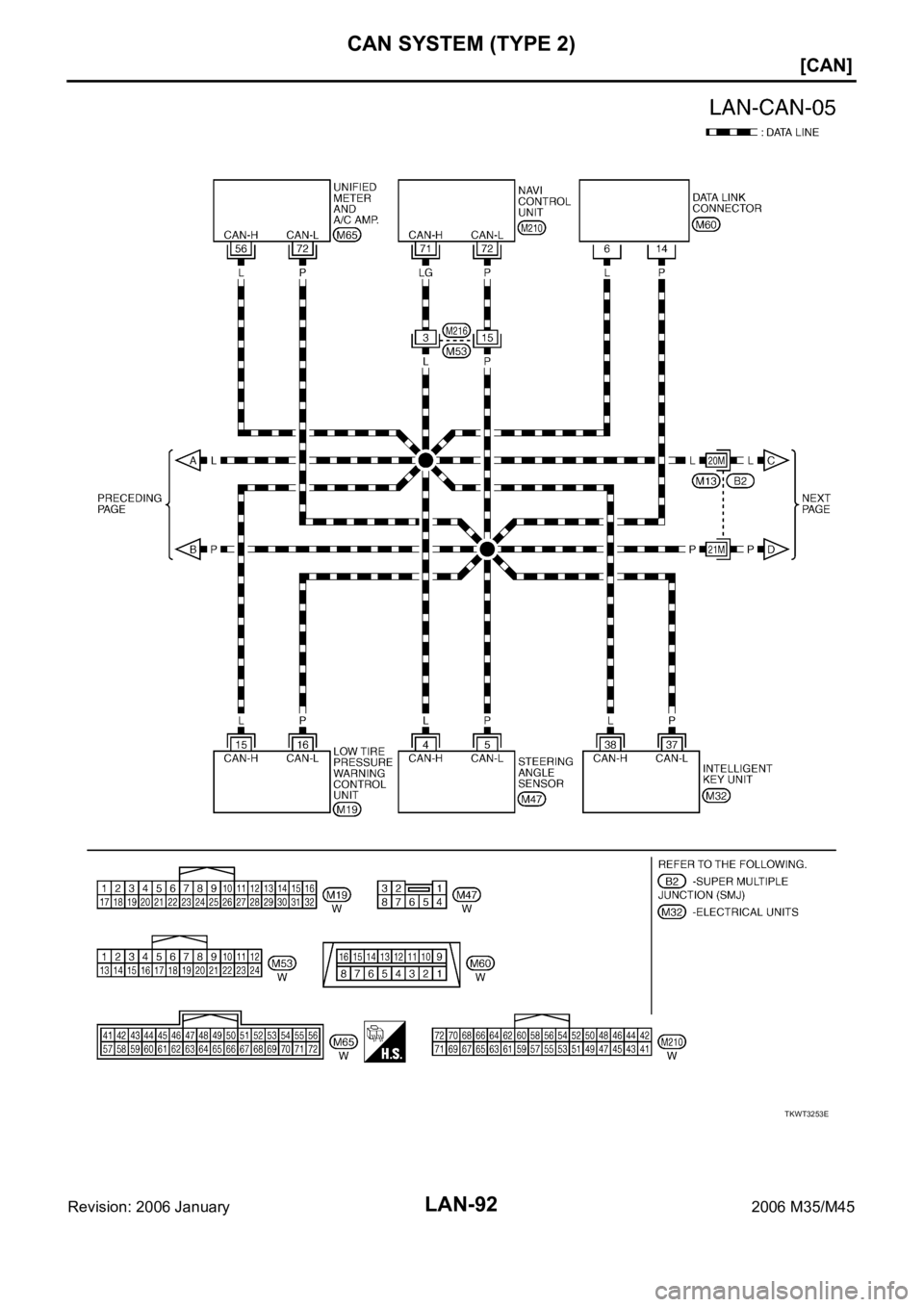

CAN SYSTEM (TYPE 2)
LAN-93
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
TKWT3254E

LAN-94
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45

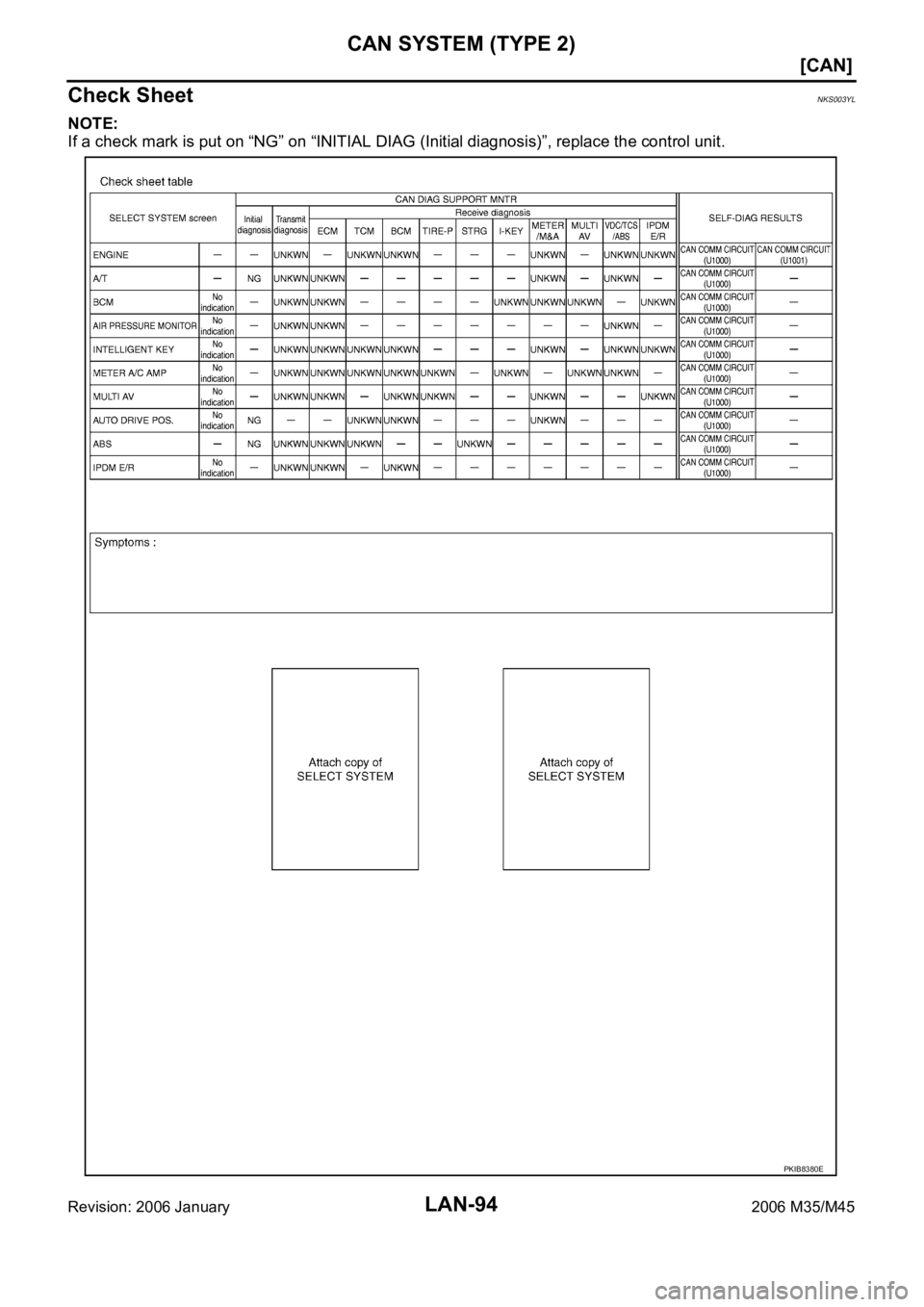

Check SheetNKS003YL
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8380E

CAN SYSTEM (TYPE 2)
LAN-95
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
PKIB9555E

LAN-96
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45
PKIB9556E

CAN SYSTEM (TYPE 2)
LAN-97
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

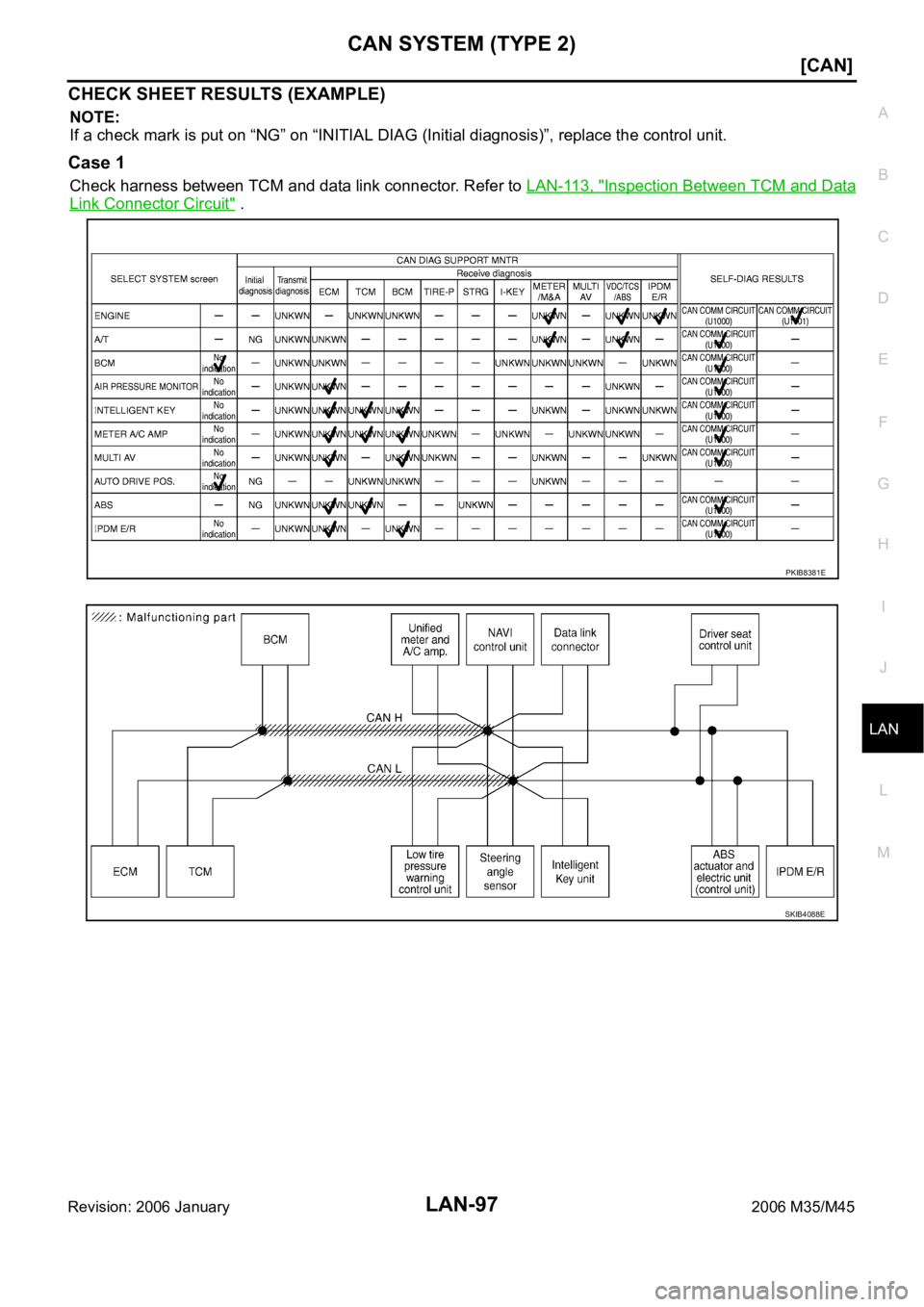

Case 1
Check harness between TCM and data link connector. Refer to LAN-113, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8381E
SKIB4088E

LAN-98
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45

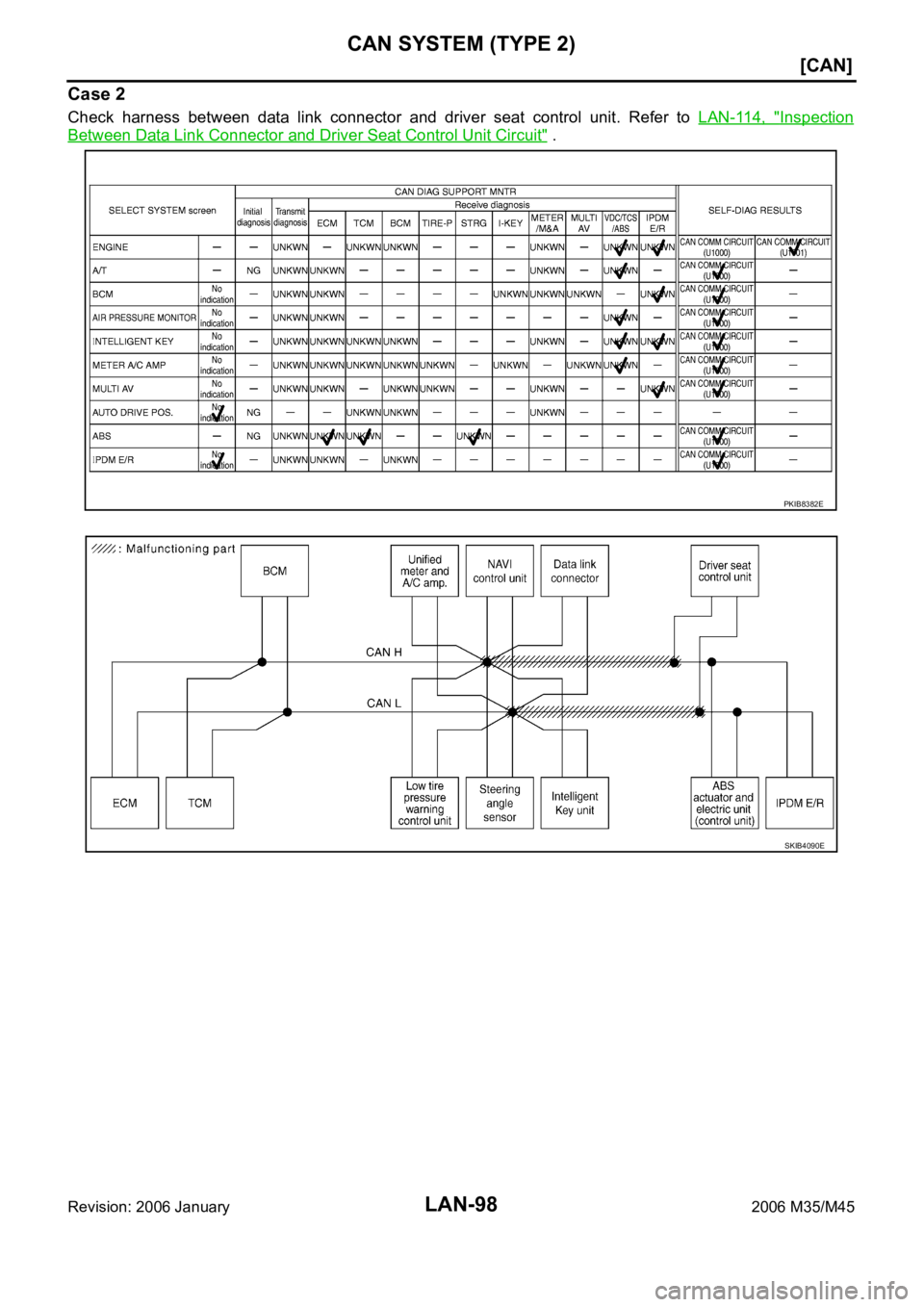

Case 2
Check harness between data link connector and driver seat control unit. Refer to LAN-114, "Inspection
Between Data Link Connector and Driver Seat Control Unit Circuit" .
PKIB8382E
SKIB4090E

CAN SYSTEM (TYPE 2)
LAN-99
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 3
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
11 5 , "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8383E
SKIB4091E

LAN-100
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45

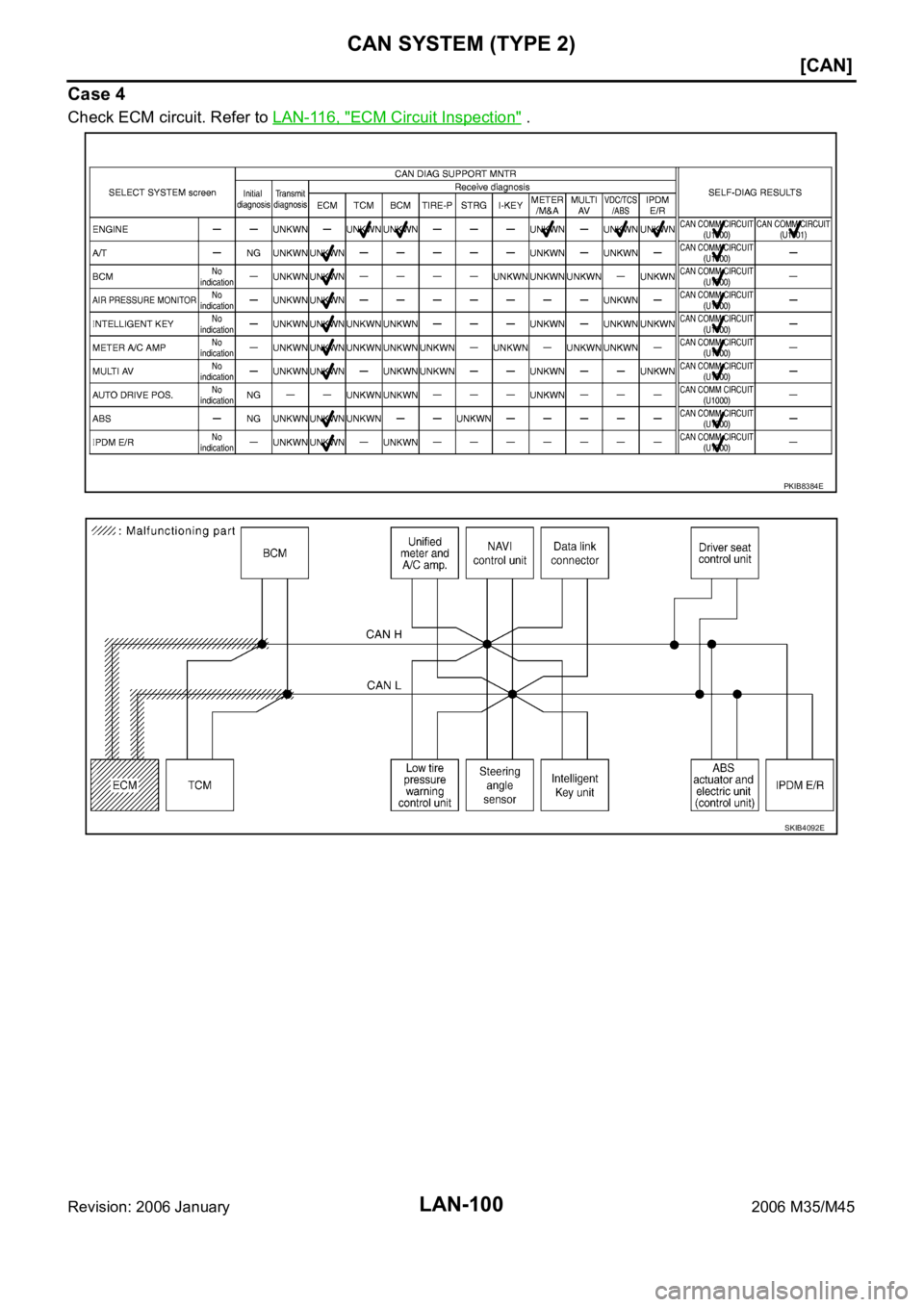

Case 4
Check ECM circuit. Refer to LAN-116, "ECM Circuit Inspection" .
PKIB8384E
SKIB4092E

CAN SYSTEM (TYPE 2)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

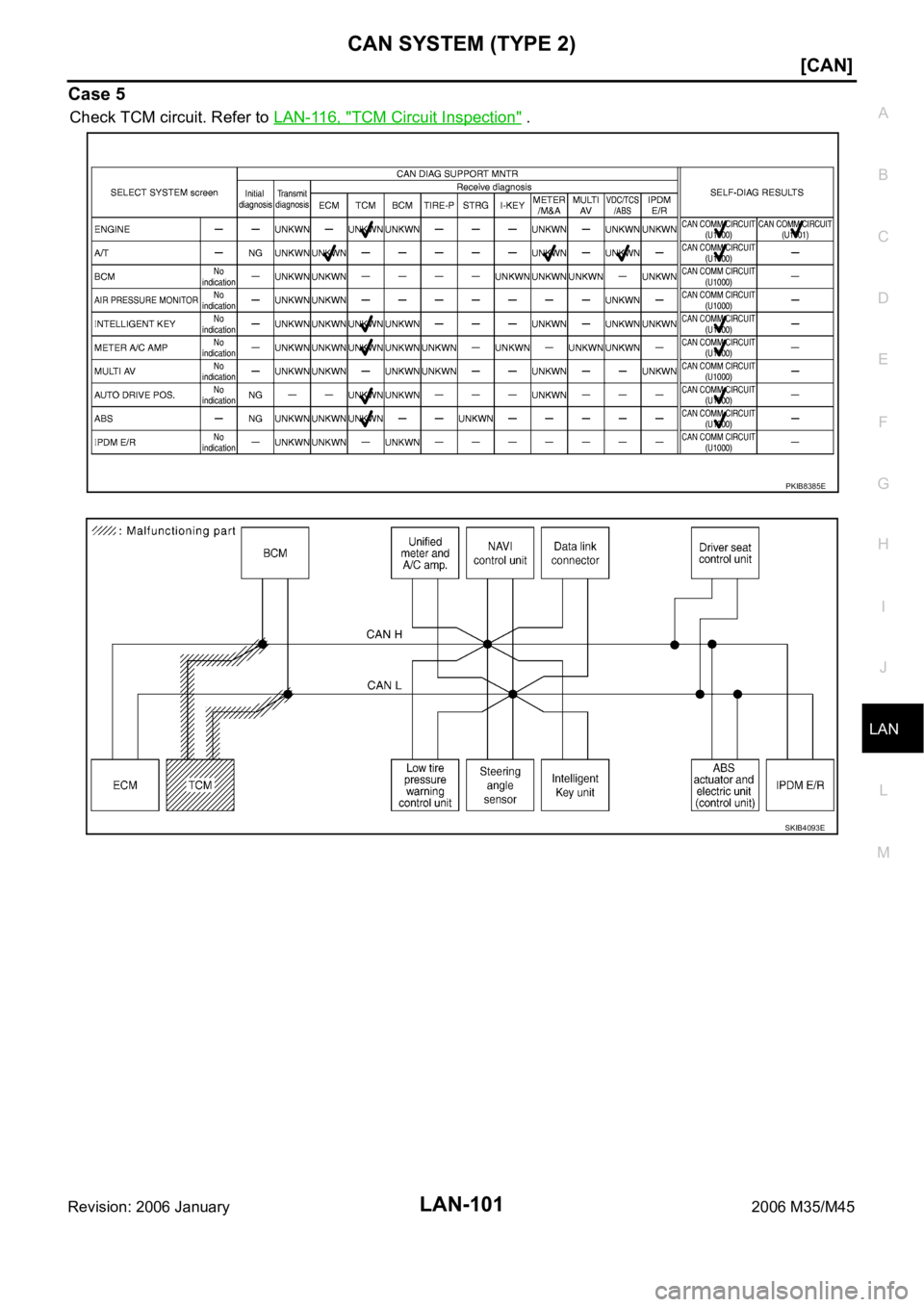

Case 5
Check TCM circuit. Refer to LAN-116, "TCM Circuit Inspection" .
PKIB8385E
SKIB4093E
