audio INFINITI M35 2006 Factory Workshop Manual

AV-120
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK TEL VOICE SIGNAL
1. Connect AV (NAVI) control unit connector and audio unit connector.
2. Turn ignition switch ON.
3. Check signal between AV (NAVI) control unit harness connector
M78 terminals 10 and 11
OK or NG
OK >> Replace audio unit.
NG >> Replace AV (NAVI) control unit.
THE VOICE CANNOT BE TRANSMITTED
Refer to AV- 11 6 , "THE SCREEN IS SWITCHED BY PRESSING THE STEERING SWITCH" .
Voice Guidance Is Not Heard (Base System)NKS0049C
1. CHECK HARNESS BETWEEN AV (NAVI) CONTROL UNIT AND AUDIO UNIT
1. Disconnect AV (NAVI) control unit connector and audio unit connector.
2. Check continuity between AV (NAVI) control unit harness con-
nector (A) M78 terminals 12, 14 and audio unit harness connec-
tor (B) M77 terminals 32, 33.
3. Check continuity between AV (NAVI) control unit harness con-
nector (A) M78 terminals 12, 14 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK VOICE GUIDANCE SIGNAL
1. Connect AV (NAVI) control unit connector and audio unit connector.
2. Turn ignition switch ON.
3. Push the voice button.
4. Check signal between AV (NAVI) control unit harness connector
M78 terminals 12 and 14.
OK or NG
OK >> Replace AV (NAVI) control unit.
NG >> Replace audio unit.10 – 11:When inputting TEL voice
SKIB4641ESKIB3609E
12 – 32 : Continuity should exist.
14 – 33 : Continuity should exist.
12, 14 – Ground : Continuity should not exist.
SKIB4702E
12 – 14:
SKIB4645E
SKIB3609E

AV-130
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
REMOVAL AND INSTALLATION
Revision: 2006 January2006 M35/M45
REMOVAL AND INSTALLATIONPFP:00000
Removal and Installation/Precautions for ReplacementNKS0049F
REMOVAL OF BATTERY
When the battery is removed, the possible route line center position of rear view monitor may not be in the cor-
rect position. Perform the center position correction with the following procedure.
1. Fully turn the steering wheel to left/right.
2. Drive 100m (328.1 ft) or more at vehicle speed 30 km/h (18.6 MPH) or more.
Audio Unit NKS0049G
REMOVAL
1. Remove cluster lid C. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (A) and remove audio unit (2) in conjunction
with unified meter and A/C amp (1).
3. Remove screws (A) and (B)
4. Remove meter and A/C amp (1), audio unit (2) and bracket (3).
CAUTION:
Be careful not to allow foreign material to enter from CD
slot.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Unified meter and A/C amp screws are different from other securing screws. Never confuse them
when installing.
Front Door SpeakerNKS0049H
REMOVAL
1. Remove front door finisher. Refer to EI-34, "DOOR FINISHER" .
2. Remove screws (A) and remove front door speaker (1).
INSTALLATION
Installation is the reverse order of removal.
SKIB4268E
SKIB4269E
SKIB4270E

REMOVAL AND INSTALLATION
AV-133
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
2. Remove screws (A) and disconnect connector.
3. Remove woofer (1).
INSTALLATION
Installation is the reverse order of removal.
BOSE AmpNKS0049O
: Vehicle front
REMOVAL
1. Remove trunk front finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Remove screws (A), and disconnect connector.
3. Remove BOSE amp (1).
INSTALLATION
Installation is the reverse order of removal.
AudioPilot® MicrophoneNKS0049P
REMOVAL
1. Remove steering column lower cover. Refer to IP-11, "Removal and Installation of Instrument Panel &
Pad" .
2. Remove screws (A) and disconnect connector.
3. Remove Microphone (2) from steering column lower cover (1).
INSTALLATION
Installation is the reverse order of removal.
Satellite Radio TunerNKS0049Q
REMOVAL
1. Remove trunk front finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Remove rear parcel shelf finisher. Refer to EI-42, "
Removal and Installation" .
SKIB4348E
SKIB4349E
SKIB4350E

AV-146
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
SYSTEM DESCRIPTIONPFP:00000
System FunctionsNKS004AB
Here is an example of functions. For details, refer to the owner's manual or navigation system owner's manual.
AUDIO
AudioPilot
® (for BOSE System)
AudioPilot® is the sound improving system that picks up any noises and the sound of music coming into the
vehicle by a microphone under the steering, and that the BOSE amp revises the frequency feature of music at
real time in response to the frequency feature of the noise while driving and listening to music.
If low frequency area noise from vehicle is loud, it adjusts low frequency element of music to be bigger
than vehicle noise.
If high frequency area noise from vehicle is loud, it adjusts all frequency element of music to be bigger
than vehicle noise.
Centerpoint® (for BOSE Surround 5.1ch System)
CD and 2.0ch DVD stereo sound played at audio unit and DVD player are subjected to signal processing in
BOSE amp. It can play the surround sound with presence.
VEHICLE INFORMATION SYSTEM
The status of audio, climate control system, fuel consumption, and navigation system (if equipped) are
displayed.
AV (NAVI) control unit receives the data signal from ECM, unified meter and A/C amp and low tire pres-
sure warning control unit via CAN communication. It calculates the values of fuel economy, tire pressure,
and trip computer from the received information and displays them.
NAVIGATION SYSTEM
Location Detection Principle
The navigation system periodically calculates the vehicle's current
position according to the following three signals:
Travel distance of the vehicle as determined by the vehicle
speed sensor
Turning angle of the vehicle as determined by the gyroscope
(angular velocity sensor)
Direction of vehicle travel as determined by the GPS antenna
(GPS information)
The current position of the vehicle is then identified by comparing the
calculated vehicle position with map data read from the map DVD-
ROM, which is stored in the DVD-ROM drive (map-matching), and
indicated on the screen as a vehicle mark. More accurate data is judged and used by comparing vehicle posi-
tion detection results found by the GPS with the result by map-matching.
The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.
Travel distance
Travel distance calculations are based on the vehicle speed
sensor input signal. Therefore, the calculation may become
incorrect as the tires wear down. To prevent this, an automatic
distance correction function has been adopted.
Travel direction
Change in the travel direction of the vehicle is calculated by a
gyroscope (angular velocity sensor) and a GPS antenna (GPS
information). They have both advantages and disadvantages.
SKIB1058E
SEL684V

SYSTEM DESCRIPTION
AV-149
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
Component Description NKS004AC
AUDIO UNIT
BOSE 2ch System
It receives the TEL voice signal from AV (NAVI) control unit and
output it to the BOSE amp.
It receives the sound signal from DVD player and sends it to the
BOSE amp.
It controls sound volume of each speaker when outputting TEL
voice and voice guidance.
It subjects to AudioPilot® processing when receiving sound sig-
nal from microphone for AudioPilot
® .
BOSE Surround 5.1ch System
It receives the TEL voice signal from AV (NAVI) control unit and
output it to the BOSE amp.
DVD player receives the received AUX sound and the downmix
sound of DVD player, and then sends them to the BOSE amp.
BOSE AMP
BOSE 2ch System
It amplifies the sound signal from the audio unit and output it to
each speaker.
It receives the voice guidance signal from AV (NAVI) control unit
and output it to the front speaker.
It controls sound volume of each speaker when outputting TEL
voice and voice guidance.
It subjects to AudioPilot® processing when receiving sound sig-
nal from microphone for AudioPilot
® .
BOSE Surround 5.1ch System
It amplifies the sound signal from the audio unit and the DVD
sound signal from DVD player, and then output them to each
speaker.
It receives the voice guidance signal from AV (NAVI) control unit
and output it to the front speaker.
It controls sound volume of each speaker when outputting TEL
voice and voice guidance.
It subjects to AudioPilot® processing when receiving sound sig-
nal from microphone for AudioPilot
® .
It subjects to Centerpoint® processing.
SKIB3886E
SKIB3886E
SKIB3887E
SKIB3887E

AV-150
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
SATELLITE TUNER
The satellite tuner is connected with the audio unit via communi-
cation line.
It sends the received sound signal from the satellite radio
antenna to the audio unit.
AV CONTROL UNIT (WITHOUT NAVI)
It controls each unit of the system by the operation signal from
the multifunction switch and sends the image signal of operating
condition or vehicle information, etc. to the display unit.
It receives the TEL input voice or the input voice at voice control
from the microphone. It receives the received TEL voice, and
then sends it to the audio unit.
It sends the voice guidance signal to BOSE amp (BOSE sys-
tem).
NAVI CONTROL UNIT (WITH NAVI)
It controls each unit of the system by the operation signal from
the multifunction switch and sends the image signal of operating
condition or vehicle information, etc. to the display unit.
It receives the TEL input voice or the input voice at voice control
from the microphone. It receives the received TEL voice, and
then sends it to the audio unit.
The gyro (angle speed sensor) and the DVD-ROM drive are
built-in units that control the navigation functions.
Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining this data with the data contained in the DVD-ROM map.
Location information is shown on liquid crystal display panel.
FRONT DISPLAY UNIT
It receives the RGB signal and the image signal of video distrib-
utor and camera control unit from AV (NAVI) control unit.
The changing of image is controlled by the communication with
AV (NAVI) control unit.
SKIB3894E
SKIB3891E
SKIB3892E
SKIB3893E

SYSTEM DESCRIPTION
AV-151
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
REAR DISPLAY UNIT
It receives the image signal from the video distributor.
The changing of image is controlled by the communication with
video distributor.
It receives the operation signal from remote control, and then
sends it to the video distributor.
VIDEO DISTRIBUTOR
It receives the image signal from the AV (NAVI) control unit,
DVD player, and auxiliary input jack, and then sends it to the
front display and rear display.
It supplies the power to the remote control receiver, and then
receives the operation signal from the remote control receiver.
It sends ON signal to headphone amp.
DVD PLAYER
BOSE 2ch System
It sends the sound signal when playing DVD to the audio unit,
headphone amp, and then it sends the image signal to the video
distributor.
It inputs the sound signal from auxiliary input jacks, and then
sends it to audio unit, headphone amp.
BOSE Surround 5.1ch System
It sends the sound signal when playing DVD to the BOSE amp, headphone amp, and then it sends the
image signal to the video distributor.
When the downmix function is turned ON when playing DVD, the sound signal is sent to the audio unit.
It inputs the sound signal from auxiliary input jacks, and then sends it to audio unit, headphone amp.

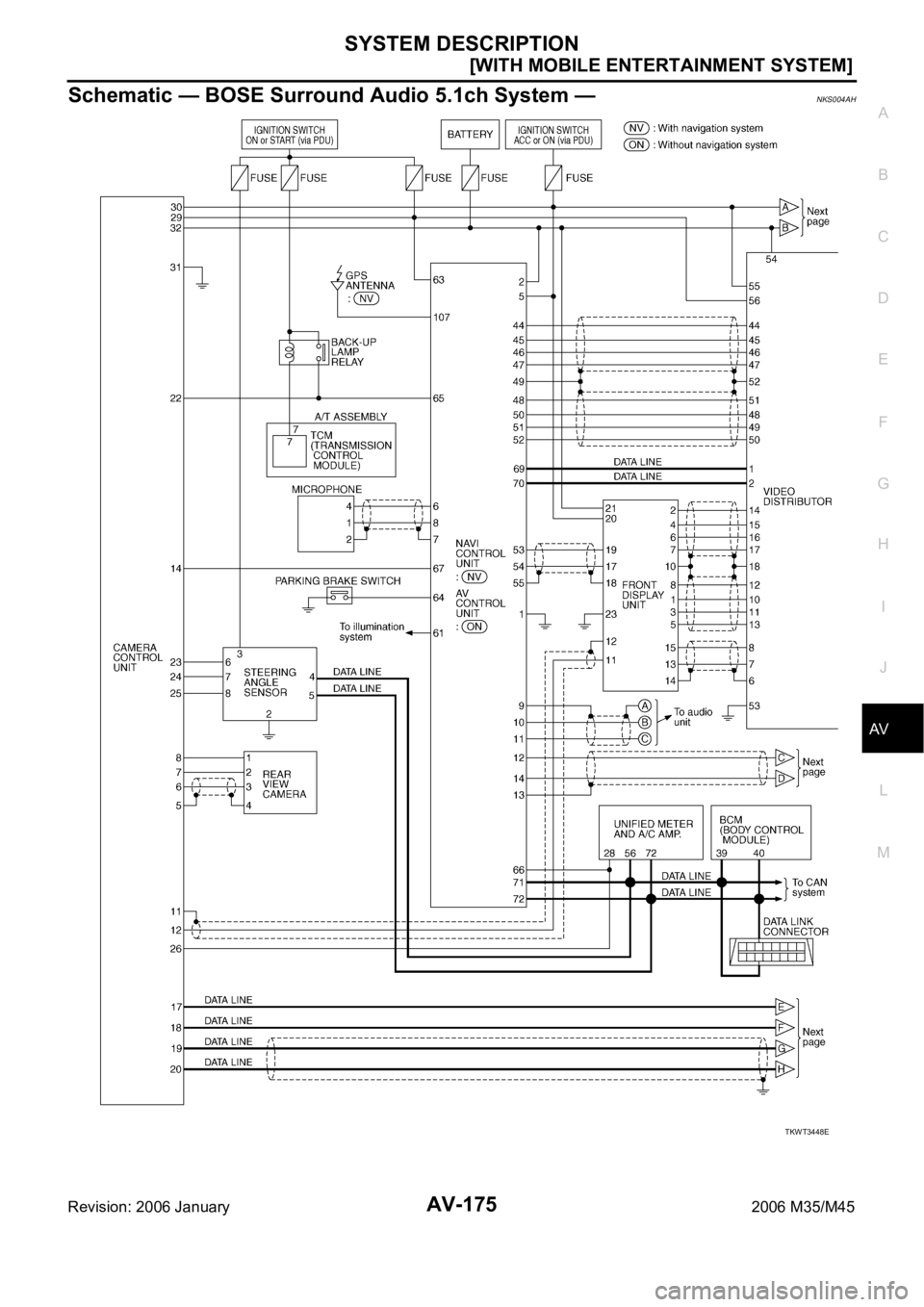

CAMERA CONTROL UNIT
When the reverse signal is input, the power is supplied to the
rear view camera, and then the image signal from the rear view
camera is sent to the display unit.
The camera control unit displays the guiding lines and possible
route lines, and then it synthesizes them to the camera image.
SKIB3895E
SKIB3897E
SKIB3889E
SKIB3898E

SYSTEM DESCRIPTION
AV-153
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
Schematic — BOSE Audio 2ch System —NKS004AF
TKWT3540E

AV-156
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
Wiring Diagram — AV — / BOSE Audio 2ch SystemNKS004AG
TKWT3543E

SYSTEM DESCRIPTION
AV-175
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
Schematic — BOSE Surround Audio 5.1ch System —NKS004AH
TKWT3448E
