coolant INFINITI M35 2006 Factory Manual PDF

EC-112
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
1 - 6: The numbers refer to the order of inspection.Cooling
Radiator/Hose/Radiator filler cap
55555 55 45CO-14
,
CO-18
Thermostat 5CO-29
Water pumpCO-24
Water galleryCO-31
Cooling fan
5CO-22
Coolant level (Low)/Contami-
nated coolantCO-11
IVIS (INFINITI Vehicle Immobilizer System —
NATS)11EC-53 or
BL-248
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

TROUBLE DIAGNOSIS
EC-113
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

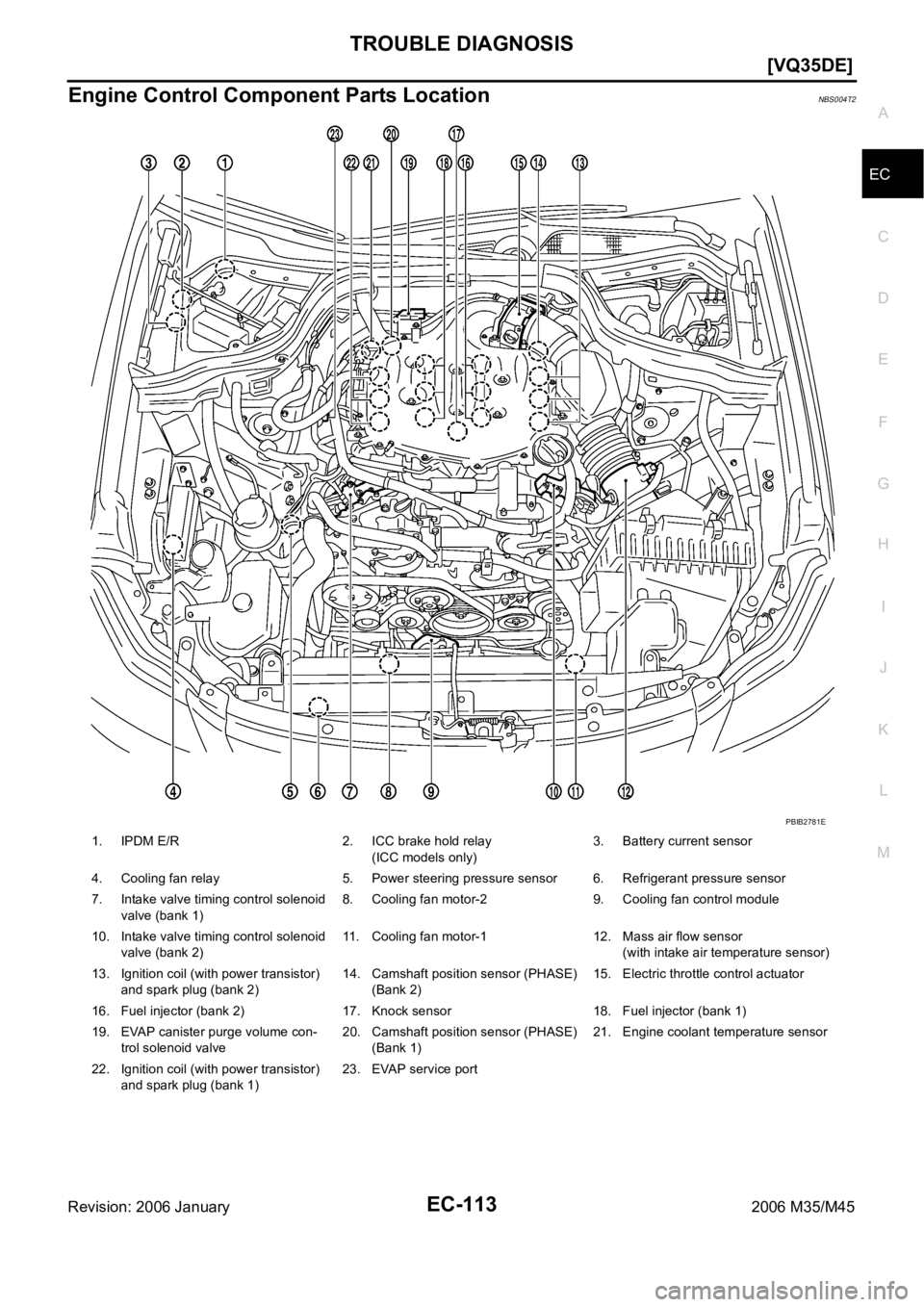

Engine Control Component Parts LocationNBS004T2
1. IPDM E/R 2. ICC brake hold relay
(ICC models only)3. Battery current sensor
4. Cooling fan relay 5. Power steering pressure sensor 6. Refrigerant pressure sensor
7. Intake valve timing control solenoid
valve (bank 1)8. Cooling fan motor-2 9. Cooling fan control module
10. Intake valve timing control solenoid
valve (bank 2)11. Cooling fan motor-1 12. Mass air flow sensor
(with intake air temperature sensor)
13. Ignition coil (with power transistor)
and spark plug (bank 2)14. Camshaft position sensor (PHASE)
(Bank 2)15. Electric throttle control actuator
16. Fuel injector (bank 2) 17. Knock sensor 18. Fuel injector (bank 1)
19. EVAP canister purge volume con-
trol solenoid valve20. Camshaft position sensor (PHASE)
(Bank 1)21. Engine coolant temperature sensor
22. Ignition coil (with power transistor)
and spark plug (bank 1)23. EVAP service port
PBIB2781E

EC-114
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
: Vehicle front
1. Mass air flow sensor (With intake air
temperature sensor)2. Electric throttle control actuator 3. Cooling fan motor-2 harness con-
nector
4. Cooling fan motor-1 harness con-
nector5. Cooling fan control module 6. Refrigerant pressure sensor har-
ness connector
7. PCV valve 8. Engine coolant temperature sensor
harness connector9. Fuel dumper
PBIB2787E

EC-130
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
67 B/WSensor ground
(MAF sensor, IAT sensor,
ECT sensor, EVAP control
system pressure sensor,
PSP sensor, ASCD/ICC
steering switch, Battery cur-
rent sensor, Refrigerant
pressure sensor)[Engine is running]Warm-up condition
Idle speedApproximately 0V
68 L/YSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
69 R Throttle position sensor 2[Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressedMore than 0.36V
70 L/R Refrigerant pressure sensor[Engine is running]
Warm-up condition
Both A/C switch and blower fan motor
switch: ON (Compressor operates)1.0 - 4.0V
71 L/R Battery current sensor[Engine is running]
Battery: Fully charged*
Idle speedApproximately 2.6 - 3.5V
73 Y/BEngine coolant temperature
sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with
engine coolant temperature.
74 WHeated oxygen sensor 2
(bank 1)[Engine is running]
Warm-up condition
Revving engine from idle to 3,000 rpm
quickly after the following conditions are met
–After keeping the engine speed between
3,500 and 4,000 rpm for 1 minute and at idle
for 1 minute under no load0 - Approximately 1.0V
78 BSensor ground
(Heated oxygen sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
82 WSensor ground
(APP sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 PSensor ground
(APP sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
85 V Data link connector[Ignition switch: ON]
CONSULT-II or GST: DisconnectedApproximately 5V - Battery volt-
age (11 - 14V)
86 P CAN communication line[Ignition switch: ON]Approximately 1.1 - 2.3V
Output voltage varies with the
communication status. TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

EC-134
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)
Camshaft position sensor
(PHASE)
Mass air flow sensor
Engine coolant temperature sen-
sor
Air fuel ratio (A/F) sensor 1
Heated oxygen sensor 2
Wheel sensor
Accelerator pedal position sensor
Throttle position sensor
Fuel tank temperature sensor
EVAP control system pressure
sensor
Intake air temperature sensor
Knock sensor
Refrigerant pressure sensor
Closed throttle position switch
(accelerator pedal position sensor
signal)
Air conditioner switch
Park/neutral position (PNP) switch
Stop lamp switch
Power steering pressure sensor
Battery voltage
Load signal
Fuel level sensor
Battery current sensor
ICC steering switch
ASCD steering switch
ICC brake switch
ASCD brake switch

TROUBLE DIAGNOSIS
EC-137
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-55, "EMISSION-RELATED DIAGNOSTIC INFORMA-
TION ITEMS" .)
Freeze Frame Data and 1st Trip Freeze Frame Data
EVAP SYSTEM CLOSE CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.
IGN SW ON
ENGINE NOT RUNNING
AMBIENT TEMPERATURE IS ABOVE 0C (32F).
NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS-
TEM
FUEL TANK TEMP. IS MORE THAN 0C (32F).
WITHIN 10 MINUTES AFTER STARTING “EVAP SYS-
TEM CLOSE”
WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”
UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
II WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.
NOTE:
WHEN STARTING ENGINE, CONSULT-II MAY DISPLAY
“BATTERY VOLTAGE IS LOW. CHARGE BATTERY”,
EVEN IN USING CHARGED BATTERY.When detecting EVAP vapor leak
point of EVAP system
VIN REGISTRATION
IN THIS MODE VIN IS REGISTERED IN ECM When registering VIN in ECM
TARGET IDLE RPM ADJ*
IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*
IDLE CONDITION When adjusting target ignition tim-
ing WORK ITEM CONDITION USAGE
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX]
The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-55, "
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS" .)
FUEL SYS-B1
“Fuel injection system status” at the moment a malfunction is detected is displayed.
One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop FUEL SYS-B2
CAL/LD VALUE [%]
The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [
C]
or [
F]The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]
“Long-term fuel trim” at the moment a malfunction is detected is displayed.
The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim. L-FUEL TRM-B2 [%]
S-FUEL TRM-B1 [%]
“Short-term fuel trim” at the moment a malfunction is detected is displayed.
The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule. S-FUEL TRM-B2 [%]
ENGINE SPEED
[rpm]
The engine speed at the moment a malfunction is detected is displayed.

EC-138
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
: Applicable VEHICL SPEED
[km/h] or [mph]
The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL THꞏP/S [%]
The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]
The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [
C]
or [
F]The intake air temperature at the moment a malfunction is detected is displayed. Freeze frame data
item*Description
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]
Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS) and camshaft position sen-
sor (PHASE).Accuracy becomes poor if engine speed
drops below the idle rpm.
If the signal is interrupted while the
engine is running, an abnormal value may
be indicated.
MAS A/F SE-B1 [V]
The signal voltage of the mass air flow
sensor is displayed.When the engine is stopped, a certain
value is indicated.
B/FUEL SCHDL
[msec]
“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
A/F ALPHA-B1 [%]
The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.When the engine is stopped, a certain
value is indicated.
This data also includes the data for the
air-fuel ratio learning control. A/F ALPHA-B2 [%]
COOLAN TEMP/S
[
C] or [F]
The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.
When the engine coolant temperature
sensor is open or short-circuited, ECM
enters fail-safe mode. The engine coolant
temperature determined by the ECM is
displayed.
A/F SEN1 (B1) [V]
The A/F signal computed from the input
signal of the air fuel ratio (A/F) sensor 1 is
displayed. A/F SEN1 (B2) [V]
HO2S2 (B1) [V]The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S2 (B2) [V]
HO2S2 MNTR (B1)
[RICH/LEAN]Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.
When the engine is stopped, a certain
value is indicated.
HO2S2 MNTR (B2)
[RICH/LEAN]
VHCL SPEED SE
[km/h] or [mph]The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
BATTERY VOLT
[V]
The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]
The accelerator pedal position sensor
signal voltage is displayed.ACCEL SENS2 signal is converted be
ECM internally. Thus, they differs from
ECM terminal voltage signal. ACCEL SEN 2 [V]

TROUBLE DIAGNOSIS
EC-143
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
ACTIVE TEST MODE
Test Item
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION
Engine: Return to the original
trouble condition
Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Fuel injector
Air fuel ratio (A/F) sensor 1
IGNITION TIM-
ING
Engine: Return to the original
trouble condition
Timing light: Set
Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Perform Idle Air Volume Learning.
POWER BAL-
ANCE
Engine: After warming up, idle
the engine.
A/C switch OFF
Selector lever: P or N
Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.
Harness and connectors
Compression
Fuel injector
Power transistor
Spark plug
Ignition coil
ENG COOLANT
TEMP
Engine: Return to the original
trouble condition
Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Engine coolant temperature sen-
sor
Fuel injector
FUEL PUMP
RELAY
Ignition switch: ON (Engine
stopped)
Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the operat-
ing sound.Harness and connectors
Fuel pump relay
PURG VOL
CONT/V
Engine: After warming up, run
engine at 1,500 rpm.
Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according to
the opening percent.Harness and connectors
Solenoid valve
FUEL/T TEMP
SEN
Change the fuel tank temperature using CONSULT-II.
VENT CON-
TROL/V
Ignition switch: ON (Engine
stopped)
Turn solenoid valve ON and OFF
with the CONSULT-II and listen
to operating sound.Solenoid valve makes an operating
sound.Harness and connectors
Solenoid valve
FPCM
Engine: Returns to the original
trouble condition
Select “LOW” and “HI” with CON-
SULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
FPCM
V/T ASSIGN
ANGLE
Engine: Return to the original
trouble condition
Change intake valve timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Intake valve timing control sole-
noid valve

EC-150
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
HEATER FAN SWEngine: After warming up, idle
the engineHeater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 13
- 18 BTDC
2,000 rpm 25
- 45 BTDC
CAL/LD VALUE
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 5% - 35%
2,500 rpm 5% - 35%
MASS AIRFLOW
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 2.0 - 6.0 gꞏm/s
2,500 rpm 7.0 - 20.0 gꞏm/s
PURG VOL C/V
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle
(Accelerator pedal: Not depressed even
slightly, after engine starting.)0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle
5 - 5CA
2,000 rpm Approx. 0
- 30CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 0% - 2%
2,000 rpm Approx. 0% - 50%
AIR COND RLY
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY
For 1 seconds after turning ignition switch: ON
Engine running or crankingON
Except above OFF
FPCM
Engine: Cranking HI
Engine: Idle
Engine coolant temperature: More than 10C (50F)LOW
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON MONITOR ITEM CONDITION SPECIFICATION

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-155
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionNBS004TB
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionNBS004TC
Vehicle driven distance: More than 5,000 km (3,107 miles)
Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)
Atmospheric temperature: 20 - 30C (68 - 86F)
Engine coolant temperature: 75 - 95C (167 - 203F)
Transmission: Warmed-up*1
Electrical load: Not applied*2
Engine speed: Idle
*1: After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP SE 1” (A/T
fluid temperature sensor signal) indicates more than 60
C (140F).
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureNBS004TD
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-77, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-156, "
Diagnostic Procedure" .
SEF601Z
