INFINITI M35 2006 Factory Service Manual

AV-200
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3473E

SYSTEM DESCRIPTION
AV-201
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3474E

AV-202
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45

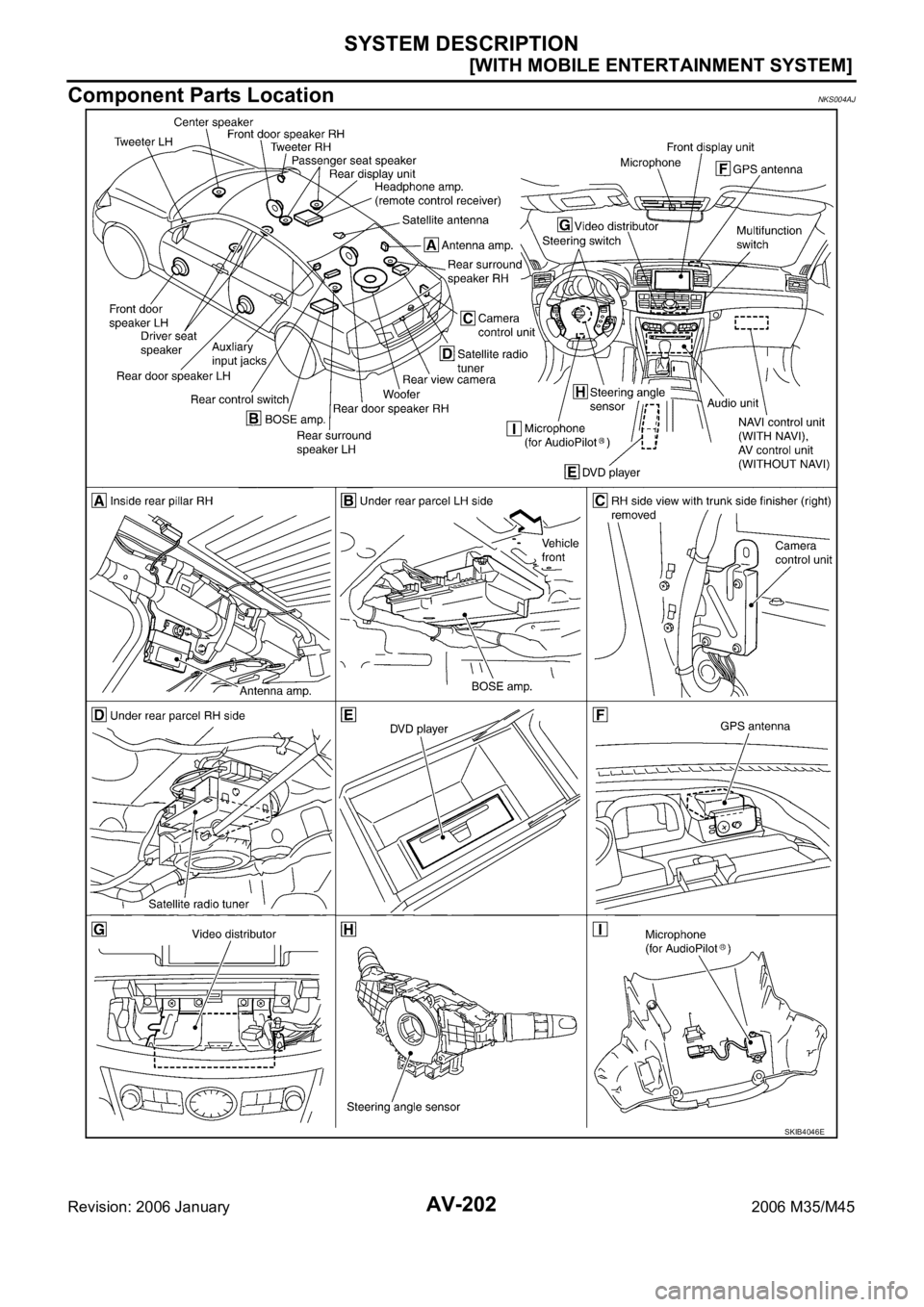

Component Parts LocationNKS004AJ
SKIB4046E

SYSTEM DESCRIPTION
AV-203
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45

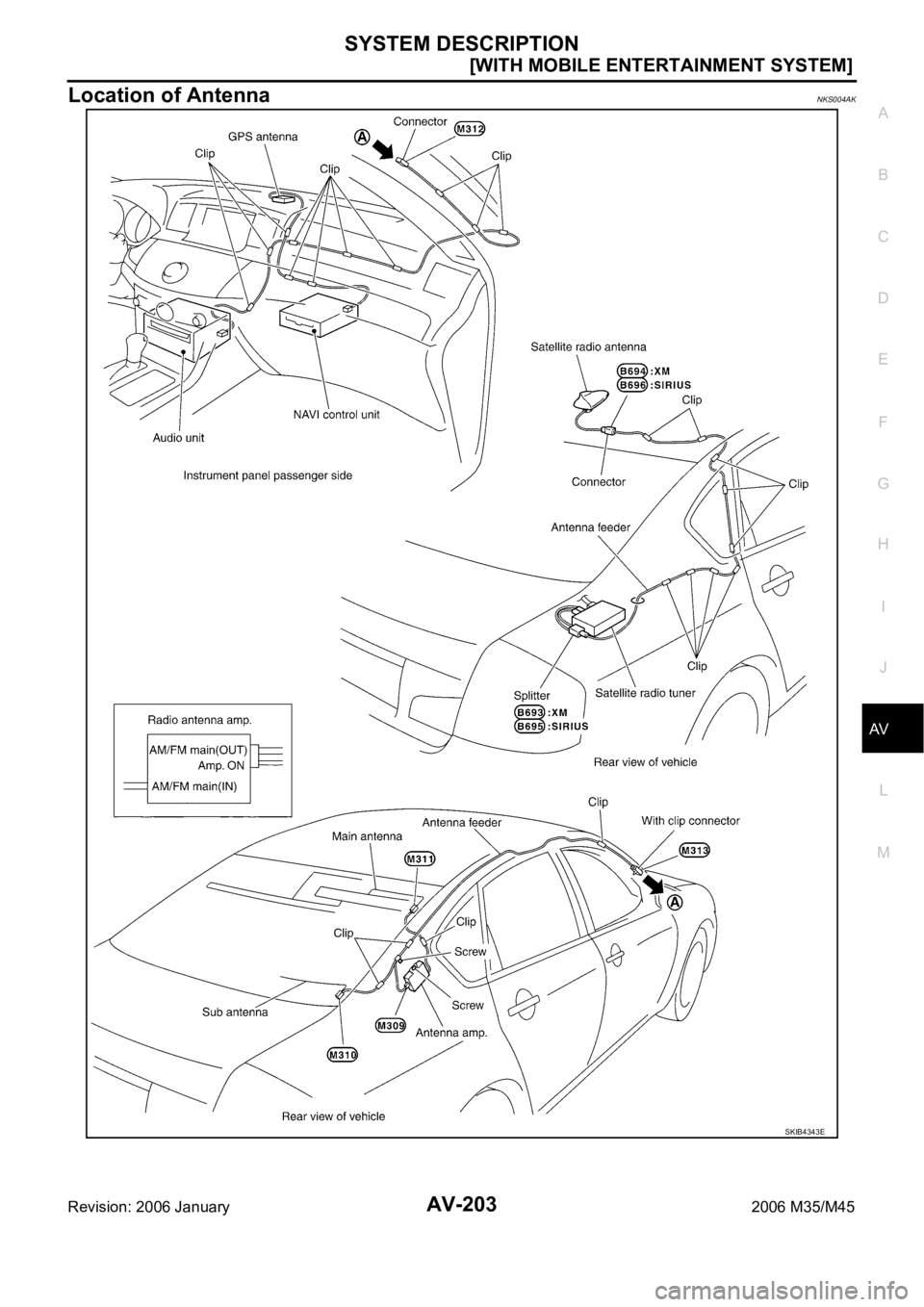

Location of AntennaNKS004AK
SKIB4343E

AV-204
[WITH MOBILE ENTERTAINMENT SYSTEM]
TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
Revision: 2006 January2006 M35/M45
TERMINALS AND REFERENCE VALUE FOR CONTROL UNITPFP:00000
Audio UnitNKS004AL
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switch Operation
2
(R/L)3
(W)Audio signal LH Output ON Receive audio signal.
6
(BR)15
(G)Steering switch signal A Input ONKeep pushing SOURCE
switch.approx. 0 V
Keep pushing MENU UP
switch.Approx. 1.2 V
Keep pushing MENU DOWN
switch.Approx. 2.5 V
Keep pushing ENTER
switch.Approx. 3.7 V
Except for above. Approx. 5 V
7
(V)Ground ACC power supply Input ACC
Battery voltage
8
(R/Y)Ground Illumination control signal Input OFFIllumination control switch is
operated by lighting switch
in ON position.Change between approx. 0 V
and approx. 12 V
9
(R)Ground Illumination signal Input OFFLighting switch is OFF. Approx. 0 V
Lighting switch is ON. Approx. 12 V
11
(P)12
(L)Audio signal RH Output ON Receive audio signal.
15
(G)GroundSteering switch signal
ground– ON – Approx. 0 V
16
(O)15
(G)Steering switch signal B Input ONKeep pushing VOL DOWN
switch.Approx. 0 V
Keep pushing VOL UP
switch.Approx. 1.2 V
Keep pushing TEL, PTT
switch.Approx. 2.5 V
Keep pushing BACK switch. Approx. 3.7 V
Except for above. Approx. 5 V
19
(Y)Ground Battery power supply Input OFF
Battery voltage
20
(B)Ground Ground – ON – Approx. 0 V
SKIB3609E
SKIB3609E

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
AV-205
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
21
(B/R)25
(BR)Sound signal LH
Input ON When playing DVD
22
(B/W)26
(L)Sound signal RH
23
(Y)–Communication signal
(H)Input/
Output–– –
24
(O)–Communication signal
(L)Input/
Output–– –
27 – Shield
––
30
(BR)31
(B/R)TEL voice signal Input ONWhen inputting TEL voice
signal.
37 – Shield – – – –
41
(R)45
(G)Audio signal LH Input ON Satellite radio mode is ON.
42
(B)46
(W)Audio signal RH Input ON Satellite radio mode is ON.
43
(W)GroundCommunication signal
(AUDIO-SAT)Output ON Satellite radio mode is ON.
47 – Shield – – – –
48 – Shield – – – –
50
(B)Ground REQ1 (SAT-AUDIO) Input ON Satellite radio mode is ON. Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switch Operation
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3826E
SKIB3825E

AV-206
[WITH MOBILE ENTERTAINMENT SYSTEM]
TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
Revision: 2006 January2006 M35/M45
BOSE AmpNKS004AM
51
(R)GroundCommunication signal
(SAT-AUDIO)Input ON Satellite radio mode is ON.
53 Ground Antenna amp ON signal Output ON
Approx.12V
54 – AM-FM main Input – – –
55 – FM sub Input – – –Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switch Operation
SKIB3824E
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
14
(G)–Communication signal
(L)–– – –
15
(G)–Communication signal
(L)–– – –
16
(BR)Ground ACC power supply Input ACC – Battery voltage
23
*
(L/R)3
*
(L/G)DVD sound signal front
LHInput ON
When playing DVDCAUTION
24*
(B/Y)4
*
(LG)DVD sound signal front
RHInput ON
When playing DVDCAUTION
25*
(B)5
*
(W)DVD sound signal rear
LHInput ON
When playing DVDCAUTION
26*
(P)6
*
(L)DVD sound signal rear
RHInput ON
When playing DVDCAUTION
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
AV-207
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
27*
(G)7
*
(R)DVD sound signal
centerInput ON
When playing DVDCAUTION
28*
(BR)8
*
(Y)DVD sound signal woofer Input ON
When playing DVDCAUTION
29
(P)9
(L)Audio signal LH Input ON Receive audio signal.
30
(R)10
(G)Audio signal RH Input ON Receive audio signal.
31
(L)11
(B/W)MIC. signal Input ON When inputting noise.
32
(B/W)12
(L)Voice guidance signal Input ONWhen inputting voice guid-
ance.
33 – Shield – – – –
34
(R)–Communication signal
(H)–– – –
35
(R)–Communication signal
(H)–– – –
36 – Shield – – – –Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3609E
PKIB6116J
SKIB3609E
SKIB3609E
PKIA2104E
SKIB3609E

AV-208
[WITH MOBILE ENTERTAINMENT SYSTEM]
TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
Revision: 2006 January2006 M35/M45
41
(L)42
(B/W)Audio signal front LH Output ON Receive audio signal.
43
(BR)44
(B/R)Audio signal front RH Output ON Receive audio signal.
45
(BR)46
(B/R)Audio signal woofer Output ON Receive audio signal.
47
(B/W)Ground Ground – ON – Approx. 0 V
50
(Y)Ground Battery power supply Input OFF – Battery voltage
51
(R)Ground Battery power supply Input OFF – Battery voltage
52
(B/W)Ground Ground – ON – Approx. 0 V
54
(LG)49
(B/Y)Audio signal rear LH Output ON Receive audio signal.
56
*
(B/W)69
*
(L)Audio signal passenger
seat LHOutput ON Receive audio signal.
57
(O/B)58
(W/R)Audio signal
centerOutput ON Receive audio signal. Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3609E
SKIB3609E
PKIB6116J
SKIB3609E
SKIB3609E
SKIB3609E

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
AV-209
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
*: BOSE surround 5.1ch system
CAUTION:
When the stereo sound is played, only front RH and LH are input. When the monaural sound is played, only center is input. All
surround sounds are input only when the 5.1 channel surround sound is played. 59
*
(B)72
*
(W)Audio signal rear sur-
round LHOutput ON Receive audio signal.
62
*
(G/Y)73
*
(GY/R)Audio signal rear sur-
round RHOutput ON Receive audio signal.
63
*
(B/W)74
*
(L)Audio signal driver seat
LHOutput ON Receive audio signal.
64
*
(B/R)75
*
(BR)Audio signal driver seat
RHOutput ON Receive audio signal.
68
(O)55
(B/P)Audio signal rear RH Output ON Receive audio signal.
71
*
(Y)70
*
(BR)Audio signal passenger
seat RHOutput ON Receive audio signal. Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
