INFINITI M35 2006 Factory Service Manual

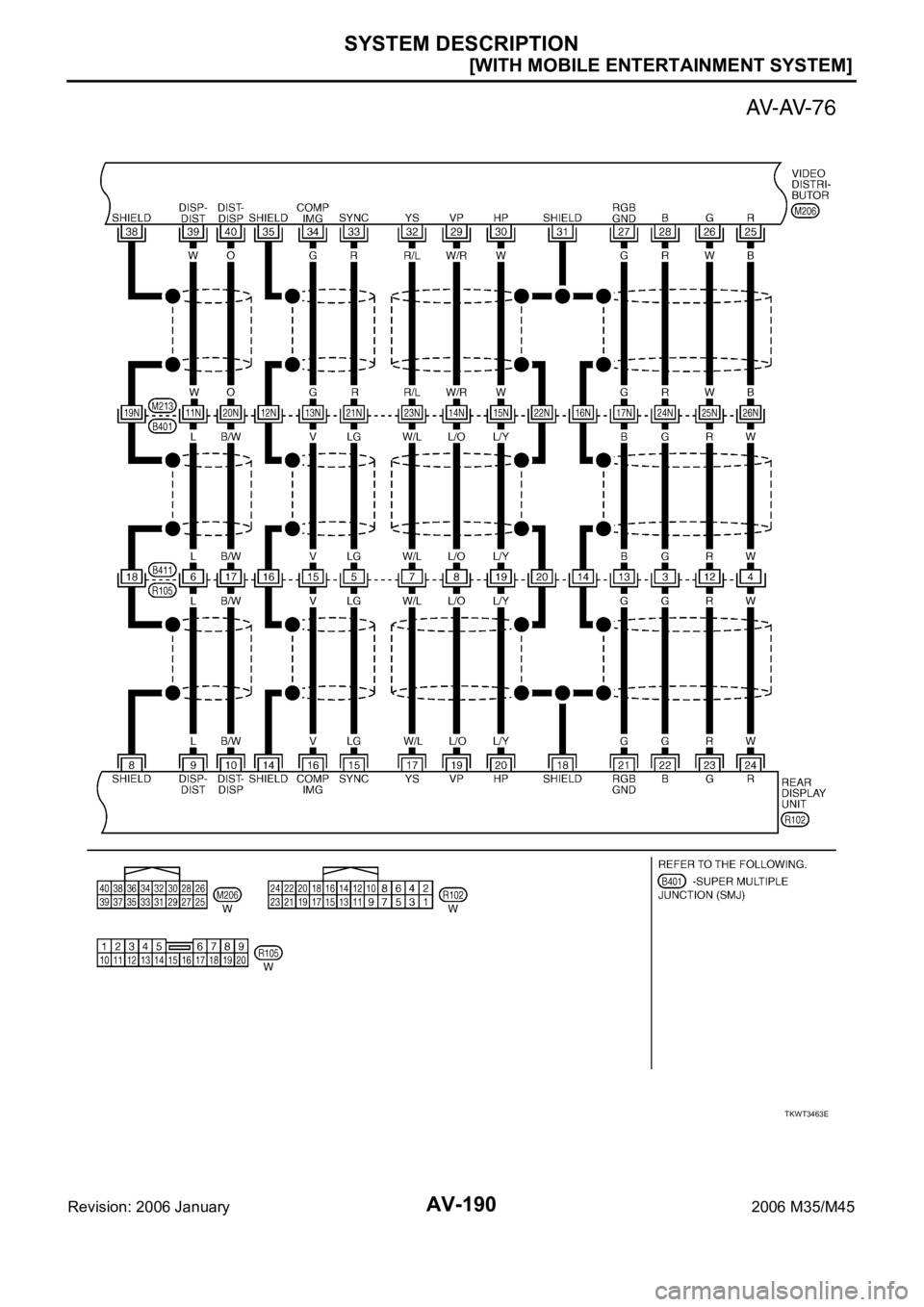

Page 811 of 5621
![INFINITI M35 2006 Factory Service Manual AV-190
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3463E](/img/42/57023/w960_57023-810.png "INFINITI M35 2006 Factory Service Manual AV-190
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3463E")

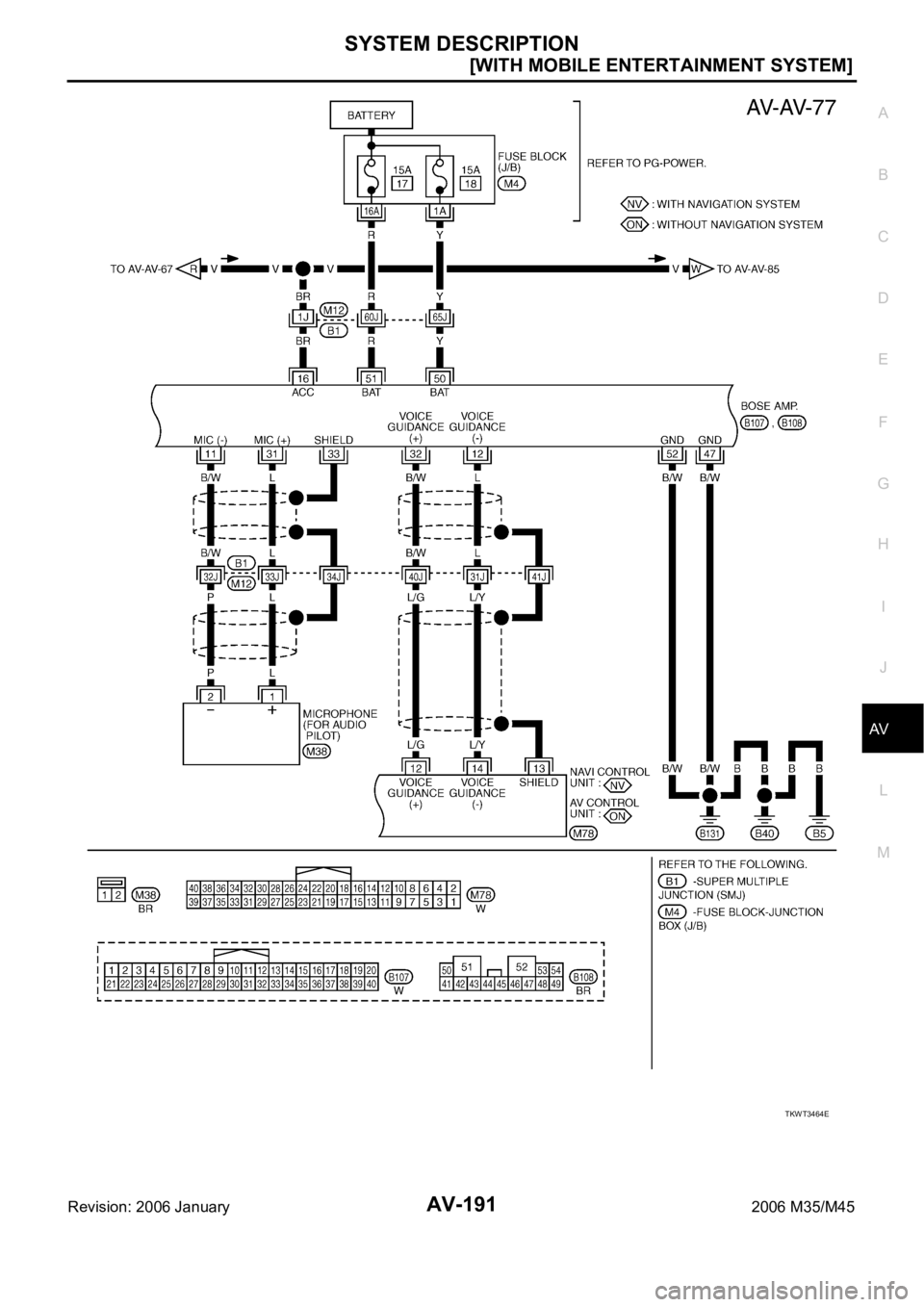

Page 812 of 5621
![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-191
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3464E](/img/42/57023/w960_57023-811.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-191
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3464E")

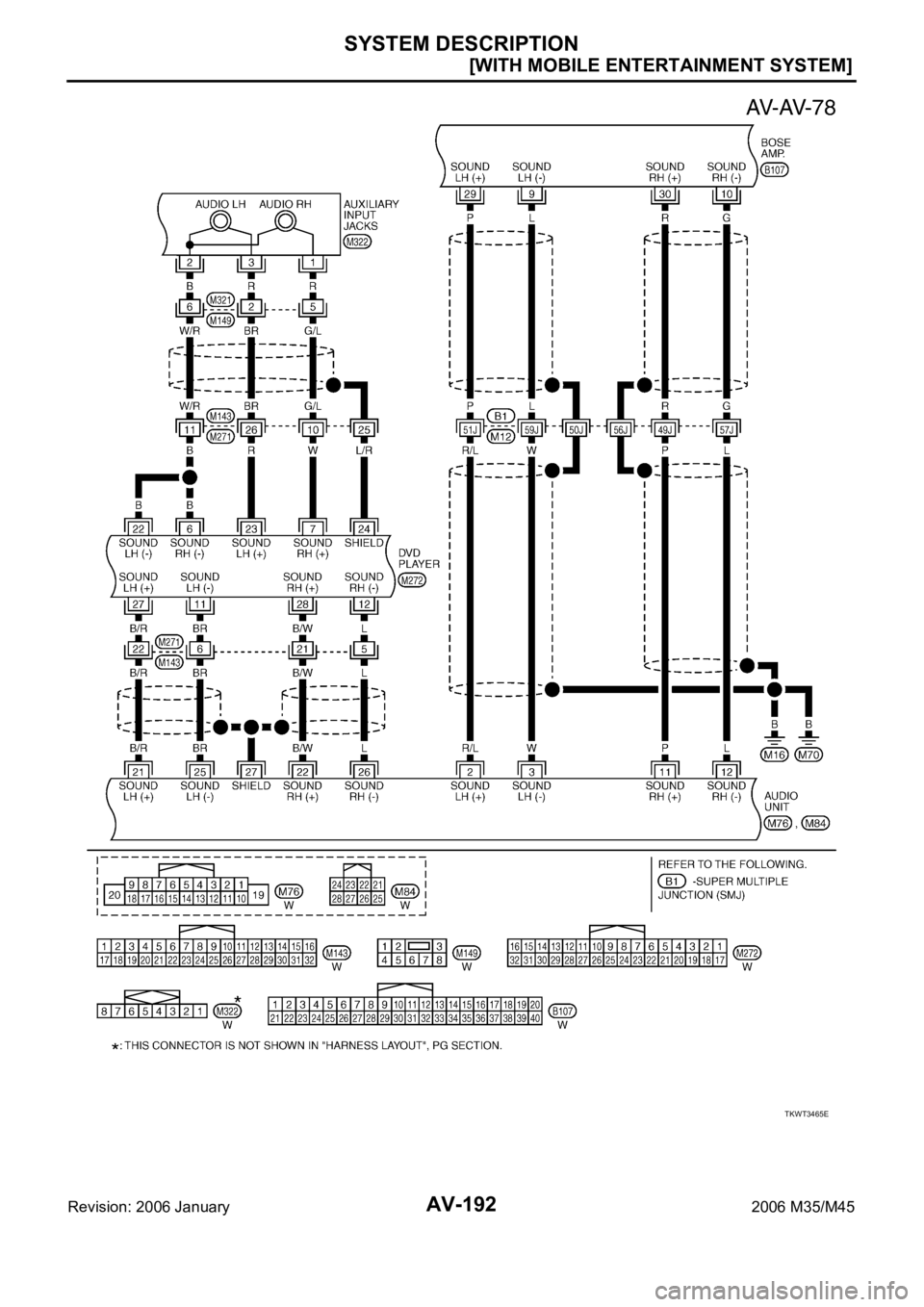

Page 813 of 5621
![INFINITI M35 2006 Factory Service Manual AV-192
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3465E](/img/42/57023/w960_57023-812.png "INFINITI M35 2006 Factory Service Manual AV-192
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3465E")

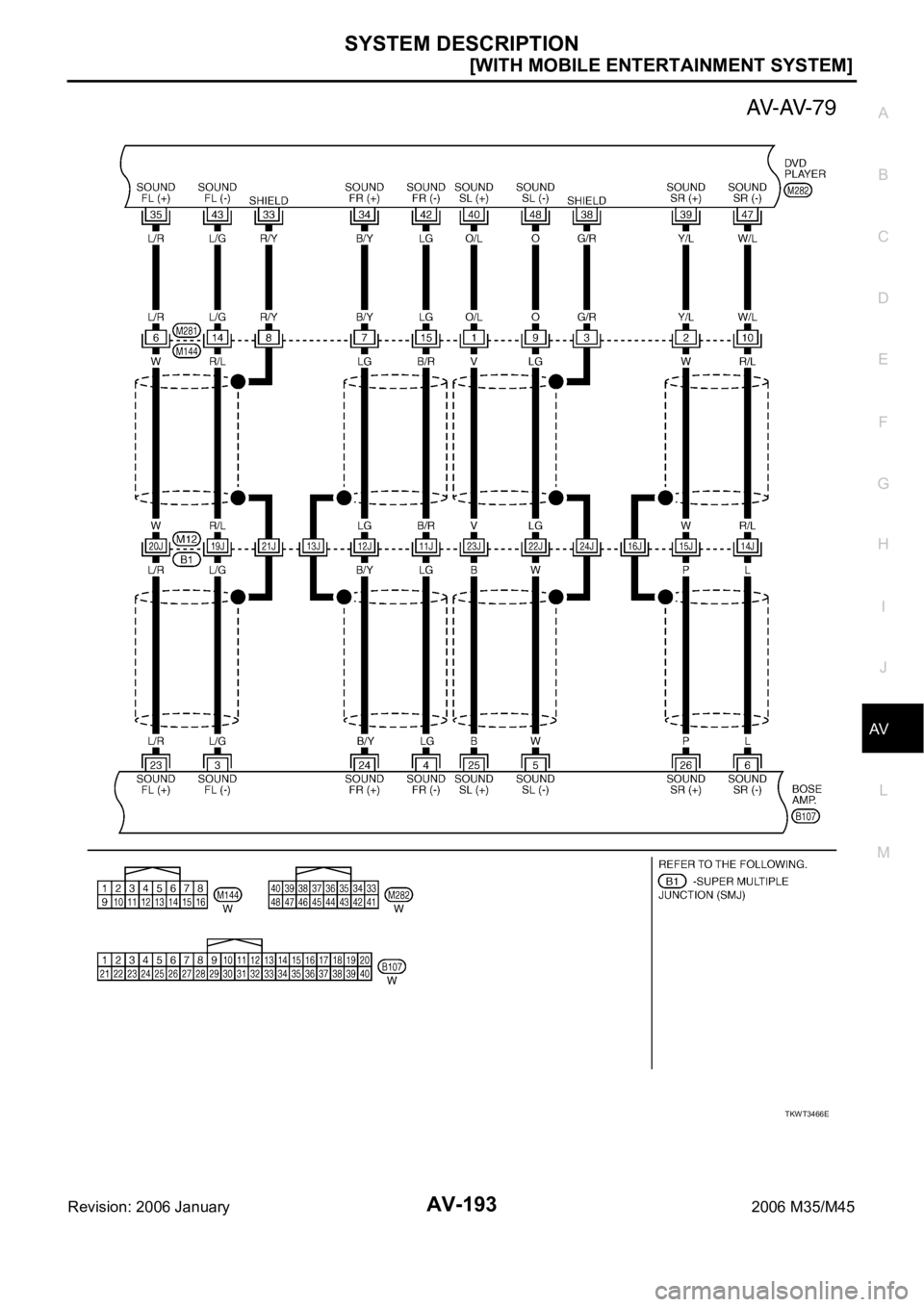

Page 814 of 5621
![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-193
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3466E](/img/42/57023/w960_57023-813.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-193
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3466E")

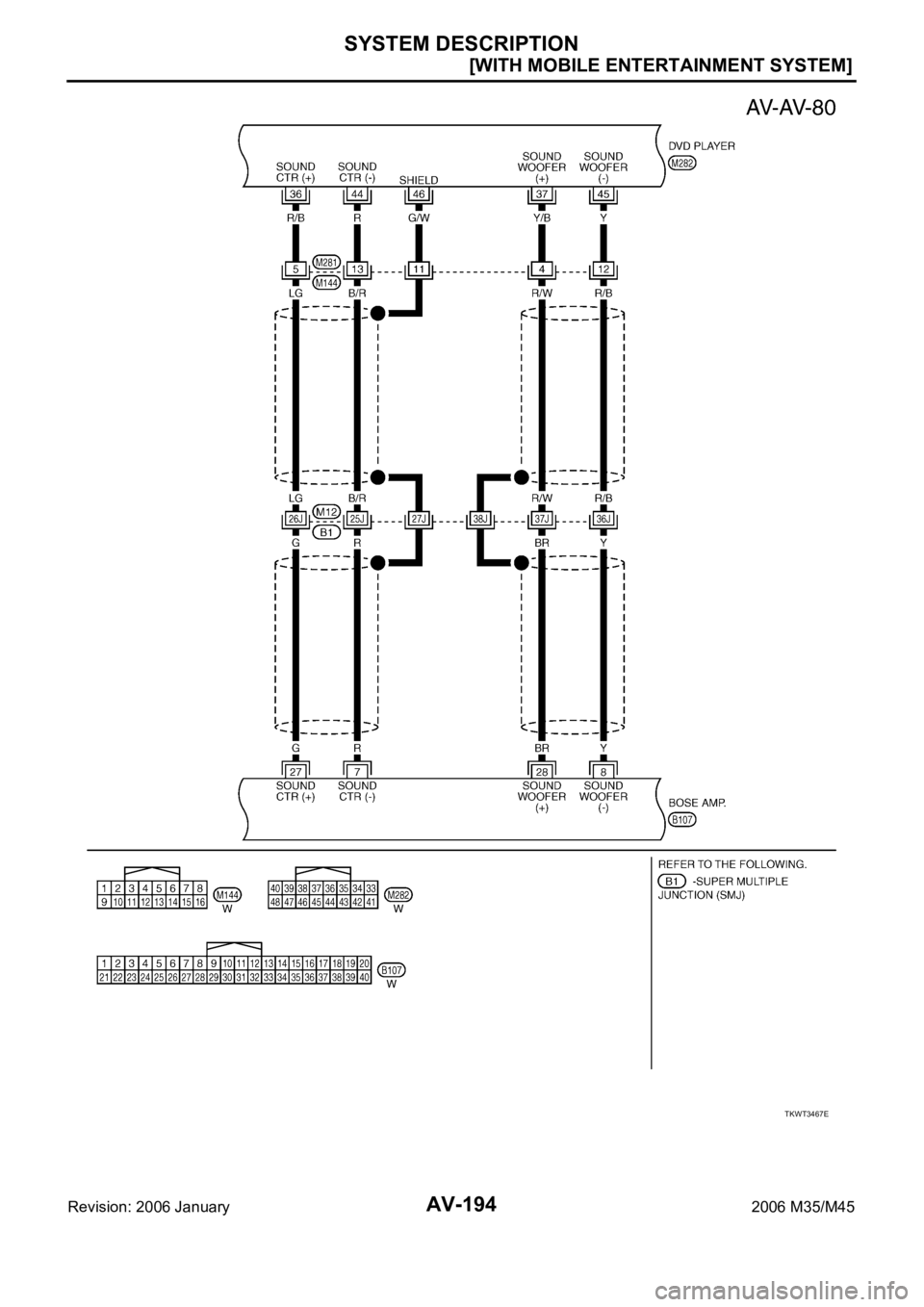

Page 815 of 5621
![INFINITI M35 2006 Factory Service Manual AV-194
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3467E](/img/42/57023/w960_57023-814.png "INFINITI M35 2006 Factory Service Manual AV-194
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3467E")
Page 816 of 5621
![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-195
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3468E](/img/42/57023/w960_57023-815.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-195
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3468E")

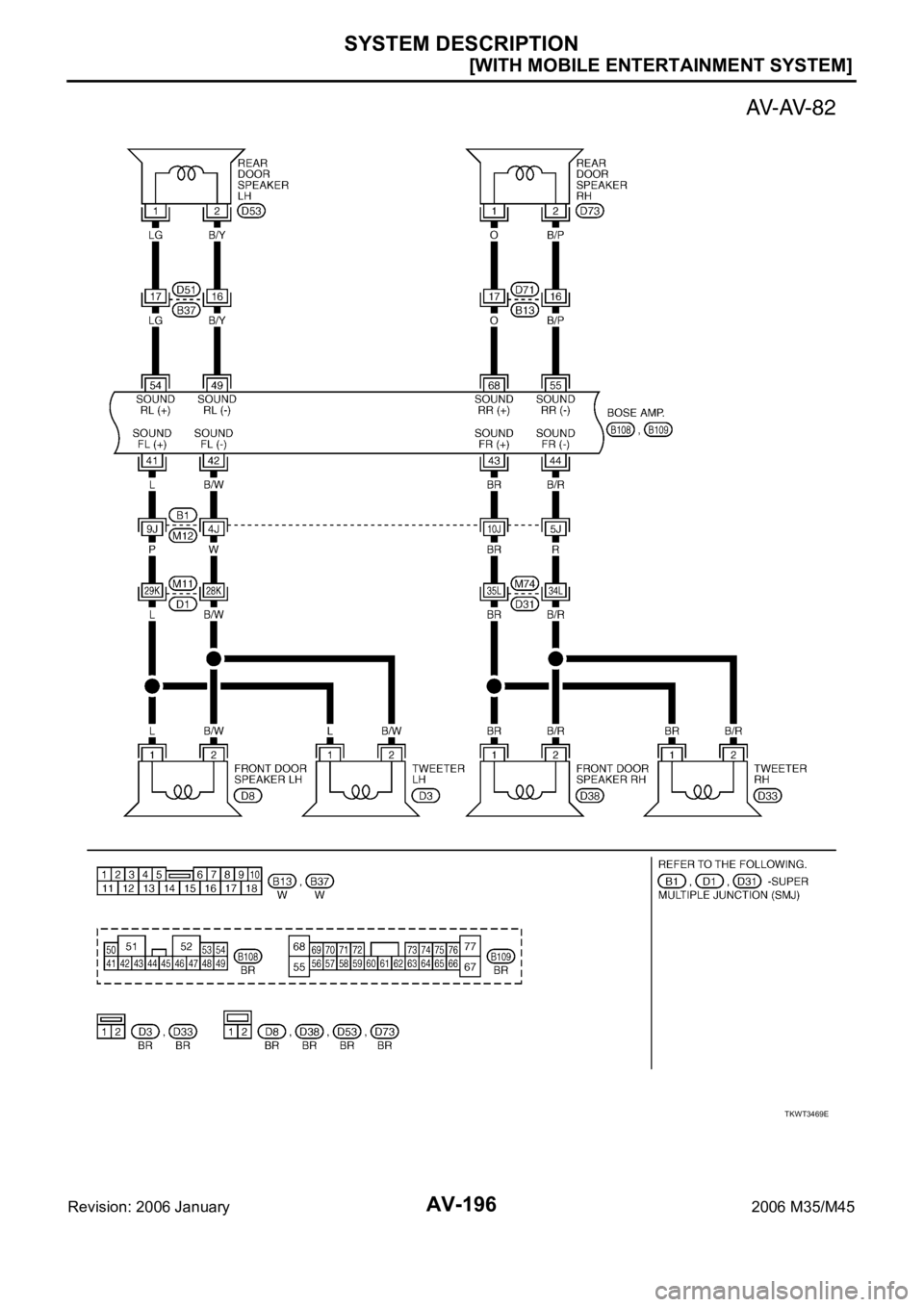

Page 817 of 5621
![INFINITI M35 2006 Factory Service Manual AV-196
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3469E](/img/42/57023/w960_57023-816.png "INFINITI M35 2006 Factory Service Manual AV-196
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3469E")
Page 818 of 5621
![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-197
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3470E](/img/42/57023/w960_57023-817.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-197
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3470E")

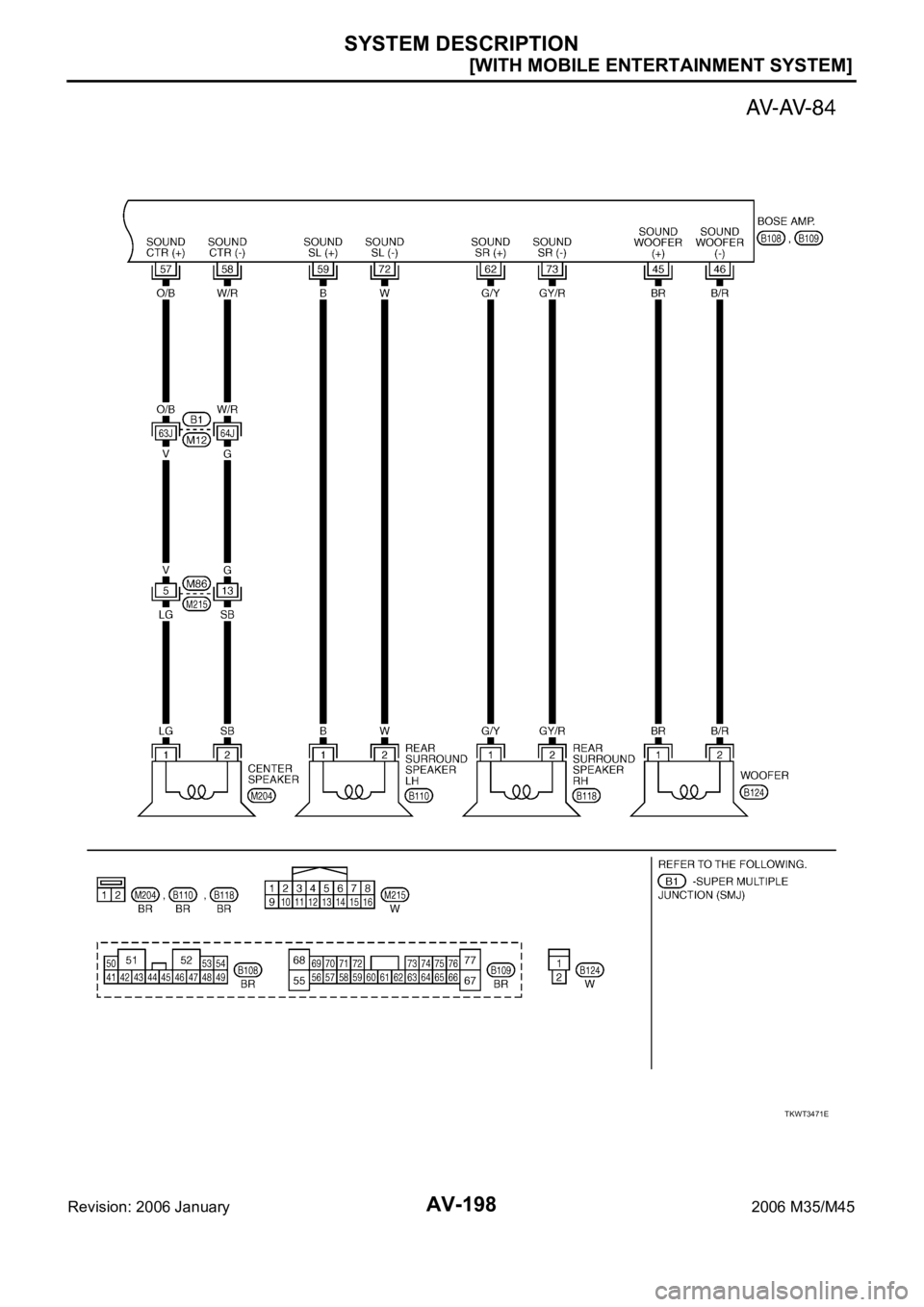

Page 819 of 5621
![INFINITI M35 2006 Factory Service Manual AV-198
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3471E](/img/42/57023/w960_57023-818.png "INFINITI M35 2006 Factory Service Manual AV-198
[WITH MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3471E")

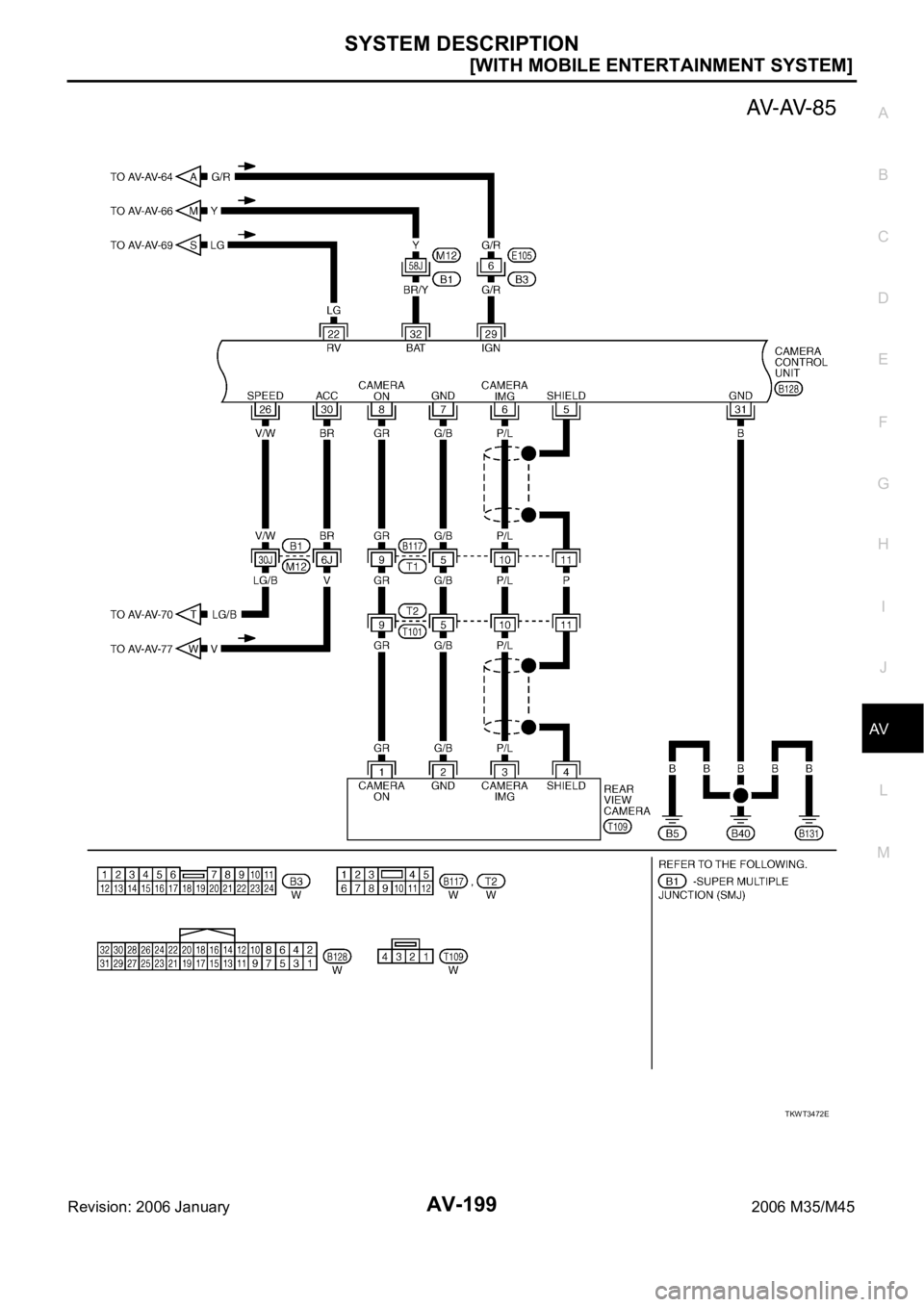

Page 820 of 5621
![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-199
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3472E](/img/42/57023/w960_57023-819.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-199
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3472E")
