INFINITI QX 2011 Workshop Manual

WARNING
Never let a child stand or kneel on any seat and
do not allow a child in the cargo area. The child
could be seriously injured or killed in a sudden
stop or collision.
PRECAUTIONS ON CHILD RESTRAINTS
WARNING
●Failure to follow the warnings and instruc-
tions for proper use and installation of child
restraints could result in serious injury or
death of a child or other passengers in a
sudden stop or collision:
– The child restraint must be used and in- stalled properly. Always follow all of the
child restraint manufacturer’s instruc-
tions for installation and use.
– Infants and children should never be held on anyone’s lap. Even the strongest adult
cannot resist the forces of a collision.
– Do not put a seat belt around both a child and another passenger.
– INFINITI recommends that all child re- straints be installed in the rear seat. Stud-
ies show that children are safer when
properly restrained in the rear seat than
in the front seat. If you must install a
forward-facing child restraint in the front
seat, see “FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING THE SEAT
BELTS” later in this section.
SSS0099
SSS0100
CHILD RESTRAINTS
1-30Safety — Seats, seat belts and supplemental restraint system

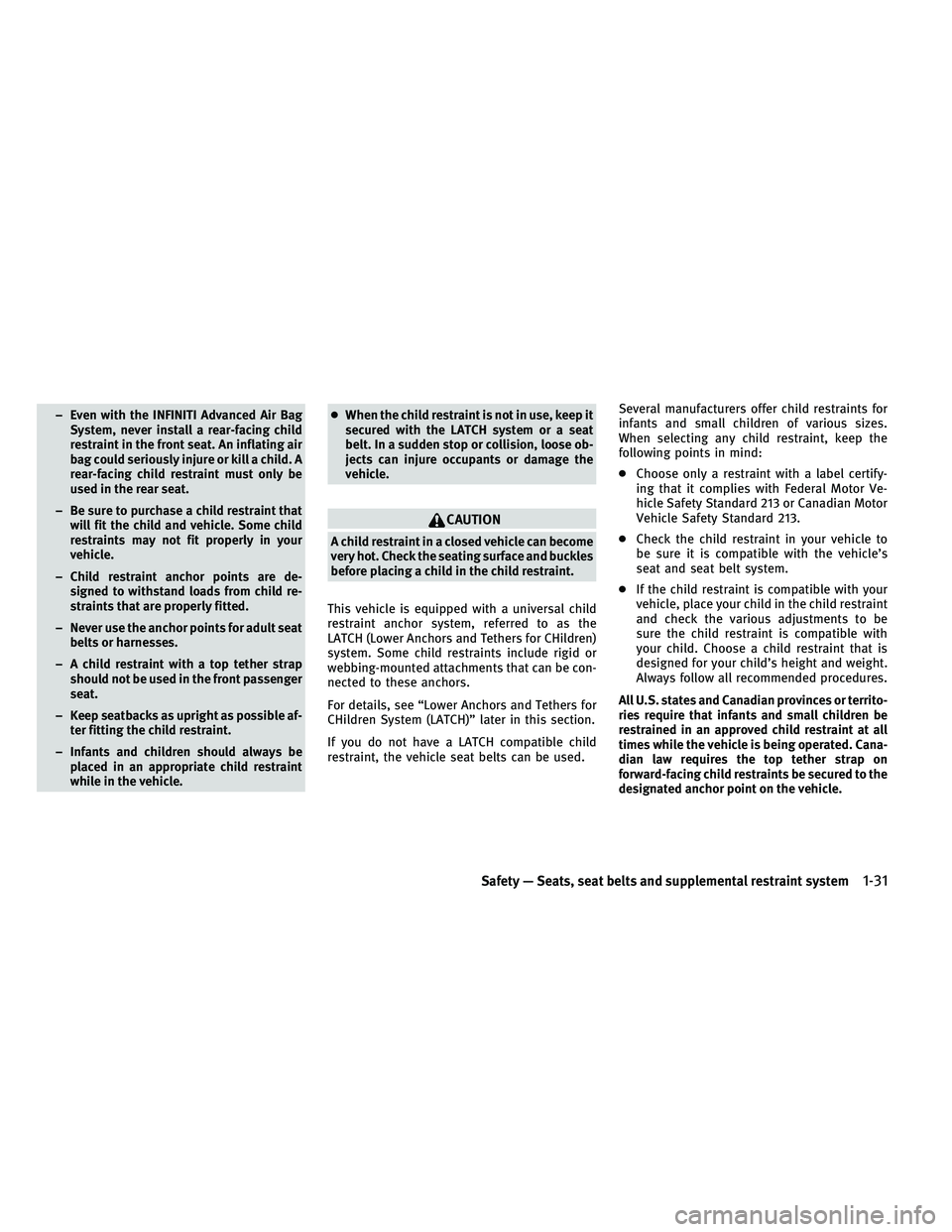

– Even with the INFINITI Advanced Air BagSystem, never install a rear-facing child
restraint in the front seat. An inflating air
bag could seriously injure or kill a child. A
rear-facing child restraint must only be
used in the rear seat.
– Be sure to purchase a child restraint that will fit the child and vehicle. Some child
restraints may not fit properly in your
vehicle.
– Child restraint anchor points are de- signed to withstand loads from child re-
straints that are properly fitted.
– Never use the anchor points for adult seat belts or harnesses.
– A child restraint with a top tether strap should not be used in the front passenger
seat.
– Keep seatbacks as upright as possible af- ter fitting the child restraint.
– Infants and children should always be placed in an appropriate child restraint
while in the vehicle. ●
When the child restraint is not in use, keep it
secured with the LATCH system or a seat
belt. In a sudden stop or collision, loose ob-
jects can injure occupants or damage the
vehicle.
CAUTION
A child restraint in a closed vehicle can become
very hot. Check the seating surface and buckles
before placing a child in the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHildren)
system. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors.
For details, see “Lower Anchors and Tethers for
CHildren System (LATCH)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used. Several manufacturers offer child restraints for
infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind:
●
Choose only a restraint with a label certify-
ing that it complies with Federal Motor Ve-
hicle Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated. Cana-
dian law requires the top tether strap on
forward-facing child restraints be secured to the
designated anchor point on the vehicle.
Safety — Seats, seat belts and supplemental restraint system1-31

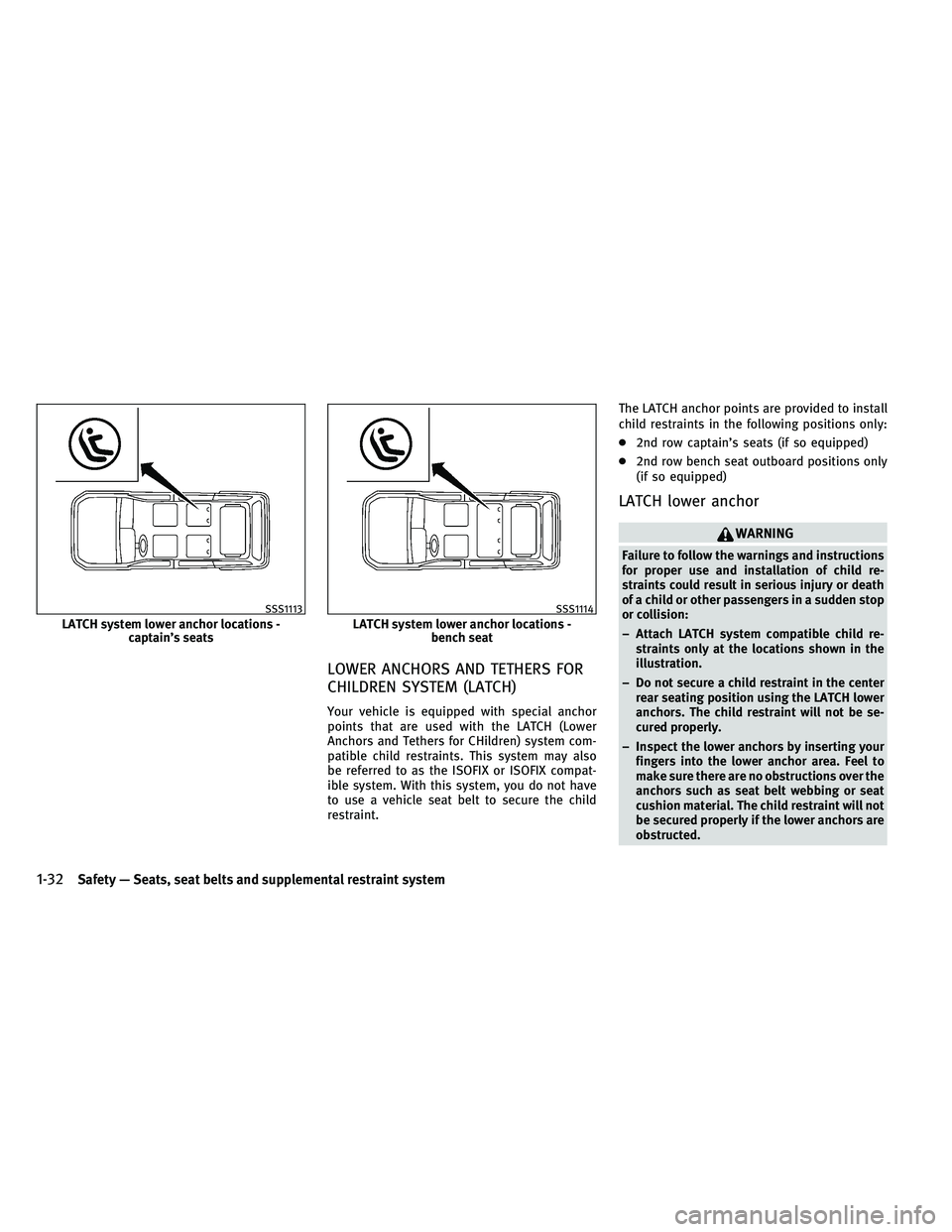

LOWER ANCHORS AND TETHERS FOR
CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor
points that are used with the LATCH (Lower
Anchors and Tethers for CHildren) system com-
patible child restraints. This system may also
be referred to as the ISOFIX or ISOFIX compat-
ible system. With this system, you do not have
to use a vehicle seat belt to secure the child
restraint.The LATCH anchor points are provided to install
child restraints in the following positions only:
●
2nd row captain’s seats (if so equipped)
● 2nd row bench seat outboard positions only
(if so equipped)
LATCH lower anchor
WARNING
Failure to follow the warnings and instructions
for proper use and installation of child re-
straints could result in serious injury or death
of a child or other passengers in a sudden stop
or collision:
− Attach LATCH system compatible child re- straints only at the locations shown in the
illustration.
− Do not secure a child restraint in the center rear seating position using the LATCH lower
anchors. The child restraint will not be se-
cured properly.
− Inspect the lower anchors by inserting your fingers into the lower anchor area. Feel to
make sure there are no obstructions over the
anchors such as seat belt webbing or seat
cushion material. The child restraint will not
be secured properly if the lower anchors are
obstructed.
LATCH system lower anchor locations - captain’s seats
SSS1113
LATCH system lower anchor locations - bench seat
SSS1114
1-32Safety — Seats, seat belts and supplemental restraint system

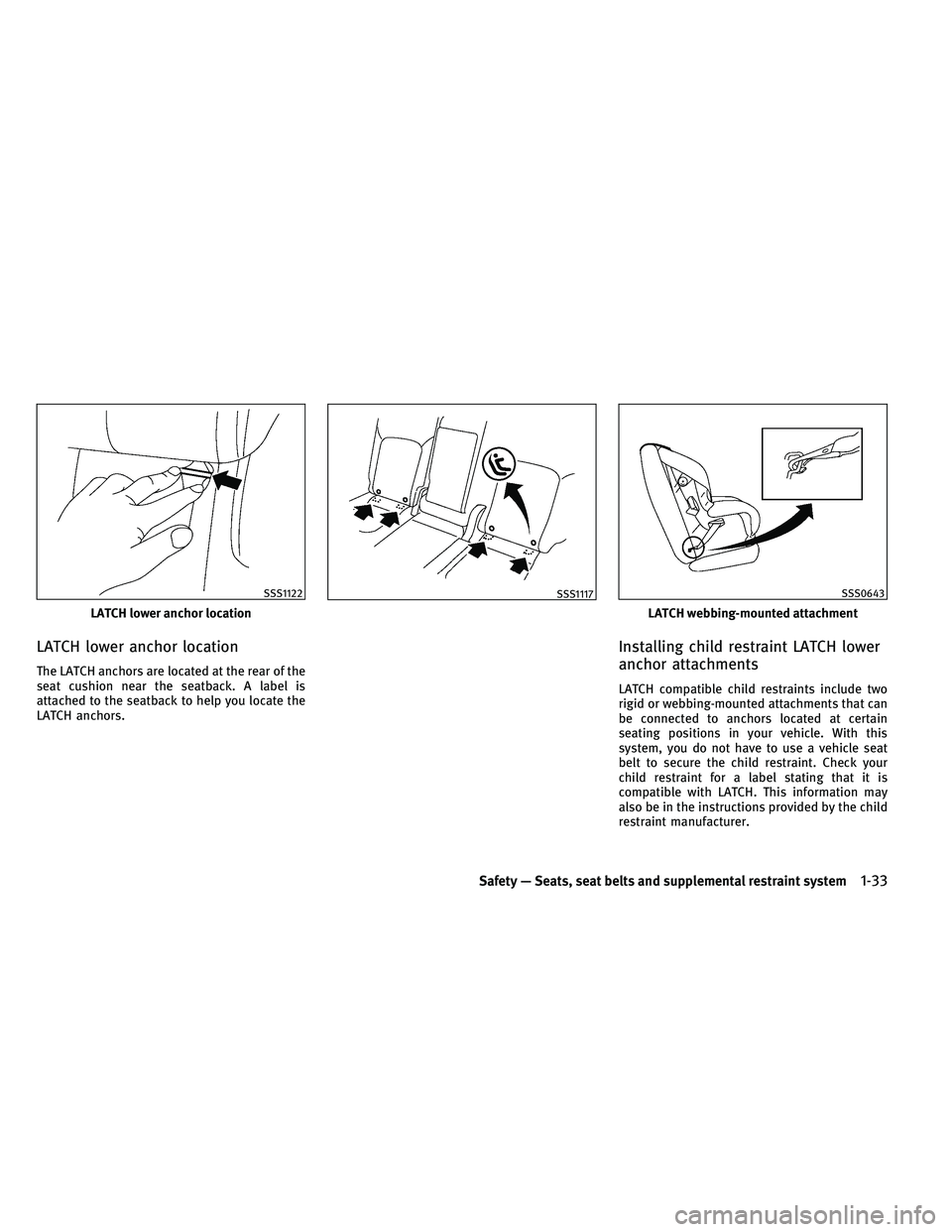

LATCH lower anchor location
The LATCH anchors are located at the rear of the
seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
Installing child restraint LATCH lower
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.
LATCH lower anchor location
SSS1122SSS1117
LATCH webbing-mounted attachment
SSS0643
Safety — Seats, seat belts and supplemental restraint system1-33

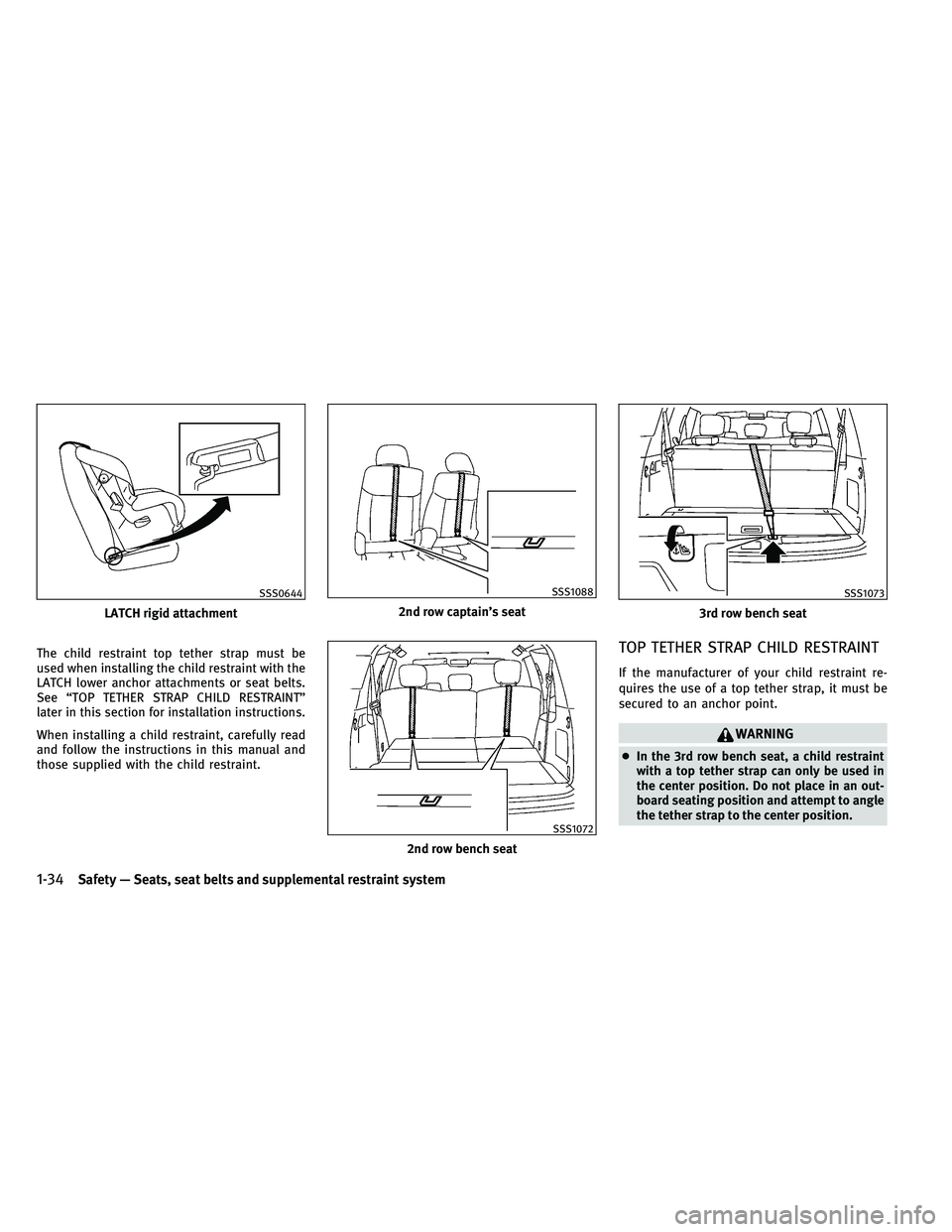

The child restraint top tether strap must be
used when installing the child restraint with the
LATCH lower anchor attachments or seat belts.
See “TOP TETHER STRAP CHILD RESTRAINT”
later in this section for installation instructions.
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.TOP TETHER STRAP CHILD RESTRAINT
If the manufacturer of your child restraint re-
quires the use of a top tether strap, it must be
secured to an anchor point.
WARNING
●In the 3rd row bench seat, a child restraint
with a top tether strap can only be used in
the center position. Do not place in an out-
board seating position and attempt to angle
the tether strap to the center position.
LATCH rigid attachment
SSS0644
2nd row captain’s seat
SSS1088
2nd row bench seat
SSS1072
3rd row bench seat
SSS1073
1-34Safety — Seats, seat belts and supplemental restraint system

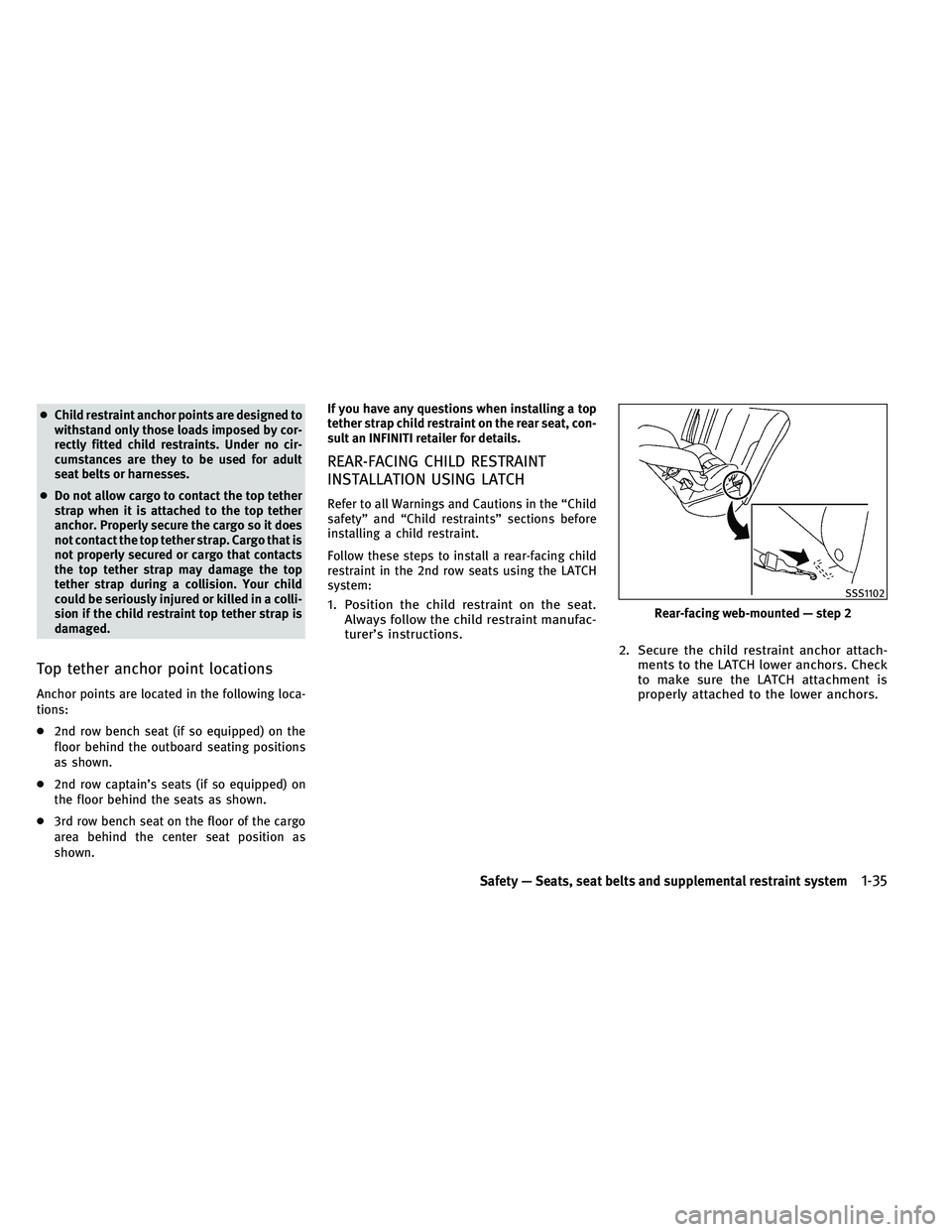

●Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
● Do not allow cargo to contact the top tether
strap when it is attached to the top tether
anchor. Properly secure the cargo so it does
not contact the top tether strap. Cargo that is
not properly secured or cargo that contacts
the top tether strap may damage the top
tether strap during a collision. Your child
could be seriously injured or killed in a colli-
sion if the child restraint top tether strap is
damaged.
Top tether anchor point locations
Anchor points are located in the following loca-
tions:
● 2nd row bench seat (if so equipped) on the
floor behind the outboard seating positions
as shown.
● 2nd row captain’s seats (if so equipped) on
the floor behind the seats as shown.
● 3rd row bench seat on the floor of the cargo
area behind the center seat position as
shown. If you have any questions when installing a top
tether strap child restraint on the rear seat, con-
sult an INFINITI retailer for details.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a rear-facing child
restraint in the 2nd row seats using the LATCH
system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
2. Secure the child restraint anchor attach-ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.Rear-facing web-mounted — step 2
SSS1102
Safety — Seats, seat belts and supplemental restraint system1-35

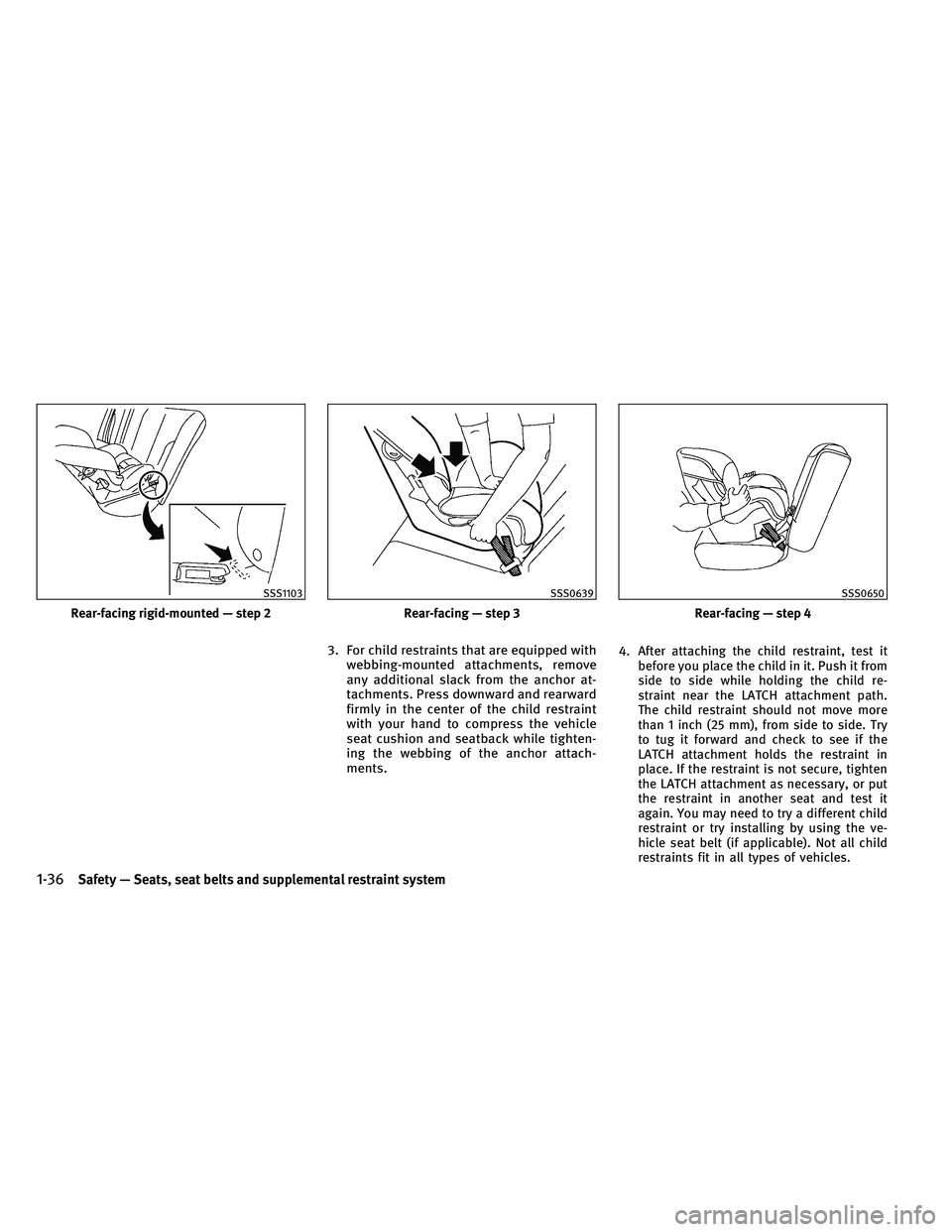

3. For child restraints that are equipped withwebbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your hand to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments. 4.After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child re-
straint near the LATCH attachment path.
The child restraint should not move more
than 1 inch (25 mm), from side to side. Try
to tug it forward and check to see if the
LATCH attachment holds the restraint in
place. If the restraint is not secure, tighten
the LATCH attachment as necessary, or put
the restraint in another seat and test it
again. You may need to try a different child
restraint or try installing by using the ve-
hicle seat belt (if applicable). Not all child
restraints fit in all types of vehicles.
Rear-facing rigid-mounted — step 2
SSS1103
Rear-facing — step 3
SSS0639
Rear-facing — step 4
SSS0650
1-36Safety — Seats, seat belts and supplemental restraint system

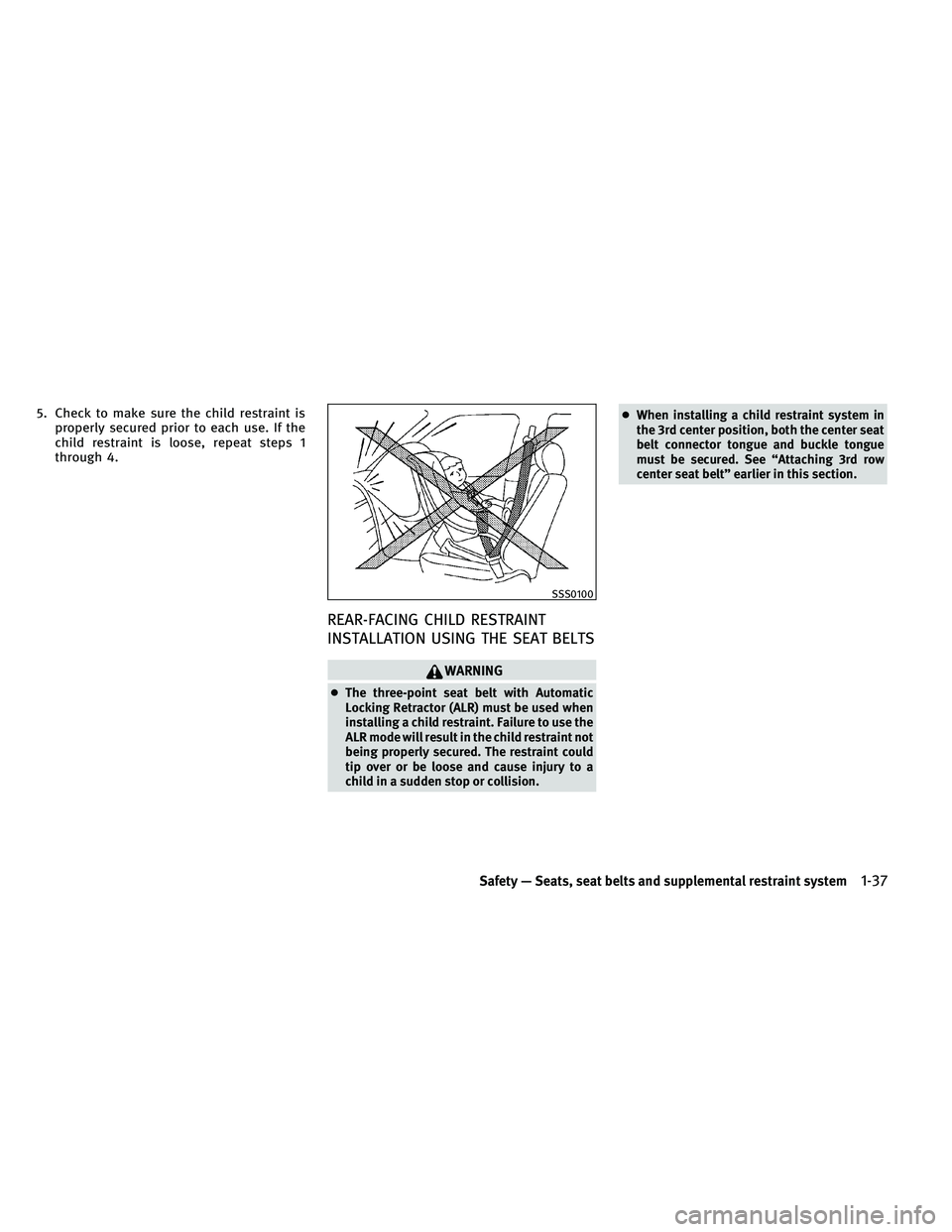

5. Check to make sure the child restraint isproperly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT BELTS
WARNING
●The three-point seat belt with Automatic
Locking Retractor (ALR) must be used when
installing a child restraint. Failure to use the
ALR mode will result in the child restraint not
being properly secured. The restraint could
tip over or be loose and cause injury to a
child in a sudden stop or collision. ●
When installing a child restraint system in
the 3rd center position, both the center seat
belt connector tongue and buckle tongue
must be secured. See “Attaching 3rd row
center seat belt” earlier in this section.
SSS0100
Safety — Seats, seat belts and supplemental restraint system1-37

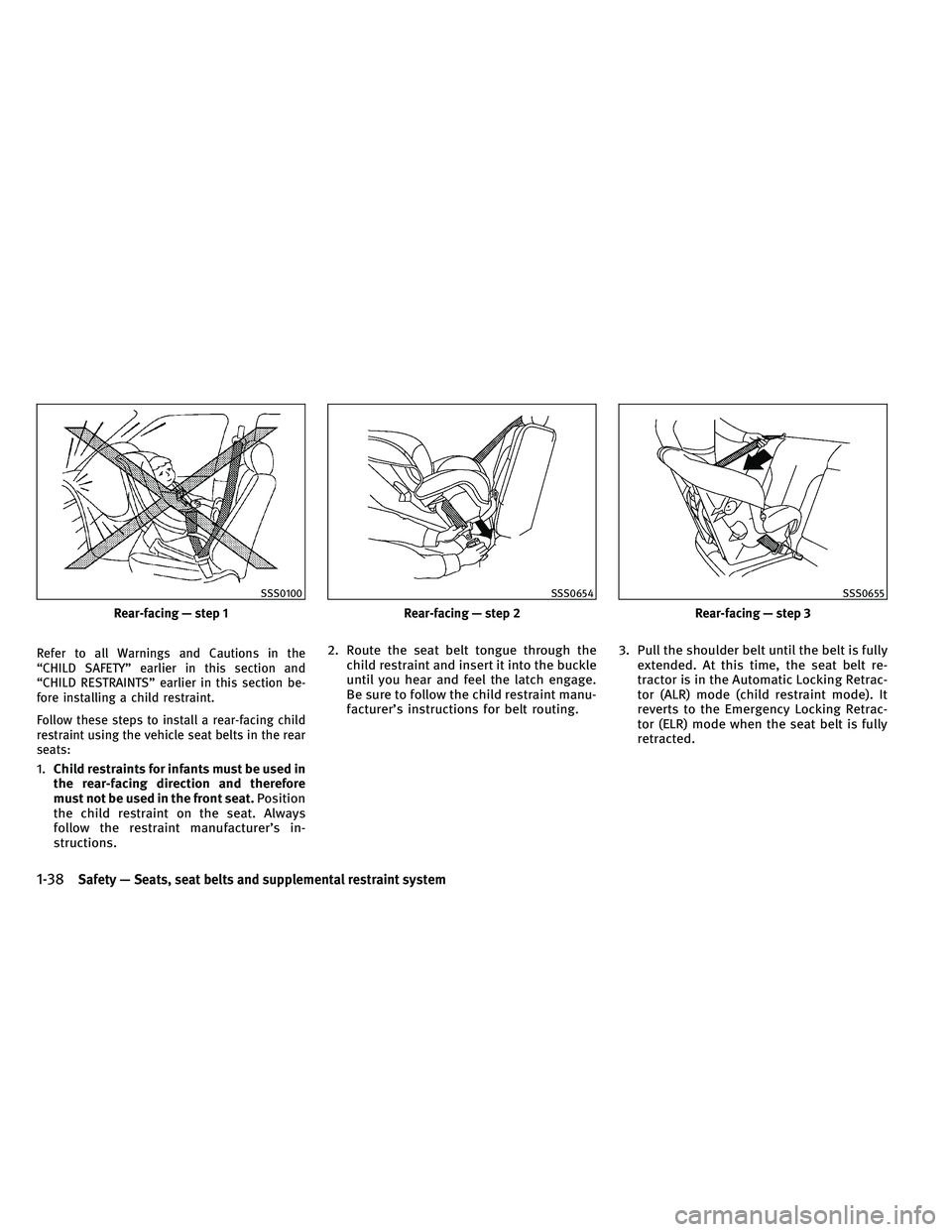

Refer to all Warnings and Cautions in the
“CHILD SAFETY” earlier in this section and
“CHILD RESTRAINTS” earlier in this section be-
fore installing a child restraint.
Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:
1.Child restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat. Position
the child restraint on the seat. Always
follow the restraint manufacturer’s in-
structions. 2. Route the seat belt tongue through the
child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing. 3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt re-
tractor is in the Automatic Locking Retrac-
tor (ALR) mode (child restraint mode). It
reverts to the Emergency Locking Retrac-
tor (ELR) mode when the seat belt is fully
retracted.
Rear-facing — step 1
SSS0100
Rear-facing — step 2
SSS0654
Rear-facing — step 3
SSS0655
1-38Safety — Seats, seat belts and supplemental restraint system

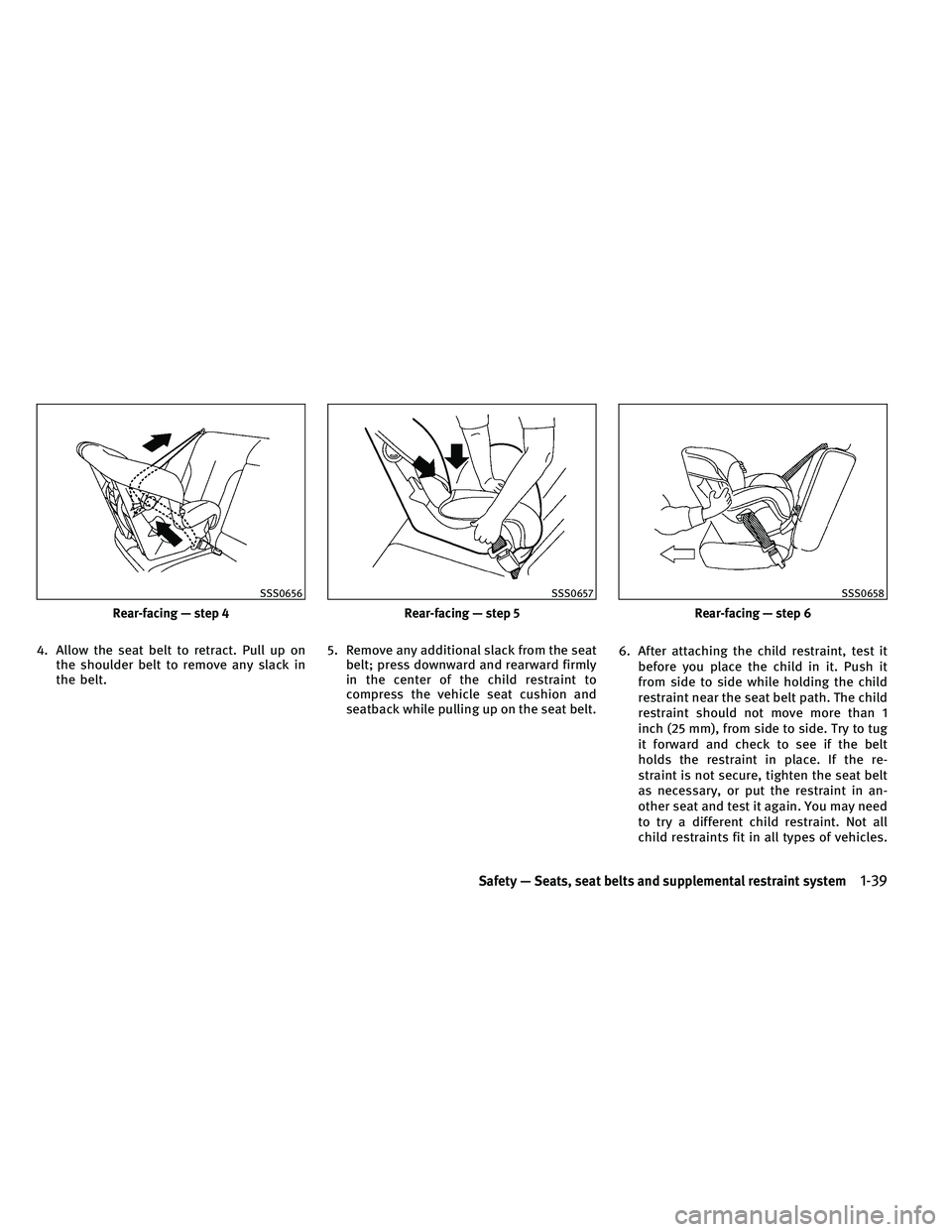

4. Allow the seat belt to retract. Pull up onthe shoulder belt to remove any slack in
the belt. 5. Remove any additional slack from the seat
belt; press downward and rearward firmly
in the center of the child restraint to
compress the vehicle seat cushion and
seatback while pulling up on the seat belt. 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the re-
straint is not secure, tighten the seat belt
as necessary, or put the restraint in an-
other seat and test it again. You may need
to try a different child restraint. Not all
child restraints fit in all types of vehicles.
Rear-facing — step 4
SSS0656
Rear-facing — step 5
SSS0657
Rear-facing — step 6
SSS0658
Safety — Seats, seat belts and supplemental restraint system1-39
