2. Engine Cannot Be Started In ªPº and ªNº
Position
=NBAT0074SYMPTOM:
Engine cannot be started with selector lever in ªPº or ªNº
position.
Engine cannot be started with selector lever in ªPºEngine can
be started with selector lever in ªDº, ª2º, ª1º or ªRº position.
1 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªTCM INPUT SIGNALSº in Data Monitor show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ªDTC P0705º, AT-99.
No©GO TO 2.
2 CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch 2-pin connector. Refer to ªComponents Inspectionº, AT-103.
SAT838BB
OK or NG
OK©GO TO 3.
NG©Repair or replace PNP switch.
3 CHECK STARTING SYSTEM
Check starting system. Refer to SC-10, ªSystem Descriptionº.
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
2. Engine Cannot Be Started In ªPº and ªNº Position
AT-221

4. In ªNº Position, Vehicle Moves=NBAT0076SYMPTOM:
Vehicle moves forward or backward when selecting ªNº posi-
tion.
1 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªTCM INPUT SIGNALSº in Data Monitor show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ªDTC P0705º, AT-99.
No©GO TO 2.
2 CHECK CONTROL LINKAGE
Check control linkage. Refer to AT-276.
SAT032G
OK or NG
OK©GO TO 3.
NG©Adjust control linkage. Refer to AT-276.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
4. In ªNº Position, Vehicle Moves
AT-223

5. Large Shock. ªNº®ªRº Position=NBAT0077SYMPTOM:
There is large shock when changing from ªNº to ªRº position.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, line pressure solenoid valve or throttle position sensor
circuit?
SAT579I
YesorNo
Ye s©Check damaged circuit. Refer to ªDTC P0710, DTC P0745 or DTC P1705º, AT-105, 162
or 176.
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-174, ªDescriptionº.
SAT142K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
5. Large Shock. ªNº®ªRº Position
AT-225

6. Vehicle Does Not Creep Backward In ªRº
Position
=NBAT0078SYMPTOM:
Vehicle does not creep backward when selecting ªRº position.
1 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 2.
NG©Refill ATF.
2 CHECK STALL TEST
Check stall revolution with selector lever in ª1º and ªRº positions.
Refer to AT-356.
SAT493G
OK or NG
OK©GO TO 3.
OK in ª1º position, NG in
ªRº position©1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-273.
2. Check the following items:
IValves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
ILine pressure solenoid valve
3. Disassemble A/T.
4. Check the following items:
IOil pump assembly
ITorque converter
IReverse clutch assembly
IHigh clutch assembly
NG in both ª1º and ªRº
positions©GO TO 6.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position
AT-227

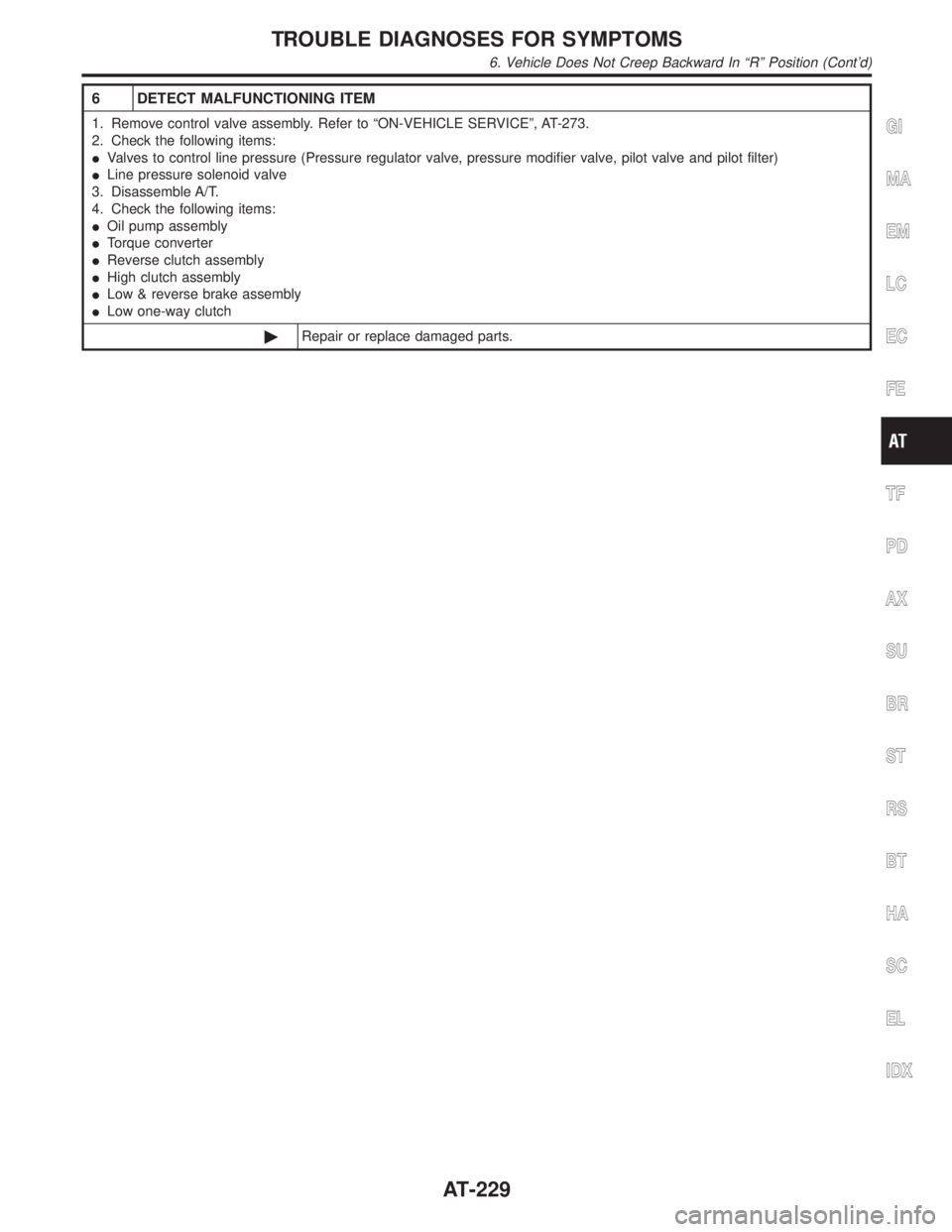

6 DETECT MALFUNCTIONING ITEM
