POWER DOOR LOCK SYSTEMPFP:24814
Component Parts and Harness Connector LocationEIS008PE
WIIA0585E

POWER DOOR LOCK SYSTEM
BL-17
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
System DescriptionEIS008PF
Power is supplied at all times

through 50A fusible link (letter f, located in the fuse and fusible link box)

to BCM terminal 70

through 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 57

through 10A fuse [No. 19, located in the fuse block (J/B)]

to key switch and key lock solenoid terminal 3.
With ignition key inserted, power is supplied

through key switch and key lock solenoid terminal 4

to BCM terminal 37.
Ground is supplied to terminal 67 of BCM through body grounds M57, M61 and M79.
When the door is locked or unlocked with main power window and door lock/unlock switch, ground is supplied

to CPU of main power window and door lock/unlock switch

through main power window and door lock/unlock switch terminal 17

through grounds M57, M61 and M79.
Then main power window and door lock/unlock switch operation signal is supplied

to BCM terminal 22

through main power window and door lock/unlock switch terminal 14.
When the door is locked or unlocked with power window and door lock/unlock switch RH, ground is supplied

to CPU of power window and door lock/unlock switch RH

through power window and door lock/unlock switch RH terminal 11

through grounds M57, M61 and M79.
Then power window and door lock/unlock switch RH operation signal is supplied

to BCM terminal 22

through power window and door lock/unlock switch RH terminal 16.
When the door is locked with front door lock assembly LH (key cylinder switch), ground is supplied

to main power window and door lock/unlock switch terminal 4

through front door lock assembly LH (key cylinder switch) terminals 1 and 5

through grounds M57, M61 and M79.
Then front door lock assembly LH (key cylinder switch) operation signal is supplied

to BCM terminal 22

through main power window and door lock/unlock switch terminal 14.
When the door is unlocked with front door lock assembly LH (key cylinder switch), ground is supplied

to main power window and door lock/unlock switch terminal 6

through front door lock assembly LH (key cylinder switch) terminals 6 and 5

through grounds M57, M61 and M79.
Then front door lock assembly LH (key cylinder switch) operation signal is supplied

to BCM terminal 22

through main power window and door lock/unlock switch terminal 14.
BCM is connected to main power window and door lock/unlock switch and power window and door lock/unlock
switch RH through a bus.
When the front door switch LH is ON (door is open), ground is supplied

to BCM terminal 47

through front door switch LH terminal 2

through front door switch LH case ground.
When the front door switch RH is ON (door is open), ground is supplied

to BCM terminal 12

through front door switch RH terminal 2

BL-18
POWER DOOR LOCK SYSTEM
Revision: October 20052005 QX56

through front door switch RH case ground.
When the rear door switch LH is ON (door is open), ground is supplied

to BCM terminal 48

through rear door switch LH terminal 2

through rear door switch LH case ground.
When the rear door switch RH is ON (door is open), ground is supplied

to BCM terminal 13

through rear door switch RH terminal 2

through rear door switch RH case ground.
When the back door latch (door ajar switch) is ON (door is open), ground is supplied

to BCM terminal 43

through back door latch (door ajar switch) terminal 7

through back door latch (door ajar switch) terminal 8

through grounds B7 and B19.
OUTLINE
Functions available by operating the door lock and unlock switches on driver door and pas-
senger door

Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors and
glass hatch actuator are locked.

Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
and glass hatch actuator are unlocked.
Functions available by operating the front door lock assembly LH (key cylinder switch)

Interlocked with the locking operation of door key cylinder, door lock actuators of all doors are locked.

When door key cylinder is unlocked, front door lock assembly LH (actuator) is unlocked.

When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door
lock actuators on all doors are unlocked.
Key reminder door system
When door lock and unlock switch is operated to lock doors with ignition key in key cylinder and any door
open, all door lock actuators are locked and then unlocked.

POWER DOOR LOCK SYSTEM
BL-19
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
SchematicEIS008PG
WIWA1723E

BL-20
POWER DOOR LOCK SYSTEM
Revision: October 20052005 QX56

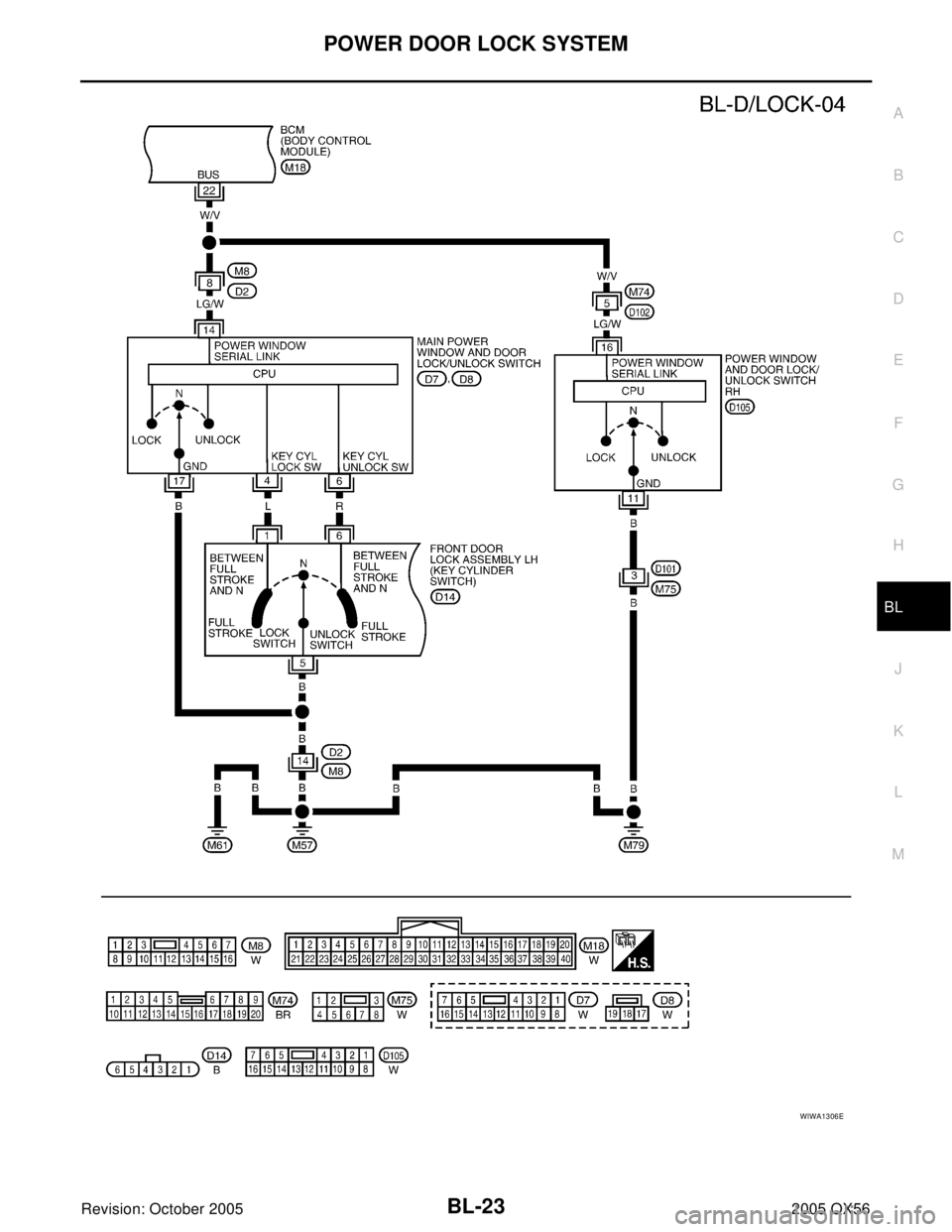

Wiring Diagram — D/LOCK —EIS008PH
WIWA0742E

POWER DOOR LOCK SYSTEM
BL-21
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
WIWA1724E

BL-22
POWER DOOR LOCK SYSTEM
Revision: October 20052005 QX56
LIWA0418E

POWER DOOR LOCK SYSTEM
BL-23
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
WIWA1306E

BL-24
POWER DOOR LOCK SYSTEM
Revision: October 20052005 QX56
WIWA1725E

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: October 20052005 QX56
Terminals and Reference Value for BCMEIS008PI
Work FlowEIS008PJ
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to BL-17, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to BL-29,
"Trouble Diagnoses Symptom Chart" .
4. Does power door lock system operate normally? OK: GO TO 5, NG: GO TO 3.
5. Inspection End.
TerminalWire
ColorItem ConditionVoltage (V)
(Approx.)
12 R/L Front door switch RH Door open (ON) → Door close (OFF) 0 → Battery voltage
13 GR Rear door switch RH Door open (ON) → Door close (OFF) 0 → Battery voltage
22 W/V BusWhen ignition switch is ON or power
window timer operates
30 Y/BR Glass hatch switchGlass hatch switch released → Glass
hatch switch pressedBattery voltage → 0
37 B/RKey switch and key lock sole-
noid (insert)Key inserted in IGN key cylinder (ON) →
Key removed from IGN key cylinder
(OFF)Battery voltage → 0
39 L CAN-H — —
40 P CAN-L — —
43 R/BBack door latch (door ajar
switch) Door open (ON) → Door close (OFF) 0 → Battery voltage
47 SB Front door switch LH Door open (ON) → Door close (OFF) 0 → Battery voltage
48 R/Y Rear door switch LH Door open (ON) → Door close (OFF) 0 → Battery voltage
53 L/W Glass hatch lock actuatorGlass hatch switch released → Glass
hatch switch pressed0 → Battery voltage for 300 msec.
57 Y/R Battery power supply — Battery voltage
59 GFront door lock assembly LH
(actuator) (unlock)Driver door lock knob
(locked → unlocked)0 → Battery voltage
65 V All door lock actuators (lock) Driver door lock knob (neutral → lock) 0 → Battery voltage
66 G/YFront door lock actuator RH,
rear door lock actuators LH/RH
and back door lock actuator
(unlock)Door lock and unlock switch (locked →
unlocked)0 → Battery voltage
67 B Ground — —
70 W/B Battery power supply — Battery voltage
PIIA2344E
