INFINITI QX4 2005 Factory Service Manual

EC-170Revision: October 2005

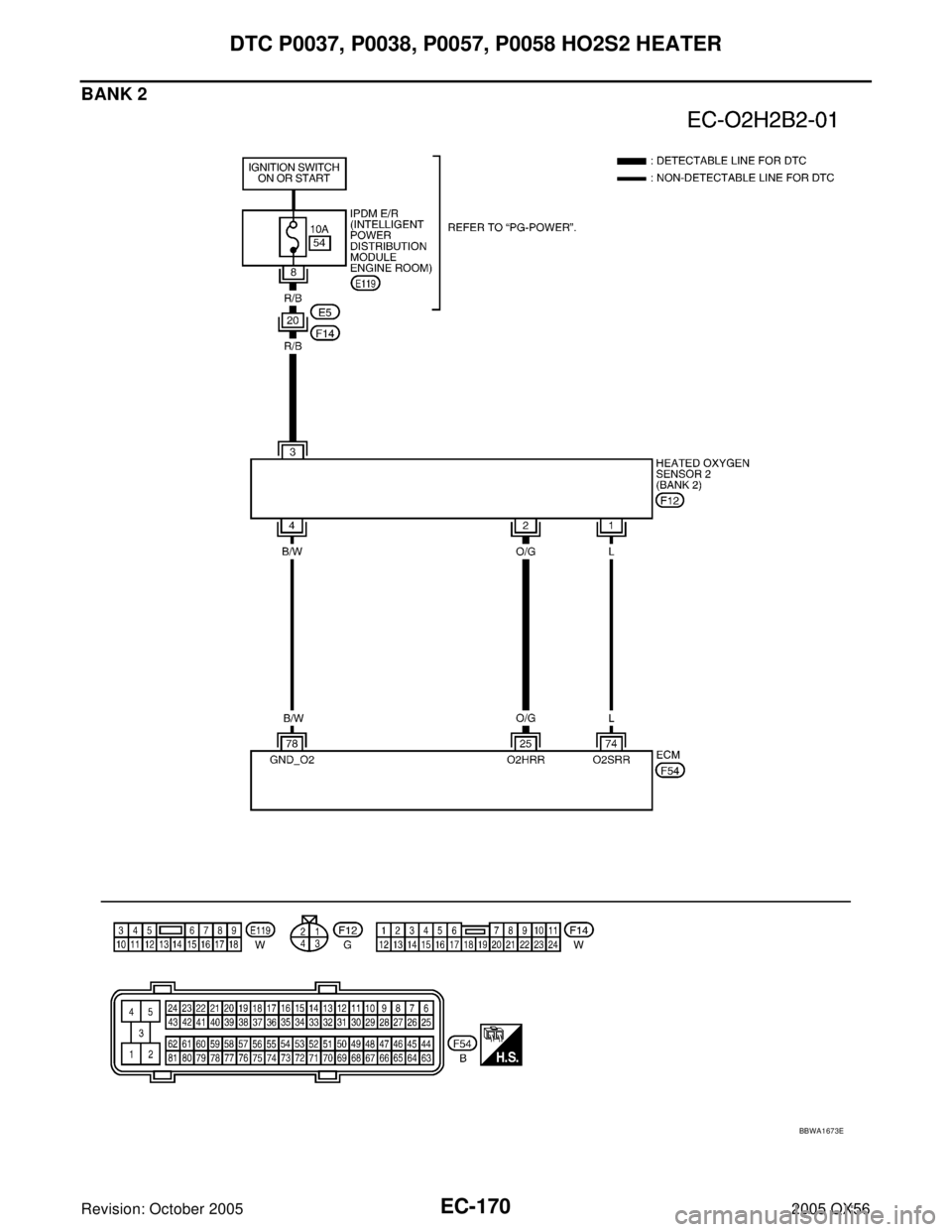

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
2005 QX56
BANK 2
BBWA1673E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-171
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00H0S
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-162, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
25 O/GHeated oxygen sensor 2
heater (bank 2)[Engine is running]

Warm-up condition

Engine speed is below 3,600 rpm after the
following conditions are met.
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.0 - 1.0V
[Ignition switch: ON]

Engine: Stopped
[Engine is running]

Engine speed: Above 3,600 rpm.BATTERY VOLTAGE
(11 - 14V)
BBIA0354E

EC-172Revision: October 2005
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
2005 QX56
2. CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Turn ignition switch ON.
3. Check voltage between HO2S2 terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E5, F14

IPDM E/R connector E119

10A fuse

Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair harness or connectors.
4. CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
BBIA0435E
Voltage: Battery voltage
PBIB0 112 E
DTCTe r m i n a l s
Bank
ECM Sensor
P0037, P0038 6 2 1
P0057, P0058 25 2 2
Continuity should exist.

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-173
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
5. CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to EC-173, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning heated oxygen sensor 2.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-156, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionUBS00H0T
HEATED OXYGEN SENSOR 2 HEATER
1. Check resistance between HO2S2 terminals as follows.
2. If NG, replace heated oxygen sensor 2.
CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationUBS00H0U
HEATED OXYGEN SENSOR 2
Refer to EM-19, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
Terminal No. Resistance
2 and 3 5.0 - 7.0 Ω at 25°C (77°F)
1 and 2, 3, 4
∞ Ω
(Continuity should not exist)
4 and 1, 2, 3
SEF 2 49 Y

EC-174Revision: October 2005
DTC P0101 MAF SENSOR
2005 QX56
DTC P0101 MAF SENSORPFP:22680
Component DescriptionUBS00H0V
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. The mass air flow sensor controls the temperature of the hot
wire to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current supplied to the hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeUBS00H0W
Specification data are reference values.
On Board Diagnosis LogicUBS00H0X
BBIA0355E
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1 See EC-146, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
CAL/LD VALUE

Engine: After warming up

Air conditioner switch: OFF

Selector lever: P or N

No loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW

Engine: After warming up

Air conditioner switch: OFF

Selector lever: P or N

No loadIdle 3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0101
0101Mass air flow sensor circuit
range/performance problemA)A high voltage from the sensor is sent to ECM
under light load driving condition.

Harness or connectors
(The sensor circuit is open or
shorted.)

Mass air flow sensor

EVAP control system pressure
sensor

Intake air temperature sensor
B)A low voltage from the sensor is sent to ECM
under heavy load driving condition.

Harness or connectors
(The sensor circuit is open or
shorted.)

Intake air leaks

Mass air flow sensor

EVAP control system pressure
sensor

Intake air temperature sensor

DTC P0101 MAF SENSOR
EC-175
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC Confirmation ProcedureUBS00H0Y
Perform PROCEDURE FOR MALFUNCTION A first.
If the DTC cannot be confirmed, perform PROCEDURE FOR MALFUNCTION B.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
NOTE:
If engine will not start or stops soon, wait at least 10 seconds with engine stopped (Ignition switch ON) instead
of running engine at idle speed.
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and warm it up to normal operating temperature.
4. Run engine for at least 10 seconds at idle speed.
5. If 1st trip DTC is detected, go to EC-178, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
CAUTION:
Always drive vehicle at a safe speed.
With CONSULT-II
1. Turn ignition switch ON.
2. Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to EC-178, "
Diagnostic Procedure" .
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Check the voltage of “MAS A/F SE-B1” with “DATA MONITOR”.
5. Increases engine speed to about 4,000 rpm.
6. Monitor the linear voltage rise in response to engine speed
increases.
If NG, go to EC-178, "
Diagnostic Procedure" .
If OK, go to following step.
SEF 1 74 Y
SEF 2 43 Y

EC-176Revision: October 2005
DTC P0101 MAF SENSOR
2005 QX56
7. Maintain the following conditions for at least 10 consecutive sec-
onds.
8. If 1st trip DTC is detected, go to EC-178, "
Diagnostic Procedure"
.
Overall Function CheckUBS00H0Z
PROCEDURE FOR MALFUNCTION B
Use this procedure to check the overall function of the mass air flow sensor circuit. During this check, a 1st trip
DTC might not be confirmed.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Select Service $01 with GST.
3. Check the mass air flow sensor signal with Service $01.
4. Check for linear mass air flow sensor signal value rise in
response to increases to about 4,000 rpm in engine speed.
5. If NG, go to EC-178, "
Diagnostic Procedure" .
ENG SPEED More than 2,000 rpm
THRTL SEN 1 More than 3V
THRTL SEN 2 More than 3V
Selector lever Suitable position
Driving locationDriving vehicle uphill (Increased engine load) will help
maintain the driving conditions required for this test.
PBIB0199E
SEF 5 34 P

DTC P0101 MAF SENSOR
EC-177
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Wiring DiagramUBS00H10
BBWA1674E

EC-178Revision: October 2005
DTC P0101 MAF SENSOR
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00H11
1. INSPECTION START
Which malfunction (A or B) is duplicated?
A or B
A >> GO TO 3.
B >> GO TO 2.
2. CHECK INTAKE SYSTEM
Check the following for connection.

Air duct

Vacuum hoses

Intake air passage between air duct to intake manifold
OK or NG
OK >> GO TO 3.
NG >> Reconnect the parts.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
51 W Mass air flow sensor[Engine is running]

Warm-up condition

Idle speed1.0 - 1.3V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm.1.7 - 2.1V
67 B Sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
111 W /BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120BR
BRPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)

DTC P0101 MAF SENSOR
EC-179
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-162, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow (MAF) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between MAF sensor terminal 2 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E2, F32

Harness for open or short between IPDM E/R and mass air flow sensor

Harness for open or short between mass air flow sensor and ECM
>> Repair harness or connectors.
BBIA0354E
BBIA0368E
Voltage: Battery voltage
PBIB11 68 E
