Page 2341 of 3419
LAN-62
[CAN]
CAN SYSTEM (TYPE 2)
Revision: October 20052005 QX56
Case 4
Check harness between driver seat control unit and data link connector. Refer to LAN-80, "Circuit Check
Between Driver Seat Control Unit and Data Link Connector" .
SKIB3459E
PKIA8803E
Page 2342 of 3419
CAN SYSTEM (TYPE 2)
LAN-63
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 5
Check harness between data link connector and IPDM E/R. Refer to LAN-81, "Circuit Check Between Data
Link Connector and IPDM E/R" .
SKIB3460E
PKIA8804E
Page 2343 of 3419
LAN-64
[CAN]
CAN SYSTEM (TYPE 2)
Revision: October 20052005 QX56
Case 6
Check ECM circuit. Refer to LAN-82, "ECM Circuit Check" .
SKIB3461E
PKIA8805E
Page 2344 of 3419
CAN SYSTEM (TYPE 2)
LAN-65
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 7
Check TCM circuit. Refer to LAN-82, "TCM Circuit Check" .
SKIB3462E
PKIA8806E
Page 2345 of 3419
LAN-66
[CAN]
CAN SYSTEM (TYPE 2)
Revision: October 20052005 QX56
Case 8
Check ICC sensor circuit. Refer to LAN-83, "ICC Sensor Circuit Check" .
SKIB3463E
PKIA8807E
Page 2346 of 3419
CAN SYSTEM (TYPE 2)
LAN-67
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 9
Check ICC unit circuit. Refer to LAN-83, "ICC Unit Circuit Check" .
SKIB3464E
PKIA8808E
Page 2347 of 3419
LAN-68
[CAN]
CAN SYSTEM (TYPE 2)
Revision: October 20052005 QX56
Case 10
Check driver seat control unit circuit. Refer to LAN-84, "Driver Seat Control Unit Circuit Check" .
SKIB3465E
PKIA8809E
Page 2348 of 3419
CAN SYSTEM (TYPE 2)
LAN-69
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 11
Check combination meter circuit. Refer to LAN-84, "Combination Meter Circuit Check" .
SKIB3466E
PKIA8810E
Page 2349 of 3419
LAN-70
[CAN]
CAN SYSTEM (TYPE 2)
Revision: October 20052005 QX56

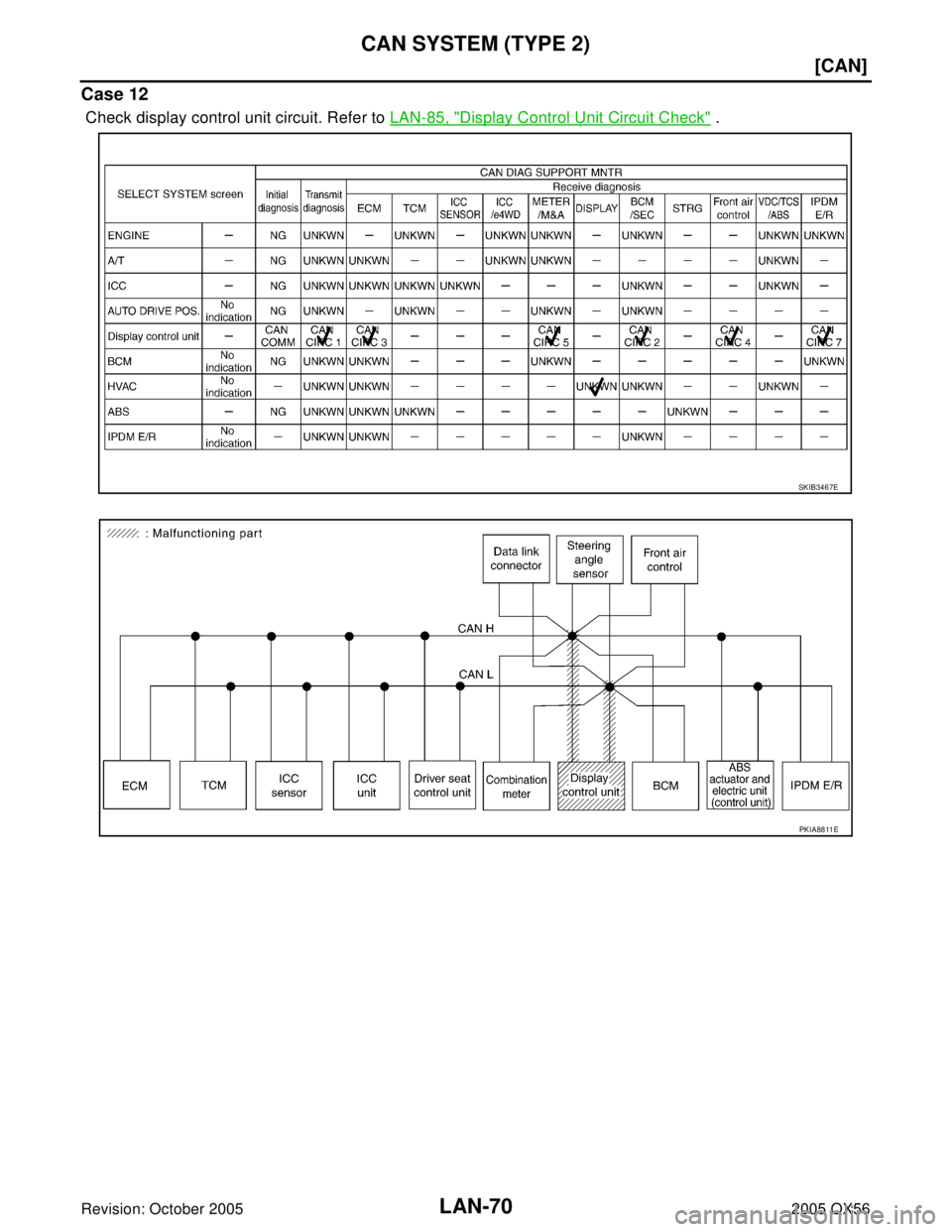

Case 12
Check display control unit circuit. Refer to LAN-85, "Display Control Unit Circuit Check" .
SKIB3467E
PKIA88 11 E
Page 2350 of 3419
CAN SYSTEM (TYPE 2)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56

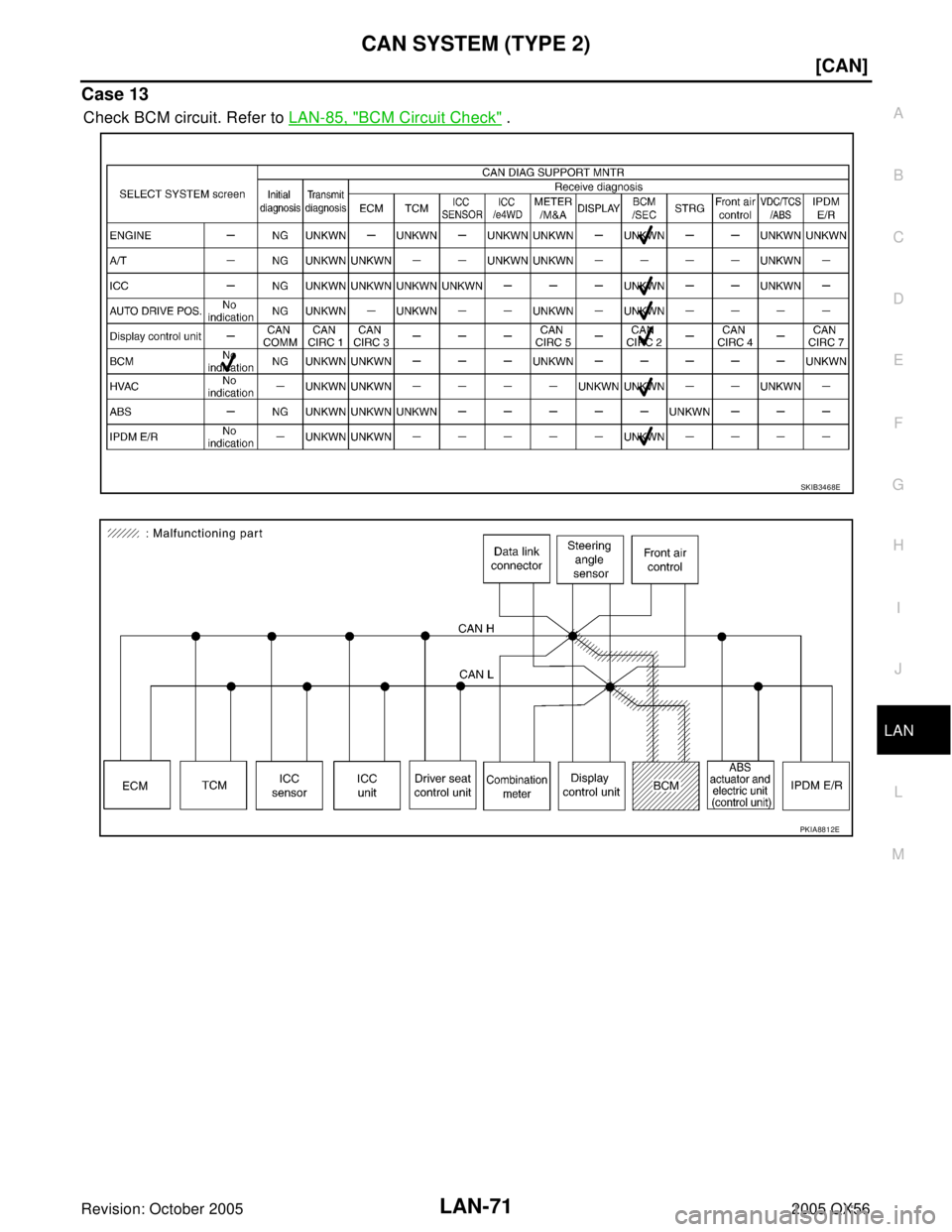

Case 13
Check BCM circuit. Refer to LAN-85, "BCM Circuit Check" .
SKIB3468E
PKIA8812E
