INFINITI QX4 2005 Factory Service Manual PG-36 GROUND CIRCUIT Revision: October 20052005 QX56 BODY HARNESS WKIA3625E

Page 2712 of 3419

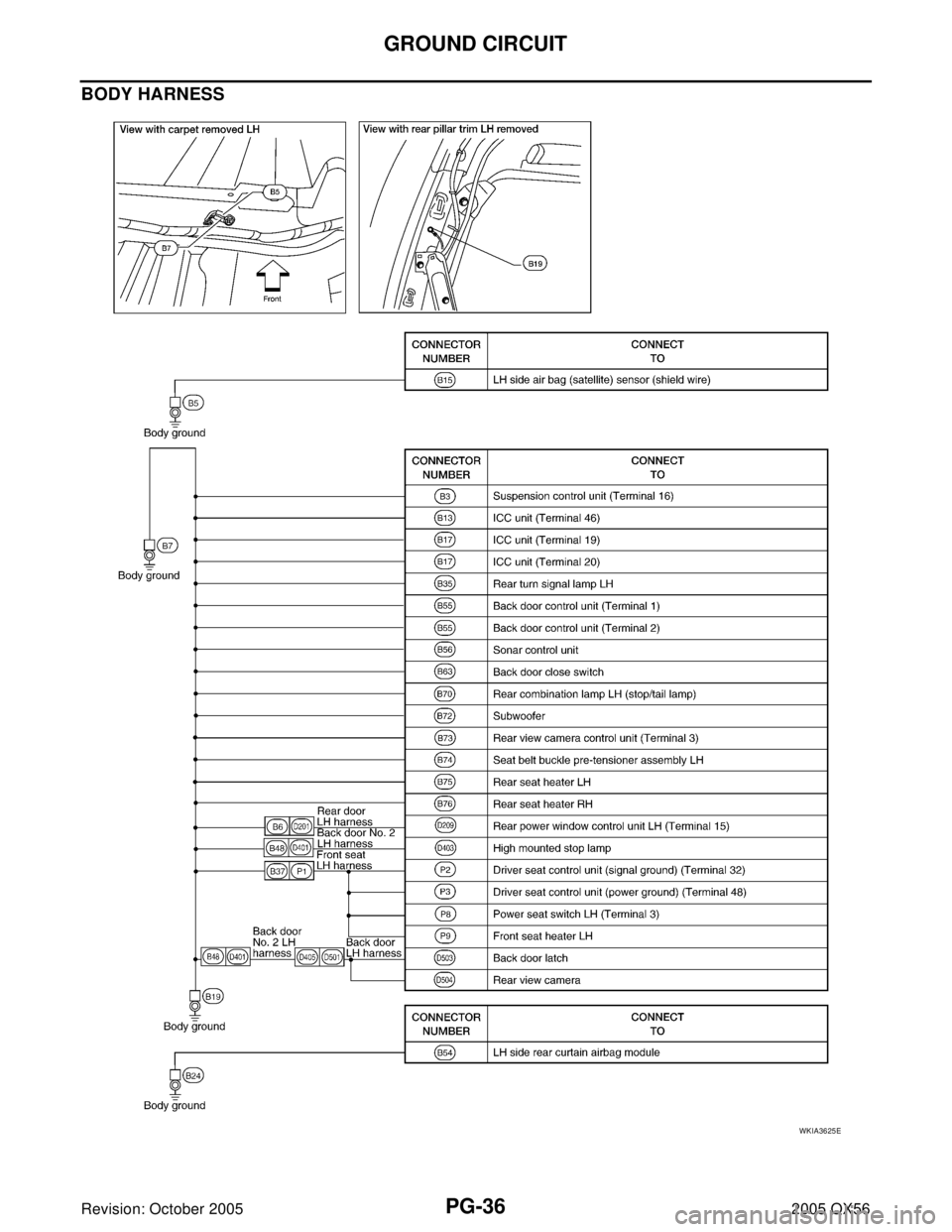

INFINITI QX4 2005 Factory Service Manual GROUND CIRCUIT PG-37 C D E F G H I J L MA B PG Revision: October 20052005 QX56 BODY NO. 2 HARNESS WKIA3626E

Page 2713 of 3419

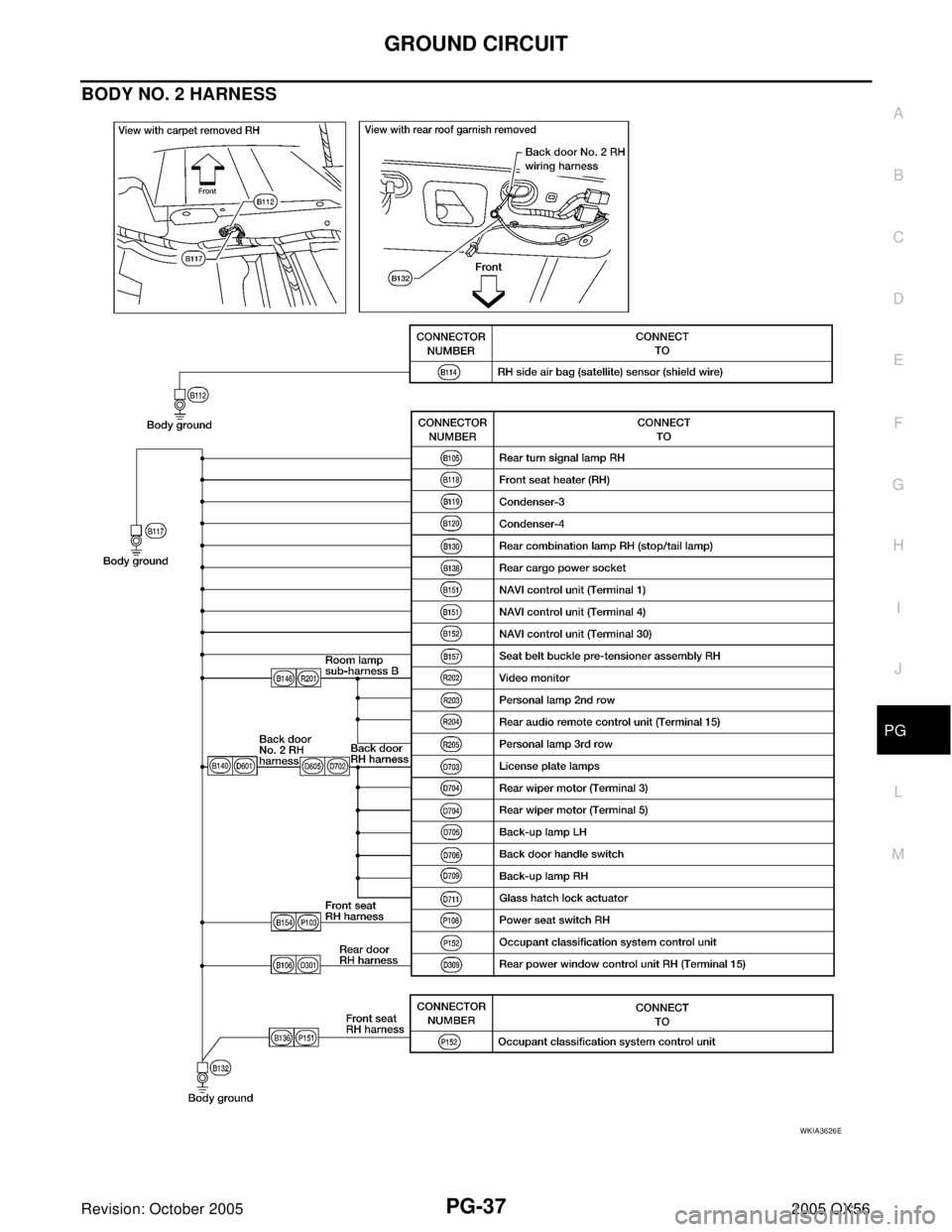

INFINITI QX4 2005 Factory Service Manual PG-38 GROUND CIRCUIT Revision: October 20052005 QX56 BACK DOOR NO. 2 RH HARNESS WKIA3627E

Page 2714 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS PG-39 C D E F G H I J L MA B PG Revision: October 20052005 QX56 HARNESSPFP:24010 Harness LayoutEKS00BND HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map style grid to help l

Page 2715 of 3419

INFINITI QX4 2005 Factory Service Manual PG-40 HARNESS Revision: October 20052005 QX56 OUTLINE WKIA5122E

Page 2716 of 3419

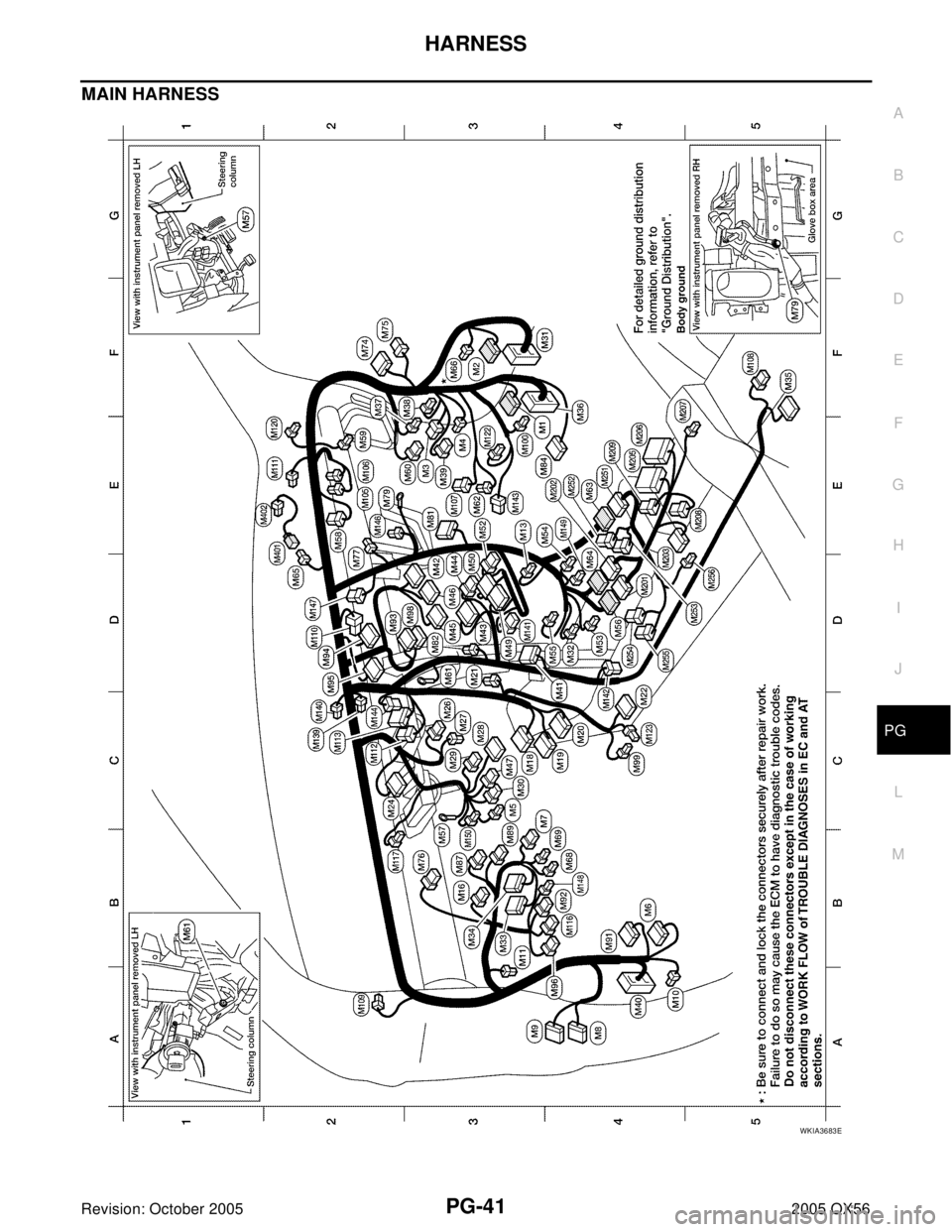

INFINITI QX4 2005 Factory Service Manual HARNESS PG-41 C D E F G H I J L MA B PG Revision: October 20052005 QX56 MAIN HARNESS WKIA3683E

Page 2717 of 3419

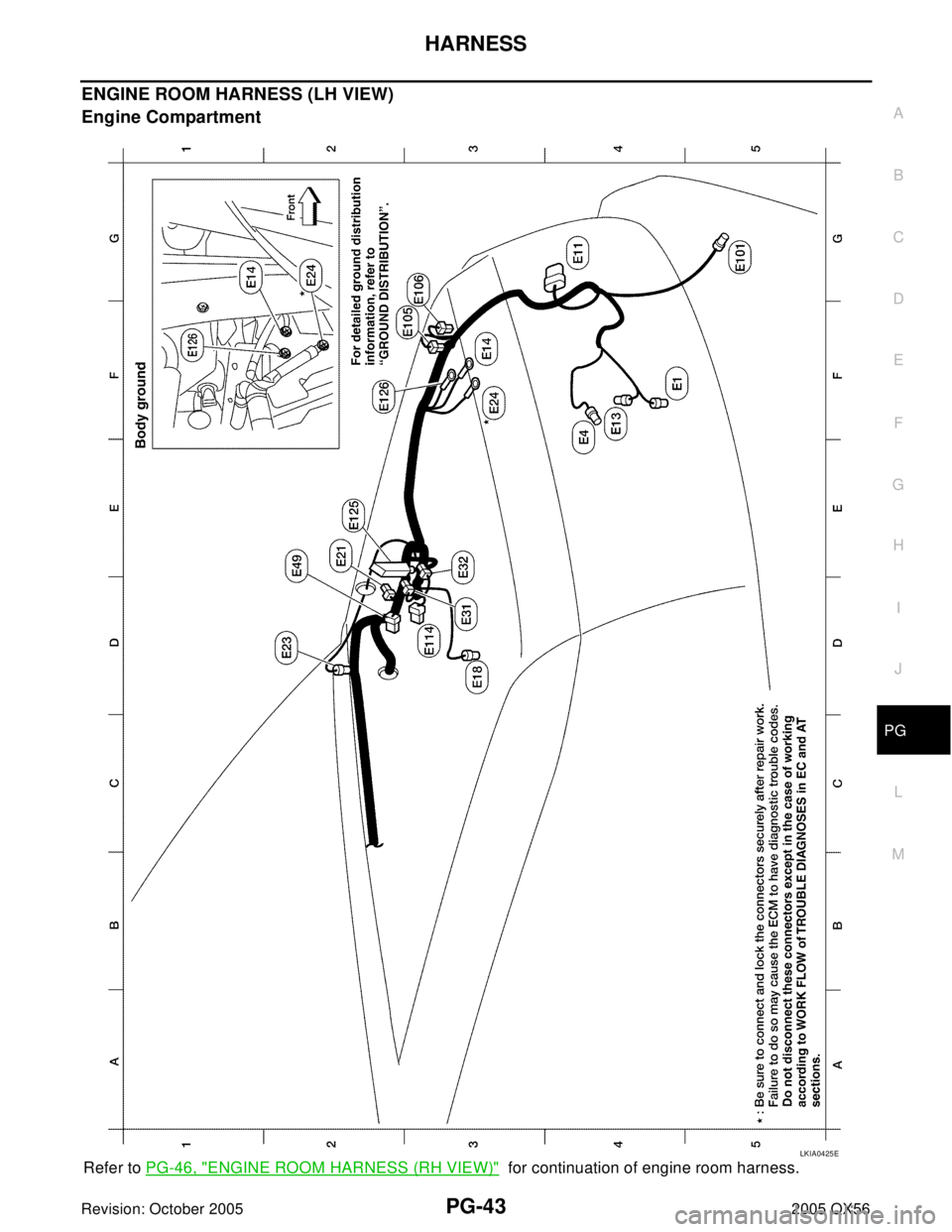

INFINITI QX4 2005 Factory Service Manual PG-42 HARNESS Revision: October 20052005 QX56 WKIA3684E

Page 2718 of 3419

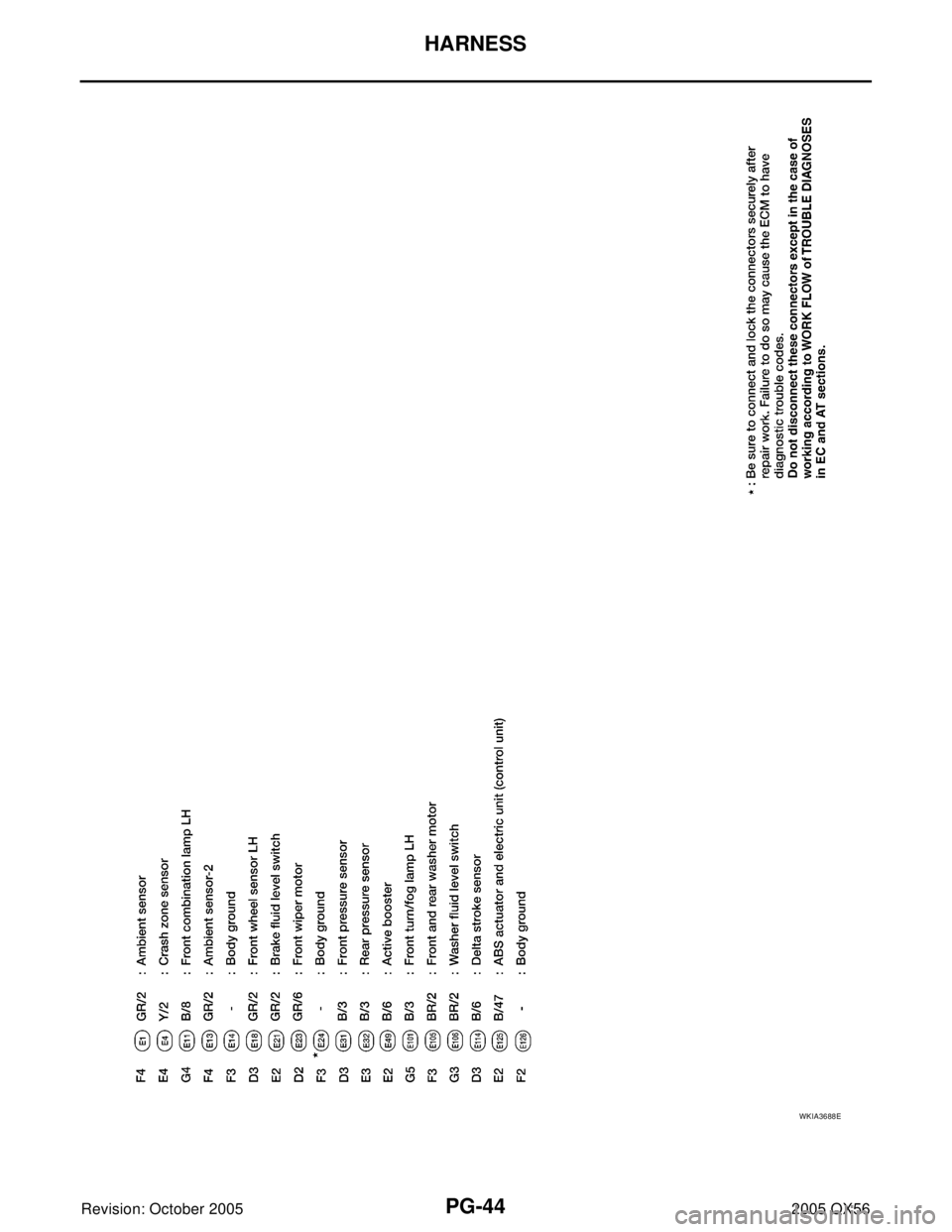

INFINITI QX4 2005 Factory Service Manual HARNESS PG-43 C D E F G H I J L MA B PG Revision: October 20052005 QX56 ENGINE ROOM HARNESS (LH VIEW) Engine Compartment Refer to PG-46, "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine roo

Page 2719 of 3419

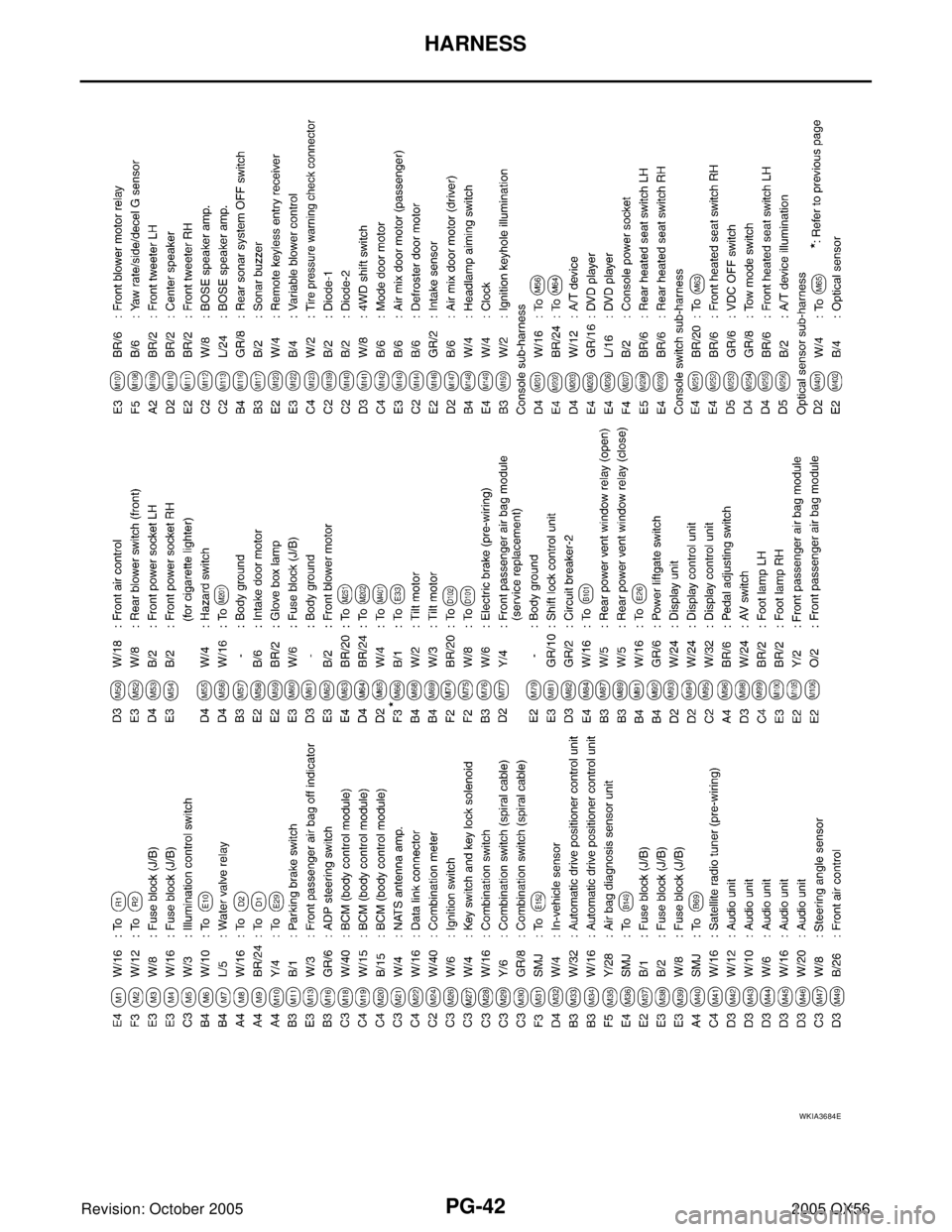

INFINITI QX4 2005 Factory Service Manual PG-44 HARNESS Revision: October 20052005 QX56 WKIA3688E

Page 2720 of 3419

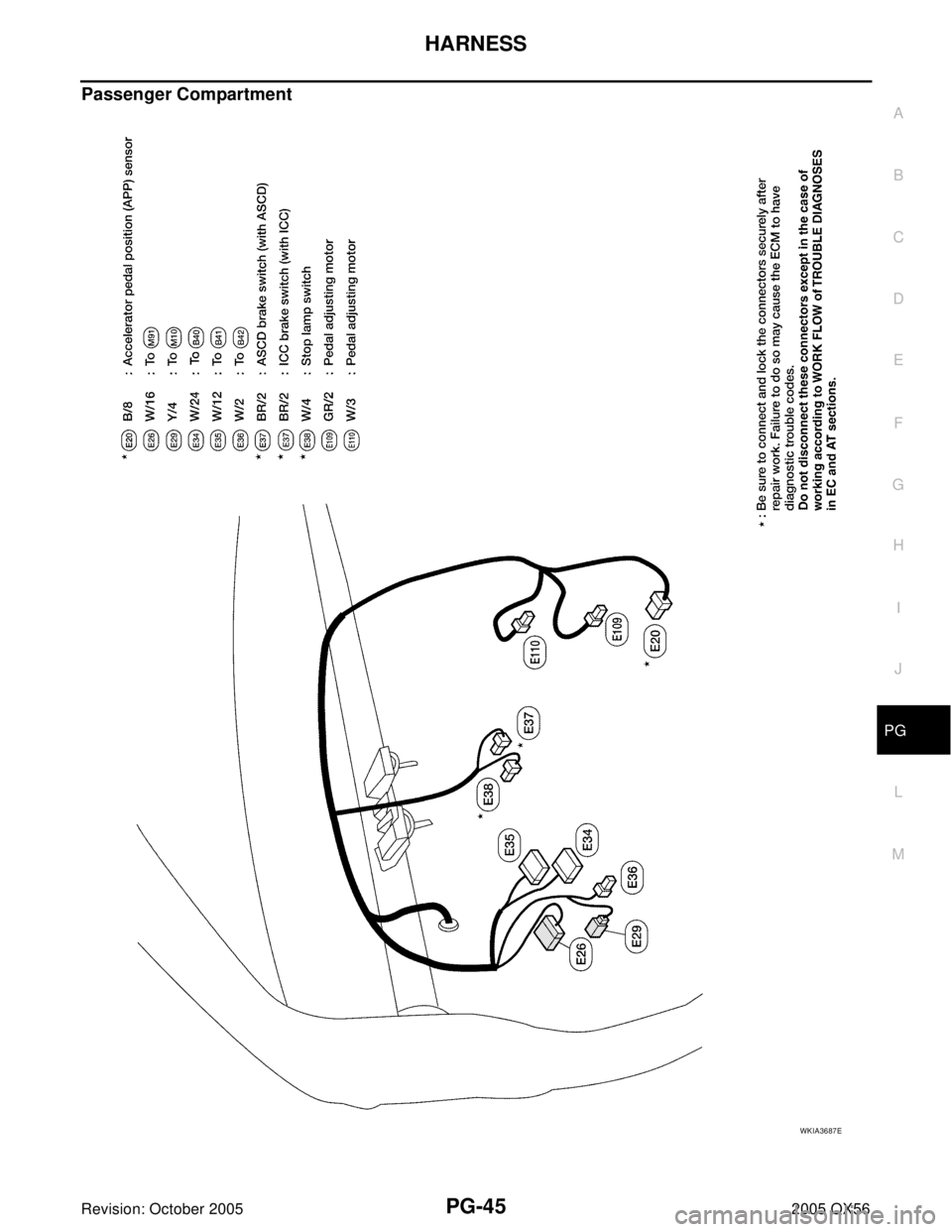

INFINITI QX4 2005 Factory Service Manual HARNESS PG-45 C D E F G H I J L MA B PG Revision: October 20052005 QX56 Passenger Compartment WKIA3687E
