SRS-12
TROUBLE DIAGNOSIS
Revision: October 20052005 QX56

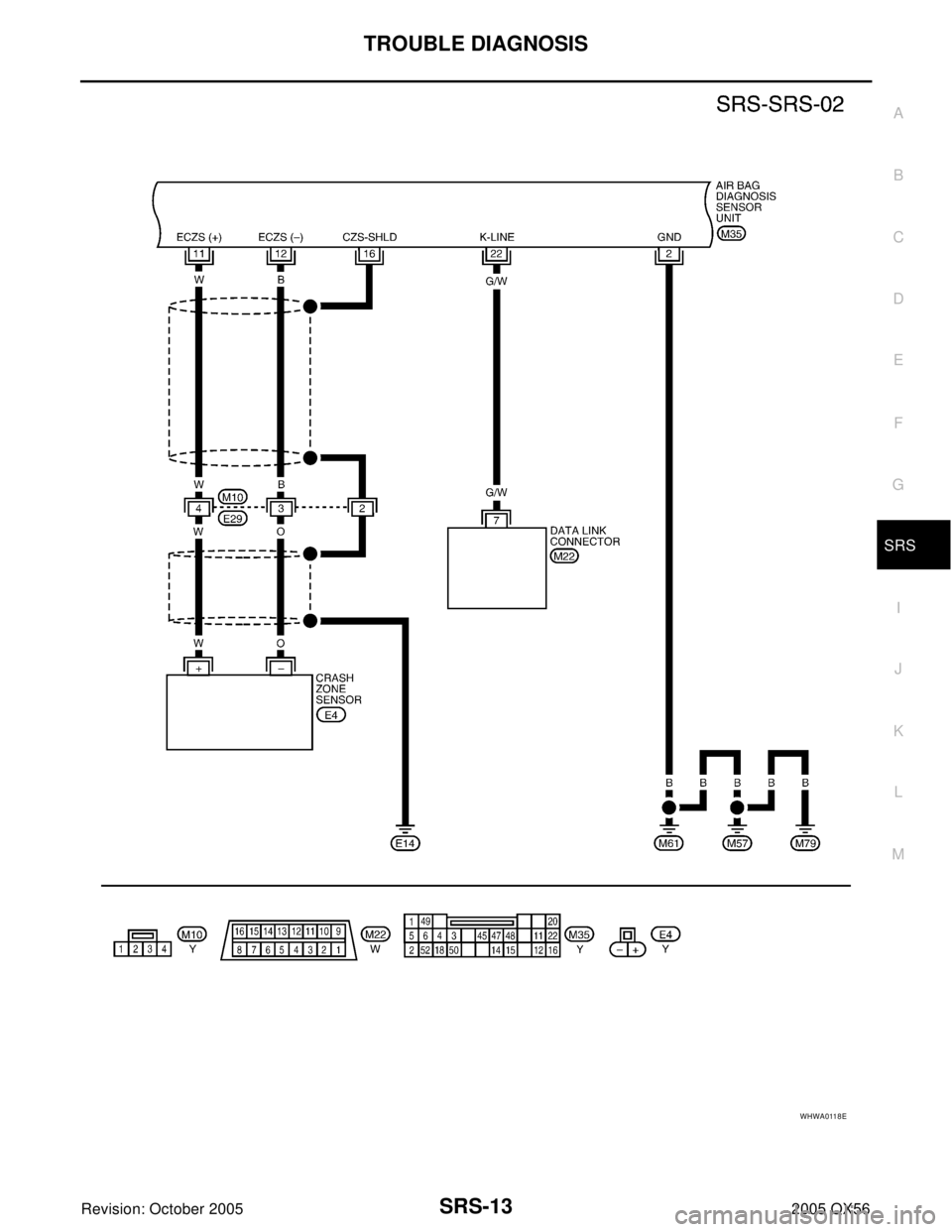

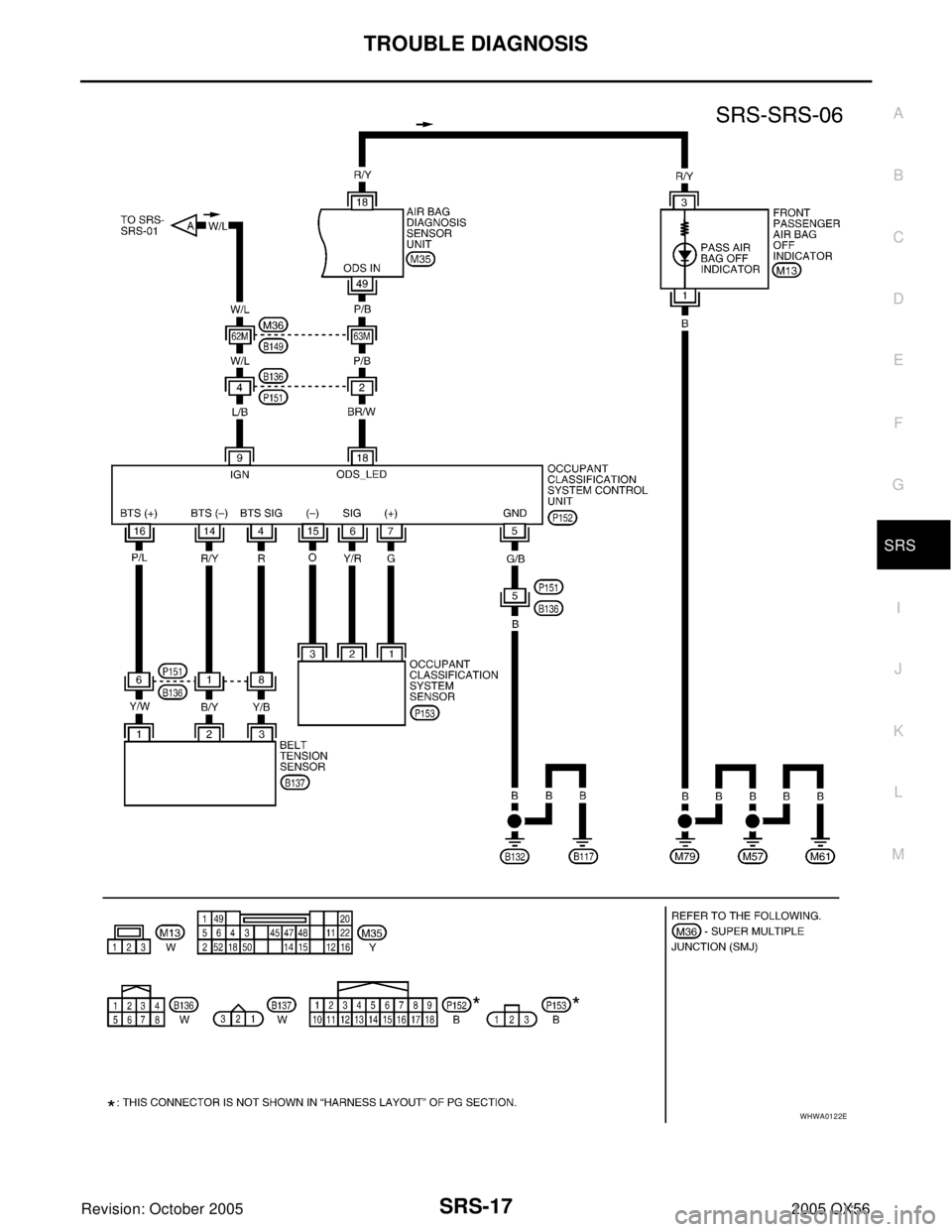

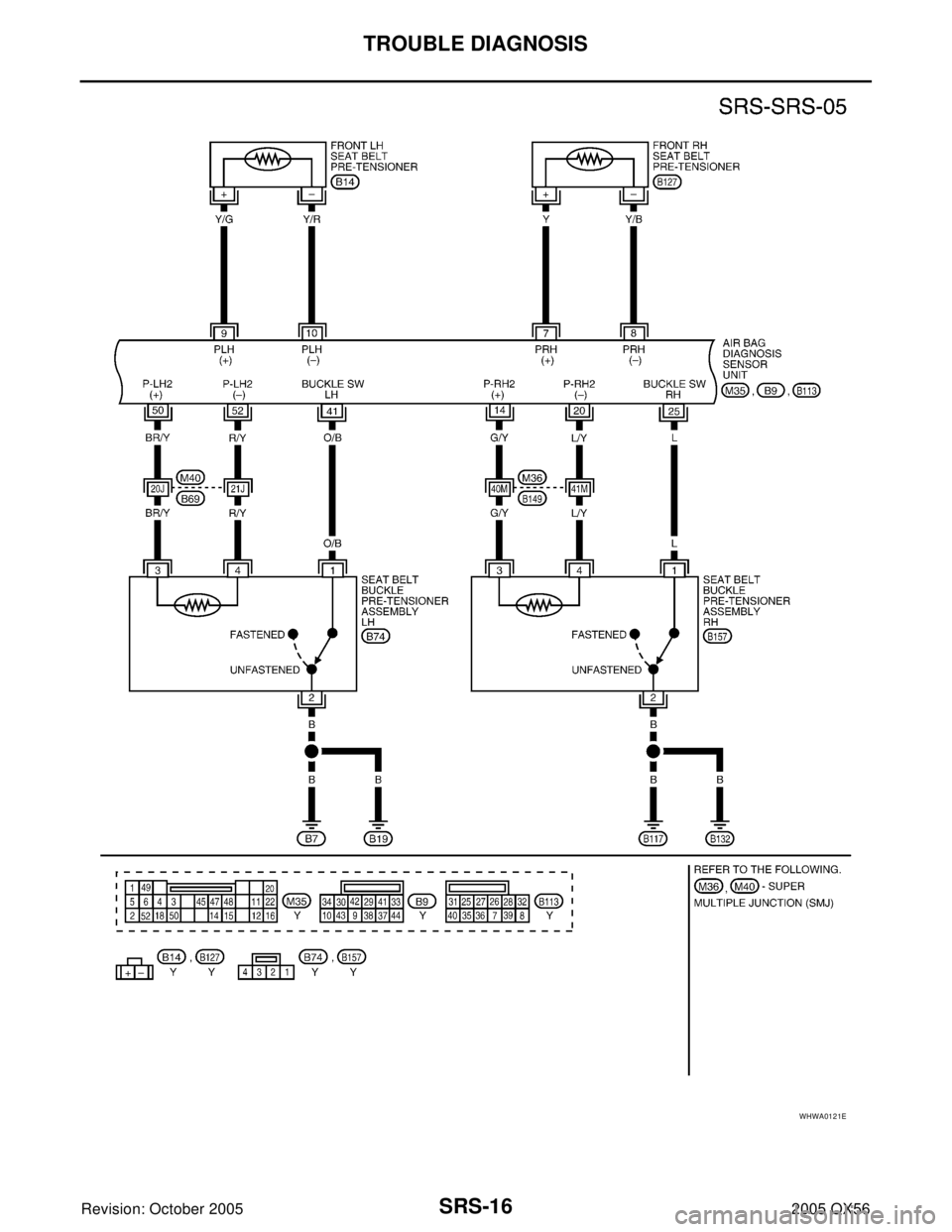

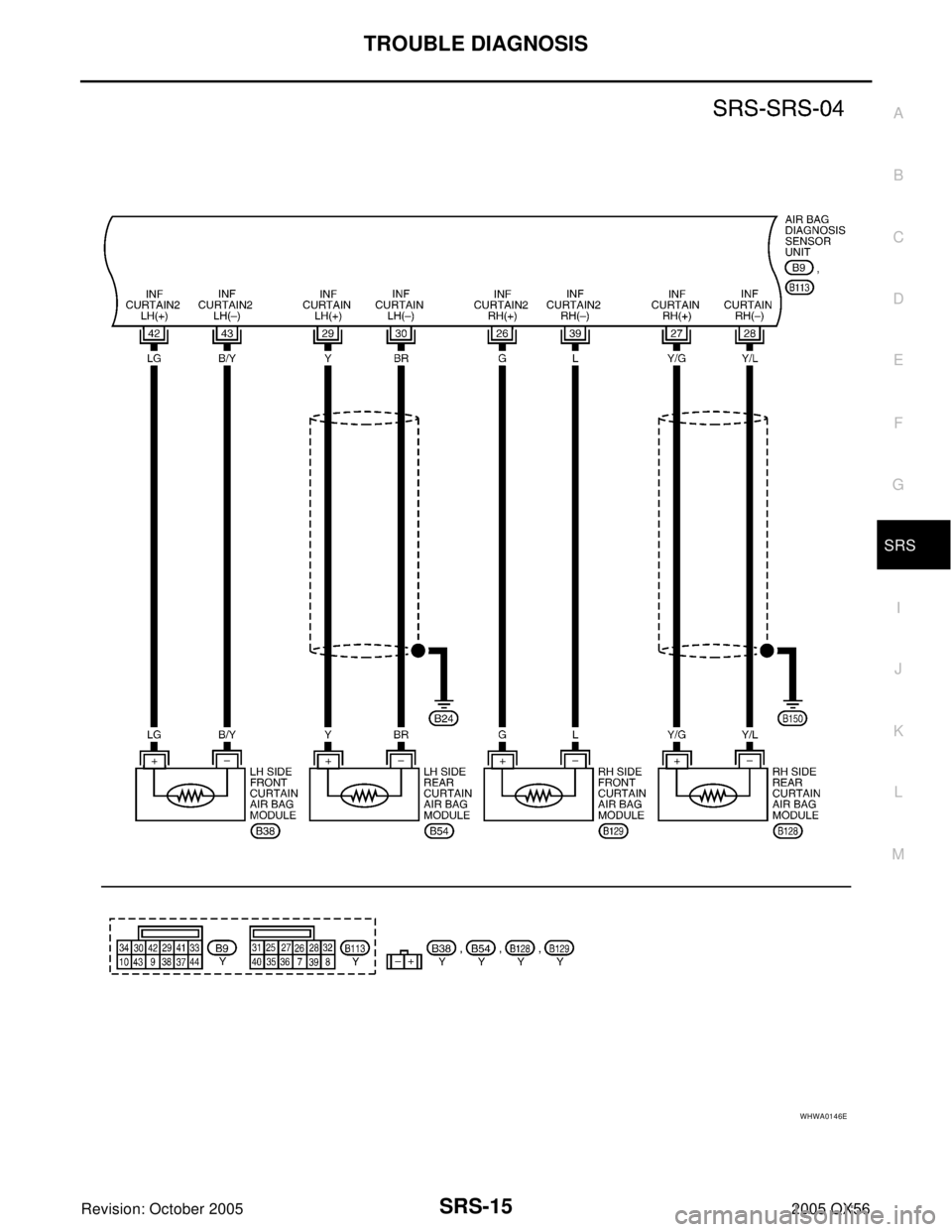

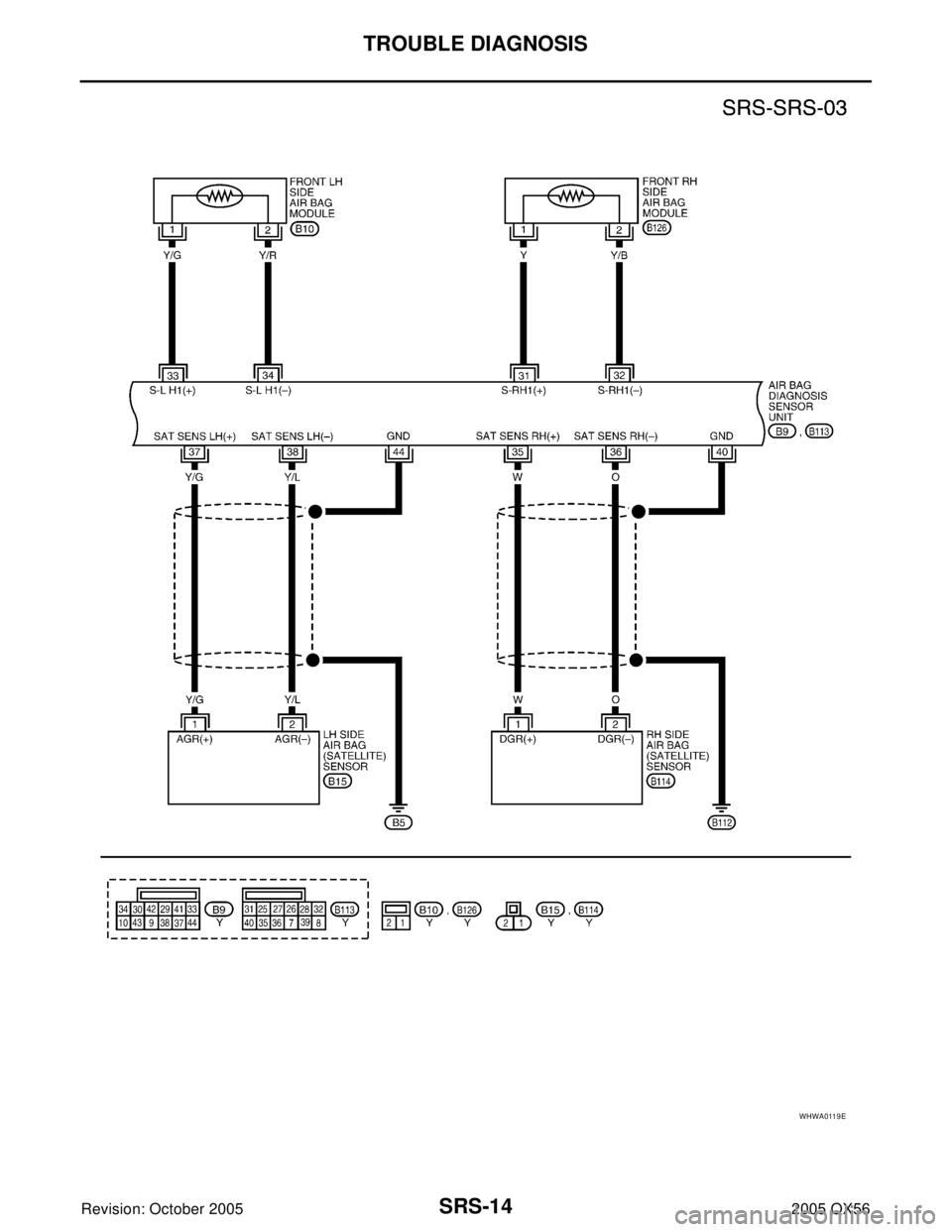

Wiring Diagram— SRS —EHS0016P
WHWA0117E

TROUBLE DIAGNOSIS
SRS-13
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: October 20052005 QX56
WHWA0118E

SRS-14
TROUBLE DIAGNOSIS
Revision: October 20052005 QX56
WHWA0119E

TROUBLE DIAGNOSIS
SRS-15
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: October 20052005 QX56
WHWA0146E

SRS-16
TROUBLE DIAGNOSIS
Revision: October 20052005 QX56
WHWA0121E

TROUBLE DIAGNOSIS
SRS-17
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: October 20052005 QX56
WHWA0122E

SRS-18
TROUBLE DIAGNOSIS
Revision: October 20052005 QX56
CONSULT-II Function (AIR BAG)EHS001BA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II FunctionEHS0016Q
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II
From User Mode to Diagnosis Mode
After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.
AIR BAG diagnostic mode Description
SELF-DIAG [CURRENT]A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requir-
ing repairs.
SELF-DIAG [PAST]Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The
stored results will remain until memory erasing is executed.
TROUBLE DIAG RECORDWith TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.
ECU DISCRIMINATED NO.The air bag diagnosis sensor unit for each vehicle
model is assigned with its own, individual classifi-
cation number. This number will be displayed on
the CONSULT-II screen, as shown. When replac-
ing the air bag diagnosis sensor unit, refer to the
part number for the compatibility. After installation,
replacement with a correct unit can be checked by
confirming this classification number on the CON-
SULT-II screen.
For INFINITI MODEL JA60, the air bag diagno-
sis sensor unit discriminated number assigned
is F62B.
ARS3 66
SRS8 03
SRS8 04

TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: October 20052005 QX56
HOW TO ERASE SELF-DIAGNOSIS RESULTS

“SELF-DIAG [CURRENT]”
A current self-diagnosis result is displayed on the CONSULT-II
screen in real time.
After the malfunction is repaired completely, no malfunction is
detected on “SELF-DIAG [CURRENT]”.

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by
touching “BACK” key of CONSULT-II and select “SELF-DIAG
[PAST]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-
DIAG [PAST]” mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is
not erased, the User mode will continue to show the system
malfunction by the operation of the warning lamp even if
the malfunction is repaired completely.

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.
Self-Diagnosis Function (Without CONSULT-II)EHS0016R

The reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis
mode”.

After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diag-
nosis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
HOW TO CHANGE SELF-DIAGNOSIS MODE
SRS7 01
SRS7 02
SHIA0183E

SRS-20
TROUBLE DIAGNOSIS
Revision: October 20052005 QX56
HOW TO ERASE SELF-DIAGNOSIS RESULTS
After a malfunction is repaired, turn the ignition switch OFF for at least one second, then back ON. Diagnosis
mode returns to the User mode. At that time, the self-diagnostic result is cleared.
SRS Operation CheckEHS0016S
DIAGNOSTIC PROCEDURE 1
Checking SRS Operation Using “AIR BAG” Warning Lamp—User Mode
1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.
2. Compare the SRS air bag warning lamp blinking pattern with the
examples.
BF-1845D

TROUBLE DIAGNOSIS
SRS-21
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: October 20052005 QX56
Warning lamp examples
“AIR BAG” warning lamp operation-User mode- SRS condition Reference item

No malfunction is detected.

No further action is necessary.—

The system is malfunctioning and
needs to be repaired as indicated.Go to SRS-22, "DIAGNOSTIC
PROCEDURE 2" or SRS-38,
"DIAGNOSTIC PROCEDURE 6" .

Air bag is deployed.

Seat belt pre-tensioner is deployed.

Seat belt buckle pre-tensioner
assembly is deployed.Go to SRS-61, "
COLLISION DIAG-
NOSIS" .

Air bag diagnosis sensor unit is mal-
functioning.

Air bag power supply circuit is mal-
functioning.

SRS air bag warning lamp circuit is
malfunctioning.Go to SRS-44, "
Trouble Diagnosis:
“AIR BAG” Warning Lamp Does Not
Tu rn O ff" .

Air bag diagnosis sensor unit is mal-
functioning.

Air bag warning lamp circuit is mal-
functioning.Go to SRS-45, "
Trouble Diagnosis:
“AIR BAG” Warning Lamp Does Not
Tu rn O n" .
SHIA0 011 E
SHIA0012E
SHIA0013E
SHIA0014E
